COATS CHD-6330 Truck Tire Changer, 220V 3 PH, 13" - 27"
- Authorized Online Dealer direct manufacturer relationship
- No Sales Tax outside PA where applicable
- Authorized Dealer Price Match verification required
- Fast Delivery some products may have lead times
- Manufacturer Warranty included with purchase
- Questions? +1 (855) 498-2147

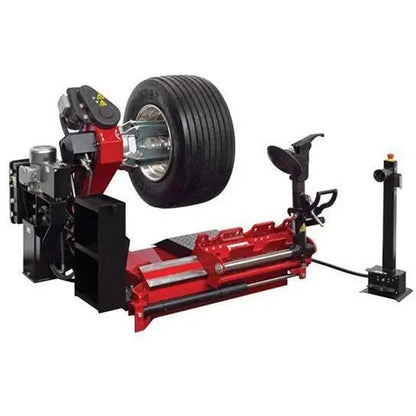

Coats CHD-6330 Heavy-Duty Tire Changer for Truck, Bus, and Commercial Applications
The Coats CHD-6330 is the most compact heavy-duty tire changer available today, engineered for shops servicing tubeless truck and trailer tires as well as small industrial assemblies like skid steers. With a four-jaw self-centering chuck that handles rims from 13" to 27" and tires up to 63" in diameter, this electro-hydraulic changer delivers the versatility and reliability that commercial tire service demands. The portable wired control station lets you work from the optimal angle, while the solid single-piece frame provides the stability needed for wheels up to 3,300 lb. Available in single-phase and three-phase configurations. Backed by Coats' 1-year parts warranty with 90-day labor coverage from a company trusted by shops for over 75 years.
Coats CHD-6330 Features

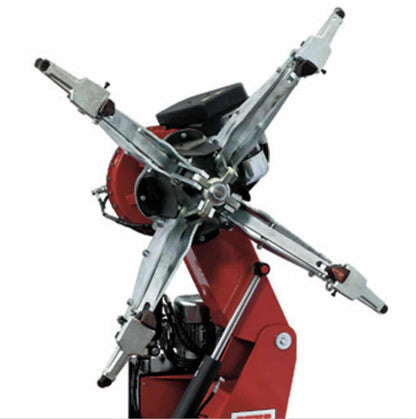

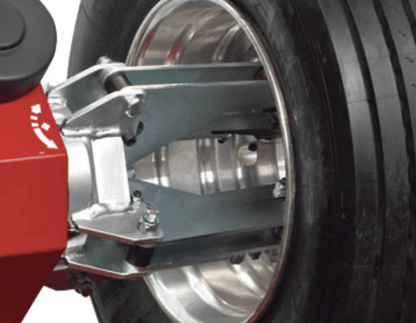

Four-Jaw Self-Centering Chuck
The four-jaw chuck design allows fast and easy clamping of virtually all rim styles including demountable, Dayton style, reverse disc, standard disc, and off-road wheels. Floating jaws automatically match wheel contours for excellent grip and operator safety. Handles rims from 13" to 27" diameter with secure, centered positioning on every clamp.
Compact Single-Piece Frame
The solid, single-piece frame construction provides added capacity and dependability while maintaining the most compact footprint of any heavy-duty tire changer available. At just 69"W x 68.5"D x 50"H, it fits in shops where space is at a premium without sacrificing heavy-duty capability for wheels up to 3,300 lb.

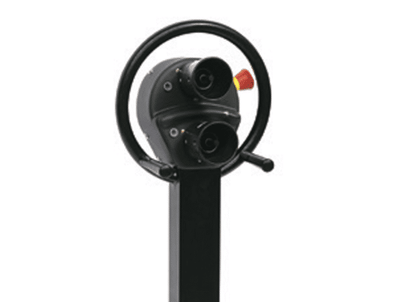

Portable Wired Control Station
The portable control unit lets you work from the best angle at all times, improving efficiency and safety. Controls include a joystick for raising/lowering the chuck arm and moving the tool carriage, a switch for opening/closing the chuck, and a dual pedal for clockwise/counterclockwise rotation with two speed settings.
Electro-Hydraulic Power System
The 2.0 HP hydraulic motor delivers smooth, consistent power for bead breaking and tire manipulation. Multiple safety devices protect operators and equipment: check valves prevent wheel drops if hydraulic lines fail, a pressure relief valve is factory-set at 1,885 PSI, and motor overload protection prevents damage from overheating.
Versatile Bead Breaking System
The pivoting bead breaker disk and hook tool combination handles tubeless truck tires, supersingle assemblies, and tube-type tires. The tool head rotates 180 degrees for optimal positioning, and the manual lever operation gives precise control for even the most stubborn beads on tires up to 63" in diameter.
Single and Three-Phase Power Options
Available in both single-phase (220V, 30 Amp) and three-phase (208-230V, 15 Amp) configurations to match your shop's electrical infrastructure. Three-phase models offer faster chuck rotation speeds of 8-16 RPM compared to 8 RPM on single-phase for increased productivity in high-volume environments.
Coats CHD-6330 Applications
- Commercial Truck Service: Ideal for servicing tubeless truck and trailer tires on Class 6-8 vehicles, delivery trucks, and regional haulers with rims up to 27" diameter.
- Fleet Maintenance Operations: Built for moderate to high-volume shops handling diverse wheel assemblies across mixed fleets including straight trucks, trailers, and vocational vehicles.
- Industrial and Off-Road Equipment: Services small industrial assemblies such as skid steers, telehandlers, and compact construction equipment with off-road style wheels.
- Agricultural Equipment Service: Handles agricultural implement tires and compact tractor assemblies within the 63" diameter and 3,300 lb weight capacity.
- Tire Dealerships and Retreaders: Perfect for tire dealers needing a compact, versatile changer for medium truck and commercial tire service without the footprint of larger machines.
Coats CHD-6330 Specifications
| Specification | Value |
|---|---|
| External Rim Diameter Range | 13" to 27" |
| Maximum Tire Diameter | 63" (1,600 mm) |
| Maximum Tire/Rim Width | 30.5" (780 mm) |
| Maximum Wheel Weight | 3,300 lb (1,500 kg) |
| Specification | Value |
|---|---|
| Hydraulic Motor Power | 2.0 HP (1.5 kW) |
| Chuck Rotation Motor Power | 1.5-2.0 HP (1.1-1.5 kW) |
| Chuck Rotation Speed (3-Phase) | 8-16 RPM |
| Chuck Rotation Speed (1-Phase) | 8 RPM |
| Hydraulic System Pressure | 1,885 PSI (130 bar) |
| Acoustic Pressure Level | Less than 70 dB(A) |
| Specification | Value |
|---|---|
| 3-Phase Power (Part #8006330) | 208-230VAC, 60Hz, 15 Amp |
| 1-Phase Power (Part #80063301PH) | 220VAC, 60Hz, 30 Amp |
| Specification | Value |
|---|---|
| Overall Dimensions (W x D x H) | 69" x 68.5" x 50" (1,753 x 1,740 x 1,270 mm) |
| Machine Weight with Accessories | 1,245 lb (565 kg) |
| Shipping Weight | 1,390 lb (630 kg) |
Coats CHD-6330 Installation Requirements
Electrical Requirements
3-Phase: 208-230VAC, 60Hz, 15 Amp service with proper grounding and overcurrent protection. 1-Phase: 220VAC, 60Hz, 30 Amp service. A licensed electrician must perform all electrical connections and verify proper voltage before operation.
Concrete Foundation
Anchoring: Requires installation on leveled concrete floor at least 8" (20 cm) thick with minimum B25 quality concrete per DIN 1045 standards. Anchor bolts must extend at least 4.9" into concrete slab. Floor anchoring is required when servicing wheels over 2,204 lb.
Space Requirements
Work Area: Minimum 98.4" x 98.4" (2,500 x 2,500 mm) for safe operation. Maintain at least 27.5" clearance from walls on sides and 39.3" at front. Floor must be level within 0.25% grade. The machine footprint is 69"W x 68.5"D x 50"H.
Environment
Operating Conditions: Temperature range 32°F to 131°F (0°C to 55°C). Relative humidity 30-95% without condensation. If installed outdoors, must be protected by roofing against rain. Not rated for explosive atmospheres.
What's Included with the Coats CHD-6330
- Coats CHD-6330 Heavy-Duty Tire Changer
- Four-jaw self-centering chuck with floating jaws
- Portable wired control station with joystick, switch, and dual pedal
- Bead breaking disk
- Hook tool for demounting
- Sliding ramp/platform for wheel positioning
- Standard tool kit
- Operating and maintenance manual
Optional Accessories: Tubeless roller (#89218165), G-clamp for alloy wheels (#89299271), clamping protector set for alloy wheels (#89234826), skidder clamp (#89236972), bead lifting guide bar for agricultural tires (#89299269), lock ring holder for multi-piece wheels (#7109343).
Not Included: Electrical wiring and connections, concrete anchoring hardware, forklift or crane for installation, tire lubricant, compressed air supply.
Coats CHD-6330 Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. RATZ/DAS coverage available for rural area deliveries. Additional charges apply for liftgate service and residential delivery. Lead Time: Ships within 3-5 business days. International: Contact sales for quote.
Delivery Requirements
Unloading: Forklift required. Equipment ships on wooden crate with pallet at approximately 1,390 lb shipping weight. Delivery Type: Curbside delivery standard. Inspection: Inspect all packaging for damage before signing BOL. Sign as damaged if any issues are present.
Returns
Returns accepted within 30 days of delivery. Equipment must be unopened, in original packaging, with receipt. 20% restocking fee applies. Buyer responsible for return freight costs. No COD orders accepted.
Coats CHD-6330 Warranty
Coats Heavy-Duty Tire Changer Limited Warranty
All Coats heavy-duty tire changers are warranted to be fit for normal use and free from defects in materials and workmanship:
- 1 Year: Parts coverage for defects in materials and workmanship
- 90 Days: Labor and on-site service charges
Requirements: Warranty commences on date of delivery to first retail buyer or date of first use, whichever is earlier. Does not cover misuse, abuse, neglect, unauthorized modifications, or failures due to air system contamination. Air-operated components require clean, dry air supply. Wear items including wheel protectors, boots, nylon mount/demount heads, drive belts, and bead loosener pads are excluded.
Warranty Service: Call 1-800-688-9240 (US) or 1-877-801-1405 (Canada)
Documents
Click to open in a new tab.
Questions About the Coats CHD-6330?
Our equipment specialists can help with installation planning, electrical requirements, and product selection for your shop.
Coats CHD-6330 FAQ
What rim sizes can the CHD-6330 handle?
The Coats CHD-6330 handles external rim diameters from 13" to 27". The four-jaw chuck accommodates virtually all rim styles including demountable, Dayton style, reverse disc, standard disc, and off-road wheels. The floating jaw design automatically matches wheel contours for secure clamping across this range.
What is the maximum tire size the CHD-6330 can service?
The CHD-6330 handles tires up to 63" in diameter and 30.5" in width. Maximum wheel weight capacity is 3,300 lb (1,500 kg). This makes it ideal for tubeless truck and trailer tires, supersingle assemblies, and small industrial equipment like skid steers.
What are the electrical requirements?
The CHD-6330 is available in two configurations. The three-phase model (Part #8006330) requires 208-230VAC, 60Hz, 15 Amp service. The single-phase model (Part #80063301PH) requires 220VAC, 60Hz, 30 Amp service. Both require proper grounding and overcurrent protection. A licensed electrician must perform all electrical connections.
What floor requirements are needed for installation?
The CHD-6330 requires a leveled concrete floor at least 8" (20 cm) thick with minimum B25 quality concrete per DIN 1045 standards. Anchor bolts must extend at least 4.9" into the concrete slab. Floor anchoring is required when servicing wheels weighing more than 2,204 lb. The floor must be level within 0.25% grade.
How much space is needed for the CHD-6330?
The machine footprint is 69"W x 68.5"D x 50"H. However, the minimum work area requirement is 98.4" x 98.4" (2,500 x 2,500 mm) to allow safe operation. Maintain at least 27.5" clearance from walls on the sides and 39.3" at the front.
What is the difference between single-phase and three-phase models?
Both models have identical capacity and features. The primary differences are electrical requirements and chuck rotation speed. The three-phase model offers faster chuck rotation at 8-16 RPM compared to 8 RPM for single-phase, which increases productivity in high-volume shops. Three-phase also requires lower amperage (15A vs 30A).
What warranty coverage does the CHD-6330 have?
The Coats CHD-6330 is backed by a 1-year parts warranty covering defects in materials and workmanship, plus 90 days of labor and on-site service coverage. Warranty begins on the delivery date or first use date, whichever is earlier. Wear items and failures from misuse or air system contamination are excluded.
Can the CHD-6330 handle tube-type tires?
Yes. The CHD-6330 is designed for both tubeless and tube-type tires. The operating manual includes specific procedures for tube-type tire demounting and mounting. When working with tube tires, stop bead breaking disk movement as soon as the bead loosens to avoid damaging the tube inflation valve.
What safety features are built into the CHD-6330?
The CHD-6330 includes multiple safety systems: check valves on hydraulic lines to prevent wheel drops if lines fail, a pressure relief valve factory-set at 1,885 PSI to limit hydraulic pressure, pump motor overload protection to prevent overheating damage, and an emergency stop button on the portable control unit.
What accessories are available for the CHD-6330?
Optional accessories include: tubeless roller (#89218165), G-clamp for alloy wheels (#89299271), clamping protector set for alloy wheels (#89234826), skidder clamp (#89236972), bead lifting guide bar for agricultural tires (#89299269), and lock ring holder for multi-piece wheels (#7109343). These are available separately.
How is the CHD-6330 shipped?
The CHD-6330 ships via freight on a wooden crate with pallet at approximately 1,390 lb shipping weight. Free freight shipping is included to commercial addresses in the 48 contiguous states. A forklift is required for unloading. Inspect all packaging before signing the bill of lading and note any damage.
How does the CHD-6330 compare to the CHD-9041 and CHD-9551?
The CHD-6330 is the most compact model in the CHD series, ideal for shops with moderate to high volume and space constraints. The CHD-9041 handles larger rims (14" to 46") and tires up to 90.5" diameter for agricultural applications. The CHD-9551 is the top-of-line model handling tires up to 95" diameter with the most automated features including optional wireless remote.
