Coats 80C Air Center Clamp Tire Changer for Car and Light Truck
Coats 80C Center Clamp Tire Changer for High-Volume Car and Light Truck Service
The Coats 80C Center Clamp Tire Changer delivers the speed of a swing-arm machine with the wheel protection of a center clamp - engineered specifically for high-volume, high-duty-cycle tire shops that demand reliability and productivity every shift. Handling rim diameters from 12" to 30" and tires up to 50" in diameter on wheels up to 15" wide, the 80C services the full range of passenger car and light truck applications. It ships in two configurations: an electric model (80080CEH220) powered by a 220V, 2 HP motor and an air model (80080CAH3) driven by a 1.5 HP, 110-175 psi air motor. The machine is backed by Coats' industry-leading 3-year parts / 6-month labor warranty (with a 5-year pro-rated transmission warranty), reflecting over 75 years of trusted manufacturing excellence.
Coats 80C Center Clamp Tire Changer Features

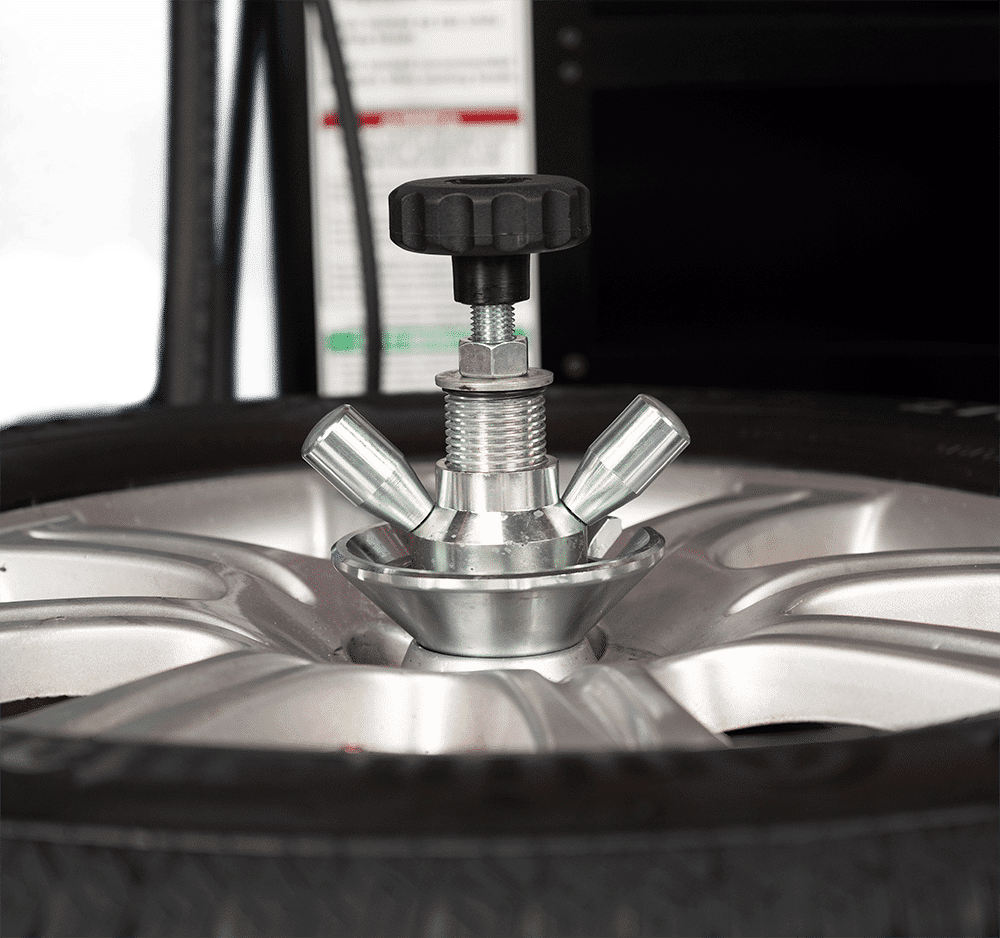

Center Locking Clamp Design
The 80C uses a robust center locking mechanism engineered with only two moving parts for fast, repeatable operation with minimal maintenance. The center clamp system eliminates traditional rim clamp jaws from touching the wheel flange, dramatically reducing the risk of metal-to-metal contact and cosmetic damage on alloy and steel wheels. Technicians can lock and release the wheel quickly, keeping cycle times tight even during peak volume periods.
RoboRoller Powered Assist
The RoboRoller is an air-powered, articulating roller arm that delivers direct, controlled pressure on the tire bead during mounting. By holding the bead down in the drop center, it prevents the tire from rolling back over the mount/demount tool - a critical advantage when servicing stiff low-profile, performance, and run-flat tires. The result is faster, lower-effort mounting with less risk of tool slippage or wheel scratching.

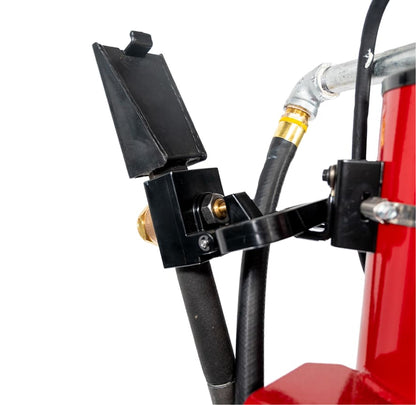

Standard Auxiliary Bead Sealer (ABS)
Unlike competitive machines that offer bead sealers only as an optional upgrade, the 80C includes an Auxiliary Bead Sealer as standard equipment. The ABS concentrates airflow precisely where it is needed on the tire assembly, seating beads more efficiently than tower-only inflation systems. This targeted approach also reduces wear on internal air components by eliminating the need for excessive blasting, lowering long-term maintenance costs.
High-Volume Upgraded Chassis
The 80C's completely redesigned chassis is built to withstand the demands of shops that run dozens of tire changes per day, every day. Heavier structural members, improved welds, and reinforced attachment points all contribute to a machine that resists fatigue and vibration over years of hard use. The bead loosener also features point-of-use hand controls that keep the operator in direct line of sight with the tire, reducing wheel damage risk during the loosening operation.
Swing-Away Arm with Robo-Arm Vertical Stroke
The mount/demount arm swings fully away from the turntable for unobstructed wheel loading and unloading, a major ergonomic advantage in high-throughput environments. The integrated Robo-Arm provides 18" of automated vertical stroke, allowing the tool head to follow the tire bead through its full travel without manual repositioning. This combination of swing-away access and powered vertical movement significantly cuts per-tire labor time.
Generous Air Tower and Dual Gauges
The 80C's air tower holds 5.4 gallons of bead seating volume for reliable one-shot bead drops even on large light truck tires. An inflation gauge (0-60 psi) and a separate air supply gauge (0-300 psi) are both mounted for convenient at-a-glance monitoring. The electric model's 220V, 60 Hz, 14-amp, 2 HP motor delivers consistent torque on every rotation regardless of shop air pressure fluctuations.
Coats 80C Center Clamp Tire Changer Applications
- High-Volume Retail Tire Shops: The 80C's heavy-duty chassis and fast center clamp mechanism are engineered for shops processing high daily ticket counts, where machine downtime or slow cycle times directly impact revenue.
- Dealership Service Departments: New-car dealerships regularly encounter low-profile performance tires and large-diameter alloy wheels that demand careful handling. The center clamp design and RoboRoller protect customer wheels while maintaining the throughput a dealer service lane requires.
- Independent Full-Service Auto Repair Shops: For shops handling everything from economy sedans to light-duty trucks, the 80C's 12"-30" rim diameter range and 50" max tire diameter cover the full spectrum of passenger and light truck fitments without requiring multiple machines.
- Fleet Maintenance Operations: Commercial fleet operations servicing vans, delivery trucks, and work vehicles benefit from the 80C's robust construction and minimal-maintenance center clamp system, reducing unplanned downtime in busy fleet bays.
- Tire and Wheel Specialty Shops: Shops focused on performance, custom, and aftermarket fitments will appreciate the 80C's ability to handle stiff sidewall tires, including run-flats, that defeat lesser machines, along with protection features that preserve expensive custom alloy finishes.
Coats 80C Center Clamp Tire Changer Specifications
| Specification | Value |
|---|---|
| Wheel Type | Alloy and Steel - Car and Light Truck |
| Rim Diameter (External) | 12" - 30" |
| Maximum Tire Diameter | 50" |
| Maximum Rim Width | 15" |
| Bead Loosening System | Hand Control, Up to 14" Wide |
| Wheel Clamping System | Center Clamp with Manual Lock |
| Specification | Value |
|---|---|
| Mount/Demount Mechanism | Swing Away for Better Access and Durability |
| Helper Devices | Robo-Arm (18" Automated Vertical Stroke), RoboRoller |
| Bead Seating Air Volume | 5.4 Gallons in Tower |
| Inflation Gauge | 0 - 60 psi |
| Air Supply Gauge | 0 - 300 psi |
| Specification | Value |
|---|---|
| Electric Drive System (Electric Model) | 2 HP Motor, 220V, 60 Hz, 14 Amp |
| Air Drive System (Air Model) | 1.5 HP Air Motor, 110 - 175 psi, 15 scfm |
| Specification | Value |
|---|---|

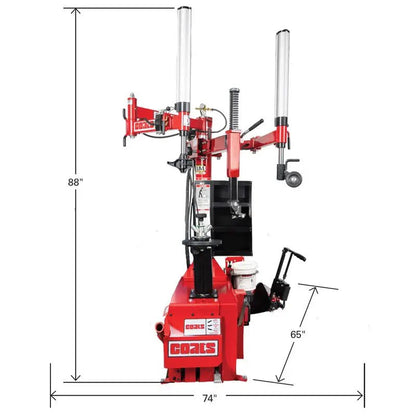

| Footprint (W x H x D) | 74" W x 88" H x 65" D |
| Shipping Weight | 700 lb |
| Model | Part Number |
|---|---|
| Air Model | 80080CAH3 |
| Electric Model (2 HP, 220V) | 80080CEH220 |
Coats 80C Center Clamp Tire Changer Video
Coats 80C Center Clamp Tire Changer Installation Requirements
Electrical Requirements - Electric Model
Power: The electric model (80080CEH220) requires a dedicated 220V, 60 Hz, 14-amp single-phase circuit. A licensed electrician must install, verify, and certify the electrical supply prior to machine commissioning. The circuit must be properly grounded and protected with an appropriately rated breaker. The air model (80080CAH3) requires no electrical connection beyond a standard shop air supply.
Air Supply Requirements - Air Model
Air Pressure: The air model requires a clean, dry compressed air supply of 110-175 psi at 15 scfm at the machine inlet. Air-operated components must be supplied with clean, dry, uncontaminated air - failures caused by moisture, rust, or foreign debris are not covered under warranty. An inline filter-regulator-lubricator (FRL) unit is strongly recommended upstream of the machine.
Space Requirements
Machine Footprint: 74" W x 88" H x 65" D. Sufficient clear working space around all four sides is required for safe wheel loading, arm swing, and technician access. Plan for adequate clearance in front of the machine for the swing-away arm travel and for safe movement of large tire/wheel assemblies during service.
Professional Installation
Professional installation by a factory-trained technician is strongly recommended and is included when purchasing through authorized Coats distributors. Customers must have the machine placed in its final position with all required electrical or air connections ready before the installation technician arrives. Improper installation, unauthorized modifications, or use with contaminated air supplies will void the applicable warranty coverage.
What's Included with the Coats 80C Center Clamp Tire Changer
- Coats 80C Center Clamp Tire Changer (air model 80080CAH3 or electric model 80080CEH220)
- Auxiliary Bead Sealer (ABS) - PN 85606545
- Bead Loosener Shoe Socks (2) - PN 8183606
- Paste Lube Bracket and Brush - PN 85009048
- Protection Cones for Center Lock (2) - PN 83019057
- Plastic Grey High-Spoke Duckhead Mount/Demount Tool - PN 8184432
- Duckhead Mount/Demount Tool Inserts (2) - PN 8182961
- Nylon Lift Tool Socks (10) - PN 85000783
- Anti-Rotation Extension Pin - PN 83031335
- Light Truck Cone Kit (5.86" Center Bore) - PN 83032475
- Rubber Protection Pads (2) - PN 89231517
- Premium Storage Cabinet - PN 85610105
Optional Accessories: Reverse Mount Adapter (PN 85612559), Gray High-Spoke Duckhead Mount/Demount Tool 25-Pack (PN 85000372), Manual Drop Center Tool (PN 8435685), Point-of-Use Lift System (PN 85608609), EL-X Express Lane Inflation System (PN 85607770).
Not Included: Electrical supply wiring and circuit installation, compressed air supply plumbing, FRL (filter-regulator-lubricator) unit, installation labor (unless purchased through an authorized distributor offering factory installation), and concrete floor preparation.
Coats 80C Center Clamp Tire Changer Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Contact us for current lead time and availability. Ship Weight: 700 lb via LTL freight. International: Contact our sales team for a shipping quote to Alaska, Hawaii, US territories, and international destinations.
Delivery Requirements
Unloading: A forklift or loading dock capable of handling the 700 lb crated machine is required at the delivery location. Delivery Type: Standard curbside LTL freight - liftgate, inside delivery, and residential delivery are not included in standard freight and may incur additional fees. Inspection: Inspect all packages thoroughly for damage before signing the Bill of Lading (BOL). Note any visible damage on the delivery receipt before the driver departs.
Returns
Returns accepted within 30 days of delivery. Product must be unopened and in original packaging with proof of purchase. A 20% restocking fee applies to all returned items. Buyer is responsible for all return freight costs. Contact our team before initiating a return to receive a Return Merchandise Authorization (RMA) number.
Coats 80C Center Clamp Tire Changer Warranty
Coats Tire Changer Limited Warranty
The Coats 80C is covered under Coats Company's industry-leading warranty for the X Series, APX Series, Maxx Series, and 80C/90C Tire Changers - one of the strongest coverage packages in the category.
- 3 Years: Parts coverage on the machine (excludes air-operated cylinder components, valves, seal kits, rotary coupling, rubber hoses, and air lines - these are covered for 1 year)
- 5 Years (Pro-Rated): Transmission warranty - full coverage through year 3; customer pays 60% of current list price in years 3-4; customer pays 80% in years 4-5
- 6 Months: Labor and on-site service charges
Requirements and Exclusions: Warranty applies to the original purchasing end user and is non-transferable. Air-operated components must be supplied with clean, dry, uncontaminated air - failures due to moisture or debris are not covered. Wear items including wheel protectors, boots, booties, nylon mount/demount heads, drive belts, grip max clamp inserts, and bead loosener pads are excluded. Warranty does not apply to damage caused by misuse, abuse, neglect, tampering, unauthorized repairs, or use in a commercial production environment. For US warranty service, call 1-800-688-9240.
Documents
Click to open in a new tab.
Questions About the Coats 80C Center Clamp Tire Changer?
Our equipment specialists can help with model selection, installation planning, and specifications for your shop.
Coats 80C Center Clamp Tire Changer FAQ
What rim diameter range does the Coats 80C handle?
The Coats 80C handles external rim diameters from 12" to 30", covering the full range of passenger car and light truck wheels in standard use today. Maximum tire diameter is 50" and maximum rim width is 15". This range makes the 80C suitable for everything from compact car wheels to full-size light truck and SUV fitments without requiring adapters or machine reconfiguration.
What is the difference between the air model and the electric model?
The Coats 80C is available in two drive configurations. The air model (80080CAH3) is powered by a 1.5 HP air motor requiring 110-175 psi at 15 scfm of clean, dry shop air - no electrical connection is needed for the turntable. The electric model (80080CEH220) uses a 2 HP electric motor running on 220V, 60 Hz, 14 amps, providing consistent torque independent of shop air pressure. Both models share the same chassis, center clamp system, RoboRoller, and included accessories. The electric model is generally preferred in shops where air supply capacity is limited or where consistent rotational torque is a priority.
Does the Coats 80C come with a bead sealer, or is that an add-on?
The Auxiliary Bead Sealer (ABS) is included as standard equipment with the Coats 80C at no additional cost - it is not an optional upgrade. The ABS concentrates airflow precisely on the bead area of the tire assembly, seating beads faster and more reliably than tower-only inflation, and is particularly valuable when servicing large-diameter light truck tires or tires with stiff sidewalls that resist standard bead seating methods.
What electrical requirements does the Coats 80C electric model need?
The electric model (80080CEH220) requires a dedicated 220V, 60 Hz, single-phase circuit rated for at least 14 amps, protected by an appropriately sized circuit breaker and with a proper safety ground. A licensed electrician should install and certify the circuit prior to machine installation. The circuit must be in place and ready before the installation technician arrives on site. The air model requires no electrical supply beyond shop air.
How much floor space does the Coats 80C require?
The Coats 80C has a machine footprint of 74" wide x 65" deep x 88" tall. In addition to the machine footprint itself, you should plan for adequate clear working space on all sides - particularly in front of the machine for swing-away arm travel and safe wheel handling. A minimum bay width of 12 feet is a reasonable planning guideline, though actual clearance needs will depend on your specific bay layout and the size of vehicles and wheels you service.
What warranty does the Coats 80C carry?
The Coats 80C is covered by a 3-year parts warranty and a 6-month labor/on-site warranty - one of the strongest coverage packages in its class. The transmission carries a pro-rated 5-year warranty (full through year 3, then 60% customer cost in year 4, 80% in year 5). Air-operated cylinder components, valves, seal kits, and hoses are covered for 1 year. The warranty applies to the original end user only, is non-transferable, and requires that air-operated components be supplied with clean, dry, uncontaminated air. Call 1-800-688-9240 for US warranty service.
What is included with the Coats 80C at the time of purchase?
The Coats 80C ships with a comprehensive set of accessories ready for immediate use: Auxiliary Bead Sealer (ABS), Bead Loosener Shoe Socks (2), Paste Lube Bracket and Brush, Protection Cones for Center Lock (2), Plastic Grey High-Spoke Duckhead Mount/Demount Tool, Duckhead Mount/Demount Tool Inserts (2), Nylon Lift Tool Socks (10), Anti-Rotation Extension Pin, Light Truck Cone Kit (5.86" center bore), Rubber Protection Pads (2), and a Premium Storage Cabinet. Optional accessories such as a Reverse Mount Adapter, EL-X Express Lane Inflation System, and additional Duckhead tools are available separately.
How does the Coats 80C ship and what does delivery look like?
The Coats 80C ships via LTL freight at a crated weight of 700 lb. Free freight shipping is included to commercial addresses in the 48 contiguous United States. Standard delivery is curbside - liftgate service, inside delivery, and residential delivery are not included in standard freight and may be available at additional cost. A forklift or loading dock is required to unload the machine. Inspect all packages carefully for damage before signing the Bill of Lading. Contact us for current lead times prior to ordering.
How does the Coats 80C compare to the Coats 90C?
The Coats 80C and 90C are closely related machines built on the same chassis platform and sharing the same manual, parts list, and center clamp architecture. The 90C is the upgraded model in the series, adding additional features and capabilities suited to shops that need the next level of performance or that service a higher proportion of large, stiff, or run-flat tires. Both machines offer the same basic rim diameter range and center clamp system. If you regularly service a high volume of difficult or low-profile tires, the 90C may be worth the additional investment; for most high-volume general tire shops, the 80C provides an excellent balance of capability and value.
Can the Coats 80C service run-flat tires?
Yes. The Coats 80C is well-suited for run-flat tire service thanks to the combination of its RoboRoller powered assist arm and its swing-away mount/demount arm with Robo-Arm vertical stroke. The RoboRoller applies direct controlled pressure to hold the bead in the drop center during mounting, which is essential for the stiff, reinforced sidewalls characteristic of run-flat tires. For extremely difficult fitments, the optional Reverse Mount Adapter (PN 85612559) expands the machine's capability further.
What routine maintenance does the Coats 80C require?
Routine maintenance includes regular inspection and replacement of wear items such as wheel protector boots and booties, the nylon mount/demount head (Duckhead), the turntable drive belt, grip max clamp inserts, and bead loosener pads - these are considered consumables and are not covered under warranty. For the air model, the inline air supply should be kept clean and dry using a filter-regulator-lubricator (FRL) unit; contaminated air is the leading cause of non-warranty air component failures. Lubricate the mount/demount arm pivot points and the bead loosener linkage per the intervals specified in the 80C/90C Installation and Operation Manual.
Is professional installation available for the Coats 80C?
Yes. Professional installation by a factory-trained service technician is available and is included when purchasing through authorized Coats distributors. Customers must have the machine in its final position with all required electrical or air connections fully in place and ready before the installation technician arrives. Installation through an authorized distributor is strongly recommended to ensure proper machine setup, protect your warranty, and receive initial operator training. Contact us to confirm installation availability in your area.
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including styrene and vinyl chloride, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.p65warnings.ca.gov.
