COATS 800ETOC Auto Tread Depth Scanner, Surface Mount
- Authorized Online Dealer direct manufacturer relationship
- No Sales Tax outside PA where applicable
- Authorized Dealer Price Match verification required
- Fast Delivery some products may have lead times
- Manufacturer Warranty included with purchase
- Questions? +1 (855) 498-2147
Coats Tread Depth Scanner Automatic Tire Scanning System
The Coats Tread Depth Scanner is a revolutionary touchless tire tread scanning system that automatically measures all four tires with precision and instant reporting. Using advanced LED camera technology with 0.01" accuracy, the system requires no moving parts, compressed air, or lasers, ensuring low maintenance and reliability in any weather. Simply drive over the scanner at 5 mph or less and instantly receive comprehensive tread depth analysis across three positions on each tire. Built on Coats' 75+ year heritage, the Tread Depth Scanner helps shops streamline customer tire assessment and close undercar service sales with data-driven evidence. Available in flush mount and surface mount configurations, backed by a 1-year warranty on parts and 6 months labor.
Coats Tread Depth Scanner Features
LED Camera Technology with 300+ Measurement Points
The Coats system uses dedicated LED lighting and advanced camera technology to capture 300+ tread depth points across all four tires. Multiple measuring points dramatically reduce false readings caused by debris in the tread, vibrations, and temperature fluctuations. The redundancy built into the scanning approach ensures accurate, reliable tread depth assessment on every vehicle, regardless of road conditions or tire wear patterns.
Zero Moving Parts - Superior Durability and Maintenance
Unlike competitor systems with moving parts, compressed air systems, or lasers, the Coats Tread Depth Scanner features a simple, robust design with no moving parts. This engineering approach eliminates mechanical wear, compressed air complications, and laser maintenance concerns. The system is resistant to debris and water, operates reliably under heavy vibrations, and requires minimal maintenance, making it ideal for high-volume service shops.
Precision Measurement Accuracy 0.01 Inch
The scanner delivers 0.01" accuracy (0.25 mm) with a complete cycle time of 10 seconds at permitted vehicle speed. This precision allows technicians to confidently recommend tire replacement when tread depth approaches critical levels, supporting safety-focused customer communication and liability protection for your shop.

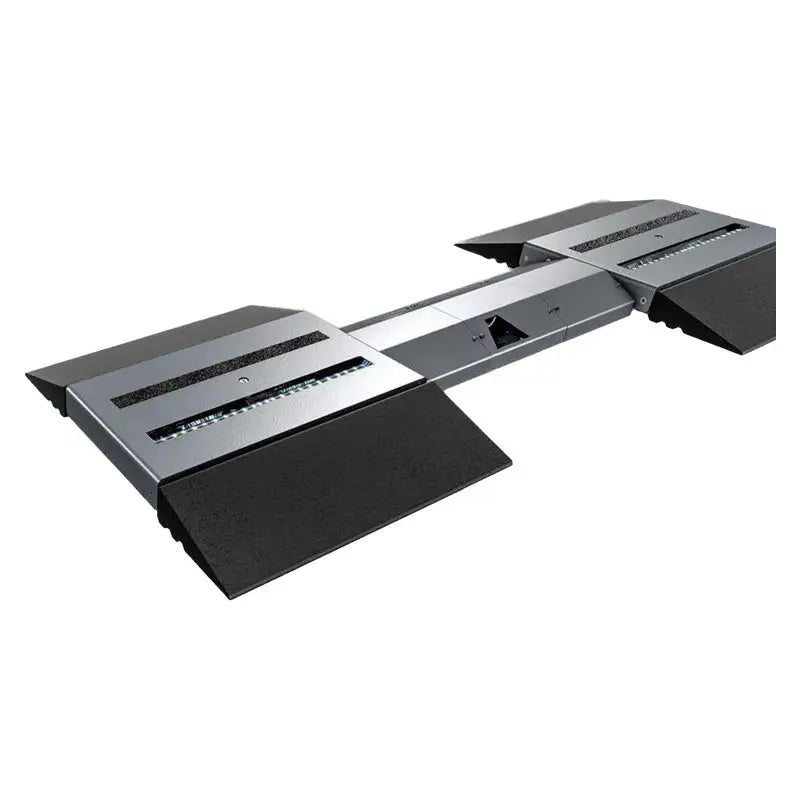

Flush Mount and Surface Mount Configuration Options
The Coats Tread Depth Scanner comes in two configurations to match your shop's infrastructure. Flush mount requires concrete work for permanent installation into bay floors. Surface mount with ramps can be installed same-day with no concrete work required, offering quick deployment and flexibility for shops unable to modify existing bays.
Instant Reports and API Integration
Measurement results display instantly with easy-to-read analysis, tread wear patterns, and recommended actions. The system's Application Programming Interface (API) enables personalized printouts and displays across all platforms, allowing seamless integration into your shop management system and customer communication workflows.
Comprehensive Environmental Rating IP65
The scanner operates reliably in harsh shop environments with IP65 environmental rating on sensors, protecting against dust, moisture, and debris. Operating temperature range from -13°F to 113°F ensures year-round functionality in any climate, and the weatherproof design eliminates concerns about rain exposure or moisture damage in outdoor bay configurations.
Coats Tread Depth Scanner Applications
- High-Volume Tire Service Shops: Automatically measure all four tires on every vehicle without technician labor, streamlining intake processes and eliminating tread depth assessment bottlenecks during peak hours.
- Service Department Upsell Tool: Display instant tread depth reports to customers at the point-of-service, providing data-driven evidence to close tire replacement sales and increase undercar service revenue per visit.
- Vehicle Inspection and Alignment Facilities: Integrate tread depth scanning into comprehensive vehicle inspection workflows, ensuring complete tire health documentation during alignment service or customer check-ins.
- Fleet Maintenance and Asset Management: Track tire wear across fleet vehicles with automated data collection and API integration, supporting maintenance scheduling, cost allocation, and safety compliance documentation.
- Dealership Service Centers: Enhance customer experience with automated tire assessment during routine service appointments, supporting safety communication and upsell opportunities across all vehicle makes and models.
Coats Tread Depth Scanner Specifications
| Specification | Value |
|---|---|
| Measurement Accuracy | 0.01" (0.25 mm) |
| Measurement Points per Scan | 300+ tread depth points |
| Maximum Scan Width | 17.7" (450 mm) |
| Cycle Time | 10 seconds at permitted speed |
| Maximum Vehicle Speed | 5 mph (8 km/hr) |
| Data Outputs | Wear patterns and tread depths |
| Specification | Value |
|---|---|
| Footprint (Surface Mount with Ramps) | 3.22" x 88.39" x 40.94" |
| Footprint Metric | 81.78 mm x 2245.10 mm x 1039.87 mm |
| Maximum Axle Load Capacity | 8,818 lbs (4 tonnes) |
| Specification | Value |
|---|---|
| Power Supply | 100-240VAC / 50-60Hz |
| Environmental Rating (Sensors) | IP65 (dust and water resistant) |
| Operating Temperature Range | -13°F to 113°F (-25°C to 45°C) |
| Communication | Wireless / LAN |
| Specification | Value |
|---|---|
| Model | Coats Tread Depth Scanner |
| Part Number | 800ETOC |
| Manufacturer | The Coats Company, Nashville, TN |
| Warranty | 1 Year Parts, 6 Months Labor |
Coats Tread Depth Scanner Installation Requirements
Electrical Requirements
Power Supply: 100-240VAC, 50-60Hz input. A standard electrical outlet with appropriate voltage and frequency is required. A licensed electrician must install and verify electrical connections per local electrical codes. The system is compatible with standard shop electrical infrastructure and requires no special power conditioning or dedicated circuit in most installations.

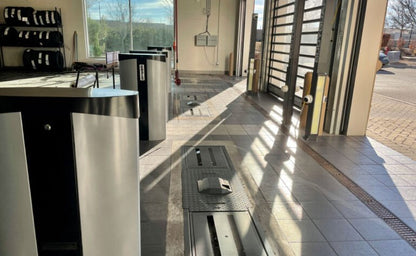

Flush Mount Installation
Concrete Work Required: Flush mount installation requires concrete excavation and positioning the scanner level with the bay floor. Professional installation with concrete work and leveling is mandatory. Concrete must be properly finished around the unit to ensure smooth vehicle passage and prevent tripping hazards. Installation timeline typically 1-3 days depending on shop conditions.

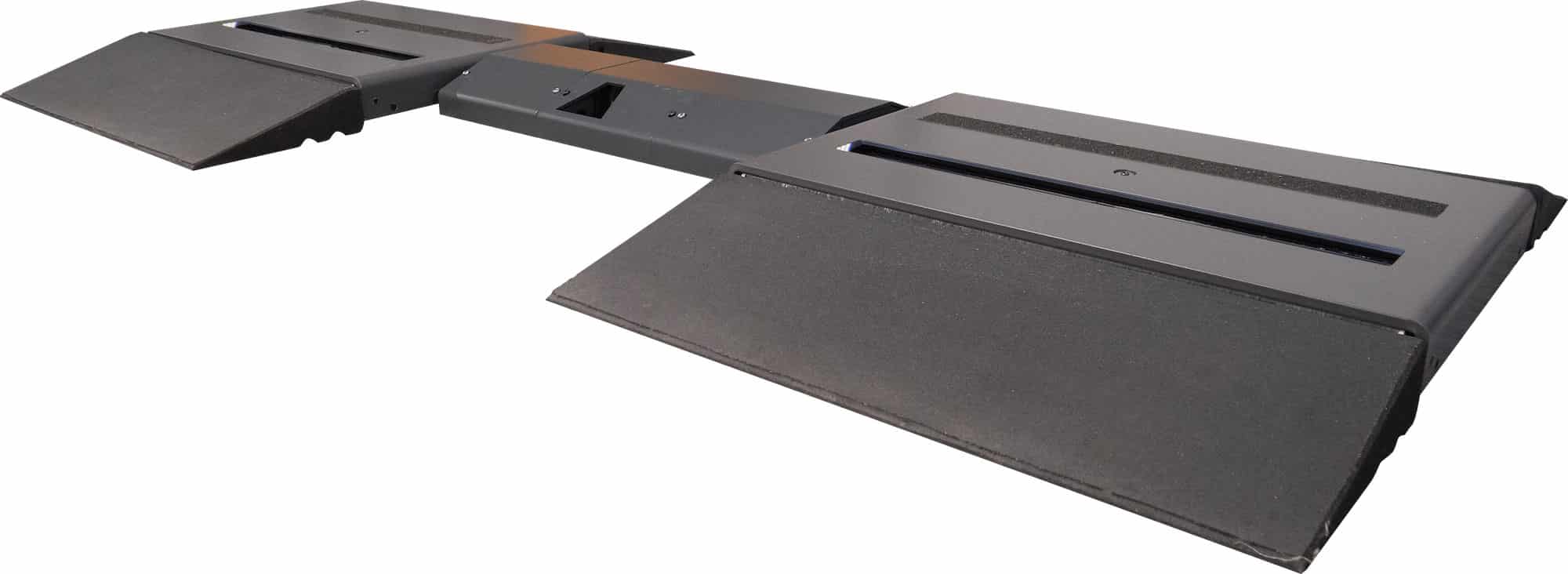

Surface Mount Installation
No Concrete Work Required: Surface mount configuration with ramps can be installed same-day with minimal effort. Simply position the unit with ramps in the bay and connect electrical power. Ramps provide vehicle access and egress over the scanner. This configuration offers maximum flexibility for shops unable to perform concrete modifications or requiring rapid deployment.
Professional Installation and Configuration
Coats recommends professional installation by authorized service technicians who will handle electrical connections, system configuration, software setup, and operator training. Proper installation ensures optimal camera alignment, accurate measurements, and warranty compliance. Contact Coats at 855-876-3864 or Garage Supply Guys at 855-498-2147 to schedule professional installation and system configuration.
What's Included with the Coats Tread Depth Scanner
- Coats Tread Depth Scanner base unit (flush mount or surface mount configuration)
- LED camera scanning system with 300+ measurement point capability
- Measurement and analysis software
- Display module for instant reporting
- Installation hardware and mounting materials
- Surface mount ramps (if surface mount configuration selected)
- Electrical power cord and connections
- User manual and safety documentation
- API documentation for system integration
- Warranty documentation and service contact information
Optional Accessories: Tinted safety glasses (OD1 optical density) for LED light protection, network and wireless configuration options, custom software integration services, and extended warranty coverage. Contact Garage Supply Guys for available options.
Not Included: Concrete work for flush mount installation, electrical installation labor, bay floor preparation, professional installation labor, operator training, custom software development, and shipping/transportation to your facility.
Coats Tread Depth Scanner Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: 7-10 business days from order confirmation to shipment departure. International: Contact Garage Supply Guys sales team at 855-498-2147 for international freight quotes and delivery options. Specialized packing and handling required for this equipment.
Delivery Requirements
Unloading: Forklift, loading dock, or pallet jack required at delivery location. Delivery Type: Curbside delivery standard; inside delivery and bay positioning available at additional cost. Inspection: Inspect all packages for visible damage before accepting delivery. Verify all components are present. Note any damage on the delivery receipt and contact customer service immediately.
Returns and Restocking
Returns accepted within 30 days of delivery. Product must be unopened in original factory packaging with receipt. A 20% restocking fee applies to all returns. Buyer is responsible for all return freight costs. Equipment that has been installed, used, or shows signs of operation is not returnable. Contact customer service at 855-498-2147 before initiating a return.
Coats Tread Depth Scanner Warranty
Coats Limited Warranty
Coats warrants the Tread Depth Scanner to be free from defects in materials and workmanship when leaving the factory. The warranty period covers all electronic components and modules, including ANPR cameras and scanning systems.
- 1 Year Parts and Labor: Coverage on the scanner base unit and all electronic components. Repairs or replacement at authorized Coats service centers at no charge during the warranty period.
- 6 Months Labor and On-Site Charges: Field service labor and technician travel covered for 6 months from delivery. After 6 months, labor charges apply for on-site service calls.
Warranty Requirements: Warranty applies only to defects discovered and reported within the warranty period. Warranty does not cover normal wear items, misuse, abuse, neglect, unauthorized repairs, or modifications. Warranty excludes systems used in commercial production environments. Warranty extends only to the original purchasing customer and is not transferable.
Warranty Service: United States: 1-800-688-9240. Canada: 1-877-801-1405.
Documents
Click to open in a new tab.
Coats Tread Depth Scanner Video
Questions About the Coats Tread Depth Scanner?
Our automotive equipment specialists can help with installation planning, configuration, system integration, and product selection to streamline your shop's tire assessment workflow.
Coats Tread Depth Scanner FAQ
How accurate is the Coats Tread Depth Scanner?
The Coats Tread Depth Scanner delivers 0.01" (0.25 mm) measurement accuracy with 300+ tread depth points captured per scan. This precision, combined with multiple measurement redundancy, ensures reliable readings even on worn or debris-covered tires. The measurement cycle completes in 10 seconds at the permitted 5 mph vehicle speed, providing instant results with confidence for tire replacement recommendations.

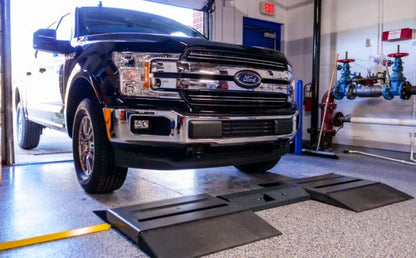

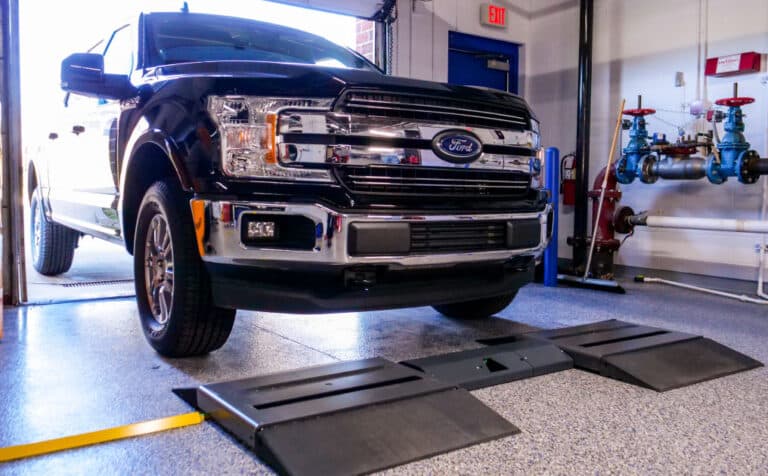

What is the maximum vehicle speed for scanning?
Vehicles must drive over the Coats Tread Depth Scanner at a maximum speed of 5 mph (8 km/hr). This slow speed ensures the camera system captures clear, accurate data from all 300+ measurement points across the tread face. The total scan cycle time is 10 seconds, allowing efficient throughput even at this controlled speed. Slower speeds improve measurement quality and consistency.
Can the Coats Tread Depth Scanner be installed the same day?
Yes, surface mount configurations with ramps can be installed same-day with no concrete work required. Simply position the unit with ramps in your bay and connect electrical power. Flush mount installations require concrete excavation and floor work, typically taking 1-3 days depending on shop conditions and local contractors. Contact Garage Supply Guys for installation timeline estimates specific to your location.
Does the scanner require compressed air or special electrical setup?
No special electrical setup is required beyond standard 100-240VAC power supply. The scanner requires no compressed air, no special power conditioning, and no dedicated circuits in most installations. Its simple design with no moving parts or compressed air dependencies makes it ideal for shops of any size without requiring facility modifications or specialized infrastructure.
What warranty coverage comes with the Tread Depth Scanner?
The Coats Tread Depth Scanner includes a 1-year limited warranty covering all electronic components, modules, and ANPR cameras for parts and labor. Labor and on-site service charges are covered for 6 months from delivery. After 6 months, labor charges apply. Warranty excludes normal wear items, misuse, abuse, and production environment use. Warranty service: US 1-800-688-9240, Canada 1-877-801-1405.
How does the LED system compare to laser-based tread scanners?
The Coats LED system has significant advantages over laser systems: no moving parts, no laser maintenance, no eye safety risks with lasers, resistant to debris and water contamination, and superior reliability in high-vibration shop environments. LED technology with 300+ measurement points provides redundancy that laser systems cannot match. Coats LED systems are also more energy-efficient and operate reliably across wide temperature ranges.
What are the environmental operating conditions?
The Tread Depth Scanner operates reliably in temperatures from -13°F to 113°F (-25°C to 45°C), supporting year-round functionality in any climate. The IP65 environmental rating on sensors protects against dust, moisture, and debris, ensuring reliable operation even in harsh shop environments or exposed outdoor bay configurations. No weatherproofing or heated enclosures are required.
Can the system integrate with my shop management software?
Yes, the Coats Tread Depth Scanner includes an Application Programming Interface (API) that enables seamless integration with shop management systems, point-of-sale platforms, and customer communication tools. Personalized printouts and displays can be customized across all platforms to match your shop's branding and workflow. Contact Coats for API documentation and integration support.
What is the maximum axle weight the scanner can handle?
The Coats Tread Depth Scanner supports a maximum axle weight of 8,818 lbs (4 tonnes), accommodating virtually all passenger vehicles, light trucks, and commercial vehicle axles in typical shop operations. The durable construction ensures reliable performance even under heavy continuous use in high-volume tire service environments.
How does the system help increase shop revenue?
The Tread Depth Scanner streamlines tire assessment, eliminates labor from tread measurement, and provides instant data-driven reports that support tire replacement sales. Automatic scanning captures all vehicles, ensuring no tire assessment opportunities are missed. Instant visual results help close replacement sales while customers are in the shop, directly supporting undercar service revenue growth and customer safety compliance.
Is professional installation required or can I install it myself?
Professional installation by authorized Coats technicians is strongly recommended to ensure proper electrical connections, system configuration, software setup, and operator training. Professional installation guarantees optimal camera alignment, accurate measurements, and warranty compliance. Contact Coats at 855-876-3864 or Garage Supply Guys at 855-498-2147 to schedule professional installation services in your area.
What is the lead time for delivery and installation?
Standard lead time is 7-10 business days from order confirmation to shipment departure for orders within the 48 contiguous states. Surface mount installations can often be completed within 1-2 days after delivery. Flush mount installations typically require 2-5 days depending on concrete work and shop conditions. Contact Garage Supply Guys at 855-498-2147 for current delivery timelines and installation scheduling.
