Coats CWA 6500 3D Wheel Aligner for High-Volume Shops
- Authorized Online Dealer direct manufacturer relationship
- No Sales Tax outside PA where applicable
- Authorized Dealer Price Match verification required
- Fast Delivery some products may have lead times
- Manufacturer Warranty included with purchase
- Questions? +1 (855) 498-2147

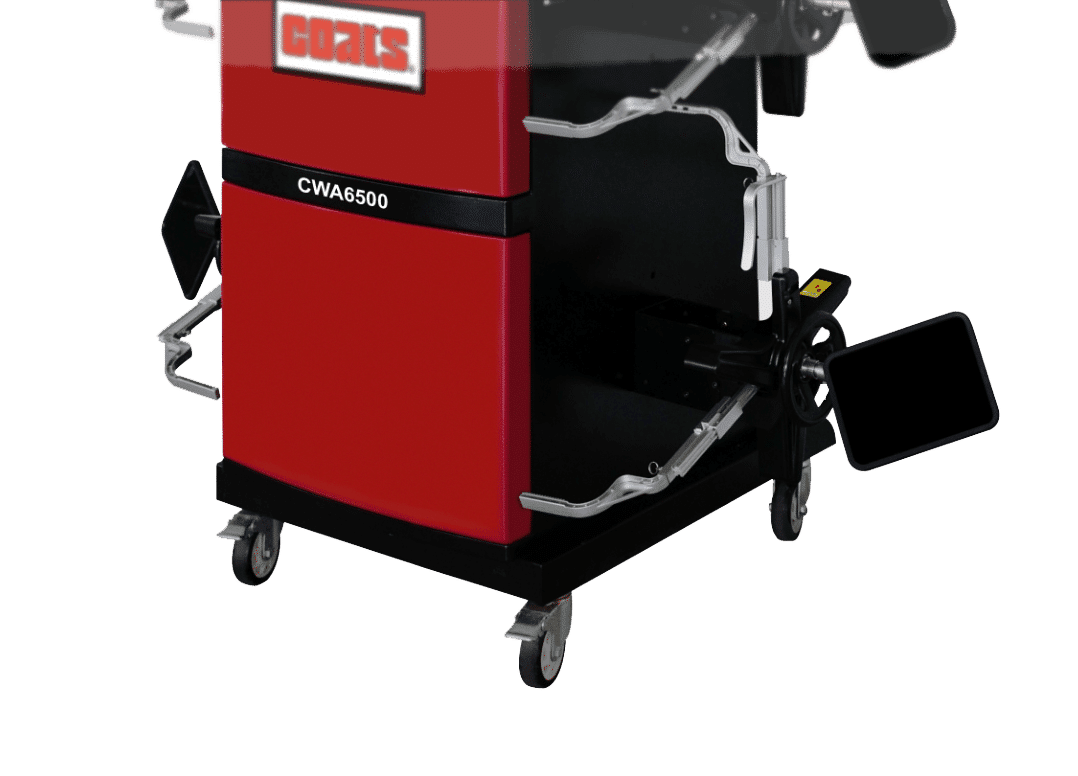

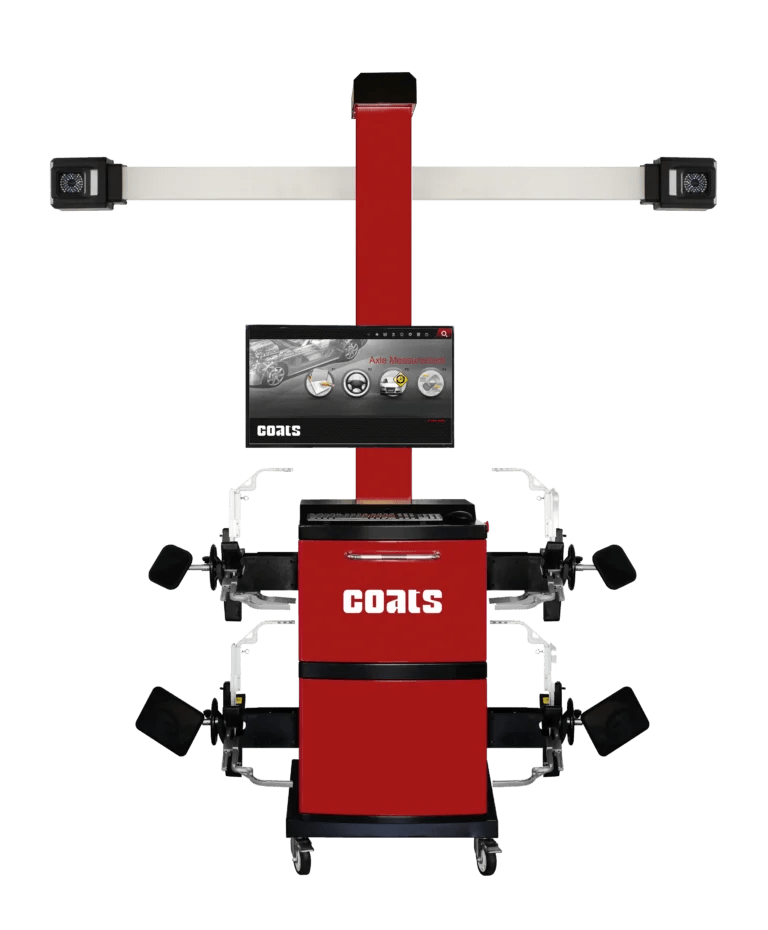

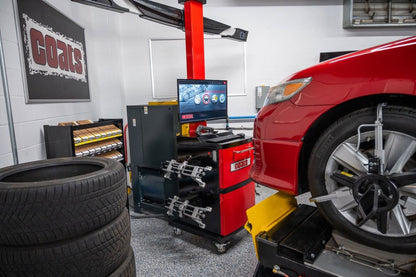

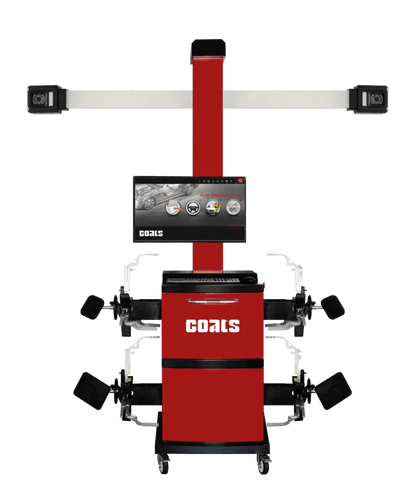

Coats CWA6500 3D Wheel Alignment Machine for High-Volume Shops
The Coats CWA6500 3D Wheel Aligner is a professional-grade alignment machine designed for high-volume shops, luxury vehicle specialists, and growing automotive service businesses. Featuring advanced 3D camera technology with motorized post adjustments, the CWA6500 delivers fast, accurate alignments across all vehicle types. This comprehensive system includes QC20 tire-gripping clamps that extend from 20"-43" on the tire, a VIN scanner for quick vehicle lookup, a 32" LCD touchscreen display, and all essential accessories. Backed by Coats' 75+ year heritage and 1-year comprehensive warranty on parts and electronics, the CWA6500 transforms your shop's alignment productivity.
Coats CWA6500 Features

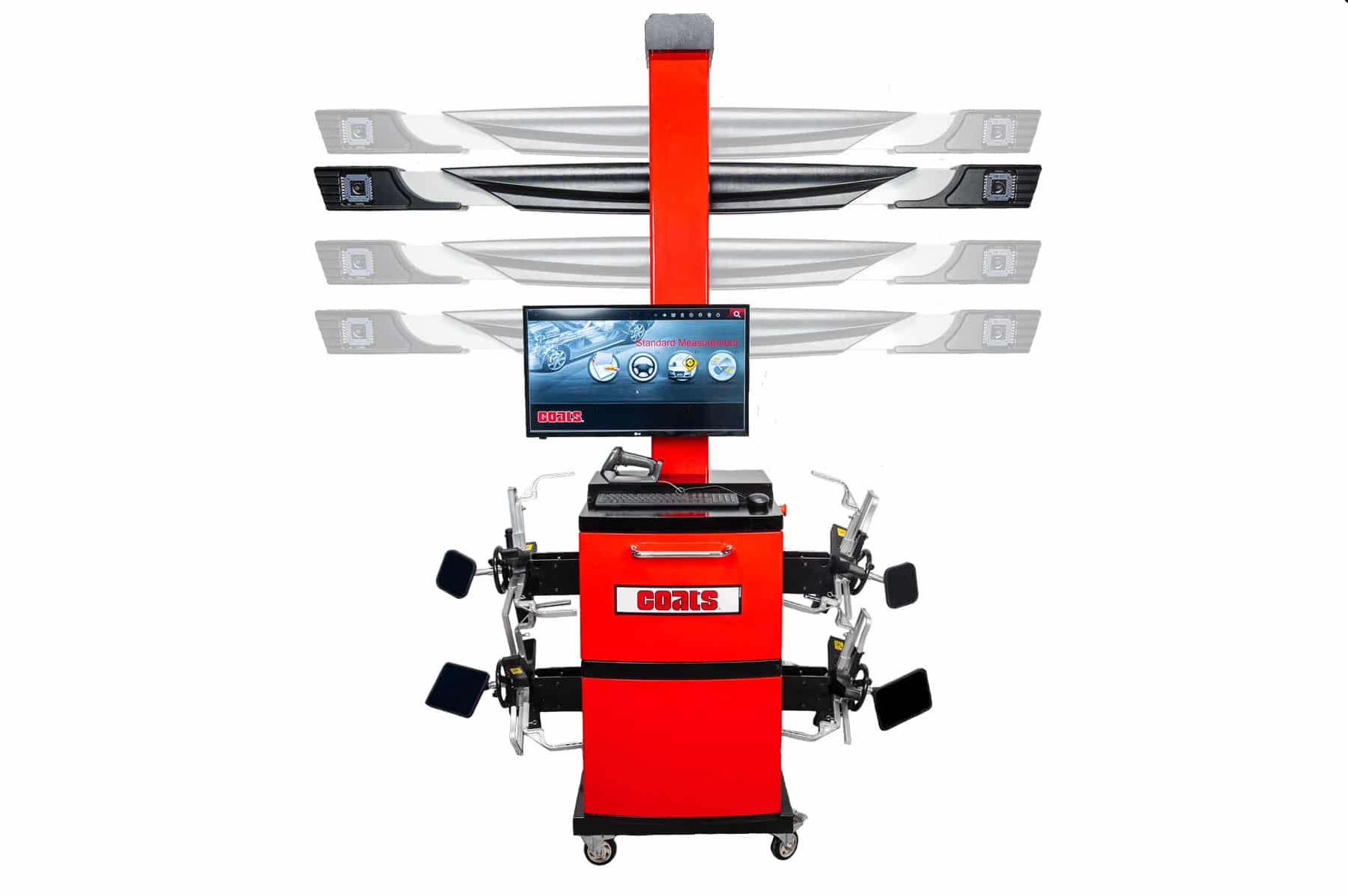

Motorized Camera Beam with Auto-Tracking
The CWA6500 features a motorized camera beam that automatically adjusts to your preferred alignment height, eliminating manual height adjustments and increasing workflow speed. The system tracks vehicles throughout the alignment process, providing consistent measurements from start to finish. This advanced technology reduces technician fatigue and improves overall measurement accuracy.

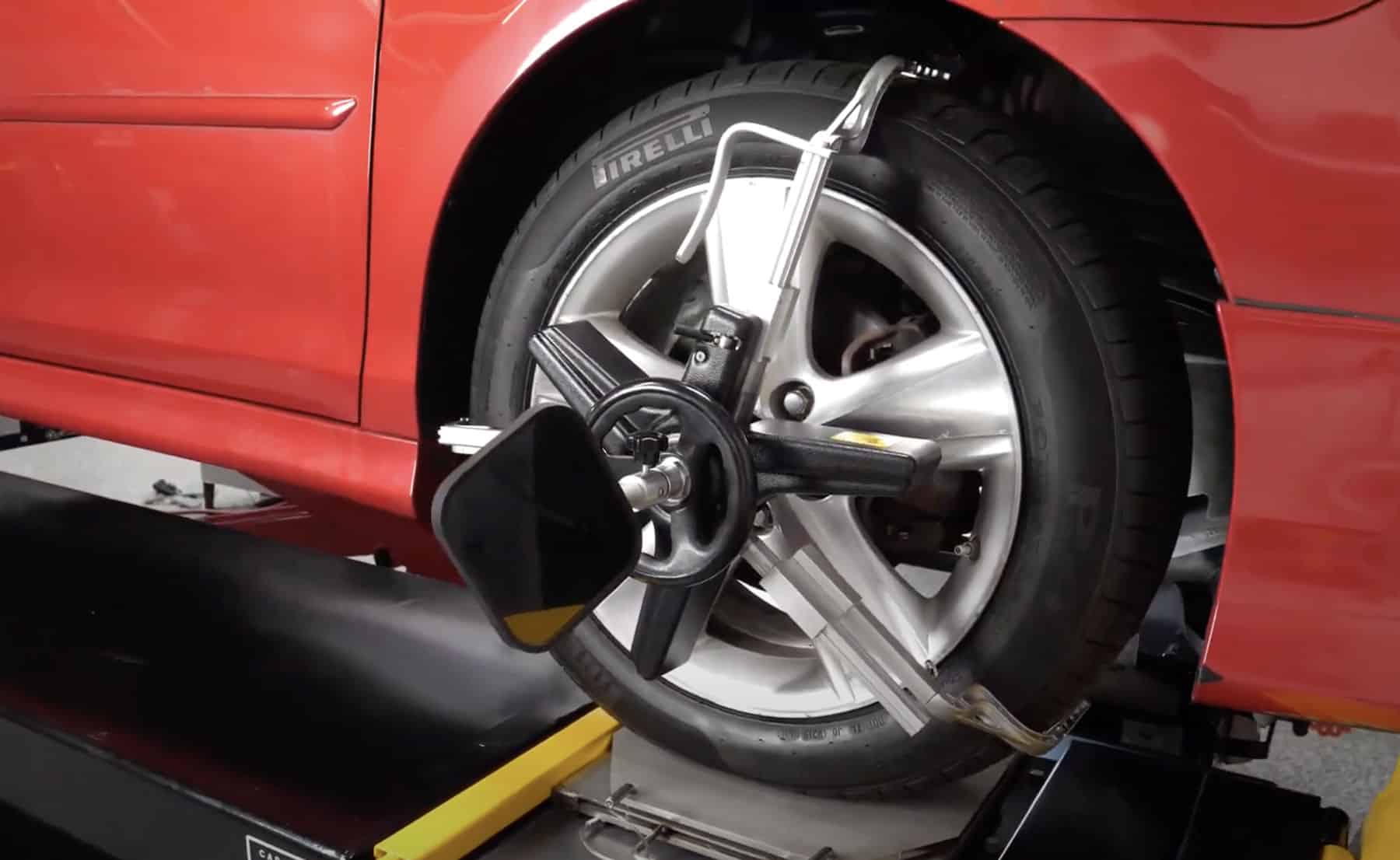

QC20 Tire-Gripping Clamps
Included set of four QC20 clamps grips tires directly from 20"-43" with zero metal-to-metal contact, protecting specialty wheels and high-value rims from damage. One-turn installation and self-centering design make setup quick and hassle-free. Combined with traditional self-centering clamps for rim mounting, the CWA6500 handles virtually any wheel type your shop encounters.
32-Inch Moveable LCD Display

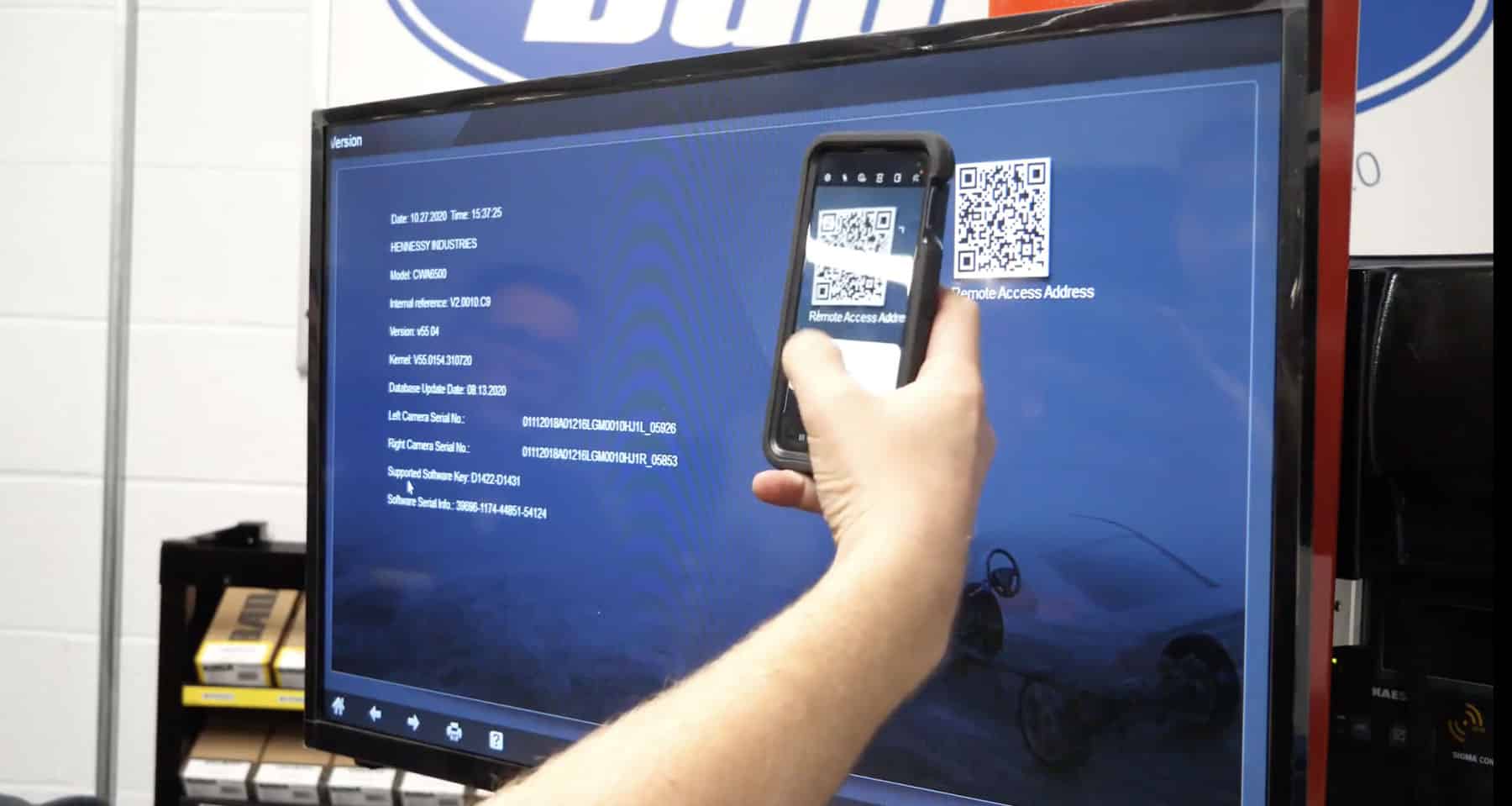

The large 32" LCD touchscreen with moveable mount allows technicians to view measurements and software screens from multiple angles and distances. The Windows-based interface displays complete front and rear alignment specifications side-by-side, helping technicians understand customer vehicle data and explain results to shop management.

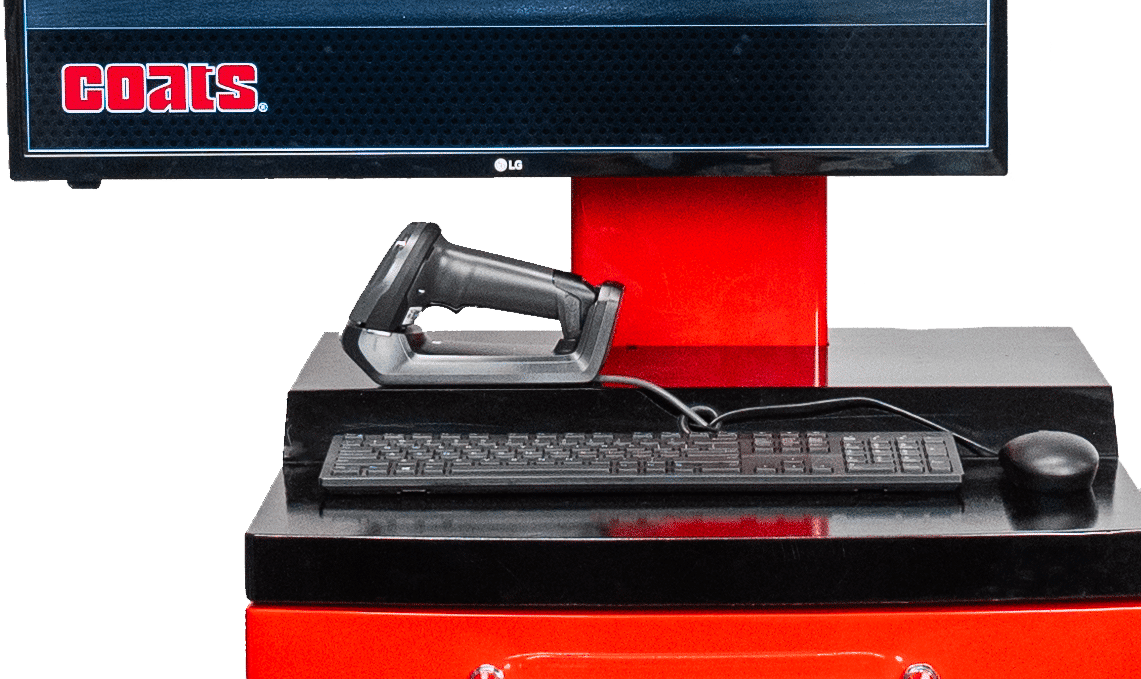

VIN Scanner and Custom Measurements
Built-in VIN scanner ensures correct vehicle identification and automatically loads OEM alignment specifications. Technicians can add and save custom alignment specs for specific vehicles in the system, enabling faster future services and supporting shop standardization. The software supports advanced measurement routines including Toe+, a step-by-step guide for achieving straight steering wheel alignment.
Flexible Roll Options and Software Features

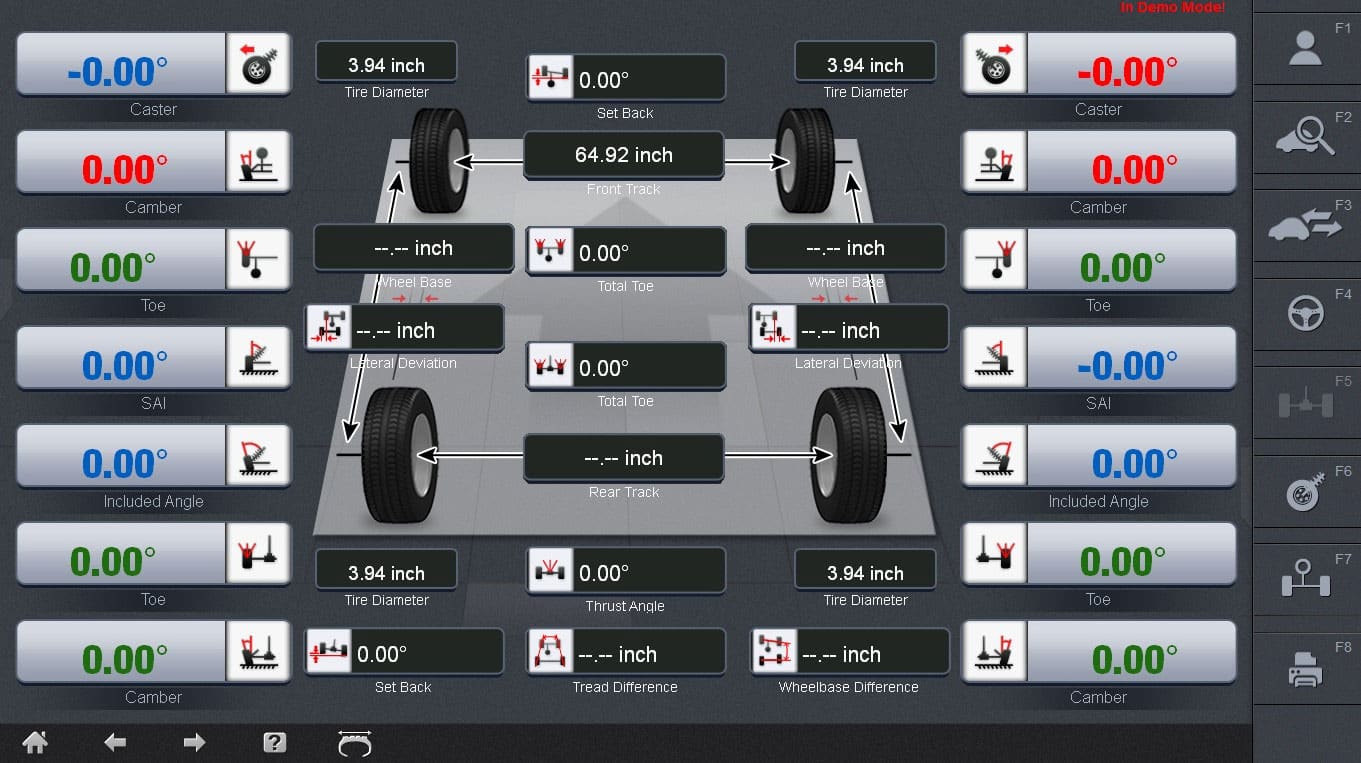

The intuitive software includes six roll options to suit different vehicle types and alignment preferences. Toe+ guides technicians through front toe adjustment while achieving a straight steering wheel. The system supports standard measurement, quick measurement, random measurement, and enhanced OEM routines, providing the flexibility needed for high-volume shops.
Compact Footprint and Flexible Installation
Designed for professional shop environments, the CWA6500 fits bays with installation distances from 71" minimum to 120" maximum, with a 95" recommended installation distance. The system is compatible with Coats scissor alignment lifts, 4-post alignment lifts, and other professional lifting equipment, making it suitable for any bay design.
Coats CWA6500 Applications
- High-Volume Service Shops: The fast floor-to-floor times and intuitive software make the CWA6500 ideal for busy shops performing multiple alignments daily. The VIN scanner and custom specification storage reduce time spent on vehicle lookup and setup.
- Luxury and Specialty Vehicle Shops: The damage-free QC20 clamps and advanced measurement capabilities make the CWA6500 perfect for shops servicing high-value vehicles, exotic sports cars, and luxury brands requiring precision alignment.
- Multi-Bay Professional Facilities: The compact footprint and flexible installation allow shops to fit the CWA6500 into various bay configurations, scissor lift bays, and 4-post alignment lift setups.
- Dealership Service Departments: OEM-focused software features, custom specification support, and the VIN scanner help dealership technicians deliver consistent, accurate alignments across multiple vehicle manufacturers and model years.
- Growing Automotive Service Businesses: The CWA6500 offers scalable technology and advanced features that grow with your business, supporting increased alignment volume without significant workflow changes.
Coats CWA6500 Specifications
| Specification | Value |
|---|---|
| Camera Type | Motorized 3D camera beam with auto-tracking |
| Camera Beam Height | 89" |
| Display Size | 32" LCD moveable touchscreen |
| Software Platform | Windows-based with intuitive interface |
| Roll Options | Six roll options for flexible measurement |
| Specification | Value |
|---|---|
| Self-Centering Wheel Clamps (Set of 4) | 13"-24.5" on rim |
| QC20 Tire-Gripping Clamps (Set of 4) | 20"-43" on tire |
| Clamp Contact Type | No metal-to-metal contact (tire gripping) |
| Specification | Value |
|---|---|
| Minimum Installation Distance | 71" |
| Maximum Installation Distance | 120" |
| Recommended Installation Distance | 95" |
| Specification | Value |
|---|---|
| Voltage | 115V |
| Phase | Single phase (1PH) |
| Amperage | 15 amp |
| Power Type | Standard household/shop outlet compatible |
| Specification | Value |
|---|---|
| Model Number | CWA6500 |
| Part Number | 8006500 |
| Manufacturer | The Coats Company, Nashville, TN |
Coats CWA6500 Installation Requirements
Electrical Requirements
Power Supply: 115V, single phase (1PH), 15 amp. Standard 15-amp household or shop outlet compatible. A licensed electrician must install, verify, and maintain the electrical supply. Ensure a dedicated circuit is available to prevent power interruptions during alignment operations. The equipment must be properly grounded per local electrical codes.
Space and Bay Requirements
Installation Distance: Minimum 71", maximum 120", recommended 95" for optimal functionality. The CWA6500 is compatible with scissor alignment lifts, 4-post alignment lifts, and similar professional lifting equipment. Ensure adequate bay width and height clearance for the motorized camera beam and 32" display mounting. Consult the installation manual for specific clearance requirements based on your lift type.
Lift Compatibility and Anchoring
The CWA6500 pairs with Coats scissor alignment lifts (12K, 14K, 16K models) and 4-post alignment lifts (15K, 19K models). The alignment lift must be properly installed, anchored, and certified per ALI/ETL standards. All lifting equipment must be checked for correct alignment and stability before installation. Professional lift installation is required.
Professional Installation
Coats recommends professional installation and setup training by authorized service technicians. Proper installation ensures optimal camera alignment, accurate measurements, and warranty compliance. Contact Coats at 615-641-7533 or 855-876-3864 for installation support, training, and setup assistance. Failure to follow installation procedures may void the warranty.
What's Included with the Coats CWA6500
- Coats CWA6500 3D wheel alignment system base unit
- 32" LCD touchscreen display with moveable mount
- Motorized 3D camera beam with auto-tracking
- Windows-based alignment software with six roll options
- Set of 4 QC20 tire-gripping clamps (20"-43" capacity)
- Set of 4 self-centering wheel clamps (13"-24.5" capacity)
- VIN scanner for automated vehicle identification
- Brake pedal depressor
- Steering wheel holder
- Wheel chocks
- Black Diamond mini targets
- Printer (CWA6500 only)
- Installation and operation manual
- Warranty documentation
Optional Accessories: Alignment lift packages (scissor, 4-post), rolling jacks (4TRJ7000HD, 4TRJ7500HD, 4TRJ8000HD), turnplate bridges, stainless steel turnplates, air line kits, ramp kits, height extensions, mobile columns, and specialty mounting brackets. Contact Garage Supply Guys for available options.
Not Included: Alignment lift (must be purchased separately; Coats and other professional brands available), electrical installation labor, concrete work, bay preparation, training labor, delivery and installation labor, and transportation to your facility.
Coats CWA6500 Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: 5-7 business days from order confirmation to shipment departure. International: Contact Garage Supply Guys sales team at 855-498-2147 for international freight quotes and delivery options.
Delivery Requirements
Unloading: Forklift, loading dock, or pallet jack required at delivery location. Delivery Type: Curbside delivery standard; inside delivery and placement available at additional cost. Inspection: Inspect all packages for visible damage before accepting delivery. Note any damage on the delivery receipt and bill of lading. Refuse shipment if damage is evident to the exterior packaging.
Returns and Restocking
Returns accepted within 30 days of delivery. Product must be unopened in original factory packaging with receipt. A 20% restocking fee applies to all returns. Buyer is responsible for all return freight costs. Equipment that has been used, opened, or shows signs of installation is not returnable. Contact customer service at 855-498-2147 before initiating a return.
Coats CWA6500 Warranty
Coats Limited Warranty
Coats warrants the CWA6500 3D Wheel Aligner to be free from defects in materials and workmanship when leaving the factory. The warranty period covers all electronic components, the PC, and camera systems.
- 1 Year Parts and Labor: Coverage on the aligner base unit, all electronic components, PC, and integrated cameras. Repairs or replacement at authorized Coats service centers at no charge during the warranty period.
- 6 Months Labor and On-Site Charges: Field service labor and technician travel covered for 6 months from delivery date. After 6 months, labor charges apply for on-site service.
- 30 Days QC20 Clamps: Parts and labor warranty on included QC20 tire-gripping clamps for 30 days from delivery.
Warranty Requirements: Warranty applies only to defects discovered and reported within the warranty period. Warranty does not cover normal wear items (wheel protectors, boots, bead loosener pads, drive belts), misuse, abuse, neglect, unauthorized repairs, or modifications. Air-operated components require clean, dry air supply; contamination failures are not covered. Warranty excludes production environment commercial use. Warranty extends only to the original purchasing customer and is not transferable.
Warranty Service: United States: 1-800-688-9240. Canada: 1-877-801-1405.
Documents
Click to open in a new tab.
Coats CWA6500 Video
Questions About the Coats CWA6500?
Our automotive equipment specialists can help with installation planning, alignment system selection, lift pairing, training setup, and product specifications for your shop.
Coats CWA6500 FAQ
What is the maximum and minimum installation distance for the CWA6500?
The CWA6500 installation distance ranges from 71" minimum to 120" maximum, with 95" recommended for optimal performance. This flexible footprint allows installation in various bay configurations and lift types. Always verify your specific bay dimensions and lift type before finalizing placement. Consult the installation manual for height and clearance requirements specific to your facility.
What clamp sizes are included, and can the CWA6500 accommodate specialty wheels?
The CWA6500 includes self-centering wheel clamps (13"-24.5" on rim) and a set of four QC20 tire-gripping clamps (20"-43" on tire). The QC20 clamps grip directly on the tire without metal-to-metal contact, protecting expensive and specialty wheels from damage. This makes the CWA6500 ideal for shops servicing luxury vehicles, exotic sports cars, and high-value specialty wheels that cannot tolerate rim-mounted clamps.
Does the CWA6500 require a dedicated electrical circuit?
The CWA6500 requires 115V, single-phase (1PH), 15-amp power. A dedicated 15-amp circuit is strongly recommended to prevent power interruptions during alignment operations. A licensed electrician must install the electrical supply and verify proper grounding per local electrical codes. Extension cords are not recommended for permanent installation. Contact your local electrician to verify adequate power supply availability at your facility.
What is the motorized camera beam and how does auto-tracking work?
The CWA6500 features a motorized 3D camera beam at 89" height that automatically adjusts to your preferred vehicle alignment height. The auto-tracking feature eliminates manual height adjustments and keeps measurements consistent throughout the alignment process. The motorized beam reduces technician workload and increases measurement accuracy compared to manual camera height adjustments on entry-level systems.
What warranty coverage comes with the CWA6500?
The Coats CWA6500 includes a 1-year limited warranty covering the aligner base unit, all electronic components, PC, and integrated cameras for parts and labor. Labor and on-site service charges are covered for 6 months from delivery. The included QC20 clamps carry a 30-day warranty. Warranty excludes normal wear items, misuse, abuse, and unauthorized repairs. Warranty service: US 1-800-688-9240, Canada 1-877-801-1405.
Can the CWA6500 be paired with other brands of alignment lifts?
The CWA6500 is designed for compatibility with Coats scissor and 4-post alignment lifts. While the system may work with other professional alignment lifts, Coats recommends using Coats lift products to ensure proper alignment, camera calibration, and warranty compliance. Consult with the manufacturer before pairing with non-Coats lift equipment. Coats offers scissor lifts (12K, 14K, 16K) and 4-post lifts (15K, 19K) in various configurations.
What is included with the CWA6500, and do I need to purchase a lift separately?
The CWA6500 includes the alignment machine, camera system, 32" display, software, clamps, accessories, and printer. The alignment lift must be purchased separately. Coats offers scissor alignment lift packages (8KSC12KITP, 8KSC14KITP, 8KSC16KITP) and 4-post packages (8K4P15SKITP, 8K4P15XKITP) that include rolling jacks, turnplates, and air kits. Contact Garage Supply Guys for compatible lift options and pricing.
What is the VIN scanner and how does it improve workflow?
The built-in VIN scanner automatically reads and identifies vehicles, loading correct OEM alignment specifications instantly. This eliminates manual vehicle lookup and reduces setup time between alignments. Technicians can save custom alignment specs for specific vehicles and recall them for future services. The VIN scanner is exclusive to the CWA6500; the entry-level CWA6000 does not include this feature.
What are the software features and measurement routines available?
The Windows-based software includes six roll options, Toe+ guided front toe adjustment for straight steering wheels, standard measurement, quick measurement, random measurement, and enhanced OEM routines. The software displays front and rear alignment specifications side-by-side and supports custom measurement storage for specific vehicles. All routines are designed for technicians of all skill levels and support high-volume alignment shops.
What is the difference between the CWA6500 and CWA6000 entry-level aligner?
The CWA6500 features motorized camera adjustments, 32" moveable display, VIN scanner, QC20 clamps, and printer. The CWA6000 is a compact, entry-level system with manual camera adjustment, 23" stationary display, and standard clamps only. The CWA6500 is designed for high-volume shops and luxury vehicle specialists, while the CWA6000 suits small shops with limited space and budget constraints. Contact Garage Supply Guys to compare both models.
What training and support is available after installation?
Coats offers professional installation, setup, and operator training through authorized service technicians. Training covers camera calibration, software features, measurement routines, maintenance, and troubleshooting. Contact Coats sales at 855-876-3864 or Garage Supply Guys at 855-498-2147 to schedule installation and training. Proper training ensures technicians maximize alignment accuracy and shop productivity with the CWA6500.
What is the lead time for delivery, and are installation services available?
Lead time is 5-7 business days from order confirmation to shipment departure for orders within the 48 contiguous states. Free freight shipping is included to commercial addresses. Installation labor and electrical work are not included and must be arranged separately with a qualified installer. Contact Garage Supply Guys at 855-498-2147 for recommended installers and current delivery timelines.
