COATS 6450-3DK HD Truck Wheel Balancer, w/ Wheel Lift
- Authorized Online Dealer direct manufacturer relationship
- No Sales Tax outside PA where applicable
- Authorized Dealer Price Match verification required
- Fast Delivery some products may have lead times
- Manufacturer Warranty included with purchase
- Questions? +1 (855) 498-2147

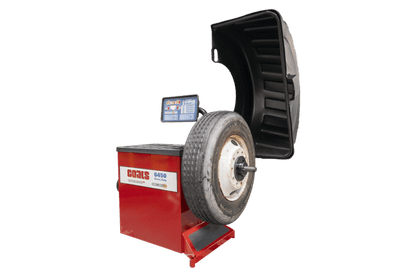

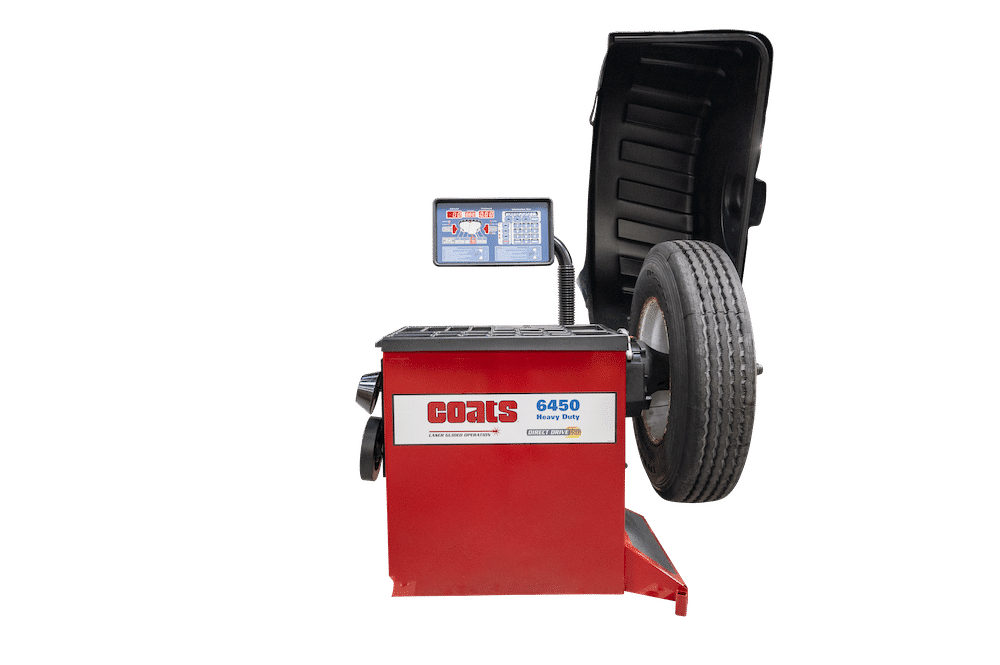

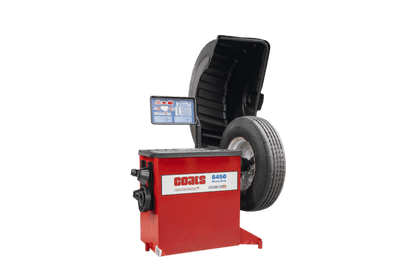

Coats 6450-3D Heavy Duty Truck Wheel Balancer with Wheel Lift
The Coats 6450-3D Heavy Duty Wheel Balancer is engineered for maximum performance on the toughest balancing jobs - large truck wheels up to 500 lbs UL rated capacity. Built with a powerful 1.5 HP direct drive motor that shaves 20 seconds off typical 22.5" spins, the 6450-3D features laser tape-a-weight guidance, auto data entry, auto indexing, and stop-lock positioning. Designed for professional truck shops, dealerships, and tire retailers, this heavy-duty balancer includes a motorized wheel lift, dual calibration software (DCS), and heavy-duty truck kit for 50mm shaft to handle 6, 8, and 10-lug wheels with precision.
Coats 6450-3D Features

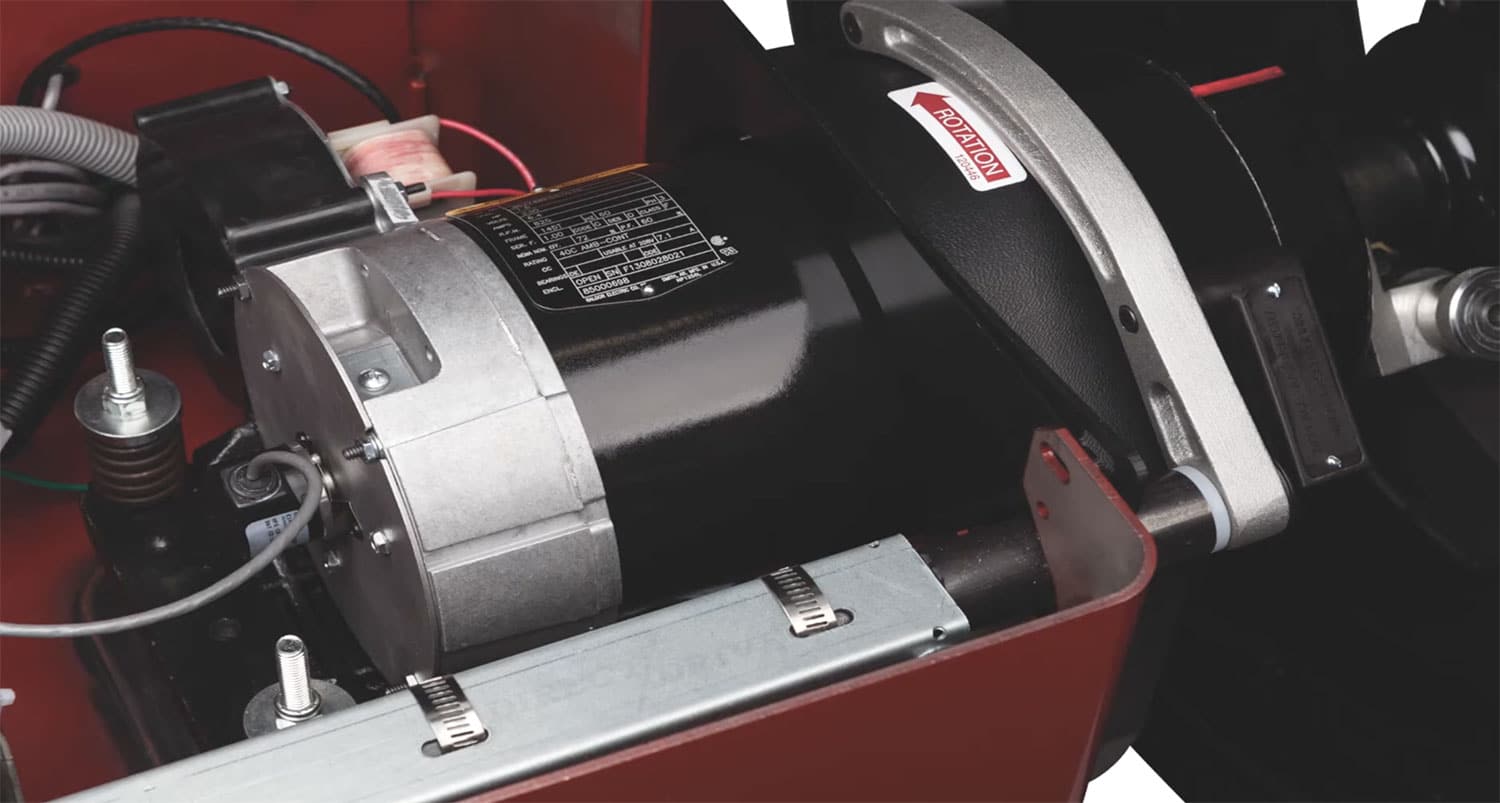

Powerful 1.5 HP Direct Drive Motor
The Coats 6450-3D features a powerful 1.5 HP direct drive motor that shaves 20 seconds off typical 22.5" wheel spins, dramatically accelerating turnaround times on large truck wheels. This heavy-duty motor is engineered for consistent, reliable performance in high-volume professional environments, reducing cycle times and improving overall shop productivity on your toughest balancing jobs.
Dual Calibration Software (DCS)
DCS (Dual Calibration Software) is exclusive to Coats 6450 balancers, providing two independent calibrations that dynamically adjust balancing parameters for heavy-duty trucks and passenger vehicles. This technology gives you the benefits of two machines in one, automatically optimizing settings for each job without manual recalibration between vehicle types.

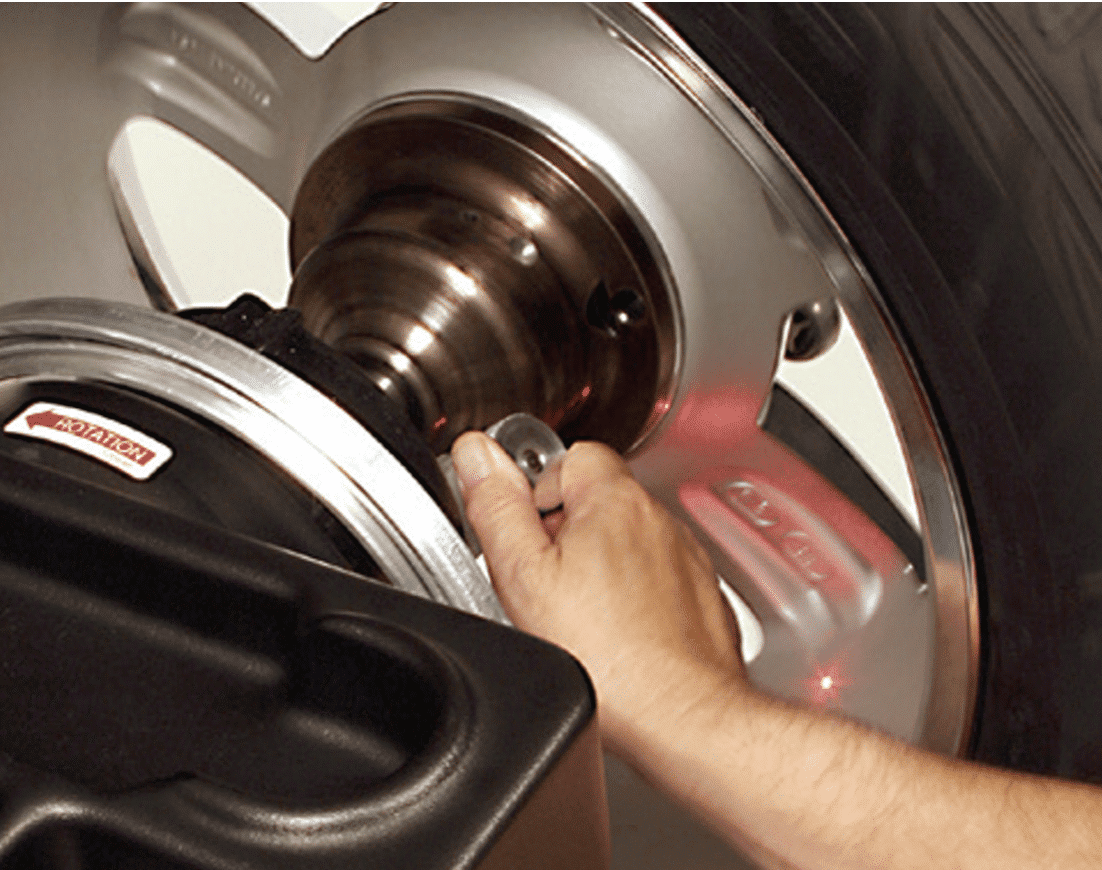

Laser Tape-A-Weight Guidance
The 6450-3D includes laser-guided weight placement capability that helps you achieve more one-spin balances than ever before. The laser system pinpoints exact weight locations, reducing trial-and-error placement and improving balance quality while reducing customer comeback complaints about vibration and ride quality issues.
Auto Indexing and Stop-Lock Features
Auto indexing automatically moves the wheel to required weight positions, while the stop-lock feature firmly locks the spindle in place for easier, more accurate weight placement. These automated features speed up the balancing process, reduce technician strain, and ensure consistent, high-quality results on every wheel.

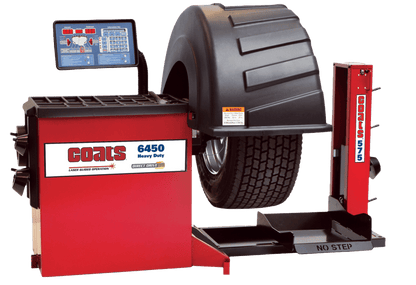

Heavy-Duty Truck Kit and Motorized Wheel Lift
The 6450-3D balancer kit includes a motorized wheel lift (575 Wheel Lift) and heavy-duty truck kit for 50mm shaft that confidently centers large 6, 8, and 10-lug truck wheels including hub and stud-piloted wheels. This ensures accurate balancing results the first time, every time on the largest commercial truck applications.

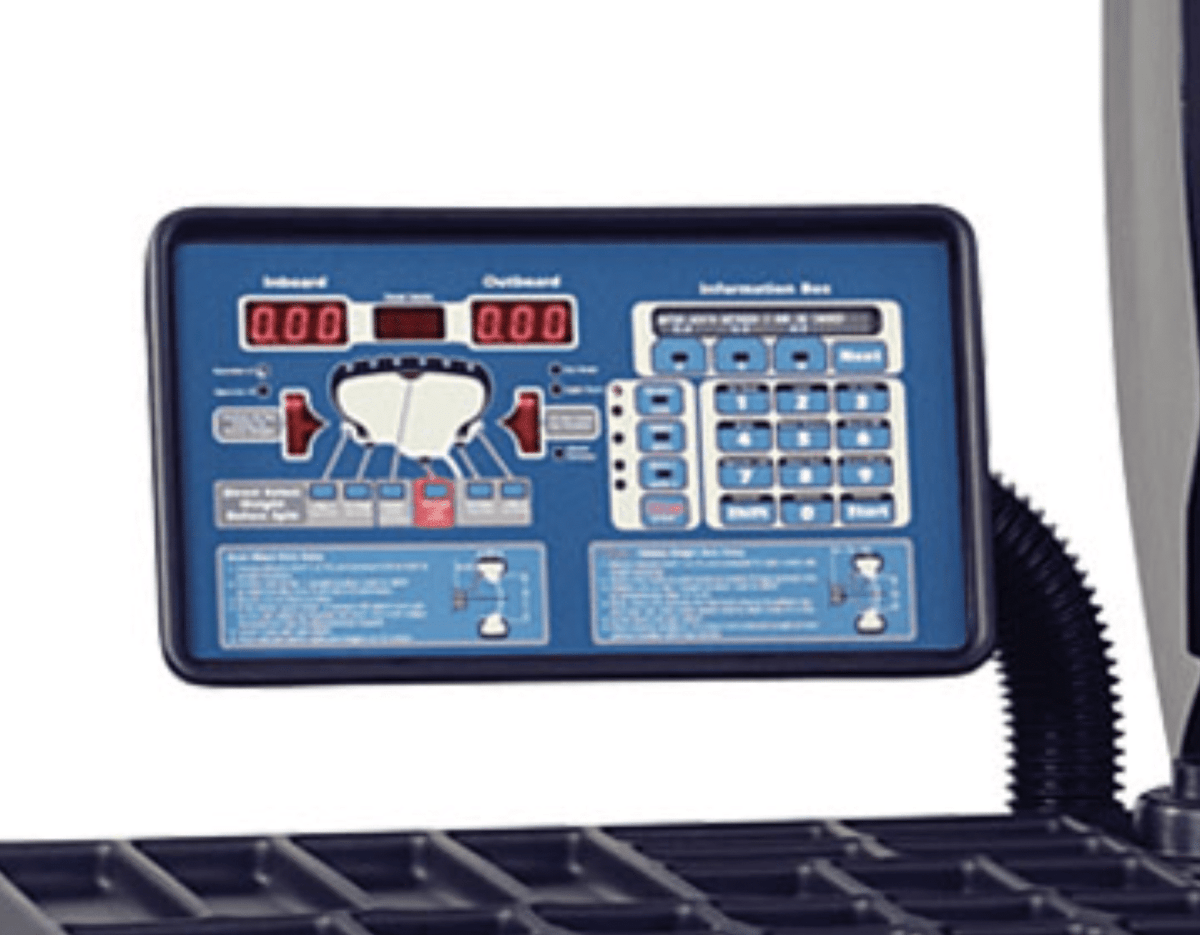

LED Readout and Professional Design
The 6450-3D features easy-to-read LED readouts with simultaneous static and dynamic data display, allowing operators to quickly assess balance conditions. The robust design is built for durability and reliability in professional truck shops, with Coats' 75-year heritage of trusted equipment and nationwide service support.
Coats 6450-3D Applications
- Commercial Truck Shops: Professional truck service centers specializing in large truck wheel balancing with heavy-duty capacity and auto-indexing for high-volume operations.
- Heavy-Duty Truck Dealerships: Manufacturer-authorized service centers balancing OEM truck wheels on new and used commercial vehicles with DCS dual calibration for fleet standards.
- Tire Retailers with Truck Services: Full-service tire shops offering commercial truck wheel balancing alongside passenger vehicle services using the 6450-3D's dual calibration capability.
- Fleet Maintenance Facilities: Large commercial fleet operators running maintenance on diverse vehicle fleets using a single balancer for both truck and passenger vehicle wheels.
- Specialty Heavy Equipment Service Centers: Equipment dealers and service providers balancing specialized wheels on agricultural, construction, and industrial equipment requiring 500 lb capacity.
Coats 6450-3D Specifications
| Specification | Value |
|---|---|
| Maximum Tire Diameter | 52" |
| Maximum Tire Width | 20" |
| Maximum Wheel Weight | 500 lbs (UL rated) |
| Shaft Diameter | 50 mm (2") |
| Truck Wheel Compatibility | 6, 8, 10-lug wheels |
| Balancing Modes | 11 |
| Specification | Value |
|---|---|
| Width | 72" |
| Depth | 62" |
| Shipping Weight | 1,100 lbs |
| Specification | Value |
|---|---|
| Motor Size | 1.5 HP Direct Drive (NEMA Frame 213) |
| Cycle Time | 18 seconds (R11 22.5 @ 200 lbs) |
| Part Number - Single Phase | 8K64501PHKIT |
| Part Number - Three Phase | 8K64503PHKIT |
Coats 6450-3D Installation Requirements
Electrical Requirements
Power Supply: 220V electrical service available in either single-phase (part number 8K64501PHKIT) or three-phase (part number 8K64503PHKIT) configurations. Installation: A licensed electrician must install and verify electrical supply connections, proper grounding, and circuit protection per local electrical codes and manufacturer specifications. Ensure adequate power supply for the 1.5 HP motor.
Floor and Space Requirements
Floor Type: Level, reinforced concrete floor recommended for heavy-duty 1,100 lb balancer with motorized components. Equipment Footprint: 72" wide by 62" deep. Plan for minimum 30" to 36" of clearance around all sides for safe wheel mounting, tool access, and technician movement. Total recommended floor space is approximately 14 feet by 12 feet.
Operating Environment
Temperature: Maintain shop environment suitable for standard tire service operations. Electrical Load: Dedicated circuit recommended for 1.5 HP motor. Position the balancer away from high-traffic areas to prevent collisions. Ensure proper ventilation and lighting. The motorized wheel lift requires clean operating conditions.
Professional Installation Recommended
Professional installation by a qualified technician is recommended to ensure proper electrical connection, equipment leveling, system initialization, and operator training. Coats authorized service distributors can provide installation support. Proper setup ensures the heavy-duty system maintains calibration and the motorized lift operates safely and reliably.
What's Included with the Coats 6450-3D
- Coats 6450-3D heavy-duty wheel balancer base unit with LED display
- 575 Motorized wheel lift for easy wheel loading and unloading
- Cone set including large, medium, and small cones for wheel mounting
- Heavy-duty truck kit for 50mm shaft with spacer disk, collet, pin plate, screws, and thumb nuts
- Complete installation documentation and operator manual
- Dual Calibration Software (DCS) for heavy-duty and passenger vehicle balancing
- Safety documentation and compliance certifications (MET Lab / UL approved)
Optional Accessories: HD balancer chuck with plate (85009086), Dayton standard center adapter (8110785), extension kit for Dayton adapter (8110786), hub-centered cone kit (8109877), and stud-piloted Budd adapter (8143935).
Not Included: Electrical installation and wiring, concrete floor preparation or reinforcement, shop lifting equipment, safety barriers, protective eyewear, or formal operator training courses. Professional installation service recommended.
Coats 6450-3D Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Contact sales for current lead times, subject to equipment availability and production schedules. Ship Weight: 1,100 lbs. International Shipping: Contact sales for shipping quotes and delivery information to Canada and other countries.
Delivery Requirements
Delivery Type: Commercial freight delivery at loading dock. Unloading Equipment: Requires forklift or mechanical lift equipment for safe offloading of the 1,100 lb unit. Receiving Inspection: Inspect equipment and shipping container upon arrival before signing bill of lading. Document any visible damage on delivery receipt and contact us within 24 hours for damage claims.
Returns Policy
Returns accepted within 30 days of delivery only if product remains unopened in original factory packaging with proof of purchase receipt. A 20% restocking fee applies to all approved returns. Buyer responsible for all return freight costs. Contact customer service for return authorization number before shipping equipment back.
Coats 6450-3D Warranty
Coats 6450-3D Limited Warranty
The Coats 6450-3D is backed by Coats' comprehensive warranty program for professional heavy-duty equipment:
- 3 Years: Parts coverage - covers all components including motor, mechanical assemblies, and electronic controls against defects in materials and workmanship
- 6 Months: Labor coverage - covers diagnostic and repair labor at authorized Coats service locations nationwide
Warranty Requirements: Equipment must be installed and operated per manufacturer instructions. Warranty excludes damage from misuse, accidents, unauthorized modifications, or lack of maintenance. Coats authorized distributors provide warranty support nationwide. Professional installation recommended to preserve warranty coverage.
Documents
Click to open in a new tab.
Questions About the Coats 6450-3D?
Our equipment specialists can help with specifications, heavy-duty truck compatibility, installation planning, and product selection for your truck shop operation.
Coats 6450-3D FAQ
What is the maximum wheel weight the 6450-3D can balance?
The Coats 6450-3D is rated for a maximum wheel weight of 500 lbs (UL approved), making it ideal for large commercial truck wheels, dual wheels, and heavy-duty applications. The 52" maximum tire diameter and 20" maximum tire width accommodate virtually all truck wheel assemblies, including 6, 8, and 10-lug wheels in hub-centered and stud-piloted configurations.
What is Dual Calibration Software (DCS)?
Dual Calibration Software (DCS) is exclusive to Coats 6450 balancers and provides two independent calibrations that dynamically adjust balancing parameters for heavy-duty trucks and passenger vehicles. DCS automatically optimizes settings for each job without manual recalibration, giving you the benefits of two machines in one. This exclusive technology improves accuracy across diverse vehicle types while maximizing shop productivity.
How much faster is the 6450-3D motor?
The Coats 6450-3D features a powerful 1.5 HP direct drive motor that shaves approximately 20 seconds off typical 22.5" wheel spins compared to standard balancers. This acceleration in cycle time means more wheels balanced per day, significantly improving shop throughput and customer turnaround times on high-volume truck services.
What truck wheels are compatible with the 6450-3D?
The Coats 6450-3D is compatible with 6, 8, and 10-lug truck wheels from 8" to 11" diameter range, plus 20" to 22.5" and 24.5" to 26" widths. The included heavy-duty truck kit for 50mm shaft is designed to center large truck wheels including hub-piloted and stud-piloted wheels. Optional adapters and kits expand compatibility for specialized truck applications and international bolt patterns.
What is included with the motorized wheel lift?
The Coats 6450-3D balancer kit includes the 575 motorized wheel lift that simplifies loading and unloading of heavy truck wheels. The motorized system reduces technician strain, improves safety, and accelerates the mounting process compared to manual systems. The lift integrates seamlessly with the auto-indexing feature for a fully automated balancing workflow.
How much space does the 6450-3D require?
The Coats 6450-3D has a footprint of 72" wide by 62" deep. Plan for minimum 30" to 36" of clearance around all sides for wheel mounting, tool access, and technician movement. Total recommended floor space is approximately 14 feet by 12 feet. The balancer requires a level, reinforced concrete floor to properly support the 1,100 lb unit and motorized components.
What electrical power does the 6450-3D need?
The Coats 6450-3D requires 220V electrical service available in single-phase (part number 8K64501PHKIT) or three-phase (part number 8K64503PHKIT) configurations. The 1.5 HP motor requires adequate electrical capacity. A licensed electrician must install and verify electrical connections, grounding, and circuit protection per local codes. Contact a qualified electrician for proper installation and verification.
What features help achieve one-spin balances?
The 6450-3D features laser tape-a-weight guidance that pinpoints exact weight placement locations, reducing trial-and-error positioning and helping you achieve more one-spin balances. Combined with auto-indexing that positions wheels automatically and stop-lock positioning that locks the spindle firmly in place, these technologies work together to improve balance accuracy and reduce the need for multiple balancing cycles per wheel.
What warranty does the 6450-3D have?
The Coats 6450-3D comes with a 3-year parts warranty covering all components including the motor and electronic controls, and a 6-month labor warranty for diagnostic and repair services at authorized Coats locations. Warranty coverage requires proper installation and operation per manufacturer instructions. Professional installation is recommended to preserve warranty coverage. Coats authorized distributors provide nationwide warranty support.
How long does it take to deliver the 6450-3D?
Lead times for the Coats 6450-3D vary based on current production schedules and demand. Contact sales for current delivery timelines. The balancer ships via commercial freight and requires curbside delivery at a loading dock. The 1,100 lb unit requires forklift or mechanical lift equipment for safe offloading. Free freight shipping is included to commercial addresses in the 48 contiguous United States.
What makes the 6450-3D ideal for truck shops?
The Coats 6450-3D is purpose-built for truck shops with 500 lbs UL-rated capacity, a powerful 1.5 HP motor optimized for 22.5" wheels, included heavy-duty truck kit for 50mm shaft, motorized wheel lift, and DCS dual calibration technology. These features combine to deliver the speed, accuracy, and heavy-duty durability truck shops require. Coats' 75-year heritage ensures proven reliability in demanding professional environments.
What optional accessories are available?
Optional accessories for the Coats 6450-3D include HD balancer chuck with plate (85009086), Dayton standard center adapter (8110785), extension kit for Dayton adapter (8110786), hub-centered cone kit (8109877), and stud-piloted Budd adapter (8143935). These accessories expand compatibility with diverse truck wheel types and bolt patterns. Consult the accessory catalog or contact Coats distributors for recommendations based on your specific truck applications.
