Coats 1600-3D Direct Drive Wheel Balancer with Touchscreen Control
The Coats 1600-3D Direct Drive Wheel Balancer delivers legendary reliability with state-of-the-art touchscreen control and advanced balancing technology for professional tire shops and high-volume service centers. Featuring direct drive technology with a pre-balanced motor and spindle assembly, the 1600-3D includes ProBalance Technology for couple unbalance correction, Speed Thread pedal-assisted wheel mounting, and automatic 3-D data entry via touchscreen interface. With 8 balancing modes, 40mm shaft, and capacity for wheels 8"-30" diameter with tire weights up to 160 lbs, this advanced balancer maximizes shop productivity and customer satisfaction.
Coats 1600-3D Features
Direct Drive Technology
The Coats 1600-3D features a pre-balanced motor and spindle assembly combined into a single unit that always stays calibrated to zero. This direct drive design eliminates belt maintenance, frequent recalibrations, and mechanical wear associated with traditional balancer systems. Technicians benefit from consistent, reliable performance with minimal downtime for equipment adjustments throughout the year.

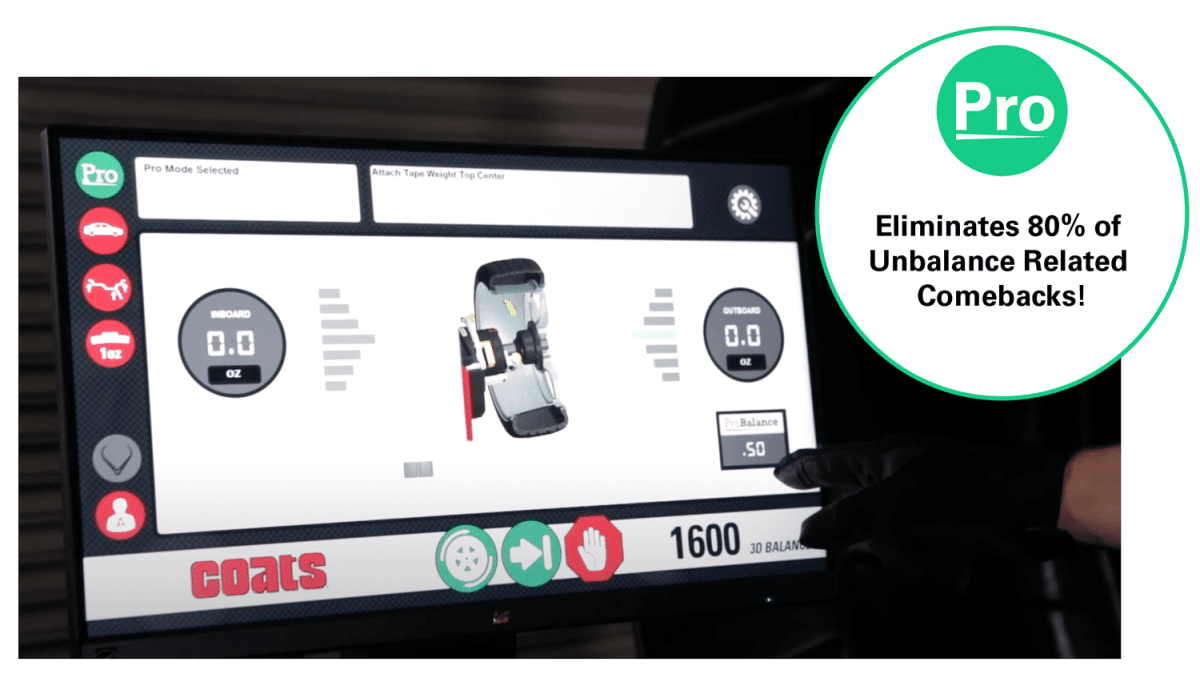

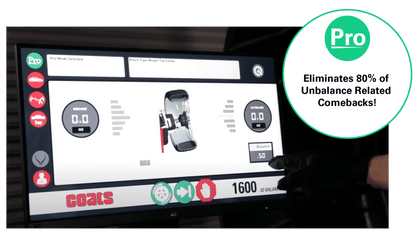

ProBalance Technology with Couple Unbalance Correction
ProBalance Technology is a unique balancing system that minimizes both static and couple unbalance in wheel assemblies. Unlike standard balancers that only address static imbalance, the 1600-3D corrects both types of imbalance, delivering superior ride quality, reducing customer complaints about vibration, and minimizing costly comeback visits for wheel-related issues.
Speed Thread Pedal System
The Speed Thread pedal provides the ability to thread the hub nut at the push of a foot pedal, improving ease-of-use and speeding up wheel mounting and dismounting. Technicians no longer hand-spin the hub nut, which reduces strain, accelerates the mounting process, and ensures consistent proper mounting tension without manual adjustment errors.

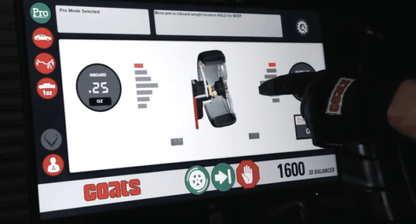

Advanced Touchscreen Interface
The 1600-3D features an advanced touchscreen control panel with automatic 3-D data entry for distance, diameter, and width measurements. The intuitive interface streamlines operator interaction, reduces training time, and provides clear visual feedback throughout the balancing process. Touchscreen diagnostics help identify and correct wheel assembly issues before they affect ride quality.
8 Balancing Modes with Laser Guidance
The 1600-3D supports 8 different balancing modes with laser-guided weight placement optimized for standard wheels, light trucks, and specialty applications. The laser system pinpoints exact weight location both radially and axially, eliminating trial-and-error weight placement. Multiple algorithms ensure optimal results for virtually any wheel assembly in professional shop environments.
Professional Shop Equipment with Legendary Durability

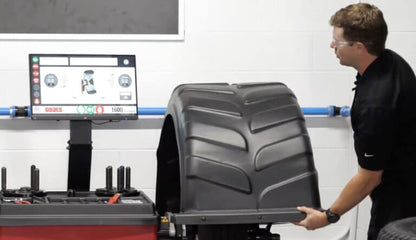

Built with Coats' 75-year heritage of reliability and durability, the 1600-3D is engineered for high-volume professional tire shop environments. The 57"w x 55"d x 75"h footprint fits standard shop layouts. Coats' proven construction ensures straightforward maintenance and availability of genuine replacement parts through authorized distributors nationwide.
Coats 1600-3D Applications
- High-Volume Professional Tire Shops: Independent and chain tire retailers requiring advanced touchscreen-controlled balancing with ProBalance couple unbalance correction for maximum customer satisfaction and efficiency.
- Premium Dealership Service Centers: OEM service departments balancing wheels on new and used vehicles with sophisticated diagnostics and touchscreen precision that meet the highest manufacturer and customer service standards.
- Fleet Maintenance and Truck Stop Operations: Commercial fleet operators and truck stop service centers balancing high volumes of wheels on multiple vehicle types with automated Speed Thread technology and ProBalance technology for consistency.
- High-End Performance and Custom Shops: Specialty centers balancing premium aftermarket wheels and demanding applications where advanced couple unbalance correction and laser-guided precision provide superior ride quality and competitive advantage.
- Multi-Service Automotive Repair Facilities: Full-service automotive centers offering comprehensive tire and wheel services with touchscreen control that improves operator proficiency, reduces training time, and increases shop throughput.
Coats 1600-3D Specifications
| Specification | Value |
|---|---|
| Wheel Diameter Range | 8" - 30" |
| Wheel Width Range | 2" - 20" |
| Maximum Tire Diameter | 44" |
| Maximum Tire Weight | 160 lbs |
| Shaft Diameter | 40 mm |
| Balancing Modes | 8 |
| Specification | Value |
|---|---|
| Width | 57" |
| Depth | 55" |
| Height | 75" |
| Ship Weight | 650 lbs |
| Specification | Value |
|---|---|
| Electrical Requirements | 220V, 1-phase OR 220V, 3-phase |
| Part Number - Single Phase | 80016003D |
| Part Number - Three Phase | 80016003D01 |
| Interface | Touchscreen |
| Laser Type | Class 2 Laser Product, 635nm-660nm |
Coats 1600-3D Installation Requirements
Electrical Requirements
Power Supply: 220V electrical service available in either single-phase (part number 80016003D) or three-phase (part number 80016003D01) configurations. Installation: A licensed electrician must install and verify electrical supply connections, proper grounding, and circuit protection per local electrical codes and manufacturer specifications. Ensure adequate power supply for safe, reliable operation of the touchscreen system and laser components.
Floor and Space Requirements
Floor Type: Level, non-slip concrete floor recommended for stable, accurate laser and sensor operation. Equipment Footprint: 57" wide by 55" deep by 75" tall. Plan for minimum 24" to 36" of clearance around all sides of the unit for safe wheel mounting, tool access, and technician movement. Total recommended floor space is approximately 11 feet by 11 feet for safe operation.
Operating Environment
Temperature: Maintain shop environment suitable for standard tire service operations. Cleanliness: Position the balancer away from high-traffic areas to prevent accidental collisions. Keep the laser sensors, measurement windows, and touchscreen interface clean. Avoid direct exposure to excessive dust, debris, or water splash from shop cleaning activities that could affect the electronics.
Professional Installation Recommended
Professional installation by a qualified technician is recommended to ensure proper electrical connection, equipment leveling, laser calibration, touchscreen initialization, and comprehensive operator training. Coats authorized service distributors can provide installation support in your area. Proper setup ensures the direct drive system maintains factory calibration and the touchscreen interface operates at peak efficiency.
What's Included with the Coats 1600-3D
- Coats 1600-3D wheel balancer base unit with touchscreen control panel
- Three weight trays with studs for weight storage and organization
- Double-sided collets (2.04"-5.20") for flexible mounting options
- Premium wheel weight hammer with ergonomic design
- Premium hub nut for secure wheel attachment
- Small pressure cup with rubber lip for tire seating
- Spring assembly for mounting support
- Calipers for precision measurement and diagnostics
- No mar ring to protect premium wheel finishes
- Side shadow board for weight placement reference
- Scraper tool for adhesive weight application
- Complete operator manual with safety and operation instructions
Optional Accessories: Short cone (8112421), light truck cone kit (8113277C), Ford ULA 3-degree cone (81141821), adjustable pin plates (85610104), double-sided Mazda collet (85611072), and Toyota adapter kit (85009945).
Not Included: Electrical installation and wiring, concrete floor preparation, shop lifting equipment, safety barriers, protective eyewear, or formal operator training courses. Professional installation service recommended.
Coats 1600-3D Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: 10-14 business days from order confirmation, subject to equipment availability. Ship Weight: 650 lbs. International Shipping: Contact sales for shipping quotes and delivery information to Canada and other countries.
Delivery Requirements
Delivery Type: Curbside freight delivery at commercial loading dock or ground-level location. Unloading Equipment: Requires forklift or mechanical lift for safe offloading of the 650 lb unit. Receiving Inspection: Inspect the equipment and shipping container immediately upon arrival before signing the bill of lading. Document any visible damage, dents, or shipping defects on the delivery receipt and contact us within 24 hours to file a damage claim.
Returns Policy
Returns accepted within 30 days of delivery only if the product remains unopened and in original factory packaging with proof of purchase receipt. A 20% restocking fee applies to all approved returns. The buyer is responsible for all return freight costs. Contact customer service for a return authorization number before shipping the equipment back.
Coats 1600-3D Warranty
Coats 1600-3D Limited Warranty
The Coats 1600-3D is backed by Coats' comprehensive warranty program designed for professional tire shop environments:
- 3 Years: Parts coverage - covers all components including the touchscreen interface, direct drive motor and spindle assembly, laser system, mechanical parts, and electronic controls against defects in materials and workmanship
- 6 Months: Labor coverage - covers diagnostic and repair labor for warranty-covered components at authorized Coats service locations nationwide
Warranty Requirements: Equipment must be installed and operated according to manufacturer instructions. Warranty excludes damage from misuse, accidents, unauthorized modifications, or lack of maintenance. Coats authorized distributors provide warranty support nationwide. All warranty claims require documentation of purchase date and proof of original sale. Professional installation is recommended to preserve warranty coverage.
Documents
Click to open in a new tab.
Coats 1600-3D Videos
Coats 1600-3D wheel balancer features and capabilities demonstration
Touchscreen interface in action
Speed Thread pedal-assisted wheel mounting system
Laser Guided Operation technology
Questions About the Coats 1600-3D?
Our equipment specialists can help with specifications, installation planning, financing options, and product selection for your tire shop operation.
Coats 1600-3D FAQ
What is ProBalance Technology?
ProBalance Technology is a unique balancing system and unbalance correction methodology built into the Coats 1600-3D that minimizes both static and couple unbalance in wheel assemblies. Unlike standard balancers that only address static imbalance, the 1600-3D corrects both types, delivering superior ride quality, reducing customer vibration complaints, and minimizing expensive comeback visits. This advanced technology distinguishes the 1600-3D from entry-level direct drive models.
What is the Speed Thread pedal system?
Speed Thread is a pedal-assisted wheel mounting system that threads the hub nut automatically at the push of a foot pedal, improving ease-of-use and accelerating the mounting process. Technicians no longer hand-spin the hub nut, which reduces strain on workers, eliminates repetitive manual adjustments, speeds up wheel mounting and dismounting, and ensures consistent mounting tension without human error.
What wheels can the 1600-3D balance?
The Coats 1600-3D balances wheels from 8" to 30" in diameter and 2" to 20" in width. Maximum tire diameter capacity is 44", with a maximum tire weight rating of 160 lbs. The 40mm shaft with included double-sided collets (2.04"-5.20") and optional cones provides mounting compatibility with virtually all passenger car and light truck wheels. Optional light truck cone kit and adapters expand compatibility for specialty vehicles and different mounting types.
How does the touchscreen interface work?
The Coats 1600-3D features an advanced touchscreen control panel with automatic 3-D data entry for distance, diameter, and width measurements. The intuitive interface displays balancing status, weight placement locations, and diagnostic information in real-time. The touchscreen streamlines operator interaction, reduces training time, provides clear visual feedback throughout balancing, and enables quick access to equipment diagnostics and maintenance information.
How much space does the 1600-3D require?
The Coats 1600-3D has a footprint of 57" wide by 55" deep by 75" tall. Plan for minimum 24" to 36" of clearance around all sides for safe wheel mounting, tool access, and technician movement. Total recommended floor space is approximately 11 feet by 11 feet. The balancer requires a level, non-slip concrete floor for proper sensor and laser operation. Ensure adequate ceiling clearance and position away from high-traffic areas.
What electrical power does the 1600-3D need?
The Coats 1600-3D requires 220V electrical service available in either single-phase (part number 80016003D) or three-phase (part number 80016003D01) configurations. A dedicated circuit is recommended. A licensed electrician must install and verify electrical connections, proper grounding, and circuit protection per local electrical codes. Contact a qualified electrician or Coats distributor for professional electrical installation and verification services.
What is included with the 1600-3D?
The Coats 1600-3D includes the balancer unit with touchscreen control and laser system, three weight trays with studs, double-sided collets, premium weight hammer, hub nut, pressure cup with rubber lip, spring, calipers, no mar ring, side shadow board, scraper tool, and complete operator manual. Optional accessories like short cone, light truck cones, Ford cone, adjustable pin plates, Mazda collet, and Toyota adapter kit are available separately to expand wheel compatibility.
What warranty does the 1600-3D have?
The Coats 1600-3D comes with a 3-year parts warranty covering all components including the touchscreen and laser system against manufacturer defects, and a 6-month labor warranty for diagnostic and repair services at authorized Coats locations. Warranty coverage requires proper installation and operation per manufacturer instructions. Professional installation is recommended to preserve warranty coverage. Warranty excludes damage from misuse, accidents, or unauthorized modifications.
How long does it take to deliver the 1600-3D?
Lead time for the Coats 1600-3D is typically 10-14 business days from order confirmation, subject to equipment availability. Free freight shipping is included to commercial addresses in the 48 contiguous United States. The unit ships via commercial carrier and requires curbside freight delivery at a loading dock. The 650 lb balancer requires forklift or mechanical lift equipment for safe offloading. International delivery is available - contact sales for quotes and lead times.
Does the 1600-3D need frequent calibration?
No. The Coats 1600-3D's direct drive system featuring a pre-balanced motor and spindle assembly stays calibrated to zero without frequent adjustments. The integrated laser, sensor systems, and touchscreen provide stable, consistent measurement without the drift and calibration issues associated with belt-driven balancers. Technicians can rely on accurate laser guidance and measurements throughout the equipment's service life with minimal maintenance costs.
What makes the 1600-3D different from the 1500-3D?
The 1600-3D is the premium model featuring ProBalance Technology for couple unbalance correction, Speed Thread pedal-assisted wheel mounting, and advanced touchscreen control. The 1500-3D includes Laser Guided Operation and automatic 3-D data entry but uses an LED interface and does not have Speed Thread or ProBalance couple unbalance correction. The 1600-3D is designed for shops seeking maximum automation, advanced diagnostics, and the fastest turnaround times.
What accessories are available for the 1600-3D?
Optional accessories for the Coats 1600-3D include short cone (8112421), light truck cone kit (8113277C), Ford ULA 3-degree cone (81141821), adjustable pin plates (85610104), double-sided Mazda collet (85611072), and Toyota adapter kit (85009945). These accessories provide mounting flexibility for specialty wheels, light trucks, hub-centered wheels, and international vehicle applications. Consult the accessories flyer or contact Coats distributors for recommendations based on your shop's specific wheel mix.
