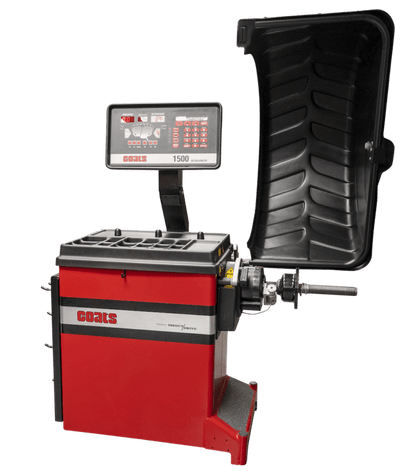

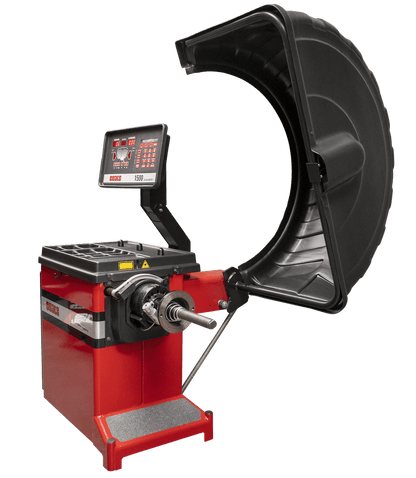

Coats 1500-3D Direct Drive Wheel Balancer for Professional Tire Shops
The Coats 1500-3D Direct Drive Wheel Balancer combines legendary reliability with state-of-the-art laser-guided capability for professional tire shops and high-volume service centers. Featuring direct drive technology with a pre-balanced motor and spindle assembly, the 1500-3D includes Laser Guided Operation, Stop Lock & Index positioning, and automatic 3-D data entry for distance, diameter, and width. With 8 balancing modes, 40mm shaft, and capacity for wheels 8"-30" diameter with tire weights up to 160 lbs, this advanced balancer eliminates trial-and-error weight placement and maximizes shop productivity.
Coats 1500-3D Features
Direct Drive Technology

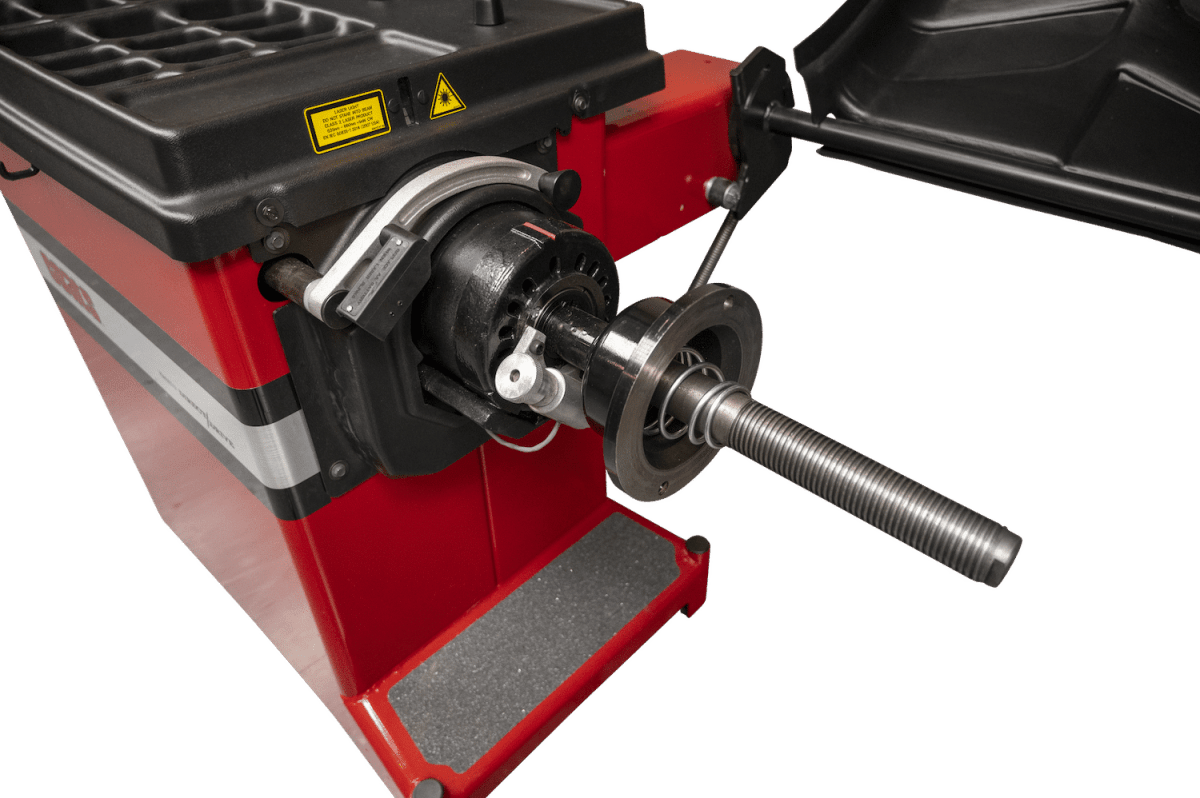

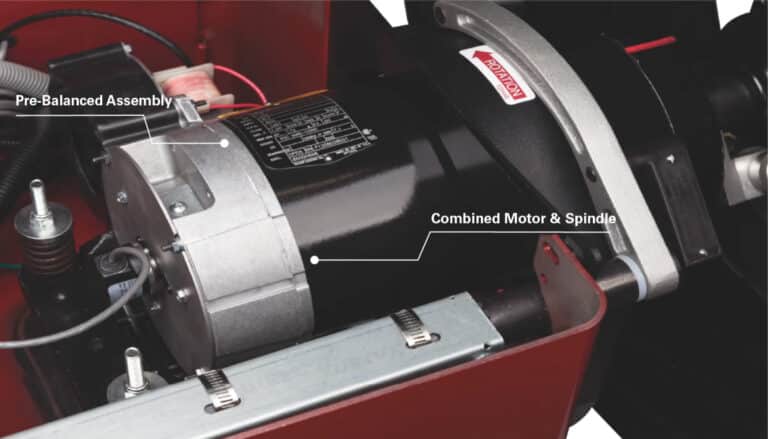

The Coats 1500-3D features a pre-balanced motor and spindle assembly combined into a single unit that always stays calibrated to zero. This direct drive design eliminates belt maintenance, frequent recalibrations, and the mechanical wear associated with traditional balancer systems. Technicians benefit from consistent, reliable performance with minimal downtime for equipment adjustments.

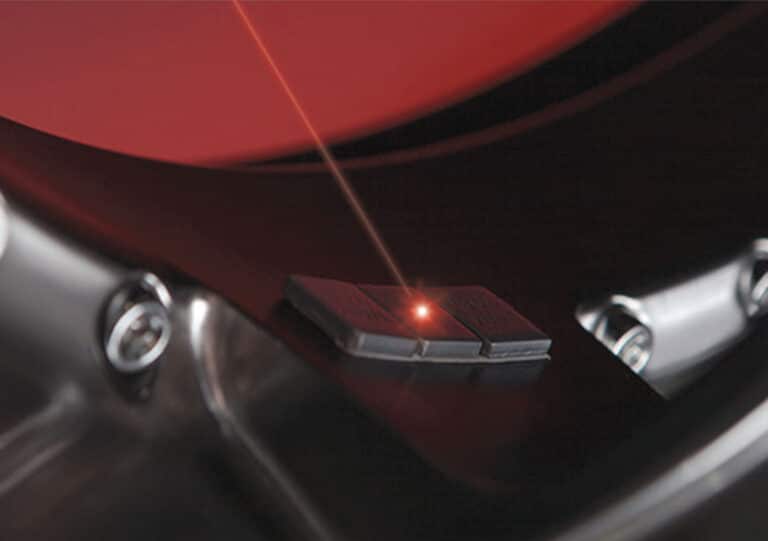

Laser Guided Operation

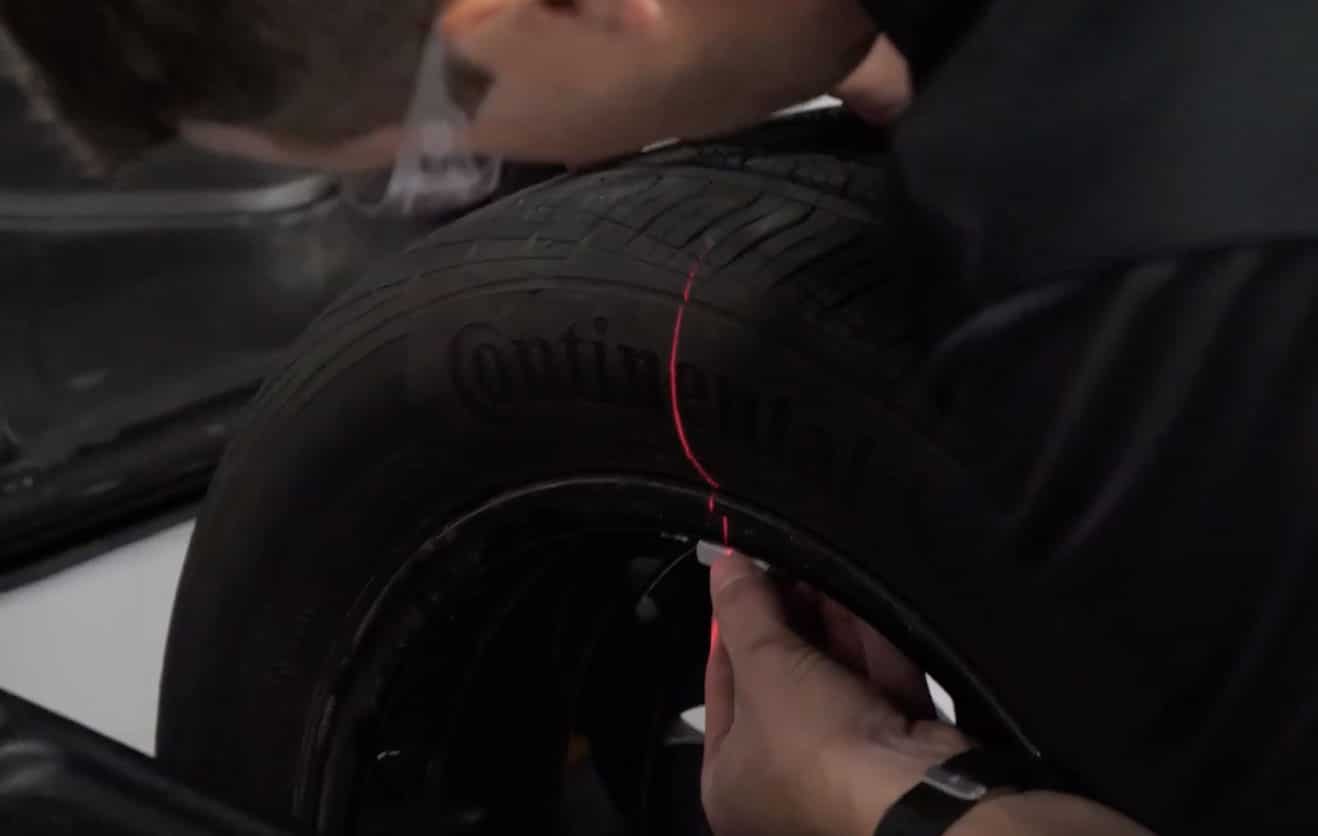

Laser Guided Operation pinpoints the exact weight location, both radially and axially, eliminating the trial-and-error approach to weight placement. The laser system guides technicians to precise positioning, reducing balancing time and improving the accuracy of each wheel balance. This technology leads to fewer customer complaints about vibration and superior ride quality results.
Stop Lock & Index Technology
The 1500-3D automatically positions the wheel at the weight placement location and locks the spindle in place for easy, accurate weight application. Stop Lock & Index eliminates manual wheel positioning, reduces technician strain from repeated manual adjustments, and ensures consistent weight placement without drift or repositioning errors.
Automatic 3-D Data Entry

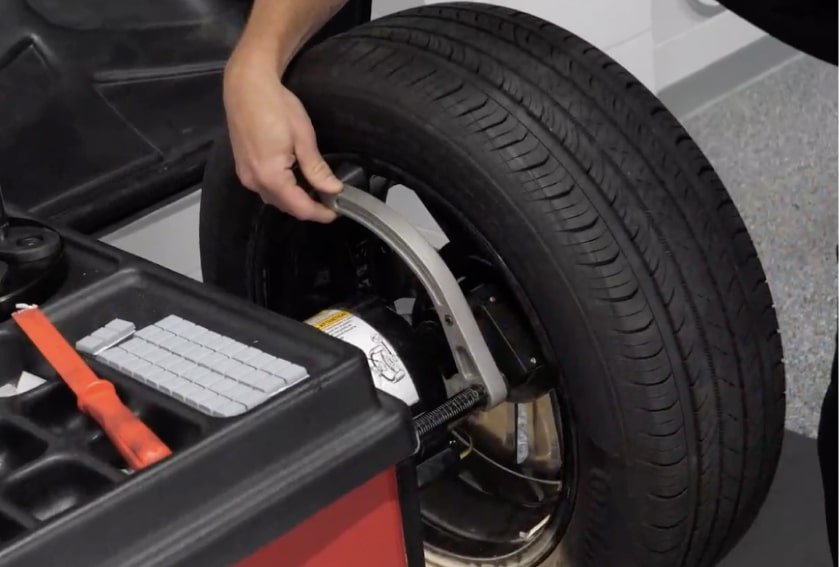

The 1500-3D automatically captures distance, diameter, and width measurements through the advanced sensor system, eliminating technician data entry errors. This 3-D automatic measurement speeds up the balancing process, improves accuracy, and reduces the need for manual wheel dimension input that often causes mistakes in standard balancers.
8 Balancing Modes with Advanced Diagnostics
The 1500-3D offers 8 different balancing modes optimized for standard wheels, light trucks, and specialty applications. Multiple balancing algorithms ensure optimal results for virtually any wheel assembly in your shop's service mix. The advanced diagnostic capabilities help identify and correct wheel assembly issues before they lead to customer comebacks.
Professional Shop Equipment
Built with Coats' legendary reliability and durability, the 1500-3D is engineered for professional tire shop environments. The 57"w x 55"d x 75"h footprint fits standard shop layouts. Coats' 75-year heritage ensures robust construction, straightforward maintenance, and availability of genuine replacement parts through authorized distributors nationwide.
Coats 1500-3D Applications
- Professional Tire Shops: Independent and chain tire retailers requiring advanced laser-guided balancing for high-volume passenger car and light truck service operations with superior ride quality results.
- Dealership Service Centers: OEM service departments balancing wheels on new and used vehicles with sophisticated diagnostic equipment that meets manufacturer service standards and customer expectations.
- Fleet Maintenance Facilities: Commercial fleet operators and truck stop service centers balancing large volumes of wheels on multiple vehicle types with advanced automated positioning for consistency.
- High-Volume General Repair Shops: Full-service automotive shops offering tire and wheel services as part of comprehensive vehicle maintenance with laser precision balancing for customer satisfaction.
- Performance and Custom Shops: Specialty centers balancing high-end aftermarket wheels and demanding applications where precision ride quality diagnostics and advanced balancing technology provide competitive advantage.
Coats 1500-3D Specifications
| Specification | Value |
|---|---|
| Wheel Diameter Range | 8" - 30" |
| Wheel Width Range | 2" - 20" |
| Maximum Tire Diameter | 44" |
| Maximum Tire Weight | 160 lbs |
| Shaft Diameter | 40 mm |
| Balancing Modes | 8 |
| Specification | Value |
|---|---|
| Width | 57" |
| Depth | 55" |
| Height | 75" |
| Ship Weight | 616 lbs |
| Specification | Value |
|---|---|
| Electrical Requirements | 220V, 1-phase OR 220V, 3-phase |
| Part Number - Single Phase | 80015003D |
| Part Number - Three Phase | 80015003D01 |

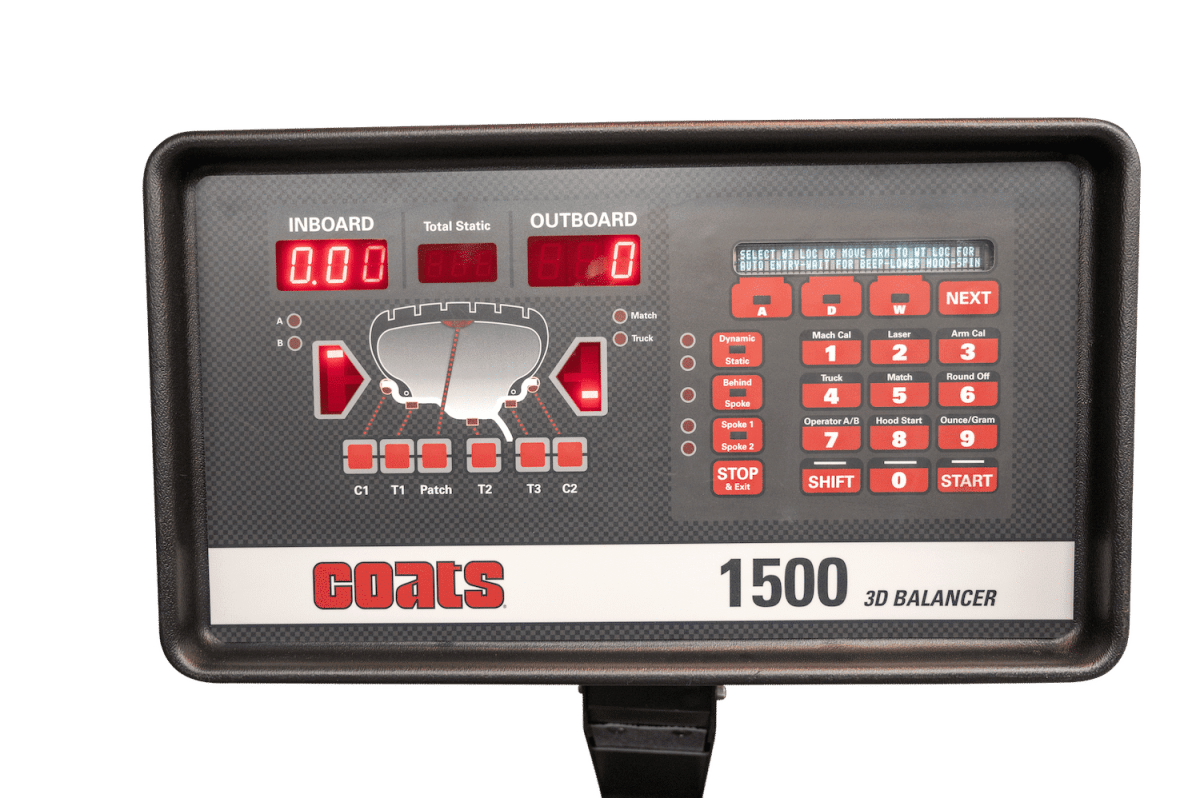

| Interface | LED |
| Laser Type | Class 2 Laser Product, 635nm-660nm |
Coats 1500-3D Installation Requirements
Electrical Requirements
Power Supply: 220V electrical service available in either single-phase (part number 80015003D) or three-phase (part number 80015003D01) configurations. Installation: A licensed electrician must install and verify electrical supply connections, proper grounding, and circuit protection per local electrical codes and manufacturer specifications. Ensure adequate power supply for safe, reliable operation.
Floor and Space Requirements
Floor Type: Level, non-slip concrete floor recommended for stable, accurate laser and sensor operation. Equipment Footprint: 57" wide by 55" deep by 75" tall. Plan for minimum 24" to 36" of clearance around all sides of the unit for safe wheel mounting, tool access, and technician movement. Total recommended floor space is approximately 11 feet by 11 feet.
Operating Environment
Temperature: Maintain shop environment suitable for standard tire service operations. Cleanliness: Position the balancer away from high-traffic areas to prevent accidental collisions. Keep the laser sensors and measurement windows clean for accurate operation. Avoid direct exposure to excessive dust, debris, or water splash from shop cleaning activities.
Professional Installation Recommended
Professional installation by a qualified technician is recommended to ensure proper electrical connection, equipment leveling, laser calibration, and operator training. Coats authorized service distributors can provide installation support. Proper setup ensures the direct drive system maintains factory calibration and the laser-guided system provides consistent results.
What's Included with the Coats 1500-3D
- Coats 1500-3D wheel balancer base unit with LED interface and laser system

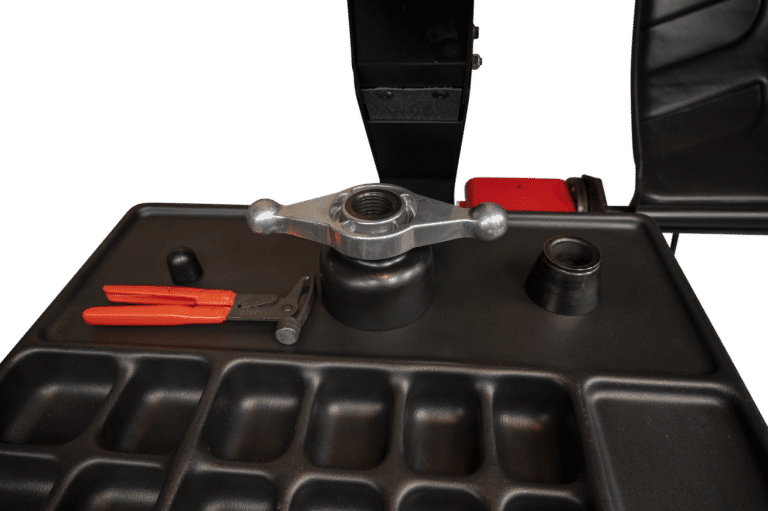

- Three weight trays with studs for weight storage and organization
- Double-sided collets (2.04"-5.20") for flexible mounting options
- Premium wheel weight hammer with ergonomic design
- Premium quick nut for secure wheel attachment
- Small pressure cup with rubber lip for tire seating
- Spring assembly for mounting support
- Calipers for precision measurement and diagnostics
- No mar ring to protect premium wheel finishes

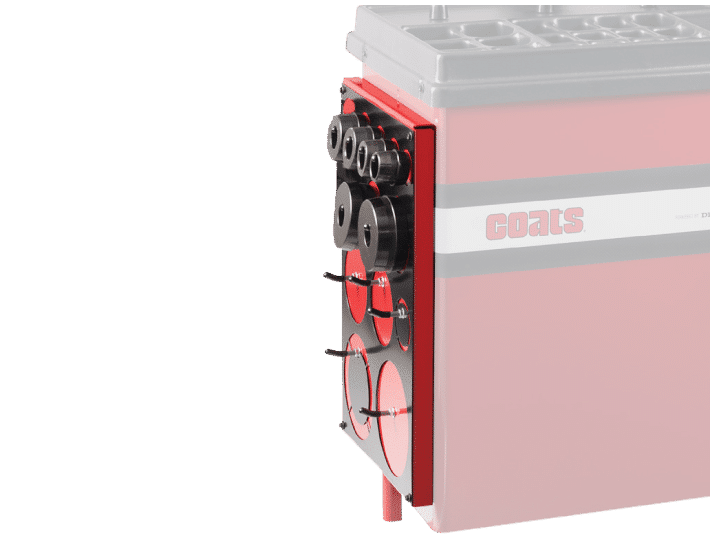

- Side shadow board for weight placement reference
- Scraper tool for adhesive weight application
- Operator manual with comprehensive safety and operation instructions
Optional Accessories: Premium hub nut (85610908), short cone (8112421), light truck cone kit (8113277C), Ford ULA 3-degree cone (81141821), adjustable pin plates (85610104), and Toyota adapter kit (85009945).
Not Included: Electrical installation and wiring, concrete floor preparation, shop lifting equipment, safety barriers, protective eyewear, or formal operator training courses. Professional installation service recommended.
Coats 1500-3D Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: 10-14 business days from order confirmation, subject to equipment availability. Ship Weight: 616 lbs. International Shipping: Contact sales for shipping quotes and delivery information to Canada and other countries.
Delivery Requirements
Delivery Type: Curbside freight delivery at commercial loading dock or ground-level location. Unloading Equipment: Requires forklift or mechanical lift for safe offloading of the 616 lb unit. Receiving Inspection: Inspect the equipment and shipping container immediately upon arrival before signing the bill of lading. Document any visible damage, dents, or shipping defects on the delivery receipt and contact us within 24 hours to file a damage claim.
Returns Policy
Returns accepted within 30 days of delivery only if the product remains unopened and in original factory packaging with proof of purchase receipt. A 20% restocking fee applies to all approved returns. The buyer is responsible for all return freight costs. Contact customer service for a return authorization number before shipping the equipment back.
Coats 1500-3D Warranty
Coats 1500-3D Limited Warranty
The Coats 1500-3D is backed by Coats' comprehensive warranty program designed for professional tire shop environments:
- 3 Years: Parts coverage - covers all components including the LED interface, direct drive motor and spindle assembly, laser system, mechanical parts, and electronic controls against defects in materials and workmanship
- 6 Months: Labor coverage - covers diagnostic and repair labor for warranty-covered components at authorized Coats service locations nationwide
Warranty Requirements: Equipment must be installed and operated according to manufacturer instructions. Warranty excludes damage from misuse, accidents, unauthorized modifications, or lack of maintenance. Coats authorized distributors provide warranty support nationwide. All warranty claims require documentation of purchase date and proof of original sale. Professional installation is recommended to preserve warranty coverage.
Documents
Click to open in a new tab.
Coats 1500-3D Videos
Coats wheel balancer features and capabilities demonstration
Stop Lock Index positioning technology explained
Questions About the Coats 1500-3D?
Our equipment specialists can help with specifications, installation planning, financing options, and product selection for your tire shop operation.
Coats 1500-3D FAQ
What is Laser Guided Operation?
Laser Guided Operation is an advanced system in the Coats 1500-3D that pinpoints the exact weight location both radially and axially, eliminating trial-and-error weight placement. The laser system guides technicians to precise positioning, reducing balancing time and improving accuracy. This technology results in fewer customer complaints about vibration, superior ride quality, and faster throughput compared to standard balancers that require manual positioning adjustments.
What is Stop Lock & Index technology?
Stop Lock & Index is a positioning technology that automatically places the wheel at the weight placement location and locks the spindle in place for accurate weight application. This eliminates manual wheel positioning between balancing and weight application, reduces technician strain, ensures consistent weight placement without drift or repositioning errors, and speeds up the overall balancing process. This feature significantly improves shop productivity and balance quality.
What wheels can the 1500-3D balance?
The Coats 1500-3D balances wheels from 8" to 30" in diameter and 2" to 20" in width. Maximum tire diameter capacity is 44", with a maximum tire weight rating of 160 lbs. The 40mm shaft with included double-sided collets (2.04"-5.20") and optional cones provides mounting compatibility with virtually all passenger car and light truck wheels. Optional light truck cone kit and adapters expand compatibility for specialty vehicles and different mounting types.
What is automatic 3-D data entry?
Automatic 3-D data entry captures distance, diameter, and width measurements without technician input, eliminating data entry errors that can slow balancing and reduce accuracy. Unlike 2-D balancers that require manual width entry, the 1500-3D automatically senses all three dimensions through its sensor system. This automation reduces mistakes, accelerates cycle time, and ensures precise measurements for every wheel balance, particularly important in high-volume shop environments.
How much space does the 1500-3D require?
The Coats 1500-3D has a footprint of 57" wide by 55" deep by 75" tall. Plan for minimum 24" to 36" of clearance around all sides for safe wheel mounting, tool access, and technician movement. Total recommended floor space is approximately 11 feet by 11 feet. The balancer requires a level, non-slip concrete floor for proper sensor and laser operation. Ensure adequate ceiling clearance and position away from high-traffic areas.
What electrical power does the 1500-3D need?
The Coats 1500-3D requires 220V electrical service available in either single-phase (part number 80015003D) or three-phase (part number 80015003D01) configurations. A dedicated circuit is recommended. A licensed electrician must install and verify electrical connections, proper grounding, and circuit protection per local electrical codes. Contact a qualified electrician or Coats distributor in your area for professional electrical installation.
What is included with the 1500-3D?
The Coats 1500-3D includes the balancer unit with LED interface and laser system, three weight trays with studs, double-sided collets, premium weight hammer, quick nut, pressure cup with rubber lip, spring, calipers, no mar ring, side shadow board, scraper tool, and complete operator manual. Optional accessories like premium hub nut, light truck cones, Ford cone adapter, adjustable pin plates, and Toyota adapter kit are available separately to expand wheel compatibility and mounting flexibility.
What warranty does the 1500-3D have?
The Coats 1500-3D comes with a 3-year parts warranty covering all components including the laser system and electronics against manufacturer defects, and a 6-month labor warranty for diagnostic and repair services at authorized Coats locations. Warranty coverage requires proper installation and operation per manufacturer instructions. Professional installation is recommended to preserve warranty coverage. Warranty excludes damage from misuse, accidents, or unauthorized modifications.
How long does it take to deliver the 1500-3D?
Lead time for the Coats 1500-3D is typically 10-14 business days from order confirmation, subject to equipment availability. Free freight shipping is included to commercial addresses in the 48 contiguous United States. The unit ships via commercial carrier and requires curbside freight delivery at a loading dock. The 616 lb balancer requires forklift or mechanical lift equipment for safe offloading. International delivery is available - contact sales for quotes and lead times.
Does the 1500-3D need frequent calibration?
No. The Coats 1500-3D's direct drive system featuring a pre-balanced motor and spindle assembly stays calibrated to zero without frequent adjustments. The integrated laser and sensor systems provide stable, consistent measurement without the drift and calibration drift associated with belt-driven balancers. Technicians can rely on accurate laser guidance and sensor measurements day after day, reducing maintenance costs and equipment downtime.
What makes the 1500-3D different from the 1300?
The 1500-3D is an advanced model featuring Laser Guided Operation, Stop Lock & Index positioning, and automatic 3-D data entry for distance, diameter, and width. The 1300 is a standard direct drive model with 2-D automatic data entry for distance and diameter. The 1500-3D's laser system provides superior weight placement accuracy, the Stop Lock & Index automates positioning, and 3-D data entry eliminates manual width input. The 1500-3D is designed for shops seeking advanced diagnostics and maximum productivity.
What accessories are available for the 1500-3D?
Optional accessories for the Coats 1500-3D include premium hub nut (85610908), short cone (8112421), light truck cone kit (8113277C), Ford ULA 3-degree cone (81141821), adjustable pin plates (85610104), and Toyota adapter kit (85009945). These accessories provide mounting flexibility for specialty wheels, light trucks, hub-centered wheels, and international vehicle applications. Consult the accessories flyer or contact Coats distributors for recommendations based on your shop's specific vehicle mix and wheel types.
