COATS 1300 Direct Drive Wheel Balancer
- Authorized Online Dealer direct manufacturer relationship
- No Sales Tax outside PA where applicable
- Authorized Dealer Price Match verification required
- Fast Delivery some products may have lead times
- Manufacturer Warranty included with purchase
- Questions? +1 (855) 498-2147

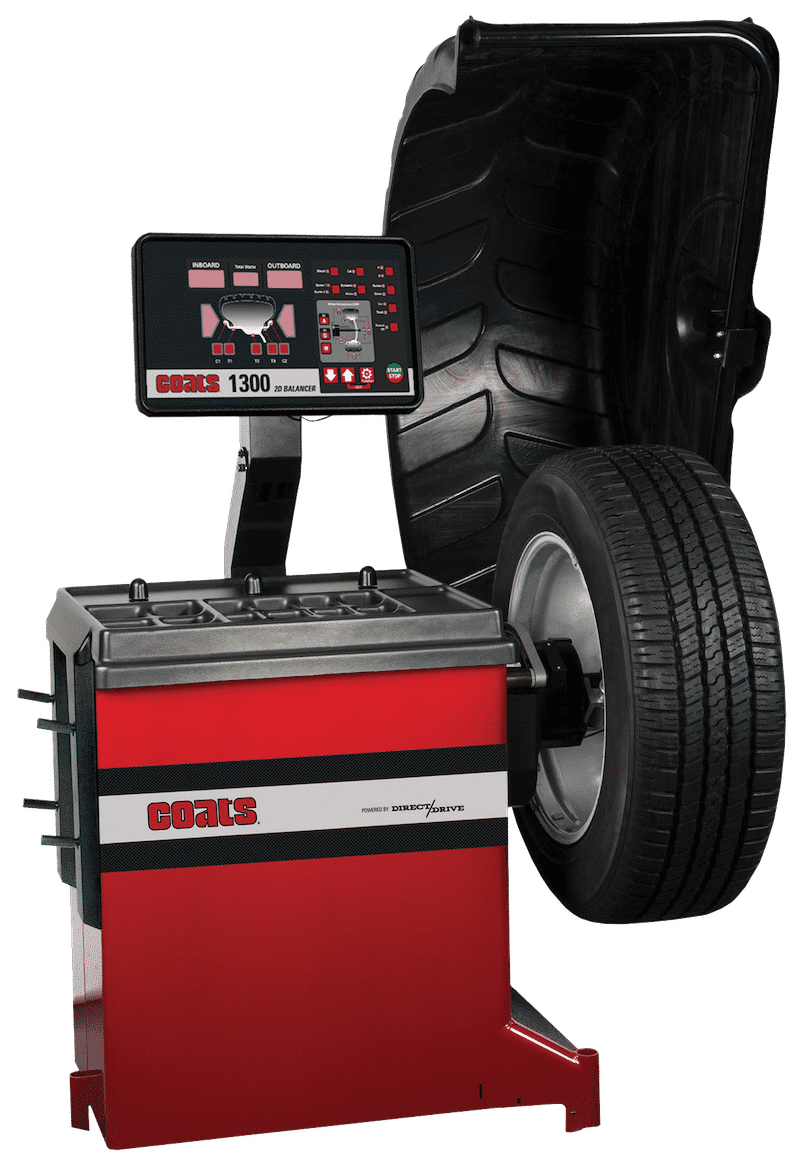

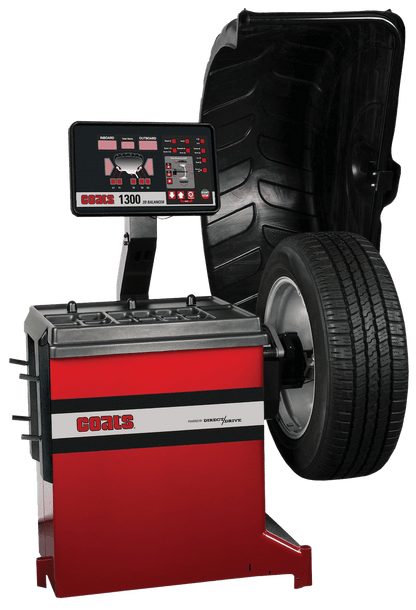

Coats 1300 Direct Drive Wheel Balancer for Professional Tire Shops
The Coats 1300 Direct Drive Wheel Balancer delivers legendary reliability combined with state-of-the-art balancing capability for professional tire shops and service centers. Featuring direct drive technology with a pre-balanced motor and spindle assembly, the 1300 provides consistent, accurate results without frequent recalibrations. With 8 balancing modes, 40mm shaft, automatic data entry, and Static-on-Screen display showing both static and dynamic unbalance simultaneously, this workhorse balancer accommodates wheels from 8"-30" diameter with tire weights up to 150 lbs.
Coats 1300 Features

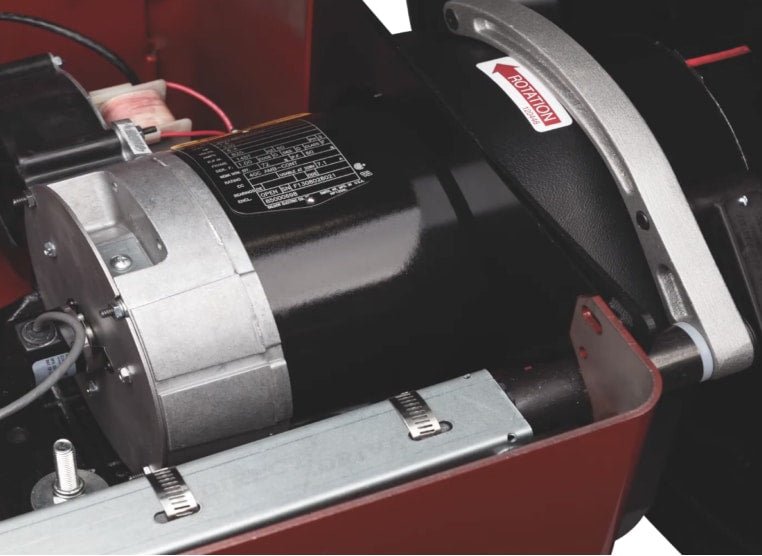

Direct Drive Technology
The Coats 1300 features a pre-balanced motor and spindle assembly integrated into a single unit that always stays calibrated to zero. This direct drive design eliminates belt maintenance and frequent recalibrations required by standard balancers. Technicians benefit from consistent, reliable performance day after day with minimal downtime for adjustments or service calls.

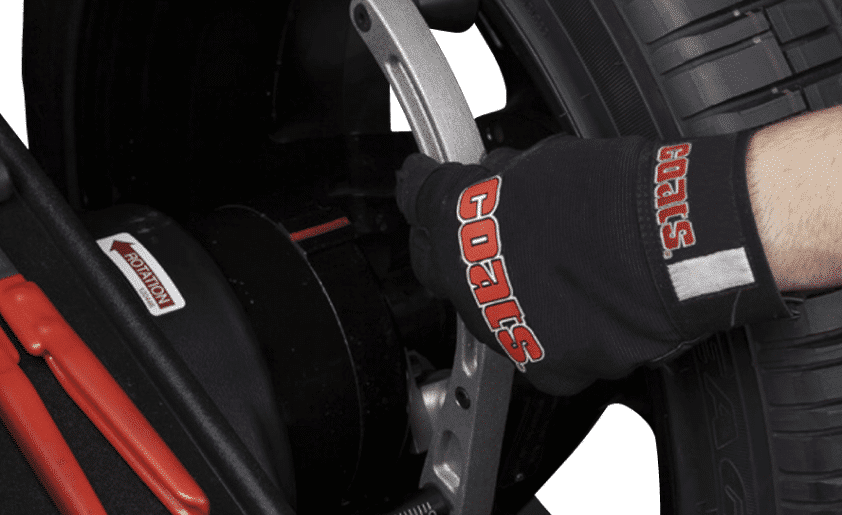

Automatic 2-D Data Entry
The 1300 automatically captures distance and diameter measurements through the offset arm system, eliminating technician data entry errors that slow the balancing process. This intelligent automation reduces manual input mistakes, accelerates cycle time, and ensures precise wheel measurements for every balance job without tedious manual calculation.

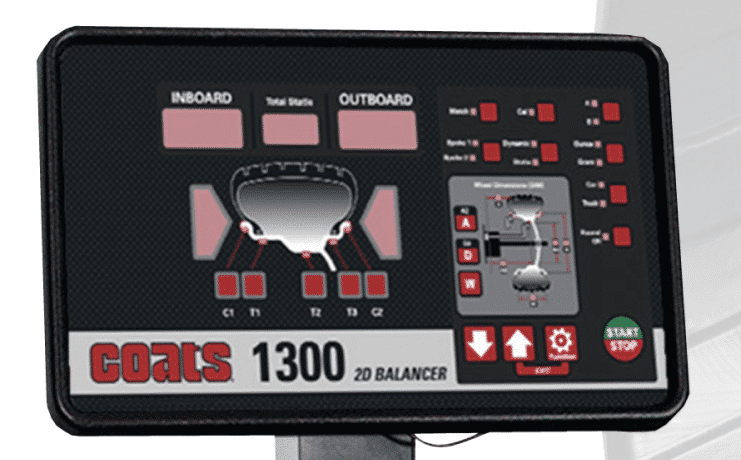

Static-on-Screen Display
The LED interface simultaneously displays both static and dynamic unbalance data on a single screen, allowing technicians to assess wheel balance conditions at a glance. This comprehensive unbalance view enables faster decision-making about weight placement and reduces the time spent interpreting separate read-outs, improving shop productivity.
8 Balancing Modes
The 1300 supports 8 different balancing modes with 0.01 oz resolution, providing flexibility for standard wheels, light trucks, and specialty applications. Multiple balancing algorithms ensure optimal results for virtually any wheel assembly, reducing comebacks and customer complaints about wheel vibration and ride quality issues.
Wide Wheel Compatibility
The 1300 accommodates wheels from 8" to 30" in diameter and 2" to 20" in width, with maximum tire diameters up to 44" and tire weights to 150 lbs. Optional light truck cones and accessory kits expand compatibility with specialty vehicles. The 40mm shaft with tweener cone set provides mounting flexibility for diverse wheel types.
Durable Shop Equipment
Built with legendary Coats reliability and durability, the 1300 is engineered for high-volume tire shop environments with a 30 wheels-per-hour maximum duty cycle. Coats' 75-year heritage ensures robust construction, straightforward maintenance, and availability of genuine replacement parts through authorized distributors nationwide.
Coats 1300 Applications
- Professional Tire Shops: Independent and chain tire retailers requiring reliable, fast wheel balancing for high-volume passenger car and light truck service operations.
- Dealership Service Centers: OEM service departments balancing wheels on new and used vehicles with proven equipment that meets manufacturer service standards.
- General Automotive Repair Shops: Full-service shops offering tire and wheel services as part of comprehensive vehicle maintenance packages for customers.
- Fleet Maintenance Facilities: Commercial fleet operators and truck stop service centers balancing large volumes of wheels on multiple vehicle types daily.
- Automotive Parts Retailers: Installation service centers at tire and automotive parts stores providing customer wheel balancing services during tire installation.
Coats 1300 Specifications
| Specification | Value |
|---|---|
| Wheel Diameter Range | 8" - 30" |
| Wheel Width Range | 2" - 20" |
| Maximum Tire Diameter | 44" |
| Maximum Tire Weight | 150 lbs |
| Shaft Diameter | 40 mm |
| Balancing Modes | 8 |
| Resolution | 0.01 oz |
| Maximum Duty Cycle | 30 wheels per hour |
| Specification | Value |
|---|---|
| Width | 60" |
| Depth | 60" |
| Height | 78" |
| Ship Weight | 639 lbs |
| Specification | Value |
|---|---|
| Electrical Requirements | 220V, 1-phase OR 220V, 3-phase |
| Part Number - Single Phase | 80013002D |
| Part Number - Three Phase | 80013002D01 |
| Interface | LED |
Coats 1300 Installation Requirements
Electrical Requirements
Power Supply: 220V electrical service available in either single-phase (part number 80013002D) or three-phase (part number 80013002D01) configurations. Installation: A licensed electrician must install and verify electrical supply connections, proper grounding, and circuit protection per local electrical codes and manufacturer specifications. Ensure adequate power supply for safe, reliable operation.
Floor and Space Requirements
Floor Type: Level, non-slip concrete floor recommended for stable, accurate operation. Equipment Footprint: 60" wide by 60" deep by 78" tall. Plan for minimum 24" to 36" of clearance around all sides of the unit for safe wheel mounting, tool access, and operator movement. Total recommended floor space is approximately 12 feet by 12 feet.
Operating Environment
Temperature: Maintain shop environment suitable for standard tire service operations. Cleanliness: Position the balancer away from high-traffic areas to prevent accidental collisions. Avoid direct exposure to excessive dust, debris, or water splash from shop cleaning activities. Proper ventilation and lighting around the equipment improves operator safety and accuracy.
Professional Installation Recommended
Professional installation by a qualified technician is recommended to ensure proper electrical connection, equipment leveling, and operator training. Coats authorized service distributors can provide installation support in your area. Proper setup ensures the direct drive system maintains factory calibration and the balancer delivers consistent results throughout its service life.
What's Included with the Coats 1300
- Coats 1300 wheel balancer base unit with LED interface
- Small A cone for standard wheel mounting
- Medium B cone for different wheel types
- Large C cone for larger wheel applications
- Light truck back cone - D cone for specialty applications
- Premium wheel weight hammer
- Small pressure cup with rubber lip
- Spring assembly for mounting support
- Calipers for precision measurement
- Hub nut for secure wheel attachment
- No mar ring to protect wheel finish
- Operator manual with safety and maintenance documentation
Optional Accessories: Tweener cone set (8113795), light truck cone kit (8113277C), light truck back cone spacer (8111935), double-sided collets (85609499), adjustable pin plates (85610104), short cone (8112421), and premium quick nut (85607503).
Not Included: Electrical installation and wiring, concrete floor preparation, shop lifting equipment, safety barriers, protective eyewear, or formal operator training materials. Professional installation service recommended.
Coats 1300 Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: 10-14 business days from order confirmation, subject to equipment availability. Ship Weight: 639 lbs. International Shipping: Contact sales for shipping quotes and delivery information to Canada and other countries.
Delivery Requirements
Delivery Type: Curbside freight delivery at commercial loading dock or ground-level location. Unloading Equipment: Requires forklift or mechanical lift for safe offloading of the 639 lb unit. Receiving Inspection: Inspect the equipment and shipping container immediately upon arrival before signing the bill of lading. Document any visible damage, dents, or shipping defects on the delivery receipt and contact us within 24 hours to file a damage claim.
Returns Policy
Returns accepted within 30 days of delivery only if the product remains unopened and in original factory packaging with proof of purchase receipt. A 20% restocking fee applies to all approved returns. The buyer is responsible for all return freight costs. Contact customer service for a return authorization number before shipping the equipment back.
Coats 1300 Warranty
Coats 1300 Limited Warranty
The Coats 1300 is backed by Coats' comprehensive warranty program designed for professional tire shop environments:
- 3 Years: Parts coverage - covers all components including the LED interface, direct drive motor and spindle assembly, mechanical parts, and electronic controls against defects in materials and workmanship
- 6 Months: Labor coverage - covers diagnostic and repair labor for warranty-covered components at authorized Coats service locations nationwide
Warranty Requirements: Equipment must be installed and operated according to manufacturer instructions. Warranty excludes damage from misuse, accidents, unauthorized modifications, or lack of maintenance. Coats authorized distributors provide warranty support nationwide. All warranty claims require documentation of purchase date and proof of original sale. Professional installation is recommended to preserve warranty coverage.
Documents
Click to open in a new tab.
Coats 1300 Video
Questions About the Coats 1300?
Our equipment specialists can help with specifications, installation planning, financing options, and product selection for your tire shop operation.
Coats 1300 FAQ
What wheels can the Coats 1300 balance?
The Coats 1300 balances wheels from 8" to 30" in diameter and 2" to 20" in width. Maximum tire diameter capacity is 44", with a maximum tire weight rating of 150 lbs. The 40mm shaft with included cone set (small A, medium B, large C, and light truck D cones) provides mounting compatibility with virtually all passenger car and light truck wheels. Optional light truck cone kit and adjustable pin plates expand compatibility for specialty applications and different wheel mounting types.
What is the Direct Drive system?
The Coats 1300 features direct drive technology where the motor and spindle are combined into a single, factory pre-balanced assembly that always stays calibrated to zero. This design eliminates belt maintenance, requires no frequent recalibrations, and provides consistent, reliable balancing performance. Direct drive technology reduces downtime for equipment adjustments and ensures accurate results without the calibration drift common in belt-driven balancers used by some competitors.
What is Static-on-Screen display?
Static-on-Screen is the Coats 1300's LED interface that simultaneously displays both static and dynamic unbalance data on a single screen. This comprehensive view of wheel balance conditions allows technicians to make faster decisions about weight placement without toggling between separate displays. The dual data presentation speeds up the balancing process and reduces interpretation errors that can lead to wheel vibration complaints after tire service.
How much space does the Coats 1300 require?
The Coats 1300 has a footprint of 60" wide by 60" deep by 78" tall. Plan for minimum 24" to 36" of clearance around all sides of the unit for safe wheel mounting, tool access, and technician movement. Total recommended floor space is approximately 12 feet by 12 feet. The balancer requires a level, non-slip concrete floor for proper operation and measurement accuracy. Ensure adequate ceiling clearance and position away from high-traffic areas.
What electrical power does the Coats 1300 need?
The Coats 1300 requires 220V electrical service available in either single-phase (part number 80013002D) or three-phase (part number 80013002D01) configurations. A dedicated circuit is recommended. A licensed electrician must install and verify electrical connections, proper grounding, and circuit protection per local electrical codes. Contact a qualified electrician or Coats distributor in your area for professional installation and power verification services.
What is included with the 1300?
The Coats 1300 includes the balancer unit with LED interface, four cone types (small A, medium B, large C, and light truck D), premium wheel weight hammer, small pressure cup with rubber lip, spring assembly, calipers, hub nut, no mar ring, and operator manual with safety instructions. Optional accessories like tweener cone set, light truck cone kit, adjustable pin plates, double-sided collets, and short cones are available separately to expand wheel compatibility and mounting flexibility.
What warranty does the Coats 1300 have?
The Coats 1300 comes with a 3-year parts warranty covering all components against manufacturer defects and a 6-month labor warranty for diagnostic and repair services at authorized Coats locations. Warranty coverage requires proper installation and operation per manufacturer instructions. Professional installation is recommended to preserve warranty coverage. Warranty excludes damage from misuse, accidents, unauthorized modifications, or lack of maintenance. Contact Coats distributors for warranty claims and support.
How long does it take to deliver the Coats 1300?
Lead time for the Coats 1300 is typically 10-14 business days from order confirmation, subject to equipment availability. Free freight shipping is included to commercial addresses in the 48 contiguous United States. The unit ships via commercial carrier and requires curbside freight delivery at a loading dock. The 639 lb balancer requires forklift or mechanical lift equipment for safe offloading. International delivery is available - contact sales for specific quotes and lead times.
What is the duty cycle of the 1300?
The Coats 1300 supports a maximum duty cycle of 30 wheels per hour at 150 lbs maximum tire weight. This capacity makes the 1300 well-suited for professional tire shops and service centers with moderate to high-volume wheel balancing operations. The direct drive system and automatic data entry help technicians stay within this cycle while maintaining accuracy and customer satisfaction.
Does the 1300 need frequent calibration?
No. The Coats 1300's direct drive system featuring a pre-balanced motor and spindle assembly that is integrated into a single unit stays calibrated to zero without frequent adjustments. This design eliminates the recurring calibration drift and maintenance costs associated with belt-driven balancers. Technicians can rely on consistent measurement accuracy day after day, improving productivity and reducing downtime for equipment adjustments.
Can I use the 1300 for light truck wheels?
Yes. The Coats 1300 comes with a light truck back cone - D cone included in the standard equipment. Optional light truck cone kit (8113277C) and light truck back cone spacer (8111935) are available for expanded light truck compatibility. The 1300 balances wheels from 8" to 30" diameter accommodating both passenger cars and light trucks. Optional adjustable pin plates (85610104) provide additional mounting flexibility for different wheel types and truck applications.
What accessories are available for the 1300?
Optional accessories for the Coats 1300 include tweener cone set (8113795), light truck cone kit (8113277C), light truck back cone spacer (8111935), double-sided collets (85609499), adjustable pin plates (85610104), short cone (8112421), and premium quick nut (85607503). These accessories provide mounting flexibility for specialty wheels, light trucks, hub-centered wheels, and custom applications. Consult the accessories flyer or contact Coats distributors for recommendations specific to your shop's vehicle mix and wheel types.
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including styrene and vinyl chloride, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.p65warnings.ca.gov.
