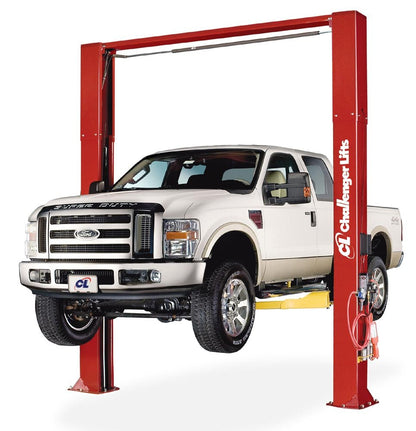

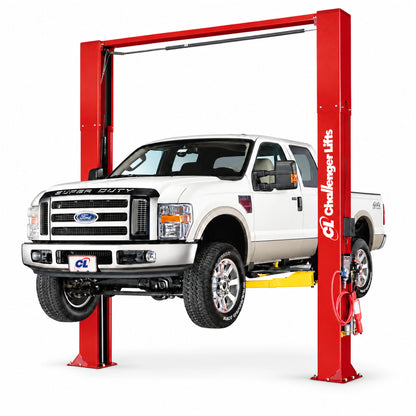

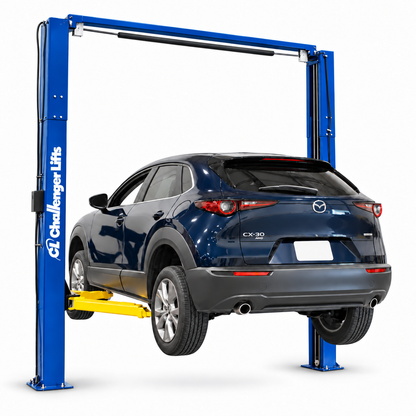

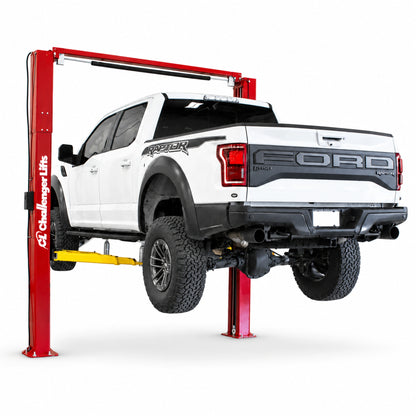

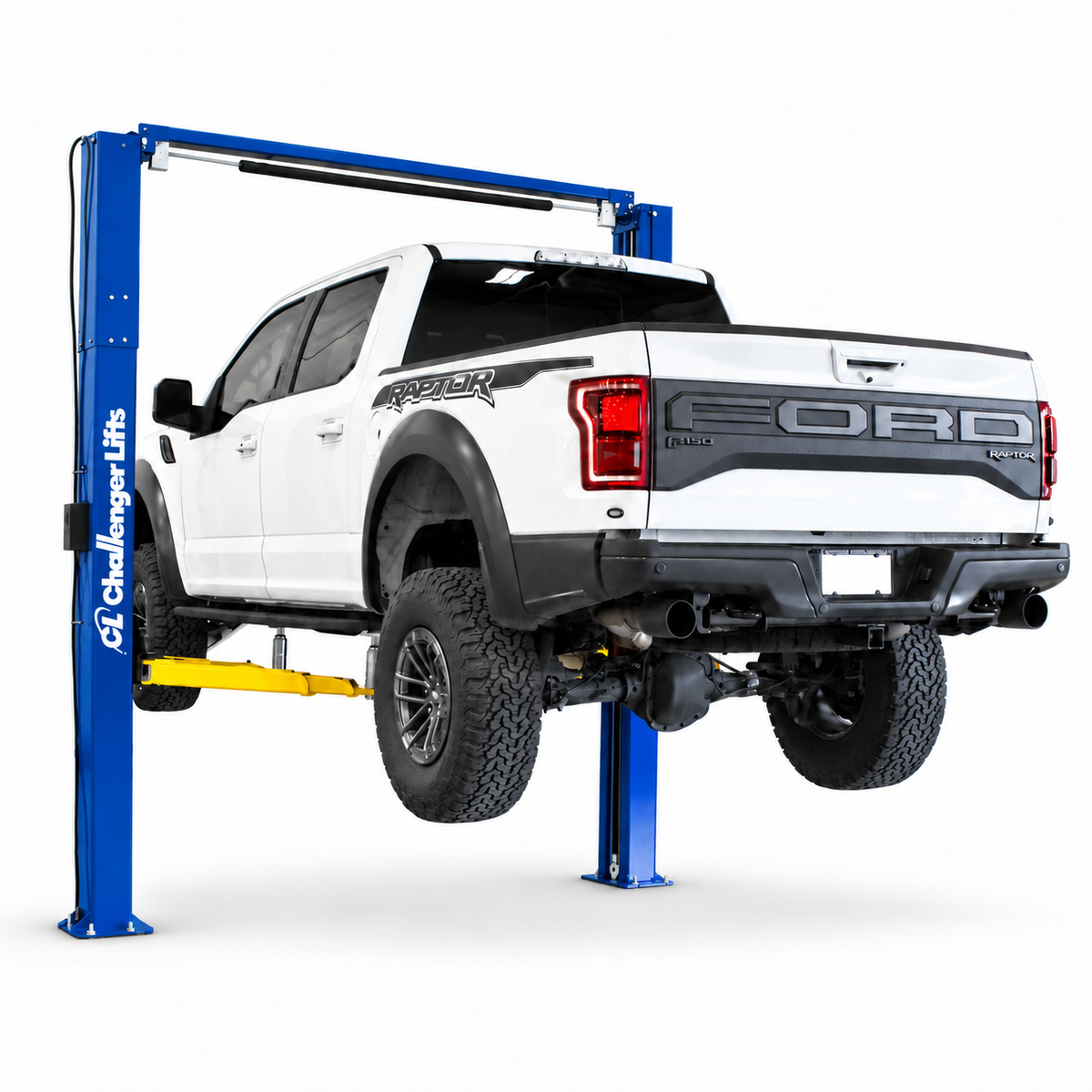

Challenger VLE10 10,000 lb Versymmetric Two Post Lift with Symmetric and Asymmetric Arm Configuration
The Challenger VLE10 is a 10,000 lb capacity two post lift featuring Versymmetric arm technology that allows both symmetric and asymmetric lifting configurations in the same service bay. The three-stage front arms and two-stage rear arms provide the flexibility to position vehicles for optimal door clearance or centered lifting depending on the service being performed. At just 143.875 inches overall height, the VLE10 fits in standard 12-foot ceiling bays, with an optional 2-foot extension kit available for facilities that need to service taller vehicles. The lift operates on standard 208-230V single-phase power and includes Challenger's jacketed pulley-less single-point mechanical lock release system. Challenger backs the VLE10 with a one-year warranty on labor and functional parts, plus five years on structural components.
Challenger VLE10 Features
Versymmetric Arm Technology

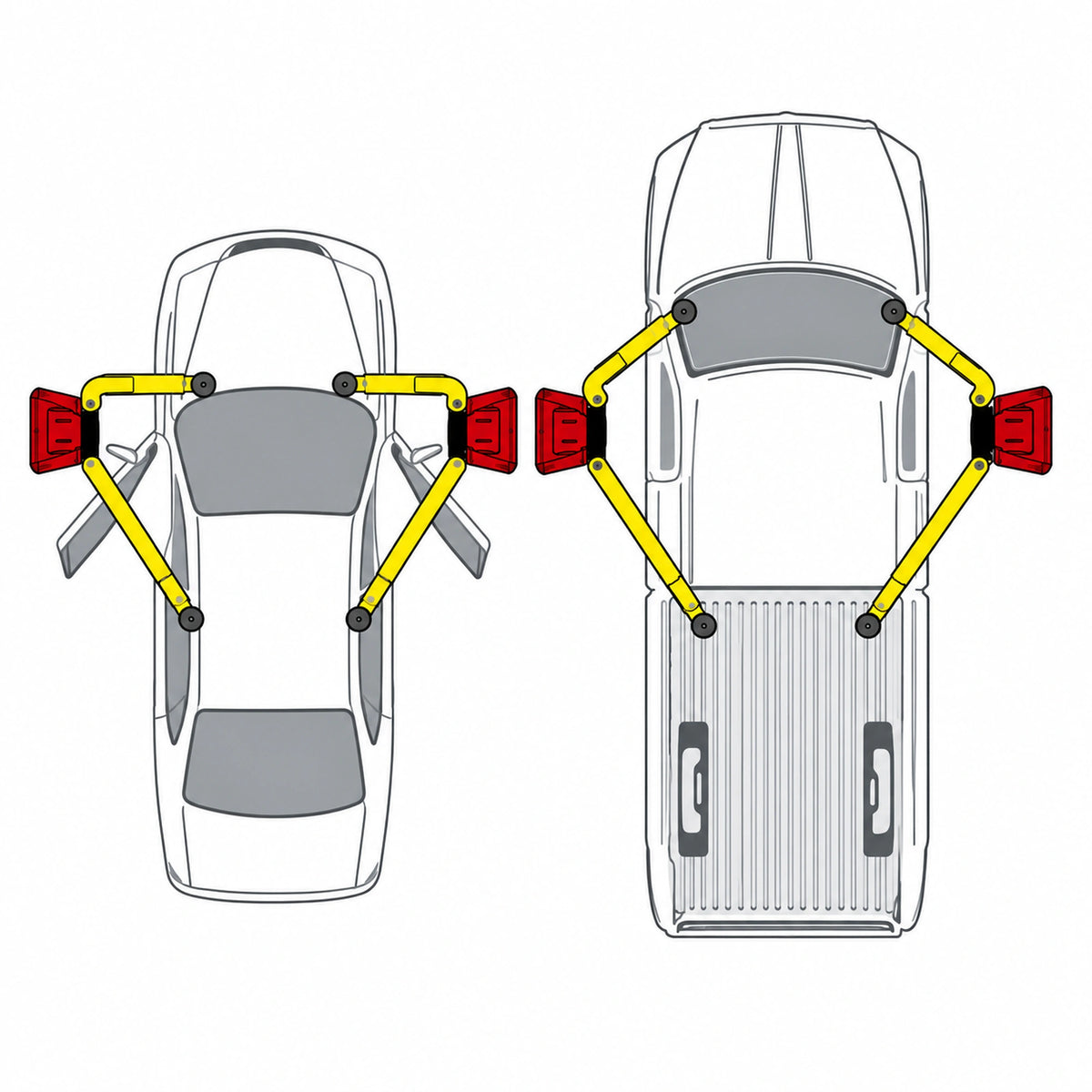

The VLE10 uses Challenger's Versymmetric arm design with three-stage telescoping front arms and two-stage rear arms. This configuration allows the lift to operate in both symmetric and asymmetric modes without swapping arms or hardware. Position vehicles centered for symmetric lifting or offset toward the rear for asymmetric lifting with improved door swing clearance, all from the same lift.
Extended Arm Reach Range

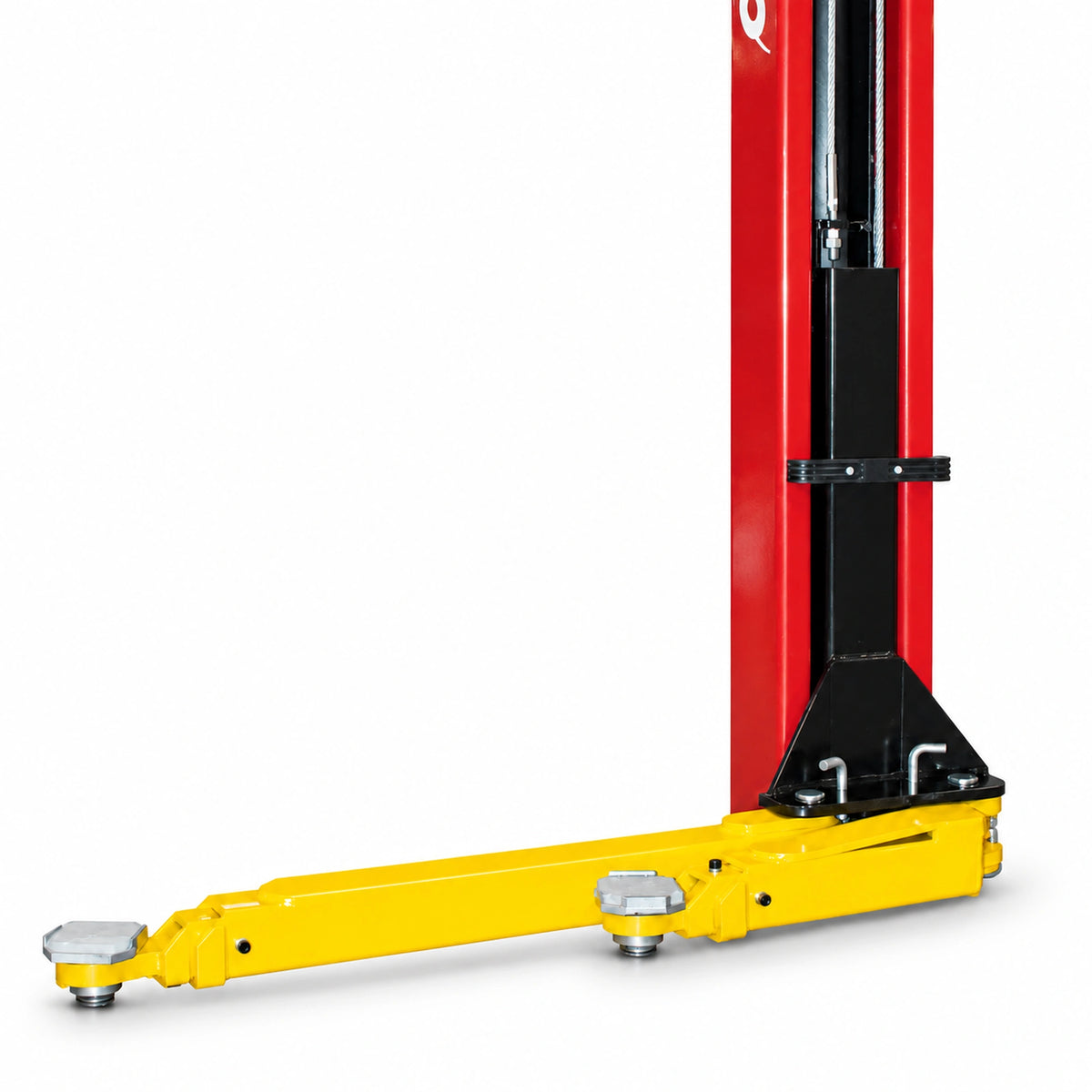

The front arms reach from 22.3125 to 39.375 inches, while the rear arms extend from 38.375 to 55.375 inches. This wide reach range accommodates everything from compact cars to full-size trucks and SUVs. The double telescoping screw pads add 4.25 to 6.75 inches of height adjustment for precise lift point contact across different vehicle configurations.
Standard 12-Foot Ceiling Compatibility
At 143.875 inches overall height (11 feet 11.875 inches), the VLE10 fits in service bays with standard 12-foot ceilings. The floor-to-overhead switch height of 137 inches provides clearance for most passenger vehicles at full rise. For facilities servicing taller vehicles like high-roof vans or lifted trucks, an optional 2-foot column extension kit increases overall height to 167.875 inches.
Jacketed Pulley-Less Lock Release System
The VLE10 includes Challenger's single-point mechanical lock release system, previously exclusive to the CL series lifts. The jacketed cable design provides smooth, reliable operation while protecting the release mechanism from debris and contamination. One pull of the release handle disengages both column locks simultaneously.
Rubber Door Guards and Plated Components
Rubber door guards mounted to both columns protect vehicle doors from contact damage during service. The arm restraints and arm pins feature plated finishes that resist rust and corrosion, extending component life in demanding shop environments. The premium powder coat finish on all structural components provides additional durability.
Padded Overhead Shutoff System
The overhead limit switch with padded shutoff bar prevents vehicle contact with the overhead beam during lifting. When the vehicle contacts the padded bar, the power unit stops automatically, protecting both the vehicle and the lift from damage. This safety feature is especially important when servicing unfamiliar vehicles with varying roof heights.
Challenger VLE10 Add-Ons and Accessories
Expand your VLE10's capabilities with Challenger's optional accessories.

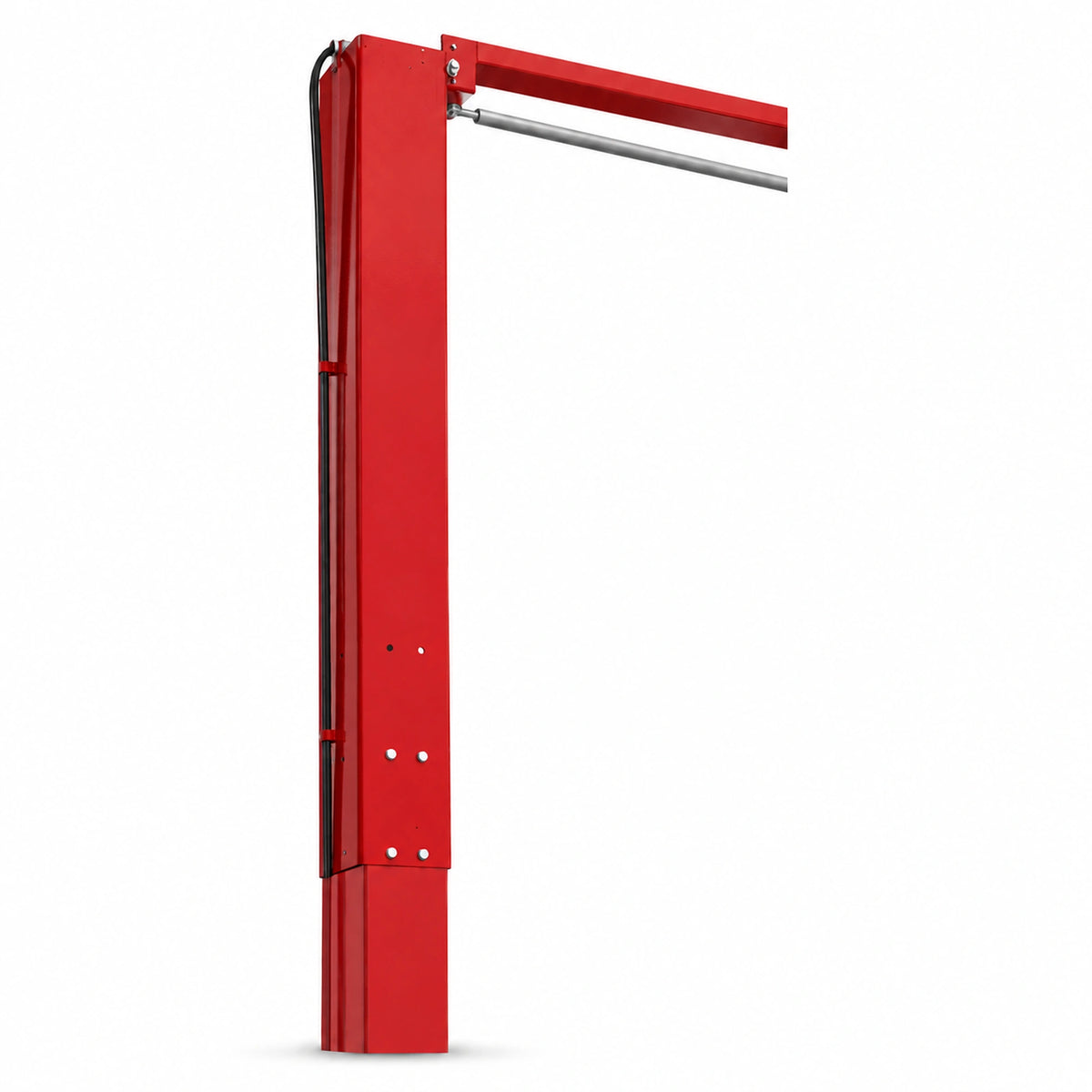

VLE10EH2 Column Height Extension Kit

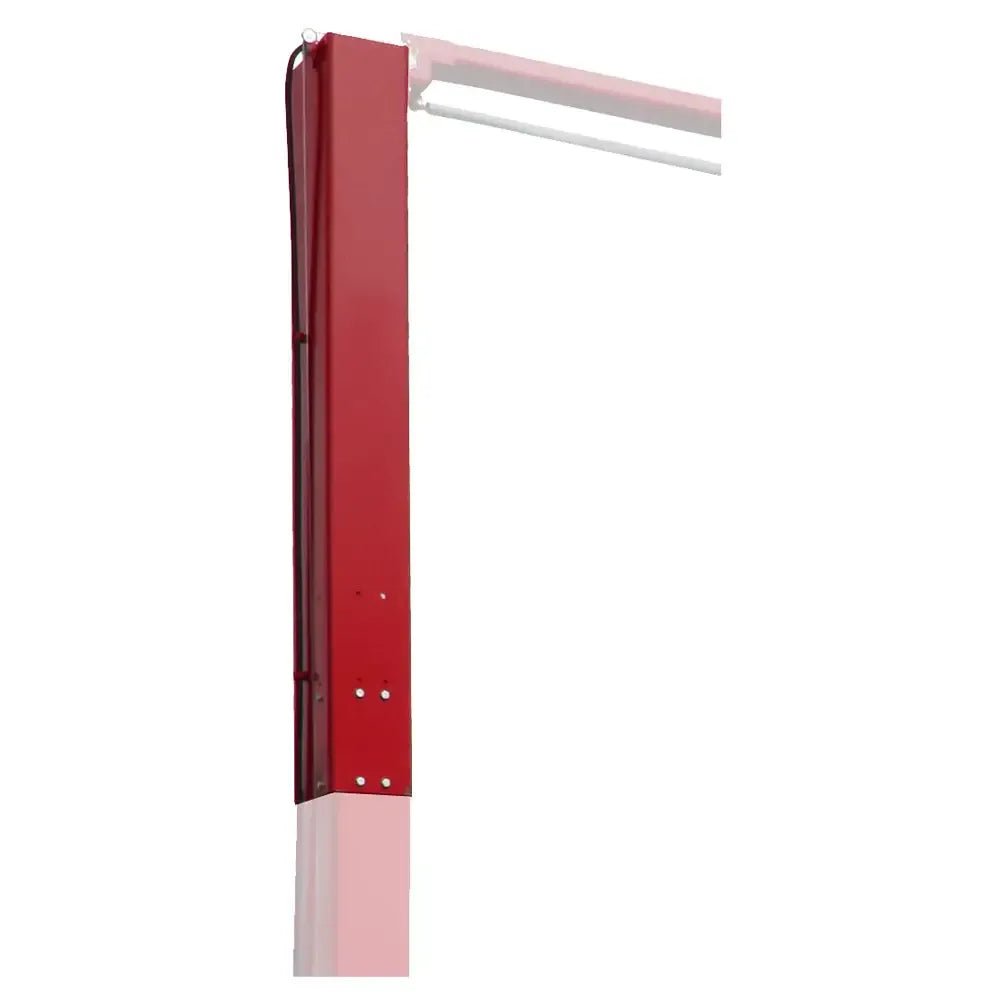

The VLE10EH2 adds 2 feet of column height to your VLE10, increasing overall lift height from 143.875 inches to 167.875 inches. This extension kit includes new length cables and all required installation hardware for a complete upgrade. The extension maintains full 10,000 lb capacity and requires a minimum 14-foot ceiling height. Ideal for shops servicing high-roof cargo vans, ambulances, lifted trucks, and other tall vehicles that exceed standard lift clearance.
Challenger VLE10 Specifications
| Lifting Capacity | 10,000 lbs (4,536 kg) |
|---|---|
| Maximum Load Per Arm | 2,500 lbs (1,134 kg) |
| Hydraulic Pressure at Capacity | 2,800 PSI |
| Overall Height (Standard) | 143.875 in (3,655 mm) |
|---|---|
| Overall Height (with Extension) | 167.875 in (4,264 mm) |
| Overall Width | 131.625 in (3,344 mm) |
| Inside of Columns | 110.25 in (2,800 mm) |
| Drive-Thru Clearance | 98.375 in (2,499 mm) |
| Rise Height | 74.75 in (1,899 mm) |
|---|---|
| Screw Pad Height (Min) | 4.25 in (108 mm) |
| Screw Pad Height (Max) | 6.75 in (172 mm) |
| Floor to Overhead Switch (Standard) | 137 in (3,482 mm) |
| Floor to Overhead Switch (with Extension) | 161 in (4,092 mm) |
| Front Arm Configuration | 3-Stage Versymmetric |
|---|---|
| Rear Arm Configuration | 2-Stage |
| Front Arm Reach (Min to Max) | 22.3125 to 39.375 in (566 to 1,000 mm) |
| Rear Arm Reach (Min to Max) | 38.375 to 55.375 in (974 to 1,406 mm) |
| Motor | 3 HP |
|---|---|
| Voltage | 208-230V, Single Phase, 60Hz |
| Circuit Requirement | 30 amp dedicated circuit |
| Rise Time | 44 seconds |
| Ceiling Height Required (Standard) | 12 ft (144 in / 3,658 mm) |
|---|---|
| Ceiling Height Required (with Extension) | 14 ft (168 in / 4,268 mm) |
| Recommended Bay Width | 14 ft |
| Recommended Bay Depth | 24 ft |
| Concrete Thickness | 4 in minimum, steel reinforced |
| Concrete Strength | 3,500 PSI minimum |
| Floor Levelness | Within 0.375 in over installation area |
| Approximate Shipping Weight | 1,750 lbs |
Challenger VLE10 Documents
Click to open in a new tab.
Challenger VLE10 Warranty
Challenger Lifts Factory Warranty
The Challenger VLE10 is backed by Challenger Lifts' factory warranty, providing coverage for the original owner when the lift is installed and maintained according to Challenger specifications.
- Labor: 1 Year
- Functional Parts: 1 Year (power unit, cylinders, hoses, valves, controls, cables, adapters, latches)
- Structural Parts: 5 Years (columns, carriages, arms, overhead beam)
Warranty registration is required at challengerlifts.com/register-your-lift. If not registered, the warranty period begins from the invoice date. This warranty is non-transferable and applies only to the original purchaser. Use of unapproved parts or failure to follow Challenger's installation and maintenance guidelines will void the warranty.
Challenger VLE10 Shipping and Delivery
Free Shipping
Free shipping to the contiguous 48 United States. Alaska, Hawaii, and remote or rural areas may incur additional charges. Lift gate service, residential delivery, and other special handling may have additional fees.
Freight Service
Ships via LTL (Less Than Truckload) freight from Challenger Lifts' distribution center in Louisville, KY. The VLE10 ships at approximately 1,750 lbs across multiple packages including column assemblies, overhead beam, arms, and power unit. Typical transit time is 1 to 2 weeks depending on your location.
Receiving
Customer is responsible for unloading at delivery location. Forklift or equivalent equipment is recommended for unloading. Inspect all packages before signing the Bill of Lading and note any visible damage before the driver departs. Contact Challenger Lifts immediately if hidden damage is discovered after receipt.
Questions About the Challenger VLE10?
Need help with ceiling height requirements, arm reach for your vehicle fleet, or the height extension kit? We're here to help.
Challenger VLE10 Frequently Asked Questions
What is the lifting capacity of the Challenger VLE10?
The Challenger VLE10 has a lifting capacity of 10,000 lb (4,536 kg) with a maximum of 2,500 lb per arm. This capacity handles most passenger cars, trucks, SUVs, and crossovers. Loads must be distributed across all four arms for safe operation.
What is Versymmetric arm technology?
Versymmetric is Challenger's arm design that allows both symmetric and asymmetric lifting configurations from the same lift. The three-stage front arms and two-stage rear arms provide the reach range needed to position vehicles centered (symmetric) or offset toward the rear (asymmetric) for improved door swing clearance. This eliminates the need for separate lifts or arm swap kits.
What ceiling height does the VLE10 require?
The standard VLE10 requires a minimum 12-foot (144 inch) ceiling height. The lift measures 143.875 inches overall height with the floor-to-overhead switch at 137 inches. For taller vehicles, the optional VLE10EH2 extension kit increases overall height to 167.875 inches, requiring a minimum 14-foot ceiling.
What electrical power does the VLE10 require?
The VLE10 operates on 208-230V single-phase power at 60Hz with a 3 HP motor. A dedicated 30 amp circuit with breaker or time delay fuse is required. This is standard shop electrical service and does not require three-phase power.
What are the concrete floor requirements?
The VLE10 requires a minimum 4 inch thick concrete floor with steel reinforcement and a minimum compressive strength of 3,500 PSI. The concrete must be cured for at least 28 days and be level within 0.375 inches over the installation area. No anchors should be installed within 8 inches of any crack, edge, or expansion joint.
What is the arm reach range on the VLE10?
The three-stage Versymmetric front arms reach from 22.3125 to 39.375 inches. The two-stage rear arms reach from 38.375 to 55.375 inches. The double telescoping screw pads add 4.25 to 6.75 inches of additional height adjustment for precise lift point contact.
Can the VLE10 be extended for taller vehicles?
Yes, the VLE10EH2 column height extension kit adds 2 feet to the lift columns, increasing overall height from 143.875 inches to 167.875 inches. The extension maintains full 10,000 lb capacity and includes new length cables and all required hardware. This allows shops to service high-roof cargo vans, ambulances, and lifted trucks without replacing the entire lift.
What is the warranty on the Challenger VLE10?
The VLE10 includes one-year coverage for labor and functional parts, plus five-year coverage for structural parts. Functional coverage includes the power unit, cylinders, hoses, valves, controls, and cables. Structural coverage protects the columns, carriages, arms, and overhead beam. Warranty registration is required at challengerlifts.com/register-your-lift.
