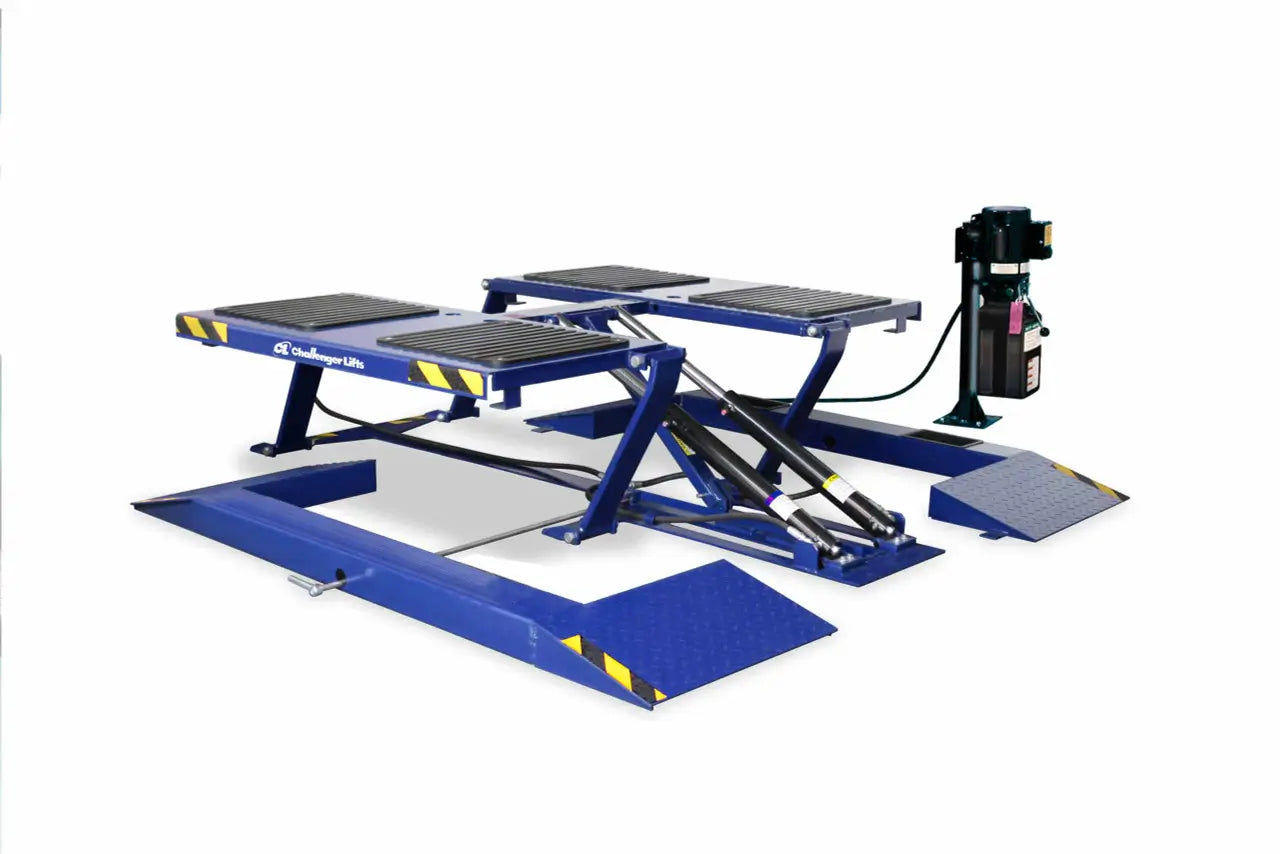

Challenger SRM10 - 10,000 lb ALI Certified Short-Rise Lift for Express Service
The Challenger SRM10 delivers 10,000 lb lifting capacity in a low-profile scissor pad design, engineered for professional brake, tire, and quick service operations. Featuring dual hydraulic cylinders, a 22-inch maximum rise height, and a low 4.25-inch collapsed profile, this short-rise lift handles everything from compact cars to light trucks and SUVs. Manufactured by Challenger Lifts in Louisville, Kentucky, it's backed by Snap-on corporate support and carries ALI/ETL dual certification on the 115V model.
Key Features & Benefits
ALI/ETL Dual Certification
The SRM10 (115V model) carries both ALI Certification meeting ANSI/ALI ALCTV standards and ETL Listing meeting ANSI/UL 201 safety standards. This dual certification provides third-party verified safety testing at the full 10,000 lb rated capacity, giving you documented proof of compliance.
Commercial insurance providers and building inspectors often require certified lift equipment. Having both ALI and ETL certifications simplifies documentation requirements and demonstrates your commitment to shop safety standards.
This eliminates guesswork about whether your lift meets regulatory requirements. The dual certification provides confidence that the SRM10 has been independently tested and approved for professional service operations.

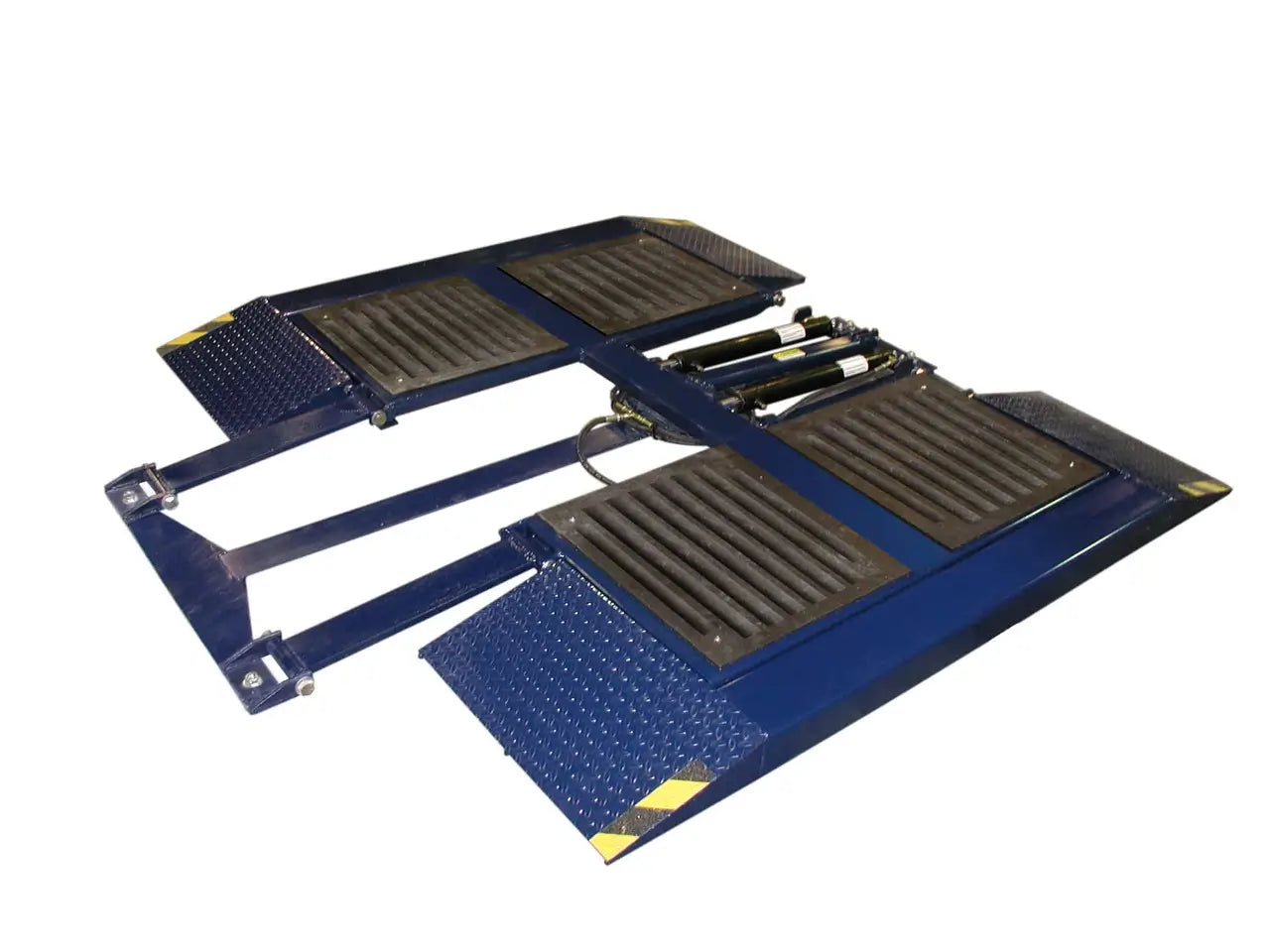

Low 4.25-Inch Collapsed Profile
When fully lowered, the SRM10 sits at just 4.25 inches above the floor surface. This low profile allows easy drive-over access for vehicles with limited ground clearance, including lowered sports cars and performance vehicles that clear the minimum height requirement.
Traditional short-rise lifts often sit 5 to 6 inches high when lowered, restricting which vehicles can safely approach the platform. The SRM10's lower profile expands the range of vehicles your shop can service without concern about clearance issues during positioning.
This enables smoother bay traffic flow when the lift isn't in use. Vehicles can drive across the lowered platform without obstruction, and technicians face no tripping hazards from elevated equipment in the work area.
Dual Hydraulic Cylinder Stability
The SRM10 uses a dual hydraulic cylinder system rather than a single-cylinder design. Two cylinders working in tandem provide balanced, stable lifting across the entire platform, distributing force evenly and reducing the risk of uneven load handling.
Single-cylinder scissor lifts can experience slight tilting or uneven rise patterns, especially when vehicle weight distribution isn't perfectly centered. The dual-cylinder configuration addresses this concern by synchronizing lift motion across both sides of the platform.
This improves technician confidence when working beneath vehicles. The stable platform maintains consistent height throughout service operations, reducing the likelihood of unexpected movement during brake or suspension work.
Three Mechanical Locking Positions
The SRM10 provides three distinct lock heights at 13.75 inches, 18.3 inches, and 21.25 inches. These mechanical locks engage positively regardless of hydraulic system state, ensuring the platform stays securely positioned even if hydraulic pressure is lost.
Different service tasks benefit from different working heights. Tire rotations may only need the lower lock position, while brake caliper work or exhaust inspection might require the higher settings for better technician access and ergonomics.
This enables technicians to select the optimal working height for each specific job. The mechanical engagement system provides a physical safety backstop that doesn't rely on continuous hydraulic pressure to maintain position.
Surface-Mount or Flush-Mount Installation
The SRM10 supports both standard surface-mount installation requiring no floor modifications and flush-mount pit installation that creates a level drive-over surface when the lift is lowered. This flexibility accommodates different shop configurations and workflow preferences.
New construction projects can incorporate a flush-mount pit for a cleaner appearance and zero-clearance drive-over capability. Existing shops can install surface-mount without cutting concrete, reducing installation complexity and cost.
This eliminates the need to commit to one configuration permanently. Shop owners can choose the installation method that best fits their current facility layout and operational requirements.
Two-Position Adapter Blocks Included
The SRM10 ships with four two-position steel adapter blocks featuring rubber pads. These adapters offer a low position at 4.75 inches and a high position at 6.75 inches, providing immediate spotting versatility for different vehicle frame heights and lift point locations.
Many competing lifts require separate adapter purchases to accommodate varying vehicle configurations. The included adapter set covers common frame contact scenarios for passenger cars, light trucks, and SUVs right out of the box.
This reduces initial setup costs and ensures you're ready to service vehicles immediately after installation. The rubber pads protect vehicle frames and body panels from scratching or damage during lifting operations.
Product Demonstration
Applications & Use Cases
- Brake Service: Provides convenient working height for brake pad replacement, rotor inspection, caliper service, and brake line work on passenger vehicles and light trucks.
- Tire Service: Ideal for tire rotation, replacement, balancing prep, and seasonal tire changeovers in dedicated tire service bays or quick lube facilities.
- Wheel Service: Supports wheel alignment preparation, wheel bearing inspection, and hub assembly work with full wheel access at comfortable working heights.
- Quick Lube Operations: Fits express service bay workflows for oil changes, filter replacements, and fluid top-offs where rapid vehicle throughput is essential.
- Vehicle Detailing: Raises vehicles to wheel-access height for thorough wheel well cleaning, undercarriage detailing, and ceramic coating applications.
- Light Suspension Work: Accommodates strut inspection, control arm access, and suspension component replacement on vehicles within the 10,000 lb capacity rating.
- Undercarriage Maintenance: Provides access for exhaust system inspection, heat shield checks, and general undercarriage visual inspection tasks.
Technical Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 10,000 lb (4,536 kg) |
| Raised Height (Surface Mount) | 22 in (559 mm) |
| Lowered Height | 4.25 in (108 mm) |
| Low Adapter Position | 4.75 in (121 mm) |
| High Adapter Position | 6.75 in (171 mm) |
| Locking Positions | 3 (13.75 in, 18.3 in, 21.25 in) |
| Rearward Movement at Full Rise | 13.25 in (337 mm) |
| Specification | Value |
|---|---|
| Overall Length | 92.875 in (2,359 mm) |
| Ramp + Platform Length | 82.5 in (2,096 mm) |
| Platform Length | 50 in (1,270 mm) |
| Overall Width | 85 in + 2.5 in handle (2,159 mm) |
| Outside Width of Platforms | 72 in (1,829 mm) |
| Width Between Platforms | 23 in (584 mm) |
| Specification | Value |
|---|---|
| Motor | 1 HP |
| Power (Standard) | 115V, 60Hz, 1-Phase |
| Power (Optional) | 230V, 50/60Hz |
| Circuit Requirement | Dedicated 20A breaker |
| Hydraulic System | Dual hydraulic cylinders |
Installation Requirements
Concrete Foundation
- Minimum Thickness: 4 inches with steel reinforcement
- Compressive Strength: 3,500 PSI minimum
- Cure Time: Minimum 28 days before installation
- Surface Condition: Flat, level surface; maximum out-of-level between anchor points is 1/4 inch
- Restrictions: Do not install on asphalt or unstable surfaces; no anchors within 8 inches of cracks, edges, or expansion joints
Anchoring Requirements
- Anchor Bolts: 6 x 3/4 inch anchor bolts into 13/16 inch factory base holes
- Drilling: Use hammer drill with compliant 3/4 inch bit
- Important: Do not substitute shorter anchors than specified
Electrical Requirements
- Standard Power: 115V, single-phase, 60Hz dedicated circuit
- Circuit Protection: 20A circuit breaker or time-delay fuse
- Optional: 230V configuration available
Bay Layout & Environment
- Minimum Ceiling Height: 10 ft
- Recommended Bay Width: 12 ft
- Recommended Bay Depth: 24 ft
- Mounting Options: Surface mount (standard) or flush mount (pit provided by others)
- Environment: Indoor use only
- Operating Temperature: 41 degrees F to 104 degrees F (5 degrees C to 40 degrees C)
Installation Notes
- Flush Mount: Lock-release rod must be installed before unit is lowered into pit
- Professional Installation: Installation must follow Challenger specifications and ANSI/ALI ALIS guidelines
- Permits: Verify local code compliance and permit requirements before installation
Shipping & Delivery
Freight Coverage
Shipping: Free shipping typically available within the continental United States. Freight charges may apply in some regions or via certain dealers.
Delivery Method: Ships via LTL freight (flatbed or standard freight truck).
Delivery Requirements
Unloading Equipment: Customer is responsible for unloading with suitable equipment such as a forklift or equivalent. Liftgate service is generally not available due to the weight and size of the lift.
Alternative Options: Terminal pickup can be arranged if unloading at site is not possible.
Installation: Installation is not included with purchase. Some dealers offer installer referrals upon request.
Warranty Coverage
1-Year Warranty Program
1 Year - Labor: Coverage for labor costs associated with warranty repairs during the first year.
1 Year - Functional Parts: Covers power units, cylinders, sheaves, sheave pins, hoses, hydraulic/pneumatic fittings, cables, adapters, latches, valves, and controls.
1 Year - Structural Parts: Covers carriage, columns, arms, runways, wheel stops, ramps, bolsters, and plungers.
Warranty Requirements
Registration: Product registration required at challengerlifts.com/register-your-lift. Warranty period begins from invoice date if not registered.
Eligibility: Valid for original purchaser only (non-transferable).
Installation: Installation must be performed per Challenger specifications. Use of unapproved parts or accessories voids warranty coverage.
Ready to Upgrade Your Shop?
Get expert guidance on the right lift for your facility. Our team can help with product selection, installation planning, and technical specifications.
Frequently Asked Questions
What is the lifting capacity of the Challenger SRM10?
The Challenger SRM10 has a maximum lifting capacity of 10,000 lb (4,536 kg). This capacity handles passenger cars, sedans, coupes, light trucks, pickups, SUVs, crossovers, and vans within the rated weight limit. The dual hydraulic cylinder system provides stable, balanced lifting across the full capacity range, making it ideal for brake service, tire rotations, and general undercarriage maintenance on a wide variety of vehicle sizes.
What are the concrete requirements for installing the SRM10?
The SRM10 requires a minimum 4-inch thick concrete floor with steel reinforcement, 3,500 PSI compressive strength, and a minimum 28-day cure time. The surface must be flat and level with no more than 1/4 inch out-of-level between anchor points. Do not install on asphalt or position anchors within 8 inches of cracks, edges, or expansion joints.
What adapters are included with the Challenger SRM10?
The SRM10 includes four two-position steel adapter blocks with rubber pads. These adapters offer a low position at 4.75 inches and a high position at 6.75 inches, providing spotting versatility for different vehicle frame heights without requiring additional accessory purchases.
What is the lowered height of the SRM10?
The SRM10 has a lowered height of just 4.25 inches (108 mm), allowing easy drive-over access for low-profile vehicles including sports cars and performance vehicles that clear this minimum height. This low collapsed profile minimizes floor obstruction when the lift is not in use and maintains clear bay traffic flow. The two-position adapter blocks add either 4.75 inches or 6.75 inches to the base height depending on the setting selected for your specific vehicle lift points.
Is the Challenger SRM10 ALI certified?
Yes, the SRM10 (115V model) is ALI Certified meeting ANSI/ALI ALCTV standards and ETL Listed meeting ANSI/UL 201 safety standards. This dual certification provides third-party verified safety testing at the full rated capacity. Note that 230V motor variants may not carry ALI/ETL certification - verify with the manufacturer for specific SKU certification.
What are the electrical requirements for the SRM10?
The standard SRM10 requires a dedicated 115V, single-phase, 60Hz circuit with a 20A circuit breaker or time-delay fuse. An optional 230V, 50/60Hz configuration is also available. The lift uses a 1 HP motor and the power unit comes pedestal-mounted as standard.
What is the warranty coverage on the Challenger SRM10?
The SRM10 comes with a 1-year warranty covering labor, functional parts (power units, cylinders, hoses, valves, controls), and structural parts (carriage, runways, ramps). Registration is required at challengerlifts.com/register-your-lift. The warranty is valid for the original purchaser only and requires installation per Challenger specifications.
Can the SRM10 be flush mounted?
Yes, the SRM10 supports both surface-mount installation (no floor modifications required) and flush-mount pit installation that creates a level drive-over surface when lowered. For flush mount, the pit must be provided by others and requires a minimum 4-inch thick concrete floor with 3,500 PSI compressive strength. The lock-release rod must be installed before the unit is lowered into the pit. Flush-mount raised height is 17.75 inches compared to 22 inches for surface mount configuration.
