Challenger Lifts SA10EH2 2' Column Height Extension Kit for SA10 2-Post Lifts

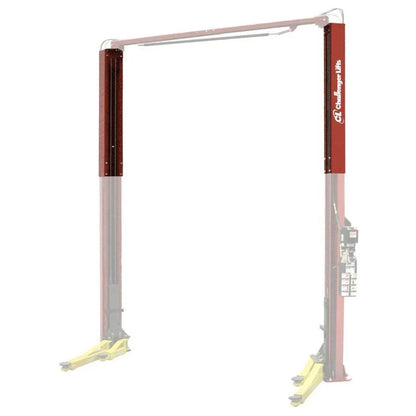

The Challenger Lifts SA10EH2 is a 2-foot column height extension kit designed exclusively for the Challenger SA10 10,000 lb 2-post lift. This extension raises the overall column height by 24", increasing maximum overhead clearance from 142-1/2" to 166-1/2", allowing you to service taller vehicles such as full-size trucks, vans, and high-profile SUVs with ease. The kit includes everything needed for a complete installation: two column height extensions, a hose extension kit, and new cables. Whether you are purchasing a new SA10 lift or upgrading an existing one, the SA10EH2 extension kit ensures your shop can handle any vehicle that rolls through the door.
Challenger SA10EH2 Features
2-Foot Column Height Increase
The SA10EH2 adds 24 inches of additional column height to each post of the Challenger SA10 lift. This raises the overall height from 136-1/2" / 142-1/2" to 160-1/2" / 166-1/2", providing the extra clearance needed to lift high-profile vehicles without compromise.
High-Profile Vehicle Accommodation
Service full-size trucks, commercial vans, lifted vehicles, and tall SUVs that would otherwise exceed the standard column height. The added clearance ensures safe and comfortable working conditions underneath even the tallest consumer vehicles.
Complete Extension Kit
Every SA10EH2 ships with all required components for a full installation: two column height extensions, a hose extension kit to accommodate the increased hydraulic line length, and new cables sized to the extended column height. No additional parts to source.
New and Retrofit Compatible
The SA10EH2 can be ordered alongside a new SA10 2-post lift for factory-ready extended height, or it can be added to an existing SA10 installation as a retrofit upgrade. This flexibility means your lift investment can grow with your shop's needs.
Challenger Quality Construction
Manufactured by Challenger Lifts in Louisville, Kentucky, the SA10EH2 is built to the same rigorous standards as the SA10 lift itself. Precision-engineered steel extensions integrate seamlessly with the SA10's mirrored S-shaped column design.
Maintained Lift Performance
The included new cables and hose extension kit ensure the SA10 maintains its full 10,000 lb lifting capacity and smooth, reliable operation after the height extension is installed. No reduction in performance or safety.
Challenger SA10EH2 Applications
- Full-Service Auto Shops: Shops that regularly service a mix of passenger cars and full-size trucks benefit from the extended column height, eliminating the need to turn away taller vehicles.
- Truck and Fleet Service Centers: Fleet operations working on vans, box trucks, and high-profile commercial vehicles require the additional overhead clearance the SA10EH2 provides.
- Dealerships with Truck Lines: Dealerships selling and servicing full-size pickup trucks and SUVs can outfit their service bays with extended-height SA10 lifts to handle their entire lineup.
- Lifted Vehicle and Off-Road Shops: Specialty shops working on lifted trucks, Jeeps, and off-road vehicles with aftermarket suspension kits gain the extra height needed for safe lifting.
- Existing SA10 Upgrades: Shops that already own an SA10 and want to expand their service capabilities to include taller vehicles can retrofit the extension without replacing their entire lift.
Challenger SA10EH2 Specifications
| Specification | Value |
|---|---|
| Part Number | SA10EH2 |
| Extension Height Added | 2' (24") |
| Compatible Lift Model | Challenger SA10 |
| Kit Contents | (2) Column height extensions, hose extension kit, new cables |
| Specification | Standard SA10 | SA10 with SA10EH2 |
|---|---|---|
| Overall Height (Adjustable) | 136-1/2" / 142-1/2" | 160-1/2" / 166-1/2" |
| Rise Height | 74-1/2" | 74-1/2" |
| Lifting Capacity | 10,000 lb | 10,000 lb |
| Lifting Configuration | Symmetric / Asymmetric | Symmetric / Asymmetric |
| Overall Width (Symmetric) | 129" / 135" | 131-1/2" / 137-1/2" |
| Overall Width (Asymmetric) | 131-1/2" / 137-1/2" | 131-1/2" / 137-1/2" |
| Specification | Value |
|---|---|
| Motor | 2 HP |
| Voltage | 208V-230V, 60Hz, 1-Phase |
Challenger SA10EH2 Installation Requirements
Ceiling Height Requirement
Minimum ceiling height: With the SA10EH2 installed, the overall column height reaches up to 166-1/2" (approximately 13' 10-1/2"). Ensure your facility has adequate ceiling clearance above the extended columns, plus room for the overhead shutoff switch. A minimum ceiling height of 14 feet or greater is recommended.
Concrete Foundation
Anchoring: The SA10 requires a minimum 4" thick reinforced concrete slab with a minimum compressive strength of 3,000 PSI. Anchor bolts must be installed per Challenger's specifications. The concrete must be fully cured and in sound condition.
New Purchase vs. Retrofit
New lift purchase: Order both the SA10 lift and Part # SA10EH2 together. The extension can be installed during initial lift setup. Existing SA10 retrofit: Order Part # SA10EH2 separately. Installation on an existing lift requires disassembly of the upper column sections, addition of extensions, routing of new hoses, and replacement of cables.
Professional Installation
Professional installation by an authorized Challenger Lifts installer is required. The SA10EH2 involves structural modifications to the lift columns, hydraulic hose rerouting, and cable replacement. Improper installation may void the warranty and compromise lift safety.

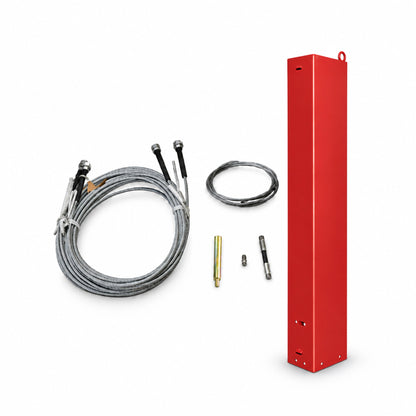

What's Included with the Challenger SA10EH2
- (2) Column height extensions (one per column)
- (1) Hose extension kit for extended hydraulic line routing
- New cables sized for the extended column height
Not Included: The SA10 base lift (sold separately), installation labor, concrete work, and any electrical modifications. The SA10EH2 is an accessory kit only.
Challenger SA10EH2 Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Ships within 3-5 business days, subject to availability. International: Contact sales for a quote.
Delivery Requirements
Unloading: A forklift or loading dock may be required depending on packaging. Delivery Type: Curbside delivery is standard. Inspection: Inspect all packages for damage before signing the bill of lading. Note any damage on the delivery receipt immediately.
Returns
Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. 20% restocking fee applies. Buyer responsible for return freight costs.
Challenger SA10EH2 Warranty
Challenger Lifts Accessory Warranty
The SA10EH2 is classified as an accessory under Challenger Lifts' warranty program. Challenger Lifts, Inc. guarantees products to the original owner when installed, used, and maintained according to Challenger's specifications.
- 90 Days: Functional parts coverage
- SA10 Base Lift (if purchased): 1 year labor, 1 year functional parts, 5 years structural parts
Requirements: Warranty registration must be completed online at challengerlifts.com. The lift must be installed by an authorized Challenger installer. Use of unapproved parts or accessories will void the warranty. This warranty extends only to the original purchaser and is not transferable.
Documents
Click to open in a new tab.
Questions About the Challenger SA10EH2?
Our equipment specialists can help confirm compatibility with your existing SA10, assist with installation planning, and answer any questions about ordering the extension kit with a new lift.
Challenger SA10EH2 FAQ
What does the SA10EH2 extension kit do?
The SA10EH2 adds 2 feet (24 inches) of column height to the Challenger SA10 2-post lift. This raises the overall height from 136-1/2" / 142-1/2" to 160-1/2" / 166-1/2", allowing you to accommodate taller vehicles such as full-size trucks, vans, lifted vehicles, and high-profile SUVs.
Is the SA10EH2 compatible with my existing SA10 lift?
Yes, the SA10EH2 is designed as a retrofit upgrade for existing SA10 installations. It can also be ordered alongside a new SA10 lift for initial setup with the extended height. To confirm compatibility, contact our team with your full model and serial number.
Does the height extension change the lifting capacity of the SA10?
No. The SA10 maintains its full 10,000 lb lifting capacity with the SA10EH2 extension installed. The kit includes new cables and a hose extension kit to ensure consistent performance at the increased column height.
What ceiling height do I need with the SA10EH2 installed?
With the SA10EH2, the overall column height reaches up to 166-1/2" (approximately 13' 10-1/2"). A minimum ceiling height of 14 feet or greater is recommended to provide adequate clearance above the columns and overhead shutoff switch.
Can I install the SA10EH2 myself?
Professional installation by an authorized Challenger Lifts installer is required. The installation involves structural modifications to the lift columns, hydraulic hose rerouting, and cable replacement. Improper installation can void the warranty and compromise safety.
What is included in the SA10EH2 kit?
The kit includes (2) column height extensions (one per column), a hose extension kit for the extended hydraulic lines, and new cables. The SA10 base lift is sold separately.
How is the SA10EH2 shipped?
The SA10EH2 ships via freight to commercial addresses in the 48 contiguous United States at no additional charge. A forklift or loading dock may be needed for unloading. Curbside delivery is standard.
What is the warranty on the SA10EH2?
The SA10EH2 is classified as an accessory under Challenger Lifts' warranty program and carries a 90-day functional parts warranty. The warranty applies to the original purchaser, requires registration at challengerlifts.com, and requires installation by an authorized Challenger installer.
Do I need to order anything else besides the SA10EH2?
If you are purchasing a new lift, you need to order both the Challenger SA10 2-post lift and the SA10EH2 extension kit. If you already own an SA10, you only need the SA10EH2 kit. No additional parts are required - the kit includes everything needed for the extension.
Does the SA10EH2 work with both symmetric and asymmetric configurations?
Yes. The Challenger SA10 can be installed in either symmetric or asymmetric configuration, and the SA10EH2 extension is compatible with both setups. The extension does not change or limit the lift's configuration flexibility.
What concrete requirements apply with the extension installed?
The same concrete requirements as the standard SA10 apply: a minimum 4" thick reinforced concrete slab with at least 3,000 PSI compressive strength. The concrete must be fully cured and in sound condition with proper anchor bolt installation per Challenger's specifications.
Can I return the SA10EH2 if it does not fit my needs?
Returns are accepted within 30 days of delivery. The product must be unopened in its original packaging with receipt. A 20% restocking fee applies, and the buyer is responsible for return freight costs. Contact our team before returning any product.
