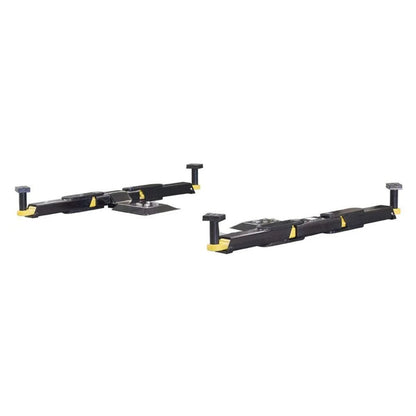

Challenger EV1020SS - 3-Stage Superstructure Arm Assembly for EV1020 Inground Lift
The Challenger EV1020SS is the OEM-compatible superstructure arm assembly engineered for the Challenger EV1020 10,000 lb inground lift system. Featuring 3-stage telescoping arms and double telescoping screw pads, this heavy-duty steel assembly delivers precise vehicle positioning across a wide range of wheelbases and frame configurations.
Key Features & Benefits
3-Stage Telescoping Arm Design
The EV1020SS utilizes a 3-stage telescoping arm configuration that provides superior reach flexibility compared to fixed or 2-stage arm assemblies. Each arm extends through three distinct stages, allowing technicians to position lift points precisely across vehicles with varying wheelbases and undercarriage geometries.
Traditional 2-stage arms limit positioning options when working with vehicles outside standard dimensions. The 3-stage design addresses this constraint by offering additional extension range, accommodating everything from compact cars to larger trucks within the EV1020's 10,000 lb capacity.
This enables faster vehicle setup and reduces the need for repositioning during service operations. Technicians can achieve optimal lift point placement on the first attempt, improving workflow efficiency in high-volume shop environments.
Double Telescoping Screw Pads
Each arm terminates in double telescoping screw pads that provide fine-tuned height adjustment at every contact point. The dual-stage telescoping mechanism allows pad height to be set precisely to match frame rail positions, pinch welds, and manufacturer-specified lift points.
Single-stage pads often require shims or adapters to achieve proper contact on vehicles with non-standard lift point heights. The double telescoping design eliminates this workaround by building the adjustment range directly into the pad assembly.
This improves lifting safety by ensuring full, flat contact between pad and vehicle frame. Proper contact distribution prevents point loading and reduces the risk of vehicle slippage during elevated service work.
Heavy-Duty Steel Construction
The EV1020SS superstructure is manufactured from heavy-duty steel engineered to withstand the continuous cycling and load demands of commercial automotive service environments. The steel construction provides structural rigidity that maintains arm geometry under load.
Lightweight or thin-gauge arm assemblies can flex under heavy vehicles, creating safety concerns and reducing positioning accuracy. The EV1020SS addresses durability requirements with materials rated for professional shop duty cycles.
This extends service life and maintains consistent performance across thousands of lift cycles. The structural integrity also supports the EV1020 system's operation within its ALI-certified parameters when properly installed.
OEM-Compatible EV1020 Integration
The EV1020SS is purpose-built for the Challenger EV1020 inground lift carrier, ensuring proper mechanical integration without system modification. The superstructure bolts directly to the EV1020's cassette-style lift mechanism using factory-specified mounting points.
Universal-fit arm assemblies often require adapters or modifications that can compromise lift geometry and safety. The EV1020SS eliminates compatibility guesswork by matching the EV1020's design specifications exactly.
This enables straightforward replacement when upgrading or restoring an existing EV1020 installation. The direct-fit design maintains the lift system's original performance characteristics and supports continued operation within certified parameters.
Product Demonstration
Applications & Use Cases
- Superstructure Replacement: Direct replacement for worn or damaged EV1020 arm assemblies in existing inground lift installations
- Commercial Automotive Service: Professional repair shops requiring flexible vehicle positioning across diverse passenger car and light truck wheelbases
- Fleet Maintenance Facilities: Service operations handling varied vehicle types that benefit from 3-stage arm reach adjustability
- Dealership Service Departments: High-volume environments where precise lift point positioning reduces setup time between vehicles
Technical Specifications
| Specification | Value |
|---|---|
| Model | EV1020SS |
| Arm Type | 3-Stage Telescoping Arms |
| Pad Type | Double Telescoping Screw Pads |
| Construction | Heavy-Duty Steel |
| Compatibility | Challenger EV1020 Inground Lift System |
Installation Requirements
Compatibility
- Lift System: Challenger EV1020 inground lift carrier only
- Integration Type: Mechanical mounting (no electrical components)
Installation Notes
- Professional Installation: Installation must be performed by a trained lift technician or shop with appropriate equipment
- Documentation: No accessory-specific installation manual publicly available; refer to EV1020 lift system documentation for mounting context
- Verification: Confirm proper fit and function within the EV1020 system before returning lift to service
Shipping & Delivery
Freight Delivery
Shipping Method: Ships via freight carrier due to size and weight.
Liftgate Service: Generally not available for this product.
Unloading: Customer is typically responsible for unloading at delivery location.
Delivery Requirements
Receiving Equipment: Forklift or loading dock access recommended for safe unloading.
Inspection: Inspect all packages before signing bill of lading. Note any visible damage on BOL before driver departs.
Ready to Upgrade Your Shop?
Get expert guidance on the EV1020SS superstructure for your Challenger inground lift. Our team can help with compatibility verification, shipping logistics, and technical specifications. Call to confirm included components and warranty coverage.
Frequently Asked Questions
What lift system is the EV1020SS compatible with?
The Challenger EV1020SS is designed exclusively for the Challenger EV1020 10,000 lb capacity inground lift system and is not compatible with other lift models or manufacturers. This superstructure assembly mounts directly to the EV1020 cassette-style lift carrier using factory-specified attachment points. The EV1020 system carries ALI certification, and the EV1020SS is engineered to function within that certified lift framework when properly installed by qualified technicians.
What type of arms does the EV1020SS have?
The EV1020SS features 3-stage telescoping arms constructed from heavy-duty steel, providing extended reach flexibility compared to fixed or 2-stage arm designs. Each arm extends through 3 distinct stages, allowing technicians to position lift points precisely across vehicles with varying wheelbases and undercarriage geometries. This configuration accommodates everything from compact passenger cars to larger trucks within the EV1020 system's 10,000 lb lifting capacity.
What is included with the EV1020SS superstructure?
The EV1020SS includes the complete superstructure arm assembly with left and right 3-stage telescoping arms plus double telescoping screw pads for each lift point. The heavy-duty steel construction supports commercial shop duty cycles within the EV1020's 10,000 lb system capacity. Additional mounting hardware and specific component quantities may vary by seller, so contact us at 855-498-2147 to confirm the complete package contents before placing your order.
Can I install the EV1020SS myself?
Installation should be performed by a trained lift technician or shop with appropriate equipment to ensure safe operation within the EV1020's 10,000 lb rated capacity. The EV1020SS is a mechanical assembly with no electrical components that integrates directly with the EV1020 inground lift carrier. Professional installation ensures proper fit, maintains system geometry, and supports continued operation within the lift's ALI-certified parameters. No accessory-specific installation manual is publicly available for the EV1020SS.
How is the EV1020SS shipped?
The EV1020SS ships via freight carrier due to the size and weight of the heavy-duty steel superstructure assembly. Liftgate service is generally not available for this product, and customers are typically responsible for unloading at the delivery location. We recommend having forklift access or loading dock capability with minimum 2,000 lb capacity to safely receive and move the shipment. Inspect all packages before signing the bill of lading and note any visible damage.
What is the warranty on the EV1020SS?
Warranty terms for the EV1020SS vary by dealer, with general statements referencing manufacturer warranty coverage but no uniformly published duration across sellers. The superstructure is designed to operate within the Challenger EV1020's 10,000 lb ALI-certified lift system when properly installed. For specific warranty duration, coverage terms, and any registration requirements applicable to your purchase, contact us at 855-498-2147 to confirm current warranty details before ordering.
What are double telescoping screw pads?
Double telescoping screw pads feature a dual-stage height adjustment mechanism that provides 2 levels of vertical extension at each lift contact point. This design delivers greater adjustment range than single-stage pads, enabling precise positioning to match frame rails, pinch welds, and manufacturer-specified lift points across varied vehicle types. The double telescoping mechanism ensures full, flat contact between pad and vehicle frame within the EV1020's 10,000 lb capacity rating, improving load distribution and reducing slippage risk during elevated service work.
