CHALLENGER LIFTS CLFP9 Two-Post Floorplate Lift
Product Information

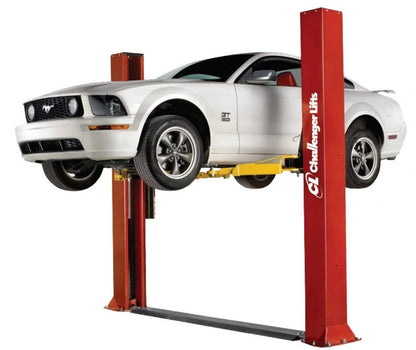

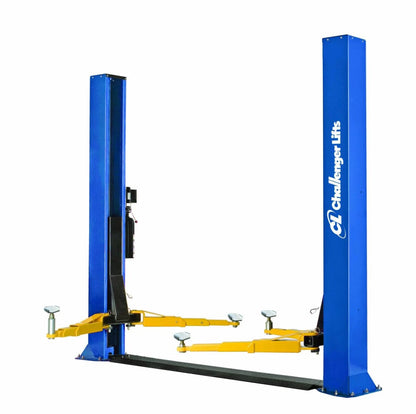

Challenger Lifts CLFP9 Symmetric Low Ceiling Two Post Floorplate Lift
With a 9,000 lb. capacity and 10’ 7/8” overall column height, Challenger’s CLFP9 2-post lift is designed for low ceiling applications. It features 3-stage front and rear arms that provide maximum flexibility, arm retraction, and reach, making it ideal for garages and professional service shops. The low-profile drive-over floor plate allows easy vehicle positioning. The lift also includes double-telescoping screw footpads, a durable powder coat finish, and plated arm pins for enhanced durability.
CLFP9 Features
- 9,000 lb. lift capacity
- 10’ 7/8” overall column height, perfect for low ceiling applications
- Low-profile drive-over floor plate for easy vehicle positioning

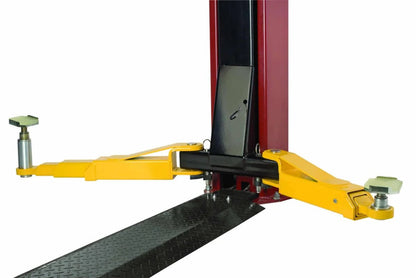

- 3-stage front and rear arms accommodate a wide range of vehicles, including cars, trucks, vans, and SUVs
- Electric/hydraulic chain lifting operation with cable equalization to minimize ceiling height requirements
- Dual-point mechanical pull-lock cable release system
- Fully gusseted base plate design for increased column rigidity
- Double telescoping screw pads for multiple height adjustments
- Durable powder coat finish
- Plated arm restraints and arm pins to prevent rust
- Integrated rubber door guards to protect vehicle panels from damage
CLFP9 Specifications
| Model Number | CLFP9 |
| Lift Capacity* | 9,000 lbs. (4082kg) |
| A Rise Height | 78-1/8" (1984mm) |
| B Column Height | 10' 7/8" (3070mm) |
| C Overall Width | 11' 5-1/2" (3493mm) |
| D Drive-Thru Clearance | 98-3/16" (2494mm) |
| E Front Arm Reach | 24-1/2" / 44-1/2" (623mm / 1131mm) |
| F Rear Arm Reach | 24-1/2" / 44-1/2" (623mm / 1131mm) |
| G Screw Pad Height | Adj. 4" / 5-7/8" (102mm / 149mm) |
| H Inside of Columns | 109" (2769mm) |
| Motor | 2HP, Single Phase, 60Hz |
| Voltage | 208v - 230v |
| Speed of Rise | 60 seconds |
| Max. Load per Arm | 2,250 lbs. (1020kg) |
| Ceiling Height Required | 10' 1-7/8" (3096mm) |
| Shipping Weight | 1925 lbs. (873 kg) |
