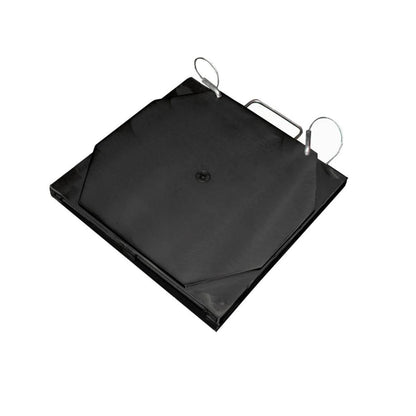

CHALLENGER LIFTS 10500 Turning Radius Gauges
Challenger Lifts 10500 Turning Radius Gauges - Convert Your 4-Post Lift to an Alignment-Ready Lift
The Challenger 10500 Turning Radius Gauges enable professional automotive shops to add wheel alignment capability to compatible four-post lifts without investing in a full dedicated alignment rack. These mechanical gauges measure caster, camber, and toe-out angles during alignment procedures, offering a cost-effective upgrade path for shops building multi-function lift capability. Available in standard powder-coated or stainless steel variants for maximum durability.
Key Features & Benefits
Alignment Conversion Capability Without System Replacement
The 10500 Turning Radius Gauges enable standard Challenger four-post lifts to perform wheel alignment measurements by providing accurate caster, camber, and toe-out angle measurement during service operations. These mechanical plates require no electrical power, hydraulic systems, or pneumatic connections, integrating seamlessly into existing lift workflows.
Professional shops typically face a cost barrier when upgrading lift capability, often requiring replacement of the entire lift system to add alignment functionality. The 10500 addresses this industry-wide challenge by providing a bolt-on accessory solution that transforms a standard four-post lift into an alignment-capable unit without disrupting shop operations or requiring major capital expenditure.
This enables shops to expand service offerings and vehicle capability without purchasing dedicated alignment equipment. The modular approach allows shops to start with basic four-post lifting and add alignment capability incrementally as business needs grow.
Broad Lift Compatibility Across Series Families
The 10500 is compatible with a wide range of Challenger lift families, including 40 Series, 4P14 Series, 4115/AR4115 Series, 44018AR, and 4030/44030AR alignment racks. This broad compatibility maximizes upgrade flexibility for multi-lift facilities, allowing a single gauge set to serve alignment needs across multiple pieces of equipment in the shop.
Shops often operate mixed fleets of lift models for different applications, creating compatibility challenges when upgrading accessory systems. Generic or competitor alignment products often require multiple purchases or custom configuration. The 10500's broad series compatibility addresses this facility-level challenge by reducing SKU complexity and providing a universal upgrade path.
This simplifies inventory management and reduces the total cost of upgrading multiple lifts to alignment-capable status. Technicians can use the same gauge set across different lift models, reducing training burden and improving operational consistency.
Material Durability Options for Different Shop Environments

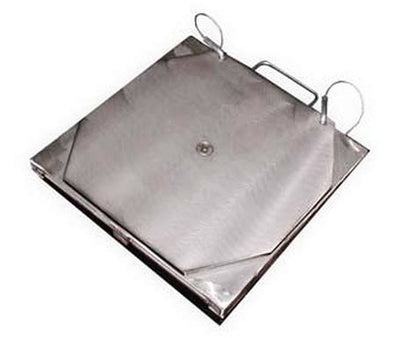

Available in standard powder-coated (10500), heavy-duty (10500HD), and stainless steel (10500SS) variants, the 10500 offers material choices optimized for different shop conditions. Stainless steel construction resists corrosion in high-humidity or coastal environments, while heavy-duty variants provide extended durability under frequent use in high-volume service bays.
Shops in different climates and operational intensities face different durability challenges when selecting alignment equipment. A one-size-fits-all material approach fails in corrosive salt-spray environments or where equipment sees continuous daily use. The 10500 addresses this by providing purpose-built variants that match specific shop conditions.
This extends product life and reduces replacement frequency in demanding environments. Stainless steel versions eliminate rust and corrosion maintenance, while heavy-duty variants handle high-frequency alignment operations in busy commercial service facilities without degradation.
Mechanical Simplicity with Zero Electrical or Pneumatic Dependency
The 10500 requires no electrical power, pneumatic connections, or hydraulic systems, operating purely as a mechanical measuring device. Technicians place gauges under vehicle wheels and measure turning angles manually, eliminating the complexity and failure points associated with powered alignment systems.
Powered alignment systems introduce points of failure—electrical circuits, pneumatic regulators, hydraulic pressure loss—that require maintenance and can interrupt service operations. The 10500 addresses this challenge through mechanical simplicity, ensuring alignment capability remains available even if shop compressor systems go offline or electrical infrastructure requires maintenance.
This improves operational reliability and reduces downtime risk. Shops can perform alignment work during routine pneumatic system maintenance without losing that service capability, and field installation requires no specialized electrical or hydraulic technician involvement.
Applications & Use Cases
- Professional Repair Shops: Independent and multi-bay automotive service facilities upgrading lift versatility to offer wheel alignment services without purchasing dedicated alignment racks.
- Fleet Maintenance Operations: Commercial fleets and transportation companies performing alignment work on company vehicles using existing four-post lift infrastructure.
- Advanced Home Garages: High-end home workshop operators building multi-function lift capability for serious hobby mechanics or small custom fabrication operations.
- Custom Lift Configurations: Shops building specialized alignment lift setups using Challenger four-post or alignment rack bases with bolt-on accessory kits to create custom solutions.
Technical Specifications
| Specification | Value |
|---|---|
| Model Number | 10500 / 10500HD / 10500SS |
| Product Type | Turning radius gauges (set of two) |
| Plate Dimensions | 14 x 14 x 1.5 inches (356 x 356 x 38 mm) per gauge |
| Material Options | Powder-coated steel (10500), heavy-duty steel (10500HD), stainless steel (10500SS) |
| Power Requirement | None - mechanical device |
| Quantity Per Set | Two (2) turning radius gauges |
| Mounting Hardware | Included with set |
| Lift Series | Compatibility |
|---|---|
| 40 Series | Compatible |
| 4P14 Series | Compatible |
| 4115 / AR4115 Series | Compatible |
| 44018AR | Compatible |
| 4030 / 44030AR Alignment Racks | Compatible |
Warranty Coverage
Limited Accessory Warranty
90 Days: Covers defects in materials and workmanship from the date of original purchase for the original purchaser only.
Warranty Requirements & Conditions
Eligibility: Warranty is valid for the original purchaser only and does not transfer to subsequent owners or facilities.
Installation: Warranty coverage is valid only when the product is used with compatible Challenger lift models as specified. Improper installation or use with non-compatible lift systems voids warranty.
Coverage Exclusions: Warranty does not cover damage from misuse, impact damage, unauthorized modifications, or wear from normal use beyond typical accessory expectations.
Ready to Add Alignment Capability?
Contact our team to confirm compatibility with your specific Challenger lift model and explore which material variant (standard, heavy-duty, or stainless steel) best fits your shop environment.
Frequently Asked Questions
Which Challenger lift models are compatible with the 10500 turning radius gauges?
The 10500 turning radius gauges are compatible with multiple Challenger four-post lift families including the 40 Series, 4P14 Series, 4115/AR4115 Series, 44018AR, and 4030/44030AR alignment racks. Before ordering, confirm your specific lift model number matches one of these compatible series to ensure proper fit and alignment measurement accuracy. Verify compatibility with our team if you are unsure of your lift model designation.
What is included with the 10500 gauge set?
Each 10500 set includes two (2) complete turning radius gauges and all mounting hardware required for installation on compatible Challenger lifts. Each gauge measures 14 x 14 x 1.5 inches (356 x 356 x 38 mm). The set provides everything needed for professional wheel alignment measurement operations. Contact customer service to confirm specific hardware component details included with your particular order, as components may vary slightly by variant (standard, heavy-duty, or stainless).
What do the 10500, 10500HD, and 10500SS variants mean?
The standard 10500 features powder-coated steel construction suitable for typical indoor shop environments. The 10500HD (heavy-duty) variant offers reinforced steel construction for shops performing frequent alignment operations and high-volume service work. The 10500SS (stainless steel) variant provides superior corrosion resistance in humid, salt-spray, or coastal shop environments where rust and oxidation are primary concerns. Select the variant that best matches your specific operating environment and climate conditions to maximize durability.
Do the turning radius gauges require electrical power or compressed air?
No, the 10500 turning radius gauges are entirely mechanical devices requiring no electrical power source, pneumatic connections, or hydraulic system dependencies. Technicians simply place the gauges under vehicle wheels and measure wheel turning angles (caster, camber, and toe-out) manually using the gauge markings. This mechanical simplicity makes the 10500 extremely reliable and eliminates failure points associated with powered alignment systems. The gauges function whether or not your shop's air compressor is operational.
How does adding the 10500 gauges enable alignment work on a four-post lift?
The 10500 turning radius gauges provide precise measurement capability for wheel turning angles including caster, camber, and toe-out on turns during alignment service operations. This transforms a standard four-post lift into an alignment-capable unit without requiring replacement of the entire lift system or purchase of expensive dedicated alignment racks. By measuring these critical angles, technicians can perform professional wheel alignment adjustments and verify compliance with manufacturer specifications, expanding your shop's service capabilities.
What warranty is included with the 10500?
The 10500 turning radius gauges include a 90-day limited warranty covering defects in materials and workmanship from the date of original purchase. Warranty is valid for the original purchaser only and does not transfer to subsequent owners or facilities. Warranty coverage is void if the product is installed on non-compatible lift models, used with incorrect lift families, or operated outside recommended parameters. Ensure proper installation on compatible Challenger lifts to maintain full warranty protection.
Can I use the 10500 gauges with lift models other than Challenger?
The 10500 turning radius gauges are engineered specifically for compatible Challenger lift families and series. Using these gauges with non-compatible or non-Challenger lift models may result in improper fit, inaccurate measurement readings, misalignment between gauge and lift structure, and automatic voiding of warranty coverage. Before purchasing, verify that your lift model matches one of the compatible series. Our team can help confirm compatibility if you are uncertain of your lift designation.
Why choose stainless steel (10500SS) over standard (10500) or heavy-duty (10500HD)?
Choose the stainless steel 10500SS variant if your shop operates in a humid, salt-spray, coastal, or otherwise corrosive environment where rust and oxidation rapidly damage standard steel. Stainless steel resists corrosion and eliminates the maintenance burden associated with rust removal and protective coatings on powder-coated variants. The standard 10500 and heavy-duty 10500HD work well in typical climate-controlled indoor shop environments. Evaluate your local climate conditions and shop humidity levels when selecting the appropriate material variant.
