CHALLENGER LIFTS LE12 Symmetric Two-Post Lift, 12K

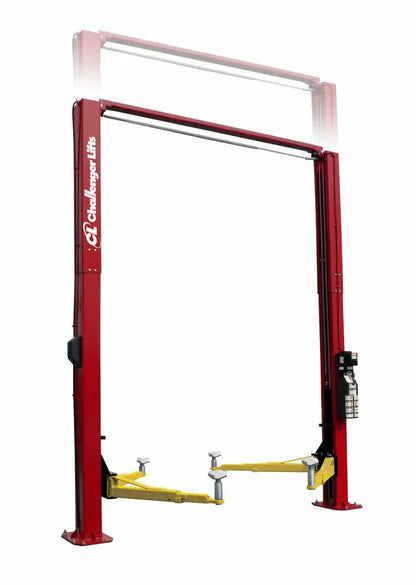

Challenger LE12 - 12,000 lb ALI Certified Symmetric Two-Post Lift for Heavy-Duty Truck Service
The Challenger LE12 delivers 12,000 lb lifting capacity in a symmetric two-post configuration, engineered for professional service bays handling trucks, SUVs, vans, and fleet vehicles. Featuring 2-stage telescoping arms, 103-inch drive-thru clearance, and adjustable column heights up to 175 inches, this ALI/ETL certified lift handles everything from F-150s to heavy-duty F-350s and full-size commercial vans.
Key Features & Benefits
ALI/ETL Certified at Economic Price Point
The LE12 carries full ALI Gold Label certification at the 12,000 lb capacity tier while positioned as Challenger's E-Series economic option. This certification meets the requirements of jurisdictions, insurance carriers, and fleet operations that mandate third-party verified lift safety for compliance.
Many shops discover during insurance audits or local inspections that uncertified lifts create liability exposure or code violations. The LE12's dual ALI and ETL certification addresses this by providing documented compliance at an acquisition cost below premium competitors in the same capacity class.
This enables shops to pass inspections and satisfy insurance requirements without paying premium pricing. The certification covers both structural integrity testing per ANSI/ALI ALCTV standards and electrical safety verification through ETL/Intertek.
Truck-Ready Standard Inclusions
The LE12 ships with the Frame Engaging Truck Adapters (Part# 10318) and Stack Adapter Extension Kit (Part# 10315) as standard equipment. The kit includes four 3-inch stack extensions, two 6-inch stack extensions, and two organizer racks with mounting hardware for frame-engaging service on body-on-frame trucks.
Shops servicing trucks typically discover after purchase that adapters needed for F-250/F-350 class vehicles cost an additional $200-400. The LE12's standard inclusion eliminates this surprise expense and ensures the lift is ready for truck work on day one without additional accessory orders.
This reduces initial acquisition cost and eliminates delays waiting for adapter shipments before the lift can service the full range of vehicles it's rated for. Enhanced polyurethane screw pads with raised edges provide secure contact on both unibody and frame applications.
Adjustable Column Height Configuration

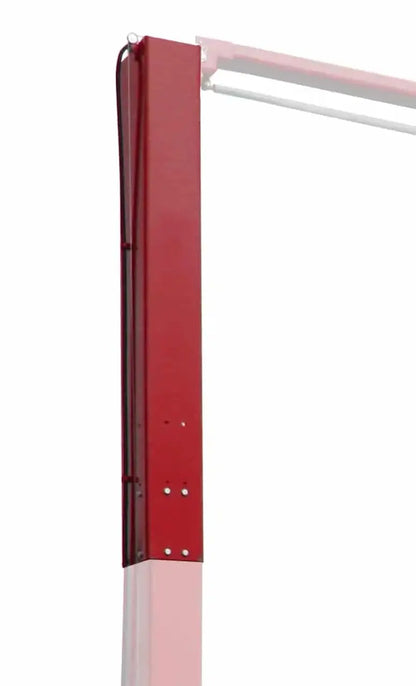

The LE12 offers dual-height column configurations: 166 inches (13' 10") standard or 175 inches (14' 7") adjusted, with an optional 2-foot column extension kit (Part# K2P12EH2) available for facilities with higher ceilings. This flexibility accommodates both standard-height service bays and taller facilities without requiring a different lift model.
Shops with limited ceiling clearance often find that heavy-duty lifts won't fit their existing bay infrastructure. The LE12's adjustable configuration addresses this constraint by fitting standard 14-foot ceilings while still providing the full 77.75-inch rise height needed for underbody access on trucks.
This enables one lift model to serve multiple facility configurations. Shops planning future expansion or relocation can adapt the same lift to different ceiling heights rather than replacing equipment.
Single-Point Mechanical Lock Release
The LE12's single-point mechanical lock release allows the technician to disengage both column locks simultaneously from one location. This eliminates the walk-around required by traditional dual-release systems where each column must be released independently before lowering.
In high-volume service environments, the seconds spent walking between columns to release locks adds up across dozens of daily lift cycles. The single-point system addresses this workflow inefficiency by consolidating the release operation to one action at one location.
This improves bay throughput in busy shops where technicians cycle vehicles on and off lifts continuously throughout the day. The mechanical design maintains positive lock engagement during service operations while streamlining the release sequence.
103-Inch Drive-Thru Clearance

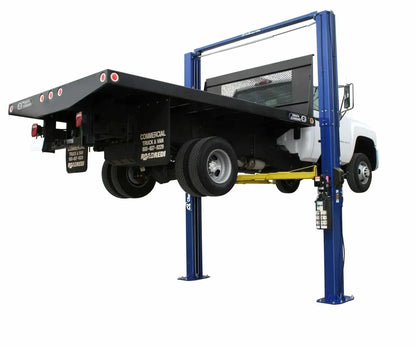

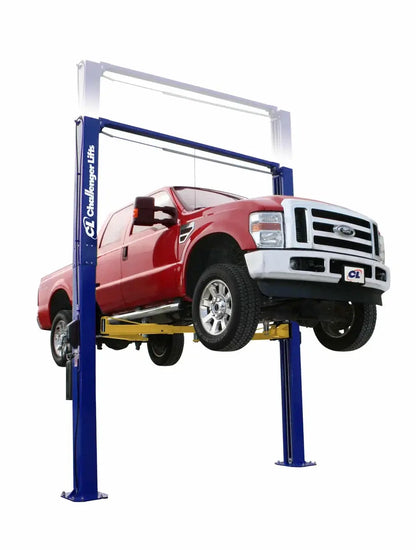

The LE12 provides 103 inches (8' 7") of drive-thru clearance between columns, accommodating full-size crew cab trucks, Sprinter-class commercial vans, and fleet vehicles without mirror folding or precision positioning. The 115-inch inside column measurement provides additional clearance for door opening during vehicle positioning.
Narrower two-post lifts create bottlenecks when technicians must carefully thread wide vehicles between columns or fold mirrors to avoid contact. The LE12's clearance dimensions address this by providing margin for quick drive-on positioning without the precision required by tighter configurations.
This enables faster vehicle cycling in fleet operations and commercial service bays where time spent positioning vehicles directly impacts daily throughput and labor efficiency.
5-Year Structural Warranty with Snap-on Backing
The LE12 carries a 5-year structural warranty covering columns, carriages, arms, and plungers. As a Snap-on Inc. subsidiary since 2013, Challenger provides access to an established dealer network, service school-trained technicians, and documented parts availability from Louisville, Kentucky manufacturing.
Shop owners considering economic-tier lifts often question long-term support availability and parts sourcing. Challenger's corporate backing through Snap-on addresses this concern by connecting the lift to an established service infrastructure rather than an independent import operation.
This provides ownership confidence through documented warranty support channels and domestic manufacturing. The 5-year structural coverage aligns with or exceeds warranty terms from major competitors at this capacity tier.
Applications & Use Cases

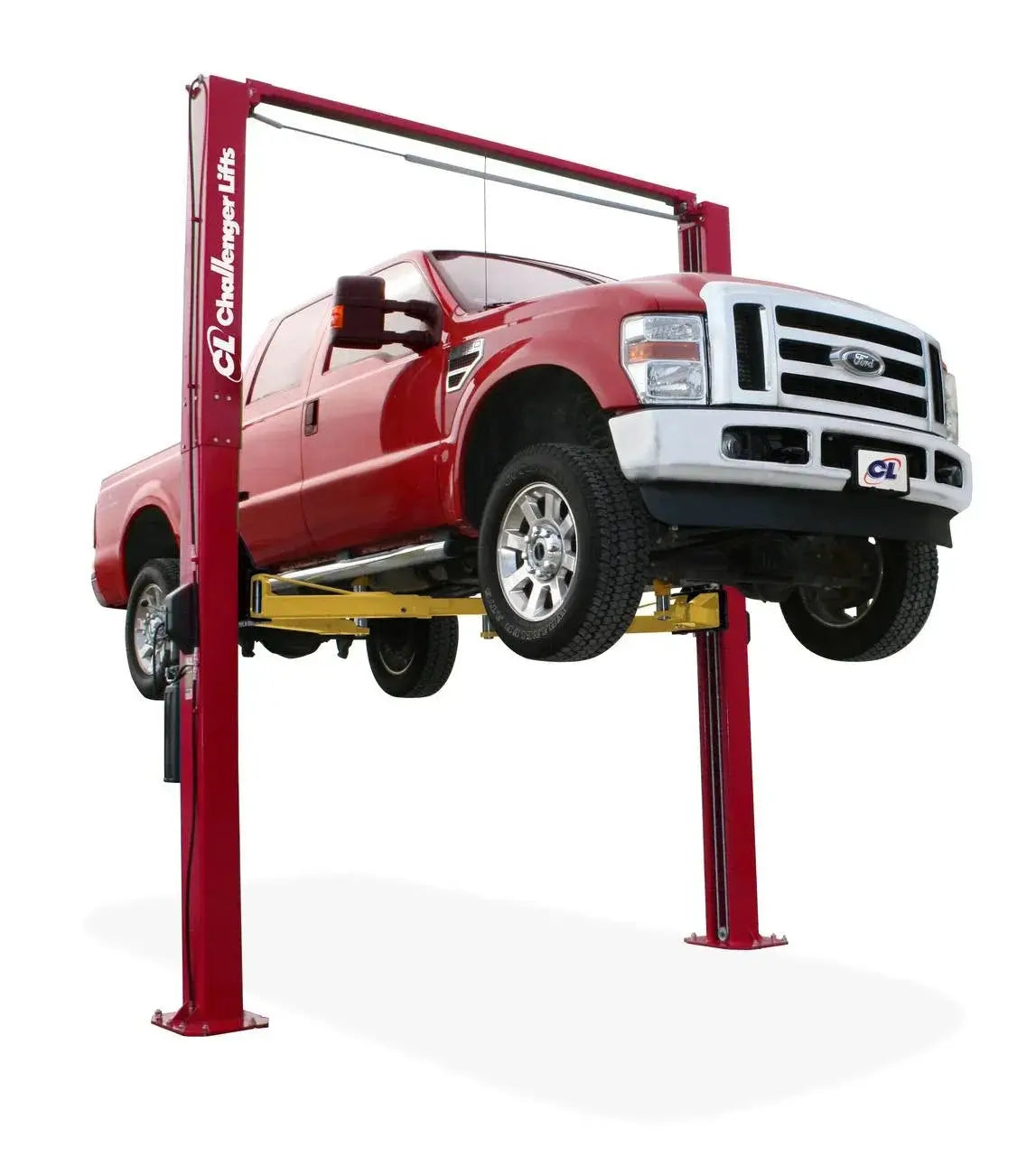

- Full-Size Pickup Trucks: Ford F-150 through F-350, Chevrolet Silverado/GMC Sierra 1500-3500, Ram 1500-3500, and comparable models within 12,000 lb capacity
- Full-Size SUVs: Chevrolet Suburban and Tahoe, Ford Expedition, GMC Yukon, and other body-on-frame SUVs requiring frame-engaging lift points
- Commercial Vans: Sprinter-class cargo vans, work vans, and fleet delivery vehicles fitting within 103-inch drive-thru clearance
- Fleet Maintenance: Municipal, utility, and corporate fleet operations servicing mixed vehicle inventories including trucks, vans, and passenger vehicles
- Lifted Trucks: Modified trucks with suspension lifts using the optional 2-foot column extension (Part# K2P12EH2) for additional overhead clearance
- General Automotive Service: Passenger vehicles, crossovers, and light-duty applications within rated capacity for shops serving mixed customer bases
Technical Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 12,000 lb (5,443 kg) |
| Capacity Per Arm | 3,000 lb (1,361 kg) |
| Rise Height | 77.75 inches (197.5 cm) |
| Rise Time | 61 seconds |
| Lifting Configuration | Symmetric |
| Arms Configuration | 2-stage front / 2-stage rear telescoping |
| Specification | Value |
|---|---|
| Overall Height (Standard) | 166 inches (421.6 cm) |
| Overall Height (Adjusted) | 175 inches (444.5 cm) |
| Overall Width | 139.75 inches (355 cm) |
| Drive-Thru Clearance | 103 inches (261.6 cm) |
| Inside Columns | 115 inches (292.1 cm) |
| Minimum Arm Reach | 35.75 inches (90.8 cm) |
| Maximum Arm Reach | 54.5 inches (138.4 cm) |
| Screw Pad Height Range | 5.25 - 6.75 inches (13.3 - 17.1 cm) |
| Specification | Value |
|---|---|
| Motor | 2 HP electric-hydraulic |
| Voltage | 208-230V, Single Phase, 60Hz |
| Recommended Circuit | 30A dedicated |
| Certification | Status |
|---|---|
| ALI Certified | Yes (Gold Label) |
| ETL Listed | Yes (Intertek) |
| ANSI/ALI ALCTV | Compliant |
| Colors Available | Red, Blue |
Installation Requirements
Concrete Foundation
- Minimum Thickness: 4 inches (10.2 cm)
- Reinforcement: Steel reinforced (rebar)
- Minimum Strength: 3,500 PSI
- Curing Time: Minimum 28 days before installation
- Surface Condition: Level, free from cracks, seams, and expansion joints within anchor area
Ceiling Height Requirements
- Standard Configuration: Minimum 167 inches (13' 11")
- With Column Extension: Minimum 176 inches (14' 8")
Electrical Requirements
- Power Supply: 208-230V, single phase, 60Hz
- Circuit: 30A dedicated circuit recommended
- Power Unit: 2 HP electric-hydraulic motor
Installation Notes
- Professional Installation: Installation by qualified personnel following manufacturer specifications required for warranty validity
- Permits: Verify local building code compliance and permit requirements before installation
Shipping & Delivery
Freight Coverage
Shipping: Free shipping to continental US commercial addresses available from many authorized dealers.
Delivery Method: Ships via flatbed freight truck.
Transit Time: 12-21 business days depending on location and inventory availability.
Delivery Requirements
Unloading Equipment: Customer responsible for unloading. Forklift or suitable material handling equipment required.
Lift Gate Service: Not available for full lift shipments.
Address Type: Commercial address required. Cannot ship to residential addresses.
Warranty Coverage
Challenger Warranty Program
5 Years - Structural Parts: Columns, carriages, arms, and plungers
1-2 Years - Functional Parts: Power units, cylinders, hoses, cables, and controls
1 Year - Labor: Labor coverage for warranty repairs
Warranty Requirements
Registration: Product registration required within 30 days of installation
Eligibility: Valid for original purchaser only (non-transferable)
Installation: Must be installed per manufacturer specifications by qualified personnel
Ready to Upgrade Your Shop?
Get expert guidance on the right lift for your facility. Our team can help with product selection, installation planning, and technical specifications.
Frequently Asked Questions
What is the lifting capacity of the Challenger LE12?
The Challenger LE12 has a maximum lifting capacity of 12,000 lb (5,443 kg) with 3,000 lb capacity per arm. It is ALI certified at this capacity rating and designed for full-size trucks, SUVs, vans, and passenger vehicles within the rated weight.
What adapters and accessories are included with the LE12?
The LE12 includes the Stack Adapter Extension Kit (Part# 10315) with four 3-inch extensions, two 6-inch extensions, and two organizer racks. It also includes Frame Engaging Truck Adapters (Part# 10318) with four frame cradle adapters, plus enhanced polyurethane screw pads, automatic arm restraints, rubber door guards, and a padded overhead shutoff bar.
What are the concrete requirements for installing the Challenger LE12?
The LE12 requires a concrete foundation with minimum 4-inch thickness, steel reinforcement (rebar), minimum 3,500 PSI strength, and at least 28 days curing time. The surface must be level and free from cracks, seams, or expansion joints within the anchor area.
What ceiling height is required for the Challenger LE12?
The standard configuration requires minimum 167 inches (13' 11") ceiling height. If using the optional column extension (Part# K2P12EH2), minimum 176 inches (14' 8") is required. The lift offers adjustable overall heights of 166 inches or 175 inches depending on configuration. The adjusted height option provides additional clearance for lifted trucks and tall commercial vans, while the standard height fits most existing service bay infrastructure without modification.
What electrical power does the LE12 require?
The LE12 operates on 208-230V single phase, 60Hz power with a 30A dedicated circuit recommended. The lift uses a 2 HP electric-hydraulic power unit mounted on one of the columns. A qualified electrician should install the dedicated circuit to ensure proper voltage delivery and code compliance. The single-phase requirement makes the LE12 compatible with most standard commercial service bay electrical infrastructure without requiring 3-phase upgrades.
Is the Challenger LE12 ALI certified?
Yes, the LE12 is ALI Certified with Gold Label certification and ETL Listed through Intertek. It is compliant with ANSI/ALI ALCTV standards at the full 12,000 lb rated capacity. This certification is often required by insurance carriers and local jurisdictions for commercial automotive service operations. ALI certification verifies that the lift has been independently tested for structural integrity and safety performance, providing documented compliance for shop inspections and liability protection.
What is the warranty on the Challenger LE12?
The LE12 carries a 5-year warranty on structural parts (columns, carriages, arms, plungers), 1-2 years on functional parts (power units, cylinders, hoses, cables, controls), and 1 year labor coverage. Registration within 30 days of installation is required, and the warranty is non-transferable.
What is the drive-thru clearance on the LE12?
The LE12 provides 103 inches (8' 7") of drive-thru clearance between columns. The inside column measurement is 115 inches (9' 7"). This accommodates full-size crew cab trucks, Sprinter-class vans, and fleet vehicles without requiring mirror folding. The generous clearance reduces vehicle positioning time in high-volume service environments where technicians cycle multiple vehicles through the bay each day, improving overall shop throughput.
