Challenger EW12CK-QC Completion Kit for EW12 Quick Cycle

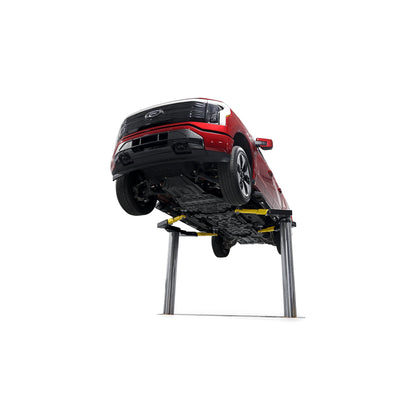

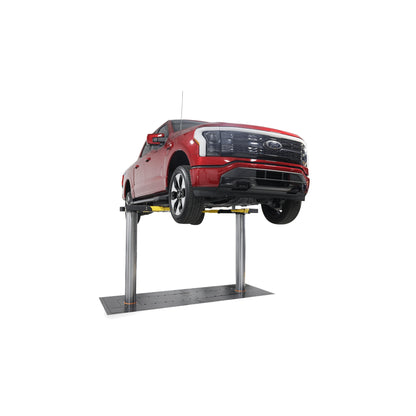

It's the above-ground component package that finishes an EW12 inground lift installation. This kit includes the QuickCycle hydraulic system and standard column-mounted controls, all factory-matched to the EW12 platform. Your superstructure and pre-kit need to be installed before this kit goes in. The completed system delivers 12,000 lb of lifting capacity with 88 inches of drive-through clearance.

Both kits include QuickCycle hydraulics for faster lift and lower cycles. The difference is the control configuration. This QC kit uses standard column-mounted controls integrated directly into the lift structure. The BMC-QC version places the controls at a separate workstation bench. Choose based on your bay layout and where you want your operator panel positioned.

QuickCycle speeds up the hydraulic lift and lower cycle times compared to the standard configuration. The base EW12 has a 63-second rise time. QuickCycle reduces that, helping you move vehicles through the bay faster. For high-volume shops running back-to-back services, the time savings add up across every job throughout the day.

Yes. The completion kit is the final stage of an EW12 installation. Your inground superstructure and pre-kit must be installed and concrete work completed before this kit can be connected. If you're unsure what stage your build is at, call (855) 498-2147 and we'll help you figure out exactly what you still need.

The system runs on 208-230V, 60 Hz, single-phase power with a dedicated circuit for the 2 HP motor. A licensed electrician needs to handle the wiring and verify the supply meets code before the lift goes into service. You'll also need 90 to 120 psi compressed air for the automatic safety locks.

Yes. The completed EW12 holds both ALI and ETL certification, confirming third-party verification of the lift's 12,000 lb capacity, structural integrity, and mechanical safety features. These certifications are recognized by insurance carriers, facility managers, and franchise dealership compliance programs.

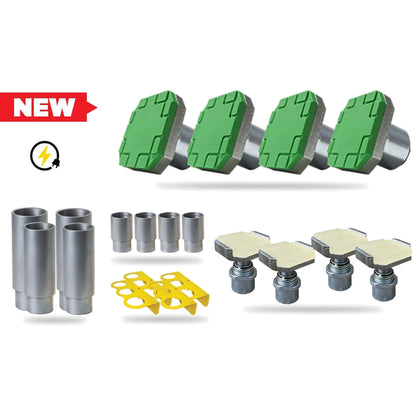

That's one of its primary design advantages. The 88-inch drive-through clearance and 3-stage arm geometry allow battery pack access and lowering without obstruction. Double-telescoping screw pads with a 4" to 6.125" height range provide precise lift point positioning on EV platforms for high-voltage battery and drivetrain service.

It ships via flatbed freight truck. You'll need a forklift or similar equipment for unloading since lift gate service isn't available. Deliveries arrive on a 48-foot semi, so confirm your site has adequate truck access. If you don't have unloading equipment on-site, the shipment can route to a local freight terminal for pickup.

Challenger's limited warranty covers repair or replacement of defective parts for the original owner, including reasonable labor and transportation costs. The lift must be installed, used, and maintained per Challenger's specifications. Coverage excludes consumable items, normal wear, and damage from misuse or unauthorized repairs. Registration may be required after purchase.

Call (855) 498-2147 and walk through your current installation stage with our equipment specialists. The EW12 build involves multiple phases including the superstructure, pre-kit, and this completion kit. We'll confirm which components are outstanding and whether you need the QC or BMC-QC configuration for your setup.
