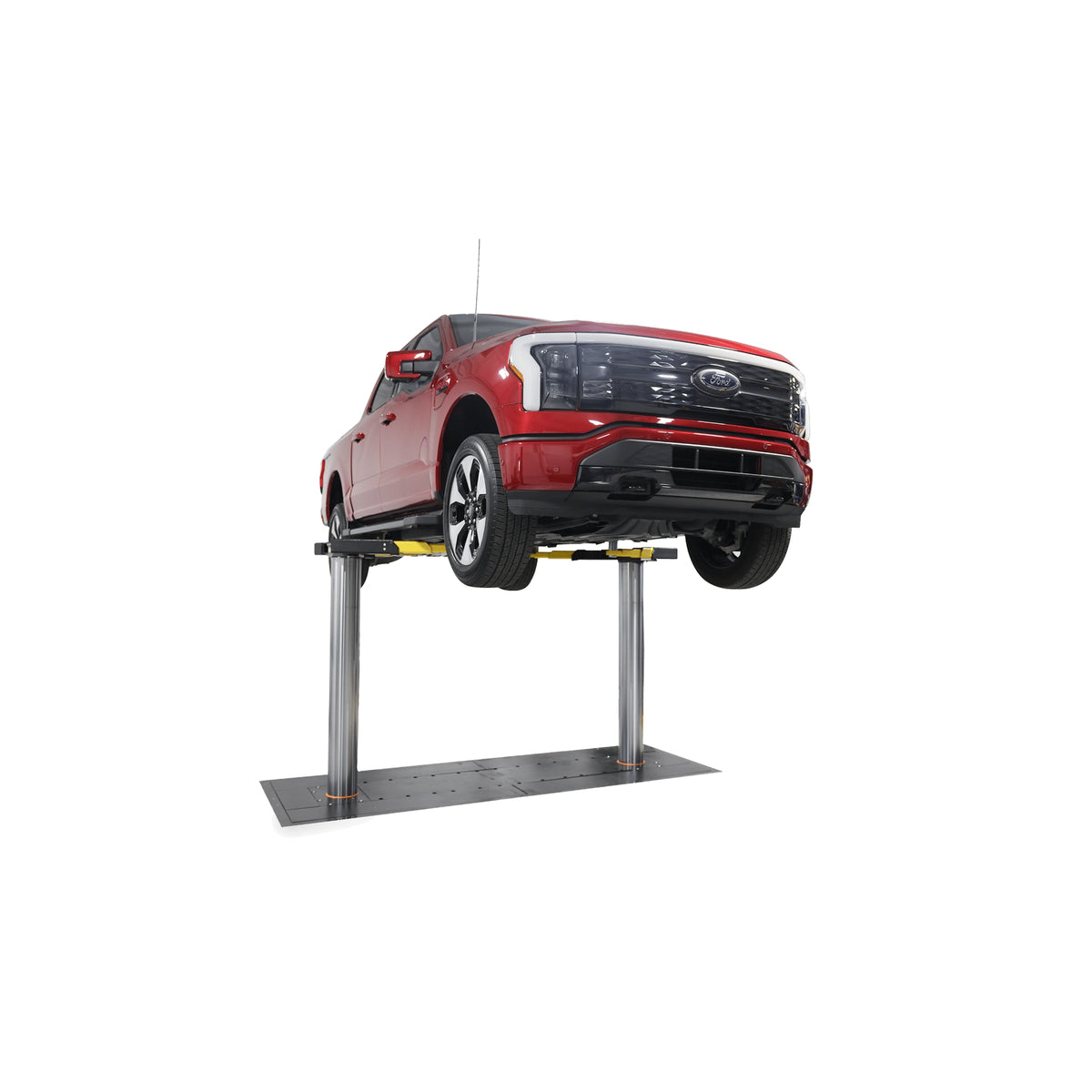

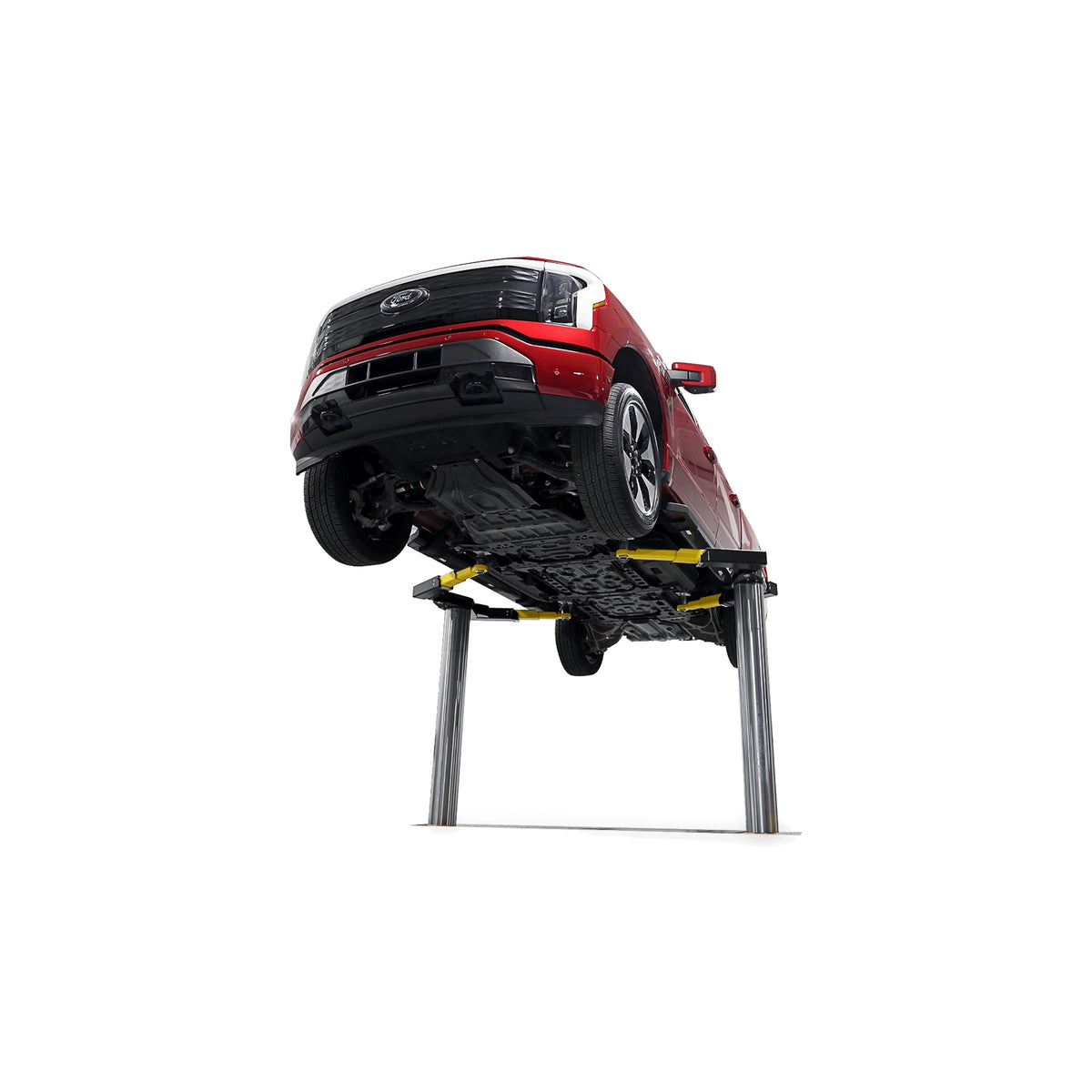

Challenger EW12CK-BMC-QC Completion Kit

It's the above-ground component package that finishes an EW12 inground lift installation. This kit includes the bench-mounted controls (BMC) and QuickCycle (QC) hydraulic system matched specifically to the EW12 platform. Your superstructure and pre-kit need to be installed already before this kit goes in. The completed system delivers 12,000 lb of lifting capacity with 88 inches of drive-through clearance.

Bench-mounted controls place the lift's operator panel at a workstation bench instead of on the lift columns. This keeps the controls accessible from a fixed position in your bay, giving you clear sightlines to the vehicle while keeping the panel within easy reach. It's an alternative to the standard column-mounted setup and works well for shops that want a dedicated control station.

QuickCycle speeds up the hydraulic lift and lower cycle times compared to the standard configuration. The base EW12 has a 63-second rise time. QuickCycle reduces that, helping you move vehicles through the bay faster. For high-volume shops running back-to-back services, the time savings add up across every job throughout the day.

Yes. The completion kit is the final stage of the EW12 installation process. Your inground superstructure and pre-kit must be installed and your concrete work completed before this kit can be connected. If you're unsure what stage your installation is at, call (855) 498-2147 and we'll help you figure out exactly what you still need.

The EW12 runs on 208-230V, 60 Hz, single-phase power with a dedicated circuit for the 2 HP motor. A licensed electrician needs to handle the wiring and verify the supply meets code before the lift goes into service. You'll also need 90 to 120 psi compressed air for the automatic safety locks.

Yes. The completed EW12 holds both ALI and ETL certification, confirming third-party verification of the lift's 12,000 lb capacity, structural integrity, and mechanical safety features. These certifications are recognized by insurance carriers, facility managers, and franchise dealership compliance requirements.

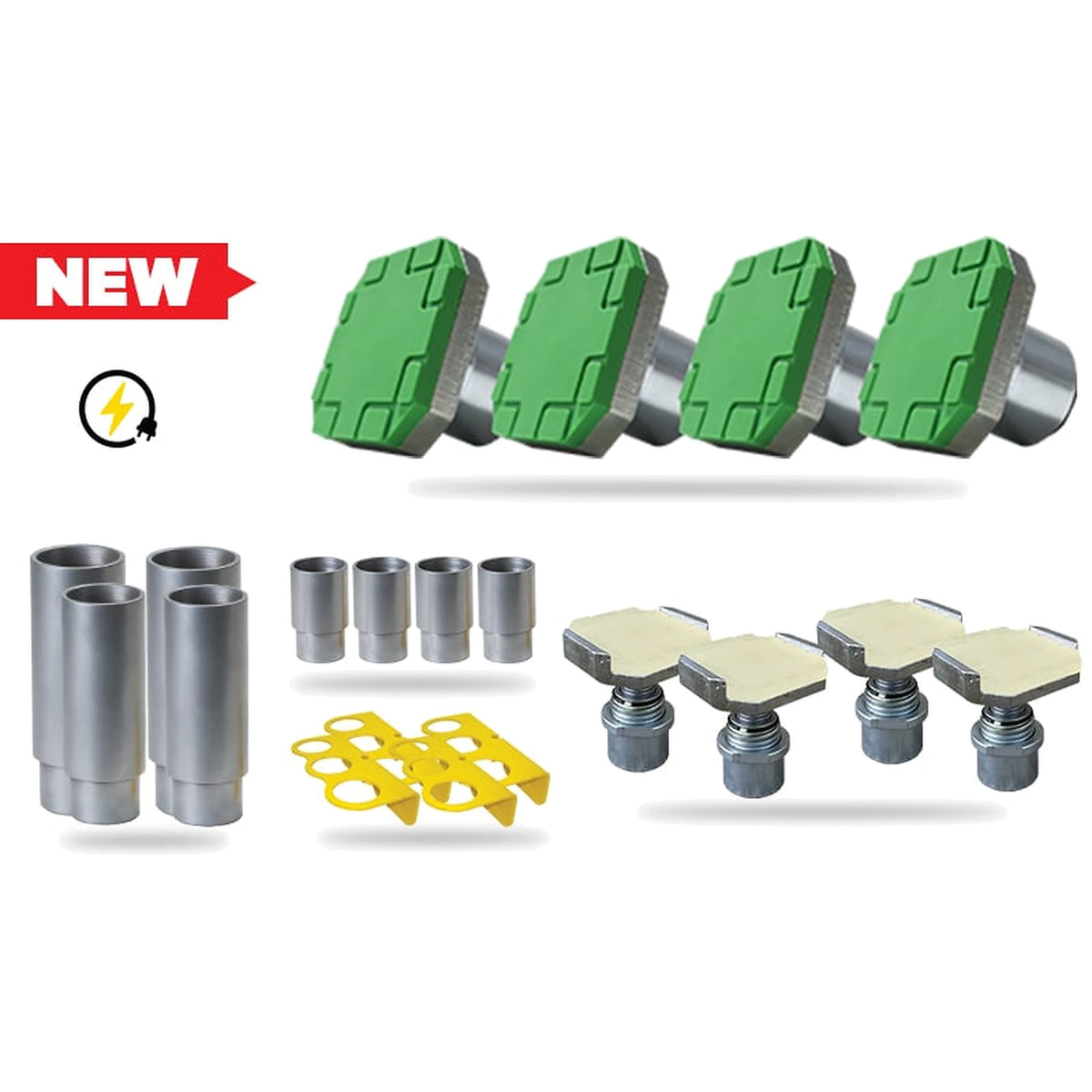

It's specifically designed for it. The 88-inch drive-through clearance and arm geometry allow battery pack access and lowering without obstruction. The 3-stage arms with double-telescoping screw pads (4" to 6.125" range) provide precise lift point positioning on EV platforms, so you can service high-voltage battery systems and EV-specific drivetrain components without external support equipment.

It ships via flatbed freight truck. You'll need a forklift, Bobcat, or similar equipment for unloading since lift gate service isn't available. Deliveries arrive on a 48-foot semi, so confirm your site has adequate truck access. If you don't have unloading equipment, the shipment can route to a local freight terminal for pickup.

Challenger's limited warranty covers repair or replacement of defective parts for the original owner, including reasonable labor and transportation costs. The lift must be installed, used, and maintained per Challenger's specifications. Warranty registration may be required after purchase. Coverage excludes consumable items, normal wear, and damage from misuse or unauthorized repairs.

Call (855) 498-2147 and walk through your current installation stage with our equipment specialists. The EW12 installation involves multiple phases, including the superstructure, pre-kit, and this completion kit. We'll help you confirm exactly which components are still outstanding and make sure you order the right package for where your build stands.
