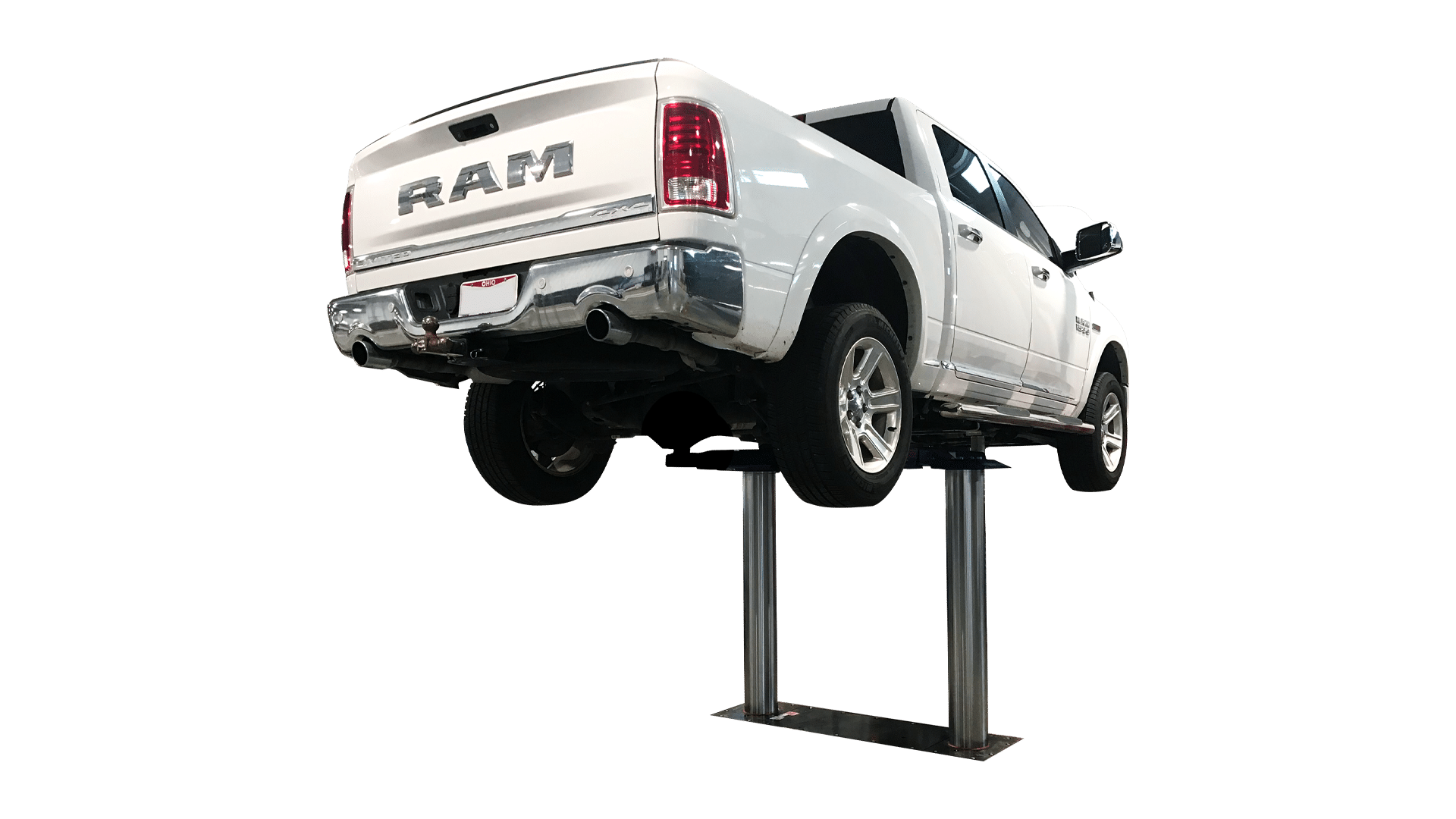

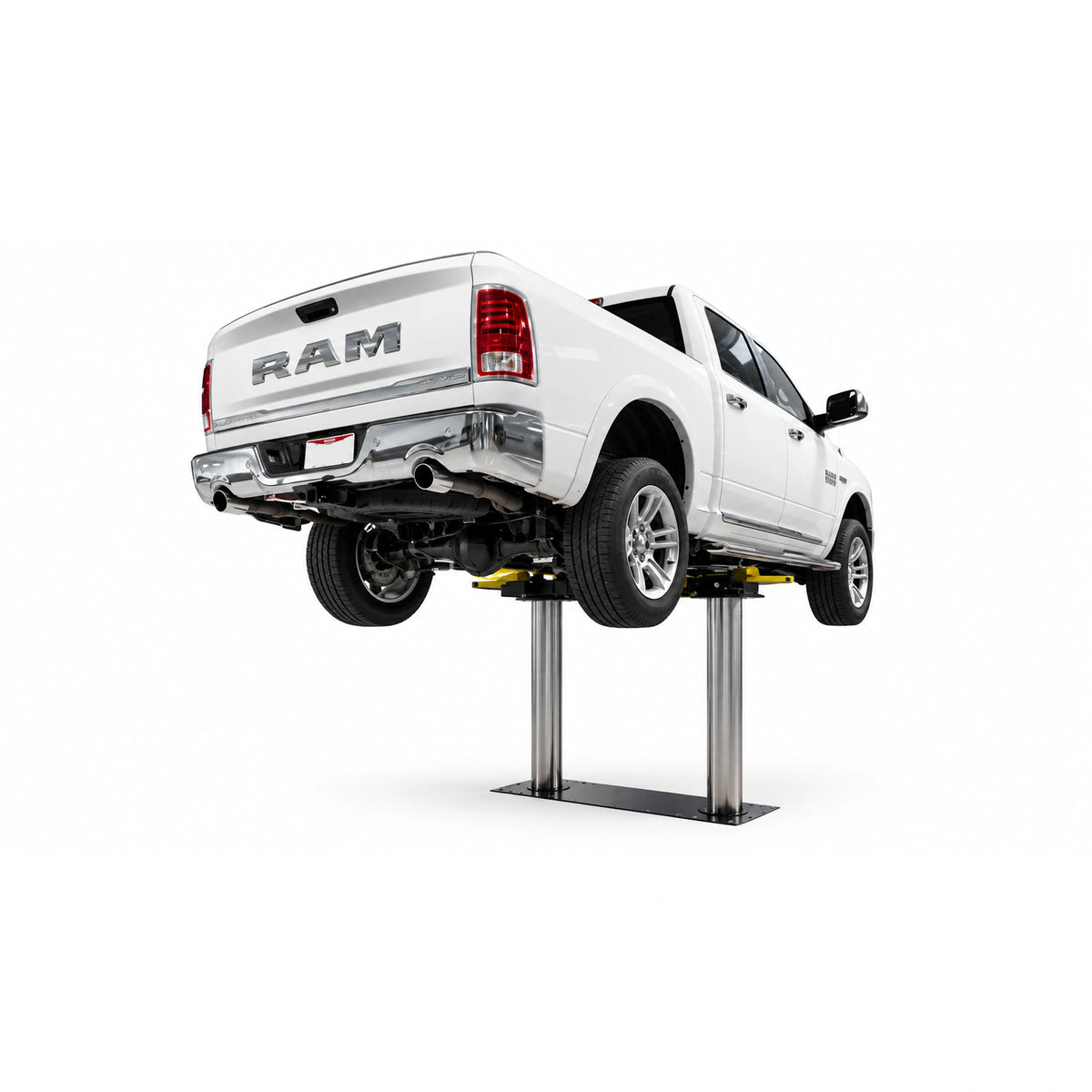

Challenger EV1220-UC-QC Upper Components for EV1220 Quick Cycle

The EV1220-UC-QC is the upper component package for a 2-part installation of the Challenger EV1220 12,000 lb capacity inground lift with Quick Cycle technology. It includes the superstructure with true 3-stage front and rear Versymmetric arms, bolster assemblies, 8.5-inch chrome pistons, a 3 HP Quick Cycle power unit with larger 4cc displacement pump, double-telescoping screw pads, stack adapter extension kit, frame engaging truck adapters, and all installation hardware. The lower cassette tub is sold separately and must be installed in concrete before these upper components can be added.

The EV1220-UC-QC includes only the upper components for the second phase of a 2-part installation, while a complete EV1220-QC system ships with both the lower cassette tub and upper components together. The UC-QC package is designed for facilities that have already installed the lower cassette tub during an earlier construction phase or are planning a phased installation where the tub goes in during concrete work and the upper components are added later. Both configurations result in the same fully operational 12,000 lb capacity inground lift with Quick Cycle 38-second rise time when installation is complete.

Quick Cycle is Challenger's hydraulic enhancement that pairs a 3 HP motor with a larger 4cc displacement pump compared to the standard 2 HP motor and 2.5cc pump. This combination delivers a 38-second rise time versus 60 seconds on the standard EV1220 configuration, making the Quick Cycle equipped lift 2x faster than traditional inground lift systems. The faster cycling directly increases the number of vehicles a shop can service per bay each day in high-volume environments like dealership service departments and fleet maintenance facilities, resulting in higher annual service and parts revenue.

Yes, the EV1220 lower cassette tub must be installed and fully cured in concrete before the upper components can be added. The lower tub is the sealed recycled polymer cassette housing that sits below grade and contains the hydraulic cylinder assembly. It must be level, properly positioned per Challenger specifications, and the surrounding concrete must meet minimum PSI requirements with proper reinforcement. The lower tub is sold separately. Contact our team at 855-498-2147 to confirm lower tub availability and coordinate your 2-part installation timeline.

The EV1220-UC-QC Quick Cycle power unit requires 208v-230v, 60Hz, single phase electrical supply rated for the 3 HP motor, which draws higher amperage than the standard 2 HP configuration. A licensed electrician must verify that your facility's electrical service can support the 3 HP motor circuit and install the wiring per all local electrical codes. The lift also requires compressed air at 90-120 psi for the stainless steel lock release mechanism. Shops upgrading from a standard EV1220 to Quick Cycle should confirm that their existing electrical panel and circuit capacity can handle the increased power requirements.

The upper components include true 3-stage front and rear Versymmetric arms that provide both symmetric and asymmetric lifting capability within the same service bay. These triple-telescoping arms extend from 19.625 inches minimum to 48 inches maximum reach with a 3,000 lb capacity per arm, providing access to manufacturer-recommended lift points on vehicles from compact cars to full-size trucks. The 87-inch drive-thru clearance accommodates wider vehicles, and the included double-telescoping screw pads, stack adapter extension kit, and frame engaging truck adapters ensure compatibility with the broadest range of vehicle types.

The standard Challenger Lifts warranty covers both structural parts (arms, bolsters, plungers) and functional parts (power unit, cylinders, controls, hoses) for their respective warranty periods when installed per manufacturer specifications. Warranty registration must be completed online within 30 days of installation, or the warranty period begins from the invoice date. An extended warranty is available for purchase within 30 days of lift invoice that extends functional parts coverage by an additional 3 years for 5 years total. Installation must be performed by an authorized Challenger installer using approved parts and accessories.

The EV1220-UC-QC upper components ship via freight carrier due to the size and weight of the superstructure assemblies, 3-stage Versymmetric arms, 8.5-inch chrome pistons, and 3 HP Quick Cycle power unit for this 12,000 lb capacity lift system. Liftgate service is typically not available for this shipment, so you should have a forklift or similar material handling equipment available at your location for unloading. Inspect all packages carefully before signing the bill of lading and document any visible damage on the BOL before the freight driver departs to ensure proper damage claim processing if needed.
