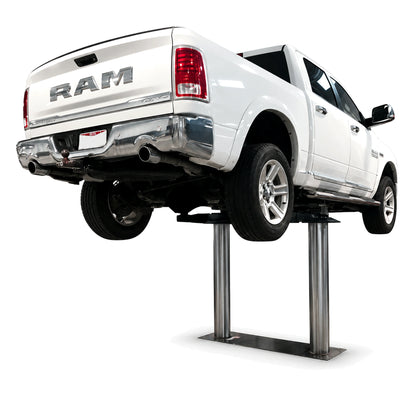

Challenger EV1220 12,000 lb Inground Lift for Professional Service Facilities
The Challenger EV1220 is an electric hydraulic cassette-style inground lift engineered for professional automotive service facilities. With a 12,000 lb lifting capacity and true 3-stage front and rear arms, this ALI/ETL certified lift handles everything from passenger cars to light trucks. The compact footprint maximizes bay efficiency while the 87" drive-thru clearance accommodates wider vehicles with ease. Available in standard and Quick Cycle (QC) configurations with rise times of 60 seconds and 38 seconds respectively, the EV1220 delivers the performance and durability professional shops demand.
Challenger EV1220 Features

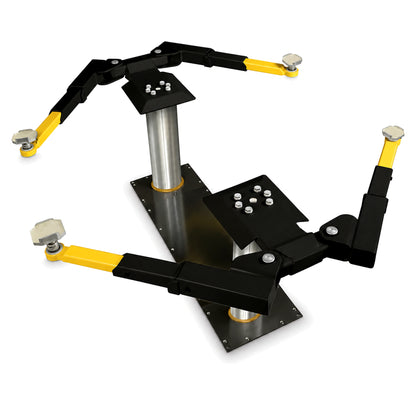

True 3-Stage Front and Rear Arms
The EV1220 comes standard with 3-stage front and 3-stage rear arms that extend from 19.625" minimum to 48" maximum reach. This extended range provides access to manufacturer-recommended lift points on a wide variety of vehicles, from compact cars to full-size trucks, maximizing your shop's revenue potential.
8.5" Chrome Pistons for Superior Stability
Oversized 8.5" diameter chrome pistons deliver exceptional stability under load. The chrome non-breathing ram style cylinder design extends lift life by preventing contamination, while the long bearing contact provides increased structural stability during service operations.
Sealed Polymer Cassette System
The fully-contained and sealed recycled polymer cassette tub eliminates the risk of hydraulic fluid seeping into the ground. This environmentally responsible design protects your facility from contamination while simplifying maintenance and regulatory compliance.
Ergonomic Mechanical Lock System
The mechanical lock engages every 3 inches throughout the lift stroke, allowing technicians to position vehicles at the optimal working height. This reduces fatigue and increases productivity by eliminating awkward reaching or bending during service procedures.
Quick Cycle Technology (QC Model)
The EV1220-QC model features a 3HP motor that delivers a rapid 38-second rise time compared to 60 seconds on the standard model. Quick Cycle Technology with Bench Mount Controls maximizes throughput in high-volume service environments.
Corrosion-Resistant Construction
Critical components feature corrosion-resistant materials including stainless steel air lock release cylinder and premium powder coat finish on bolsters and arms. Enhanced raised wipers at top and bottom of bearings provide better grease retention and minimize contaminant intrusion.
Challenger EV1220 Applications
- Professional Service Centers: The 12,000 lb capacity and 3-stage arms handle the full range of passenger vehicles and light trucks that visit general repair facilities.
- Dealership Service Departments: The compact inground footprint maximizes bay density while the Quick Cycle option keeps pace with high-volume warranty and maintenance work.
- Fleet Maintenance Facilities: Service mixed fleets efficiently with the wide reach range and heavy-duty capacity that accommodates vans, trucks, and passenger vehicles.
- Tire and Alignment Shops: The 87" drive-thru clearance accommodates wider vehicles and minimizes tire damage during positioning, ideal for tire service operations.
- Quick Lube Operations: Fast cycle times and ergonomic lock positions speed oil changes and routine maintenance while reducing technician fatigue.
Challenger EV1220 Specifications
| Specification | EV1220 | EV1220-QC |
|---|---|---|
| Lifting Capacity | 12,000 lbs | 12,000 lbs |
| Capacity Per Arm | 3,000 lbs | 3,000 lbs |
| Arms | 3-stage front/3-stage rear | 3-stage front/3-stage rear |
| ALI/ETL Certified | Yes | Yes |
| Specification | Value |
|---|---|
| Stroke | 68" |
| Rise Height | 80.75" |
| Width Overall | 115" |
| Drive-Thru Clearance | 87" |
| Reach (Arm Minimum) | 19.625" |
| Reach (Arm Maximum) | 48" |
| Screw Pad Height | 5" - 6.75" |
| Guide Plunger Diameter | 8.5" |
| Specification | EV1220 | EV1220-QC |
|---|---|---|
| Motor | 2HP | 3HP |
| Voltage | 208v-230v, 60Hz, 1Ph | 208v-230v, 60Hz, 1Ph |
| Speed of Rise | 60 seconds | 38 seconds |
| Air Required | 90 - 120 psi | 90 - 120 psi |
| Component | Options |
|---|---|
| Super Structure Colors | Red, Blue, Black |
Challenger EV1220 Installation Requirements
Electrical Requirements
Power: 208v-230v, 60Hz, single phase. The standard EV1220 requires a 2HP motor circuit while the EV1220-QC requires a 3HP motor circuit. A licensed electrician must install and verify the electrical supply meets all local codes.
Concrete Foundation
Anchoring: Inground installation requires proper concrete pit construction per Challenger specifications. Concrete must meet minimum PSI requirements with proper reinforcement. Consult the installation manual for detailed pit dimensions and preparation requirements.
Air Supply Requirements
Compressed Air: 90 - 120 psi required for lock release operation. Ensure your shop air system can maintain adequate pressure and volume for consistent lift operation.
Professional Installation
Professional installation by a qualified lift installer is required. Inground lift installation involves concrete work, electrical connections, and hydraulic system setup that must be performed correctly for safe operation. Improper installation may void the warranty.
What's Included with the Challenger EV1220
- Complete EV1220 or EV1220-QC inground lift assembly
- 3-stage front arms (2)
- 3-stage rear arms (2)
- Heavy-duty polyurethane screw pads
- Sealed recycled polymer cassette tub
- Electric hydraulic power unit
- Bench Mount Controls (QC model)
- Installation and operation manual
Optional Accessories: Contact Garage Supply Guys for available upgrades to further customize your lift for specific fleet requirements.
Not Included: Concrete pit construction, electrical wiring and installation, compressed air supply, professional installation labor.
Challenger EV1220 Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Contact sales for current lead times. International: Contact sales for international shipping quotes.
Delivery Requirements
Unloading: Forklift or loading dock required for unloading. Delivery Type: Curbside delivery standard. Inspection: Inspect all packages for damage before signing the bill of lading. Note any visible damage on the delivery receipt immediately.
Returns
Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. 20% restocking fee applies. Buyer responsible for return freight costs.
Challenger EV1220 Warranty
Challenger Lifts Warranty
Challenger Lifts backs the EV1220 with comprehensive warranty coverage designed to protect your investment.
- Structural Components: Extended warranty coverage on major structural components
- Hydraulic Cylinders: Coverage on hydraulic cylinder components
- Power Unit: Coverage on electric hydraulic power unit
Requirements: Warranty requires professional installation and proper maintenance per Challenger specifications. See warranty document for complete terms, conditions, and exclusions.
Documents
Click to open in a new tab.
Questions About the Challenger EV1220?
Our equipment specialists can help with installation planning, specifications, and product selection for your shop.
Challenger EV1220 FAQ
What is the lifting capacity of the Challenger EV1220?
The Challenger EV1220 has a total lifting capacity of 12,000 lbs with a 3,000 lb capacity per arm. This allows you to safely service passenger cars, crossovers, SUVs, and light trucks within the rated capacity.
What is the difference between the EV1220 and EV1220-QC?
The EV1220-QC (Quick Cycle) model features a more powerful 3HP motor compared to the standard 2HP motor. This delivers a faster rise time of 38 seconds versus 60 seconds on the standard model. The QC model also includes Bench Mount Controls for improved operator efficiency in high-volume environments.
What are the space requirements for the EV1220?
The EV1220 has an overall width of 115" and a drive-thru clearance of 87". The rise height is 80.75" with a 68" stroke. Ensure your service bay has adequate ceiling height and floor space for the inground pit installation.
What electrical service is required?
Both the EV1220 and EV1220-QC require 208v-230v, 60Hz, single phase power. The standard model uses a 2HP motor while the QC model uses a 3HP motor. A licensed electrician should verify your electrical service meets the requirements.
Does the EV1220 require compressed air?
Yes, the EV1220 requires compressed air at 90-120 psi for the lock release mechanism. Ensure your shop air system can provide adequate pressure and volume for consistent operation.
Is the Challenger EV1220 ALI certified?
Yes, the Challenger EV1220 is ALI/ETL certified. This third-party certification verifies the lift meets industry safety and performance standards established by the Automotive Lift Institute.
What is included with the lift purchase?
The EV1220 includes the complete inground lift assembly with 3-stage front and rear arms, polyurethane screw pads, sealed polymer cassette tub, electric hydraulic power unit, and installation manual. The QC model also includes Bench Mount Controls. Concrete work, electrical installation, and professional installation labor are not included.
How is the EV1220 shipped?
The EV1220 ships via freight truck to commercial addresses in the 48 contiguous United States. A forklift or loading dock is required for unloading. Inspect all packages for damage before signing the bill of lading.
What colors are available?
The Challenger EV1220 super structure is available in Red, Blue, or Black powder coat finish. Select your preferred color when ordering.
What is the arm reach range?
The 3-stage front and rear arms provide a reach range from 19.625" minimum to 48" maximum. This extended range accommodates the lift points on a wide variety of vehicles from compact cars to full-size trucks.
How often do the mechanical locks engage?
The mechanical lock system engages every 3 inches throughout the lift stroke. This allows technicians to position vehicles at the most comfortable and productive working height, reducing fatigue during extended service procedures.
What maintenance does the EV1220 require?
Regular maintenance includes checking hydraulic fluid levels, inspecting the lift for wear or damage, lubricating moving parts per the manual, and ensuring all safety systems function properly. Refer to the operation manual for the complete maintenance schedule and procedures.
