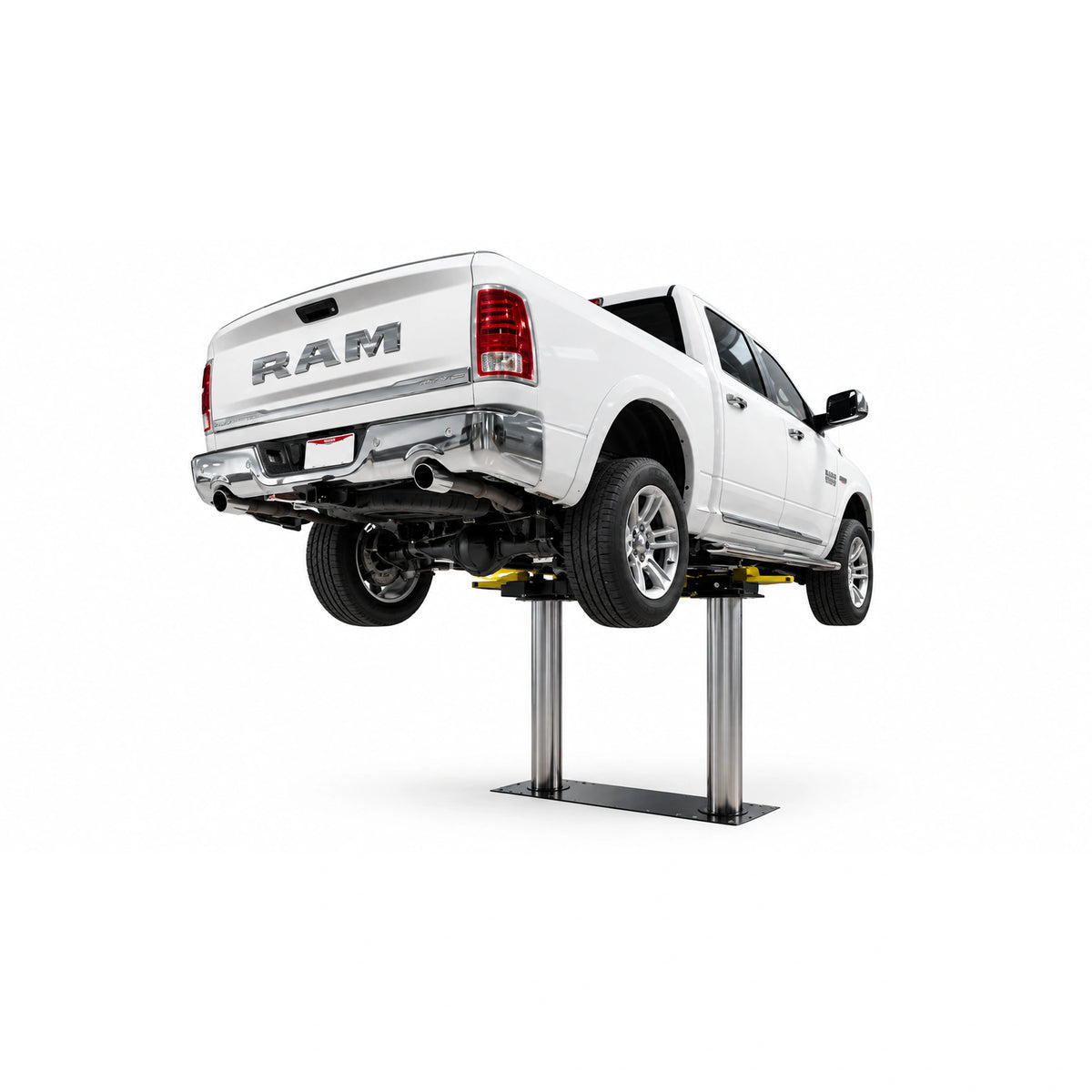

Challenger EV1220-CK-BMC-QC Completion Kit for EV1220 Inground Lift with Bench Mount Controls and Quick Cycle
The Challenger EV1220-CK-BMC-QC is a completion kit that delivers the hydraulic, power, and control components needed to finish an EV1220 inground lift installation. This kit includes 8.5" chrome pistons, a 3HP Quick Cycle power unit, and Bench Mount Controls (BMC) with raise, lower, and lock release functions. Designed for 208-230V, 60Hz, single-phase power, the Quick Cycle motor delivers faster rise and lower times than the standard 2HP configuration, while the bench-mounted control station provides ergonomic operation from a fixed workbench location. This kit is compatible exclusively with the Challenger EV1220 12,000 lb inground lift platform and requires a separately purchased pre-kit and superstructure to complete a fully operational lift system.
Challenger EV1220-CK-BMC-QC Completion Kit Features
Quick Cycle 3HP Power Unit
The completion kit includes a 3HP Quick Cycle power unit that delivers faster rise and lower times compared to the standard 2HP EV1220 configuration. The Quick Cycle system is engineered for high-volume service environments where minimizing vehicle transition time directly impacts daily throughput and revenue potential.
Bench Mount Controls with Full Function
The included Bench Mount Controls (BMC) provide a permanent control station with raise, lower, and lock release functions accessible from a fixed workbench or designated location. This upgraded control configuration eliminates the need to walk to the lift column for each operation, improving technician efficiency compared to the standard wall-mounted controls included with non-BMC kits.
8.5" Chrome Pistons for 12,000 lb Capacity
The kit includes 8.5" diameter chrome pistons that deliver the hydraulic force for the EV1220's full 12,000 lb lifting capacity. The chrome non-breathing ram-style cylinder construction resists corrosion from salt and moisture exposure, extending service life in demanding shop environments. The larger bore diameter provides greater stability under load compared to smaller piston designs.
Enhanced Bearing and Wiper System
The completion kit components integrate with the EV1220's bearing system, which features over 50% more bearing contact surface than competitive inground lifts. Enhanced raised wipers at top and bottom of each bearing improve grease retention and minimize contaminant intrusion, supporting quarterly greasing intervals compared to the monthly maintenance required by competing designs.
Complete Hardware Package
A comprehensive hardware box is included with all nuts, bolts, fittings, and fasteners required for installation. This factory-matched hardware package ensures proper fit and torque specifications for all connections between the completion kit components and the existing pre-kit foundation, eliminating aftermarket hardware sourcing.
Challenger EV1220-CK-BMC-QC Compatibility
EV1220 Inground Lift System Only
This completion kit is engineered exclusively for the Challenger EV1220 12,000 lb inground lift platform. It is not compatible with other Challenger lift models (EV1020, EV1520, EW Series) or competing manufacturers' inground lift systems. The kit is designed to pair with the EV1220 pre-kit foundation and EV1220SS superstructure to create a complete, operational lift.
Three-Component System
A complete EV1220 inground lift installation requires three separately purchased component groups working together:
- Pre-Kit (Foundation): The CSPK-series cassette pit assembly that provides the below-grade sealed polymer tub and structural frame
- Completion Kit (This Product): The EV1220-CK-BMC-QC delivers chrome pistons, Quick Cycle 3HP power unit, bench mount controls, and installation hardware
- Superstructure: The EV1220SS provides 3-stage front and rear arms, screw-type extensions, and frame engaging adapters that contact the vehicle
Challenger EV1220-CK-BMC-QC Specifications
| Specification | Value |
|---|---|
| Compatible Lift System | Challenger EV1220 (12,000 lb) |
| Piston Diameter | 8.5" (216 mm) |
| Motor Rating | 3 HP (Quick Cycle) |
| Controls | Bench Mount Controls (BMC) with raise, lower, and lock release |
| Electrical Service | 208-230V, 60Hz, single phase |
| Air Supply Requirement | 90-120 PSI |
| Specification | Value |
|---|---|
| Lifting Capacity | 12,000 lb (5,443 kg) |
| Capacity Per Arm | 3,000 lb (1,361 kg) |
| Stroke | 68" (1,727 mm) |
| Rise Height (Without Superstructure) | 74" (1,880 mm) |
| Overall Width | 115" (2,921 mm) |
| Drive-Thru Clearance | 87" (2,210 mm) |
| Lock Engagement | Every 3" |
Challenger EV1220-CK-BMC-QC Installation Requirements
Pre-Kit Foundation Required
The EV1220 pre-kit foundation must be installed in a properly constructed concrete pit before completion kit components can be integrated. Concrete must meet minimum PSI requirements with proper reinforcement per Challenger specifications. Consult the installation manual for detailed pit dimensions and preparation requirements.
Electrical Requirements
Power: 208-230V, 60Hz, single phase with a dedicated 3HP motor circuit. A licensed electrician must install and verify the electrical supply meets all local codes and manufacturer specifications before the power unit is energized.
Pneumatic Requirements
Air Supply: 90-120 PSI compressed air required for lock release operation. Ensure your shop air system can maintain adequate pressure and volume for consistent lift operation.
Professional Installation Required
Professional installation by qualified lift technicians familiar with inground lift systems is required. All hydraulic connections, electrical wiring, and control system installation should follow the official Challenger EV1220 installation manual with specified torque values. Verify local building codes and permit requirements as inground lift work may require inspections.
What's Included with the Challenger EV1220-CK-BMC-QC
- 8.5" diameter chrome-plated pistons
- Chrome non-breathing ram-style cylinders
- 3HP Quick Cycle power unit assembly
- Bench Mount Controls (BMC) with raise, lower, and lock release functions
- Enhanced raised wipers (top and bottom)
- Complete hardware box (nuts, bolts, fittings, fasteners)
- Installation documentation
Required (Sold Separately): EV1220 pre-kit foundation (CSPK-series cassette pit assembly) and EV1220SS superstructure kit (3-stage arms, extensions, and frame adapters). All three component groups are required for a complete, operational 12,000 lb inground lift system.
Not Included: Pre-kit foundation, superstructure (arms, pads, extensions, frame adapters), concrete pit construction, electrical wiring and installation, compressed air supply system, and professional installation labor.
Challenger EV1220-CK-BMC-QC Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Contact sales for current lead times. International: Contact sales for international shipping quotes and availability.
Delivery Requirements
Unloading: Forklift or loading dock may be required depending on shipment size. Delivery Type: Curbside delivery to commercial addresses is standard. Inspection: Inspect all packages for damage before signing the bill of lading. Document and photograph any visible damage on the delivery receipt immediately.
Returns
Returns accepted within 30 days of delivery. Product must be unopened in original packaging with proof of purchase. A 20% restocking fee applies to all returns. Buyer is responsible for return freight costs.
Challenger EV1220-CK-BMC-QC Warranty
Challenger Lifts Warranty Coverage
Challenger Lifts stands behind their American-engineered inground lift products with comprehensive warranty protection.
- 5 Years: Structural components including cassette tub, plungers, and main frame assembly
- 2 Years: Functional parts including power units, cylinders, hoses, cables, and controls
- 1 Year: Electrical components and accessories
Extended Warranty: An optional extended warranty is available for purchase within 30 days of the lift invoice, extending functional parts coverage by an additional 3 years (5 years total).
Requirements: Warranty coverage requires proper installation according to manufacturer specifications, use within rated capacity, and adherence to recommended maintenance procedures. Warranty registration must be completed within 30 days of installation at challengerlifts.com. See warranty document for complete terms and exclusions.
Documents
Click to open in a new tab.
Questions About the Challenger EV1220-CK-BMC-QC?
Our equipment specialists can help confirm component compatibility, coordinate pre-kit and superstructure orders, and plan your EV1220 installation.
Challenger EV1220-CK-BMC-QC Completion Kit FAQ
What is a completion kit and why would I need one?
A completion kit provides the hydraulic, power, and control components that bridge the gap between your installed pre-kit foundation and the superstructure. If you are building a new EV1220 installation in phases, replacing worn hydraulic components in an existing lift, or upgrading from standard controls to bench mount controls with Quick Cycle, the completion kit delivers the specific components needed without purchasing a complete lift assembly.
What lift system is this completion kit compatible with?
The EV1220-CK-BMC-QC is engineered exclusively for the Challenger EV1220 12,000 lb inground cassette-style lift system. It is not compatible with other Challenger lift models such as the EV1020, EV1520, or EW Series, and it will not fit competing manufacturers' inground lift platforms. Confirm your existing pre-kit model before ordering.
What components are included in this completion kit?
The kit includes 8.5" diameter chrome-plated pistons, chrome non-breathing ram-style cylinders, a 3HP Quick Cycle power unit assembly, Bench Mount Controls (BMC) with raise, lower, and lock release functions, enhanced raised wipers, and a complete hardware box with all nuts, bolts, fittings, and fasteners required for installation. Pre-kit foundation and superstructure are not included.
What other components do I need to complete a full EV1220 lift?
A complete EV1220 inground lift requires three component groups: the pre-kit foundation (CSPK-series cassette pit assembly providing the below-grade sealed polymer tub and frame), this completion kit (pistons, power unit, controls, and hardware), and the EV1220SS superstructure (3-stage front and rear arms, screw-type extensions, and frame engaging adapters). All three are required for a fully operational 12,000 lb lift system.
What is the difference between BMC and standard wall-mounted controls?
Bench Mount Controls (BMC) provide a permanent control station that mounts at a workbench or designated location, offering raise, lower, and lock release functions from a fixed ergonomic position. Standard wall-mounted controls mount near the lift column and feature a single push-button lift function with a down release valve handle. BMC improves operator efficiency in high-volume environments by centralizing lift control at the work area.
What does Quick Cycle mean?
Quick Cycle refers to the upgraded 3HP motor that delivers faster rise and lower times compared to the standard 2HP EV1220 motor. The standard model has a 60-second rise time while the Quick Cycle configuration reduces this substantially. Quick Cycle is recommended for high-volume service environments where faster lift transitions directly impact daily throughput and technician productivity.
What electrical power does this kit require?
The Quick Cycle power unit requires 208-230V, 60Hz, single-phase electrical service with a dedicated 3HP motor circuit. A licensed electrician must install and verify the electrical supply meets all local codes and Challenger specifications before the power unit is connected and energized.
Is compressed air required?
Yes, the EV1220 system requires compressed air at 90-120 PSI for the mechanical lock release mechanism. Ensure your shop air system can provide adequate pressure and volume for consistent lock release operation during normal service use.
Is professional installation required?
Yes, professional installation by qualified lift technicians familiar with inground lift systems is required. The completion kit involves hydraulic connections, electrical wiring, and control system integration that must follow Challenger's specified torque values and procedures for safe operation. Improper installation can void warranty coverage and create safety hazards.
What warranty coverage does this kit include?
Challenger provides a 5-year warranty on structural components, 2-year warranty on functional parts (power units, cylinders, hoses, controls), and 1-year warranty on electrical components. An optional extended warranty adding 3 years of functional parts coverage is available within 30 days of purchase. Warranty registration must be completed within 30 days of installation.
How does this kit differ from the EV12CK (standard) and EV12CK-BMC?
The standard EV12CK includes 8.5" chrome pistons, a 2HP power unit, standard wall-mounted controls, and hardware. The EV12CK-BMC adds Bench Mount Controls while retaining the 2HP motor. This EV1220-CK-BMC-QC combines both upgrades: the 3HP Quick Cycle motor for faster lift cycles and Bench Mount Controls for ergonomic operation, representing the highest-performance completion kit configuration available for the EV1220 platform.
I am not sure which components I need. Can I get help?
Our equipment specialists can review your existing installation, confirm which pre-kit and superstructure models you have, and recommend the correct completion kit configuration. Whether you are building a new installation or upgrading existing components, call our team at (855) 498-2147 to confirm compatibility and coordinate your complete EV1220 order.
