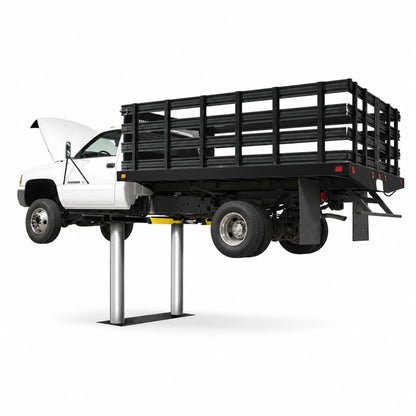

Challenger EV1020SS Superstructure for EV1020 Inground Lift with 3-Stage Arms
The Challenger EV1020SS is the complete superstructure assembly for the EV1020 10,000 lb inground lift, providing the vehicle contact components that mount above the completion kit. This superstructure features 3-stage front and rear triple-telescoping versymmetric arms with reach from 19.625" to 42.125", double telescoping screw pads adjustable from 3.875" to 6", and a full complement of extensions and frame engaging adapters. The versymmetric arm design enables both symmetric and asymmetric lifting within the same service bay, providing access to manufacturer-recommended lift points on a wide range of vehicles from compact cars to full-size trucks. Available in Red, Blue, or Black finish. One EV1020SS is required per lift unit.
Challenger EV1020SS Superstructure Features
3-Stage Triple-Telescoping Versymmetric Arms
The EV1020SS features true 3-stage front and rear triple-telescoping versymmetric arms that provide both symmetric and asymmetric lifting capability within the same service bay. Challenger's unique arm design offers more extension and more retraction than competitive arm designs, allowing technicians to reach a wider range of OEM-designated pickup points on vehicles from compact cars to full-size trucks.
19.625" to 42.125" Arm Reach
The arms adjust from a minimum reach of 19.625" to a maximum of 42.125", providing the flexibility to access lift points on a broad range of vehicle sizes and wheelbases. The extended reach accommodates trucks, SUVs, and vans with wide-set lift points, while the compact minimum reach handles smaller vehicles without interference.
Double Telescoping Screw Pads
The superstructure includes double telescoping screw pads that adjust from 3.875" to 6" in height, minimizing the frequency of needing truck adapters by meeting a wider range of vehicle manufacturer-designated pickup points. The heavy-duty polyurethane pads provide secure, non-damaging contact with vehicle lift points while the telescoping adjustment accommodates varied frame heights.
Complete Extension and Adapter Kit
The EV1020SS includes 4 standard adjustable screw-type extensions, 4 medium extensions, 2 high extensions, and 4 frame engaging truck adapters for a total of 14 contact components. This comprehensive range of extensions accommodates vehicles with running boards, side steps, and varied lift point heights, while the frame engaging adapters are required for secure contact on frame-constructed vehicles.
2,500 lb Per Arm Capacity
Each arm is rated at 2,500 lb capacity, supporting the EV1020's total system capacity of 10,000 lb across four arms. The robust arm construction and multi-stage telescoping mechanism maintain structural integrity and consistent positioning accuracy under full load throughout the lift stroke.
Color Options for Professional Appearance
The EV1020SS superstructure is available in Red, Blue, or Black finish, allowing facilities to match their existing shop aesthetic or brand colors. The durable powder coat finish resists chipping and corrosion in active service environments. Specify your preferred color at the time of order.
Challenger EV1020SS Compatibility
EV1020 Inground Lift System Only
The EV1020SS superstructure is engineered exclusively for the Challenger EV1020 10,000 lb inground lift platform. It is not compatible with the EV1220, EV1520, EW Series, or competing manufacturers' inground lift systems. One EV1020SS superstructure is required per lift unit. If you are ordering for a set of 2 lifts, you will need 2 superstructure kits.
Three-Component System
A complete EV1020 inground lift installation requires three separately purchased component groups:
- Pre-Kit (Foundation): The CSPK-series cassette pit assembly providing the below-grade sealed polymer tub and structural frame
- Completion Kit: Chrome pistons, power unit, controls, and installation hardware (EV10CK or EV10CK-BMC or EV10CK-QC variants)
- Superstructure (This Product): The EV1020SS provides 3-stage arms, screw pads, extensions, and frame adapters that contact the vehicle
Note: If you purchased an EV1020 Upper Components (UC) package, the superstructure is already included and this product is not needed.
Challenger EV1020SS Specifications
| Specification | Value |
|---|---|
| Compatible Lift System | Challenger EV1020 (10,000 lb) |
| Arm Configuration | 3-Stage Front and Rear (Versymmetric) |
| Arm Reach (Minimum) | 19.625" |
| Arm Reach (Maximum) | 42.125" |
| Capacity Per Arm | 2,500 lb (1,134 kg) |
| Screw Pad Height (Min/Max) | 3.875" to 6" |
| Available Colors | Red, Blue, Black |
| Component | Quantity |
|---|---|
| 3-Stage Front Arms | 2 |
| 3-Stage Rear Arms | 2 |
| Standard Adjustable Screw-Type Extensions | 4 |
| Medium Extensions | 4 |
| High Extensions | 2 |
| Frame Engaging Truck Adapters | 4 |
| Double Telescoping Screw Pads | 4 |
What's Included with the Challenger EV1020SS
- 2 front 3-stage triple-telescoping versymmetric arms
- 2 rear 3-stage triple-telescoping versymmetric arms
- 4 double telescoping screw pads (adjustable 3.875" to 6")
- 4 standard adjustable screw-type extensions
- 4 medium extensions
- 2 high extensions
- 4 frame engaging truck adapters
Required (Sold Separately): EV1020 pre-kit foundation (CSPK-series) and EV1020 completion kit (EV10CK, EV10CK-BMC, EV10CK-QC, or EV10CK-BMC-QC). All three component groups are required for a complete, operational lift system.
Optional Accessories: Additional stack adapter extension kits (10315), 6" stack adapter extensions (10313), and frame engaging truck adapters (10314 or 10318) available separately for expanded vehicle coverage.
Not Included: Pre-kit foundation, completion kit (pistons, power unit, controls), and professional installation labor.
Challenger EV1020SS Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Contact sales for current lead times. International: Contact sales for international shipping quotes and availability.
Delivery Requirements
Unloading: Forklift or loading dock may be required depending on shipment size. Delivery Type: Curbside delivery to commercial addresses is standard. Inspection: Inspect all packages for damage before signing the bill of lading. Document and photograph any visible damage on the delivery receipt immediately.
Returns
Returns accepted within 30 days of delivery. Product must be unopened in original packaging with proof of purchase. A 20% restocking fee applies to all returns. Buyer is responsible for return freight costs.
Challenger EV1020SS Warranty
Challenger Lifts Warranty Coverage
Challenger Lifts stands behind their American-engineered inground lift products with comprehensive warranty protection.
- 5 Years: Structural components including arms and main frame assembly
- 2 Years: Functional parts including extensions and adapters
- 1 Year: Accessories and wear items
Requirements: Warranty coverage requires proper installation according to manufacturer specifications, use within rated capacity, and adherence to recommended maintenance procedures. Warranty registration must be completed within 30 days of installation at challengerlifts.com. See warranty document for complete terms and exclusions.
Documents
Click to open in a new tab.
Questions About the Challenger EV1020SS?
Our equipment specialists can help confirm compatibility with your existing EV1020 installation and coordinate complete system orders.
Challenger EV1020SS Superstructure FAQ
What is a superstructure and what does it include?
The superstructure is the above-ground vehicle contact assembly for an inground lift. The EV1020SS includes 3-stage front and rear versymmetric arms, 4 double telescoping screw pads, 4 standard adjustable screw-type extensions, 4 medium extensions, 2 high extensions, and 4 frame engaging truck adapters. These are the components that physically contact and lift the vehicle at its designated pickup points.
What lift system is this superstructure compatible with?
The EV1020SS is engineered exclusively for the Challenger EV1020 10,000 lb inground cassette-style lift system. It is not compatible with the EV1220, EV1520, EW Series, or competing manufacturers' inground lifts. The EV1220 uses the EV1220SS superstructure, which has different arm specifications and a higher per-arm capacity rating.
How many superstructures do I need?
One EV1020SS superstructure is required per lift unit. If you purchased a set of 2 EV1020 lifts (LS-2 model), you will need 2 separate EV1020SS superstructure kits. If you purchased an EV1020 Upper Components (UC) package, the superstructure is already included and this product is not needed.
What other components do I need for a complete lift?
A complete EV1020 installation requires three component groups: the CSPK-series pre-kit foundation (sealed polymer cassette pit), a completion kit (EV10CK variants providing pistons, power unit, and controls), and this superstructure. If you already have the pre-kit and completion kit installed, the EV1020SS is the final component needed for a fully operational 10,000 lb inground lift.
What does "versymmetric" mean?
Versymmetric refers to Challenger's arm design that enables both symmetric and asymmetric lifting within the same service bay. Symmetric lifting positions all four arms equidistant from center, while asymmetric positioning shifts the vehicle forward or rearward to provide better door clearance or access to specific undercar areas. This dual capability eliminates the need for separate symmetric and asymmetric arm sets.
What is the arm reach range?
The 3-stage arms adjust from a minimum reach of 19.625" to a maximum of 42.125". This range accommodates compact cars with closely spaced lift points through full-size trucks and SUVs with wide-set pickup points. Challenger's triple-telescoping design provides more extension and more retraction than competitive arm designs for broader vehicle coverage.
What are frame engaging truck adapters used for?
Frame engaging truck adapters (Part 10314 or 10318) are required when lifting vehicles with frame construction, such as trucks, body-on-frame SUVs, and vans. The adapters hook onto the vehicle frame rails to provide secure contact points. Four frame engaging adapters are included with the EV1020SS. Unibody vehicles use the standard screw-type extensions instead.
What color options are available?
The EV1020SS superstructure is available in Red, Blue, or Black powder coat finish. The durable finish resists chipping and corrosion in active service environments. Specify your preferred color at the time of order. Contact our sales team if you need to confirm color availability or match an existing installation.
How do the double telescoping screw pads work?
The double telescoping screw pads adjust from 3.875" to 6" in height, providing a wider range of contact heights than single-stage pads. This extended adjustment range minimizes the frequency of needing separate truck adapters by reaching a broader set of manufacturer-designated pickup points. The heavy-duty polyurethane construction provides secure, non-damaging contact with vehicle lift points.
What is the difference between the EV1020SS and EV1220SS?
The EV1020SS is rated at 2,500 lb per arm (10,000 lb total) for the EV1020 lift, with arm reach from 19.625" to 42.125". The EV1220SS is rated at 3,000 lb per arm (12,000 lb total) for the EV1220 lift, with arm reach from 19.625" to 48". The two superstructures are not interchangeable between lift platforms due to different mounting configurations and load ratings.
Is professional installation required?
Professional installation by qualified lift technicians is required for the complete EV1020 system. The superstructure mounts to the completion kit components and must be assembled, adjusted, and tested according to Challenger's installation manual. Proper arm alignment and extension verification are critical for safe operation and warranty coverage.
What warranty coverage does the superstructure include?
Challenger provides a 5-year warranty on structural arm components and a 2-year warranty on functional parts including extensions and adapters. Warranty coverage requires proper installation according to manufacturer specifications and use within the rated 2,500 lb per arm capacity. Registration must be completed within 30 days of installation at challengerlifts.com.
