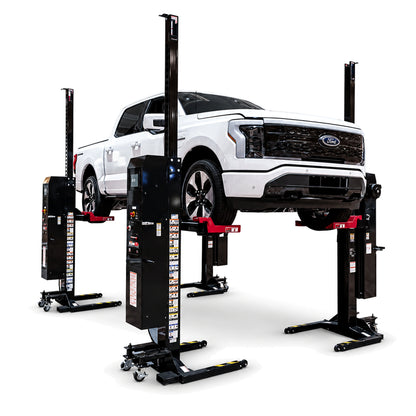

Challenger CLMM-5000 Mobile Column Lift - 20,000 lb Capacity Portable Lifting System for Professional Shops
The Challenger CLMM-5000 is a versatile 20,000 lb capacity mobile column lifting system sold as a complete set of four columns, each rated at 5,000 lb per column. This battery-powered, wireless lifting solution transforms any flat surface in your shop into a productive service bay. With a maximum lift height of 69" using all four columns, the CLMM-5000 accommodates everything from passenger cars to medium-duty commercial fleet vehicles. The system operates on 24 VDC rechargeable batteries with a standard 120-240 VAC charger, requiring no compressed air or hardwired electrical connections.
Challenger CLMM-5000 Features
Wireless Column Communication
The CLMM-5000 features advanced wireless connectivity between all columns, eliminating the cable clutter and tripping hazards associated with traditional mobile column lifts. This wireless system enables faster setup times and creates a safer working environment by keeping your shop floor clear of obstructions.
Rechargeable Battery Power
Each column operates on a 24 VDC rechargeable battery system with a 4HP peak operating power. The included charger works with standard 120-240 VAC @ 50-60 Hz outlets, drawing only 2.8 amps. No compressed air supply is required, giving you complete freedom to position and operate the lift anywhere in your facility.
Universal Wheel Engagement
The adjustable fork system accommodates wheel diameters from 6" to 22", allowing you to service a wide range of vehicles from compact cars to medium-duty trucks. The heavy-duty forks securely engage rubber-tired wheels for safe, stable lifting.

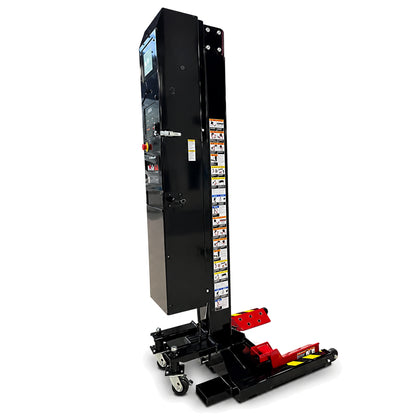

Effortless Mobility
Built-in tow handles and spring-loaded wheels make maneuvering each 870 lb column effortless across any solid surface. The 50.5" turning radius allows precise positioning even in tight spaces, while the compact 450 sq. in. footprint minimizes floor space requirements.
Complete Under-Car Access
With a 69" maximum lift height using all four columns, the CLMM-5000 provides complete under-vehicle clearance for any service task. This makes the system an excellent choice for Electric Vehicle service, allowing technicians to drop and install battery packs with full access to the vehicle underside.
Operate from Any Column
The intuitive control system allows operation from any column position, giving technicians flexibility to control the lift from the most convenient location. The synchronized hydraulic system maintains level lifting across all columns with a maximum operating pressure of 2,230 psi and lift speed of 60" per minute.
Challenger CLMM-5000 Applications
- Fleet Maintenance Facilities: Service a diverse fleet of vehicles from passenger cars to medium-duty commercial trucks without dedicated lift bays. Move columns to vehicles rather than driving vehicles to fixed lifts.
- Electric Vehicle Service Centers: The complete under-car clearance at full rise makes battery pack removal and installation straightforward. Service EVs safely with full access to high-voltage components.
- Mobile Repair Services: The portable, self-contained design allows professional-grade lifting capabilities at customer locations. No external power or air connections required for operation.
- Overflow Service Bays: Transform any flat area in your shop into a productive lift bay during peak demand. Store columns compactly when not needed and deploy quickly when volume increases.
- Multi-Purpose Workshops: Ideal for shops that service multiple vehicle types including passenger vehicles, light trucks, delivery vans, and medium-duty commercial vehicles up to 20,000 lb.
Challenger CLMM-5000 Specifications
| Specification | Value |
|---|---|
| Total Lifting Capacity (4 Columns) | 20,000 lb |
| Lifting Capacity Per Column | 5,000 lb |
| Maximum Lift Height (4 Units) | 69" |
| Maximum Lift Height (2 Units - Normal Mode) | 32" |
| Lift Speed (Max Load) | 60" per minute |
| Max Hydraulic System Operating Pressure | 2,230 psi |
| Specification | Value |
|---|---|
| Height of Lift Unit | 88.5" |
| Height of Lift Unit at Full Rise | 157" |
| Width of Lift Unit | 38.5" |
| Length of Lift Unit | 46.75" |
| Footprint of Lift Unit | 450 sq. in. |
| Turning Radius of Lift Unit | 50.5" |
| Weight of Lift Unit | 870 lb |
| Ground Pressure (Max Load) | 13.04 psi |
| Specification | Value |
|---|---|
| Minimum Wheel Diameter | 6" |
| Maximum Wheel Diameter | 22" |
| Specification | Value |
|---|---|
| Operating Voltage | 24 VDC nominal |
| Operating Peak Power | 4 HP |
| Charger Voltage Required | 120-240 VAC @ 50-60 Hz |
| Charger Amps Required | 2.8 Amps |
| Specification | Value |
|---|---|
| Model Number | CLMM-5000 |
| Columns Included | Set of 4 |
| Colors Available | Black |
| Air Required | No |
Challenger CLMM-5000 Installation Requirements
Charging Requirements
Power: Standard 120-240 VAC @ 50-60 Hz outlet drawing 2.8 amps. No special electrical installation required. Each column includes its own charger for convenient overnight charging.
Floor Requirements
Surface: Level, solid concrete or equivalent surface capable of supporting the combined weight of the lift columns and vehicle. Ground pressure at maximum load is 13.04 psi per column. Floor should be clean and free of debris, oil, or other substances that could affect traction.
Space Requirements
Ceiling Height: Minimum 13 feet (157") required for full rise operation. Work Area: Allow adequate clearance around all sides of the vehicle for technician access and column positioning. Each column has a 50.5" turning radius.
No Fixed Installation Required
The CLMM-5000 is a fully mobile system requiring no anchoring, no compressed air lines, and no hardwired electrical connections. Columns arrive ready to charge and operate, making deployment fast and flexible.
What's Included with the Challenger CLMM-5000
- Set of 4 mobile column lift units
- Battery chargers for each column
- Wireless communication system (pre-configured)
- Tow handles for each column
- Installation and operation manual
Optional Accessories: Contact Garage Supply Guys for available accessories and adapter options.
Not Included: Wheel adapters for specialty applications, additional chargers beyond standard set.
Challenger CLMM-5000 Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Contact sales for current availability. International: Contact sales for quote.
Delivery Requirements
Unloading: Forklift or loading dock required. Each column weighs 870 lb. Delivery Type: Curbside delivery standard. Inspection: Inspect all packages for damage before signing BOL. Note any damage on delivery receipt.
Returns
Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. 20% restocking fee applies. Buyer responsible for return freight costs.
Challenger CLMM-5000 Warranty
Challenger Lifts Warranty
Challenger Lifts backs the CLMM-5000 with comprehensive warranty coverage. Please refer to the warranty document for complete terms and conditions.
- Structural Components: Extended coverage on main structural elements
- Hydraulic System: Coverage on cylinders, hoses, and hydraulic components
- Electrical Components: Coverage on motors, switches, and control systems
Requirements: Warranty coverage requires proper use according to manufacturer specifications. See warranty document for complete details, exclusions, and claim procedures.
Documents
Click to open in a new tab.
Questions About the Challenger CLMM-5000?
Our equipment specialists can help with specifications, facility planning, and product selection for your shop.
Challenger CLMM-5000 FAQ
What is the total lifting capacity of the CLMM-5000?
The CLMM-5000 has a total lifting capacity of 20,000 lb when using all four columns together. Each individual column is rated at 5,000 lb. The system is sold as a complete set of four columns.
How much ceiling height do I need for the CLMM-5000?
You need a minimum ceiling height of 13 feet (157") for full rise operation. The columns stand 88.5" tall at rest and extend to 157" at full rise, providing 69" of lift height.
What power supply does the CLMM-5000 require?
The CLMM-5000 operates on rechargeable 24 VDC batteries. The included chargers work with standard 120-240 VAC @ 50-60 Hz outlets and draw only 2.8 amps. No special electrical installation is required, and no compressed air is needed.
Can I use the CLMM-5000 with only two columns?
Yes, the system can operate with two columns in Normal Mode, providing a maximum lift height of 32". This is useful for lighter vehicles or when full lift height is not required. When using all four columns together, you get the full 69" lift height.
What wheel sizes does the CLMM-5000 accommodate?
The adjustable fork system accommodates wheel diameters from 6" to 22", covering everything from compact cars to medium-duty commercial trucks with rubber tires.
How heavy is each column and how do I move them?
Each column weighs 870 lb. Built-in tow handles and spring-loaded wheels make maneuvering the columns across solid surfaces easy. The 50.5" turning radius allows precise positioning even in tight spaces.
Is the CLMM-5000 suitable for electric vehicle service?
Yes, the CLMM-5000 is excellent for EV service. The complete under-car clearance at full rise provides easy access for battery pack removal and installation. The mobile design allows you to position columns optimally for any EV service task.
What floor requirements does the CLMM-5000 have?
The CLMM-5000 requires a level, solid concrete or equivalent surface. At maximum load, each column exerts 13.04 psi of ground pressure. The floor should be clean and free of oil or debris that could affect traction or stability.
How fast does the CLMM-5000 lift?
The CLMM-5000 lifts at 60" per minute at maximum load. The hydraulic system operates at up to 2,230 psi and can be controlled from any column position for operator convenience.
What is included with the CLMM-5000 purchase?
The CLMM-5000 comes as a complete set of four mobile column lift units with battery chargers, pre-configured wireless communication system, tow handles, and installation/operation manual. Everything needed for operation is included.
How is the CLMM-5000 shipped and delivered?
The CLMM-5000 ships via freight with free delivery to commercial addresses in the 48 contiguous states. A forklift or loading dock is required for unloading due to the weight of each column (870 lb). Curbside delivery is standard.
Does the CLMM-5000 require permanent installation?
No, the CLMM-5000 is fully mobile and requires no anchoring, compressed air lines, or hardwired electrical connections. The columns arrive ready to charge and operate, giving you complete flexibility to use them anywhere in your facility.
