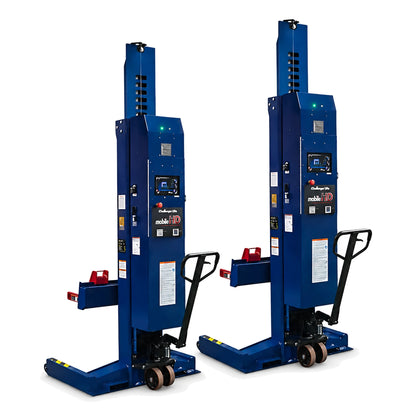

Challenger CLHM-190W 19,000 lb Wide Heavy-Duty Wireless Mobile Column Lift for Commercial Fleets and Heavy-Duty Service
The Challenger CLHM-190W is a wide-chassis wireless mobile column lift designed for heavy-duty commercial vehicle service. Each column delivers 19,000 lb lifting capacity, and when deployed as a set of 8 units, provides up to 152,000 lb total capacity for multi-axle trucks, buses, and specialty vehicles. The wide 49" column width accommodates oversized tires and dual-wheel configurations, while the fully wireless design eliminates cables for a clutter-free work area. Operating on 12-volt deep cycle batteries with a built-in 120V charging system, these ALI-certified columns can be used on any solid surface, indoors or outdoors, without dedicated power hookups.
Challenger CLHM-190W Features

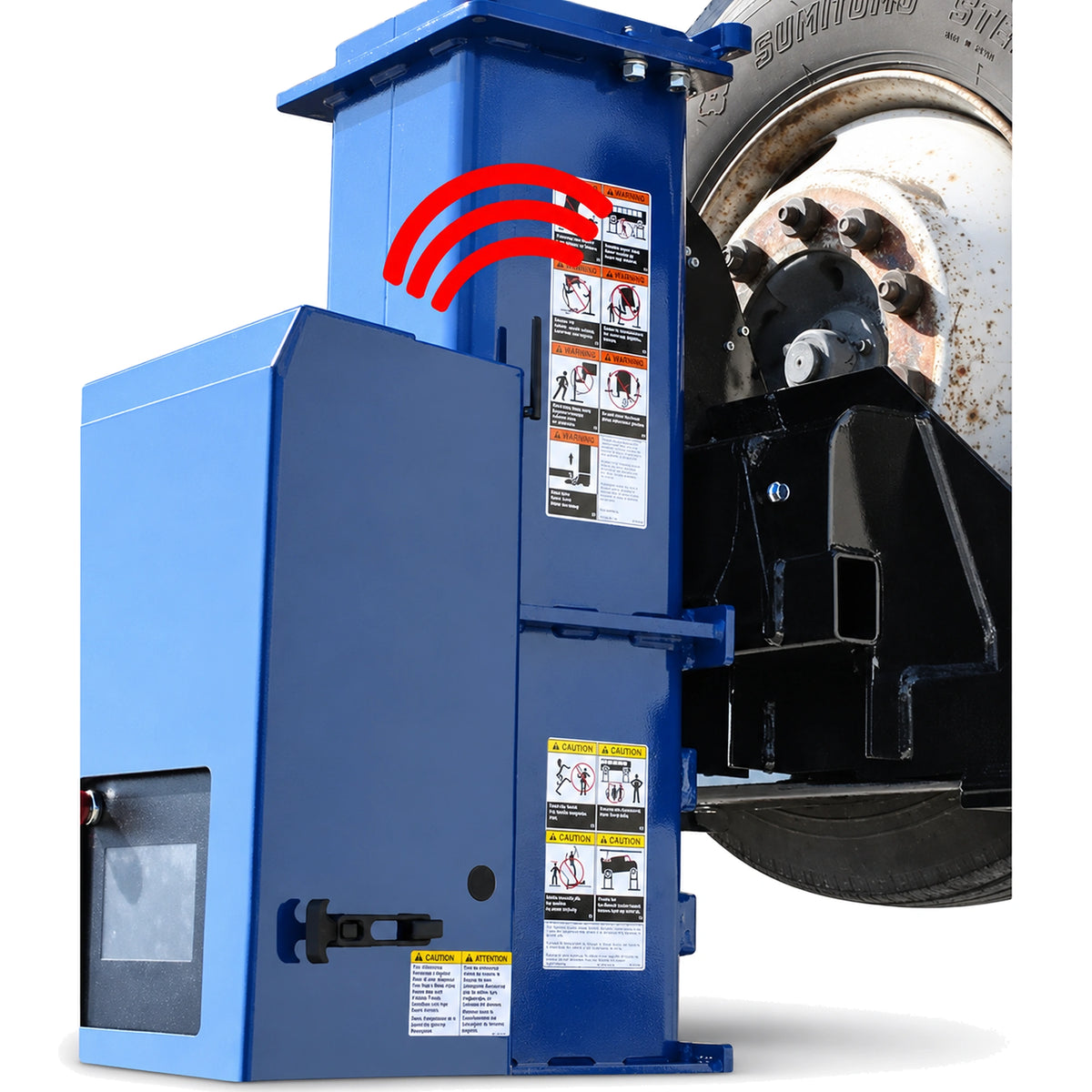

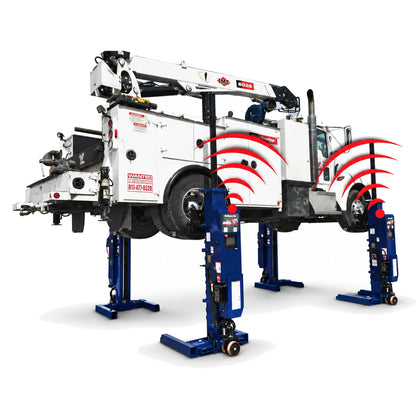

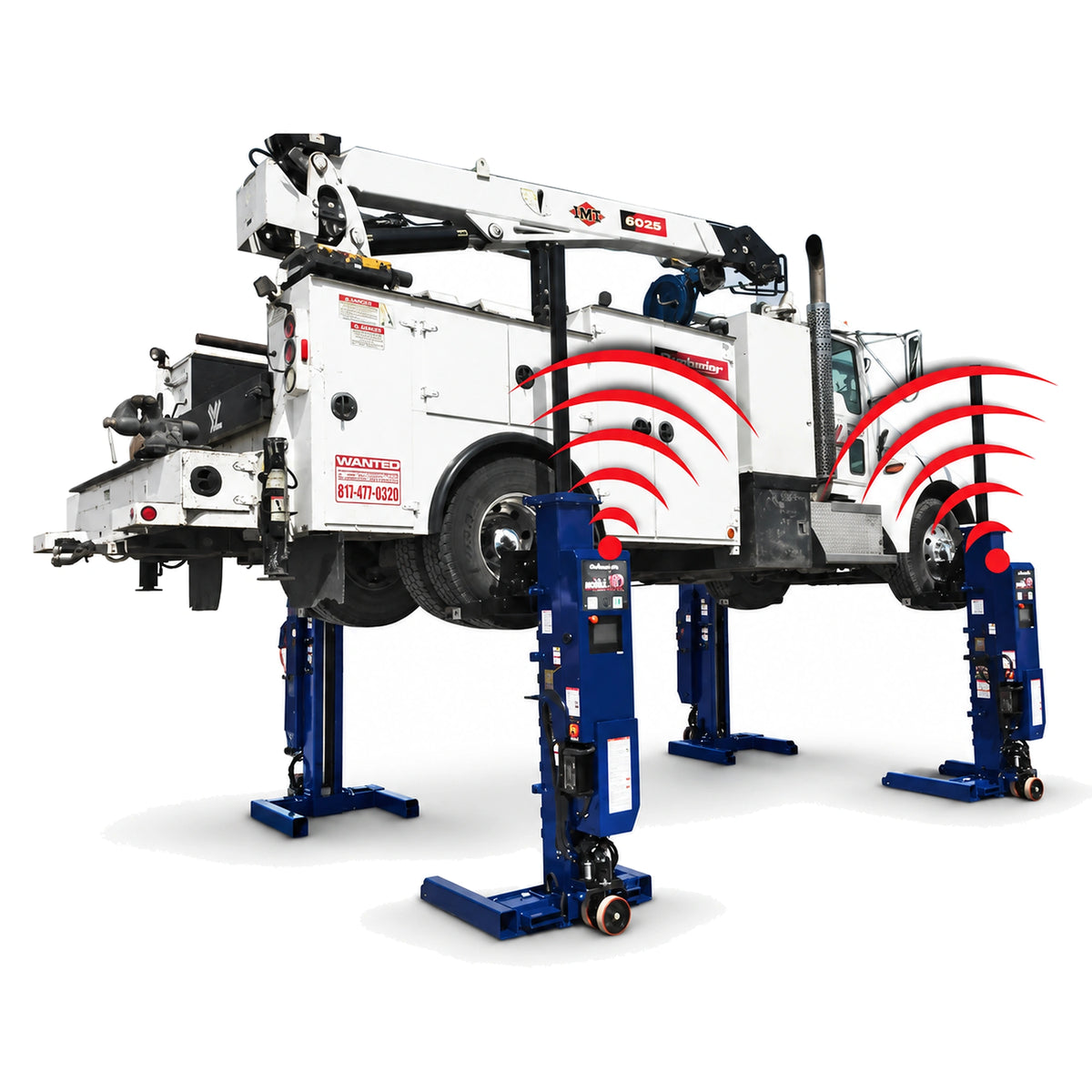

Wireless Communication System
The CLHM-190W features a fully wireless communication system with 12 radio frequencies and a wide channel range to prevent interference from other equipment or nearby operations. This eliminates cables entirely, creating a clutter-free work environment without wires to connect, navigate around, roll over, or replace.
Wide Chassis Design

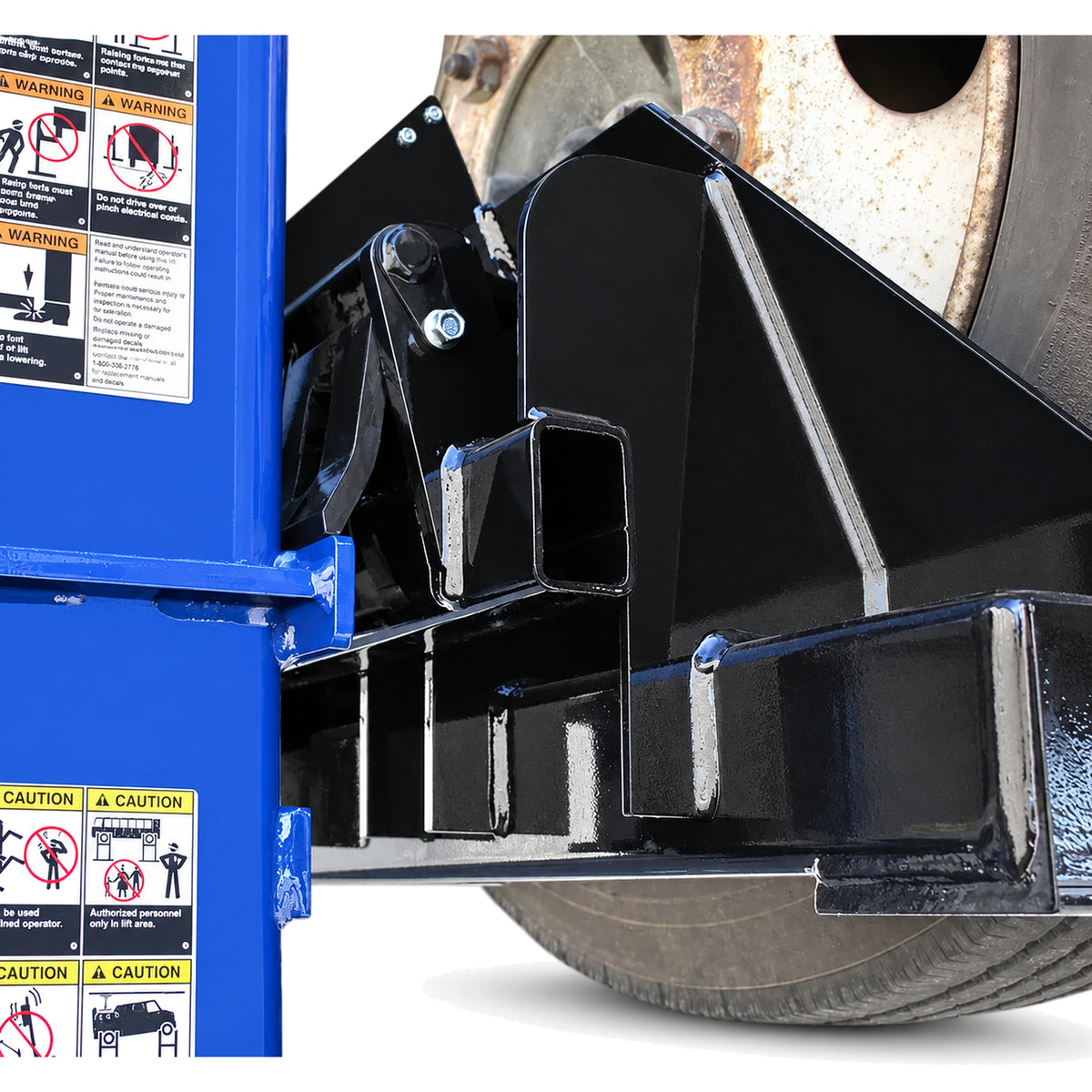

At 49" wide, the CLHM-190W's expanded chassis accommodates oversized commercial tires and dual-wheel configurations that standard mobile columns cannot handle. The adjustable wheel carriage adapts to tire diameters from 4" minimum to maximum sizes determined by tire diameter, providing exceptional versatility for mixed fleets.

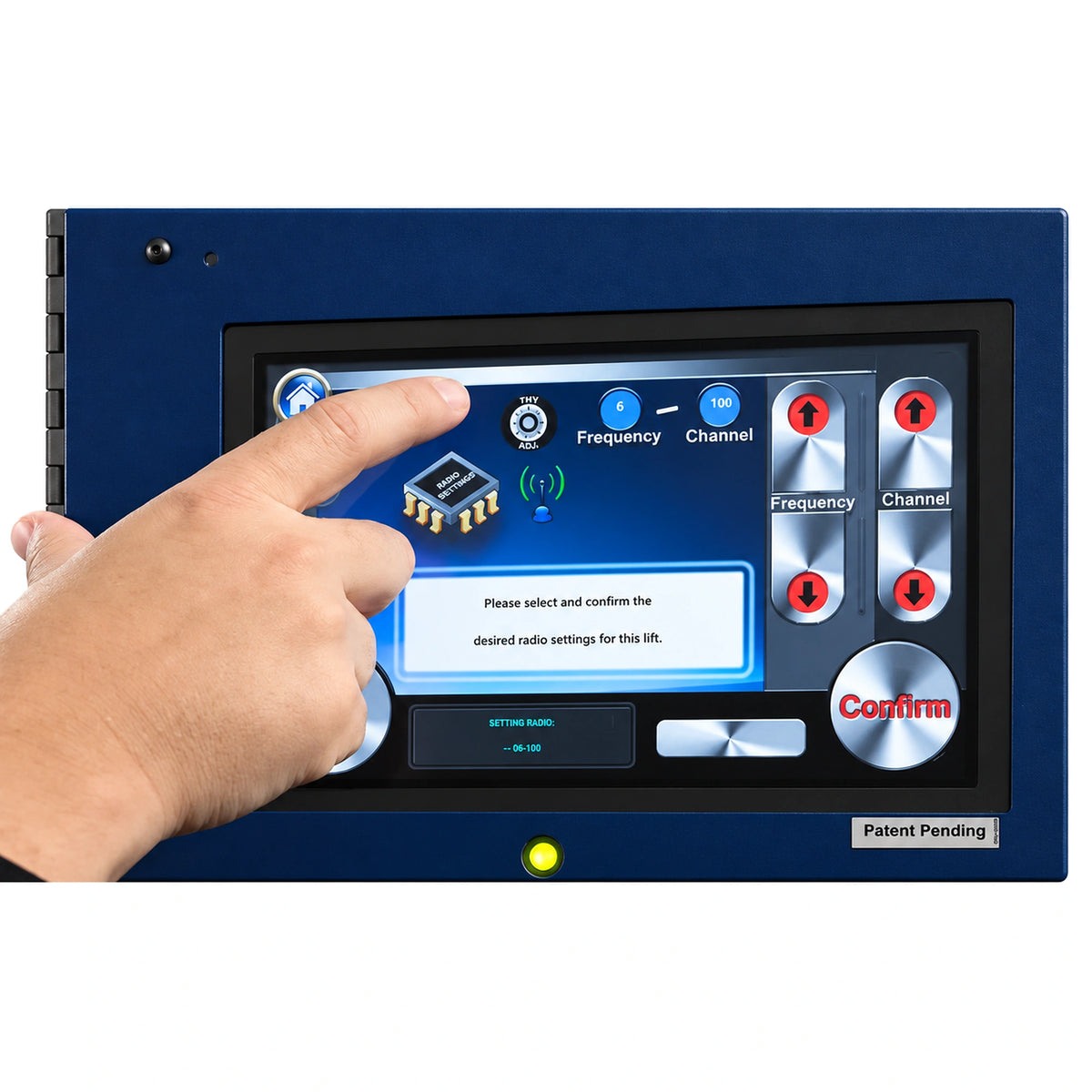

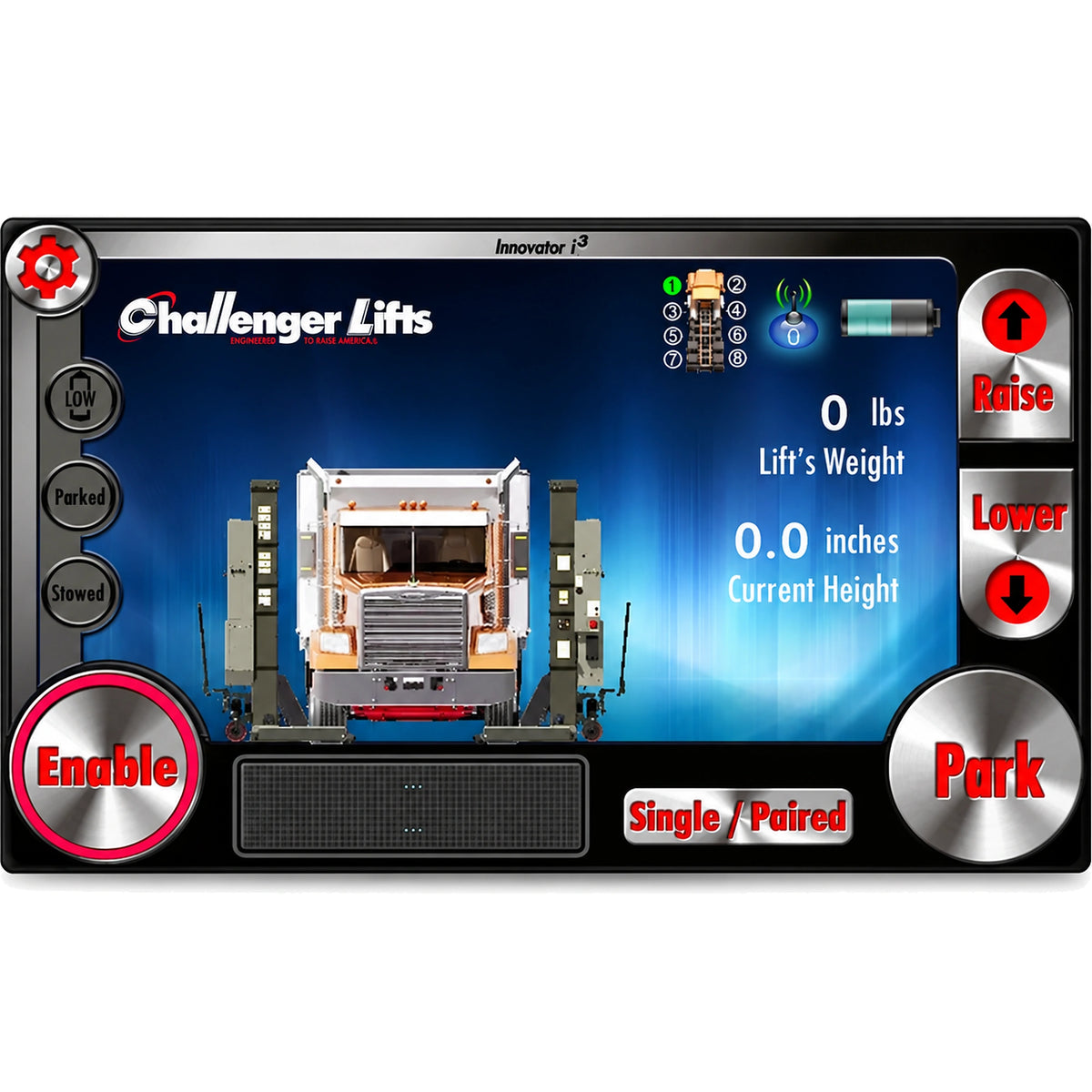

Integrated Touch Screen Control
Each column features a built-in touch screen control console, allowing operators to control the entire system from any unit. Linear position transducers maintain precise synchronization across all columns, ensuring balanced lifting and maximum reliability during every operation.

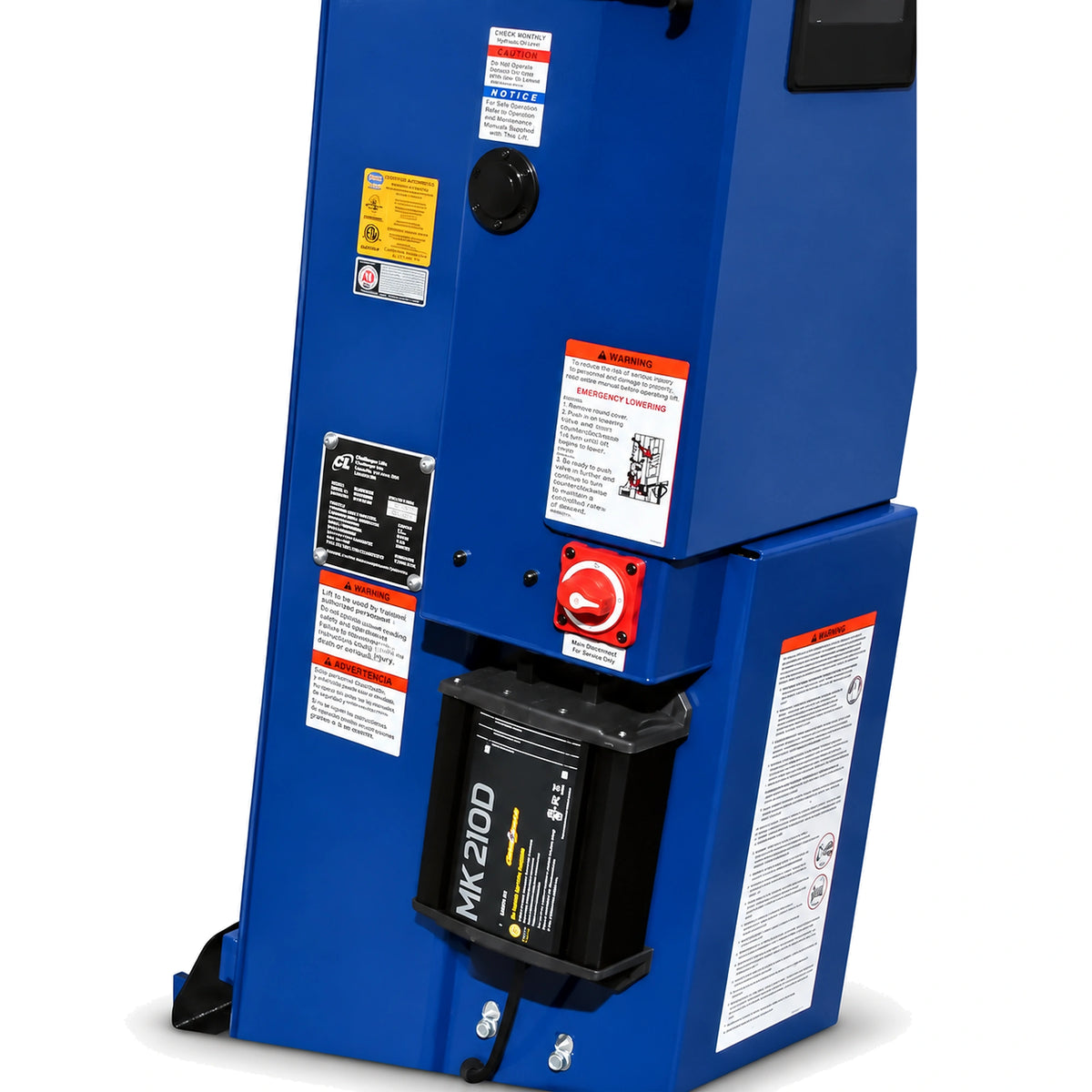

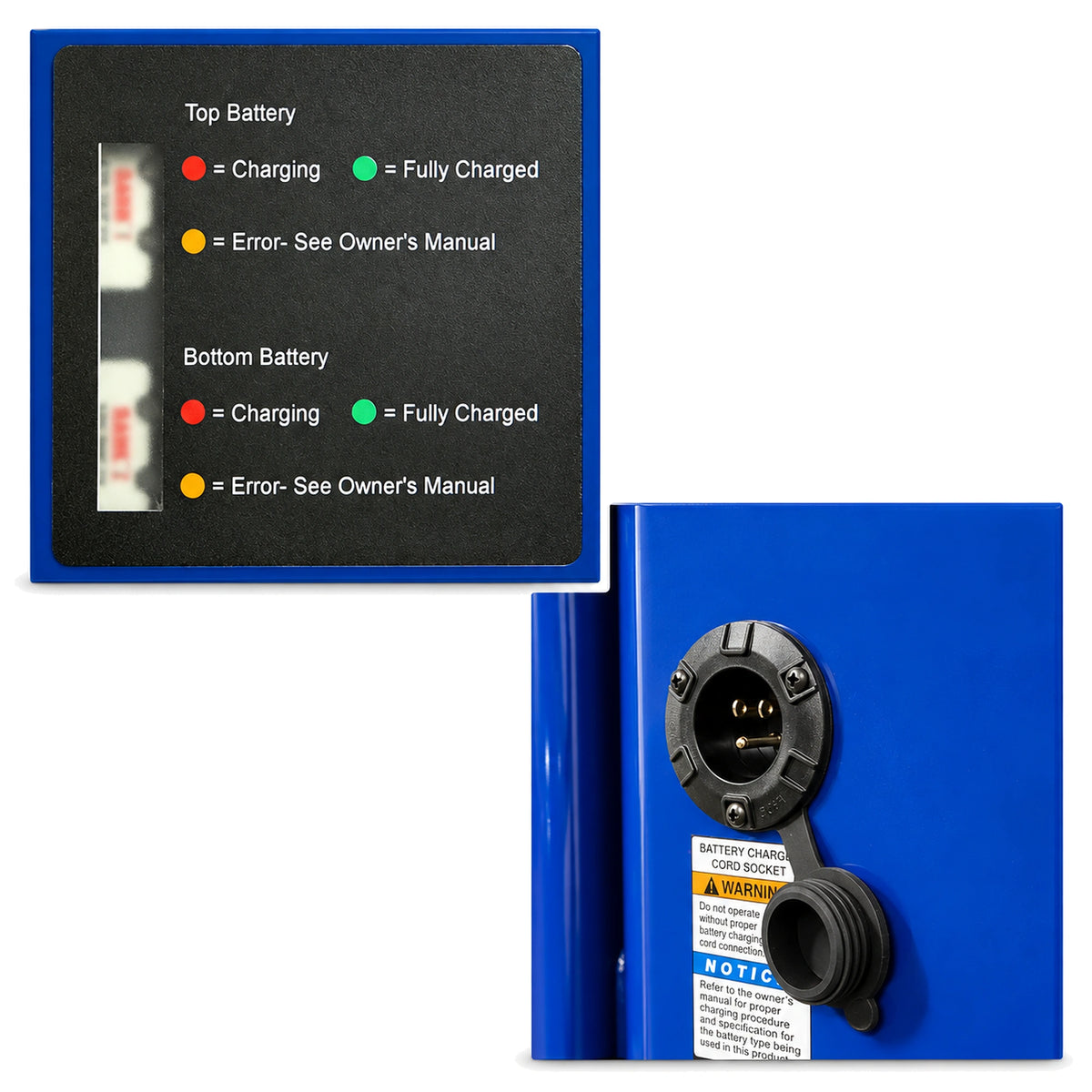

Battery-Powered Mobility
Operating on 12-volt deep cycle batteries delivering 24-volt operation, the CLHM-190W requires no external power connections during use. The built-in 110-volt multi-stage charging system keeps columns ready for service, while the heavy-duty tow handle and spring-loaded wheels enable easy repositioning across the shop or yard.
Safety and Overload Protection
Integrated weight gauges at each column help prevent overloading and verify positive lock engagement before service begins. The 2,600 psi maximum hydraulic operating pressure provides ample power reserve, while the ALI/ETL certification confirms compliance with industry safety standards.
EV Service Ready
The CLHM-190W is designed to safely service electric and hybrid vehicles, with the capacity and precision controls needed for heavy EV platforms including electric buses, delivery trucks, and commercial fleet vehicles. The wireless operation also eliminates grounding concerns associated with cabled systems.
Challenger CLHM-190W Applications

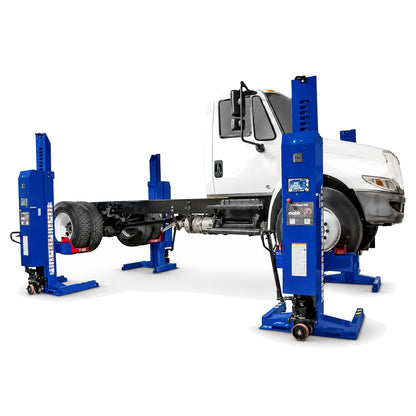

- Commercial Fleet Maintenance: Service delivery trucks, box trucks, and multi-axle commercial vehicles with capacities up to 152,000 lb using 8 columns. The wireless design allows rapid deployment across multiple service bays.

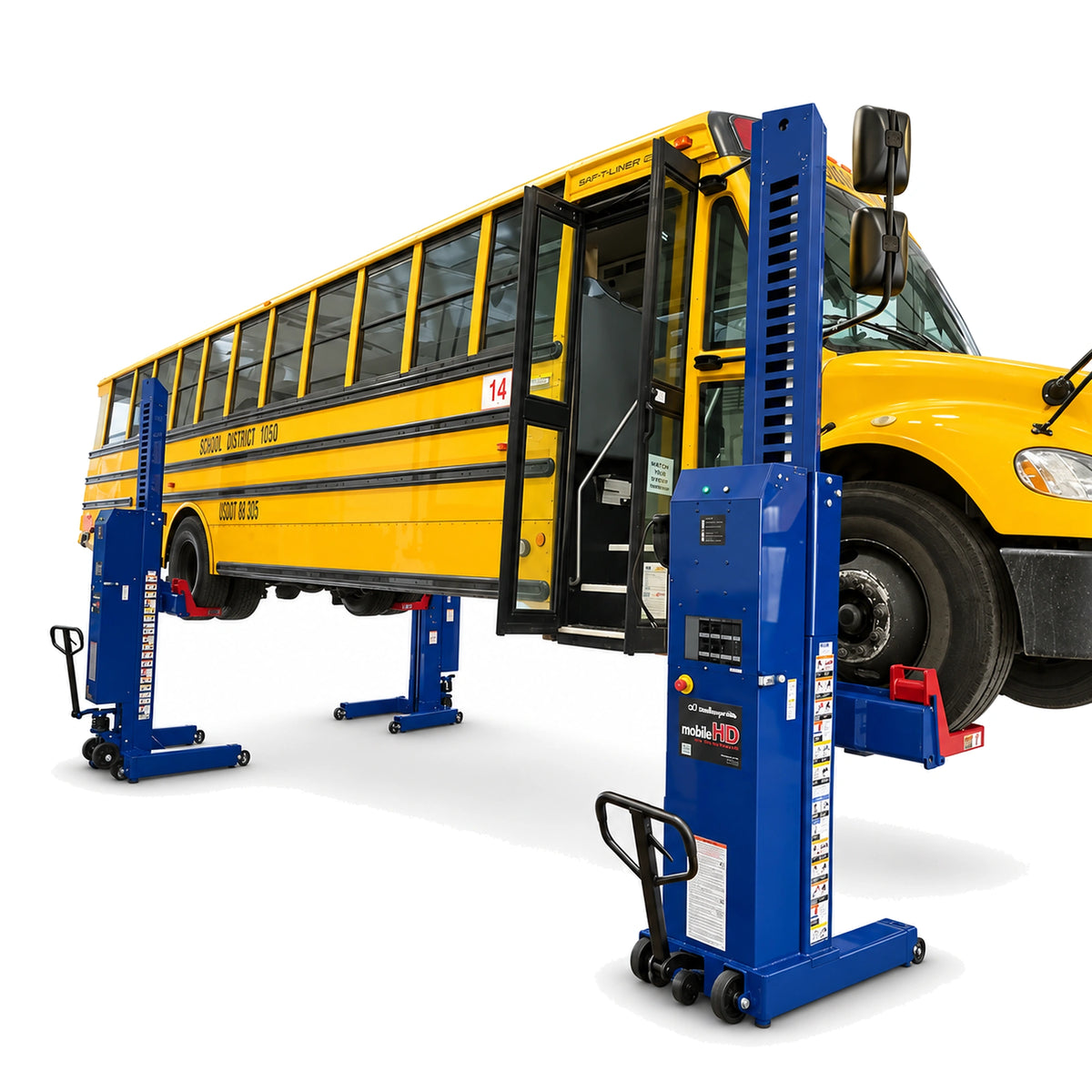

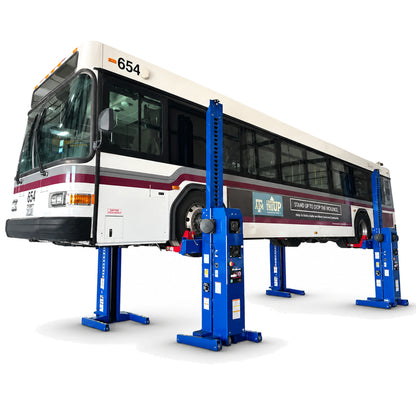

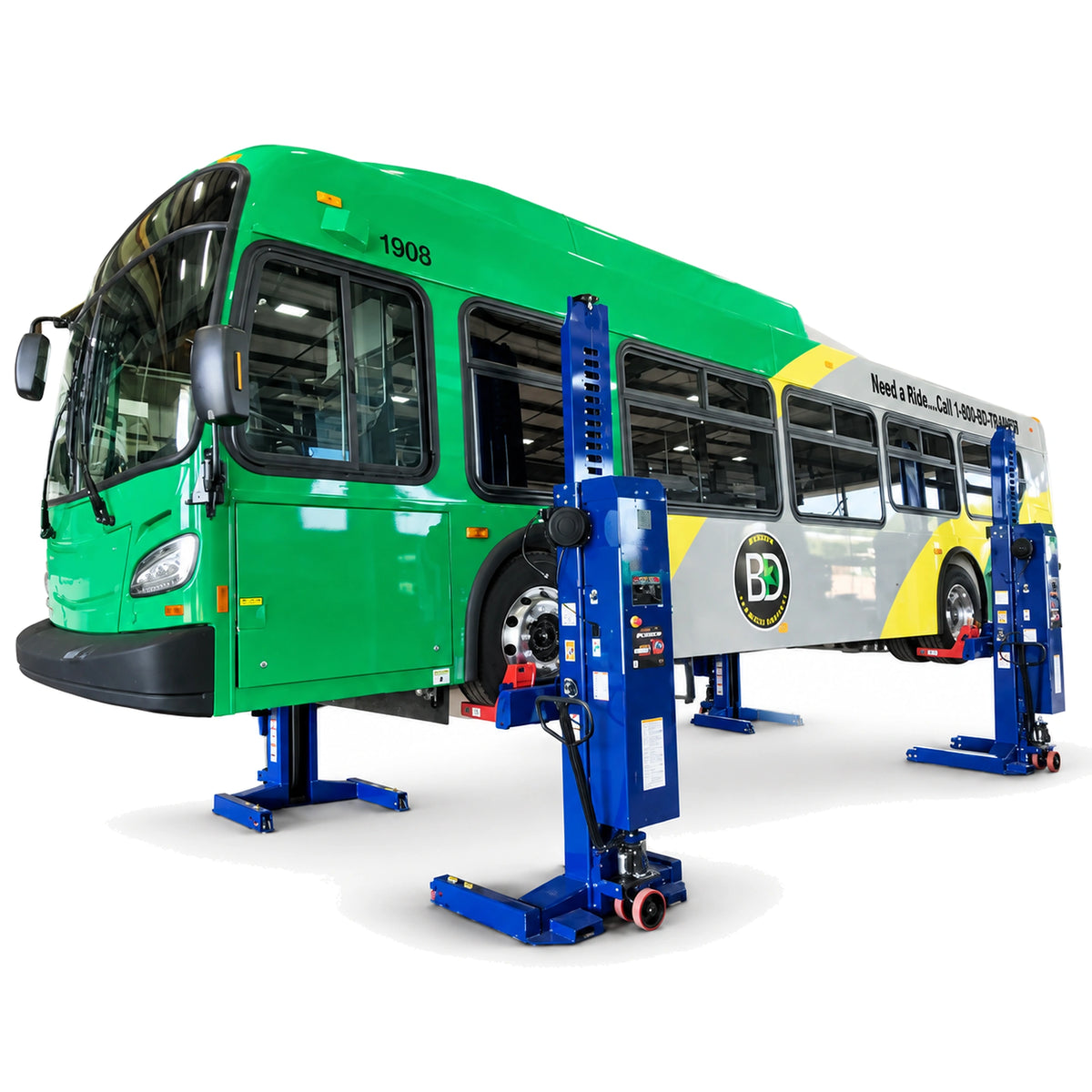

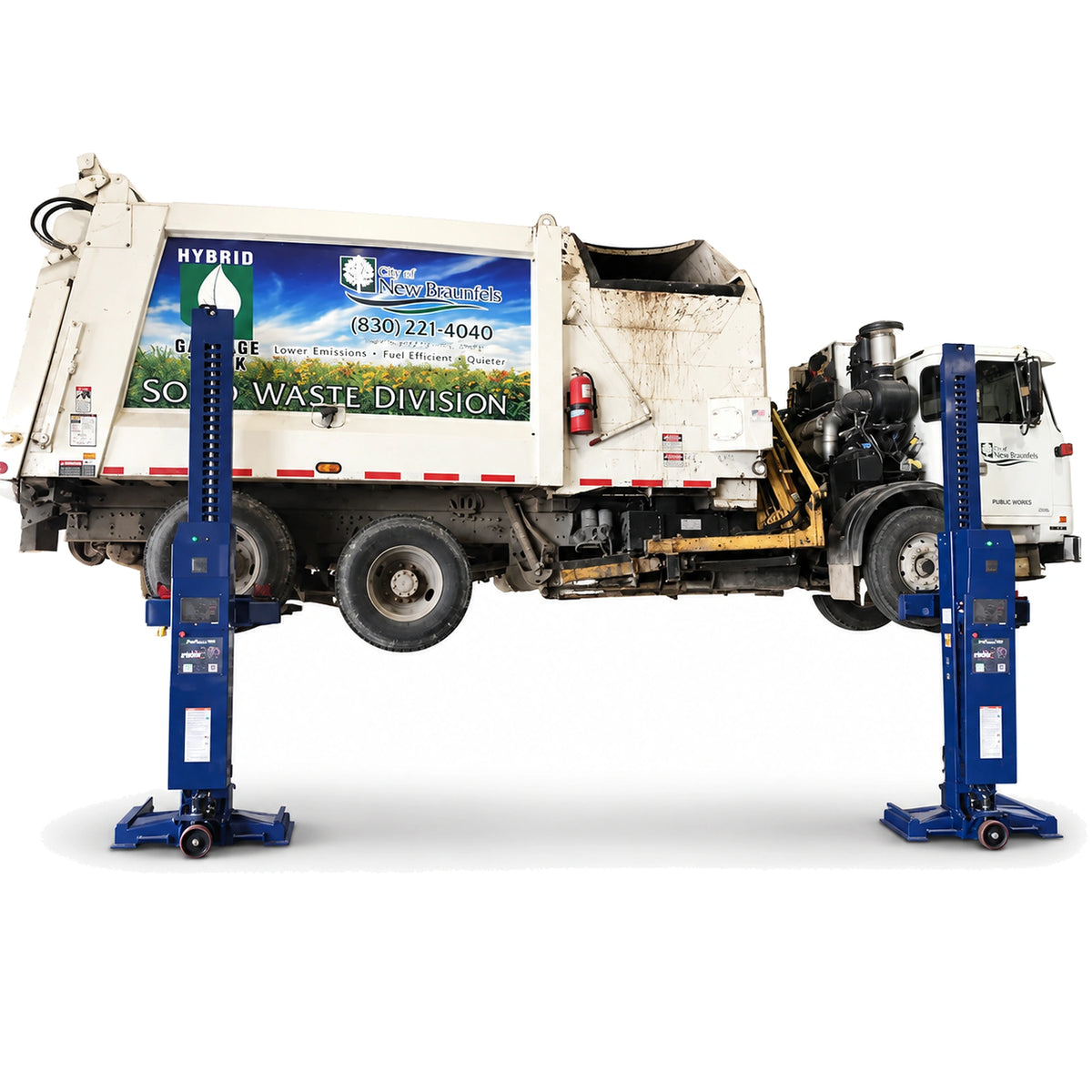

- Transit and Municipality Vehicles: Lift city buses, transit coaches, and municipal equipment of any axle length or wheelbase. The wide chassis handles the oversized tires common on public transportation vehicles.

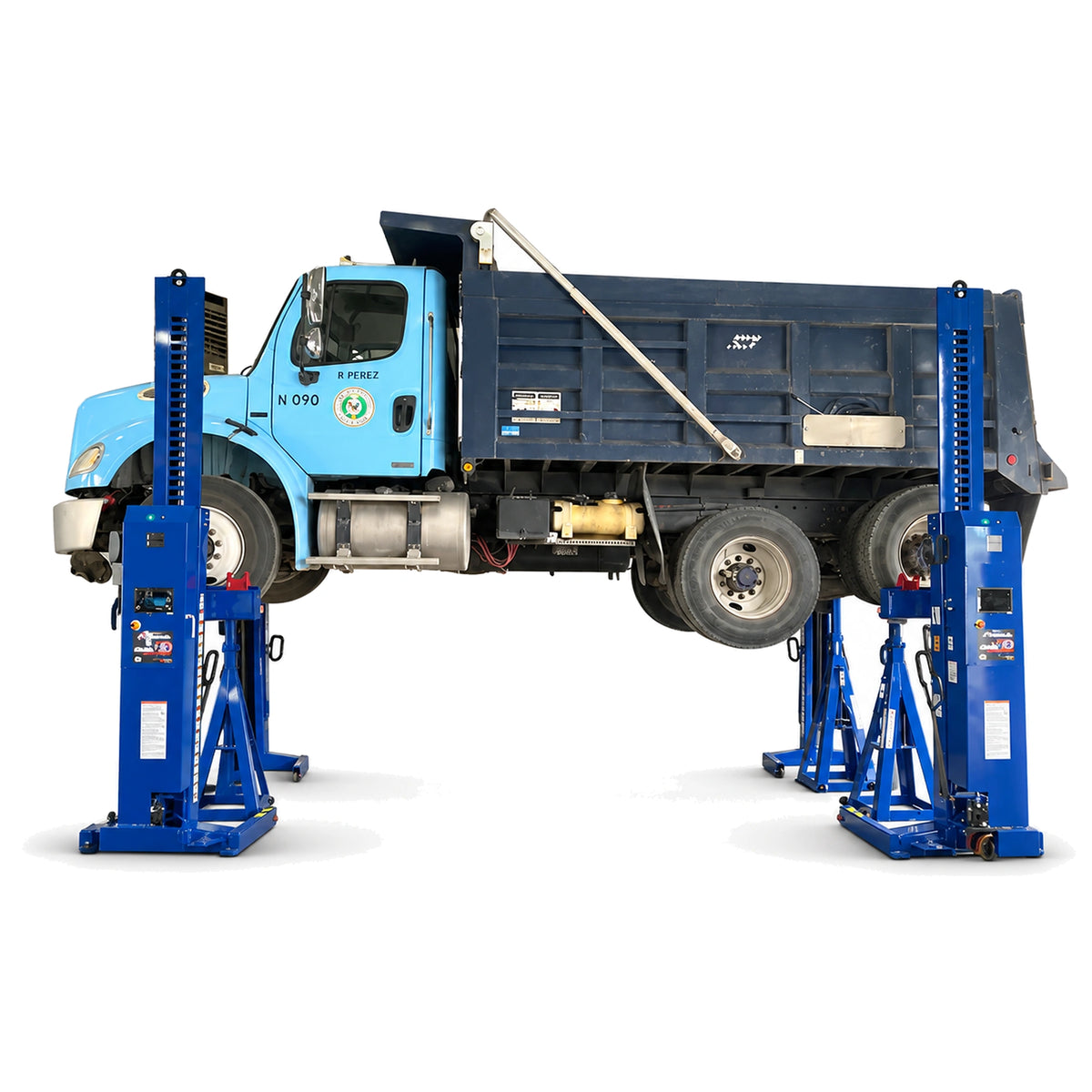

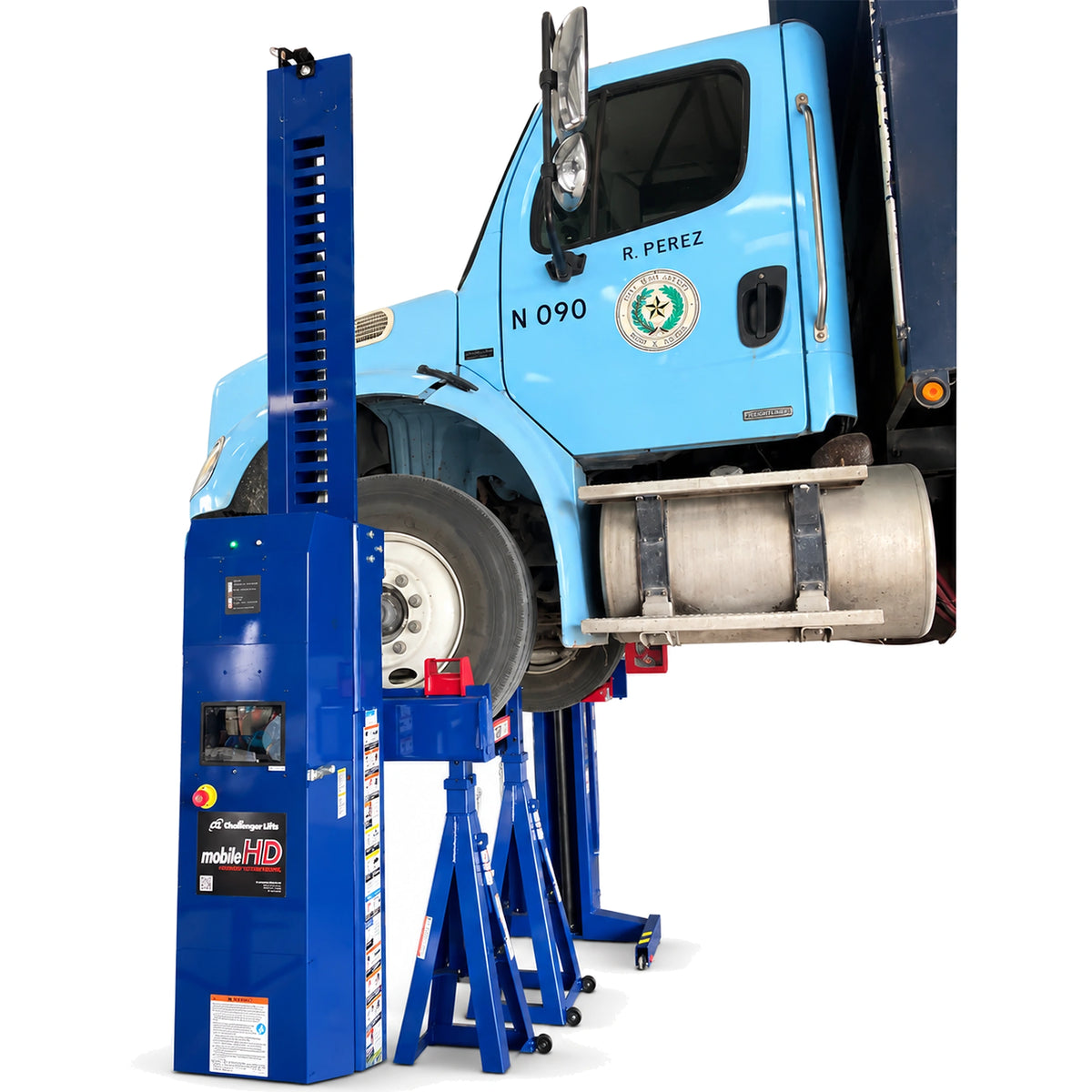

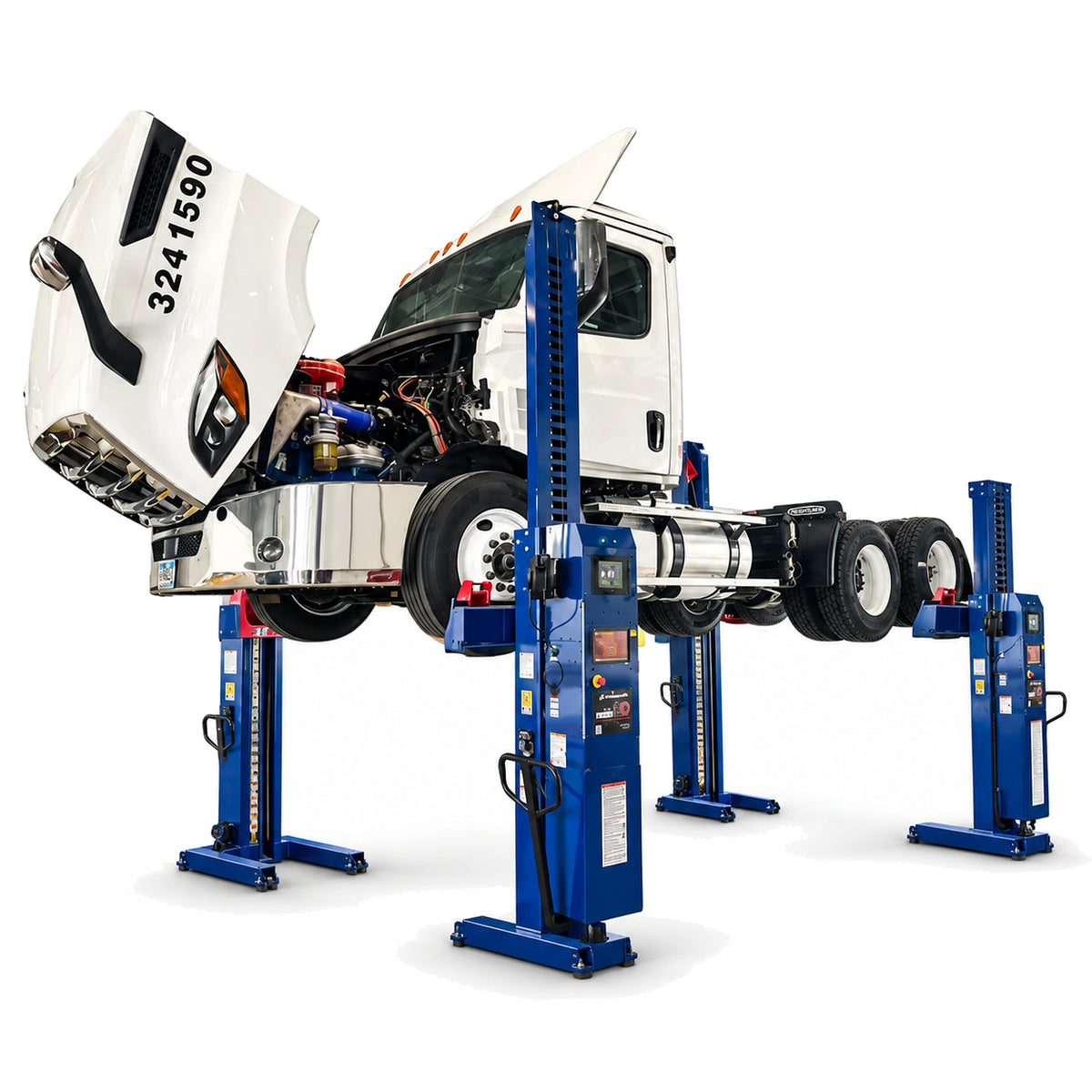

- Heavy-Duty Truck Service: Perform brake jobs, suspension work, and drivetrain service on Class 6-8 trucks. The 69" maximum lift height (with 4+ units) provides comfortable working clearance underneath.

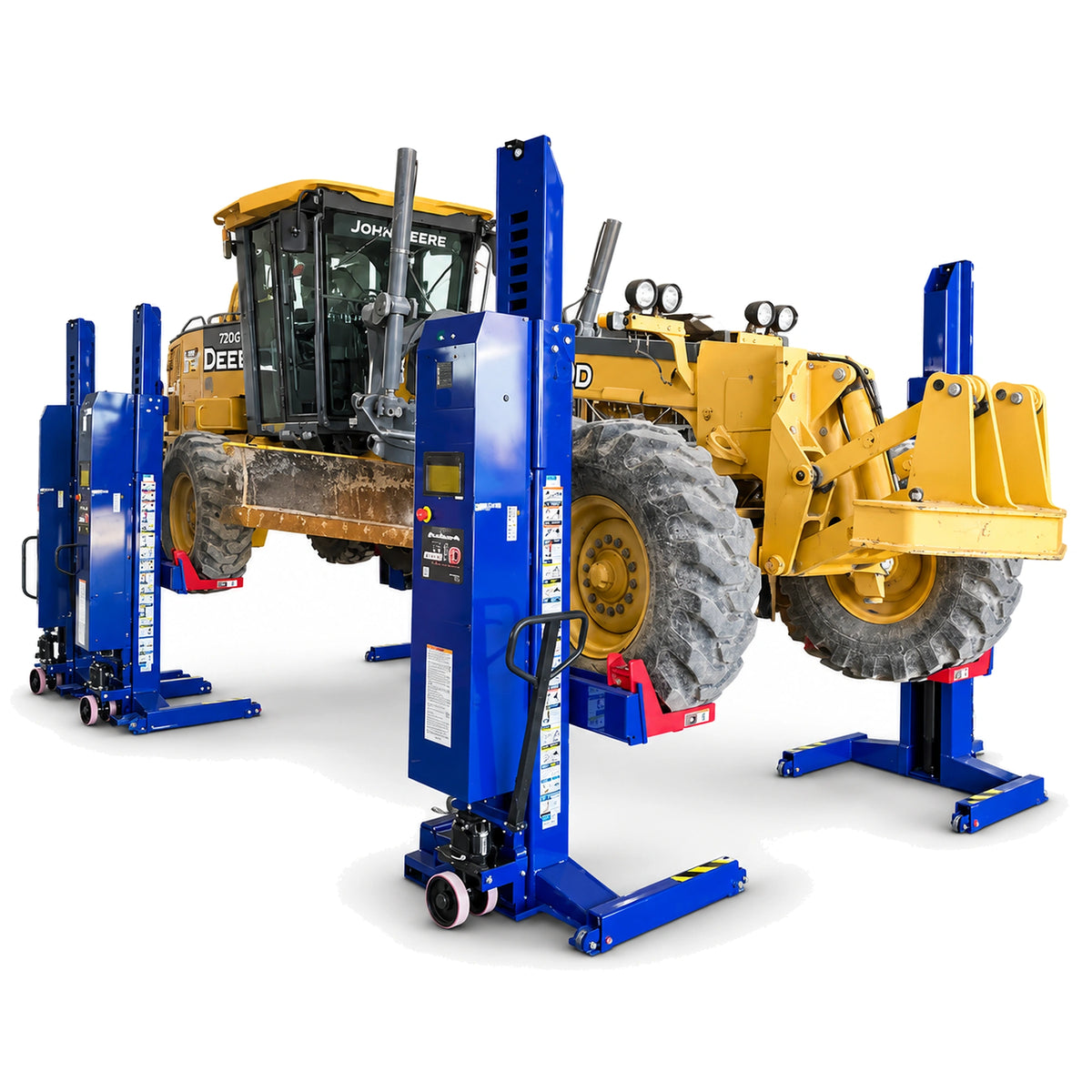

- Agricultural and Construction Equipment: Service rubber-tired farm equipment, forklifts, and construction vehicles. The portable battery-powered design works on any solid outdoor surface without requiring electrical infrastructure.

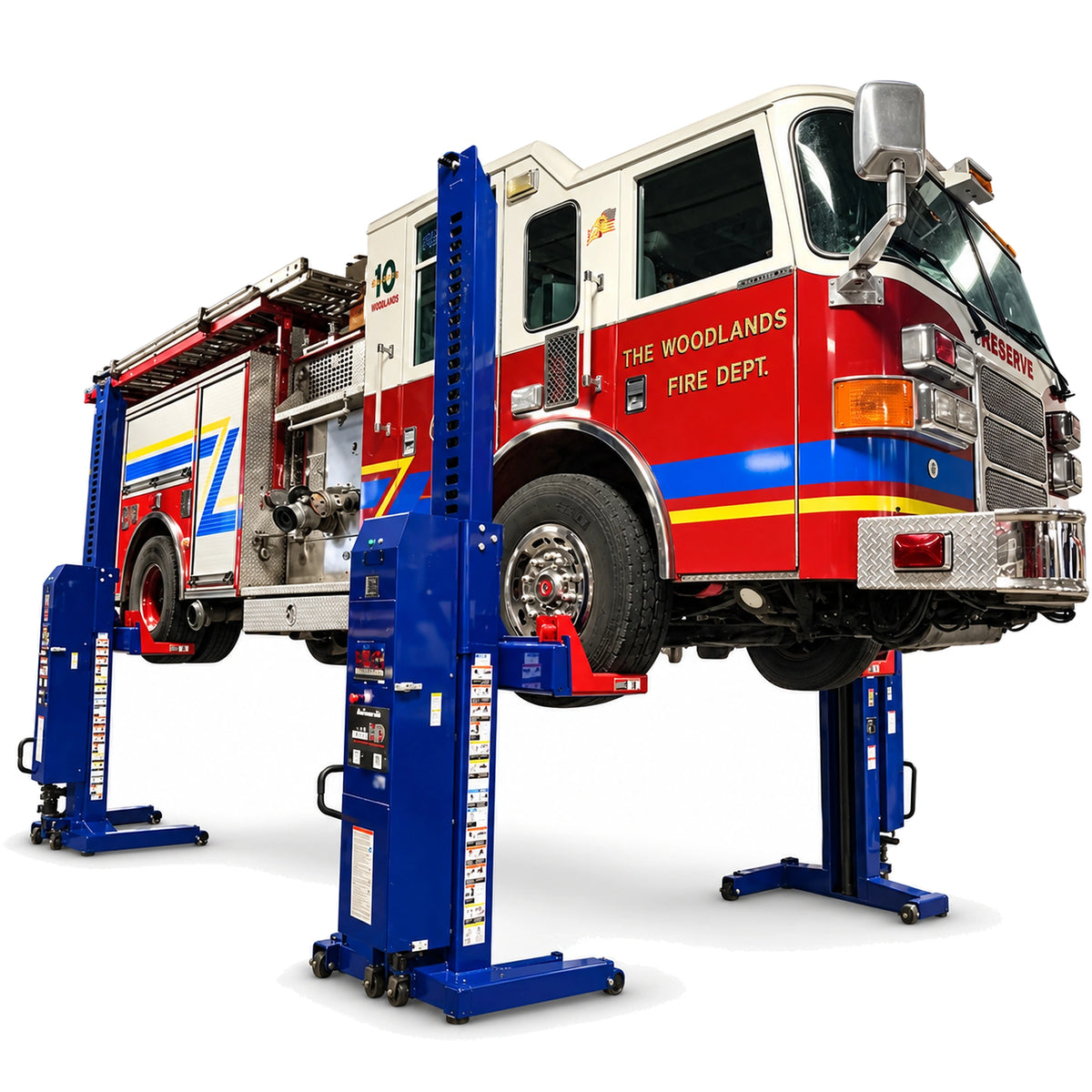

- Specialty Vehicle Service: With available accessories, adapt columns for cab removal on pickup trucks, fire apparatus service, and other specialty applications requiring flexible lifting solutions.

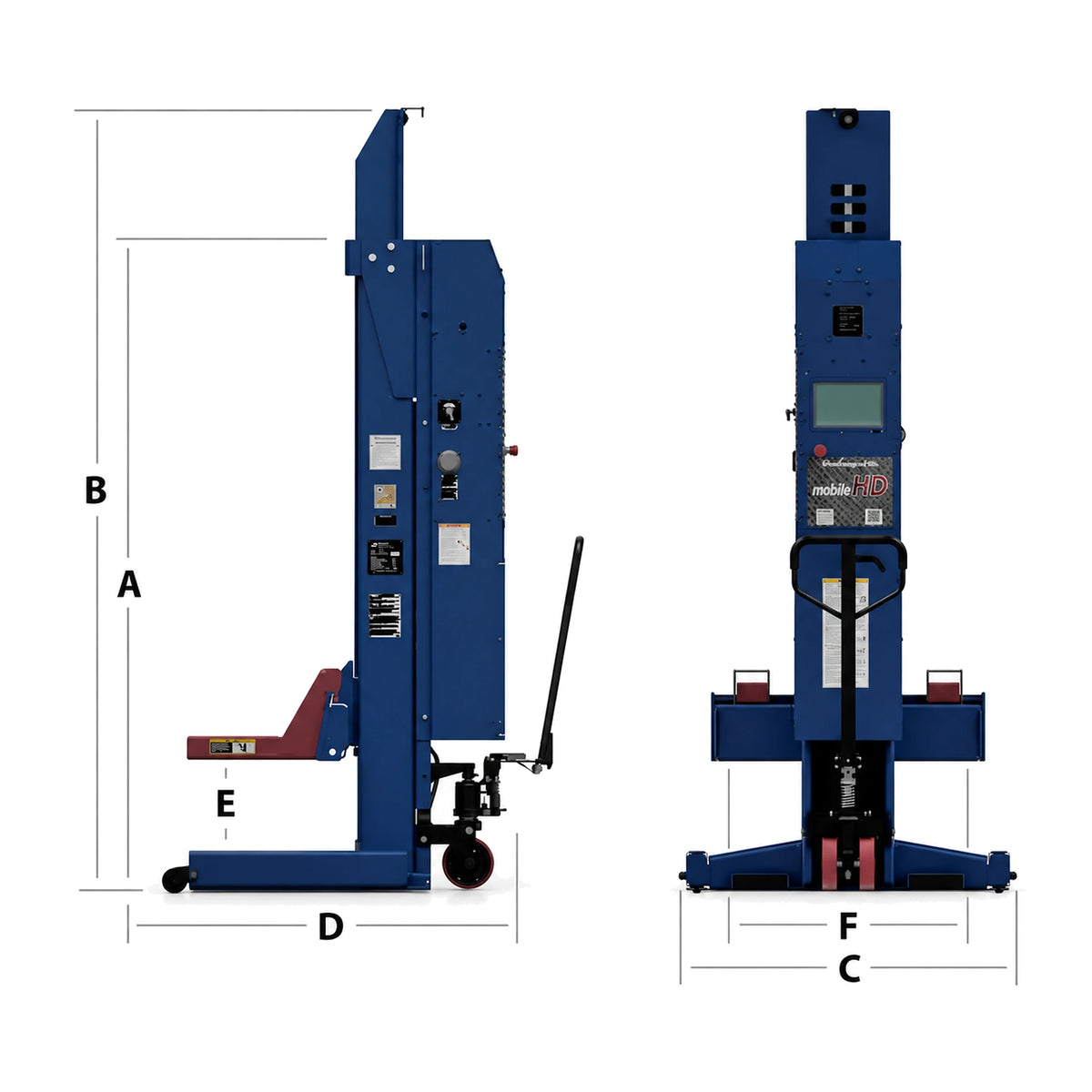

Challenger CLHM-190W Specifications
| Specification | Value |
|---|---|
| Lifting Capacity Per Column | 19,000 lb |
| Lifting Capacity (Set of 2) | 38,000 lb |
| Lifting Capacity (Set of 8) | 152,000 lb |
| Max Hydraulic Operating Pressure | 2,600 psi |
| Lift Speed (Max Load) | 60" per minute |
| Specification | Value |
|---|---|
| Height of Lift Unit | 88.5" |
| Overall Height at Full Rise | 157.125" |
| Width of Lift Unit | 49" |
| Length of Lift Unit | 53.625" |
| Max Lift Height (4+ Units) | 69" |
| Max Lift Height (2 Units - Normal Mode) | 32" |
| Wheel Diameter Range | 4" min - max determined by tire size |
| Turning Radius | 47" |
| Footprint of Lift Unit | 705 sq in |
| Weight of Lift Unit | 1,575 lb |
| Ground Pressure (Max Load) | 29.2 psi |
| Specification | Value |
|---|---|
| Operating Peak Power | 4HP |
| Operating Voltage | 26 VDC nominal |
| Charger Voltage Required | 122 VAC @ 60 Hz |
| Charger Amps Required | 2.3 amps |
| Battery Type | 12-volt deep cycle (2 per column) |
| Specification | Value |
|---|---|
| ALI Certified | Yes |
| ETL Certified | Yes |
| Color | Blue |
Challenger CLHM-190W Installation Requirements
Electrical Requirements
Charging Power: 122 VAC @ 60 Hz, 2.3 amps per column. Each column requires access to a standard 120V outlet for charging between uses. No dedicated electrical circuit is required during lifting operations as the columns operate on battery power.
Floor Requirements
Surface: Any solid, level surface capable of supporting the combined weight of the lift columns and vehicle. Ground pressure at maximum load is 29.2 psi per column. Indoor concrete floors and outdoor paved surfaces are ideal. No anchoring or permanent installation required.
Space Requirements
Minimum Bay Width: 14' 8" minimum, 14' recommended for standard operations. Recommended Bay Length: 28' for full-length vehicle access. Ceiling height must accommodate 157.125" overall height at full rise plus adequate clearance for vehicle and operator safety.
Training and Setup
Operator training is recommended before first use. Review the installation and operation manual for proper wireless pairing, synchronization procedures, and safety protocols. Challenger's technical support team is available to assist with initial setup and configuration.
What's Included with the Challenger CLHM-190W
- CLHM-190W Wide Heavy-Duty Mobile Column Lift unit
- Integrated touch screen control console
- Built-in multi-stage battery charging system
- Heavy-duty tow handle
- Adjustable wheel carriage adapters
- Installation and operation manual

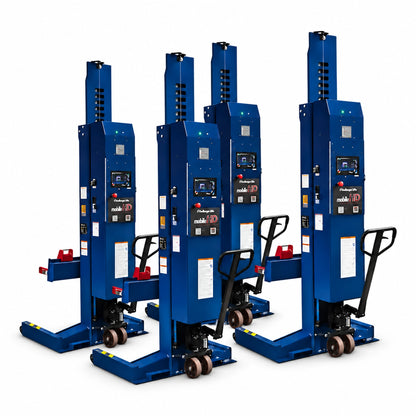

Note: Mobile columns are typically sold in sets of 2, 4, 6, or 8 units depending on application requirements. Contact sales to configure the right system for your fleet.
Optional Accessories: Challenger offers a wide range of accessories to customize columns for specialty applications including cab removal adapters for pickup trucks, transit vehicle adapters, forklift adapters, and municipality vehicle accessories.
Not Included: 12-volt deep cycle batteries (2 per column), electrical outlets for charging stations, operator training (available separately).
Challenger CLHM-190W Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Ships within 5-10 business days, transit time varies by location. International: Contact sales for international shipping quotes and lead times.
Delivery Requirements
Unloading: Forklift or loading dock required. Each column weighs 1,575 lb. Delivery Type: Curbside delivery to commercial addresses is standard. Inspection: Inspect all packages for shipping damage before signing the bill of lading. Note any visible damage on the delivery receipt and photograph damaged packaging.
Returns
Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. 20% restocking fee applies. Buyer responsible for return freight costs. Damaged or defective units are covered under warranty.
Challenger CLHM-190W Warranty
Challenger Lifts Warranty Coverage
The Challenger CLHM-190W is backed by Challenger's comprehensive warranty program, protecting your investment against manufacturing defects in materials and workmanship.
- Structural Components: Coverage for main structural components including columns and carriages
- Hydraulic System: Coverage for hydraulic cylinders, pumps, and related components
- Electrical/Electronic: Coverage for control systems, sensors, and wireless communication components
Requirements: Warranty registration required within 30 days of purchase. Proper installation, operation, and maintenance per the owner's manual is required to maintain warranty coverage. See warranty document for complete terms, exclusions, and claim procedures.
Documents
Click to open in a new tab.
Questions About the Challenger CLHM-190W?
Our equipment specialists can help with system configuration, specifications, and product selection for your fleet operation.
Challenger CLHM-190W FAQ
What is the lifting capacity of the CLHM-190W?
Each CLHM-190W column has a lifting capacity of 19,000 lb. When used as a set of 2, the combined capacity is 38,000 lb. A full set of 8 columns provides 152,000 lb total lifting capacity, suitable for large multi-axle commercial vehicles, buses, and heavy equipment.
What is the difference between the CLHM-190W and CLHM-190?
The CLHM-190W is the wide version of the CLHM-190. The 190W features a 49" width compared to 44.25" on the standard model, along with a larger footprint (705 sq in vs 560 sq in) and expanded wheel diameter range starting at 4" minimum instead of 5". This makes the 190W ideal for oversized commercial tires and dual-wheel configurations.
How does the wireless system work?
The CLHM-190W uses a wireless radio communication system with 12 available frequencies to prevent interference. Linear position transducers in each column maintain precise synchronization, while integrated touch screen consoles allow operation from any column. This eliminates all cables between units for a completely wireless work area.
What power source do the columns require?
The columns operate on 12-volt deep cycle batteries (2 per column) providing 26 VDC operation during lifting. No external power is required during use. Each column has a built-in multi-stage charging system requiring 122 VAC @ 60 Hz, 2.3 amps for recharging between uses.
What are the space requirements for using these lifts?
Minimum bay width is 14' 8" with 14' recommended. Bay length of 28' is recommended for full vehicle access. Ceiling height must accommodate the 157.125" overall height at full rise plus adequate clearance. The columns can be used on any solid, level surface indoors or outdoors.
Is the CLHM-190W ALI certified?
Yes, the CLHM-190W is both ALI (Automotive Lift Institute) and ETL certified, confirming it meets industry safety and performance standards for commercial automotive lifting equipment.
How many columns do I need for my application?
Column requirements depend on vehicle weight and configuration. Two columns provide 38,000 lb capacity with 32" max lift height. Four or more columns provide 69" max lift height and higher total capacity. For multi-axle vehicles, use one pair of columns per axle. Contact our equipment specialists for help sizing a system for your specific fleet.
What is included with the lift and what do I need to supply?
Each column includes the integrated touch screen console, charging system, tow handle, and adjustable wheel carriages. You will need to supply 12-volt deep cycle batteries (2 per column) and provide 120V outlets for charging. Optional accessories are available for specialty applications.
How is the lift shipped and delivered?
The CLHM-190W ships via freight to commercial addresses in the lower 48 states with free shipping. Each column weighs 1,575 lb, so a forklift or loading dock is required for unloading. Curbside delivery is standard. Inspect shipments for damage before signing the bill of lading.
Can these lifts be used outdoors?
Yes, the CLHM-190W can operate on any solid, level surface indoors or outdoors. The battery-powered operation means no external power connections are needed during use. This makes them ideal for fleet yards, outdoor service areas, and locations without permanent lift installations.
What maintenance is required?
Regular maintenance includes keeping batteries charged, inspecting hydraulic fluid levels, checking wheel carriages and forks for wear, and verifying proper operation of safety locks and synchronization systems. Refer to the operation manual for complete maintenance schedules and procedures.
Are the lifts suitable for electric vehicle service?
Yes, the CLHM-190W is EV Service Ready. The wireless design eliminates grounding concerns, and the high capacity handles heavy EV battery packs. These columns are suitable for electric buses, delivery trucks, and commercial EV fleet vehicles.
