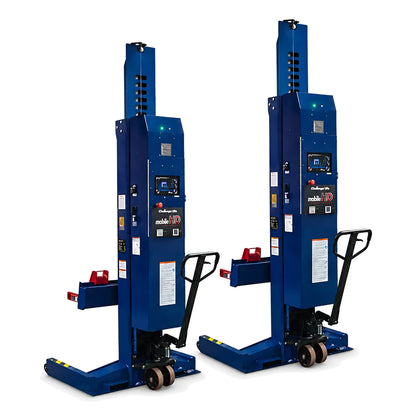

Challenger CLHM-190 19,000 lb Heavy-Duty Mobile Column Lift for Commercial Fleet Service
The Challenger CLHM-190 is a heavy-duty wireless mobile column lift delivering 19,000 lb capacity per column for servicing everything from passenger vehicles to heavy-duty trucks, buses, and transit vehicles. This ALI-certified lifting system operates on any solid surface, indoors or outdoors, with battery-powered operation eliminating the need for power source hookups. Each column features an integrated touch screen control console, linear position transducers for precise synchronization, and a 110-volt built-in multi-stage charging system. Use two columns for 38,000 lb capacity or scale up to eight columns for 152,000 lb total lifting capacity, making this system ideal for fleet maintenance facilities, municipalities, and commercial truck service centers.
Challenger CLHM-190 Features

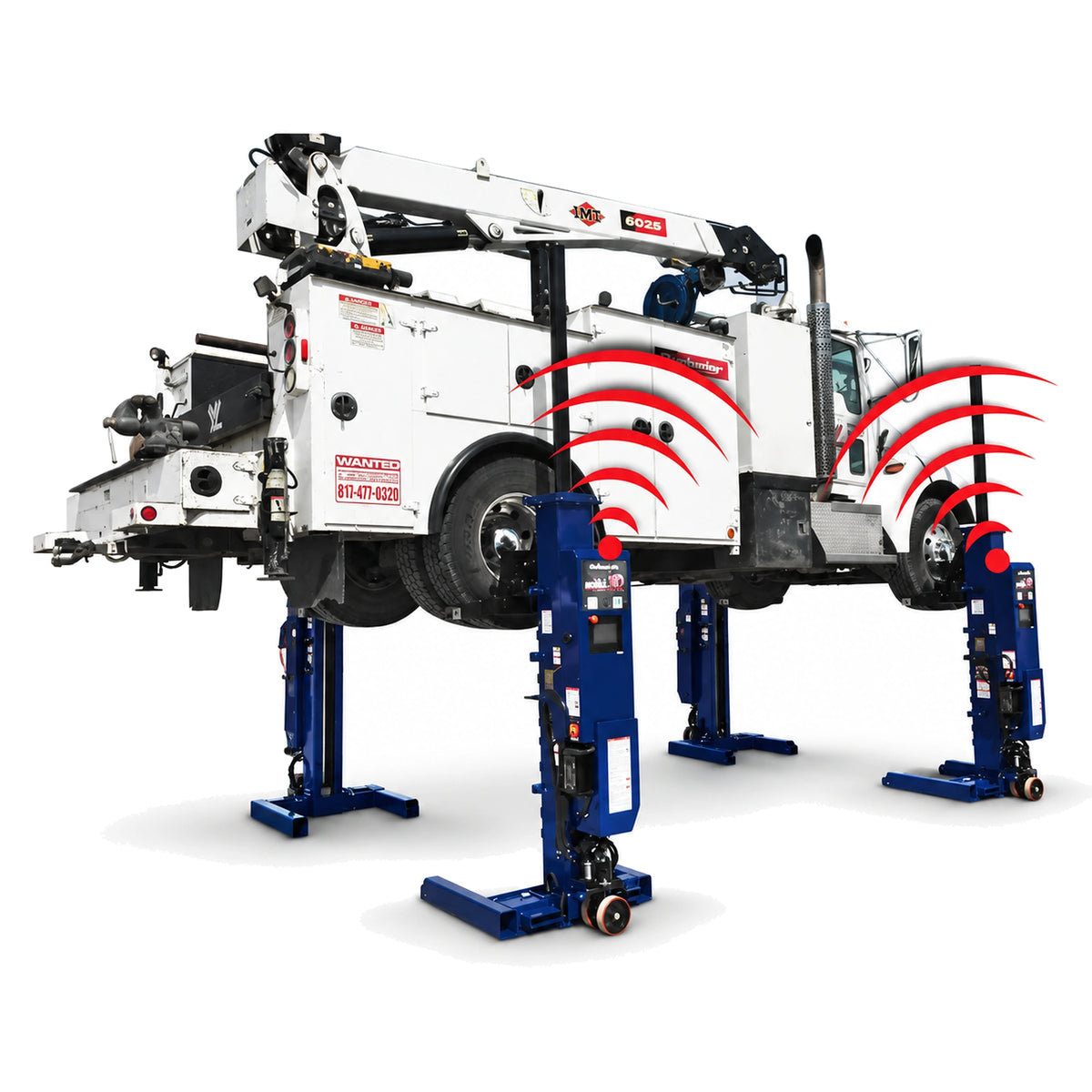

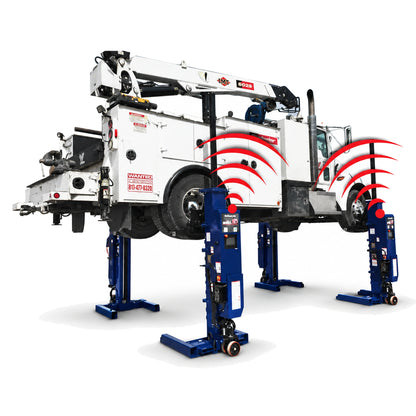

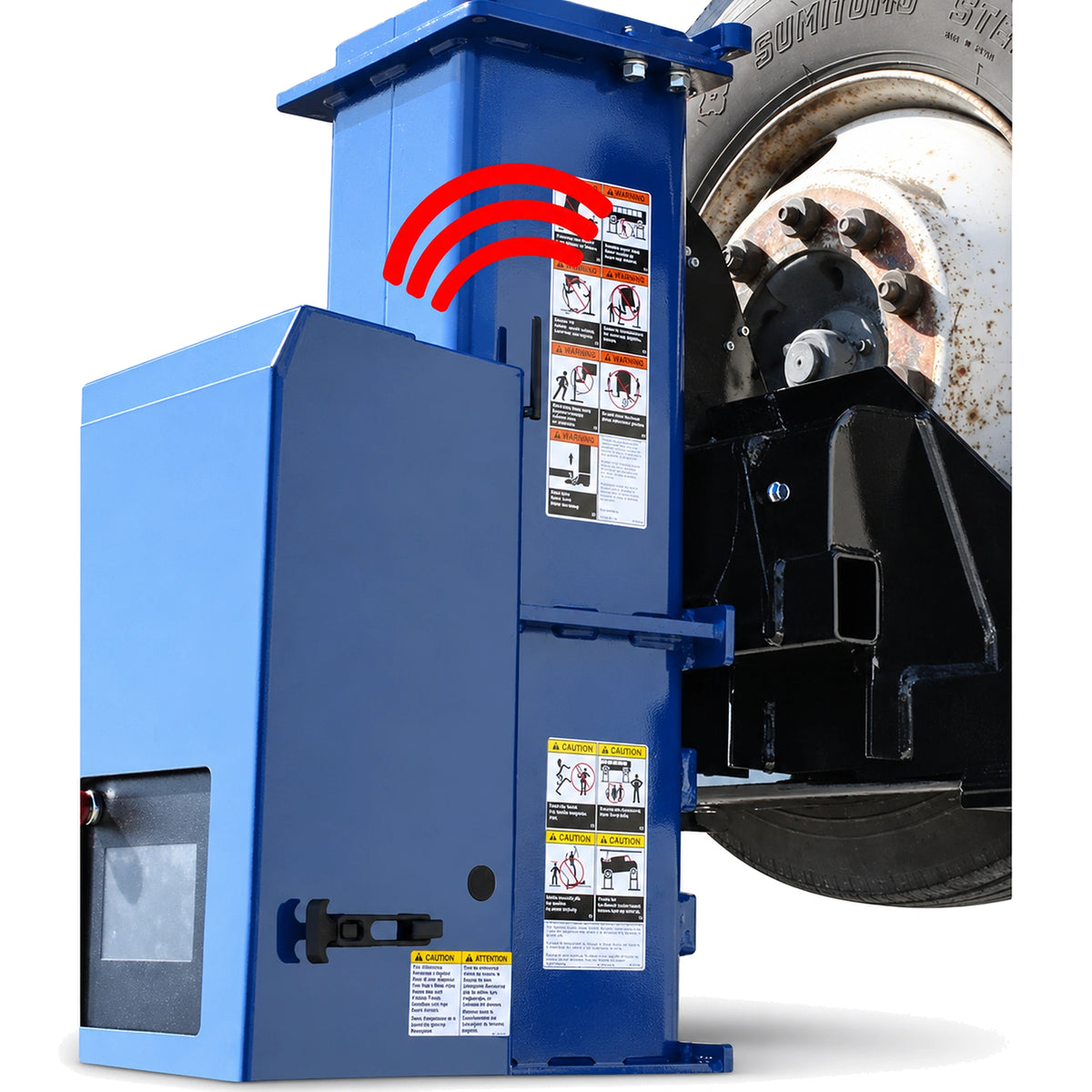

Wireless Mobile Column System
The CLHM-190 features a completely wireless design that eliminates cables between columns, creating a clutter-free work area. 12 radio frequencies with a wide channel range prevent radio noise from interrupting service operations. This wireless architecture means no cables to connect, navigate around, roll over, or replace over time.

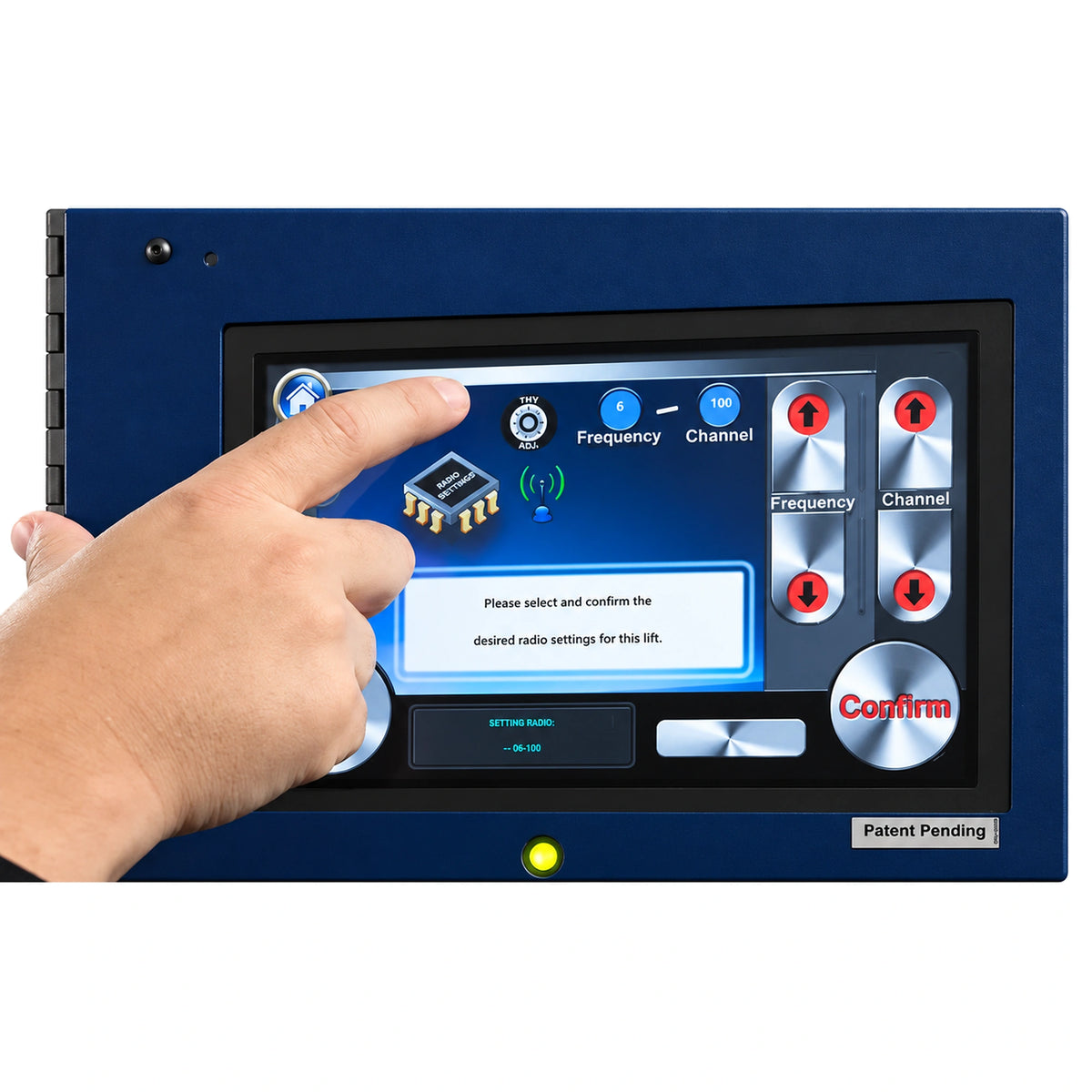

Integrated Touch Screen Control
Each column includes an integrated touch screen control console allowing operation from any unit in the system. This distributed control approach lets technicians operate the lift from the most convenient position regardless of vehicle size or configuration, improving workflow efficiency.
Linear Position Transducers
Advanced linear position transducers maintain precise system synchronization across all columns, ensuring maximum reliability and safe, level lifting. This technology monitors column position in real-time, automatically adjusting to keep heavy loads balanced throughout the lifting cycle.

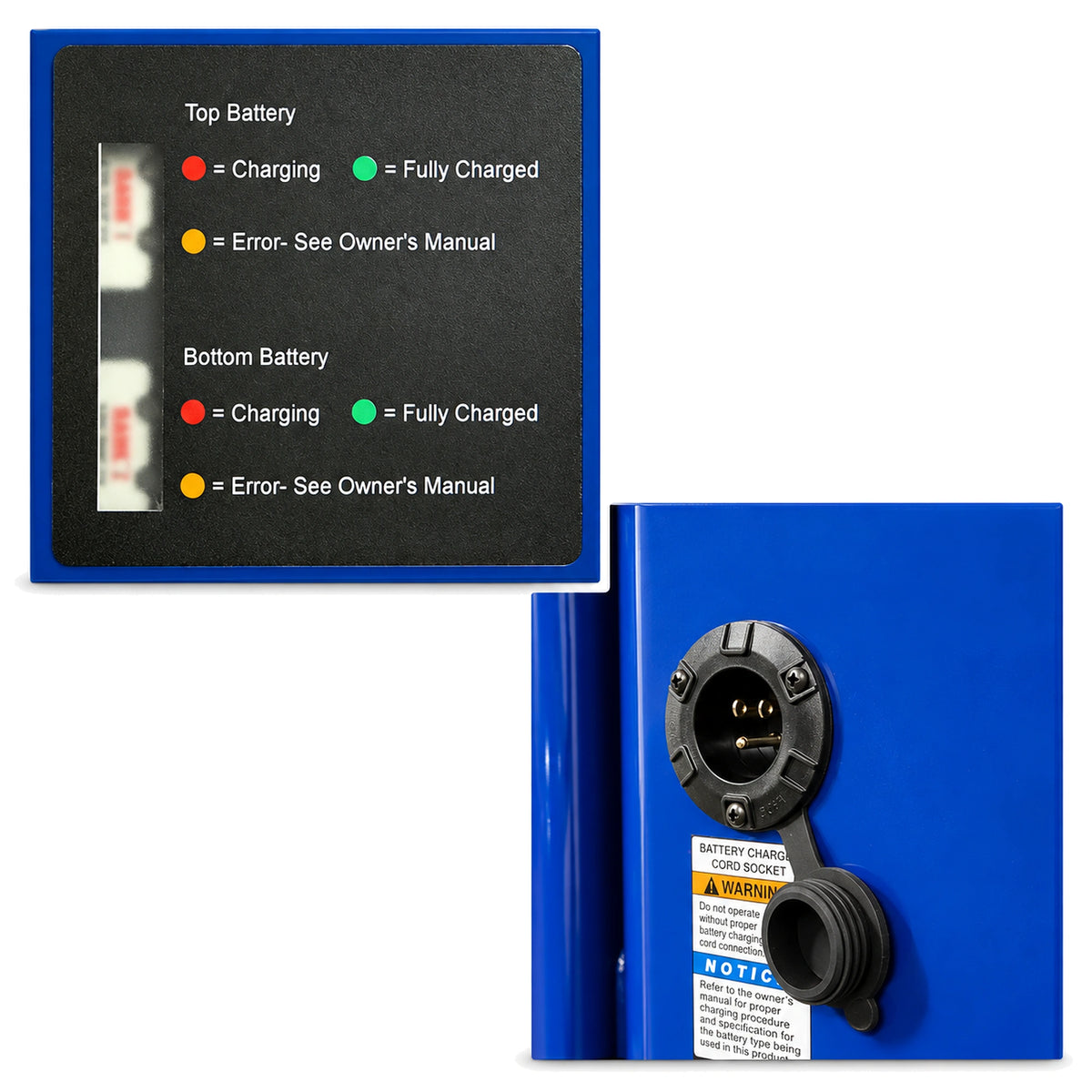

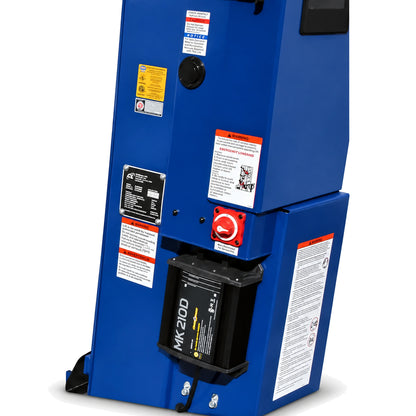

Battery-Powered Operation
The CLHM-190 operates on 12-volt deep cycle batteries providing 24-volt operation, eliminating the need for power source hookups during use. The 110-volt built-in multi-stage charging system keeps batteries topped off between jobs, ensuring the columns are always ready for the next vehicle.

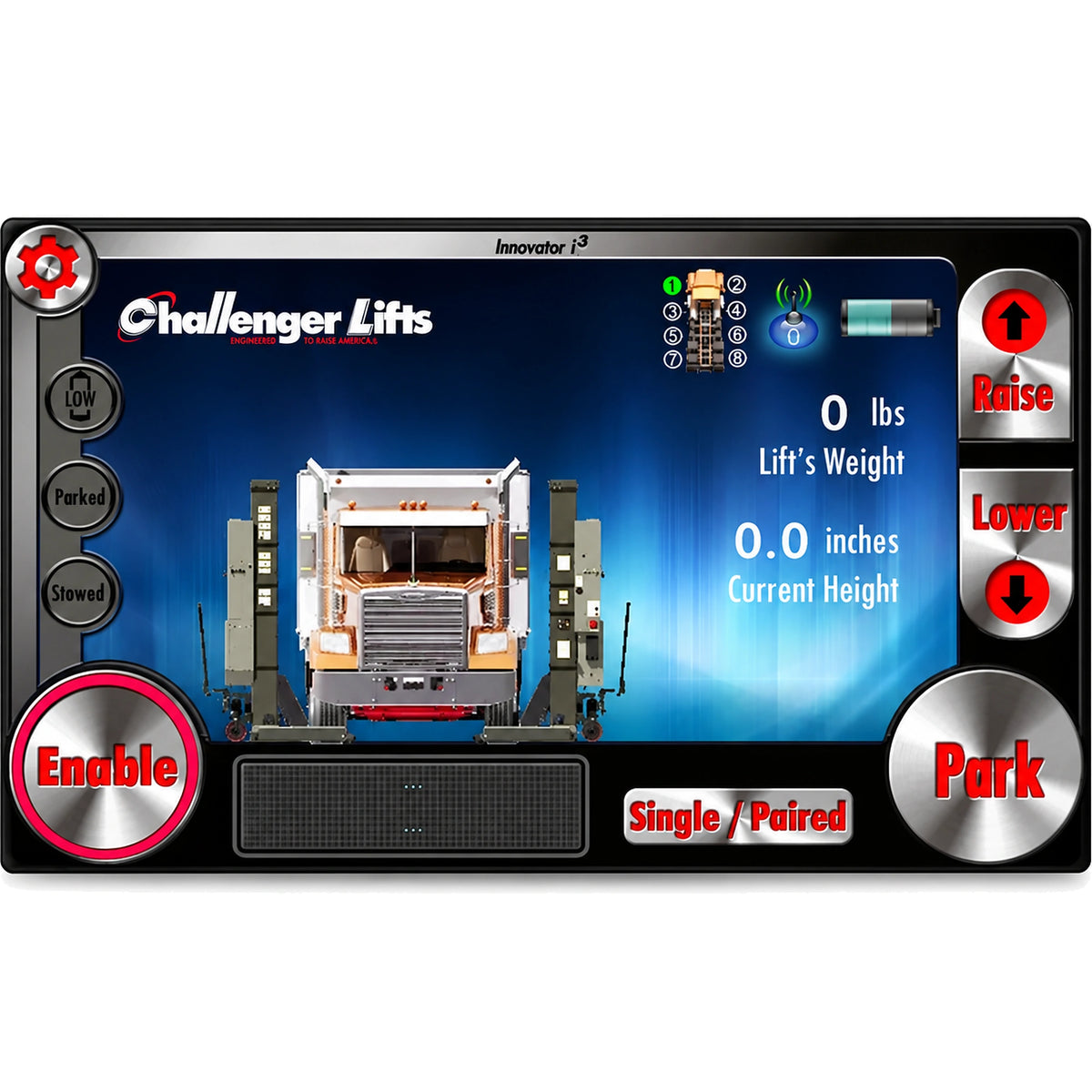

Integrated Weight Gauges
Built-in weight gauges at each column help prevent overloading and verify lock engagement. Technicians can monitor load distribution in real-time, ensuring safe operation and proper weight balance across all active columns in the system.
Easy Mobility and Maneuverability
A precision balanced design combined with a heavy-duty tow handle and spring-loaded wheels provides easy mobility. With a 47" turning radius and the ability to operate on almost any solid surface, these columns can be quickly repositioned throughout your facility as needed.
Challenger CLHM-190 Applications

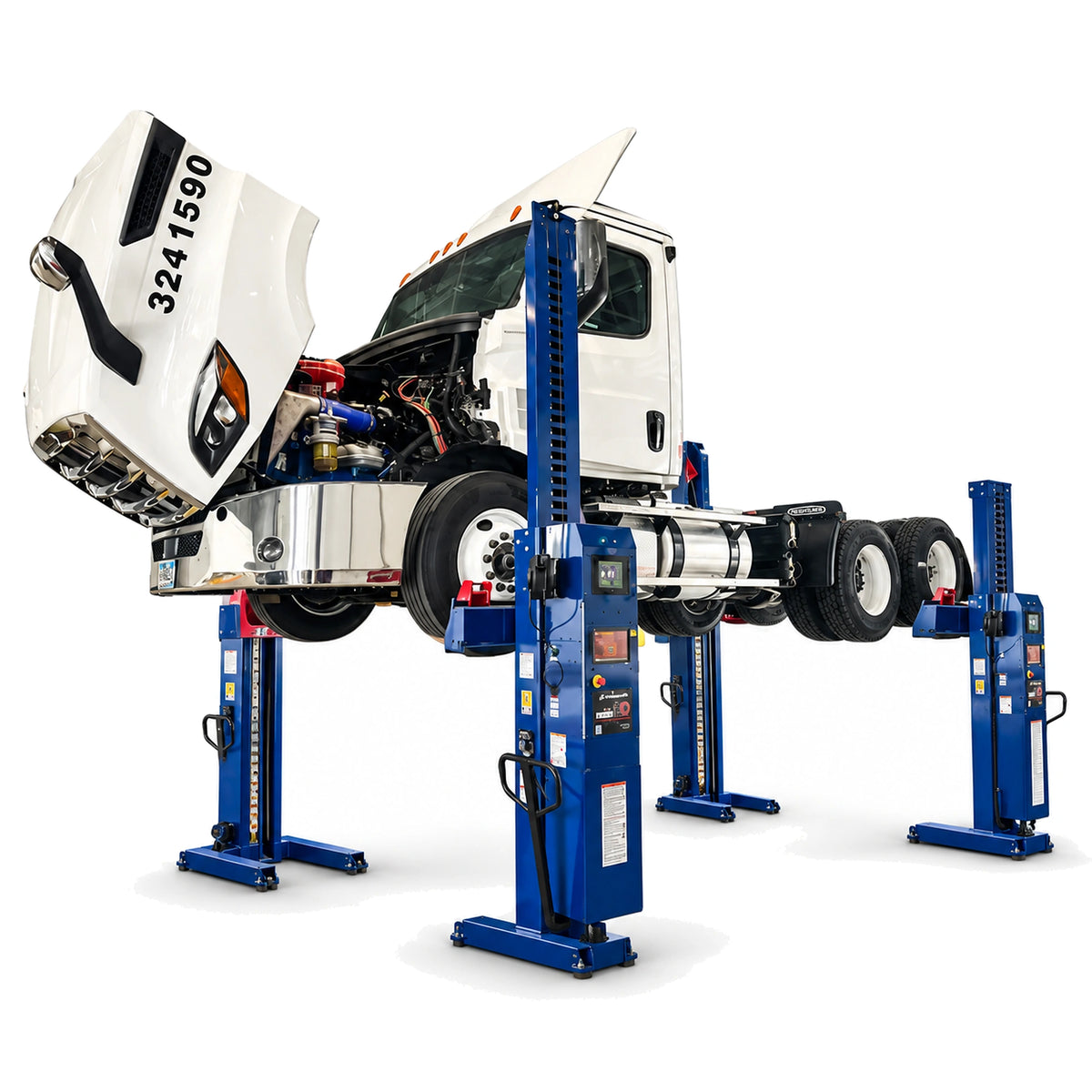

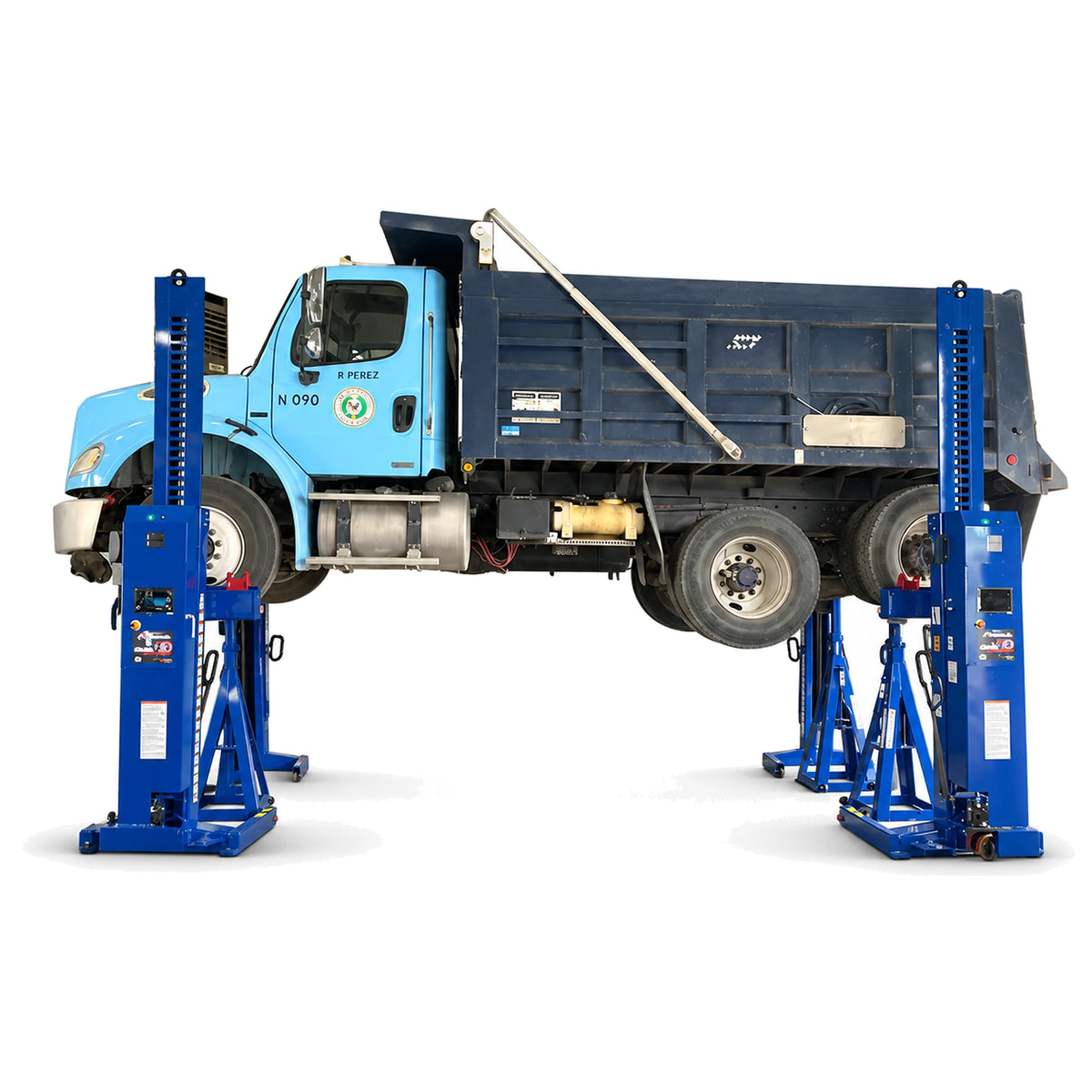

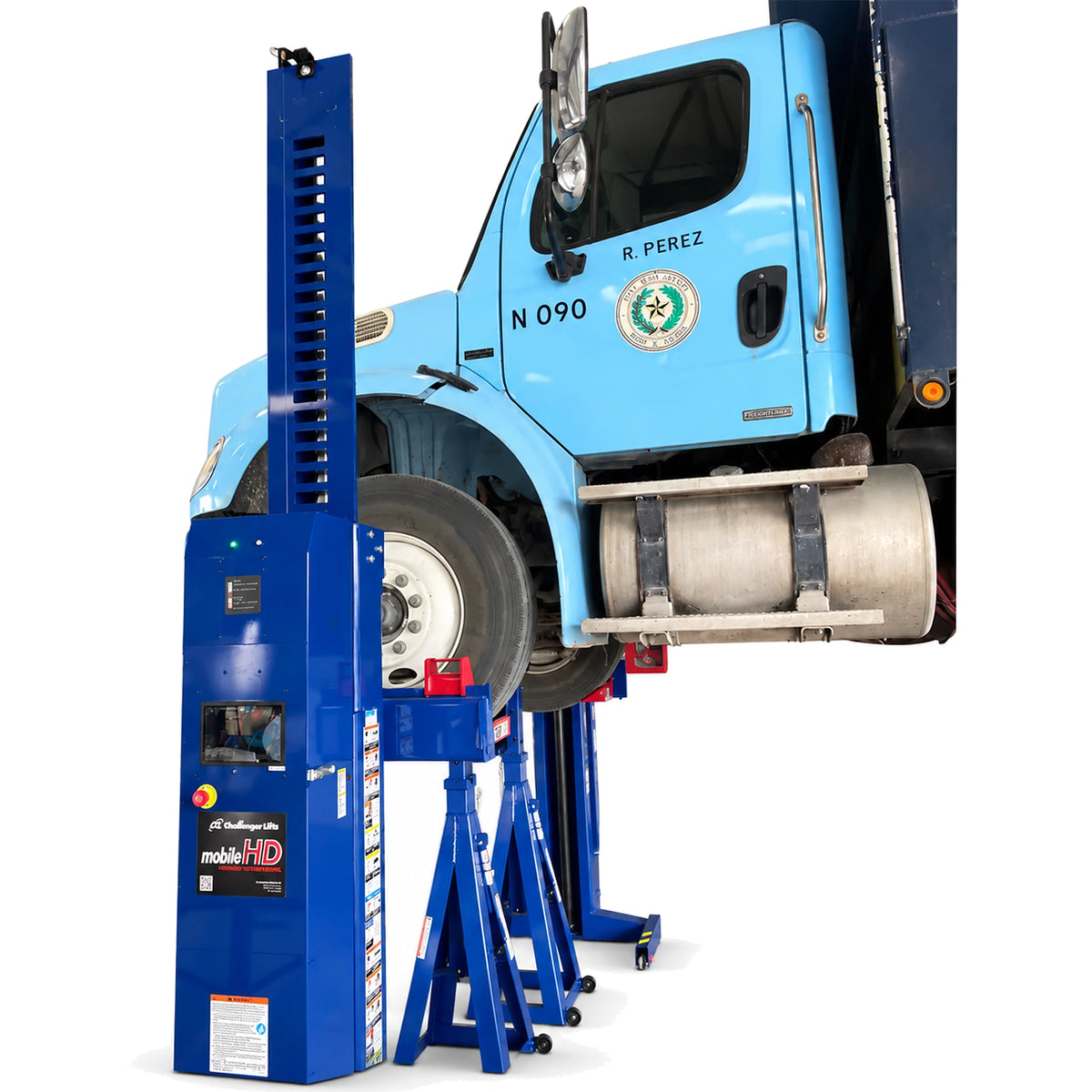

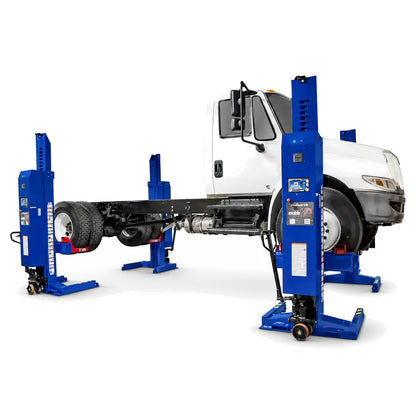

- Heavy-Duty Truck Service: Service 2-axle, 3-axle, and 4-axle commercial trucks with capacities up to 152,000 lb using multiple columns. The wireless system and portable design allow efficient positioning for any truck configuration.

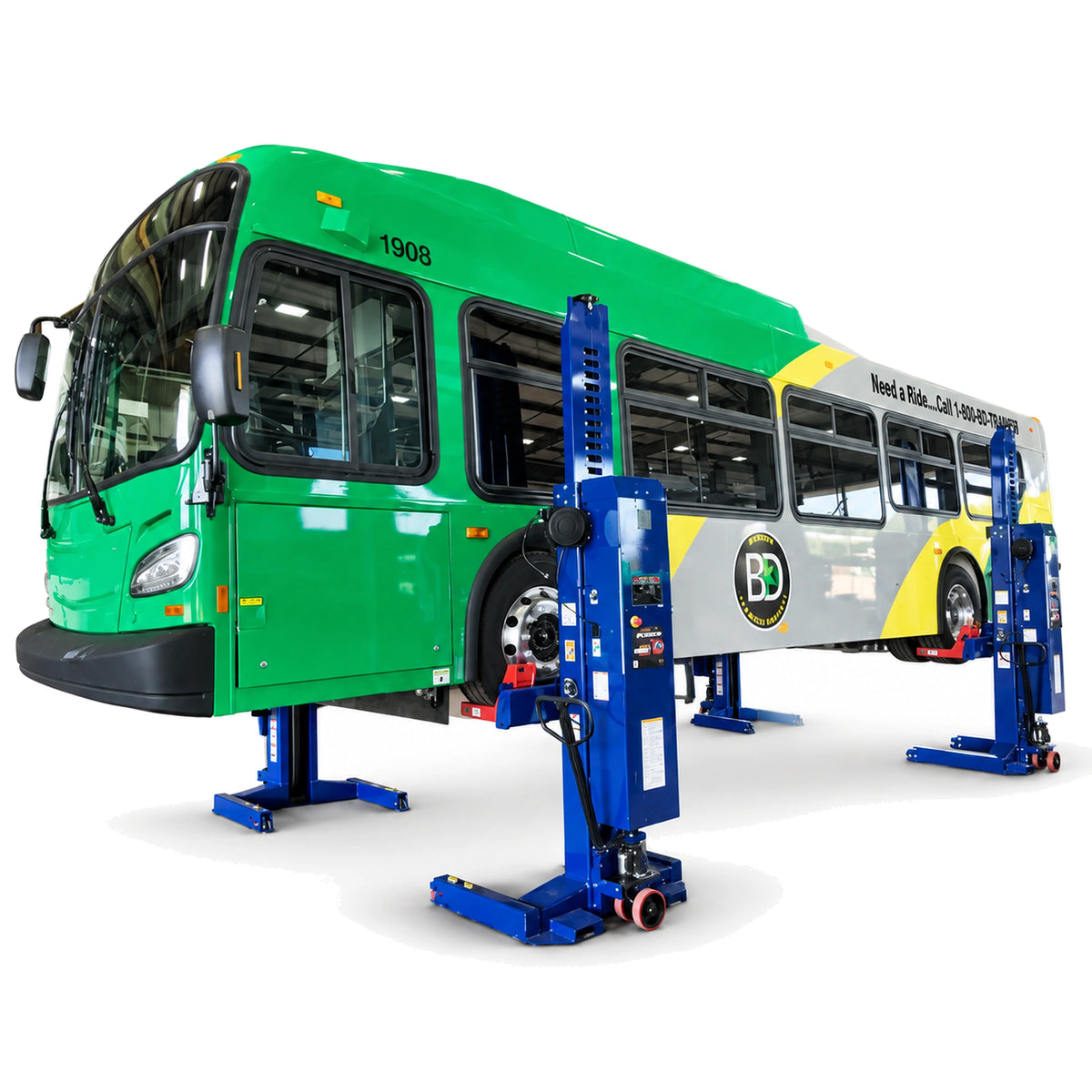

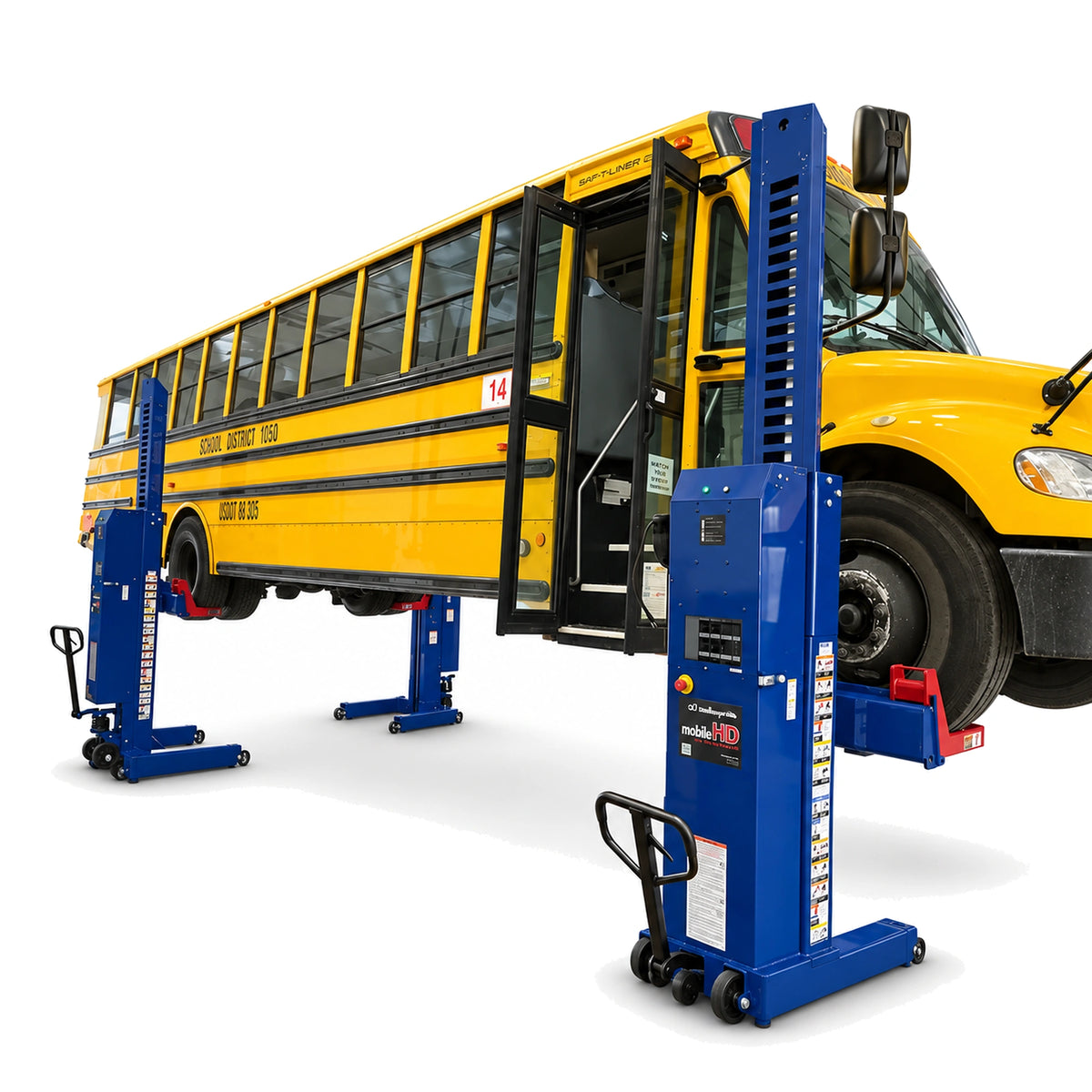

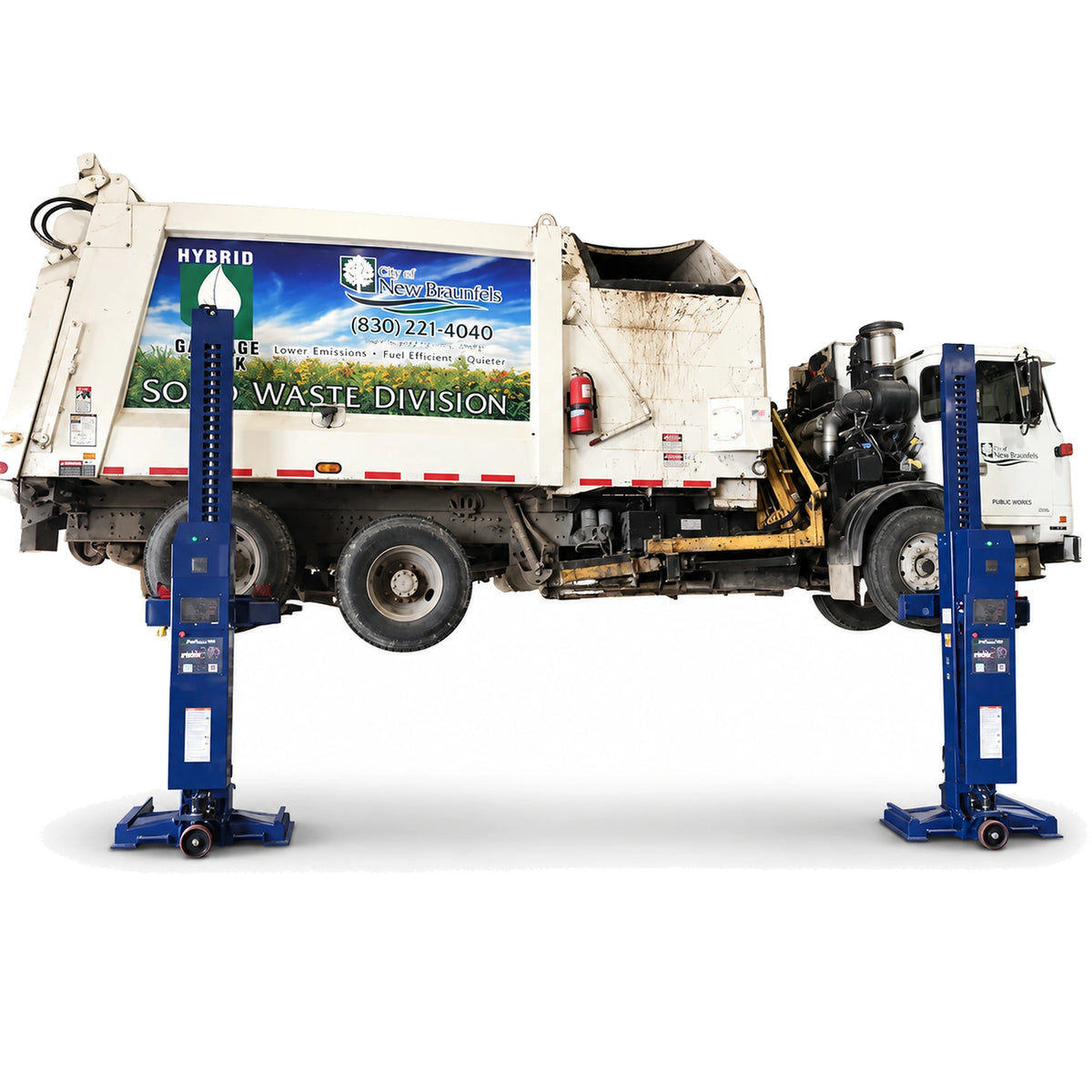

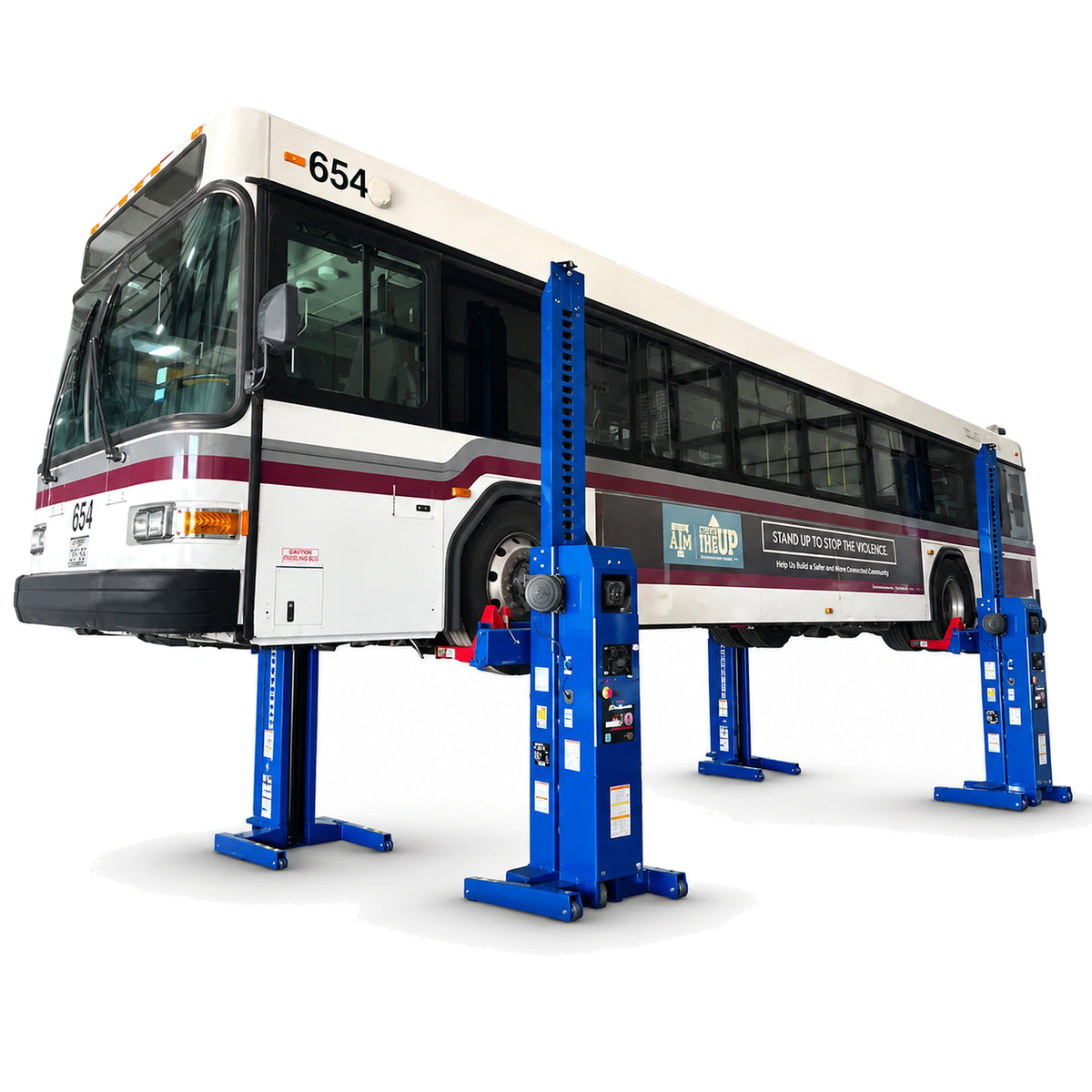

- Transit and Municipality Vehicles: Ideal for servicing city buses, school buses, and municipal fleet vehicles. The scalable column system accommodates varying axle lengths and wheelbases common in transit fleets.
- Fleet Maintenance Facilities: Perfect for commercial fleet operations servicing mixed vehicle types. Move columns between service bays as needed, maximizing facility flexibility without permanent lift installations.

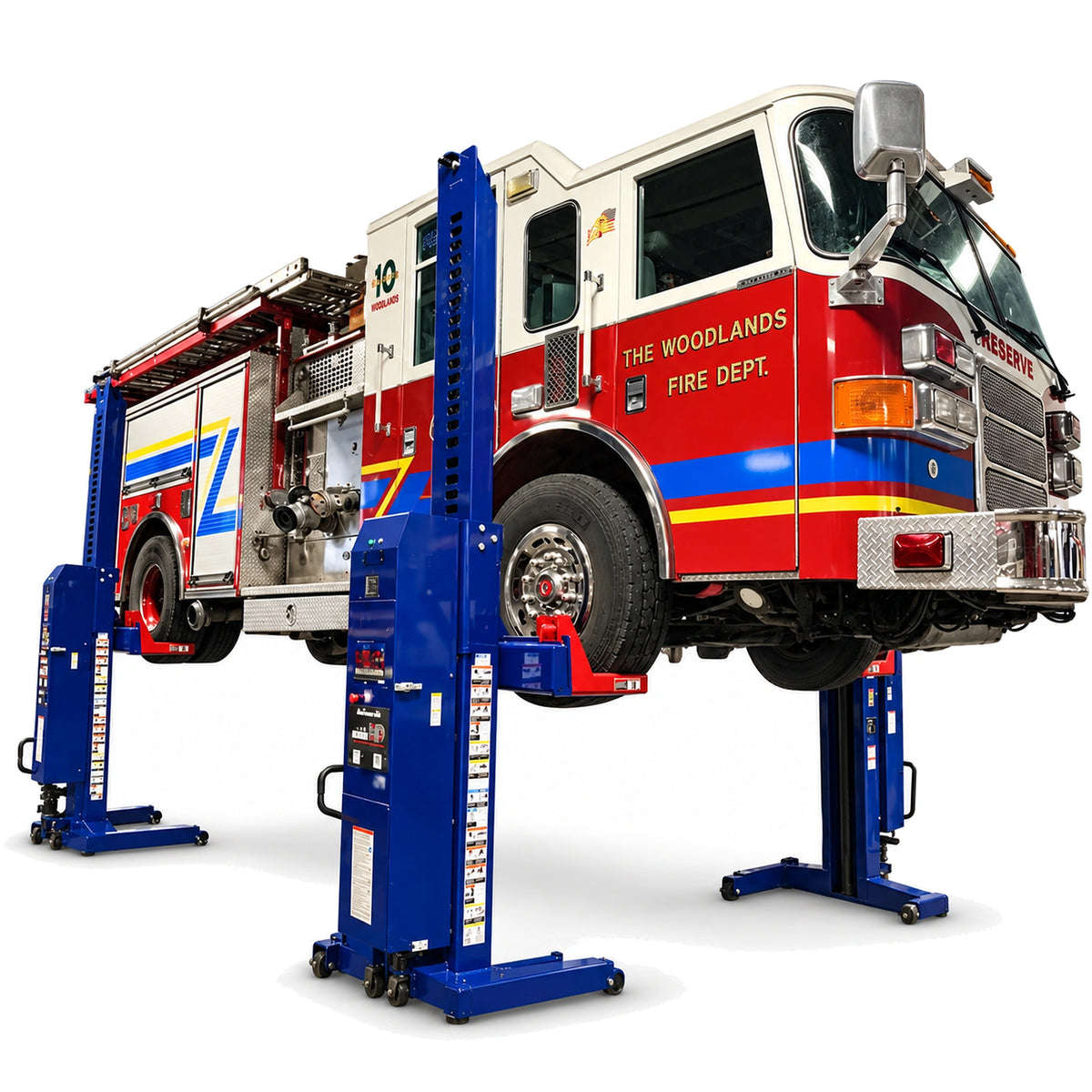

- Fire and Emergency Vehicles: Service fire trucks, ambulances, and emergency response vehicles with the heavy-duty lifting capacity and extended reach required for these specialized applications.

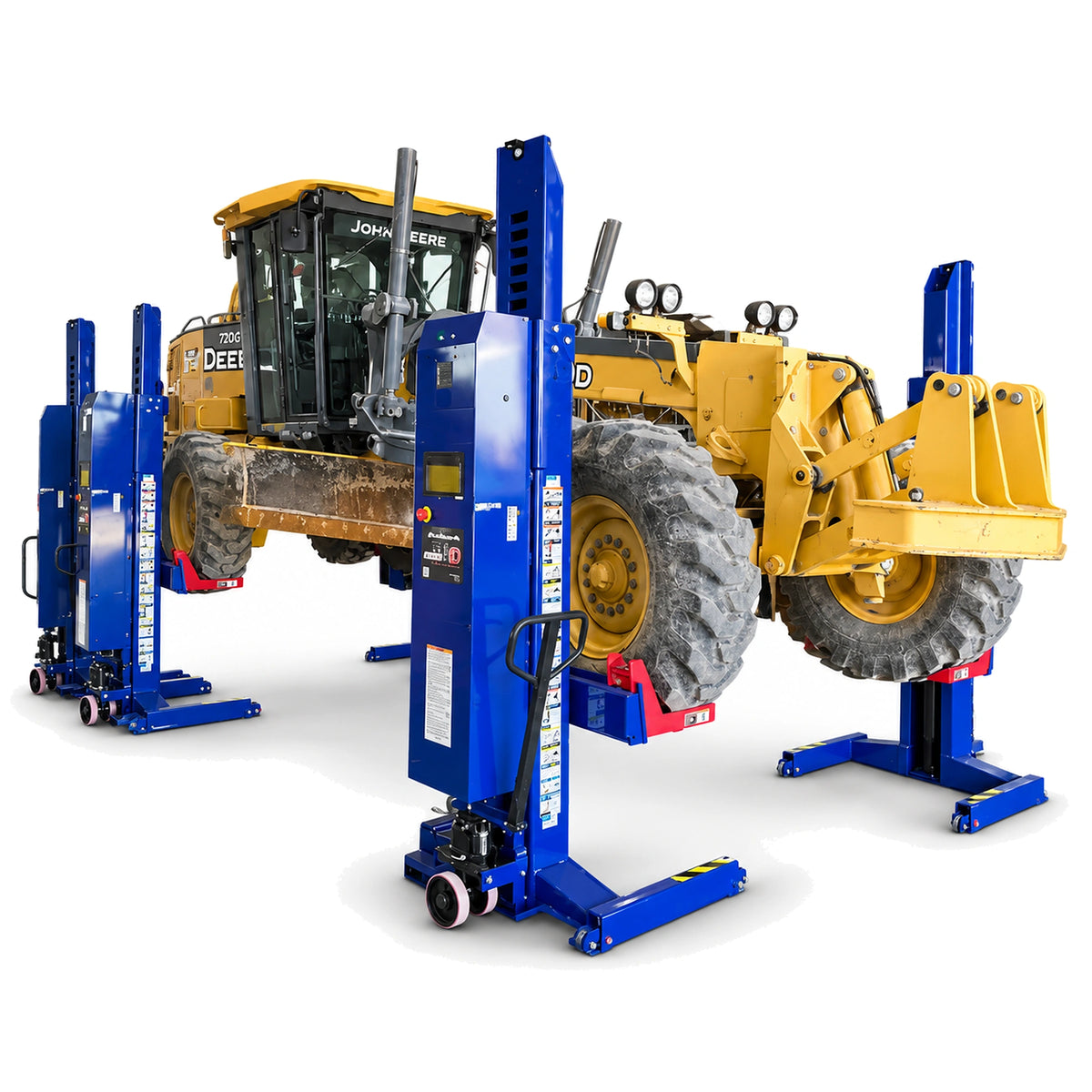

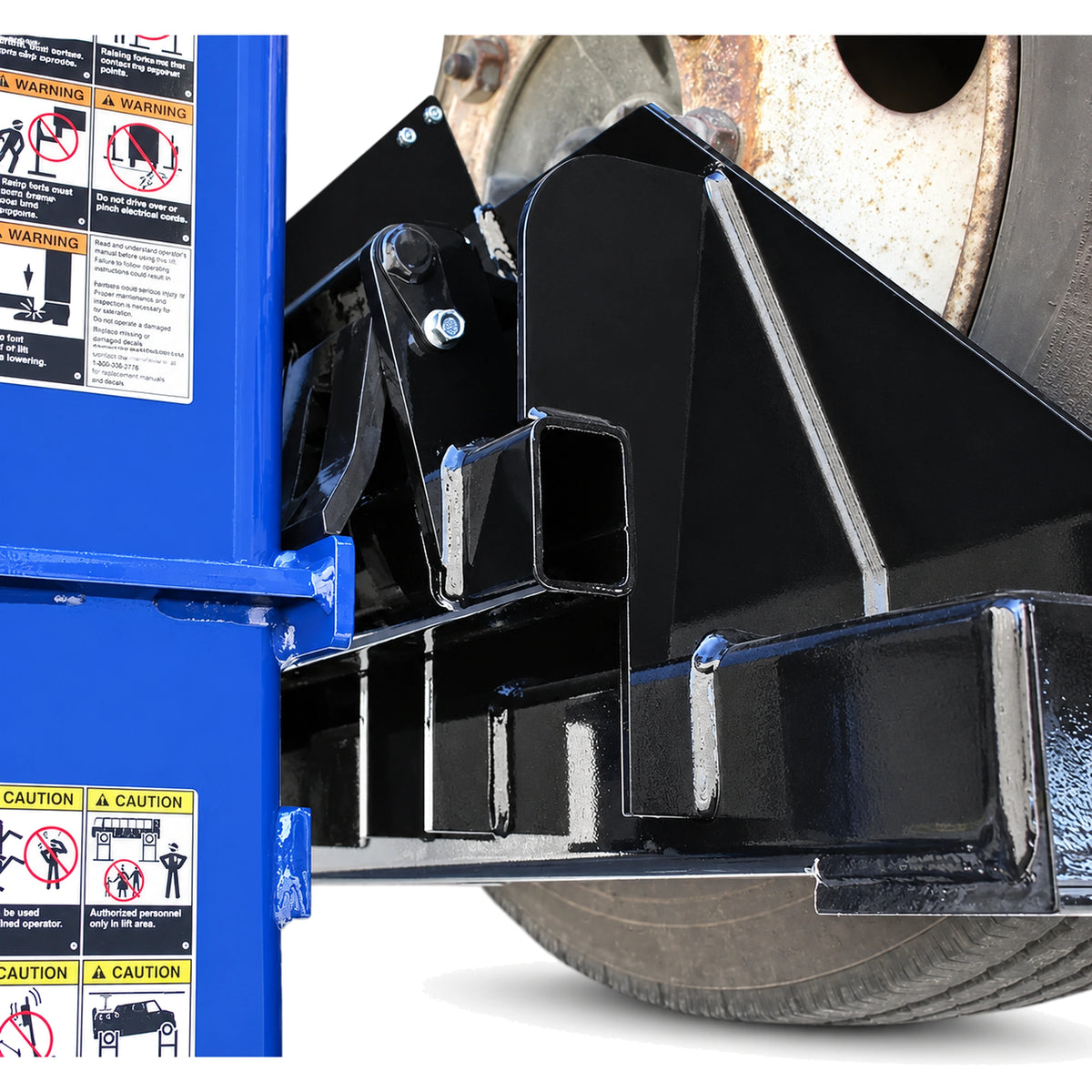

- Agricultural and Construction Equipment: Lift rubber-tired agricultural tractors, skid steers, and construction equipment. The adjustable wheel carriage adapts to various tire sizes from 5" to 24.5" diameter.
Challenger CLHM-190 Specifications
| Specification | Value |
|---|---|
| Lifting Capacity Per Column | 19,000 lb |
| Lifting Capacity (Set of 2) | 38,000 lb |
| Lifting Capacity (Set of 8) | 152,000 lb |
| Max Hydraulic System Operating Pressure | 2,600 psi |
| Ground Pressure at Max Load | 31.6 psi |

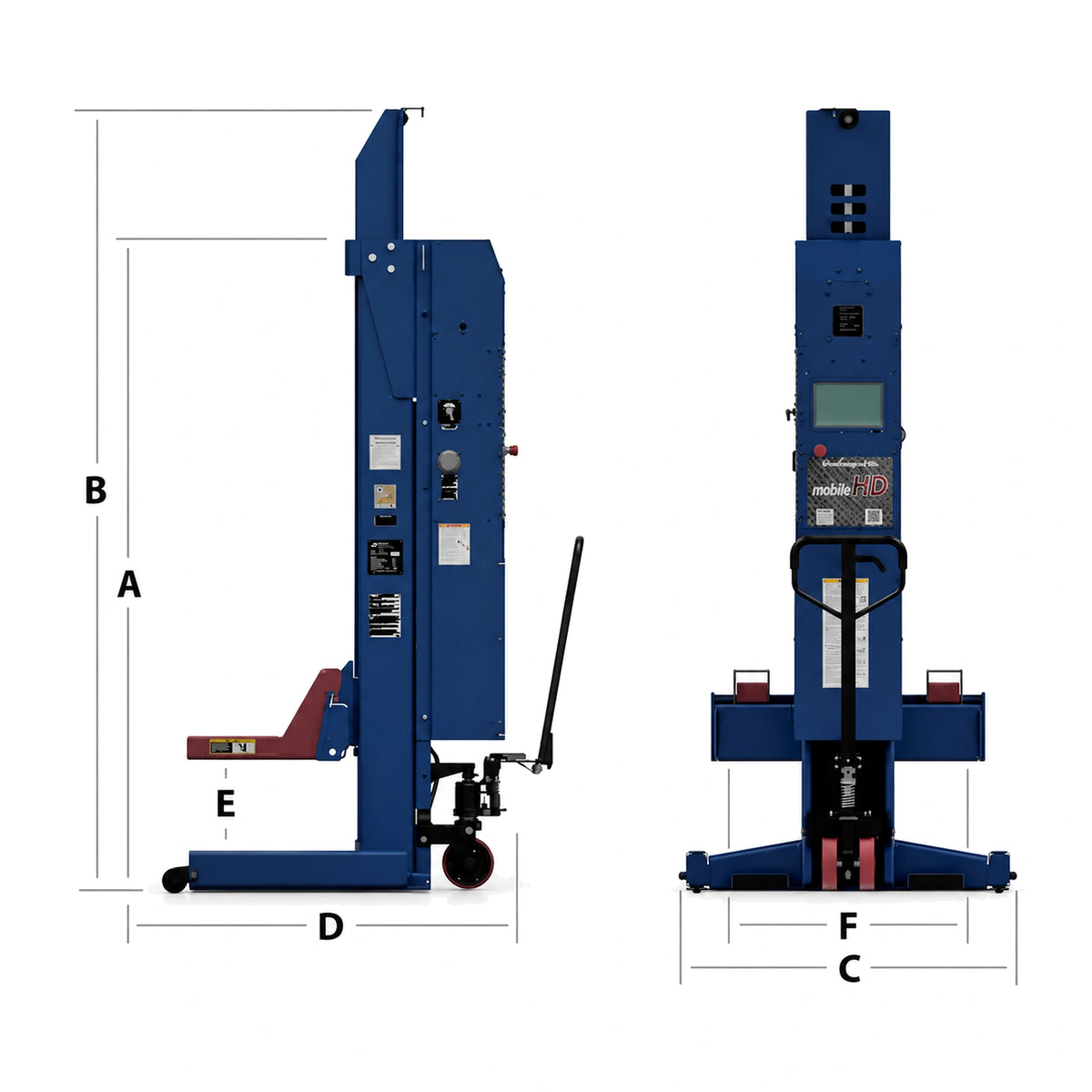

| Specification | Value |
|---|---|
| Height of Lift Unit | 88.5" |
| Overall Height at Full Rise | 157.125" |
| Width of Lift Unit | 44.25" |
| Length of Lift Unit | 53.625" |
| Max Lift Height (4+ Units) | 69" |
| Max Lift Height (2 Units - Normal Mode) | 32" |
| Wheel Diameter Range | 5" - 24.5" |
| Turning Radius | 47" |
| Footprint of Lift Unit | 650 sq in |
| Weight of Lift Unit | 1,510 lb |
| Specification | Value |
|---|---|
| Operating Voltage | 24 VDC Nominal |
| Operating Peak Power | 4 HP |
| Charger Voltage Required | 120 VAC @ 60 Hz |
| Charger Amps Required | 1.3 Amps |
| Lift Speed at Max Load | 60" per minute |
| Specification | Value |
|---|---|
| ALI Certified | Yes |
| ETL Certified | Yes |
| Colors Available | Blue |
Challenger CLHM-190 Installation Requirements
Electrical Requirements
Charger Power: 120 VAC @ 60 Hz, 1.3 Amps per column. Each column includes a built-in multi-stage charging system. Standard 120-volt outlets are required for charging between uses.
Floor Surface Requirements
Surface: Any solid, level surface capable of supporting the ground pressure of 31.6 psi per column at maximum load. The mobile column design does not require permanent anchoring, allowing use indoors or outdoors on concrete, asphalt, or other solid surfaces.
Space Requirements
Minimum Bay Width: 14' 8" minimum, 14' recommended for single vehicle service. Recommended Bay Length: 28' for full-size heavy-duty trucks and buses. Allow adequate clearance for column positioning and technician access around vehicles.
Setup and Training
Mobile column lifts require proper training for safe operation. Challenger recommends operator training on wireless system operation, weight distribution monitoring, and proper column positioning. Review the installation and operation manual before first use.
What's Included with the Challenger CLHM-190
- CLHM-190 Mobile Column Lift Unit (19,000 lb capacity)
- Integrated touch screen control console
- Built-in multi-stage 110V charging system
- 12-volt deep cycle batteries installed
- Heavy-duty tow handle
- Adjustable wheel carriage
- Installation and operation manual
Optional Accessories: Challenger offers a wide range of accessories to customize columns for specialty heavy-duty trucks, transit and municipality vehicles, forklifts, and cab removal of standard pickup trucks. Contact us for accessory options.
Not Included: Additional columns sold separately. Columns are typically purchased in sets of 2, 4, 6, or 8 depending on lifting requirements. Operator training not included.
Challenger CLHM-190 Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Ships within 5-10 business days. International: Contact sales for international shipping quotes.
Delivery Requirements
Unloading: Forklift or loading dock required. Each column weighs 1,510 lb. Delivery Type: Curbside delivery standard. Liftgate service available for additional charge. Inspection: Inspect all packages for damage before signing BOL. Note any damage on delivery receipt.
Returns
Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. 20% restocking fee applies. Buyer responsible for return freight costs.
Challenger CLHM-190 Warranty
Challenger Lifts Warranty Coverage
Challenger Lifts backs the CLHM-190 with comprehensive warranty protection covering defects in materials and workmanship.
- Structural Components: Covered against defects in materials and workmanship
- Hydraulic Components: Cylinders, power units, and hydraulic system components covered
- Electrical Components: Control systems, wiring, and electronic components covered
Requirements: Warranty coverage requires proper installation, operation according to manufacturer guidelines, and regular maintenance as specified in the owner's manual. See warranty document for complete terms, conditions, and exclusions.
Documents
Click to open in a new tab.
Questions About the Challenger CLHM-190?
Our equipment specialists can help with system configuration, specifications, and product selection for your fleet service operation.
Challenger CLHM-190 FAQ
What is the total lifting capacity of the CLHM-190 system?

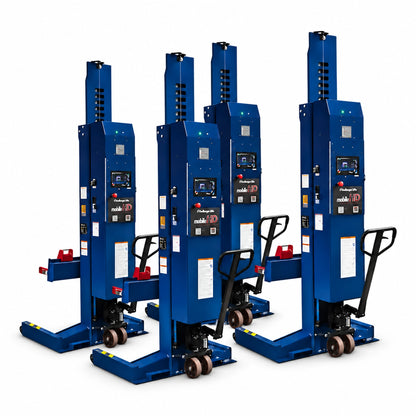

Each CLHM-190 column has a lifting capacity of 19,000 lb. When used as a set of two columns, total capacity is 38,000 lb. For heavy-duty applications, you can use up to eight columns together for a maximum lifting capacity of 152,000 lb, making this system capable of lifting large commercial trucks, buses, and transit vehicles.
How much space do I need for the CLHM-190 mobile columns?
Challenger recommends a minimum bay width of 14' 8" (14' recommended) and a bay length of 28' for servicing full-size heavy-duty trucks and buses. Each column has a footprint of 650 square inches with dimensions of 44.25" wide by 53.625" long. The columns have a 47" turning radius for maneuvering into position.
What are the electrical requirements for the CLHM-190?
The CLHM-190 operates on battery power during lifting operations, requiring no electrical hookup while in use. Each column has a built-in multi-stage charging system that requires 120 VAC @ 60 Hz, 1.3 Amps for charging between uses. Standard 120-volt outlets are sufficient for the charging system.
Can the CLHM-190 be used outdoors?
Yes, the CLHM-190 can be operated on almost any solid surface, indoors or outdoors. The battery-powered, wireless design eliminates the need for permanent electrical connections, making these columns ideal for outdoor fleet yards, parking areas, and facilities without permanent lift installations.
What warranty coverage does the CLHM-190 include?
Challenger Lifts provides warranty coverage on structural, hydraulic, and electrical components against defects in materials and workmanship. Coverage requires proper installation, operation according to manufacturer guidelines, and regular maintenance. See the warranty document for complete terms and exclusions.
What is included with each CLHM-190 column?
Each CLHM-190 column includes the lift unit with integrated touch screen control console, built-in 110V multi-stage charging system, installed 12-volt deep cycle batteries, heavy-duty tow handle, adjustable wheel carriage, and installation/operation manual. Columns are sold individually and typically purchased in sets of 2, 4, 6, or 8.
How is the CLHM-190 shipped and what do I need for delivery?
The CLHM-190 ships via freight to commercial addresses in the 48 contiguous states with free shipping. Each column weighs 1,510 lb, so you will need a forklift or loading dock for unloading. Curbside delivery is standard. Inspect all packages for damage before signing the bill of lading and note any damage on the delivery receipt.
What accessories are available for the CLHM-190?
Challenger offers a wide range of accessories to customize the CLHM-190 for specialty applications including heavy-duty truck adapters, transit and municipality vehicle accessories, forklift lifting adapters, and cab removal accessories for standard pickup trucks. Contact our sales team for specific accessory recommendations for your application.
What is the difference between the CLHM-140 and CLHM-190?
The primary difference is lifting capacity: the CLHM-140 offers 14,000 lb capacity per column while the CLHM-190 provides 19,000 lb per column. The CLHM-190 also has higher maximum hydraulic pressure (2,600 psi vs 2,180 psi) and slightly higher weight (1,510 lb vs 1,485 lb). Both models share the same dimensions and features.
How does the wireless system work on the CLHM-190?
The CLHM-190 uses a wireless communication system with 12 radio frequencies and a wide channel range to prevent radio interference. Each column operates independently on battery power with no cables connecting the units. The integrated touch screen at each column allows operation from any unit, and linear position transducers maintain precise synchronization across all columns.
What tire sizes can the CLHM-190 accommodate?
The adjustable wheel carriage on the CLHM-190 accommodates wheel diameters from 5" minimum to 24.5" maximum. This range covers most passenger vehicles, light trucks, medium-duty trucks, and heavy-duty commercial vehicles. For the wide version (CLHM-190W), minimum wheel diameter is 4" with maximum determined by tire diameter.
Is the CLHM-190 ALI certified?
Yes, the Challenger CLHM-190 is ALI (Automotive Lift Institute) certified and ETL certified, meeting industry safety standards for automotive lifting equipment. ALI certification ensures the lift has been tested and meets ANSI/ALI ALCTV safety standards for vehicle lifts.
