Challenger CL4P9W Four-Post Wide Car Storage Lift 9000 lb Capacity
- Authorized Online Dealer direct manufacturer relationship
- No Sales Tax outside PA where applicable
- Authorized Dealer Price Match verification required
- Fast Delivery some products may have lead times
- Manufacturer Warranty included with purchase
- Questions? +1 (855) 498-2147

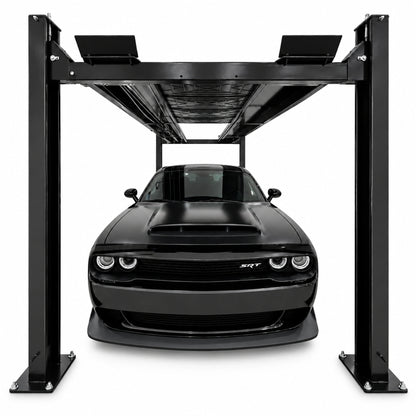

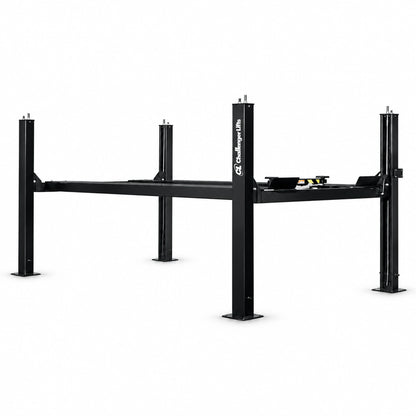

Challenger CL4P9W 9,000 lb Four-Post Wide Home Storage Lift for Garage and Commercial Applications
The Challenger CL4P9W is a 9,000 lb capacity ALI/ETL certified four-post storage lift designed for home enthusiasts and commercial vehicle storage applications. This wide model features an impressive 127.25" overall width with 110" inside columns to accommodate larger vehicles, plus an 85.5" rise height and 80" storage clearance for maximum versatility. The CL4P9W operates on standard 115V or 230V single-phase power and requires no air for operation, making installation straightforward in most garage environments. Backed by Challenger's industry-leading warranty with 5-year structural coverage, this American-made lift delivers professional-grade performance for serious vehicle collectors and storage needs.
Challenger CL4P9W Features
Extra-Wide Configuration for Larger Vehicles
The CL4P9W wide model provides 127.25" overall width and 110" inside columns, offering significantly more room than standard models. This expanded width accommodates wider vehicles including full-size trucks, SUVs, and classic cars with extended mirrors or accessories, ensuring hassle-free positioning on the runways.
Maximum Rise and Storage Clearance

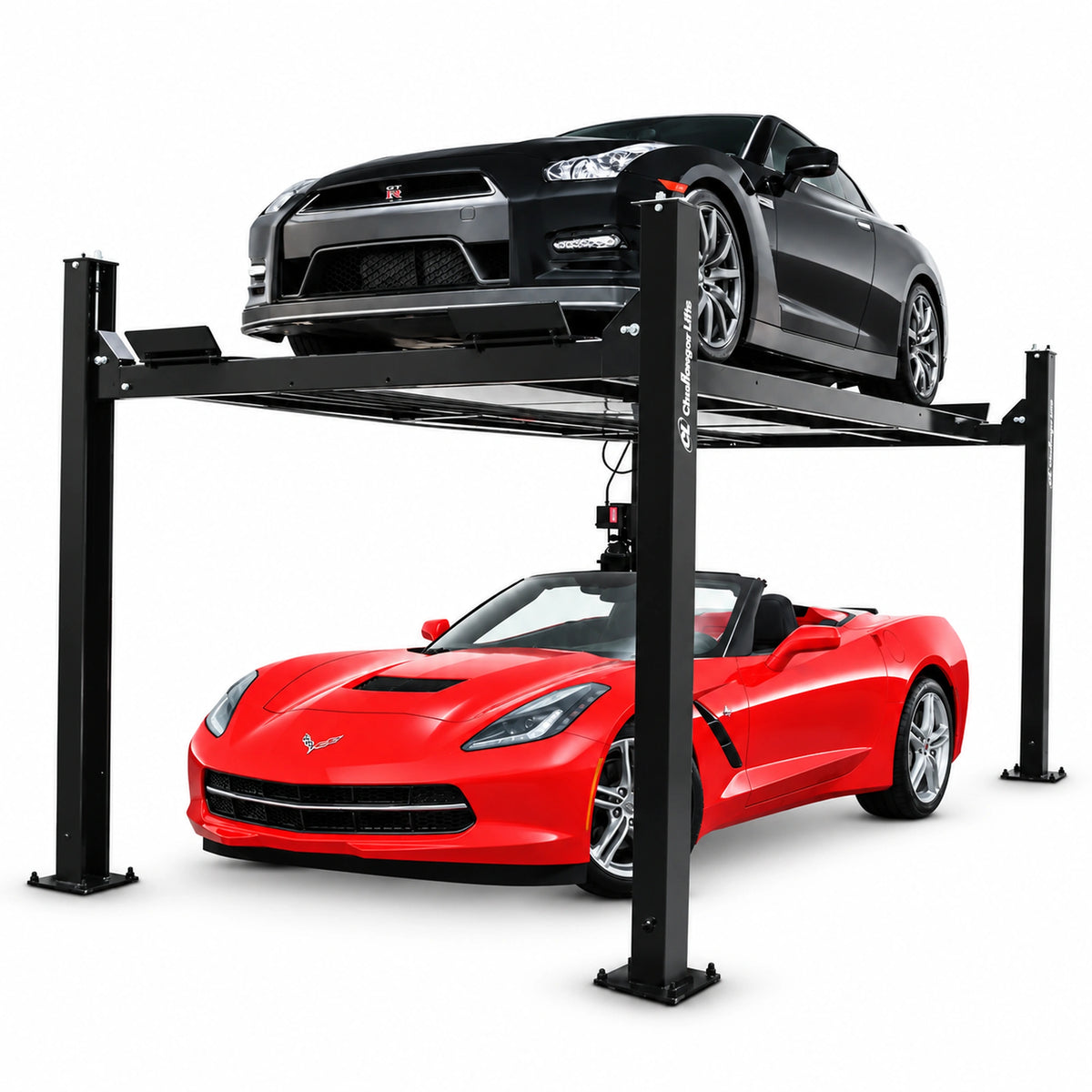

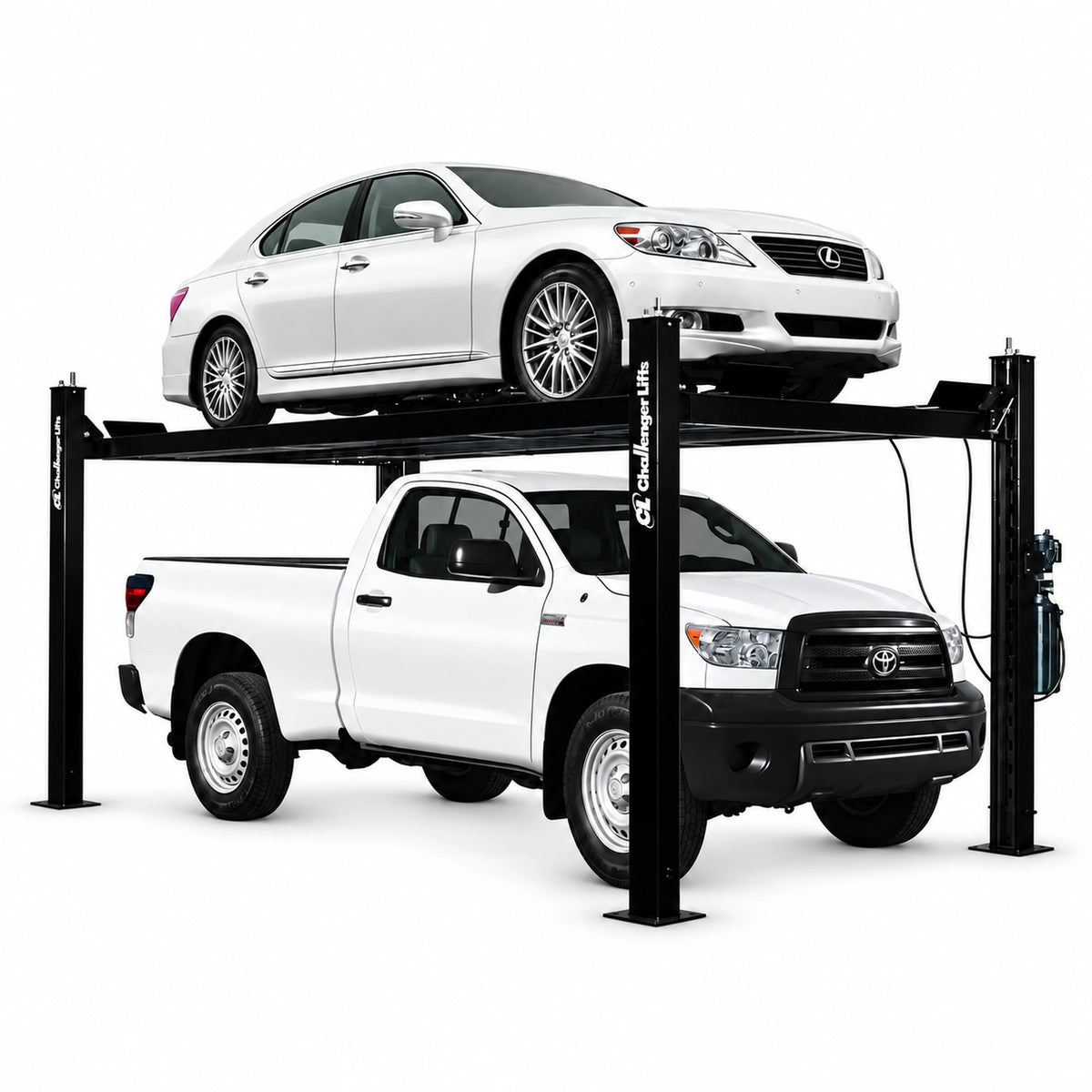

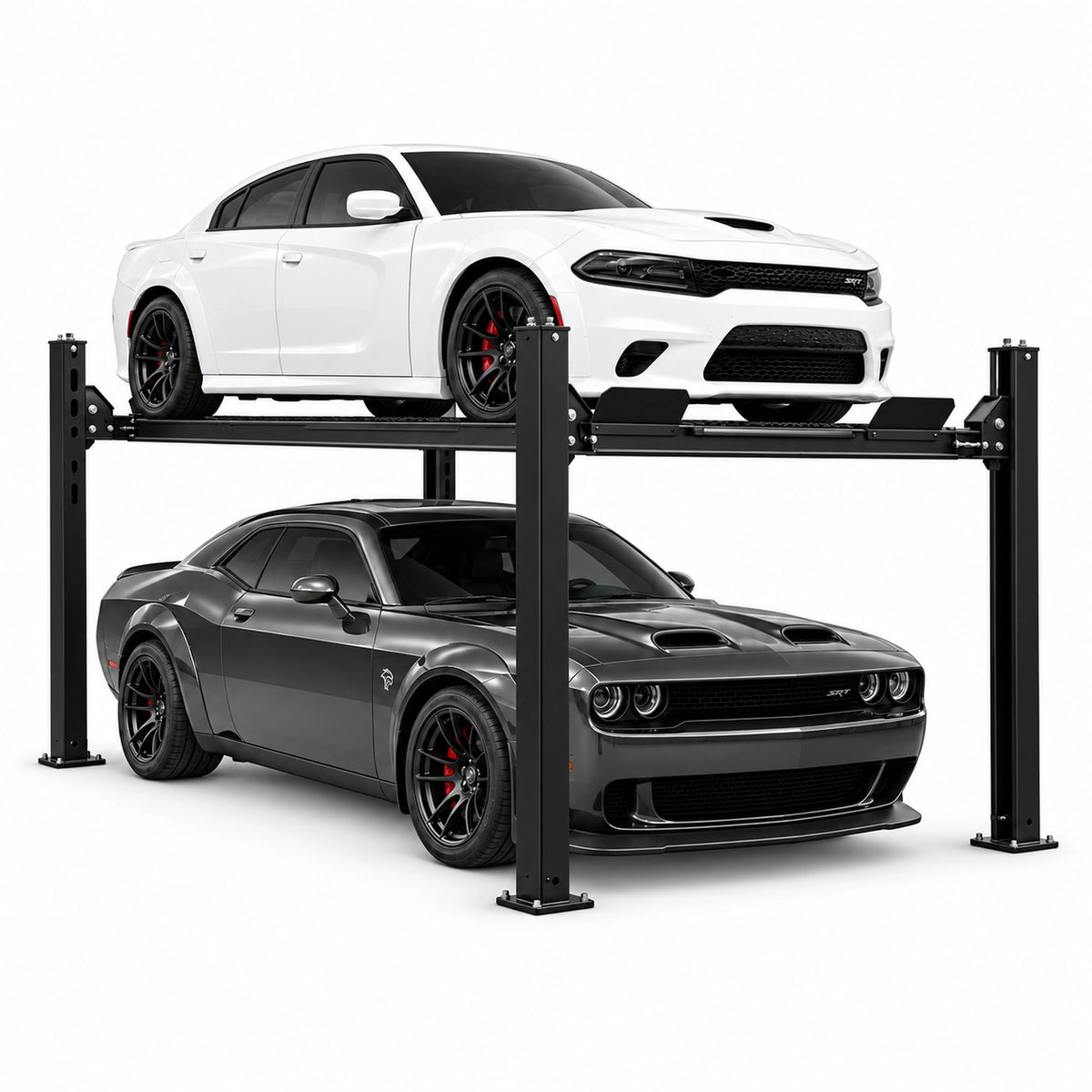

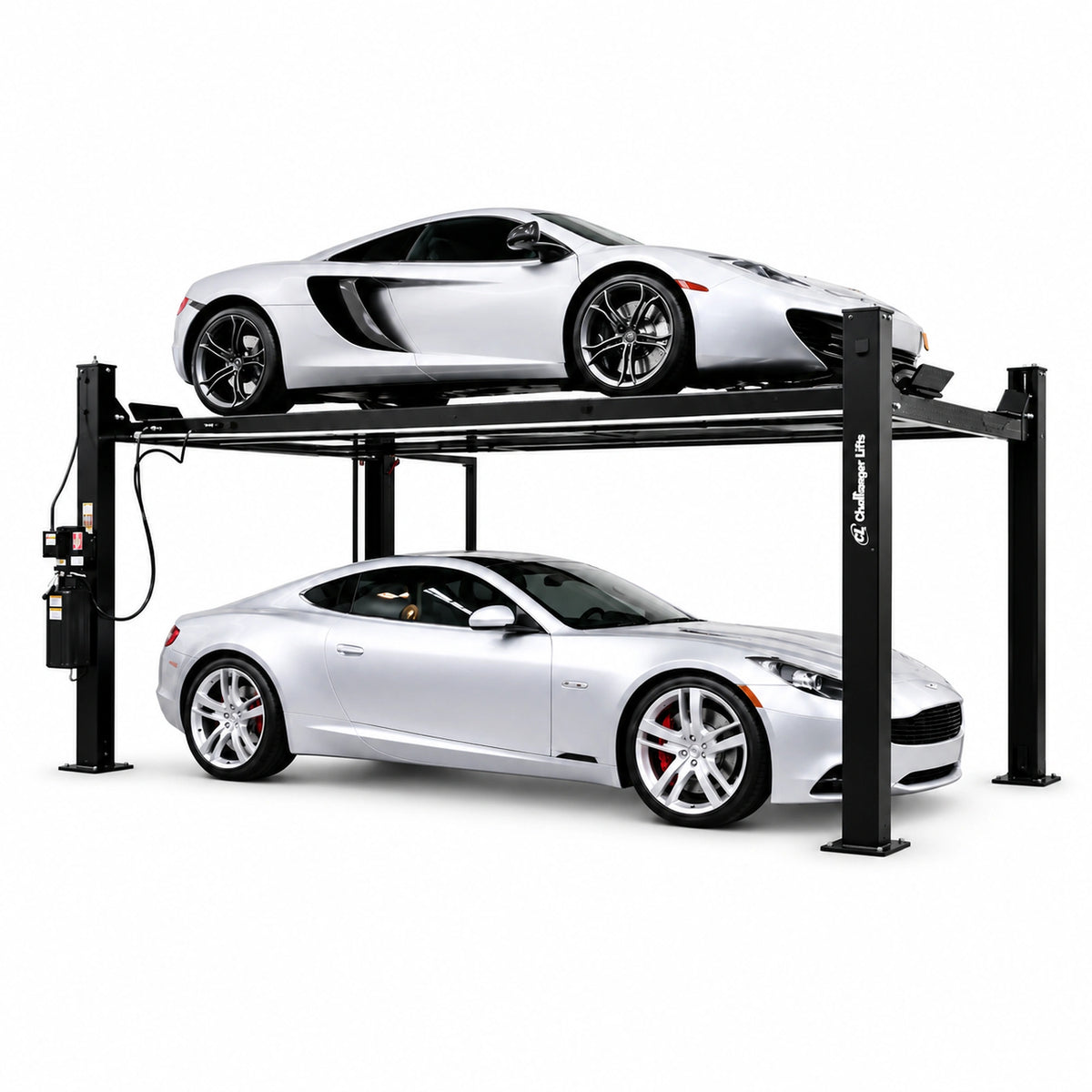

With an 85.5" service rise height at the top locked position and 80" storage clearance, the CL4P9W maximizes your vertical space utilization. Store a vehicle overhead while maintaining ample clearance underneath for a second vehicle, workshop activities, or additional storage.
Commercial-Grade Formed Runways
Heavy-duty formed runways provide a strong, stable platform with 20" runway width and 38" between runways. The built-in runway rail system accommodates optional accessories like rolling jacks and oil drip trays, adding versatility for service applications beyond simple storage.
Adjustable Lock Ladders
The adjustable lock ladder system allows for versatile installation with sensitivity to uneven floors. This feature ensures safe, secure locking at multiple height positions while accommodating real-world garage floor conditions that may not be perfectly level.
Single-Point Manual Lock Release
The convenient single-point manual lock release disengages all column locks simultaneously, streamlining the lowering process. This intuitive safety feature ensures consistent, controlled operation every time you need to bring a vehicle down from storage.
Enhanced Stability with Larger Components
The 9,000 lb models feature larger columns and base plates compared to the 7K series, providing enhanced stability and load distribution. Combined with 8' 0.5" column height and robust construction, the CL4P9W handles heavy vehicles with confidence.
Challenger CL4P9W Applications

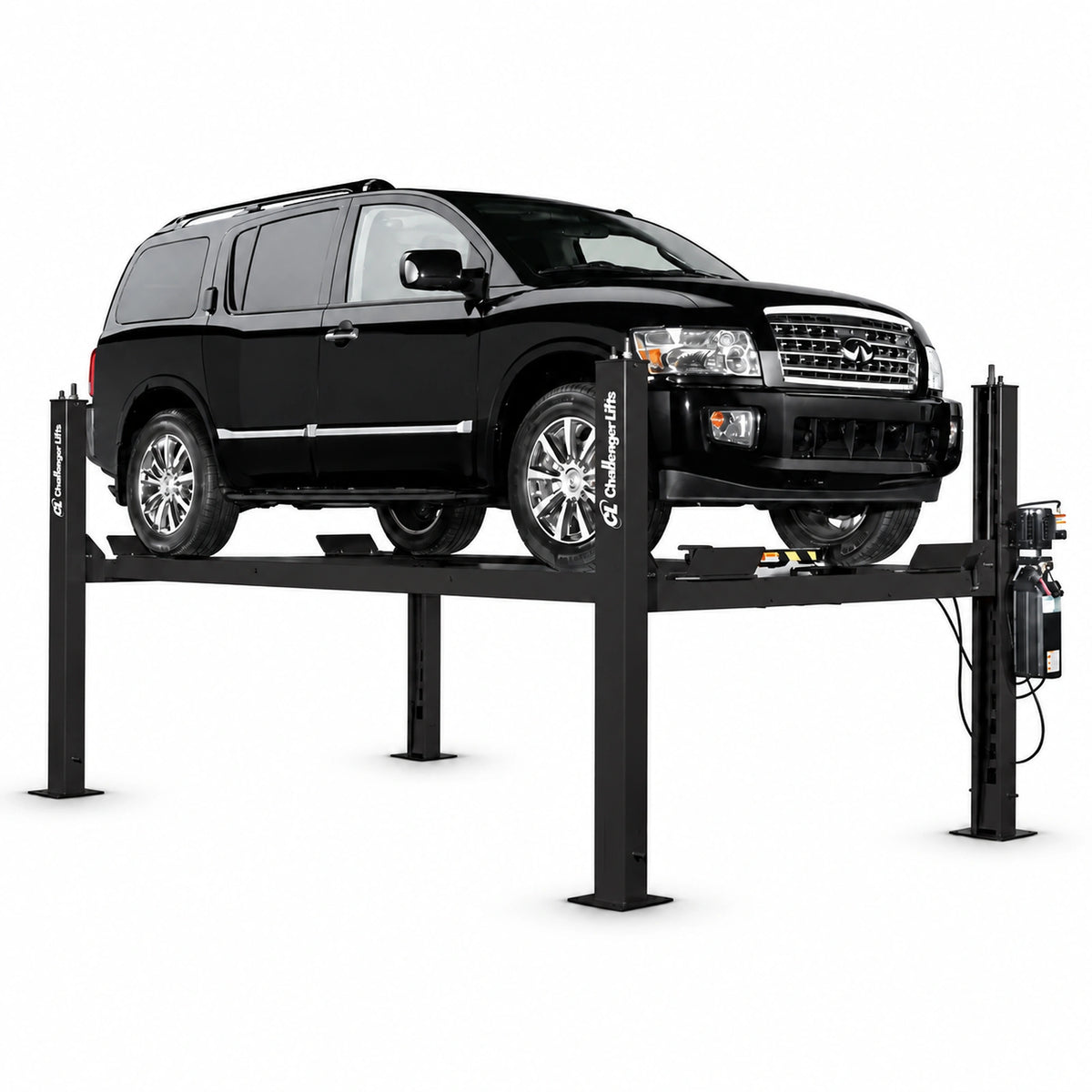

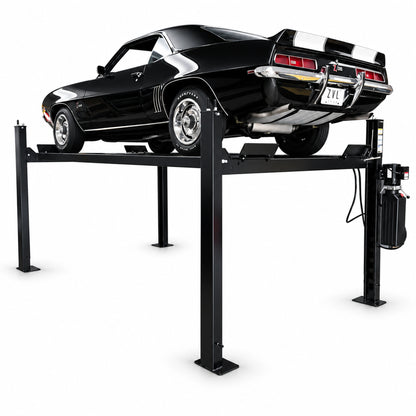

- Home Garage Vehicle Storage: Perfect for enthusiasts who need to store collector cars, seasonal vehicles, or project cars overhead while keeping a daily driver accessible underneath. The wide configuration handles full-size trucks and SUVs with ease.

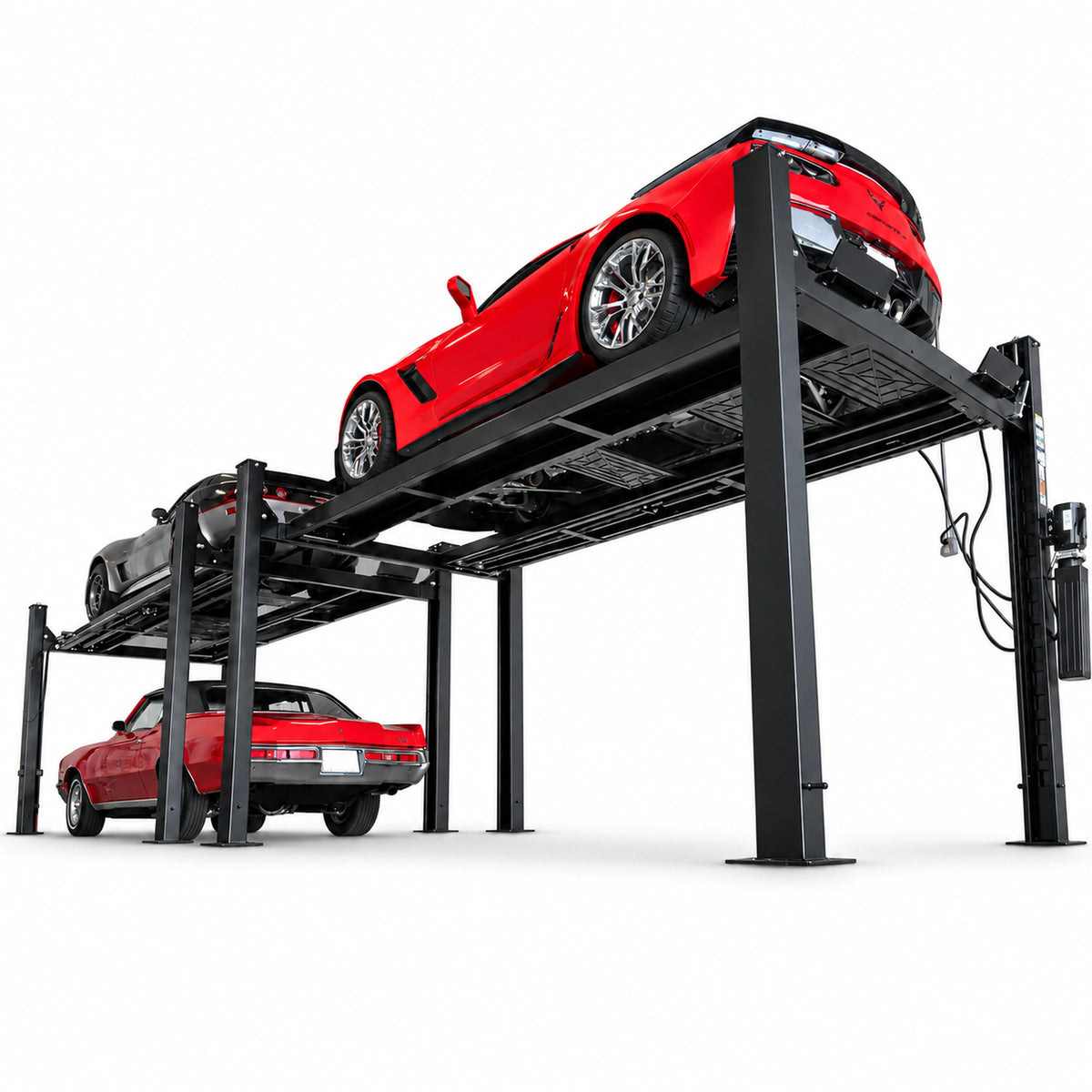

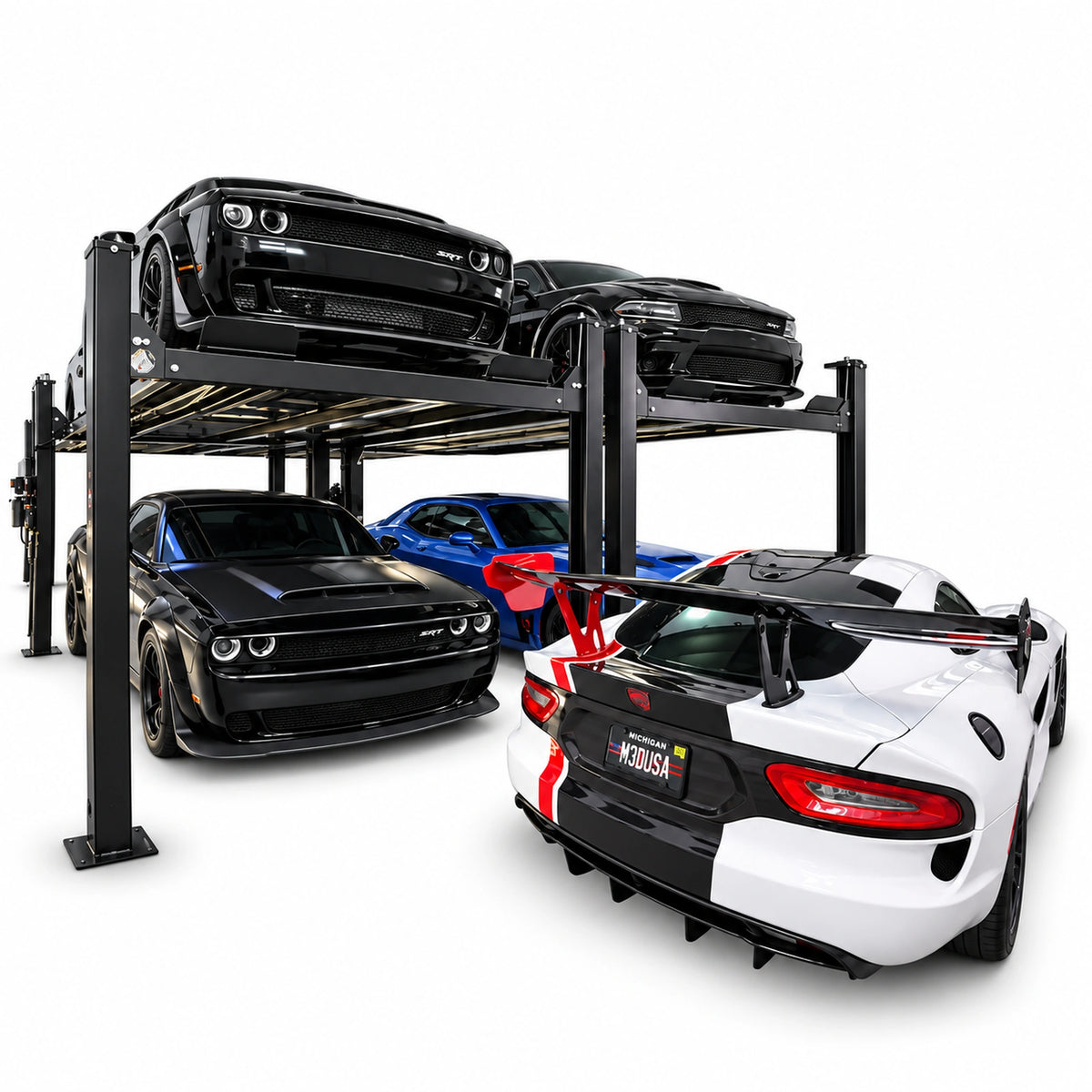

- Multi-Vehicle Collectors: Maximize your garage capacity by doubling your parking space. The 80" storage clearance allows comfortable access beneath the raised vehicle for a second car or workspace.
- Commercial Vehicle Storage Facilities: ALI/ETL certified for commercial use, the CL4P9W provides reliable long-term storage for dealerships, rental agencies, and vehicle storage businesses.
- Light-Duty Service and Maintenance: The built-in runway rail system and optional rolling jacks transform this storage lift into a capable service platform for oil changes, inspections, and light maintenance tasks.
- Wide Vehicle Applications: The extra-wide 110" inside column spacing accommodates dual-rear-wheel trucks, vehicles with wide body kits, and classic cars with extended side mirrors that would be tight on standard-width lifts.

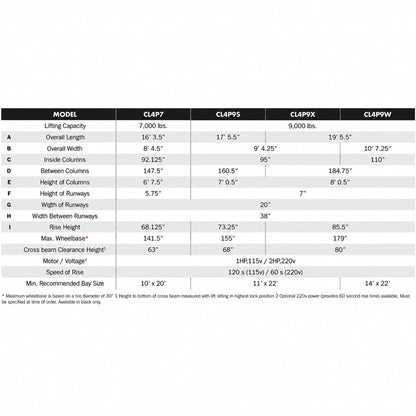

Challenger CL4P9W Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 9,000 lb |
| Maximum Wheelbase | 179" |
| ALI/ETL Certified | Yes |

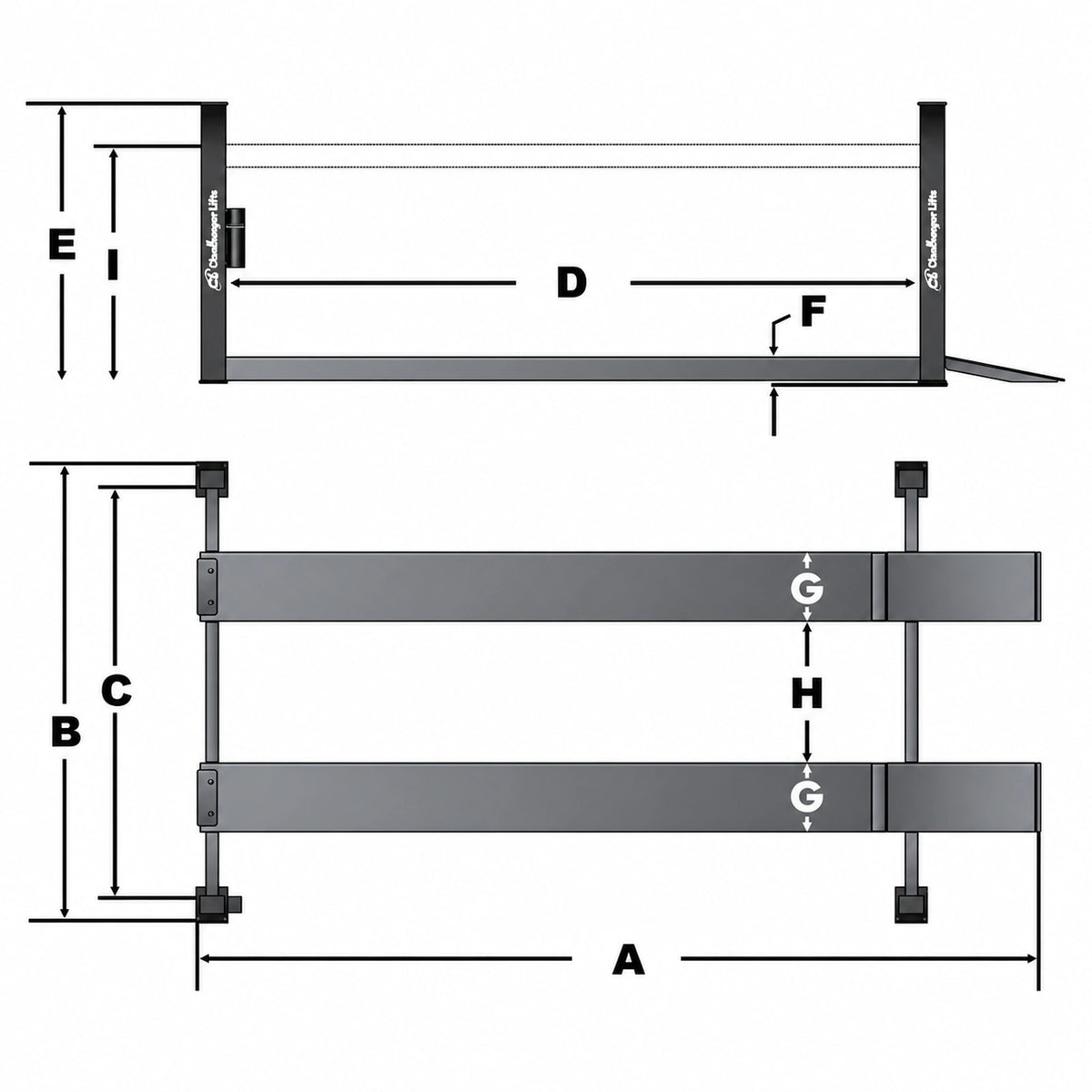

| Specification | Value |
|---|---|
| Length Overall | 233.5" |
| Width Overall | 127.25" |
| Inside Columns | 110" |
| Between Columns | 185.75" |
| Height of Columns | 8' 0.5" |
| Height of Runways (Floor to Top) | 7" |
| Width of Runways | 20" |
| Width Between Runways | 38" |
| Rise Height (Top Position) | 85.5" |
| Clearance Height (Storage) | 80" |
| Crossbeam Clearance Height | 80" |
| Minimum Recommended Bay Size | 14' x 22' |
| Specification | Value |
|---|---|
| Motor | 1HP / 2HP |
| Voltage (Single Phase Standard) | 115V / 230V |
| Speed of Rise (115V / 230V) | 120 / 60 seconds |
| Air Required | No |
| Specification | Value |
|---|---|
| Colors Available | Black |
| Anchoring Required for Certification | No |
Challenger CL4P9W Installation Requirements
Electrical Requirements
Power: 115V or 230V single-phase power supply. The lift operates faster on 230V (60 seconds rise time vs 120 seconds on 115V). A licensed electrician must install and verify the electrical supply meets local codes and manufacturer specifications.
Concrete Foundation
Anchoring: While anchoring is not required to maintain ALI/ETL certification, Challenger recommends following installation manual guidelines for your specific application. Ensure the concrete floor is in good condition and capable of supporting the lift and vehicle weight.
Space Requirements
Minimum Bay Size: 14' x 22' recommended. Overall Dimensions: 233.5" length x 127.25" width. Column Height: 8' 0.5". Ensure adequate ceiling clearance above the columns plus the vehicle height at full rise for safe operation.
Professional Installation
Professional installation is recommended to ensure proper setup, alignment, and safe operation. The adjustable lock ladders accommodate uneven floors, but proper installation is critical for safe, reliable performance. Warranty coverage requires installation according to Challenger specifications.
What's Included with the Challenger CL4P9W
- Complete four-post lift structure with columns, runways, and crossbeams
- Power unit with 1HP/2HP motor
- Hydraulic cylinders and cables
- Single-point manual lock release system
- Adjustable lock ladders
- Hardware and anchoring kit
- Installation and operation manual
Optional Accessories: Rolling jacks, oil drip trays, and other convenience options available separately (compatible with built-in runway rail system).
Not Included: Electrical work, concrete work, installation labor, and optional accessories.
Challenger CL4P9W Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Ships within 5-10 business days. International: Contact sales for international shipping quotes.
Delivery Requirements
Unloading: Forklift or loading dock required for unloading. Delivery Type: Curbside delivery standard. Inspection: Inspect all packages for damage before signing the Bill of Lading. Note any visible damage on the delivery receipt immediately.
Returns
Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. 20% restocking fee applies. Buyer responsible for return freight costs.
Challenger CL4P9W Warranty
Challenger Limited Warranty
Challenger Lifts guarantees the CL4P9W to the original owner with the following coverage:
- 5 Years: Structural parts including carriage, columns, runways, crossbeams, and wheel stops
- 1 Year: Functional parts including power unit, cylinders, cables, hoses, valves, and controls
- 1 Year: Labor costs for warranty repairs
Requirements: Warranty registration must be completed online at challengerlifts.com. Product must be installed, used, and maintained according to Challenger specifications. Use of unapproved parts or accessories voids warranty. This warranty is non-transferable and extends only to the original purchaser.
Documents
Click to open in a new tab.
Questions About the Challenger CL4P9W?
Our equipment specialists can help with installation planning, specifications, and product selection for your shop.
Challenger CL4P9W FAQ
What is the maximum vehicle weight the CL4P9W can lift?
The Challenger CL4P9W has a 9,000 lb lifting capacity, which is ALI/ETL certified. This capacity handles most full-size trucks, SUVs, and passenger vehicles with room to spare. Always verify your vehicle's weight before lifting.
How much clearance do I have underneath for storage?
The CL4P9W provides 80" of clearance height in the top locked storage position. This is enough space to park most sedans, coupes, and smaller SUVs underneath, or to use the space as a workshop area.
What size garage do I need for the CL4P9W?
Challenger recommends a minimum bay size of 14' x 22' for the CL4P9W. The lift's overall dimensions are 233.5" long x 127.25" wide with 8' 0.5" column height. Ensure adequate ceiling clearance for your tallest vehicle at full rise.
What electrical power does the CL4P9W require?
The CL4P9W operates on 115V or 230V single-phase power. On 115V, the rise time is approximately 120 seconds. On 230V, it reduces to about 60 seconds. A licensed electrician should install and verify the electrical supply.
Does the lift require a compressed air supply?
No, the CL4P9W does not require compressed air for operation. This simplifies installation and reduces ongoing maintenance requirements compared to air-operated lifts.
Is anchoring required to maintain ALI/ETL certification?
No, anchoring is not required to maintain the CL4P9W's ALI/ETL certification. However, follow the installation manual guidelines for your specific application to ensure safe operation.
What is the difference between the CL4P9W and other CL4P9 models?
The CL4P9W is the "Wide" model with 127.25" overall width and 110" inside columns. The CL4P9S (Standard) has 112.25" overall width and 95" inside columns. The CL4P9X (Extended) shares the standard width but has 233.5" length for longer wheelbases. Choose based on your vehicle width requirements.
What warranty coverage comes with the CL4P9W?
Challenger provides a 5-year warranty on structural parts (columns, runways, crossbeams), 1-year warranty on functional parts (power unit, cylinders, cables), and 1-year labor coverage. Warranty registration is required at challengerlifts.com.
What accessories are available for the CL4P9W?
The CL4P9W features a built-in runway rail system that accepts rolling jacks, oil drip trays, and other convenience accessories (sold separately). These accessories transform the storage lift into a capable service platform.
How is the lift shipped and delivered?
The CL4P9W ships via freight with free delivery to commercial addresses in the 48 contiguous US states. A forklift or loading dock is required for unloading. Inspect all packages before signing the Bill of Lading and note any damage immediately.
Can I install the CL4P9W myself?
While DIY installation is possible for experienced individuals, professional installation is recommended to ensure proper setup, alignment, and safe operation. The adjustable lock ladders accommodate uneven floors, but correct installation is critical for safety and warranty compliance.
What is the maximum wheelbase the CL4P9W can accommodate?
The CL4P9W accommodates vehicles with wheelbases up to 179". This handles nearly all passenger vehicles, full-size trucks, and SUVs. Verify your vehicle's wheelbase specifications before purchasing.
