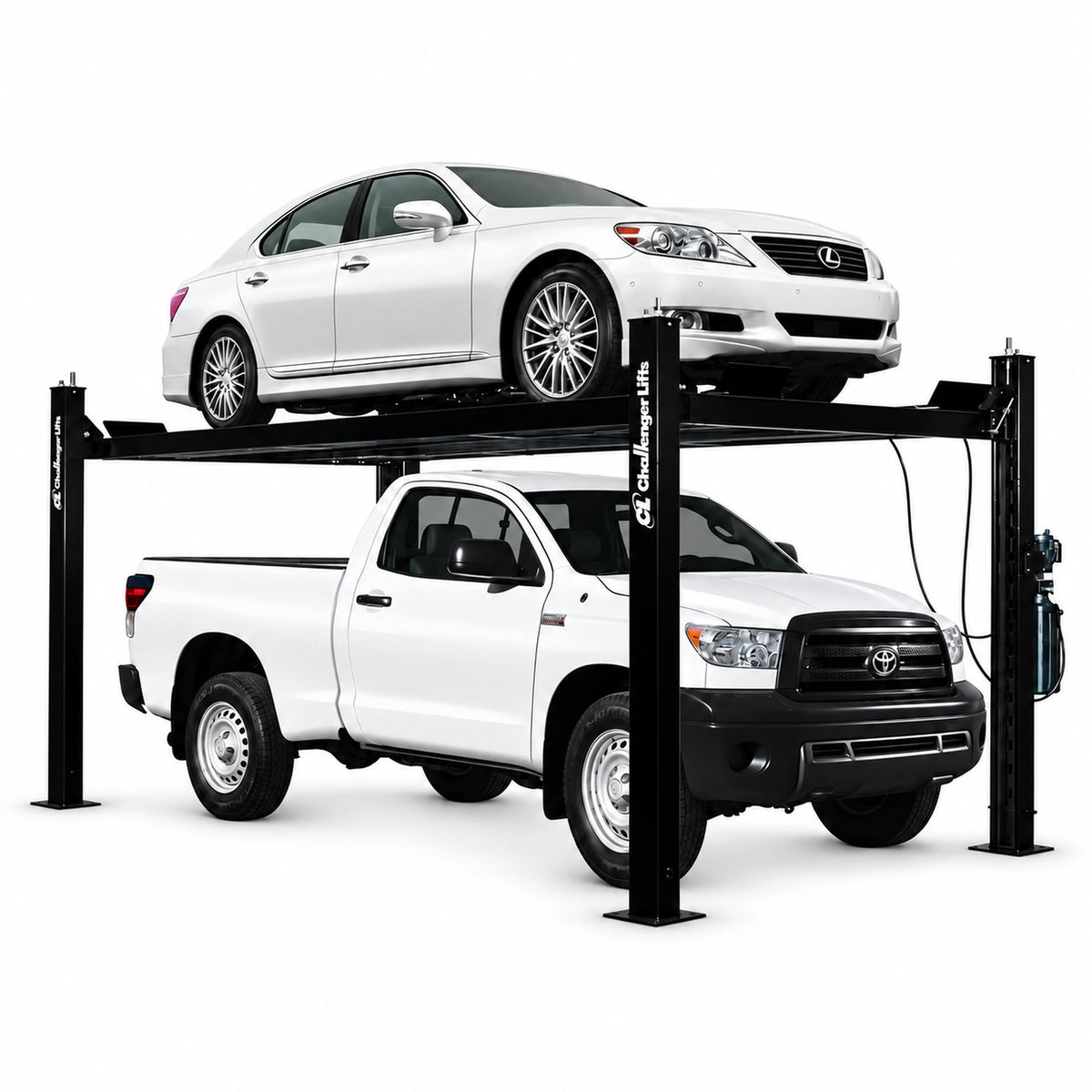

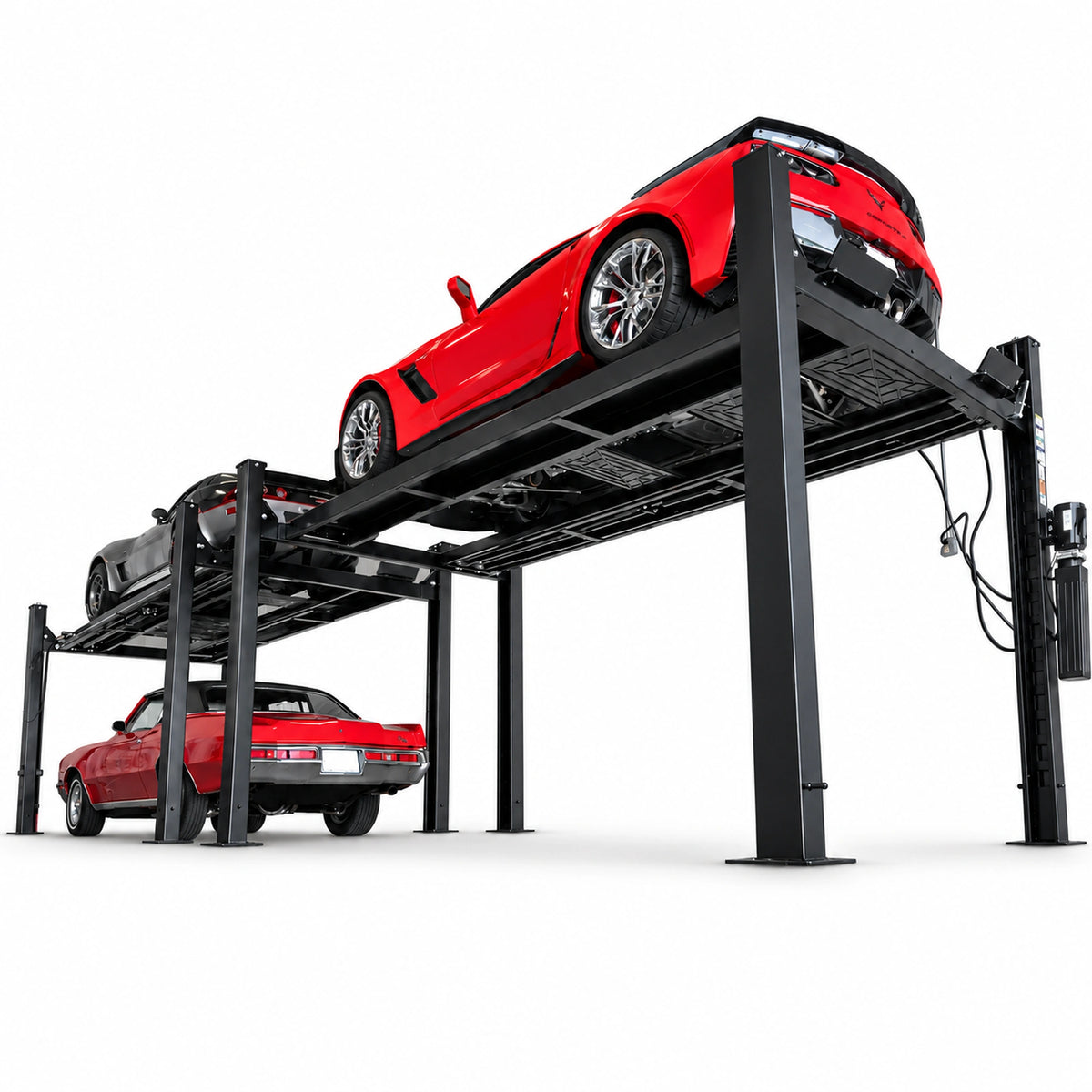

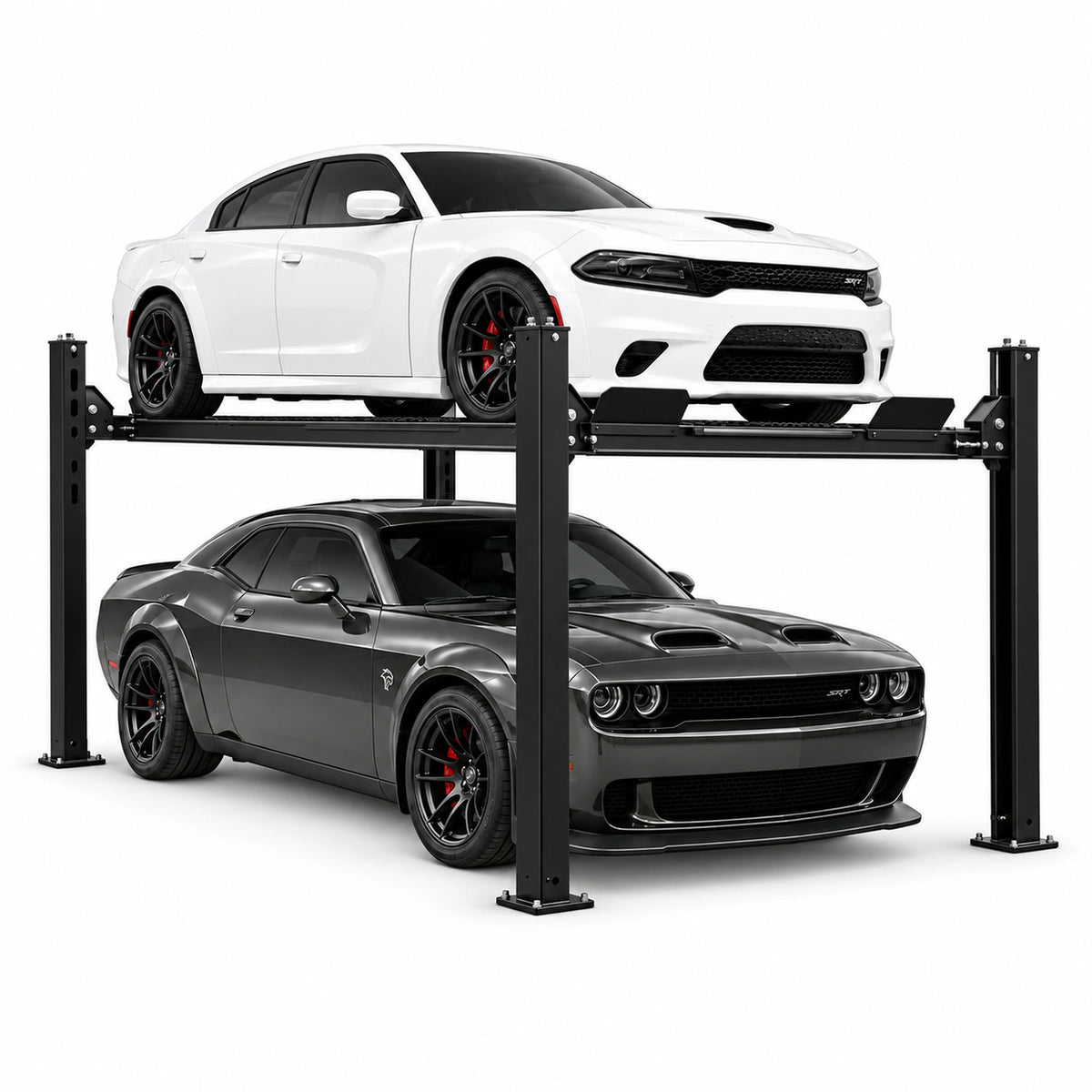

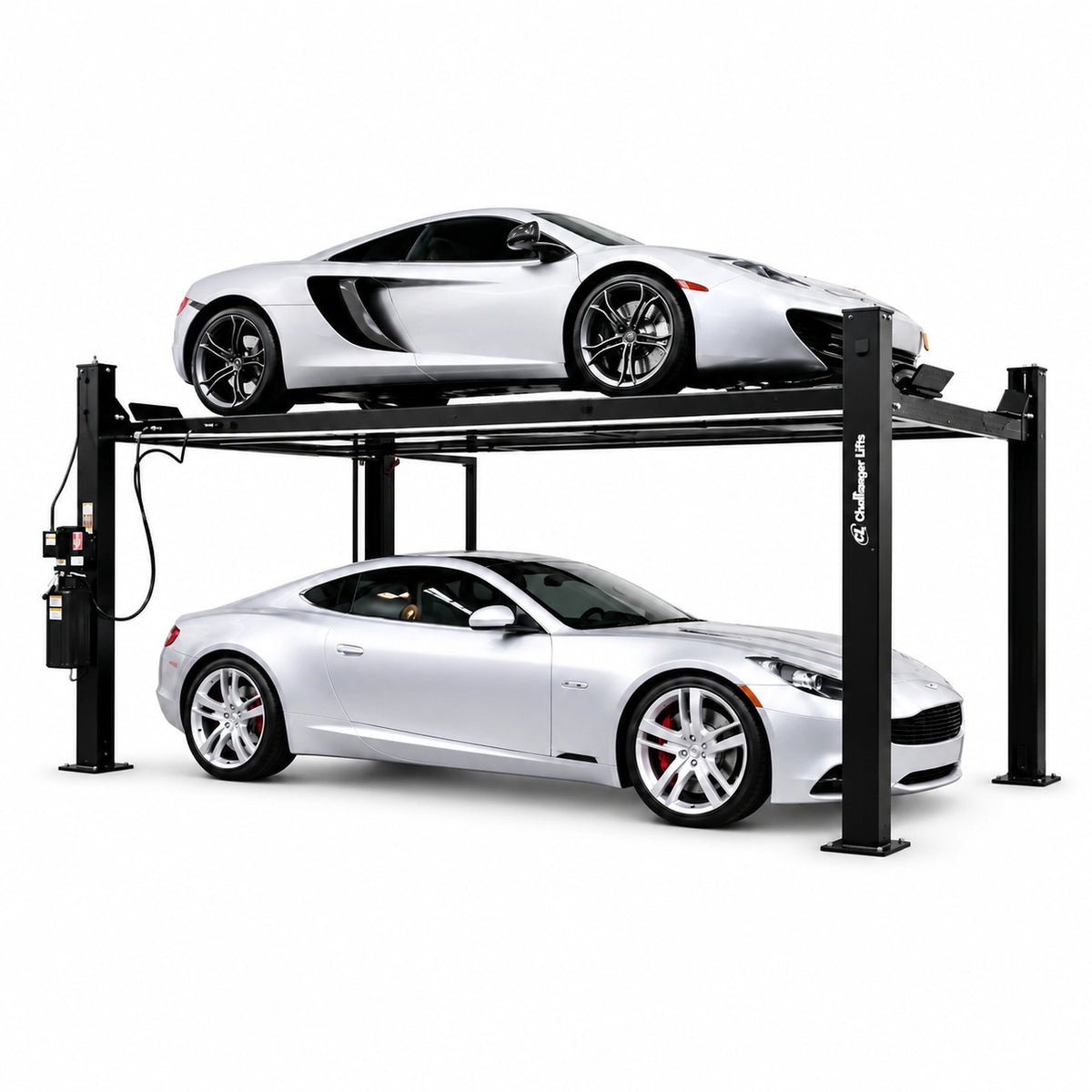

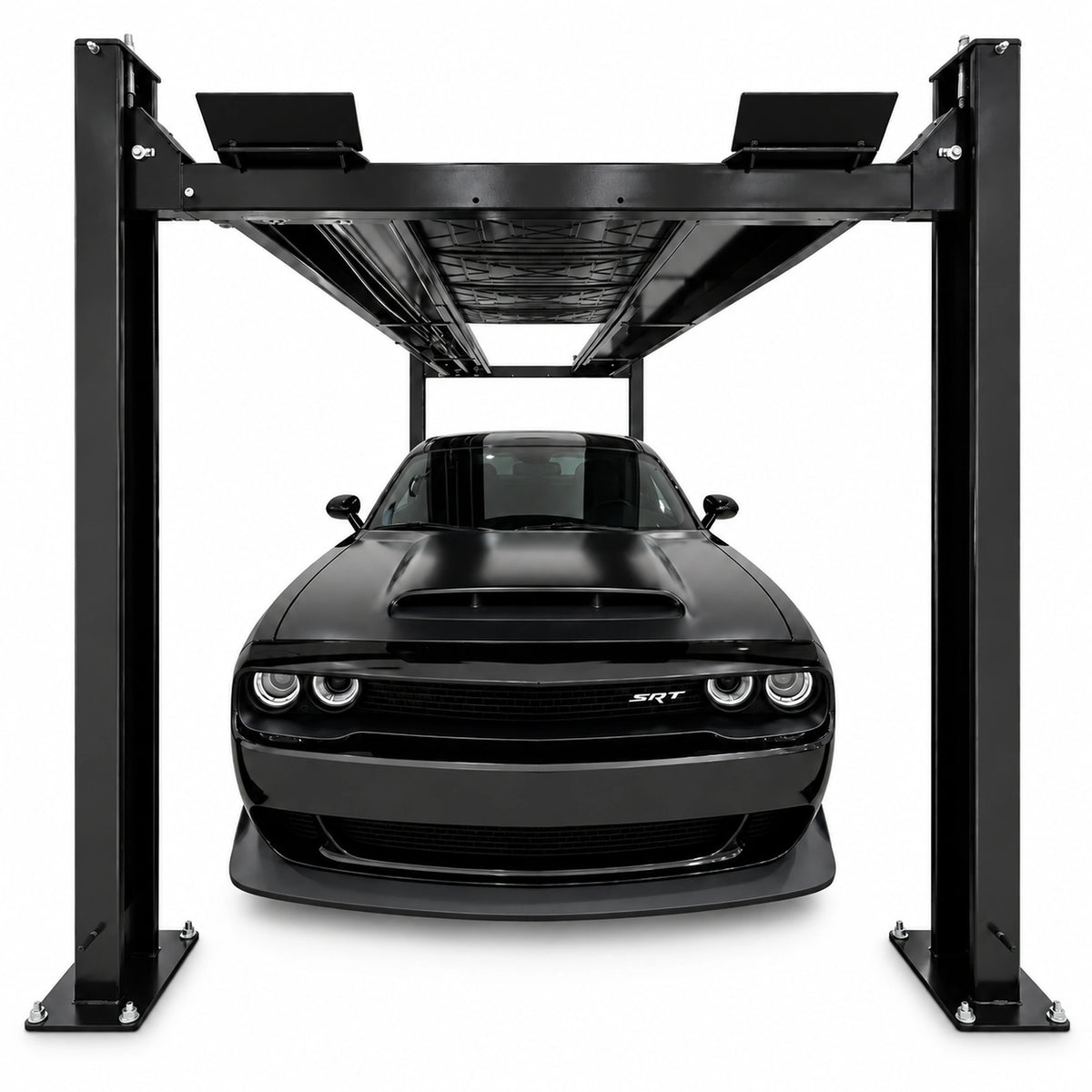

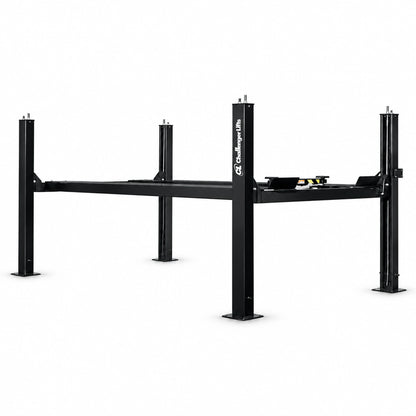

Challenger CL4P9S 9,000 lb Four-Post Storage Lift for Home Garages and Commercial Storage
The Challenger CL4P9S is an ALI/ETL certified four-post storage lift with a 9,000 lb lifting capacity, designed for home enthusiasts and commercial vehicle storage applications. This standard-length model features a 73.25" rise height and 67.75" storage clearance, allowing you to store a second vehicle underneath or perform light-duty service work. The CL4P9S operates on 115v or 230v single-phase power, requires no air supply, and does not require anchoring to maintain its ALI certification. Backed by Challenger's commitment to American manufacturing and professional-grade construction.
Challenger CL4P9S Features
ALI/ETL Certified 9,000 lb Capacity

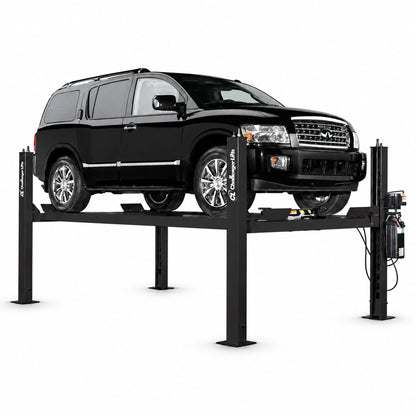

The CL4P9S meets the rigorous safety standards of the Automotive Lift Institute with full ALI/ETL certification. The 9,000 lb lifting capacity handles full-size trucks, SUVs, and collector vehicles with confidence, giving you peace of mind for both storage and service applications.
Optimized Storage Clearance

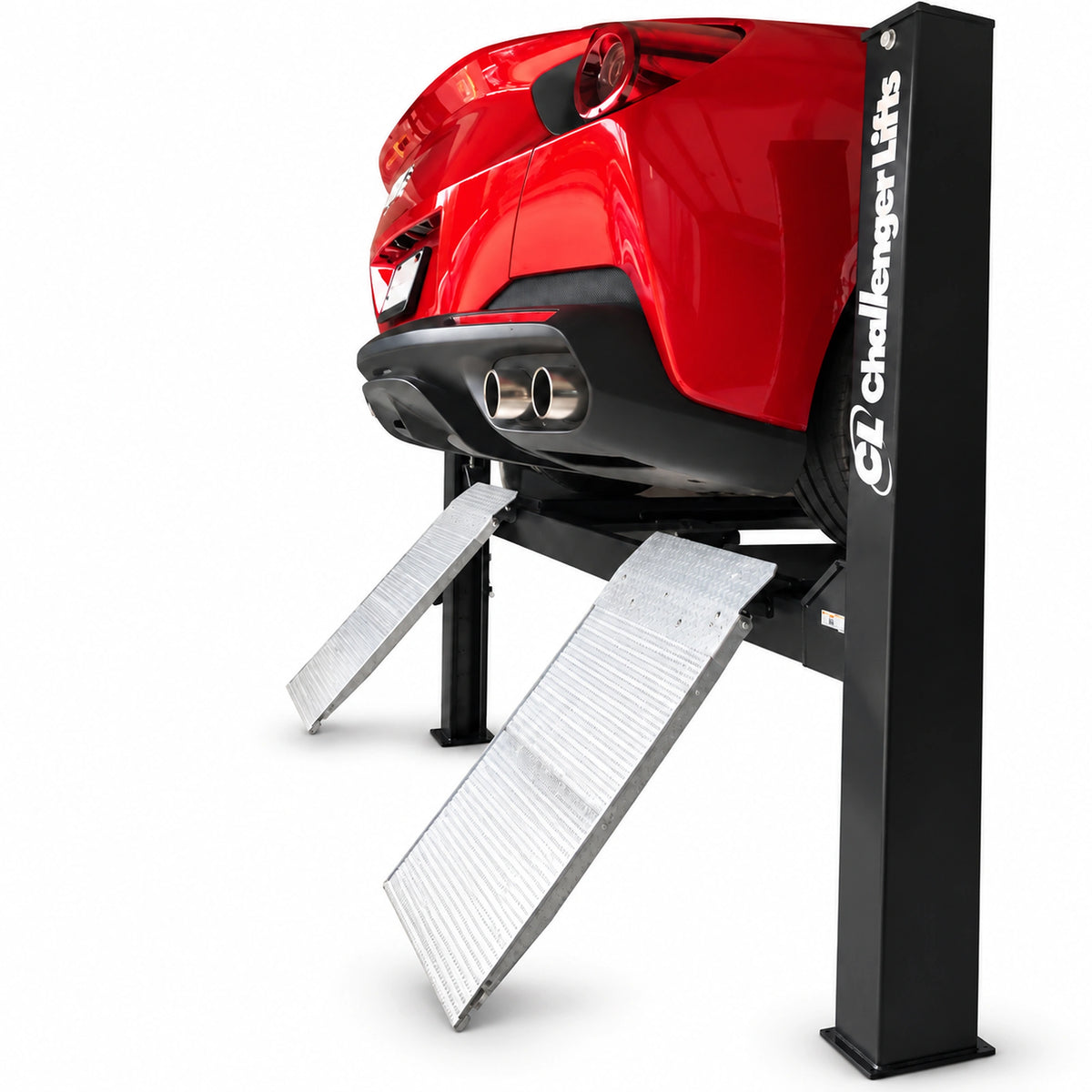

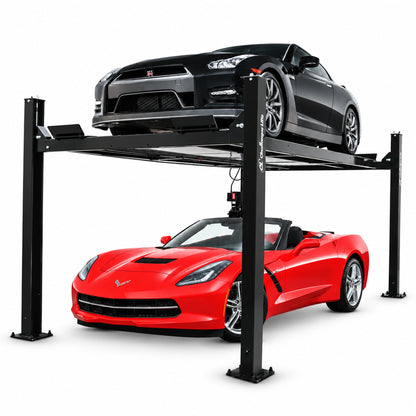

With a 73.25" rise height at the top lock position and 67.75" clearance underneath, the CL4P9S maximizes your garage space by allowing storage of a second vehicle below. The 7" runway height at floor level provides easy drive-on access for low-profile vehicles.
Single-Point Manual Lock Release
The synchronized single-point manual lock release disengages all column locks simultaneously, providing safe and convenient operation. Adjustable lock ladders accommodate up to 3" of floor variation, ensuring proper installation even on uneven surfaces.
No Air or Anchoring Required
The CL4P9S operates entirely on hydraulic power with no compressed air required. The lift maintains its full ALI/ETL certification without anchoring when installed on properly prepared concrete, simplifying installation for home garage applications.
Commercial-Grade Runway Construction
Heavy-duty formed steel runways with 20" width and 38" spacing provide a stable, durable platform. The built-in jack rail system accepts optional rolling jacks, drip trays, and storage platforms for maximum versatility.
Durable Powder Coat Finish
A professional-grade black powder coat finish protects against corrosion, chemicals, and daily wear. This durable coating ensures your lift maintains its appearance and structural integrity for years of reliable service.
Challenger CL4P9S Applications

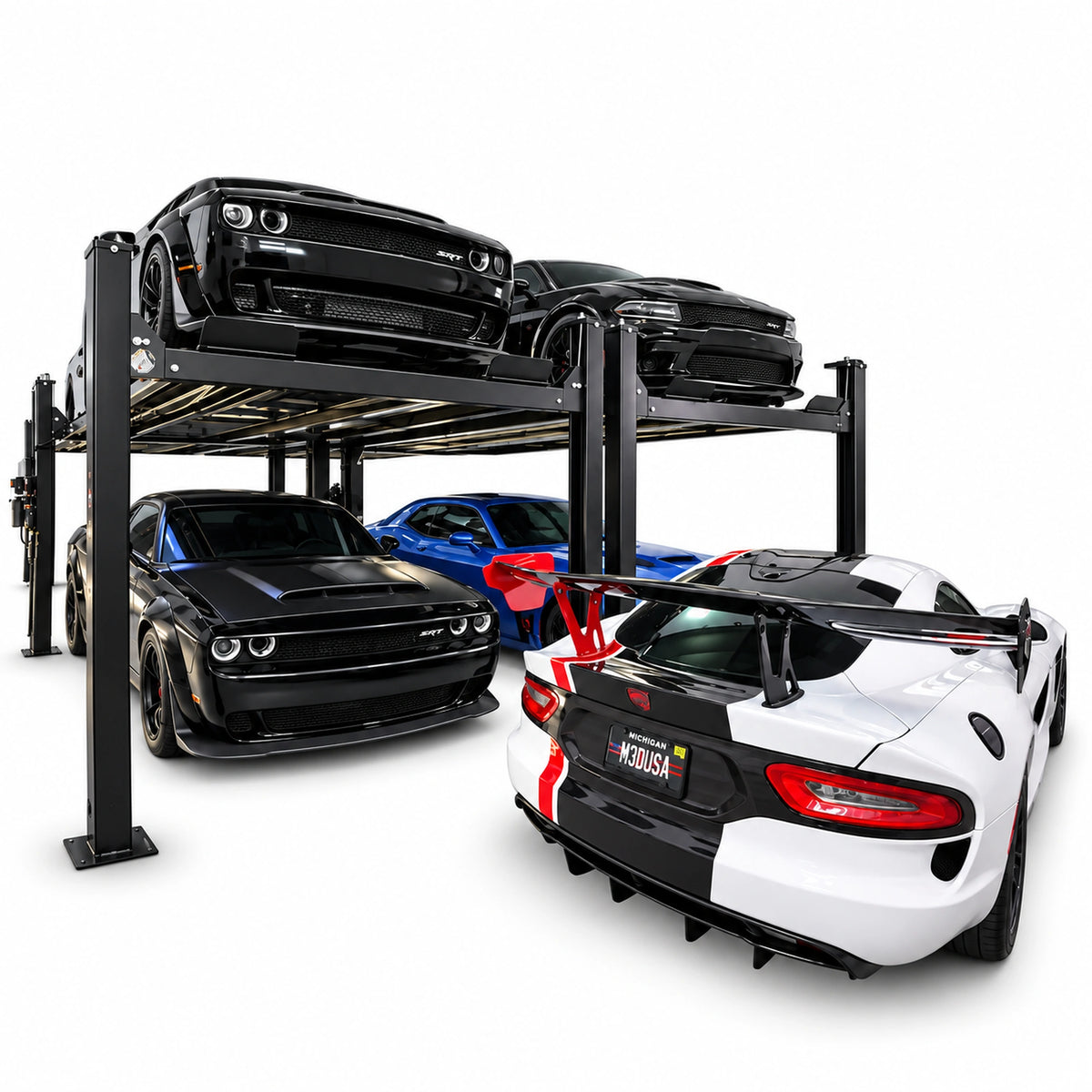

- Home Vehicle Storage: Store a second vehicle underneath your lifted car to maximize garage space. The 67.75" clearance height accommodates most sedans, sports cars, and compact SUVs.

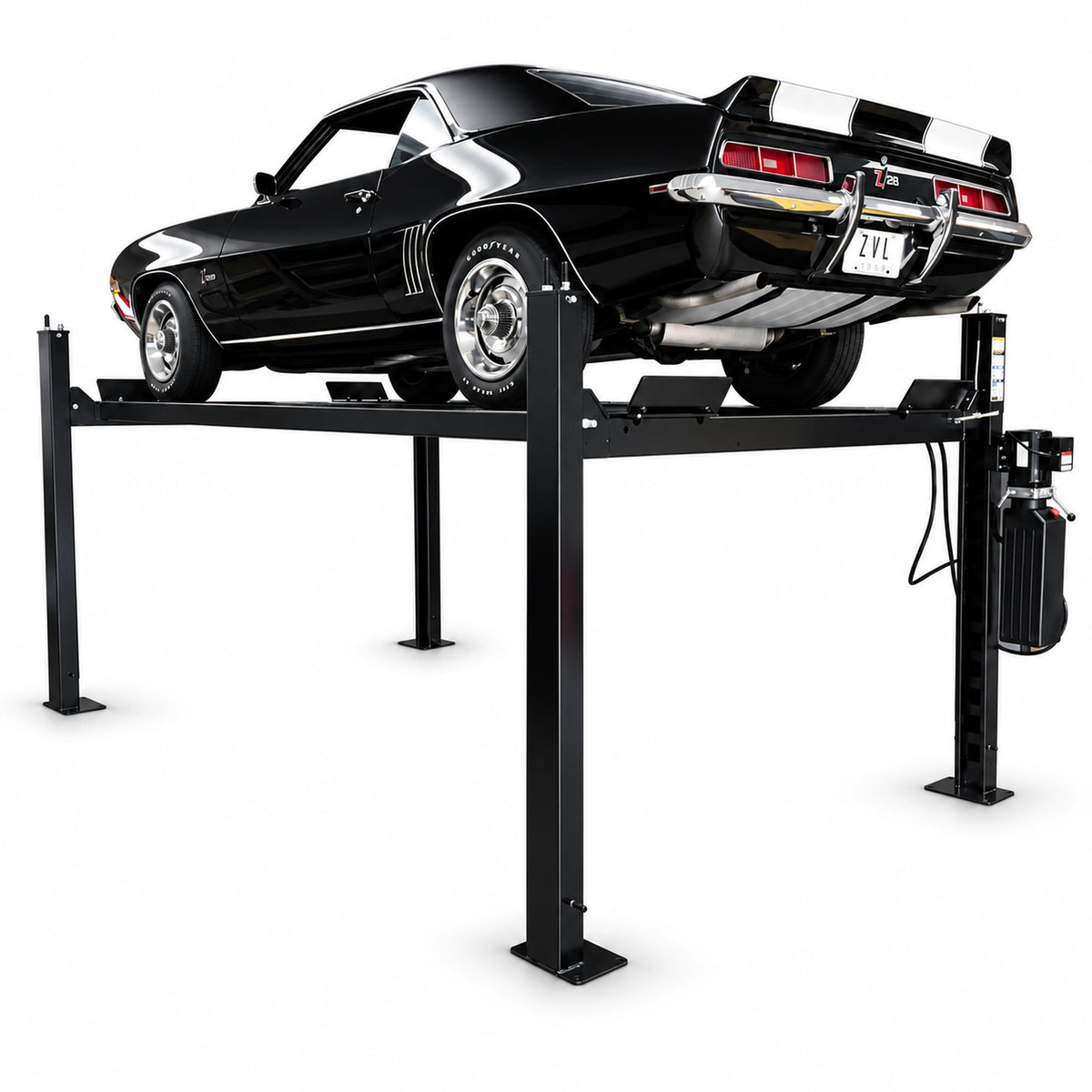

- Collector Car Storage: Protect your classic or collector vehicles with secure elevated storage while maintaining easy access for maintenance and detailing.
- Light-Duty Service: Perform oil changes, brake inspections, suspension work, and general maintenance with comfortable working height and optional rolling jack compatibility.
- Commercial Vehicle Storage: Dealerships and specialty shops use the CL4P9S for inventory storage and overflow capacity, maximizing valuable floor space.
- Seasonal Vehicle Rotation: Easily swap between daily drivers and seasonal vehicles like convertibles, trucks, or recreational vehicles throughout the year.

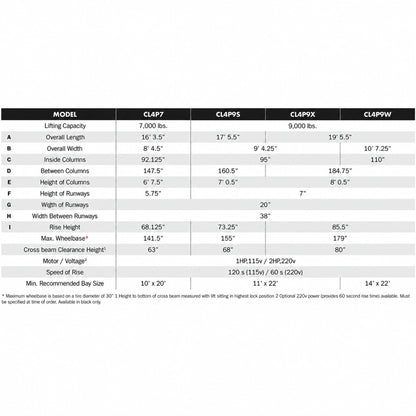

Challenger CL4P9S Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 9,000 lb |
| Maximum Wheelbase | 155" |
| ALI/ETL Certified | Yes |

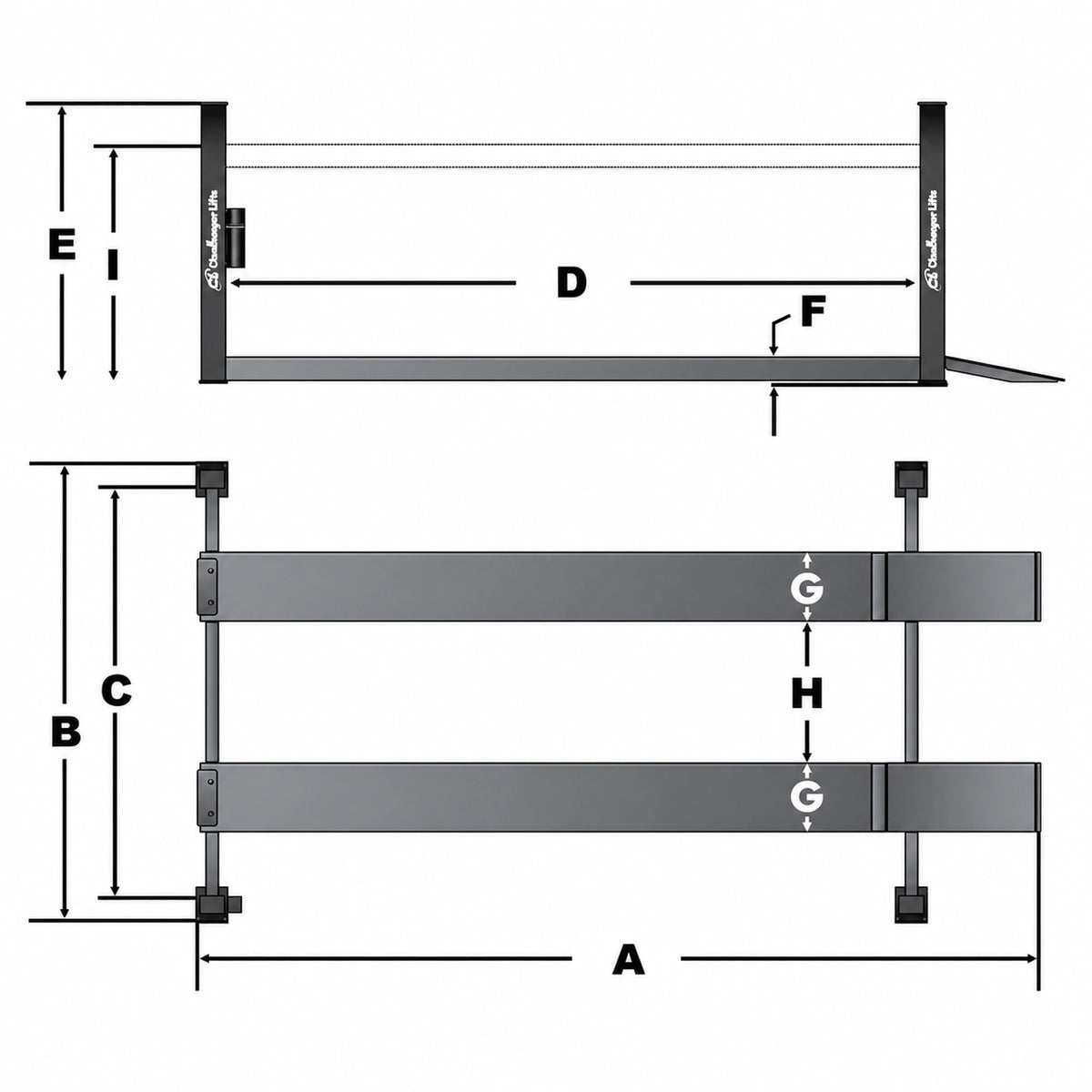

| Specification | Value |
|---|---|
| Length Overall | 209.5" (17' 5.5") |
| Width Overall | 112.25" (9' 4.25") |
| Height of Columns | 84.5" (7' 0.5") |
| Inside Columns | 95" (7' 11") |
| Between Columns | 160.5" (13' 4.5") |
| Rise Height (Top Lock Position) | 73.25" |
| Clearance Height (Storage) | 67.75" |
| Crossbeam Clearance Height | 68" |
| Height of Runways (Floor to Top) | 7" |
| Width of Runways | 20" |
| Width Between Runways | 38" |
| Specification | Value |
|---|---|
| Standard Motor | 1HP/115v or 2HP/230v |
| Voltage | 115v or 230v, Single Phase, 60Hz |
| Full Load Amperage (115v) | 15 amps |
| Full Load Amperage (230v) | 18 amps |
| Speed of Rise (115v) | 120 seconds |
| Speed of Rise (230v) | 60 seconds |
| Air Required | No |
| Specification | Value |
|---|---|
| Minimum Recommended Bay Size | 11' x 22' |
| Anchoring Required | No (optional) |
| Minimum Concrete Depth | 4" reinforced |
| Minimum Concrete PSI | 3,500 psi |
| Operating Temperature | 41-104°F (indoor use only) |
| Color | Black |
Challenger CL4P9S Installation Requirements
Electrical Requirements
Power: 115v single-phase with 20-amp dedicated circuit (standard) or 230v single-phase with 20-amp dedicated circuit (optional). The 115v configuration draws 15 amps full load while the 230v configuration draws 18 amps full load and provides faster 60-second rise time. A licensed electrician must install and verify the electrical supply.
Concrete Foundation
Minimum Requirements: 4" thick steel-reinforced concrete, 3,500 psi minimum, cured for 28 days per local commercial practice. Floor should be level within 1/2" side-to-side and 2.5" front-to-rear. Anchoring: Not required to maintain ALI/ETL certification. If anchoring, bolts must be installed at least 8" from any crack, edge, or expansion joint.
Space Requirements
Minimum Bay Size: 11' x 22' recommended. Ceiling Height: Calculate based on 73.25" rise height plus vehicle height plus 2-3/8" clearance for lock release. Indoor Use Only: Operating ambient temperature range of 41-104°F.
Professional Installation
Professional installation is recommended to ensure proper setup, leveling, and safety compliance. The lift accommodates up to 3" total variation in elevation at the base of the four posts through adjustable lock ladders. Improper installation may void warranty coverage and compromise safety.
What's Included with the Challenger CL4P9S
- Power runway assembly with hydraulic cylinder
- Idler runway assembly
- Power column assembly with power unit bracket
- Three idler column assemblies
- Two crossbeam assemblies
- Two entrance ramps
- Two front wheel stops
- Two rear wheel stops (removable)
- Mechanical lock bar assembly
- Power unit (1HP/115v standard)
- All mounting hardware
- Installation, Operation, and Maintenance Manual
- ALI safety documentation

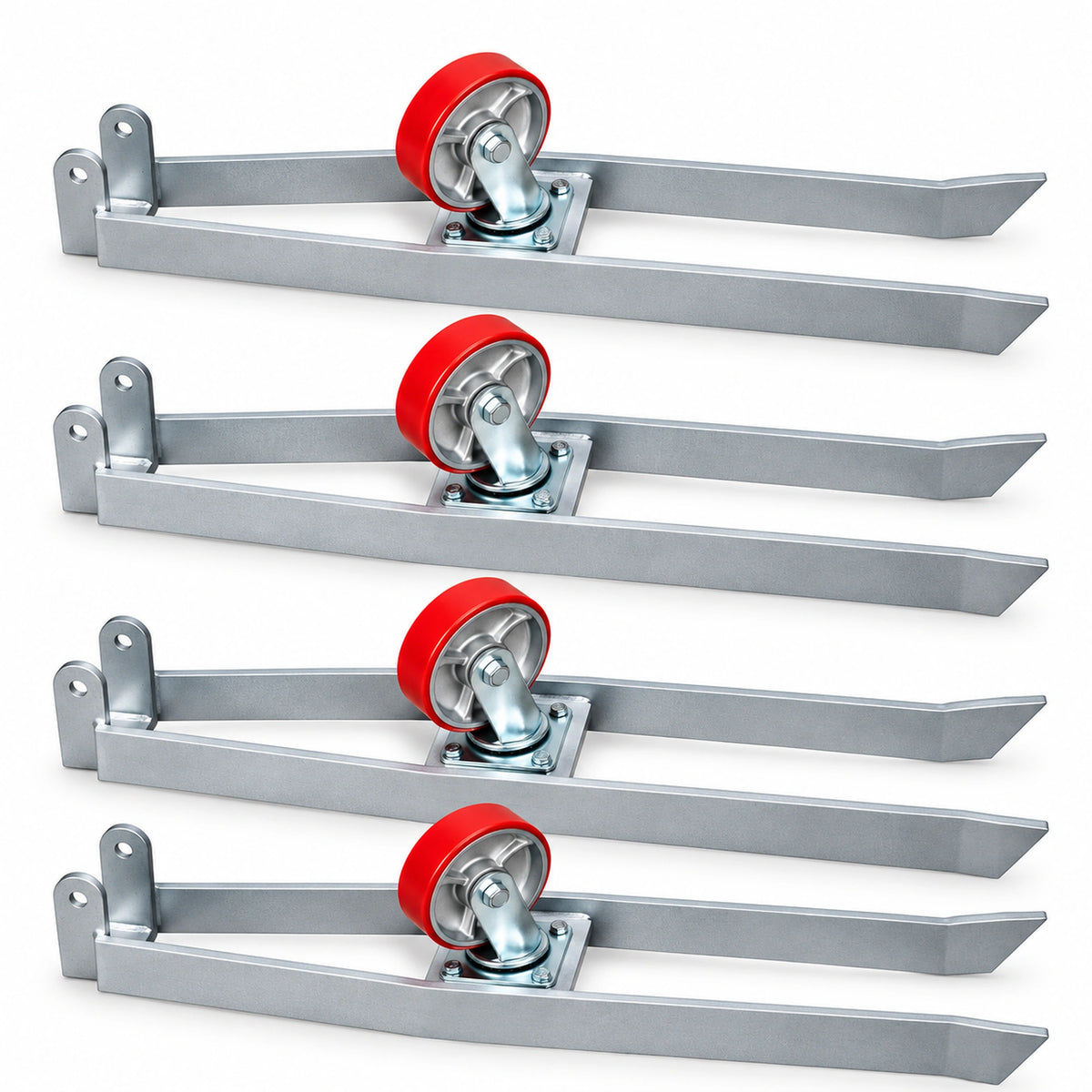

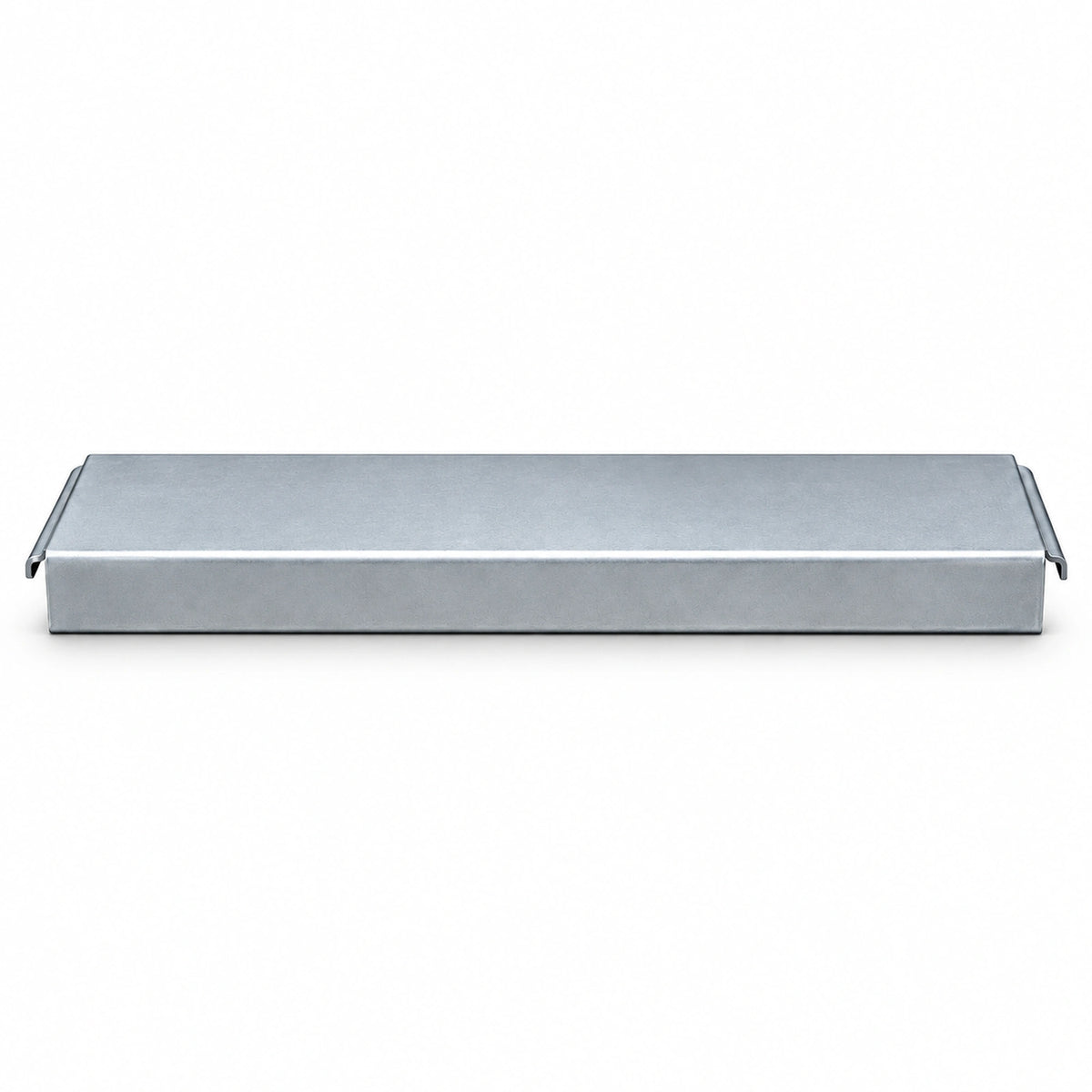

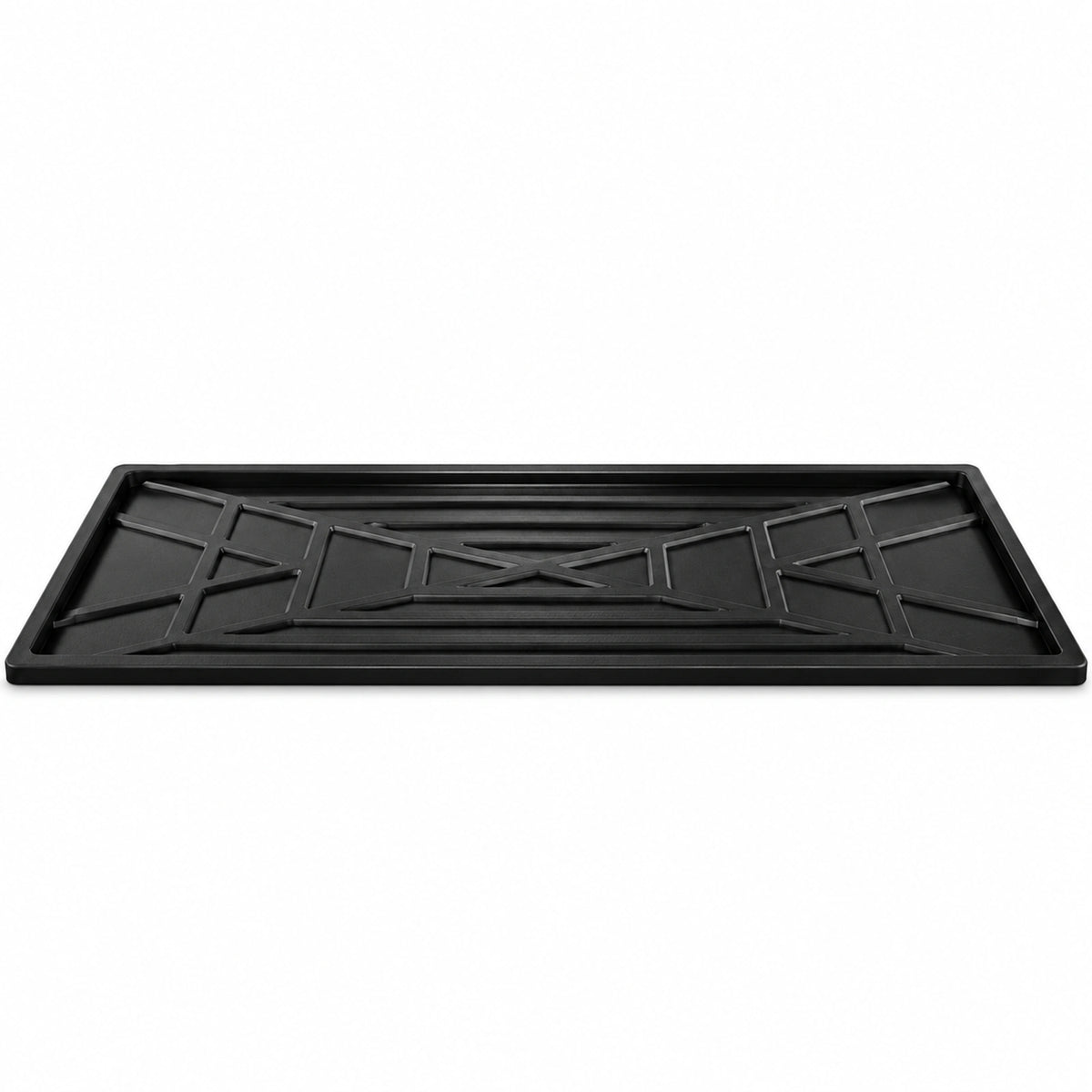

Optional Accessories: Oil Drip Tray (CL4P9DT), Storage Platform (CL4P9SP - 1,000 lb capacity), Jack Tray (CL4P9JT - 4,500 lb capacity), Mobility Kit (CL4P9CS), Rolling Jack (RJ4.5), Extended Aluminum Ramps (CL4P9ER), Pivoting Ramp (CL4P9PR).
Not Included: Electrical work and wiring, concrete work or floor preparation, hydraulic fluid (requires 3 gallons of 10wt anti-foam hydraulic oil or Dexron III ATF), installation labor, optional 230v power unit (available separately).
Challenger CL4P9S Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Ships within 3-5 business days, transit time varies by location. Residential Delivery: Available for additional charge - contact sales for quote. International: Contact sales for international shipping options and pricing.
Delivery Requirements
Unloading: Forklift or loading dock required - lift ships on pallets and is too heavy for hand unloading. Delivery Type: Curbside delivery standard at commercial addresses. Inspection: Thoroughly inspect all packages for damage before signing the bill of lading. Note any visible damage on the delivery receipt and photograph damaged items. Contact Challenger Lifts immediately if hidden damage is discovered after receipt.
Returns
Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. 20% restocking fee applies. Buyer responsible for return freight costs.
Challenger CL4P9S Warranty
Challenger Lifts Warranty
Challenger Lifts stands behind the CL4P9S with comprehensive warranty coverage:
- 5 Years: Structural components including columns, runways, and crossbeams
- 2 Years: Hydraulic cylinder and mechanical components
- 1 Year: Power unit and electrical components
Requirements: Warranty coverage requires proper installation per manufacturer specifications, use of approved hydraulic fluid, and adherence to recommended maintenance schedule. Commercial use applications are covered. Warranty does not cover damage from misuse, overloading, improper installation, or lack of maintenance. See warranty document for complete terms and conditions.
Documents
Click to open in a new tab.
Questions About the Challenger CL4P9S?
Our equipment specialists can help with installation planning, specifications, and product selection for your garage.
Challenger CL4P9S FAQ
What is the maximum vehicle weight the CL4P9S can lift?
The Challenger CL4P9S has an ALI/ETL certified lifting capacity of 9,000 lb. This handles full-size trucks, SUVs, and most collector vehicles. Always verify your vehicle's weight including any cargo or modifications before lifting.
What is the clearance height for storing a vehicle underneath?
The CL4P9S provides 67.75" (approximately 5' 8") of clearance underneath at the top lock position. This accommodates most sedans, sports cars, and compact SUVs. Measure your lower vehicle's height including any roof accessories to ensure proper clearance.
What are the electrical requirements for the CL4P9S?
The standard power unit operates on 115v single-phase with a 20-amp dedicated circuit. An optional 230v power unit is available which reduces rise time from 120 seconds to 60 seconds. Both configurations require a dedicated circuit with appropriate breaker protection.
Does the lift need to be anchored to the floor?
No, the CL4P9S maintains its full ALI/ETL certification without anchoring when installed on properly prepared concrete (4" minimum depth, steel reinforced, 3,500 psi, cured 28 days). Anchoring is optional but required if floor slope exceeds 1/8" per foot.
What is the warranty coverage?
Challenger provides 5-year warranty on structural components (columns, runways, crossbeams), 2-year warranty on hydraulic cylinder and mechanical components, and 1-year warranty on the power unit and electrical components. Coverage requires proper installation and maintenance.
What comes included with the lift?
The CL4P9S includes all structural components (runways, columns, crossbeams), power unit, entrance ramps, wheel stops, mechanical lock assembly, mounting hardware, and documentation. Hydraulic fluid (3 gallons), electrical wiring, and installation labor are not included.
How is the lift shipped and delivered?
The CL4P9S ships via freight carrier on pallets. Free shipping is available to commercial addresses in the 48 contiguous states. A forklift or loading dock is required for unloading. Residential delivery is available for an additional charge.
What optional accessories are available?
Available accessories include: Oil Drip Tray (CL4P9DT) for fluid changes, Storage Platform (CL4P9SP) with 1,000 lb capacity, Jack Tray (CL4P9JT) with 4,500 lb capacity, Mobility Kit (CL4P9CS) for repositioning, Rolling Jack (RJ4.5), Extended Aluminum Ramps (CL4P9ER), and Pivoting Ramp (CL4P9PR).
How does the CL4P9S compare to other models in the series?
The CL4P9S is the standard 9,000 lb model. The CL4P7 offers 7,000 lb capacity in a more compact size. The CL4P9X adds extended length and height (85.5" rise, 80" clearance). The CL4P9W provides extended length, height, and width (127.25" overall width). Choose based on your vehicle size and ceiling height.
What maintenance is required?
Daily: Keep components clean, check for loose parts and leaks. Weekly: Inspect cables and sheaves for wear. Monthly: Torque anchor bolts to 80 ft-lb (if anchored), lubricate cables and sheaves with light oil, inspect floor condition. Regular maintenance ensures safe operation and maintains warranty coverage.
What is the maximum wheelbase the CL4P9S can accommodate?
The CL4P9S accommodates vehicles with wheelbases up to 155" (based on 30" tire diameter). This fits most full-size trucks and SUVs. For longer wheelbase vehicles, consider the CL4P9X or CL4P9W models which accommodate up to 179" wheelbase.
Can I use the lift outdoors?
No, the CL4P9S is designed and certified for indoor use only with an operating ambient temperature range of 41-104°F. Outdoor installation would void the warranty and compromise the lift's safety certification.
