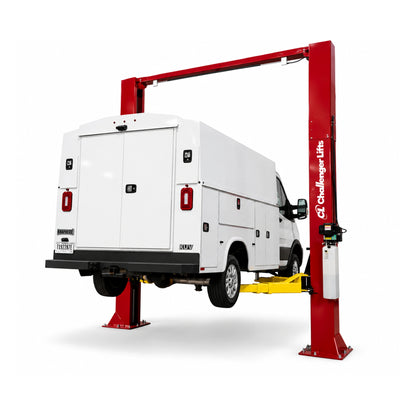

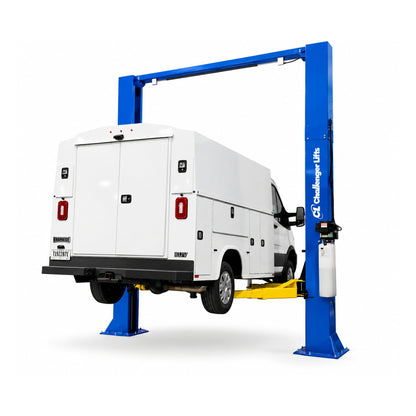

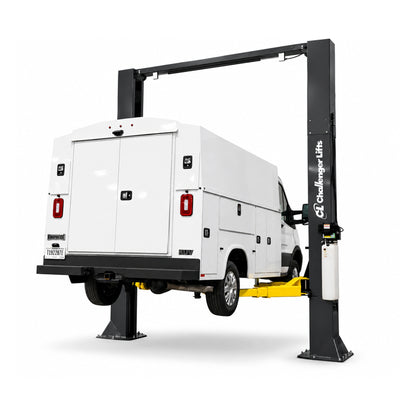

Challenger CL20 20,000 lb Two-Post Lift for Heavy-Duty Fleet Maintenance
The Challenger CL20 is a heavy-duty two-post lift engineered for vehicles weighing up to 20,000 lb. Built with adjustable columns and wider, taller construction, this ALI Certified lift handles everything from commercial trucks to large fleet vehicles. The symmetric lift configuration features 2-stage front and rear arms with adjustable width ranging from 12' 10.75" to 13' 10.75", accommodating a wide variety of vehicle sizes. Powered by a 3HP single-phase motor and backed by Challenger's comprehensive warranty, the CL20 delivers the strength and reliability professional fleet operations demand.
Challenger CL20 Features
20,000 lb Heavy-Duty Capacity
Engineered for serious lifting power, the CL20 handles vehicles up to 20,000 lb with a maximum load of 5,000 lb per arm. This capacity makes it ideal for commercial trucks, fleet vehicles, and heavy-duty equipment that exceed standard lift ratings.
2-Stage Front and Rear Arms
The 2-stage arm configuration provides exceptional stability during lifting operations. With an arm reach ranging from 38.5" to 62", these arms accommodate various vehicle wheelbases while maintaining secure contact with lift points throughout the service process.
Adjustable Column Width
Flexible installation options allow column width adjustment from 154.75" to 166.75" overall width, with drive-thru clearance options of 104.25", 110.25", or 116.25". This adjustability ensures the lift fits your shop layout while accommodating wide-body vehicles.
Multiple Height Configurations
Available in standard (162", 168", or 174") and extended height (186", 192", or 198") configurations. The optional 2' column extensions allow shops to service even taller vehicles, making the CL20 adaptable to diverse fleet requirements.
ALI Certified Safety
The CL20 carries ALI (Automotive Lift Institute) Certification, verifying it meets rigorous third-party safety and performance standards. This certification provides confidence that the lift has been independently tested and validated for professional use.
Fast 62-Second Rise Time
Powered by a 3HP single-phase motor operating on 208/230V, the CL20 achieves full rise in just 62 seconds. This quick cycle time maximizes productivity in busy fleet maintenance operations where every minute counts.
Challenger CL20 Applications
- Fleet Maintenance Facilities: Purpose-built for high-volume fleet operations servicing trucks, vans, and commercial vehicles requiring heavy-duty lifting capacity and wide drive-thru clearance.
- Municipal and Government Shops: Ideal for servicing police vehicles, fire apparatus, ambulances, and other heavy municipal fleet equipment that demands reliable, certified lifting equipment.
- Commercial Truck Service Centers: Handles medium-duty trucks, box trucks, and delivery vehicles up to 20,000 lb, making it essential for shops specializing in commercial vehicle maintenance.
- Transit and Bus Maintenance: The adjustable width and extended height options accommodate transit buses and shuttle vehicles, with ceiling height configurations up to 16'8" for extended models.
- Agricultural and Construction Equipment Dealers: Services heavy utility vehicles, equipment haulers, and large pickup trucks commonly found in agricultural and construction applications.
Challenger CL20 Specifications
| Specification | CL20-0 (Standard) | CL20-2 (Extended Height) |
|---|---|---|
| Lifting Capacity | 20,000 lb | 20,000 lb |
| Maximum Load Per Arm | 5,000 lb | 5,000 lb |
| Lift Configuration | Symmetric | Symmetric |
| Arm Configuration | 2-Stage Front/Rear | 2-Stage Front/Rear |
| Specification | CL20-0 (Standard) | CL20-2 (Extended Height) |
|---|---|---|
| Rise Height (with Stack Adapters) | Min. 76.6" - Max. 84.6" | Min. 76.6" - Max. 84.6" |
| Overall Height Options | 162", 168", 174" | 186", 192", 198" |
| Overall Width Options | 166.75", 160.75", 154.75" | 166.75", 160.75", 154.75" |
| Drive-Thru Clearance | 104.25", 110.25", 116.25" | 104.25", 110.25", 116.25" |
| Between Columns | 120", 126", 132" | 120", 126", 132" |
| Floor to Overhead Switch | 155", 161", 167" | 179", 185", 191" |
| Arm Reach | Min. 38.5" - Max. 62" | Min. 38.5" - Max. 62" |
| Screw Pad Height | Min. 6.2" - Max. 7.6" | Min. 6.2" - Max. 7.6" |
| Min. Ceiling Height Required | 13'8", 14'2", 14'8" | 15'8", 16'2", 16'8" |
| Specification | Value |
|---|---|
| Motor | 3HP |
| Voltage | 208/230V, 1Ph, 60Hz |
| Air Supply Required | 90-120 psi |
| Rise Time | 62 seconds |
Challenger CL20 Installation Requirements
Electrical Requirements
Power: 208/230V, single-phase, 60Hz electrical supply required for the 3HP motor. A licensed electrician must install and verify the electrical supply meets all local codes and manufacturer specifications.
Air Supply Requirements
Compressed Air: 90-120 psi air supply required for lock release operation. Ensure your shop compressor can maintain adequate pressure during lift cycling.
Concrete Foundation
Anchoring: Minimum 4" thick reinforced concrete with 3,000 PSI compressive strength required. Concrete must be fully cured and free of cracks or voids at anchor locations. Heavy-duty anchor bolts included for secure column mounting.
Space Requirements
Ceiling Height: Minimum 13'8" to 14'8" for standard models, or 15'8" to 16'8" for extended height models depending on column height selected. Floor Space: Overall width ranges from 154.75" to 166.75" with drive-thru clearance from 104.25" to 116.25". Verify adequate clearance for vehicle entry and technician workspace.
Professional Installation
Professional installation by a qualified lift technician is strongly recommended. Proper installation ensures safe operation, validates warranty coverage, and confirms compliance with ALI certification requirements. Contact us for installer recommendations in your area.
What's Included with the Challenger CL20
- Two-post lift columns with symmetric configuration
- 2-stage front and rear lift arms (4 total)
- 3HP single-phase hydraulic power unit
- Screw-type lift pads with height adjustment (6.2" to 7.6")

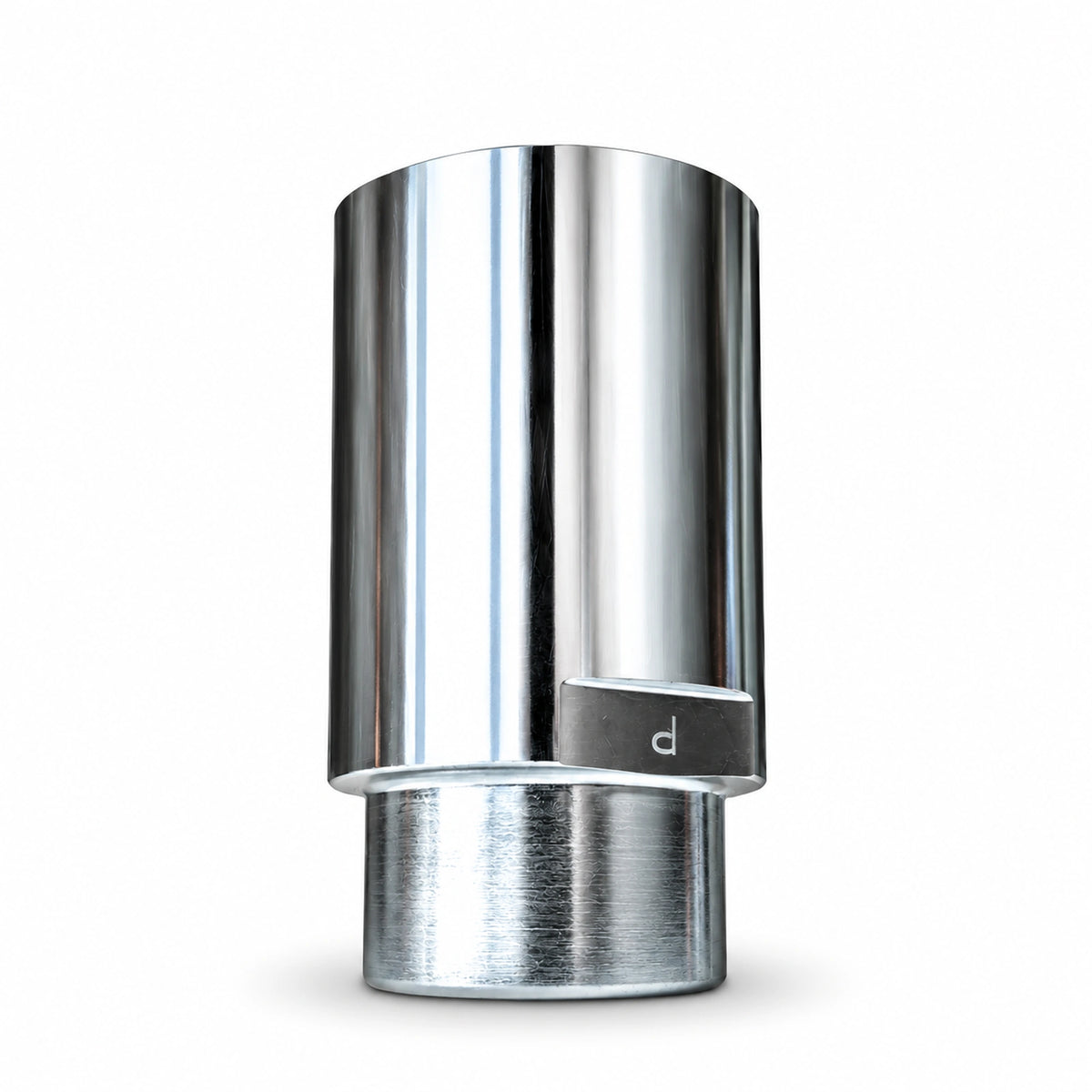

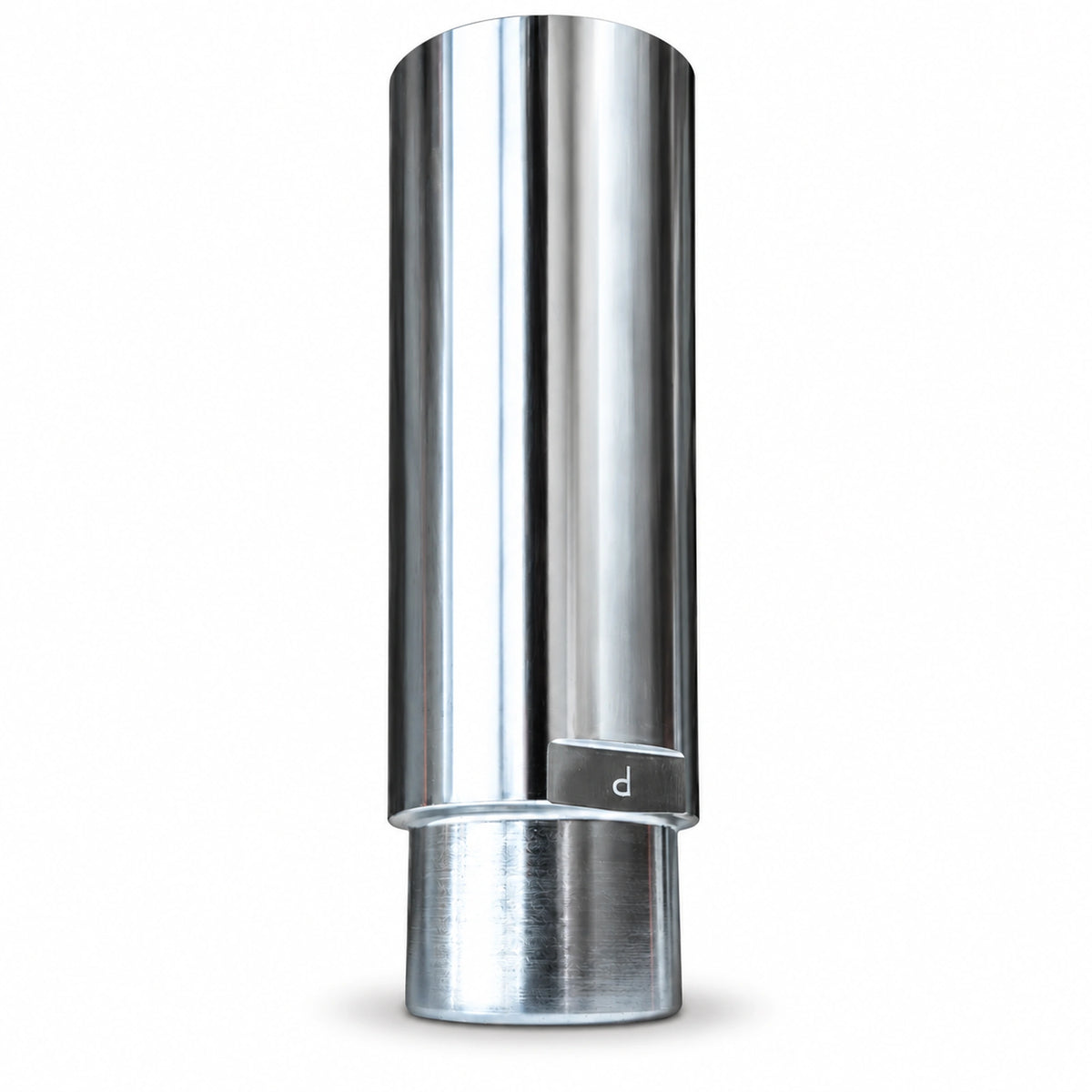

- Stack adapters for additional rise height
- Overhead safety shutoff
- Anchor hardware and mounting bolts
- Hydraulic hoses and fittings
- Installation and operation manual
Optional Accessories: 2' column extensions for extended height applications, truck adapters, and additional stack adapters available separately.
Not Included: Electrical wiring and installation, concrete work or floor preparation, compressed air supply, professional installation labor, and freight unloading equipment.
Challenger CL20 Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Ships within 5-10 business days. International: Contact sales for international shipping quotes and availability.
Delivery Requirements
Unloading: Forklift or loading dock required for unloading. Lift ships on pallets and requires equipment capable of handling heavy components. Delivery Type: Curbside delivery to commercial addresses is standard. Inspection: Thoroughly inspect all packages for shipping damage before signing the bill of lading. Document any visible damage on the delivery receipt and photograph affected items.
Returns
Returns accepted within 30 days of delivery. Product must be unopened in original packaging with proof of purchase. A 20% restocking fee applies to all returns. Buyer is responsible for return freight costs. Damaged or used equipment cannot be returned.
Challenger CL20 Warranty
Challenger Lifts Warranty Coverage
Challenger Lifts backs the CL20 with comprehensive warranty protection for professional shop use:
- 5 Years: Structural components including columns, carriages, and arms
- 2 Years: Hydraulic cylinders and power unit components
- 1 Year: Electrical components, seals, and wear items
Requirements: Warranty coverage requires professional installation according to manufacturer specifications, use of the lift within rated capacity, and adherence to recommended maintenance schedules. Commercial use in a professional shop environment required. See warranty document for complete terms, conditions, and exclusions.
Documents
Click to open in a new tab.
Questions About the Challenger CL20?
Our equipment specialists can help with installation planning, specifications, and product selection for your shop.
Challenger CL20 FAQ
What is the maximum lifting capacity of the Challenger CL20?
The Challenger CL20 has a maximum lifting capacity of 20,000 lb with a maximum load of 5,000 lb per arm. This capacity is ALI Certified, meaning it has been independently tested and verified to meet industry safety standards for professional use.
What ceiling height do I need for the CL20?
Ceiling height requirements depend on the column height configuration selected. The standard CL20-0 requires a minimum ceiling height of 13'8", 14'2", or 14'8" depending on overall height chosen (162", 168", or 174"). The extended height CL20-2 requires 15'8", 16'2", or 16'8" minimum ceiling height for the 186", 192", or 198" configurations respectively.
What electrical requirements does the CL20 need?
The CL20 requires a 208/230V, single-phase, 60Hz electrical supply for its 3HP motor. Additionally, compressed air at 90-120 psi is required for the pneumatic lock release system. A licensed electrician should install and verify the electrical supply meets all local codes.
Is professional installation required?
While not strictly required, professional installation is strongly recommended. Proper installation by a qualified lift technician ensures safe operation, validates warranty coverage, and confirms compliance with ALI certification standards. Incorrect installation can void the warranty and create safety hazards.
What is covered under the Challenger warranty?
Challenger provides tiered warranty coverage: 5 years on structural components (columns, carriages, arms), 2 years on hydraulic cylinders and power unit components, and 1 year on electrical components, seals, and wear items. Coverage requires professional installation, operation within rated capacity, and following recommended maintenance procedures.
What comes included with the CL20?
The CL20 includes the complete two-post lift system: columns, 2-stage front and rear arms, 3HP hydraulic power unit, adjustable screw pads, stack adapters, overhead safety shutoff, anchor hardware, hydraulic hoses and fittings, and the installation manual. Optional accessories like 2' column extensions and truck adapters are available separately.
How is the CL20 shipped and what do I need for delivery?
The CL20 ships via freight truck with free delivery to commercial addresses in the 48 contiguous states. You will need a forklift or loading dock to unload the palletized components. Curbside delivery is standard. Inspect all packages before signing the bill of lading and note any damage on the delivery receipt.
What is the difference between the CL20-0 and CL20-2?
The CL20-0 is the standard height model with overall height options of 162", 168", or 174" and requires 13'8" to 14'8" minimum ceiling height. The CL20-2 is the extended height model with options of 186", 192", or 198" overall height, requiring 15'8" to 16'8" ceiling height. Both share the same 20,000 lb capacity and arm specifications.
What concrete requirements are needed for installation?
The CL20 requires a minimum 4" thick reinforced concrete floor with at least 3,000 PSI compressive strength. The concrete must be fully cured and free of cracks, voids, or damage at the anchor locations. Heavy-duty anchor bolts are included for securing the columns to the floor.
How fast does the CL20 raise a vehicle?
The CL20 achieves full rise in approximately 62 seconds, powered by its 3HP single-phase hydraulic motor. This quick cycle time helps maximize productivity in busy fleet maintenance operations.
Can I use column extensions with the CL20?
Yes, optional 2' column extensions are available for the CL20, allowing you to service taller vehicles. The extensions increase overall height capacity while maintaining the lift's rated capacity. Contact us for availability and compatibility details.
What is the drive-thru clearance of the CL20?
The CL20 offers drive-thru clearance options of 104.25", 110.25", or 116.25" depending on the column width configuration selected. Overall width options range from 154.75" to 166.75", with between-column spacing of 120", 126", or 132".
