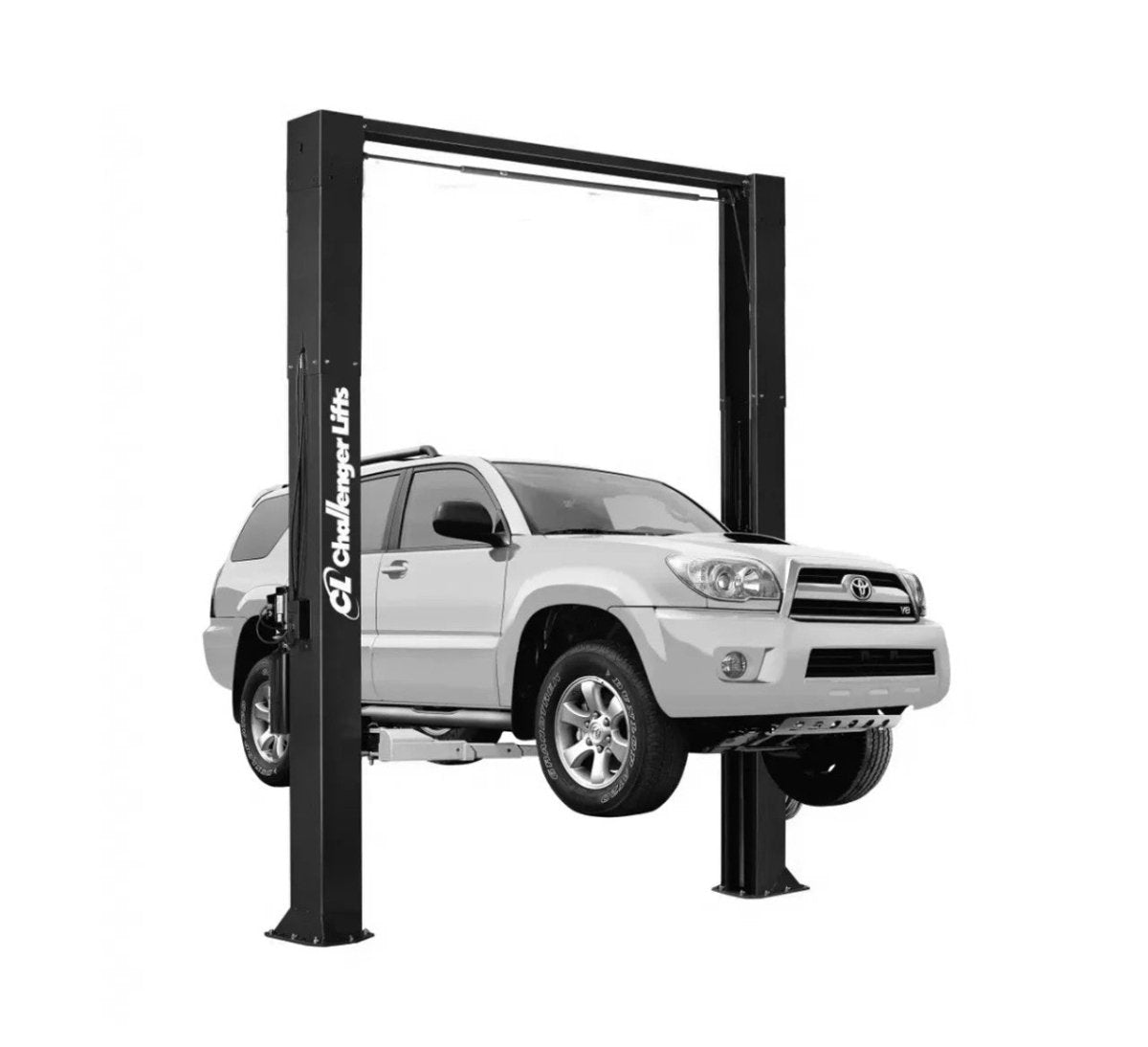

Challenger CL10V3-QC 10,000 lb Two-Post Automotive Lift Quick Cycle
Challenger CL10V3-QC 10,000 lb Two-Post Lift with Quick Cycle Technology for Professional Service Facilities
The Challenger CL10V3-QC is a surface-mounted, clearfloor two-post lift engineered for high-volume automotive service operations. This American-made lift delivers 10,000 lb capacity with Quick Cycle hydraulics producing 27-second rise times and 17-second descent times, significantly faster than standard lifts in this class. The Versymmetric arm geometry supports both symmetric and asymmetric lifting configurations, while 3-stage directSPOT arms provide 20" to 42" front reach and 37.625" to 60" rear reach. Dual ALI and ETL certified with a 5-year structural warranty, requiring 208-240V single-phase power and minimum 12-foot ceiling height.
Challenger CL10V3-QC Features
Quick Cycle Hydraulic Performance
The Quick Cycle hydraulic system delivers 27-second rise times and 17-second descent times, significantly faster than standard two-post lifts in the 10,000 lb capacity class which typically operate in the 38-45 second range. Powered by a 3HP single-phase motor, this optimized hydraulic power unit is designed specifically for high-volume service operations where faster cycle times translate directly to increased daily vehicle capacity and reduced customer wait times.
Versymmetric Arm Configuration
Challenger's Versymmetric geometry allows technicians to configure the lift for symmetric or asymmetric lifting without purchasing separate equipment. The 48-inch elongated carriage design provides flexibility to position vehicles optimally based on weight distribution, wheelbase, and service access requirements. Position compact cars asymmetrically for improved door clearance while switching to symmetric configuration for half-ton pickups, all on the same equipment.
3-Stage directSPOT Arm System
Both front and rear arms feature Challenger's 3-stage telescoping design with directSPOT technology. Front arms reach 20" to 42" while rear arms extend from 37.625" to 60", providing exceptional range compared to typical 2-stage configurations. The extended reach accommodates everything from compact cars to full-size vans and light-duty trucks without arm swaps or adapter complications, enabling first-try vehicle spotting across diverse vehicle geometries.
Dual Third-Party Safety Certification
The CL10V3-QC ships standard with both ALI Certification (Automotive Lift Institute Gold Label) and ETL Certification (Intertek electrical safety). The lift meets ANSI/ALI ALCTV and ANSI/ALI ALOIM standards, ensuring out-of-the-box compliance for dealerships, fleet operations, and commercial facilities requiring documented third-party certification for insurance, OSHA, and corporate safety policies.
Single-Point Mechanical Lock Release
The safety lock system features single-point mechanical release that disengages both columns simultaneously from a single operator location. Combined with the padded overhead shut-off system and automatic arm restraints, the lift provides multiple redundant safety mechanisms throughout the lifting cycle. Integrated rubber door guards protect vehicle finishes during positioning.
Configurable Bay Dimensions
The CL10V3-QC offers two height configurations (134" and 140") and multiple width settings (138.5" and 143") with optional height extensions available for taller ceiling applications. Inside column clearance options of 110" or 114.5" accommodate various vehicle widths, while 100" to 104.5" drive-thru clearance fits most passenger vehicles and light-duty trucks.
Challenger CL10V3-QC Applications
- Full-Service Automotive Repair: General repair shops handling everything from oil changes to engine work on passenger vehicles within the 10,000 lb capacity range benefit from the Versymmetric flexibility and extended arm reach.
- Quick Lube and Express Service: High-volume facilities requiring fast cycle times for oil changes, tire rotations, and inspection services where the 27-second rise time directly impacts revenue and daily vehicle throughput.
- Tire Service Centers: Tire sales and service operations requiring frequent vehicle lifting for mounting, balancing, and alignment work benefit from the rapid cycle times and easy vehicle positioning.
- Dealership Service Departments: New and used vehicle dealerships servicing mixed fleets of sedans, SUVs, and light-duty trucks across multiple makes and models requiring dual certification for corporate compliance.
- Fleet Maintenance Facilities: Commercial and municipal fleet operations maintaining company vehicles, service vans, and light-duty work trucks with the reliability demanded by continuous daily use.
- Electric Vehicle Service: EV-capable with optional footpad kits (EVFPK, TFPK) for servicing electric vehicles with battery-forward weight distribution requiring Versymmetric positioning for proper balance.
Challenger CL10V3-QC Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 10,000 lb |
| Capacity Per Arm | 2,500 lb |
| Hydraulic Pressure at Capacity | 2,750 PSI |
| Specification | Value |
|---|---|
| Rise Time (Quick Cycle) | 27 seconds |
| Descent Time (Quick Cycle) | 17 seconds |
| Rise Height | 74-1/8" |
| Screw Pad Height Range | 3-7/8" to 6-1/8" |
| Specification | Value |
|---|---|
| Overall Height (Standard) | 134" (11'-2") or 140" (11'-8") |
| Overall Width | 138.5" (11'-6.5") or 143" (11'-11") |
| Inside Column Width | 110" or 114.5" |
| Drive-Thru Clearance | 100" or 104.5" |
| Front Arm Reach | 20" to 42" (3-stage) |
| Rear Arm Reach | 37-5/8" to 60" (3-stage) |
| Minimum Ceiling Height Required | 12'-0" |
| Minimum Bay Width | 144" (12'-0") to nearest obstruction |
| Specification | Value |
|---|---|
| Motor | 3 HP (Quick Cycle) |
| Voltage | 208-240V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Circuit Breaker | 30 Amp double pole or time delay fuse |
| Specification | Value |
|---|---|
| ALI Certification | Yes (Gold Label) |
| ETL Certification | Yes |
| Standards Compliance | ANSI/ALI ALCTV, ANSI/ALI ALOIM |
Challenger CL10V3-QC Installation Requirements
Electrical Requirements
Power: 208-240V single-phase, 60Hz with dedicated 30 amp double pole circuit breaker or time delay fuse. A licensed electrician must install and verify the electrical supply. Electrical code requires a service disconnect located near the point of operation.
Concrete Foundation
Anchoring: Minimum 4" concrete depth with steel reinforcement, 3,500 PSI, cured for 28 days per local commercial practice. Floor must be level within 3/8" over the installation area. No anchors within 8" of any crack, edge, or expansion joint. Fourteen 3/4" x 5-1/2" anchor bolts required, torqued to 150 ft-lbs.
Space Requirements
Ceiling Height: 12'-0" minimum for standard configuration. Bay Width: 144" (12'-0") minimum to nearest obstruction on each side. Bay Depth: 6' to nearest obstruction or 7' to nearest wall from drive-on direction. Indoor installation only with operating ambient temperature range of 41-104°F (5-40°C).
Professional Installation
Professional installation by qualified personnel is strongly recommended. Challenger Lifts warranty requires installation according to manufacturer specifications. Check with local building inspectors for permits and special requirements. A qualified person should address seismic loads and other local or state requirements.
What's Included with the Challenger CL10V3-QC
- Power column assembly with Quick Cycle hydraulics
- Idler column assembly
- Overhead beam
- 3-stage front arm pack (2 arms)
- 3-stage rear arm pack (2 arms)
- Four adjustable screw pad adapters
- Column extension assemblies
- Synchronizer cable pack
- Overhead shut-off bar assembly
- Dual pendant control system
- Quick Cycle power unit (3HP, single-phase)
- Junction box assembly
- Hardware pack with anchor bolts
- Rubber door guards
- Literature pack with installation manual
Optional Accessories: EV footpad kit (EVFPK), truck/SUV footpad kit (TFPK), height extension kits for taller ceilings (CL10-2, CL10-3).
Not Included: Hydraulic fluid (3 gallons of 10wt anti-foam anti-rust hydraulic oil or Dexron III ATF required), electrical wiring and service disconnect, concrete work or pad preparation, professional installation labor.
Challenger CL10V3-QC Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Ships within 3-5 business days; delivery typically 5-10 business days depending on location. International: Contact sales for quote.
Delivery Requirements
Unloading: Forklift or loading dock required for unloading. Column assemblies weigh approximately 200 lbs each. Delivery Type: Curbside delivery standard. Inspection: Inspect all packages for damage before signing BOL. Note any damage on delivery receipt and notify Challenger Lifts immediately.
Returns
Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. 20% restocking fee applies. Buyer responsible for return freight costs.
Challenger CL10V3-QC Warranty
Challenger Lifts Limited Warranty
Challenger Lifts guarantees the CL10V3-QC to the original owner. Challenger shall repair or replace defective parts and pay reasonable transportation and labor costs during the warranty period.
- 5 Years: Structural parts including carriage, columns, column extensions, overhead beams, and arms
- 2 Years: Functional parts including power unit, cylinders, sheaves, hoses, hydraulic fittings, cables, adapters, latches, valves, and controls
- 1 Year: Labor coverage for warranty repairs
Requirements: Product must be installed, used, and maintained according to Challenger specifications. Warranty valid only if registered online at challengerlifts.com. Not transferable. Does not cover normal maintenance, damage from improper handling, abuse, misuse, or repairs by unauthorized personnel.
Documents
Click to open in a new tab.
Questions About the Challenger CL10V3-QC?
Our equipment specialists can help with installation planning, specifications, and product selection for your shop.
Challenger CL10V3-QC FAQ
What is the lifting capacity of the CL10V3-QC?
The Challenger CL10V3-QC has a total lifting capacity of 10,000 lb with a maximum of 2,500 lb per arm. Loads must be equally distributed across all four arms for safe operation. The lift should not be operated with only two arms engaged.
How fast does the CL10V3-QC raise and lower vehicles?
The Quick Cycle hydraulic system delivers 27-second rise times and 17-second descent times, significantly faster than standard two-post lifts in this capacity class which typically operate in the 38-45 second range. This performance comes from the optimized 3HP power unit designed for high-volume operations.
What ceiling height do I need for the CL10V3-QC?
The standard CL10V3-QC requires a minimum 12-foot ceiling height. The lift is available in two column height configurations: 134" (11'-2") and 140" (11'-8"). Optional height extensions are available for taller ceiling applications, with -2 and -3 extension kits supporting up to 14'-8" installations.
What are the electrical requirements?
The CL10V3-QC requires 208-240V single-phase, 60Hz power with a dedicated 30 amp double pole circuit breaker or time delay fuse. A licensed electrician must install the electrical supply, and electrical code requires a service disconnect located near the point of operation.
What type of concrete floor is required?
The lift requires a minimum 4-inch thick concrete floor with steel reinforcement, rated at 3,500 PSI minimum, and cured for 28 days. The floor must be level within 3/8" over the installation area. No anchor bolts should be installed within 8 inches of any crack, edge, or expansion joint.
What does the Challenger warranty cover?
The CL10V3-QC includes a 5-year warranty on structural parts (columns, carriages, arms, overhead beam), 2-year warranty on functional parts (power unit, cylinders, hoses, cables, controls), and 1-year labor coverage. Warranty requires registration at challengerlifts.com and installation according to manufacturer specifications.
Is the CL10V3-QC certified for professional use?
Yes, the CL10V3-QC ships standard with both ALI Certification (Automotive Lift Institute Gold Label) and ETL Certification (Intertek electrical safety). It meets ANSI/ALI ALCTV and ANSI/ALI ALOIM standards, providing out-of-the-box compliance for dealerships, commercial facilities, and fleet operations.
What is included with the lift purchase?
The CL10V3-QC includes both column assemblies, overhead beam, 3-stage front and rear arm packs, four screw pad adapters, synchronizer cables, dual pendant controls, Quick Cycle power unit, junction box, hardware pack with anchor bolts, and installation manual. Hydraulic fluid (3 gallons), electrical wiring, and installation labor are not included.
What is the difference between symmetric and asymmetric lifting?
The Versymmetric design allows both configurations on the same lift. Symmetric lifting positions the vehicle centered between columns, ideal for trucks and SUVs with balanced weight distribution. Asymmetric lifting positions the vehicle forward, placing the A-pillars outside the columns for improved door access on sedans and coupes.
How do the 3-stage arms compare to standard 2-stage arms?
The 3-stage directSPOT arms provide greater reach than standard 2-stage configurations. Front arms extend from 20" to 42" and rear arms from 37-5/8" to 60", accommodating a wider range of vehicle wheelbases and lift point locations without requiring arm swaps or special adapters.
Can the CL10V3-QC service electric vehicles?
Yes, the CL10V3-QC is EV-capable with optional footpad kits (EVFPK for electric vehicles, TFPK for trucks). The Versymmetric geometry is particularly useful for EVs with battery-forward weight distribution, allowing proper positioning for balanced lifting.
What maintenance does the CL10V3-QC require?
Daily maintenance includes keeping components clean and checking for fluid leaks. Weekly checks include inspecting synchronizer cables and sheaves. Monthly maintenance involves torquing anchor bolts to 80 ft-lbs, lubricating carriage slide tracks and arm fittings with heavy grease, and testing the overhead shutoff switch. Keep hydraulic fluid at proper level using 10wt anti-foam hydraulic oil or Dexron III ATF.
