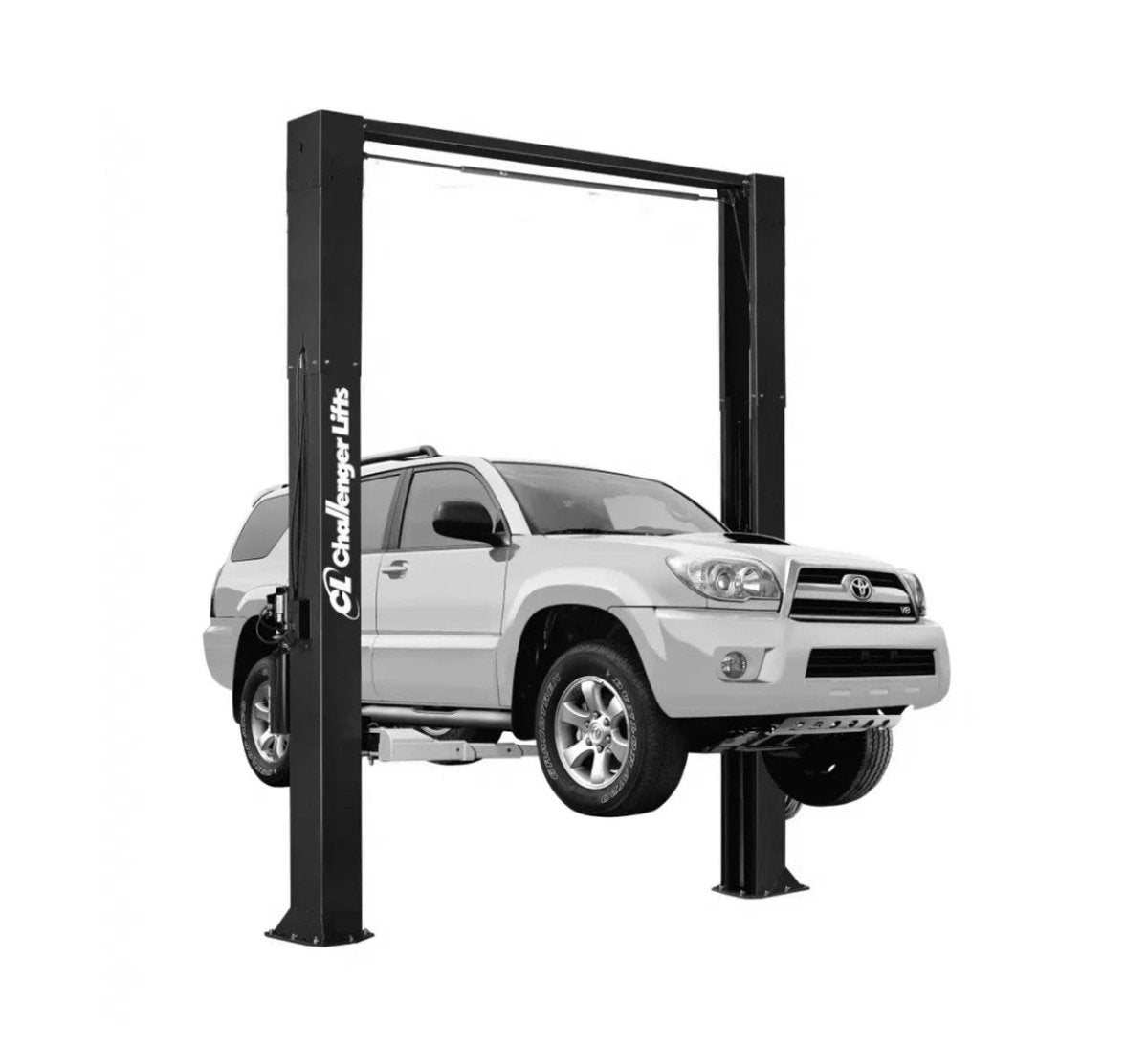

Challenger CL10V3-DPC 10000 lb Versymmetric Two-Post Lift
Challenger CL10V3-DPC 10,000 lb Versymmetric Two-Post Lift with Dual Pendant Controls for Professional Service Bays
The Challenger CL10V3-DPC delivers 10,000 lb lifting capacity in a surface-mounted two-post configuration engineered for professional automotive service facilities. Featuring Challenger's proprietary Versymmetric technology for both symmetric and asymmetric vehicle positioning, 3-stage directSPOT arms with 20" to 60" reach, and standard Dual Pendant Controls for operation from either column, this ALI/ETL certified lift handles passenger vehicles, light trucks, SUVs, and vans in a single service bay. The CL10V3-DPC requires 208-230V single-phase power and includes a complete accessory package with stack adapters, document caddy, and pendant holder. Backed by Challenger's 5-year structural warranty with 2-year functional parts coverage.
Challenger CL10V3-DPC Features
Versymmetric Two-in-One Lifting Technology
The proprietary Versymmetric arm design enables both symmetric and asymmetric vehicle positioning within a single service bay without arm changes or separate lifts. In asymmetric mode, the vehicle shifts forward 30% of wheelbase length, providing full door swing clearance while maintaining the 10,000 lb capacity across both configurations. This dual-mode capability accommodates everything from centered truck lifts to offset car positioning for interior access work.
directSPOT 3-Stage Arm System
The directSPOT arm system delivers front arm reach from 20" to 42" and rear arm reach from 37-5/8" to 60" through a 3-stage telescoping design. This extended range exceeds typical 2-stage competitor arms, providing more precise first-try spotting on manufacturer-designated lift points across a wider variety of vehicle wheelbases. Double telescoping screw pads with a height range of 3-7/8" to 6-1/8" provide additional fine-tuning for precise contact with unibody pinch welds and frame rails.
Dual Pendant Controls for Precision Spotting
The DPC configuration provides pendant controls on both the power and idler columns, allowing technicians to operate the lift from whichever side offers the best view of the lift points. This dual-station approach eliminates the blind-side positioning that single-pendant lifts require when spotting the far-side arms, enabling confident first-try arm placement and reduced risk of contact with rocker panels or vulnerable underbody components.
ALI/ETL Certified Safety Compliance
The CL10V3-DPC carries full ALI Gold certification and ETL listing, meeting or exceeding ANSI/ALI ALCTV safety standards for automotive lifts. Third-party testing verifies structural integrity at 2,750 PSI hydraulic pressure under full 10,000 lb load. The single-point lock release system engages across multiple positions throughout the 74-1/8" rise height, with OSHA-compliant keyed lockout for additional safety.
Complete Accessory Package Included
Ships with the Stack Adapter Kit (Part #10315) containing four 3" stack extensions, two 6" stack extensions, and two organizer racks. Also included are the Document Caddy (Part #10320) for service manual storage and Pendant Holder (Part #10321) for control management. Integrated rubber door guards and padded overhead shut-off system come standard, representing over $400 in added value versus competitors.
Heavy-Duty Construction and Synchronized Operation
Features dual hydraulic cylinders with 68" stroke and cable-synchronized carriage operation for balanced lifting. The 2HP single-phase motor delivers a 38-second rise time while operating on standard 208-230V power. Adjustable column width settings of 11'-11" or 11'-6-1/2" accommodate different bay configurations, with drive-thru clearance of 100" to 104-1/2" between columns.
Challenger CL10V3-DPC Applications
- General Automotive Service: Full mechanical service on passenger vehicles, SUVs, crossovers, and vans including engine, transmission, and drivetrain work requiring extended undercar access with the 74-1/8" rise height.
- Light Truck Service: Symmetric lifting configuration provides a stable platform for pickups, work vans, and light commercial vehicles up to 10,000 lb gross weight with balanced 2,500 lb per arm distribution.
- Express Bay Operations: Quick service work including tire changes, brake service, and suspension repairs where fast vehicle throughput is essential, supported by the 38-second rise time and dual pendant controls.
- Unibody Vehicle Service: Precision arm positioning with the 3-stage directSPOT system reaches manufacturer-designated lift points on modern unibody construction without pinch weld damage.
- Frame Construction Vehicles: Compatible with optional frame adapters (Part #10314, #10318) for body-on-frame trucks requiring frame rail contact, with included stack adapters for additional height adjustment.
- Dealership Service Departments: Mixed-fleet capability handles the full range of manufacturer models in a single service bay with Versymmetric technology accommodating both symmetric and asymmetric positioning.
- Independent Repair Shops: Versatile configuration accommodates the unpredictable vehicle mix that independent shops encounter daily, from compact sedans to full-size trucks.
Challenger CL10V3-DPC Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 10,000 lb |
| Capacity Per Arm | 2,500 lb |
| Hydraulic Pressure at Capacity | 2,750 PSI |
| Specification | Value |
|---|---|
| Rise Height | 74-1/8" |
| Column Height | 11'-2" or 11'-8" |
| Ceiling Height Required | 12' minimum |
| Overall Width (Adjustable) | 11'-11" or 11'-6-1/2" |
| Inside of Columns | 110" or 114-1/2" |
| Drive-Thru Clearance | 100" or 104-1/2" |
| Floor to Overhead Switch | 10'-8-1/2" or 11'-2-1/2" |
| Specification | Value |
|---|---|
| Arm Type | 3-Stage directSPOT |
| Front Arm Reach | 20" to 42" |
| Rear Arm Reach | 37-5/8" to 60" |
| Screw Pad Height Range | 3-7/8" to 6-1/8" |
| Specification | Value |
|---|---|
| Motor | 2 HP |
| Voltage | 208-230V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Circuit Breaker | 30 Amp double pole (dedicated circuit) |
| Rise Time | 38 seconds (approximate) |
| Specification | Value |
|---|---|
| Mounting Type | Surface Mounted |
| Concrete Thickness | 4" minimum |
| Concrete Strength | 3,500 PSI minimum |
| Reinforcement | Steel reinforced required |
| Floor Level Tolerance | 3/8" over installation area |
| Anchor Clearance | 8" minimum from cracks, edges, or expansion joints |
| Side Clearance | 12' minimum to nearest obstruction |
| Hydraulic Fluid Capacity | 3 gallons |
| Operating Temperature | 41-104°F (5-40°C) |
| Installation Environment | Indoor use only |
| Specification | Value |
|---|---|
| Safety Certifications | ALI/ETL Certified |
| Standards Compliance | ANSI/ALI ALCTV |
Challenger CL10V3-DPC Installation Requirements
Electrical Requirements
Power: 208-230V single-phase, 60Hz with a dedicated 30 Amp double pole circuit breaker or time delay fuse. A licensed electrician must install and verify the electrical supply. Electrical code requires a service disconnect located near the point of operation.
Concrete Foundation
Anchoring: Minimum 4" thick concrete slab with steel reinforcement, 3,500 PSI compressive strength, cured for 28 days per local commercial practice. Floor must be level within 3/8" over the installation area. No anchors may be installed within 8" of any crack, edge, or expansion joint. Includes 14 anchor bolts (3/4" x 5-1/2" long).
Space Requirements
Ceiling Height: 12' minimum clearance. Side Clearance: 12' minimum to nearest obstruction on each side. Front/Rear Clearance: 6' to nearest obstruction or 7' to nearest wall. Drive-Thru: 100" to 104-1/2" between columns depending on width setting.
Professional Installation
Professional installation by a qualified technician is recommended to ensure proper operation and maintain warranty coverage. This lift has been evaluated for indoor use only with an operating ambient temperature range of 41-104°F (5-40°C). Outdoor installation is prohibited. Consult local building inspectors for any special instructions or approvals required.
What's Included with the Challenger CL10V3-DPC
- Power column assembly with 2HP motor and power unit
- Idler column assembly
- Overhead beam assembly
- 3-stage directSPOT arm pack (front arms)
- 2-stage arm pack (rear arms)
- Column extensions
- Synchronizer cable pack
- Overhead shut-off bar assembly with padded cushion
- Dual pendant control assemblies
- Junction box assembly
- Stack Adapter Kit (Part #10315) - four 3" stack extensions, two 6" stack extensions, two organizer racks
- Document Caddy (Part #10320)
- Pendant Holder (Part #10321)
- Rubber door guards
- 14 anchor bolts (3/4" x 5-1/2")
- Complete hardware pack
- Installation, operation, and maintenance manual
- ALI Lifting It Right safety manual
- ALI Safety Tips card
Optional Accessories: Frame Adapter Kit (Part #10314), Extended Frame Adapter Kit (Part #10318), Quick Cycle DPC upgrade (24-second rise time with 3HP motor).
Not Included: Hydraulic fluid (3 gallons of 10wt anti-foam anti-rust hydraulic oil or Dexron III ATF required), electrical wiring and service disconnect, concrete work or floor preparation, professional installation labor.
Challenger CL10V3-DPC Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Ships within 3-5 business days; transit time varies by location. International: Contact sales for quote.
Delivery Requirements
Unloading: Forklift or loading dock required for unloading. Column assemblies weigh approximately 200 lb each. Delivery Type: Curbside delivery standard to commercial addresses. Inspection: Inspect all packages for damage before signing the bill of lading. Note any visible damage on the delivery receipt and contact Challenger Lifts immediately if hidden damage is discovered.
Returns
Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. 20% restocking fee applies. Buyer responsible for return freight costs.
Challenger CL10V3-DPC Warranty
Challenger Lifts Limited Warranty
Challenger Lifts guarantees CL10 series lifts to the original owner with the following coverage periods:
- 5 Years: Structural parts including carriage, columns, column extensions, overhead beams, and arms
- 2 Years: Functional parts including power unit, cylinders, sheaves, hoses, hydraulic fittings, cables, latches, valves, and controls
- 1 Year: Labor costs for replacement of defective parts
Requirements: Warranty is valid only when the product is installed, used, and maintained according to Challenger's specifications. Professional installation recommended. Product must be registered online at challengerlifts.com. Use of unapproved parts or accessories voids the warranty. This warranty extends only to the original purchaser and is not transferable.
Documents
Click to open in a new tab.
Questions About the Challenger CL10V3-DPC?
Our equipment specialists can help with installation planning, specifications, and product selection for your shop.
Challenger CL10V3-DPC FAQ
What is the maximum lifting capacity of the CL10V3-DPC?
The Challenger CL10V3-DPC has a total lifting capacity of 10,000 lb with a maximum of 2,500 lb per arm. The capacity rating is based on loads equally distributed across all four arms. Never exceed 2,500 lb on any single arm or attempt to lift a vehicle using only two arms.
What ceiling height do I need for the CL10V3-DPC?
The CL10V3-DPC requires a minimum ceiling height of 12 feet. The standard column height is 11'-2" or 11'-8" (adjustable), and the hydraulic cylinder extends past the column at full rise. Ensure adequate overhead clearance based on the full raised height of the lift plus the tallest vehicle you plan to service.
What electrical service is required?
The CL10V3-DPC requires 208-230V single-phase, 60Hz power with a dedicated 30 Amp double pole circuit breaker or time delay fuse. A licensed electrician must install and verify the electrical supply. Electrical code requires a service disconnect located near the point of operation.
What are the concrete floor requirements?
The lift requires a minimum 4" thick concrete slab with steel reinforcement, 3,500 PSI compressive strength, cured for at least 28 days. The floor must be level within 3/8" over the installation area. No anchor bolts can be installed within 8" of any crack, edge, or expansion joint. If these conditions cannot be met, a dedicated pad may need to be poured.
What does the 5-year structural warranty cover?
The 5-year structural warranty covers the carriage, columns, column extensions, overhead beams, and arms. Functional parts including the power unit, cylinders, sheaves, hoses, cables, and controls are covered for 2 years. Labor for replacement of defective parts is covered for 1 year. The warranty requires proper installation, use, and maintenance according to Challenger's specifications and registration at challengerlifts.com.
What accessories are included with the lift?
The CL10V3-DPC includes a complete accessory package: Stack Adapter Kit (Part #10315) with four 3" extensions, two 6" extensions, and two organizer racks; Document Caddy (Part #10320) for manual storage; Pendant Holder (Part #10321); rubber door guards; and padded overhead shut-off system. This represents over $400 in accessories that competitors often sell separately.
How does the Versymmetric technology work?
Versymmetric technology allows both symmetric and asymmetric vehicle positioning in the same lift. In asymmetric mode, the vehicle is positioned with the front wheels forward of center, shifting the vehicle approximately 30% of its wheelbase length. This provides full door swing clearance for interior access work while maintaining the full 10,000 lb capacity. Symmetric mode centers the vehicle for balanced lifting of heavier trucks and SUVs.
What is the advantage of Dual Pendant Controls?
Dual Pendant Controls (DPC) provide pendant switches on both the power and idler columns, allowing the technician to operate the lift from either side. This eliminates blind-side positioning when spotting arms on the opposite column, enabling confident first-try arm placement and reducing the risk of mis-spotting or contacting vulnerable underbody components.
How long does it take to raise a vehicle?
The standard CL10V3-DPC has a rise time of approximately 38 seconds. An optional Quick Cycle upgrade is available that reduces rise time to approximately 24 seconds using a 3HP motor. Actual rise and lowering speeds may vary depending on the weight of the vehicle.
What hydraulic fluid does the lift require?
The CL10V3-DPC requires 3 gallons of 10wt anti-foam, anti-rust hydraulic oil or Dexron III ATF. Do not use oils with detergents. Hydraulic fluid is not included with the lift shipment and must be purchased separately.
Can I install this lift outdoors?
No, the CL10V3-DPC has been evaluated for indoor use only with an operating ambient temperature range of 41-104°F (5-40°C). Outdoor installation is prohibited and will void the warranty.
What maintenance is required?
Daily maintenance includes keeping components clean, checking for loose or broken parts, inspecting for hydraulic leaks, and checking adapters for damage. Weekly tasks include inspecting synchronizer cables and sheaves. Monthly maintenance includes torquing anchor bolts to 80 ft-lb, lubricating carriage slide tracks and arms via grease fittings, and testing the overhead shut-off switch. Refer to the included manual for complete maintenance schedules.
