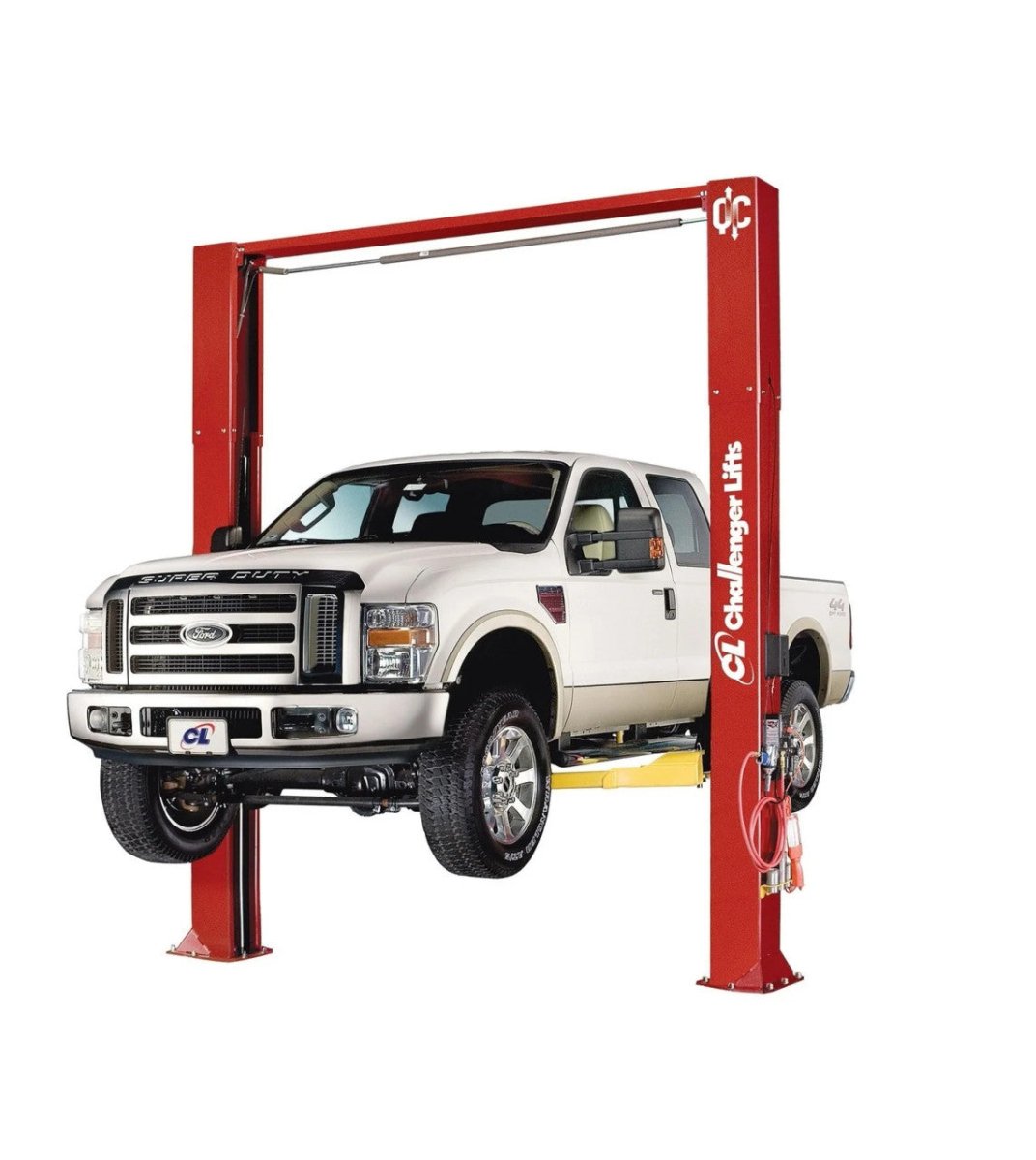

Challenger CL10V3-DPC-QC Two-Post Lift 10,000 lb Quick Cycle
Challenger CL10V3-DPC-QC 10,000 lb Two-Post Lift with Dual Pendant Controls and Quick Cycle for Professional Automotive Service
The Challenger CL10V3-DPC-QC is a professional-grade 10,000 lb capacity two-post lift featuring exclusive Versymmetric technology for maximum vehicle compatibility. This configuration combines Dual Pendant Controls for convenient operation from either side of the vehicle with Quick Cycle technology that delivers a 27-second rise time and 17-second descent to dramatically boost shop throughput. The innovative 3-stage front and 3-stage rear arms with directSPOT design eliminate vehicle repositioning for first-try accurate spotting. Backed by Challenger's warranty with 5 years structural, 2 years functional parts, and 1 year labor coverage, this ALI-Certified lift is engineered for demanding professional environments.
Challenger CL10V3-DPC-QC Features
Versymmetric Technology
Challenger's exclusive Versymmetric offset front arms provide the flexibility to safely lift vehicles both symmetrically and asymmetrically within the same service bay. This dual capability maximizes your service potential and revenue by accommodating the widest range of vehicle types without requiring multiple lift configurations.
Quick Cycle Technology
The Quick Cycle system powered by a 3HP motor delivers exceptional speed with a 27-second rise and 17-second descent. This dramatically faster cycle time compared to standard models significantly boosts your shop's service throughput and reduces customer wait times during high-volume service periods.
directSPOT 3-Stage Arms
The industry-first directSPOT design features 3-stage front arms (20" - 42" reach) and 3-stage rear arms (37.625" - 60" reach) that eliminate the need to shuffle vehicles back and forth. Swing the front arm clear of the tire to reach recommended lift points on the first try, boosting productivity and reducing technician frustration.
Dual Pendant Controls
Conveniently operate the lift from either side of the vehicle with dual pendant controls. This configuration improves workflow efficiency by allowing technicians to raise or lower the lift from whichever position is most convenient during the service process.
Heavy-Duty Equalization System
An oversized 5" diameter pulley combined with heavy-duty 5/16" cable reduces stress on the equalization system and significantly extends cable life. The 48" elongated carriage design further increases overall lift longevity for years of reliable service.
Premium Safety and Protection Features
Standard features include a padded overhead shut-off system to prevent vehicle damage, dual integrated rubber door guards to protect vehicle panels, and plated arm restraints and pins that inhibit rust. The pulley-less jacketed single-point lock release ensures smooth, easy operation with extended service life.
Challenger CL10V3-DPC-QC Applications
- High-Volume Service Centers: Quick Cycle technology's 27-second rise time maximizes throughput for shops handling large volumes of oil changes, inspections, and routine maintenance.
- Professional Automotive Repair Shops: The 10,000 lb capacity handles passenger cars, SUVs, crossovers, and light trucks with Versymmetric flexibility for symmetric or asymmetric positioning.
- Dealership Service Departments: Dual pendant controls improve workflow efficiency while the directSPOT arms ensure accurate first-try spotting across diverse vehicle lineups.
- Fleet Maintenance Facilities: Built for demanding daily use with heavy-duty construction, elongated carriage design, and premium powder coat finish for long-lasting durability.
- Tire and Wheel Service Centers: The 3-stage arm design provides excellent clearance for tire and wheel work while the fast cycle time keeps vehicles moving through service bays.
Challenger CL10V3-DPC-QC Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 10,000 lb |
| Lift Configuration | Dual Pendant Controls and Quick Cycle |
| Arms | 3-stage front / 3-stage rear |
| Certification | ALI/ETL Certified |
| Specification | Value |
|---|---|
| Rise Height | 74.125" |
| Overall Height | 11' 2" or 11' 8" |
| Overall Height (Cylinder Extended) | 11' 11" |
| Overall Width | 11' 6.5" / 12' 0.5" / 12' 6.5" |
| Drive-Thru Clearance | 100" / 106" / 112" |
| Floor to Overhead Switch | 10' 8.5" - 11' 2.5" |
| Inside Columns | 110" / 116" / 122" |
| Front Arm Reach | 20" - 42" |
| Rear Arm Reach | 37.625" - 60" |
| Screw Pad Height | 3.875" - 6.125" |
| Specification | Value |
|---|---|
| Motor | 3HP |
| Voltage | 208V - 230V |
| Phase | Single Phase (1Ph) |
| Frequency | 60Hz |
| Specification | Value |
|---|---|
| Speed of Rise | 27 seconds |
| Speed of Descent | 17 seconds |
| Ceiling Height Required | 12' |
| 2' Height Extension Available | Yes |
| 3' Height Extension Available | Yes |
| Colors Available | Red, Blue, Black |
| Specification | Value |
|---|---|
| Width Adjustments | 3 adjustments at time of setup |
| Height Adjustments | 2 adjustments at time of setup |
Challenger CL10V3-DPC-QC Installation Requirements
Electrical Requirements
Power: 3HP motor requiring 208V - 230V, single phase (1Ph), 60Hz. A licensed electrician must install and verify the electrical supply meets all local codes and manufacturer specifications.
Concrete Foundation
Anchoring: Minimum 4" thick concrete with 3,000 PSI compressive strength recommended. Concrete must be fully cured and free of cracks. Consult the installation manual for specific anchor bolt specifications and placement requirements.
Space Requirements
Ceiling Height: Minimum 12' required (standard configuration fits 12' ceiling). Overall Width: 11' 6.5" to 12' 6.5" depending on setup. Drive-Thru Clearance: 100" to 112" depending on width configuration. Optional 2' or 3' height extensions available for taller ceilings.
Professional Installation
Professional installation by a qualified technician is strongly recommended to ensure proper setup, safety compliance, and warranty validation. Challenger requires warranty registration at challengerlifts.com/register-your-lift to activate full warranty coverage.
What's Included with the Challenger CL10V3-DPC-QC
- Two-post lift columns with carriages
- 3-stage front arms and 3-stage rear arms with Versymmetric design
- Dual pendant controls
- Quick Cycle 3HP power unit
- Overhead beam assembly with padded shut-off system
- Premium double telescoping screw pads
- Dual integrated rubber door guards
- Equalization cables and hardware
- Anchor bolts and mounting hardware
- Installation and operation manual
Optional Accessories: 2' or 3' height extensions, additional adapter sets, truck adapters, and various lift point adapters for specialty vehicles.
Not Included: Electrical work, concrete work, installation labor, and any required permits. Professional installation services available separately.
Challenger CL10V3-DPC-QC Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Ships within 5-10 business days. International: Contact sales for international shipping quotes and availability.
Delivery Requirements
Unloading: Forklift or loading dock required for unloading. Delivery Type: Curbside delivery to commercial addresses is standard. Inspection: Thoroughly inspect all packages for damage before signing the Bill of Lading. Note any visible damage on the delivery receipt and photograph damaged packaging.
Returns
Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. 20% restocking fee applies. Buyer responsible for return freight costs.
Challenger CL10V3-DPC-QC Warranty
Challenger Lifts Limited Warranty
Challenger Lifts guarantees this product to the original owner with comprehensive coverage across structural, functional, and labor components.
- 5 Years: Structural parts including carriage, columns, column extensions, overhead beams, arms, and cross beams
- 2 Years: Functional parts including power unit, cylinders, sheaves, hoses, hydraulic fittings, cables, valves, and controls
- 1 Year: Labor coverage for repair or replacement of defective parts
Requirements: Warranty registration must be completed online at challengerlifts.com/register-your-lift. Product must be installed, used, and maintained according to Challenger specifications. Use of unapproved parts or accessories will void warranty. This warranty extends only to the original purchaser and is not transferable.
Documents
Click to open in a new tab.
Questions About the Challenger CL10V3-DPC-QC?
Our equipment specialists can help with installation planning, specifications, and product selection for your shop.
Challenger CL10V3-DPC-QC FAQ
What is the lifting capacity of the Challenger CL10V3-DPC-QC?
The Challenger CL10V3-DPC-QC has an ALI-Certified lifting capacity of 10,000 lb, making it suitable for passenger cars, SUVs, crossovers, and light trucks within the weight rating.
What ceiling height do I need for this lift?
The standard configuration requires a minimum 12' ceiling height. The overall height is 11' 2" or 11' 8" with the cylinder retracted and 11' 11" with the cylinder fully extended. For shops with higher ceilings, optional 2' or 3' height extensions are available.
What electrical power is required?
The CL10V3-DPC-QC Quick Cycle model requires a 3HP motor powered by 208V - 230V, single phase (1Ph), 60Hz electrical supply. A licensed electrician should verify your facility's electrical capacity and install an appropriate circuit.
How fast does the Quick Cycle lift operate?
The Quick Cycle technology provides a rise time of just 27 seconds and a descent time of only 17 seconds, significantly faster than the standard 38-second rise time on non-Quick Cycle models.
What is Versymmetric technology?
Versymmetric is Challenger's exclusive technology that allows the lift to safely accommodate both symmetric and asymmetric vehicle positioning within the same service bay. This provides maximum flexibility for servicing different vehicle types without reconfiguring the lift.
What does the warranty cover?
Challenger provides a comprehensive warranty including 5 years on structural parts (columns, carriages, arms, beams), 2 years on functional parts (power unit, cylinders, cables, valves), and 1 year on labor. Warranty registration at challengerlifts.com is required for activation.
What is included with the lift purchase?
The lift includes complete column assemblies, 3-stage front and rear arms, dual pendant controls, Quick Cycle power unit, overhead beam with padded shut-off, double telescoping screw pads, rubber door guards, equalization cables, anchor bolts, and the installation manual. Installation labor and electrical work are not included.
How is the lift shipped and delivered?
Free freight shipping is provided to commercial addresses in the 48 contiguous United States. The lift ships within 5-10 business days. A forklift or loading dock is required for unloading. Curbside delivery is standard.
What are the width and column spacing options?
The lift offers three width adjustments at time of setup with overall widths of 11' 6.5", 12' 0.5", or 12' 6.5". Inside column spacing options are 110", 116", or 122", with corresponding drive-thru clearances of 100", 106", or 112".
What concrete requirements are needed for installation?
A minimum 4" thick concrete floor with 3,000 PSI compressive strength is recommended. The concrete must be fully cured, structurally sound, and free of cracks. Refer to the installation manual for specific anchor bolt specifications and placement requirements.
What makes the directSPOT arm design different?
The directSPOT design uses 3-stage front arms (20" - 42" reach) and 3-stage rear arms (37.625" - 60" reach) that eliminate the need to drive vehicles back and forth to position arms. This allows technicians to swing arms clear of tires and reach lift points accurately on the first try.
What colors are available?
The Challenger CL10V3-DPC-QC is available in Red, Blue, and Black with a premium powder coat finish for long-lasting durability and professional appearance.
