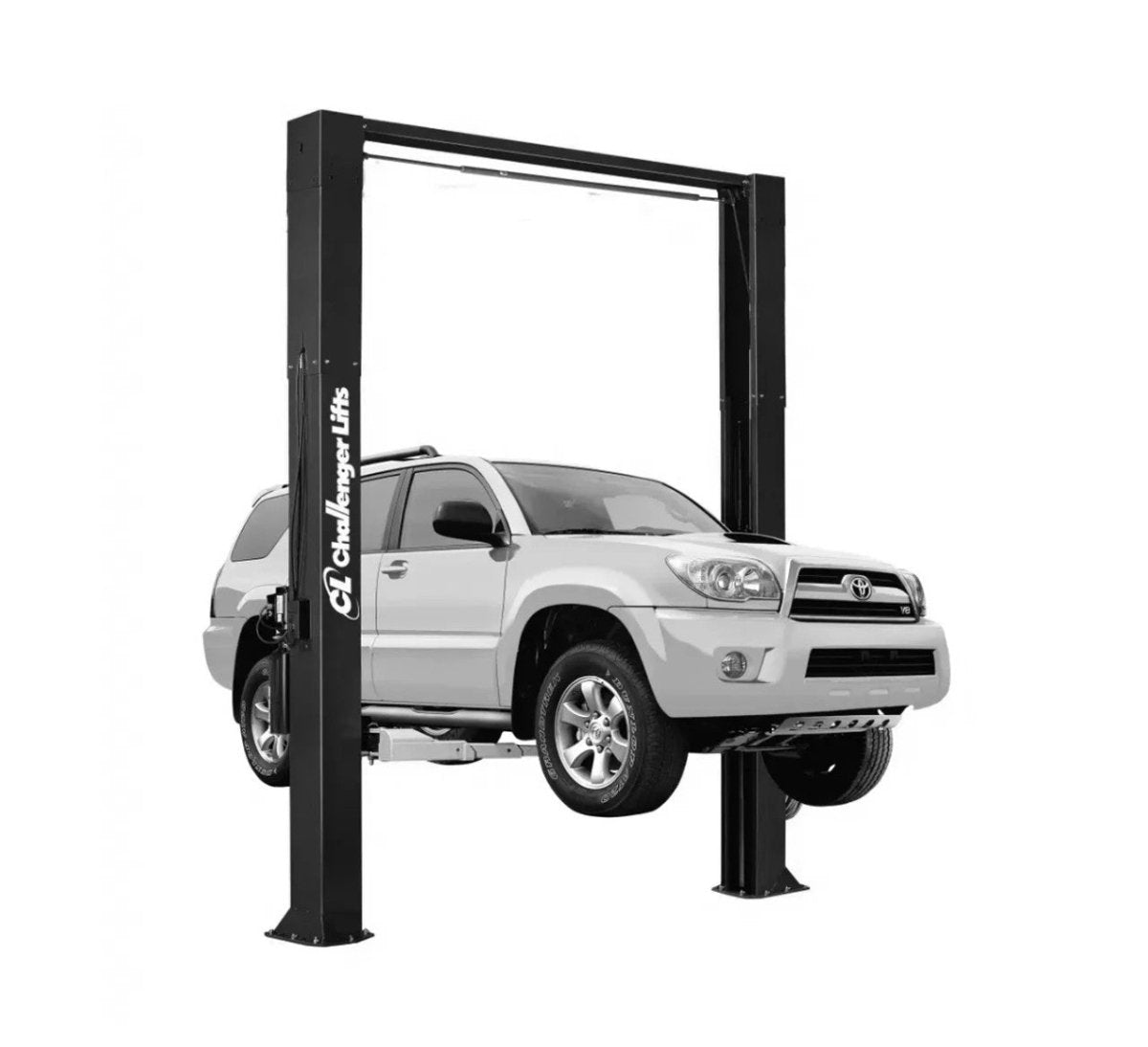

Challenger CL10V3-DPC-QC 10000 lb Two Post Automotive Lift
Challenger CL10V3-DPC-QC 10,000 lb Versymmetric Two-Post Lift for Professional Automotive Service
The Challenger CL10V3-DPC-QC delivers 10,000 lb lifting capacity in a surface-mounted two-post configuration engineered for professional automotive service facilities. This American-made lift features Versymmetric dual-mode arm geometry for both symmetric and asymmetric vehicle positioning, Quick Cycle hydraulics delivering 24-27 second rise times, and 3-stage directSPOT arms with 20-42 inch front reach and 37.625-60 inch rear reach. The dual pendant control system allows operation from either column, while ALI Gold Label Certification and ETL Listing verify compliance with industry safety standards. Backed by Challenger's 5-year structural warranty and manufactured in Louisville, Kentucky.
Challenger CL10V3-DPC-QC Features
Versymmetric Dual-Mode Arm Geometry
The Versymmetric arm system enables both symmetric and asymmetric vehicle positioning within a single two-post lift. With 110-114.5 inch inside column spacing and 100-104.5 inch drive-thru clearance, technicians can center loads for balanced lifting or offset vehicles toward the rear for improved door swing clearance and cabin access without requiring separate lift configurations or bay reconfiguration.
Quick Cycle Hydraulic Performance
The Quick Cycle power unit delivers 24-27 second rise times compared to 38 seconds on standard CL10V3 models. This 3HP single-phase motor drives high-flow hydraulics that reduce cycle times by approximately 11 seconds without sacrificing lifting capacity or operational smoothness, improving daily productivity in high-volume service environments.
directSPOT 3-Stage Arm Design
The directSPOT arm system features 3-stage telescoping front arms with 20-42 inch reach and 3-stage rear arms with 37.625-60 inch reach. This extended range exceeds typical 2-stage competitor designs, providing broader coverage for spotting manufacturer-specified lift points across diverse vehicle wheelbases from compact cars to full-size pickups and SUVs.
Dual Pendant Control Operation
The DPC configuration provides pendant controls on both power and idler columns across the 138.5-143 inch adjustable width, allowing operators to raise or lower the lift from either side of the vehicle. Each pendant assembly includes a lanyard for convenient positioning, enabling technicians to observe arm placement and lift point contact from whichever column provides the best viewing angle.
ALI and ETL Certified Safety Systems
The CL10V3-DPC-QC carries ALI Gold Label Certification and ETL Listing, meeting ANSI/ALI ALCTV-2017 and ANSI/UL 201 standards. Safety features include a padded overhead shutoff system, single-point mechanical lock release with dual engagement, arm restraint system with beveled gears, and rubber door guards for documented compliance during facility inspections and insurance audits.
American Manufacturing - Louisville, Kentucky
Challenger manufactures the CL10V3 series at their Louisville, Kentucky facility, maintaining domestic production of structural components, hydraulic systems, and arm assemblies. This provides improved long-term serviceability with US-based warranty claims, replacement components, and English-speaking technical support during standard business hours.
Challenger CL10V3-DPC-QC Applications
- Full-Service Automotive Repair: General maintenance, diagnostics, and repair operations requiring undercarriage access for passenger vehicles, light trucks, and SUVs up to 10,000 lb gross vehicle weight.
- Dealership Service Departments: High-volume new and pre-owned vehicle servicing where Quick Cycle performance and Versymmetric flexibility support mixed fleet throughput and technician efficiency.
- Express and Quick Lube Service: Oil change, fluid service, and inspection bays where fast 24-27 second cycle times directly impact daily vehicle counts and revenue generation.
- Tire and Brake Service: Wheel and brake system work benefiting from asymmetric positioning for improved technician access to wheel wells and brake components without repositioning vehicles.
- Light-Duty Truck and SUV Service: Extended-wheelbase vehicles requiring the 60-inch rear arm reach and 10,000 lb capacity for full-size pickups, SUVs, and vans.
- Fleet Maintenance Facilities: Commercial and municipal fleet operations servicing mixed vehicle types in standardized bay configurations with consistent lift point access.
Challenger CL10V3-DPC-QC Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 10,000 lb |
| Capacity Per Arm | 2,500 lb |
| Hydraulic Pressure at Capacity | 2,750 PSI |
| Specification | Value |
|---|---|
| Column Height | 11 ft 2 in or 11 ft 8 in |
| Rise Height | 74-1/8 in |
| Screw Pad Height Range | 3-7/8 in to 6-1/8 in |
| Overall Width (Adjustable) | 138.5 in to 143 in (11 ft 6.5 in to 11 ft 11 in) |
| Inside Column Width | 110 in or 114.5 in |
| Drive-Thru Clearance | 100 in or 104.5 in |
| Front Arm Reach (3-Stage) | 20 in to 42 in |
| Rear Arm Reach (3-Stage) | 37-5/8 in to 60 in |
| Ceiling Height Required | 12 ft minimum |
| Specification | Value |
|---|---|
| Motor | 3 HP |
| Voltage | 208-230V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Circuit Breaker | 30 Amp Double Pole or Time Delay Fuse |
| Rise Time (Quick Cycle) | 24-27 seconds |
| Specification | Value |
|---|---|
| ALI Certification | ALI Gold Label Certified (ANSI/ALI ALCTV-2017) |
| ETL Listing | ETL Listed (ANSI/UL 201) |
| Country of Manufacture | USA (Louisville, Kentucky) |
Challenger CL10V3-DPC-QC Installation Requirements
Electrical Requirements
Power: 208-230V, single-phase, 60Hz with a dedicated circuit using a 30 Amp double pole breaker or time delay fuse. A licensed electrician must install and verify the electrical supply. Electrical code requires a service disconnect located near the point of operation.
Concrete Foundation
Anchoring: Minimum 4 inches concrete depth with steel reinforcement, 3,500 PSI rating, cured for 28 days per local commercial practice. Floor should be level within 3/8 inch over the installation area. No anchors should be installed within 8 inches of any crack, edge, or expansion joint. Fourteen 3/4 x 5-1/2 inch anchor bolts secure the lift to the floor.
Space Requirements
Ceiling Height: 12 ft minimum. Bay Width: 144 inches (12 ft) minimum to nearest obstruction on each side. Rear Clearance: 6 ft to nearest obstruction or 7 ft to nearest wall. This lift has been evaluated for indoor use only with an operating ambient temperature range of 41-104 degrees F (5-40 degrees C).
Professional Installation
Professional installation by a Challenger-authorized service representative is recommended to ensure proper setup, adjustment, and warranty compliance. Installation includes hydraulic system bleeding, synchronizer cable adjustment, lock release calibration, and final checkout procedure with operational demonstration.
What's Included with the Challenger CL10V3-DPC-QC
- Power Column Assembly with 68 inch stroke cylinder
- Idler Column Assembly with 68 inch stroke cylinder
- Overhead Beam Assembly
- 3-Stage Front Arm Pack (2 arms)
- 2-Stage Rear Arm Pack (2 arms)
- Column Extensions (2)
- Quick Cycle Power Unit (3HP, single-phase)
- Dual Pendant Control Assemblies with lanyards
- Junction Box Assembly
- Synchronizer Cable Pack
- Overhead Shutoff Bar Assembly with padded limit switch
- Lock Release Cable Assemblies
- Foot Pad Assemblies (4) with rubber inserts
- Hardware Box with anchor bolts, fittings, and fasteners
- Literature Pack including installation, operation, and maintenance manual
Not Included: Hydraulic fluid (requires 3 gallons of 10wt anti-foam anti-rust hydraulic oil or Dexron III ATF), electrical wiring and service disconnect, concrete work or floor repairs, and installation labor.
Challenger CL10V3-DPC-QC Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Ships from Louisville, Kentucky within 3-5 business days for in-stock units. International: Contact sales for quote.
Delivery Requirements
Unloading: Forklift or loading dock required for unloading. Columns weigh approximately 200 lb each. Delivery Type: Curbside delivery standard. Inspection: Inspect all packages for damage before signing BOL. Note any damage on delivery receipt and notify Challenger Lifts immediately if hidden loss or damage is discovered.
Returns
Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. 20% restocking fee applies. Buyer responsible for return freight costs.
Challenger CL10V3-DPC-QC Warranty
Challenger Lifts Limited Warranty
Challenger Lifts guarantees the CL10V3-DPC-QC to the original owner with the following coverage periods:
- 5 Years: Structural parts including carriage, columns, column extensions, overhead beams, and arms
- 2 Years: Functional parts including power unit, cylinders, sheaves, hoses, hydraulic fittings, cables, adapters, latches, valves, and controls
- 1 Year: Labor costs for replacement of defective parts
Requirements: Warranty registration must be completed online at challengerlifts.com. Product must be installed, used, and maintained according to Challenger specifications. Use of unapproved parts or accessories will void warranty. This warranty extends only to the original purchaser and is not transferable.
Documents
Click to open in a new tab.
Questions About the Challenger CL10V3-DPC-QC?
Our equipment specialists can help with installation planning, specifications, and product selection for your shop.
Challenger CL10V3-DPC-QC FAQ
What is the maximum lifting capacity of the CL10V3-DPC-QC?
The Challenger CL10V3-DPC-QC has a maximum lifting capacity of 10,000 lb when loads are equally distributed across all four arms. Each individual arm is rated for 2,500 lb maximum. Never exceed 2,500 lb per arm or attempt to lift a vehicle using only two arms.
What ceiling height do I need for this lift?
The CL10V3-DPC-QC requires a minimum ceiling height of 12 feet. The standard column height options are 11 ft 2 in or 11 ft 8 in. Extended column heights are available for the CL10-2 (13 ft 2 in or 13 ft 8 in) and CL10-3 (14 ft 2 in or 14 ft 8 in) models requiring higher ceilings.
What are the electrical requirements?
The Quick Cycle power unit requires 208-230V single-phase 60Hz power with a dedicated 30 Amp double pole circuit breaker or time delay fuse. A licensed electrician should install the electrical supply, and building codes require a service disconnect located near the point of operation.
Can I install this lift myself?
While self-installation is possible for experienced technicians, professional installation by a Challenger-authorized service representative is recommended. Proper installation includes hydraulic system bleeding, synchronizer cable tensioning, lock release calibration, and operational verification. Installation by non-authorized personnel may affect warranty coverage.
What is the warranty coverage?
Challenger provides a tiered warranty: 5 years on structural parts (columns, carriage, arms, overhead beam), 2 years on functional parts (power unit, cylinders, hoses, cables, controls), and 1 year on labor. Warranty registration must be completed online at challengerlifts.com, and the lift must be installed and maintained according to Challenger specifications.
What is included with the lift purchase?
The CL10V3-DPC-QC includes both column assemblies with cylinders, overhead beam, 3-stage front and 2-stage rear arm packs, column extensions, Quick Cycle power unit, dual pendant controls, synchronizer cables, overhead shutoff assembly, lock release cables, foot pads, all mounting hardware including anchor bolts, and the installation manual. Hydraulic fluid, electrical wiring, and installation labor are not included.
How is the lift shipped and delivered?
The lift ships via freight carrier from Louisville, Kentucky with free shipping to commercial addresses in the 48 contiguous states. Delivery is curbside, and a forklift or loading dock is required for unloading. Inspect all packages for damage before signing the bill of lading and note any damage on the delivery receipt.
What is Versymmetric arm geometry?
Versymmetric is Challenger's patented arm system that allows both symmetric (centered) and asymmetric (offset) vehicle positioning on the same lift. Symmetric positioning centers the vehicle for balanced lifting during undercarriage work, while asymmetric positioning offsets the vehicle toward the rear for improved door swing clearance and cabin access during interior service work.
How fast does the Quick Cycle model rise compared to standard models?
The Quick Cycle (QC) version delivers 24-27 second rise times compared to approximately 38 seconds on standard CL10V3-DPC models. This 11-second reduction per cycle is achieved through a 3HP motor (versus 2HP standard) driving high-flow hydraulics, improving productivity in high-volume service environments.
What concrete floor specifications are required?
The floor must be minimum 4 inches thick reinforced concrete with a 3,500 PSI rating, cured for at least 28 days. The floor should be level within 3/8 inch across the installation area. No anchor bolts can be installed within 8 inches of any crack, edge, or expansion joint. If conditions cannot be met, a new concrete pad may need to be poured.
What maintenance is required?
Daily maintenance includes keeping components clean, checking for loose or broken parts, inspecting for hydraulic leaks, and checking adapter condition. Weekly checks include synchronizer cable and sheave inspection. Monthly maintenance includes torquing anchor bolts to 80 ft-lb, inspecting concrete around base plates, testing the overhead shutoff switch, and lubricating carriage slide tracks and arms using the grease fittings.
What type of hydraulic fluid does the lift require?
The lift requires 3 gallons of clean 10-weight anti-foam, anti-rust hydraulic oil or Dexron III ATF. Do not use oils with detergents. Hydraulic fluid is not included with the lift shipment and must be purchased separately.
