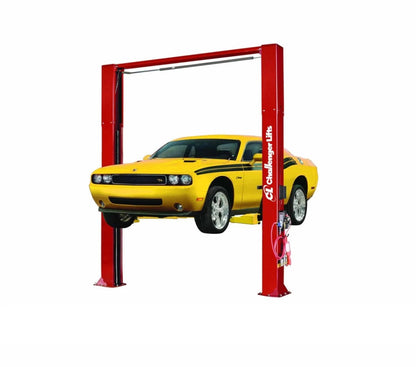

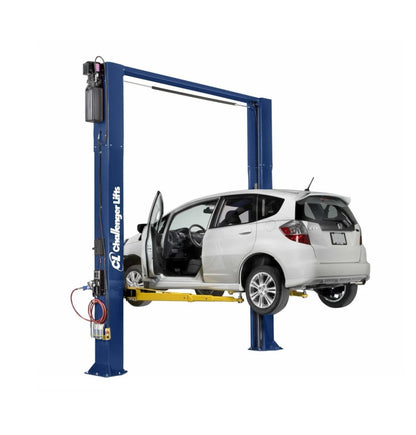

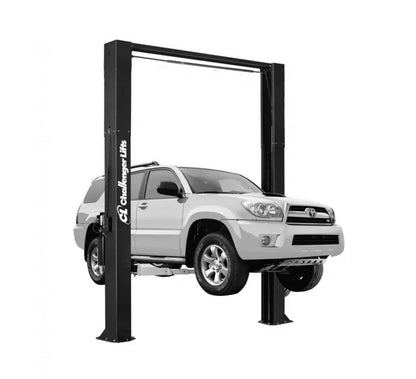

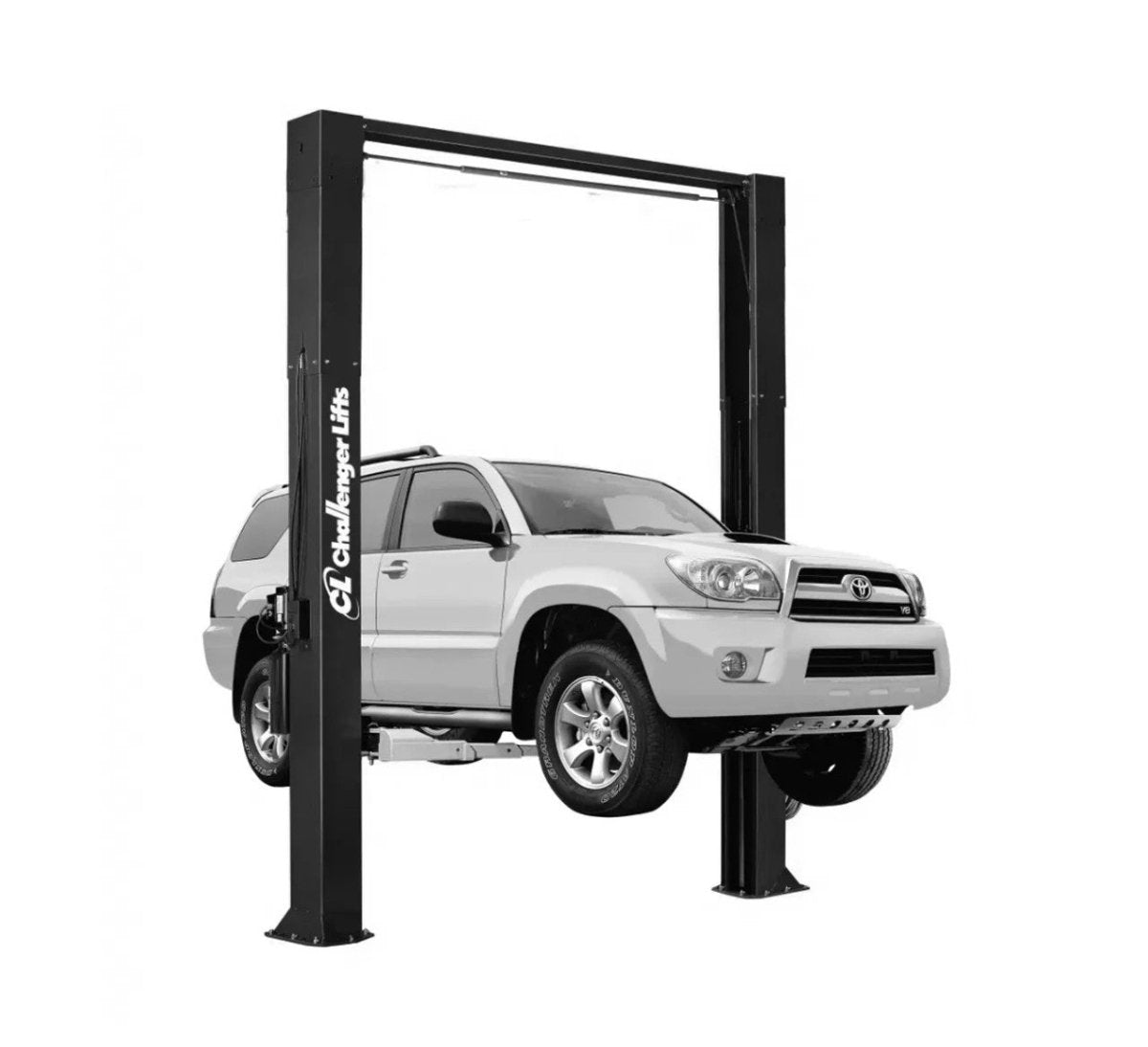

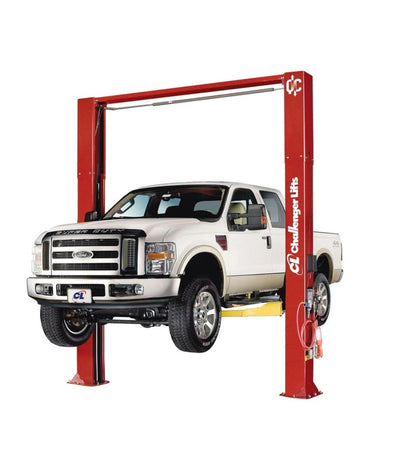

CHALLENGER LIFTS CL10V3-DPC-QC Two-Post Lift, 10,000 lbs Capacity

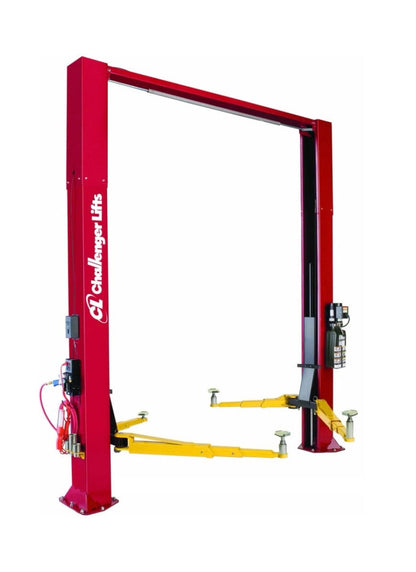

Challenger CL10V3-DPC-QC - 10,000 lb Versymmetric Two-Post Lift with Dual Pendant Controls & Quick Cycle
The Challenger CL10V3-DPC-QC delivers 10,000 lb lifting capacity in a surface-mounted two-post design, engineered for professional automotive service facilities. Featuring Versymmetric arm geometry for both symmetric and asymmetric positioning, Quick Cycle hydraulics for 24-27 second rise times, and directSPOT 3-stage arms with 20-42 inch front reach, this ALI and ETL certified lift handles passenger cars, light-duty trucks, SUVs, and vans in a single bay configuration.
Key Features & Benefits
Versymmetric Dual-Mode Arm Geometry
The Versymmetric arm system enables both symmetric and asymmetric vehicle positioning within a single two-post lift with 110-114.5 inch inside column spacing and 100-104.5 inch drive-thru clearance. This patented geometry allows technicians to center loads for balanced lifting or offset vehicles toward the rear for improved door swing clearance and cabin access without requiring separate lift configurations.
Traditional shops often need dedicated symmetric lifts for balanced loads and asymmetric lifts for door access work. Versymmetric addresses this by combining both positioning modes in one unit, eliminating the need for multiple lifts when servicing mixed vehicle fleets ranging from compact cars to light-duty trucks.
This enables greater bay flexibility and reduces equipment investment. A single CL10V3-DPC-QC can handle undercarriage work requiring centered loads and interior service work requiring offset positioning, improving shop throughput without bay reconfiguration.
Quick Cycle Hydraulic Performance
The Quick Cycle power unit delivers 24-27 second rise times compared to 38 seconds on standard CL10V3 models. This 3HP single-phase motor drives high-flow hydraulics that reduce cycle times by 11 seconds without sacrificing lifting capacity or operational smoothness.
High-volume service bays experience bottlenecks during vehicle transitions. Every second saved on lift cycles compounds across daily operations, particularly in express service, tire, and brake shops where vehicle throughput directly impacts revenue.
This improves daily productivity by reducing non-wrench time. Faster rise and descent cycles mean technicians spend more time performing service work and less time waiting for vehicles to reach working height.
directSPOT 3-Stage Arm Design
The directSPOT arm system features 3-stage telescoping front arms with 20-42 inch reach and 3-stage rear arms with 37.625-60 inch reach. This extended range exceeds typical 2-stage competitor designs, providing broader coverage for spotting manufacturer-specified lift points across diverse vehicle wheelbases and frame configurations.
Vehicles with unconventional lift point locations or extended wheelbases often require repositioning when using limited-reach arms. The 3-stage design accommodates pickups, SUVs, and vans alongside compact cars without forcing technicians to reposition vehicles or use adapter workarounds.
This reduces setup time and improves lift point accuracy. Technicians can reach proper contact points on the first attempt, minimizing the trial-and-error adjustments common with shorter-reach arm systems.
Dual Pendant Control Operation
The DPC configuration provides pendant controls on both power and idler columns across the 138.5-143 inch adjustable width, allowing operators to raise or lower the lift from either side of the vehicle. Each pendant assembly includes a lanyard for convenient positioning during service operations.
Single-side controls force technicians to walk around vehicles to operate the lift, breaking workflow and reducing sightlines to lift points. This becomes particularly problematic when spotting arms or verifying contact during initial lift engagement.
This enables operation from optimal viewing positions. Technicians can observe arm placement and lift point contact from whichever column provides the best angle, improving safety during vehicle loading and unloading sequences.
ALI and ETL Certified Safety Systems
The CL10V3-DPC-QC carries ALI Gold Label Certification and ETL Listing, meeting ANSI/ALI ALCTV-2017 and ANSI/UL 201 standards. Safety features include a padded overhead shutoff system, single-point mechanical lock release with dual engagement, arm restraint system with beveled gears, and rubber door guards.
Insurance requirements and building codes increasingly mandate third-party certified lift equipment. ALI certification verifies that the lift meets structural, mechanical, and electrical safety standards through independent laboratory testing rather than manufacturer self-certification alone.
This provides documented compliance for facility inspections and insurance audits. The certification paper trail simplifies regulatory requirements and demonstrates due diligence in equipment safety standards.
American Manufacturing - Louisville, Kentucky
Challenger Lifts manufactures the CL10V3 series at their Louisville, Kentucky facility, maintaining domestic production of structural components, hydraulic systems, and arm assemblies. This positions the lift against imported alternatives on build quality, material sourcing, and support infrastructure availability.
Imported lift equipment can present challenges with replacement parts availability, technical support time zones, and warranty service logistics. Domestic manufacturing shortens the supply chain for components and provides English-speaking technical support during standard business hours.
This improves long-term serviceability and parts access. Warranty claims, replacement components, and technical assistance route through US-based channels rather than international logistics networks.
Applications & Use Cases
- Full-Service Automotive Repair: General maintenance, diagnostics, and repair operations requiring undercarriage access for passenger vehicles, light trucks, and SUVs up to 10,000 lb gross vehicle weight.
- Dealership Service Departments: High-volume new and pre-owned vehicle servicing where Quick Cycle performance and Versymmetric flexibility support mixed fleet throughput.
- Express and Quick Lube Service: Oil change, fluid service, and inspection bays where fast cycle times directly impact daily vehicle counts and revenue.
- Tire and Brake Service: Wheel and brake system work benefiting from asymmetric positioning for improved technician access to wheel wells and brake components.
- Light-Duty Truck and SUV Service: Extended-wheelbase vehicles requiring the 60-inch rear arm reach and 10,000 lb capacity for full-size pickups and SUVs.
- Fleet Maintenance Facilities: Commercial and municipal fleet operations servicing mixed vehicle types in standardized bay configurations.
Technical Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 10,000 lb (2,500 lb per arm) |
| Rise Height | 74.125 inches |
| Rise Time (Quick Cycle) | 24-27 seconds |
| Motor | 3HP, Single Phase, 60Hz |
| Power Requirement | 208-230V, 1-phase, 30A |
| Specification | Value |
|---|---|
| Overall Height (Standard Options) | 134 inches or 140 inches |
| Overall Height (Cylinder Extended) | 143 inches |
| Column Extension Options | +2 ft or +3 ft available |
| Overall Width (Adjustable) | 138.5-143 inches |
| Inside Columns | 110-114.5 inches |
| Drive-Thru Clearance | 100-104.5 inches |
| Carriage Design | 48 inch elongated |
| Specification | Value |
|---|---|
| Front Arm Reach (3-Stage) | 20-42 inches |
| Rear Arm Reach (3-Stage) | 37.625-60 inches |
| Screw Pad Height Range | 3.875-6.125 inches |
| Cable Diameter | 5/16 inch |
| Sheave Diameter | 5 inches |
Installation Requirements
Concrete Foundation
- Minimum Thickness: 4 inches (10.2 cm)
- Reinforcement: Steel reinforced required
- Strength: 3,500+ PSI minimum
- Cure Time: 28 days minimum before installation
- Surface Condition: Level within 3/8 inch over installation area, no large cracks or deterioration
- Anchor Clearance: No anchors within 8 inches of any crack, edge, or expansion joint
Electrical Requirements
- Power Supply: 208-230V, Single Phase, 60Hz
- Circuit: Dedicated 30-amp double pole breaker or time-delay fuse
- Note: 3-phase upgrade not available for DPC models
Bay Dimensions
- Minimum Ceiling Height: 12 ft (standard configuration); higher for column extensions
- Recommended Bay Width: 12-14 ft minimum
- Recommended Bay Depth: 24 ft
Environmental Requirements
- Location: Indoor use only
- Operating Temperature: 41-104 degrees F (5-40 degrees C)
- Permits: Verify local code compliance and permit requirements before installation
Shipping & Delivery
Freight Coverage
Shipping: Ships via flatbed freight truck. Many dealers offer free shipping within continental US.
Delivery Timeframe: 12-21 business days from order placement (location dependent, subject to inventory availability).
Delivery Requirements
Unloading Equipment: Forklift or hoist required for unloading. Lift gate not available due to weight.
Delivery Type: Curbside delivery standard. Customer responsible for scheduling delivery appointment.
Packaging: Arrives palletized and boxed.
Receiving: Inspect all packages before signing bill of lading. Note any visible damage on BOL before driver departs.
Warranty Coverage
Challenger Warranty Program
5 Years - Structural Parts: Coverage for carriage, columns, arms, and plungers.
2 Years - Functional Parts: Coverage for power units, cylinders, sheaves, hoses, cables, and controls.
Extended Warranty Option: +3 years functional coverage available (must purchase within 30 days of lift purchase).
Labor Coverage: Included for warranty period.
Warranty Requirements
Eligibility: Valid for original purchaser only (non-transferable).
Installation: Installation must be performed following manufacturer installation manual and meet all concrete and electrical requirements.
Ready to Upgrade Your Shop?
Get expert guidance on the right lift for your facility. Our team can help with product selection, installation planning, and technical specifications. Call to confirm included accessories and verify warranty details.
Frequently Asked Questions
What is the lifting capacity of the Challenger CL10V3-DPC-QC?
The CL10V3-DPC-QC has a 10,000 lb total lifting capacity with 2,500 lb rated per arm. This capacity handles passenger cars, light-duty trucks, SUVs, and vans within the weight rating. The lift features a 48-inch elongated carriage design and 74.125-inch rise height to accommodate a wide range of vehicle sizes. Always verify vehicle weight against lift capacity before operation.
What is the rise time for the Quick Cycle model?
The Quick Cycle hydraulic system delivers 24-27 second rise times to full height, 11 seconds faster than the standard CL10V3 models which take 38 seconds. The 3HP single-phase motor drives high-flow hydraulics that maintain smooth operation while reducing cycle times. This improved performance increases throughput in high-volume service environments where faster vehicle transitions directly impact daily productivity.
What are the concrete requirements for the CL10V3-DPC-QC?
The lift requires a minimum 4-inch thick steel-reinforced concrete floor with 3,500+ PSI strength and 28-day minimum cure time. The surface must be level within 3/8 inch with no anchors within 8 inches of cracks, edges, or expansion joints. Verify your floor meets these specifications before purchase.
What electrical power does the CL10V3-DPC-QC require?
The lift requires 208-230V single-phase 60Hz power with a dedicated 30-amp double pole breaker or time-delay fuse. Note that 3-phase upgrade is not available for DPC (Dual Pendant Control) models. Have a qualified electrician verify your facility can provide the required circuit.
What is Versymmetric and how does it work?
Versymmetric is Challenger's arm geometry system that allows both symmetric (centered) and asymmetric (offset) vehicle positioning in one lift. This flexibility lets you center loads for balanced lifting or offset vehicles toward the rear for better door swing clearance during interior work, eliminating the need for separate lift configurations.
What certifications does the CL10V3-DPC-QC carry?
The lift is ALI Gold Label Certified and ETL Listed, meeting ANSI/ALI ALCTV-2017 and ANSI/UL 201 standards. These third-party certifications verify structural, mechanical, and electrical safety through independent laboratory testing, supporting insurance compliance and building code requirements.
What is included with the CL10V3-DPC-QC?
The lift includes power and idler column assemblies, overhead beam, 3-stage front and rear arm packs, synchronizer cables, padded overhead shutoff bar, dual pendant switches with lanyards, telescoping screw pads, truck adapter kit (Part #10315), hardware pack, rubber door guards, and installation manual. Specific accessory bundles may vary by dealer configuration.
What is the warranty coverage for the CL10V3-DPC-QC?
Challenger provides 5-year coverage on structural parts (carriage, columns, arms, plungers) and 2-year coverage on functional parts (power units, cylinders, sheaves, hoses, cables, controls). An extended warranty adding 3 years of functional coverage is available if purchased within 30 days. Labor is included during warranty periods. Warranty is non-transferable.
