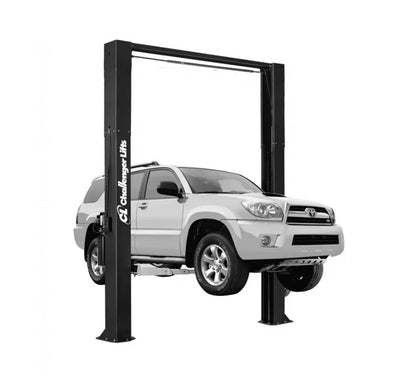

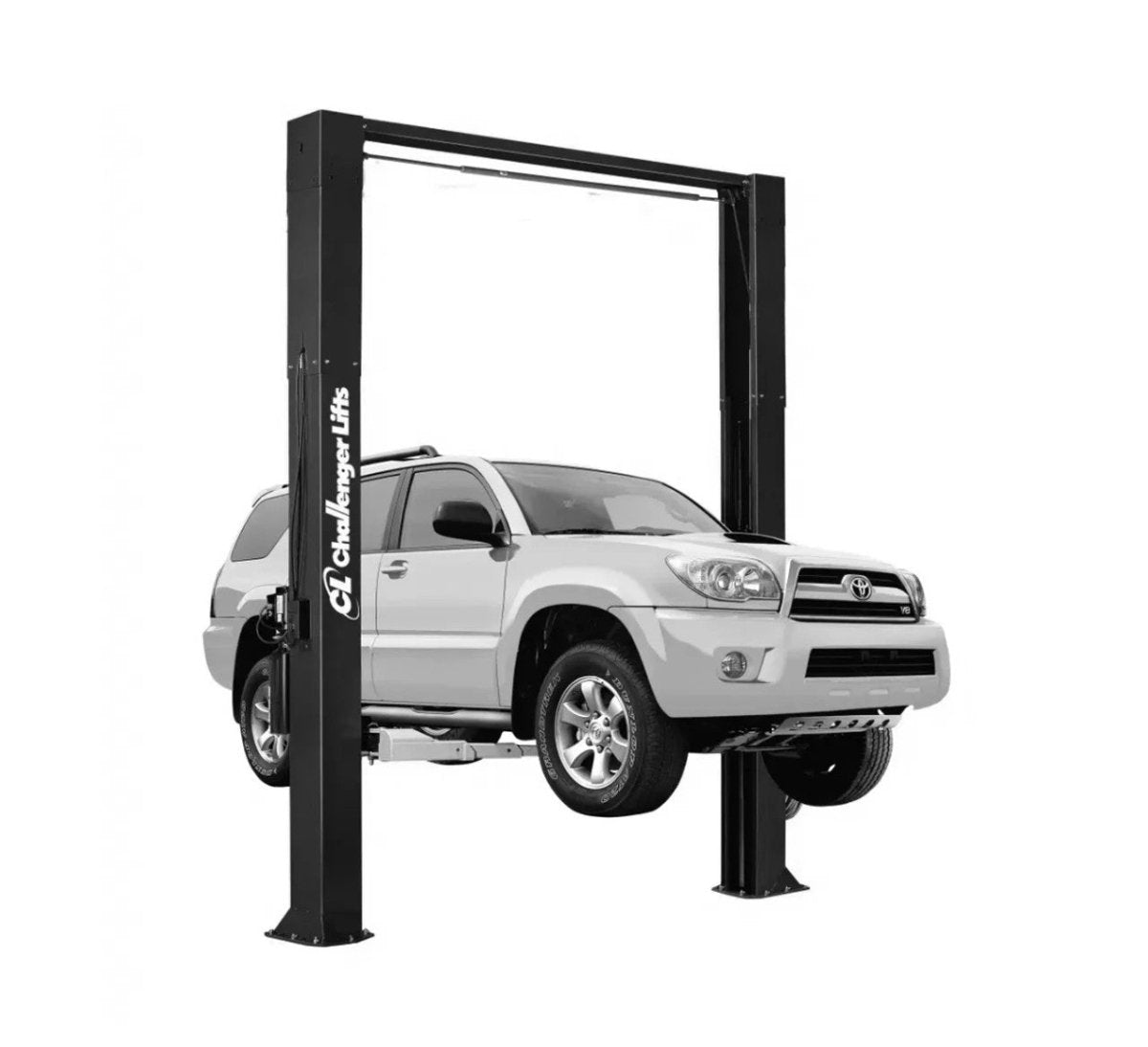

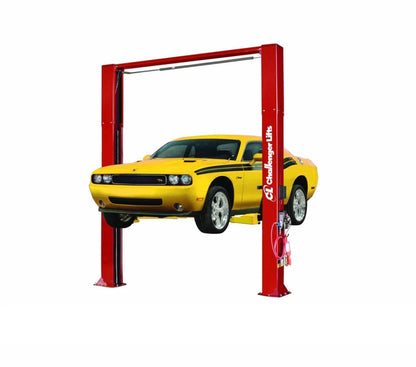

CHALLENGER LIFTS Two-Post Car Lift, CL10V3-DPC

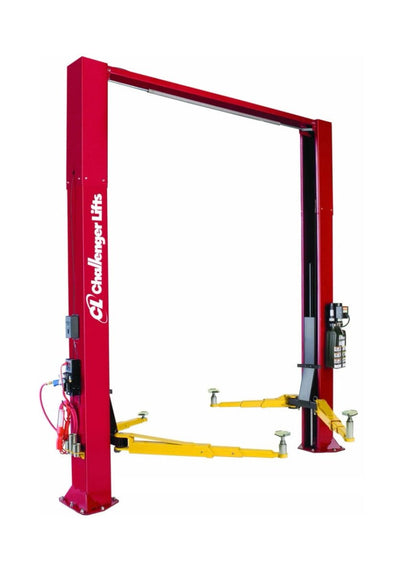

Challenger CL10V3-DPC - 10,000 lb Versymmetric Two-Post Lift with Dual Pendant Controls
The Challenger CL10V3-DPC delivers 10,000 lb lifting capacity in a surface-mounted two-post design engineered for professional automotive service facilities. Featuring proprietary Versymmetric technology for both symmetric and asymmetric vehicle positioning, directSPOT 3-stage arms with industry-leading reach, and standard Dual Pendant Controls for operation from either column, this ALI/ETL certified lift handles passenger vehicles, light trucks, SUVs, and vans in a single service bay.
Key Features & Benefits
Versymmetric Two-in-One Lifting Technology

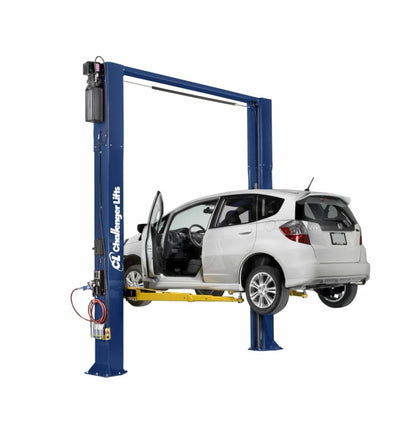

The proprietary Versymmetric arm design enables both symmetric and asymmetric vehicle positioning within a single service bay without arm changes or separate lifts. In asymmetric mode, the vehicle shifts forward 30% of wheelbase length, providing full door swing clearance while maintaining the 10,000 lb capacity across both configurations. This dual-mode capability accommodates the full range of lifting scenarios that professional shops encounter daily, from centered truck lifts to offset car positioning for door clearance.
Traditional two-post lifts lock technicians into a single lifting geometry, forcing shops to either compromise on positioning or invest in multiple lift configurations. Versymmetric technology addresses this limitation by allowing technicians to select the optimal setup for each vehicle: asymmetric mode provides maximum door clearance for interior access work, while symmetric mode delivers balanced stability for heavier light trucks and SUVs.
This eliminates the need to roll vehicles back and forth to find lift points or work around awkward door positions. Technicians can focus on the service task rather than fighting their equipment, improving both throughput and job quality.
directSPOT 3-Stage Arm System
The directSPOT arm system delivers front arm reach from 20" to 42" and rear arm reach from 37-5/8" to 60" through a 3-stage telescoping design. This extended range exceeds typical 2-stage competitor arms by providing more precise first-try spotting on manufacturer-designated lift points across a wider variety of vehicle wheelbases and body styles.
Standard 2-stage arms often fall short on longer-wheelbase vehicles or require awkward positioning to reach lift points on compact cars. The 3-stage directSPOT system addresses this by providing the reach flexibility to accommodate everything from subcompact sedans to full-size pickup trucks without repositioning the vehicle.
This improves technician efficiency by reducing the back-and-forth adjustments common with limited-reach arm designs. Double telescoping screw pads with a height range of 3-7/8" to 6-1/8" provide additional fine-tuning for precise contact with unibody pinch welds and frame rails.
Dual Pendant Controls for Precision Spotting
The DPC configuration provides pendant controls on both the power and idler columns, allowing technicians to operate the lift from whichever side offers the best view of the lift points. This dual-station approach eliminates the blind-side positioning that single-pendant lifts require when spotting the far-side arms.
Single-side pendant controls force technicians to walk around the vehicle or crane their necks to verify arm placement on the opposite column. When lifting unfamiliar vehicles or working with tight tolerances on unibody lift points, this visual limitation increases the risk of mis-spotting and potential vehicle damage.
This enables confident first-try arm placement by letting technicians position themselves where they can see exactly what they're doing. The result is faster vehicle setup and reduced risk of contact with rocker panels, exhaust components, or other vulnerable underbody areas.
ALI/ETL Certified Safety Compliance
The CL10V3-DPC carries full ALI Gold certification and ETL listing, meeting or exceeding ANSI/ALI ALCTV safety standards for automotive lifts. Third-party testing verifies structural integrity at 2,750 PSI hydraulic pressure under full 10,000 lb load, with the single-point lock release system engaging across multiple positions throughout the 74-1/8" rise height. These certifications confirm independent validation of safety mechanism function under rated conditions.
Budget import lifts often lack credible third-party safety validation, relying instead on self-certification or questionable testing claims. For professional shops where liability exposure and worker safety are real concerns, ALI/ETL certification provides documented assurance that the equipment meets established industry standards.
This reduces risk for shop owners by ensuring the lift meets the same safety benchmarks required by major fleet operators, dealership networks, and insurance underwriters. The OSHA-compliant keyed lockout and single-point mechanical lock release system add additional safety layers for service operations.
Complete Accessory Package Included
The CL10V3-DPC ships with a Stack Adapter Kit (Part #10315) containing four 3" stack extensions, two 6" stack extensions, and two organizer racks. Also included are the Document Caddy (Part #10320) for service manual storage and Pendant Holder (Part #10321) for control management. These accessories are frequently sold separately by competitors, representing $400+ in added value.
Many competing lift packages arrive requiring immediate accessory purchases before the lift can handle common service scenarios. Stack adapters in particular are essential for reaching frame rails on body-on-frame trucks and SUVs, yet they're often treated as upsell items rather than standard equipment.
This eliminates surprise add-on costs and ensures the lift is ready for real-world service work from day one. Integrated rubber door guards and a padded overhead shut-off system come standard as well, protecting both vehicles and technicians during operation.
Applications & Use Cases
- General Automotive Service: Full mechanical service on passenger vehicles, SUVs, crossovers, and vans including engine, transmission, and drivetrain work requiring extended undercar access.

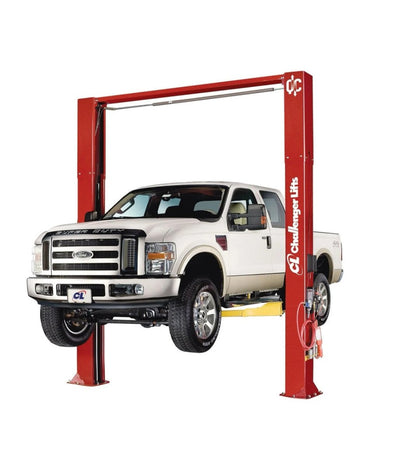

- Light Truck Service: Symmetric lifting configuration provides stable platform for pickups, work vans, and light commercial vehicles up to 10,000 lb gross weight.
- Express Bay Operations: Quick service work including tire changes, brake service, and suspension repairs where fast vehicle throughput is essential.
- Unibody Vehicle Service: Precision arm positioning for designated lift points on modern unibody construction without pinch weld damage.
- Frame Construction Vehicles: Compatible with optional frame adapters (Part #10314, #10318) for body-on-frame trucks requiring frame rail contact.
- Dealership Service Departments: Mixed-fleet capability handles the full range of manufacturer models in a single service bay.
- Independent Repair Shops: Versatile configuration accommodates the unpredictable vehicle mix that independent shops encounter daily.
Technical Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 10,000 lb (4,536 kg) |
| Max Load Per Arm | 2,500 lb (1,134 kg) |
| Rise Time | 38 seconds |
| Hydraulic Pressure at Capacity | 2,750 PSI |
| Specification | Value |
|---|---|
| Rise Height | 74-1/8" (1,883 mm) |
| Overall Height | 11'2" or 11'8" |
| Cylinder Extended Height | 143" (11'11") |
| Carriage Length | 48" |
| Specification | Value |
|---|---|
| Arm Configuration | 3-stage front / 3-stage rear |
| Front Arm Reach | 20" - 42" |
| Rear Arm Reach | 37-5/8" - 60" |
| Screw Pad Height Range | 3-7/8" - 6-1/8" |
| Specification | Value |
|---|---|
| Motor | 2 HP, Single Phase, 60Hz |
| Voltage | 208-230V AC |
| Circuit Requirement | 30 Amp double pole breaker |
| Pulley Diameter | 5" |
| Cable | 5/16" heavy-duty |
Installation Requirements
Concrete Foundation
- Minimum Depth: 4 inches
- Minimum Strength: 3,500 PSI
- Reinforcement: Steel reinforcement required
- Curing: 28 days minimum before installation
- Floor Level: Within 1/4" over installation area
- Anchor Distance: No anchors within 8" of any crack, edge, or expansion joint
- Anchors: 14x 3/4" x 5-1/2" wedge anchors (provided)
- Anchor Torque: 150 ft-lb
Electrical Requirements
- Circuit: Dedicated 30-amp double pole breaker
- Voltage: 208-230V AC, Single Phase, 60Hz
- Disconnect: Service disconnect required near point of operation
Clearance Requirements
- Minimum Ceiling Height: 12 feet (standard model)
- With 2' Extension: 13'3" or 13'9" ceiling required
- With 3' Extension: 14'3" or 14'9" ceiling required
- Recommended Bay Size: 12' x 24' minimum
Operating Environment
- Temperature Range: 41-104 degrees F (5-40 degrees C)
- Location: Indoor installation only
- Hydraulic Fluid: 3 gallons - 10wt anti-foam anti-rust hydraulic oil, biodegradable oil, or Dexron III ATF (no oils with detergents)
Installation Notes
- Professional Installation: Installation must be performed by qualified personnel following Challenger installation manual (CL10DPC-IOM-A).
- Permits: Verify local code compliance and permit requirements before installation.
Shipping & Delivery
Freight Coverage
Shipping: Ships freight (LTL) from manufacturer facility in Louisville, Kentucky. Free shipping commonly available through authorized dealers to 48 contiguous US states.
Lead Time: Typical lead time: 1-2 weeks from order placement, subject to inventory availability.
Delivery Requirements
Unloading Equipment: Forklift or equivalent lifting equipment required for unloading. Liftgate service is not available for automotive lifts.
Delivery Type: Curbside delivery standard. Customer is responsible for unloading from delivery truck.
Receiving: Inspect all packages before signing bill of lading. Note any visible damage on BOL before driver departs.
Warranty Coverage
5-2-1 Warranty Program
5 Years - Structural Parts: Carriage, columns, column extensions, overhead beams, arms, and cross beams.
2 Years - Functional Parts: Power units, cylinders, sheaves, hoses, hydraulic fittings, cables, adapters, latches, valves, and controls.
1 Year - Labor: Labor coverage for warranty repairs during first year of ownership.
Extended Option: +3 years functional parts coverage (5 years total) available for purchase within 30 days of invoice.
Warranty Requirements
Registration: Product must be registered online or via warranty card.
Eligibility: Valid for original purchaser only (non-transferable).
Installation: Must be installed per Challenger specifications by qualified personnel.
Ready to Upgrade Your Shop?
Get expert guidance on the right lift for your facility. Our team can help with product selection, installation planning, and technical specifications.
Frequently Asked Questions
What is the lifting capacity of the Challenger CL10V3-DPC?
The CL10V3-DPC has a maximum lifting capacity of 10,000 lb with a maximum load of 2,500 lb per arm. The 2 HP single-phase motor achieves full rise height of 74-1/8 inches in 38 seconds, operating at 2,750 PSI hydraulic pressure at rated capacity. The hydraulic system holds 3 gallons of fluid and requires 208-230V AC power.
What is Versymmetric technology and how does it work?
Versymmetric is Challenger's proprietary arm design that enables both symmetric and asymmetric vehicle positioning in a single lift without capacity reduction. The full 10,000 lb rating applies in both modes. Symmetric mode centers the vehicle between columns for balanced lifting of heavier trucks and SUVs. Asymmetric mode shifts the vehicle forward by 30% of wheelbase, positioning doors ahead of the columns for unobstructed access during interior service work while maintaining load stability.
What are the concrete requirements for the CL10V3-DPC?
The lift requires a minimum 4-inch thick concrete floor with 3,500 PSI compressive strength and steel reinforcement. Concrete must be cured for at least 28 days before installation. Floor must be level within 1/4 inch over the installation area, with no anchors placed within 8 inches of any crack, edge, or expansion joint.
What ceiling height is required for the CL10V3-DPC?
The standard model requires a minimum 12-foot ceiling. If installing with the optional 2-foot column extension, ceiling height must be 13 feet 3 inches or 13 feet 9 inches. The 3-foot extension requires 14 feet 3 inches or 14 feet 9 inches ceiling clearance.
What accessories are included with the CL10V3-DPC?
The lift includes a Stack Adapter Kit (Part #10315) with four 3-inch and two 6-inch stack extensions plus organizer racks, a Document Caddy (Part #10320), and Pendant Holder (Part #10321). Also included are double telescoping screw pads, integrated rubber door guards, and the padded overhead shut-off system.
What certifications does the CL10V3-DPC carry?
The lift is ALI Gold certified and ETL listed, meeting ANSI/ALI ALCTV safety standards for automotive lifts. Independent testing verifies performance at 2,750 PSI hydraulic pressure under full 10,000 lb rated load. Safety features include OSHA-compliant keyed lockout to prevent unauthorized operation and a single-point mechanical lock release system with dual engagement. These third-party certifications are required by many fleet operators, dealership networks, and commercial insurance underwriters.
What is the warranty coverage on the CL10V3-DPC?
Challenger provides a 5-2-1 warranty program: 5 years on structural parts (columns, carriages, arms, beams), 2 years on functional parts (power unit, cylinders, cables, controls), and 1 year labor coverage. An extended warranty option adds 3 years of functional parts coverage if purchased within 30 days.
What electrical service does the CL10V3-DPC require?
The lift requires a dedicated 30-amp double pole breaker with 208-230V AC single-phase 60Hz power supply. A service disconnect must be installed within sight of the lift per NEC requirements. The 2 HP motor draws power only during lift and lower cycles, not while holding position. A licensed electrician should verify proper grounding, conductor sizing, and code compliance for your jurisdiction before installation. Indoor installation only with operating temperature range of 41-104 degrees F.
