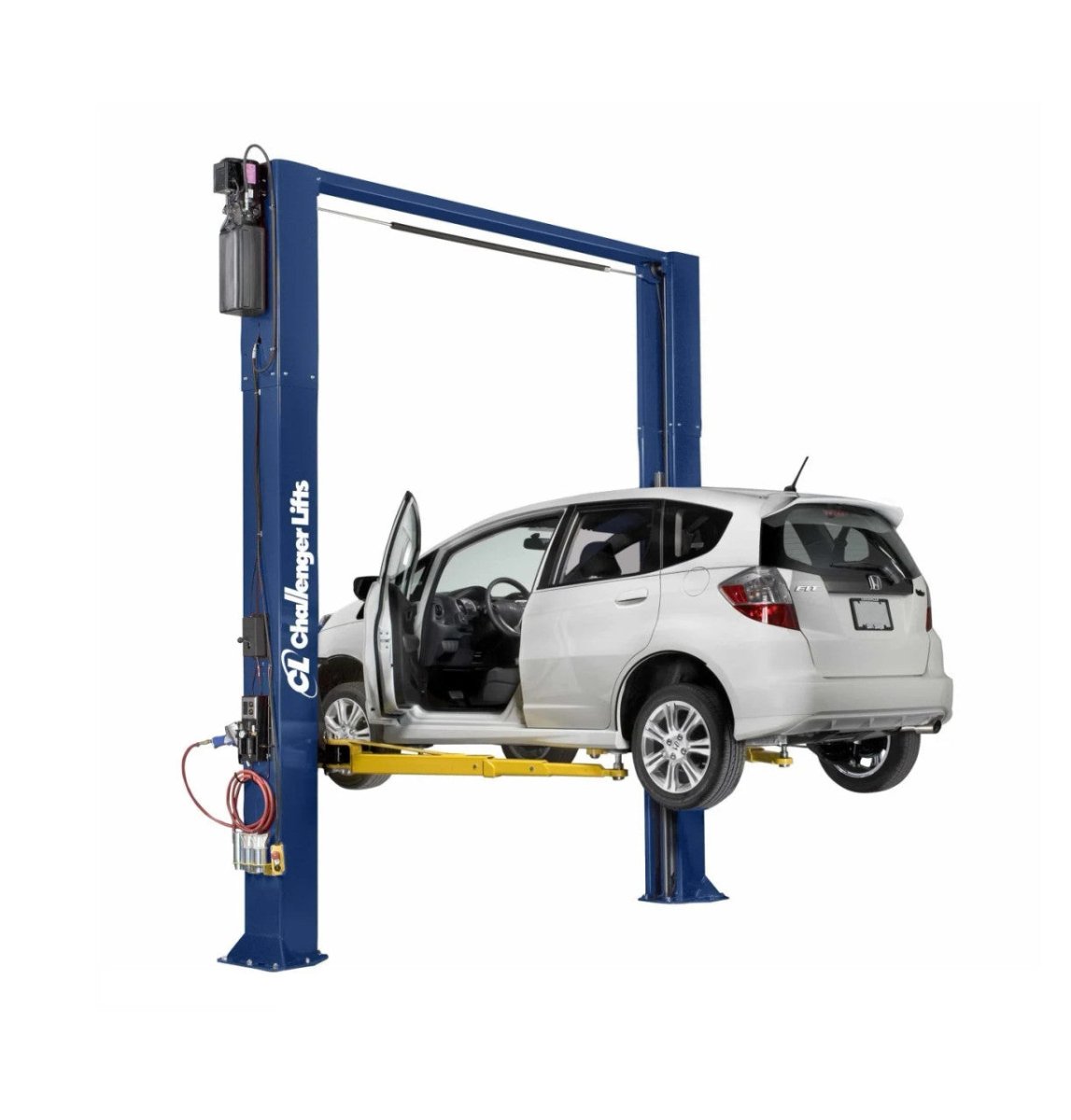

Challenger CL10V3-3 10000 lb Two-Post Automotive Lift
Challenger CL10V3-3 10,000 lb Versymmetric Two-Post Lift with 3-Foot Column Extensions for High-Ceiling Facilities
The Challenger CL10V3-3 delivers 10,000 lb lifting capacity in a clearfloor two-post design with factory-installed 3-foot column extensions for facilities with 14'3" to 14'9" ceiling heights. Featuring Versymmetric technology with 3-stage front and rear arms, this American-made lift handles passenger cars, SUVs, light trucks, and vans in both symmetric and asymmetric configurations. The CL10V3-3 provides 74-1/8" rise height, requires 208-230V single-phase power, and is backed by Challenger's 5-year structural warranty. Designed and manufactured in Louisville, Kentucky with ALI Gold Label and ETL certifications for commercial installation compliance.
Challenger CL10V3-3 Features
Versymmetric Technology with 3-Stage Front and Rear Arms
The CL10V3-3 features Challenger's proprietary Versymmetric arm geometry with 3-stage telescoping arms on both front and rear positions. Front arms provide 20" to 42" reach while rear arms extend from 37-5/8" to 60", enabling symmetric or asymmetric vehicle positioning within the same service bay. This dual 3-stage design accommodates everything from compact cars to full-size trucks and vans in any lifting configuration the technician requires.
directSPOT First-Try Arm Positioning
The directSPOT arm geometry eliminates repositioning frustration during vehicle setup. With extended reach envelopes on both front and rear arms, technicians can swing arms directly to manufacturer-specified lift points on the first attempt without backing up or pulling the vehicle forward. This reduces setup time per vehicle and minimizes technician fatigue from repeated climb-in, climb-out cycles.
Factory-Installed 3-Foot Column Extensions
The -3 designation indicates factory-matched 3-foot column extensions that raise total column height to 14'2" to 14'8" depending on width setting. This configuration serves facilities with 14'3" to 14'9" ceiling heights while maintaining the full 74-1/8" rise height and complete 10,000 lb capacity. The padded overhead shut-off system, synchronizer cables, and lock positions are all factory-calibrated for the extended height.
ALI and ETL Dual Certification
The CL10V3-3 carries both ALI Gold Label certification (meeting ANSI/ALI ALCTV-2017) and ETL listing (meeting ANSI/UL 201). ALI certification verifies lift performance and structural safety through third-party testing, while ETL listing confirms electrical system safety. Together, these certifications satisfy commercial installation requirements and support insurance and municipal inspection approval.
Single-Point Mechanical Lock Release System
The CL10V3-3 features a single-point mechanical lock release that engages both column lock systems simultaneously. This design ensures both columns release together, preventing the uneven descent that can occur with dual-release systems. The mechanical design provides positive engagement feedback without relying on electrical or pneumatic components that can fail over time.
Adjustable Width Settings with Drive-Thru Flexibility
The CL10V3-3 offers adjustable overall width from 11'6-1/2" to 11'11" with corresponding inside column width of 110" to 114-1/2" and drive-thru clearance of 100" to 104-1/2". This range accommodates varying bay configurations and vehicle widths, enabling better space utilization in both new construction and retrofit installations.
Challenger CL10V3-3 Applications
- Full-Service Dealerships: Service departments handling manufacturer warranty work, scheduled maintenance, and general repair on passenger cars, SUVs, and light trucks within the 10,000 lb capacity range.
- Independent Repair Shops: General automotive service including brake and suspension work, exhaust system service, transmission repair, and undercarriage inspection across diverse vehicle makes and models.
- Fleet Maintenance Facilities: Operations servicing company vehicles, delivery vans, and light commercial trucks requiring consistent lift access for preventive maintenance and repair.
- High-Ceiling Commercial Garages: Facilities with 14'3" to 14'9" ceiling heights that exceed standard lift requirements, including converted warehouse spaces and purpose-built service centers.
- Tire and Wheel Service Centers: Express bay operations performing tire mounting, wheel balancing, alignment preparation, and brake inspections using the symmetric lifting configuration.
- Oil Change and Fluid Service: Quick-service operations requiring efficient vehicle positioning for undercarriage access during fluid changes and filter replacements.
Challenger CL10V3-3 Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 10,000 lb |
| Capacity Per Arm | 2,500 lb |
| Hydraulic Pressure at Capacity | 2,750 PSI |
| Specification | Value |
|---|---|
| Column Height | 14'2" or 14'8" |
| Ceiling Height Required | 14'3" or 14'9" |
| Rise Height | 74-1/8" |
| Floor to Overhead Switch | 13'8-1/2" or 14'2-1/2" |
| Screw Pad Height Range | 3-7/8" to 6-1/8" |
| Overall Width (Adjustable) | 11'6-1/2" or 11'11" |
| Inside of Columns | 110" or 114-1/2" |
| Drive-Thru Clearance | 100" or 104-1/2" |
| Front Arm Reach | 20" to 42" |
| Rear Arm Reach | 37-5/8" to 60" |
| Specification | Value |
|---|---|
| Motor (Standard DPC) | 2 HP, Single Phase, 60Hz, 208-230V |
| Motor (Quick Cycle DPC) | 3 HP, Single Phase, 60Hz, 208-230V |
| Circuit Breaker Required | 30 Amp Double Pole or Time Delay Fuse |
| Rise Time (Standard) | 38 seconds (approximate) |
| Rise Time (Quick Cycle) | 24 seconds (approximate) |
| Specification | Value |
|---|---|
| ALI Certification | Gold Label (ANSI/ALI ALCTV-2017) |
| ETL Listing | ANSI/UL 201 |
| Country of Origin | USA (Louisville, Kentucky) |
Challenger CL10V3-3 Installation Requirements
Electrical Requirements
Power: 208-230V, single phase, 60Hz with dedicated circuit and 30 Amp double pole breaker or time delay fuse. A licensed electrician must install and verify the electrical supply. Electrical code requires a service disconnect located near the point of operation.
Concrete Foundation
Anchoring: Minimum 4" depth concrete with steel reinforcement, 3,500 PSI minimum, cured for 28 days. Floor must be level within 3/8" over the installation area. No anchors within 8" of any crack, edge, or expansion joint. Fourteen 3/4" x 5-1/2" anchor bolts included, torqued to 150 ft-lb.
Space Requirements
Ceiling Height: 14'3" to 14'9" minimum depending on width setting. Bay Width: 144" (12') minimum to nearest obstruction on each side. Approach: 6' to nearest obstruction or 7' to nearest wall for drive-on direction. Indoor installation only with operating ambient temperature range of 41-104°F (5-40°C).
Professional Installation
Professional installation is recommended to ensure proper setup, safety system calibration, and warranty compliance. Installation includes column erection, hydraulic system setup, synchronizer cable adjustment, lock release calibration, and electrical connection. Installer must demonstrate lift operation to owner using the ALI Lifting It Right booklet as a guide.
What's Included with the Challenger CL10V3-3
- Power column assembly with factory-installed 3-foot extension
- Idler column assembly with factory-installed 3-foot extension
- Overhead beam assembly
- 3-stage front arm pack (2 arms)
- 3-stage rear arm pack (2 arms)
- Foot pad assemblies (4)
- Synchronizer cable pack for CL10-3
- Overhead shut-off bar assembly
- Dual pendant control power unit (2 HP standard or 3 HP quick cycle)
- Junction box assembly with limit switch
- Pendant switch assemblies (2)
- Lock release cable assemblies (2)
- Hardware box with anchor bolts (14)
- Literature pack with installation manual and safety materials
Optional Accessories: Truck adapters, stackable adapters, drip trays, and rolling jacks available separately.
Not Included: Hydraulic fluid (3 gallons of 10wt anti-foam anti-rust hydraulic oil or Dexron III ATF required), electrical wiring to power source, concrete work if floor does not meet specifications, installation labor.
Challenger CL10V3-3 Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Ships from Louisville, Kentucky. Contact for current lead times. International: Contact sales for quote.
Delivery Requirements
Unloading: Forklift or loading dock required for unloading. Column assemblies weigh approximately 200 lb each when empty. Delivery Type: Curbside delivery standard. Inspection: Inspect all packages for damage before signing BOL. Note any damage on delivery receipt. Notify Challenger Lifts immediately of any hidden loss or damage discovered after receipt.
Returns
Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. 20% restocking fee applies. Buyer responsible for return freight costs.
Challenger CL10V3-3 Warranty
Challenger Lifts Limited Warranty
Challenger Lifts guarantees the CL10V3-3 to the original owner with the following coverage:
- 5 Years: Structural parts including carriages, columns, column extensions, overhead beams, arms, cross beams, and plungers
- 2 Years: Functional parts including power unit, cylinders, sheaves, sheave pins, hoses, hydraulic and pneumatic fittings, cables, adapters, latches, valves, and controls
- 1 Year: Labor for replacement of defective parts
Requirements: Product must be installed, used, and maintained according to Challenger specifications. Warranty registration must be completed online at challengerlifts.com/register-your-lift. Warranty is not transferable and does not cover normal maintenance, adjustments, damage from improper handling, installation, abuse, misuse, negligence, or normal wear and tear. Use of unapproved parts or accessories voids warranty.
Documents
Click to open in a new tab.
Questions About the Challenger CL10V3-3?
Our equipment specialists can help with installation planning, specifications, and product selection for your shop.
Challenger CL10V3-3 FAQ
What is the lifting capacity of the Challenger CL10V3-3?
The Challenger CL10V3-3 has a total lifting capacity of 10,000 lb with a maximum of 2,500 lb per arm. The load must be equally distributed across all four arms. Do not attempt to lift a vehicle with only two arms, as this will void the warranty and create a safety hazard.
What ceiling height do I need for the CL10V3-3?
The CL10V3-3 requires a minimum ceiling height of 14'3" to 14'9" depending on your width setting. The lift offers two width configurations: the narrow setting (11'6-1/2" overall width) requires 14'3" ceiling clearance, while the standard setting (11'11" overall width) requires 14'9" ceiling clearance. This model is specifically designed for high-ceiling facilities that cannot accommodate standard-height two-post lifts.
What electrical power does the CL10V3-3 require?
The CL10V3-3 requires 208-230V, single phase, 60Hz power with a dedicated circuit and 30 Amp double pole breaker or time delay fuse. The standard model includes a 2 HP motor with approximately 38-second rise time. A Quick Cycle option is available with a 3 HP motor that reduces rise time to approximately 24 seconds. A licensed electrician must install the electrical supply, and code requires a service disconnect near the point of operation.
What are the concrete requirements for installation?
The CL10V3-3 requires a concrete floor with minimum 4" depth, steel reinforcement, and 3,500 PSI compressive strength, cured for at least 28 days. The floor must be level within 3/8" over the installation area with no large cracks, spalling, or deterioration. No anchor bolts can be installed within 8" of any crack, edge, or expansion joint. If your floor does not meet these requirements, a separate pad may need to be poured.
What does the Challenger CL10V3-3 warranty cover?
The Challenger warranty covers structural parts (columns, column extensions, carriages, arms, overhead beams) for 5 years, functional parts (power unit, cylinders, cables, hoses, valves, controls) for 2 years, and labor for 1 year. The warranty applies to the original owner only and requires product registration at challengerlifts.com. The lift must be installed and maintained according to Challenger specifications for warranty coverage.
What is included with the Challenger CL10V3-3?
The CL10V3-3 includes both column assemblies with factory-installed 3-foot extensions, overhead beam, 3-stage front and rear arm packs (4 arms total), foot pad assemblies, synchronizer cables, overhead shut-off bar assembly, dual pendant control power unit, junction box with limit switch, two pendant switches, lock release cables, hardware box with 14 anchor bolts, and complete literature pack. Not included: hydraulic fluid (3 gallons required), electrical wiring, concrete work, and installation labor.
How is the CL10V3-3 shipped and delivered?
The CL10V3-3 ships via freight from Challenger's facility in Louisville, Kentucky with free shipping to commercial addresses in the 48 contiguous United States. Curbside delivery is standard, and you will need a forklift or loading dock to unload the lift components. Inspect all packages before signing the bill of lading and note any damage on the delivery receipt. Contact Challenger immediately if hidden damage is discovered after delivery.
What makes the CL10V3-3 different from the standard CL10V3?
The -3 designation indicates factory-installed 3-foot column extensions that raise the column height to 14'2" to 14'8" (compared to 11'2" to 11'8" for the standard model). This configuration is designed for facilities with 14'3" to 14'9" ceiling heights. The hydraulics, synchronizer cables, lock positions, and overhead shut-off system are all factory-calibrated for the extended height, maintaining full 10,000 lb capacity and 74-1/8" rise height.
What is Versymmetric technology?
Versymmetric is Challenger's proprietary arm geometry that enables both symmetric and asymmetric vehicle positioning on the same lift. The CL10V3-3 features 3-stage telescoping arms on both front (20" to 42" reach) and rear (37-5/8" to 60" reach) positions. This allows technicians to position vehicles symmetrically for wheel service or asymmetrically for door clearance without changing lift type or compromising lift point access.
What certifications does the CL10V3-3 have?
The CL10V3-3 carries dual certification: ALI Gold Label (meeting ANSI/ALI ALCTV-2017) and ETL listing (meeting ANSI/UL 201). ALI certification verifies lift performance and structural safety through independent third-party testing. ETL listing confirms electrical system safety. These certifications satisfy commercial installation requirements in jurisdictions that mandate certified equipment and support insurance approval and municipal inspection compliance.
What maintenance does the CL10V3-3 require?
Daily maintenance includes keeping components clean, checking for loose or broken parts, inspecting for hydraulic leaks, checking adapters for wear, and verifying lock release operation. Weekly tasks include inspecting synchronizer cables and sheaves and checking cable tension. Monthly maintenance includes torquing anchor bolts to 80 ft-lb, inspecting concrete for cracks within 12" of base plates, testing the overhead shutoff switch, and lubricating carriage slide tracks and arm pins with heavy viscous grease.
Can I install the CL10V3-3 outdoors?
No, the CL10V3-3 is evaluated for indoor use only. Outdoor installation is prohibited. The lift has an operating ambient temperature range of 41-104°F (5-40°C). Installing the lift outdoors or operating it outside these temperature parameters may result in unsatisfactory performance, property damage, or personal injury, and will void the warranty.
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including styrene and vinyl chloride, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.p65warnings.ca.gov.
