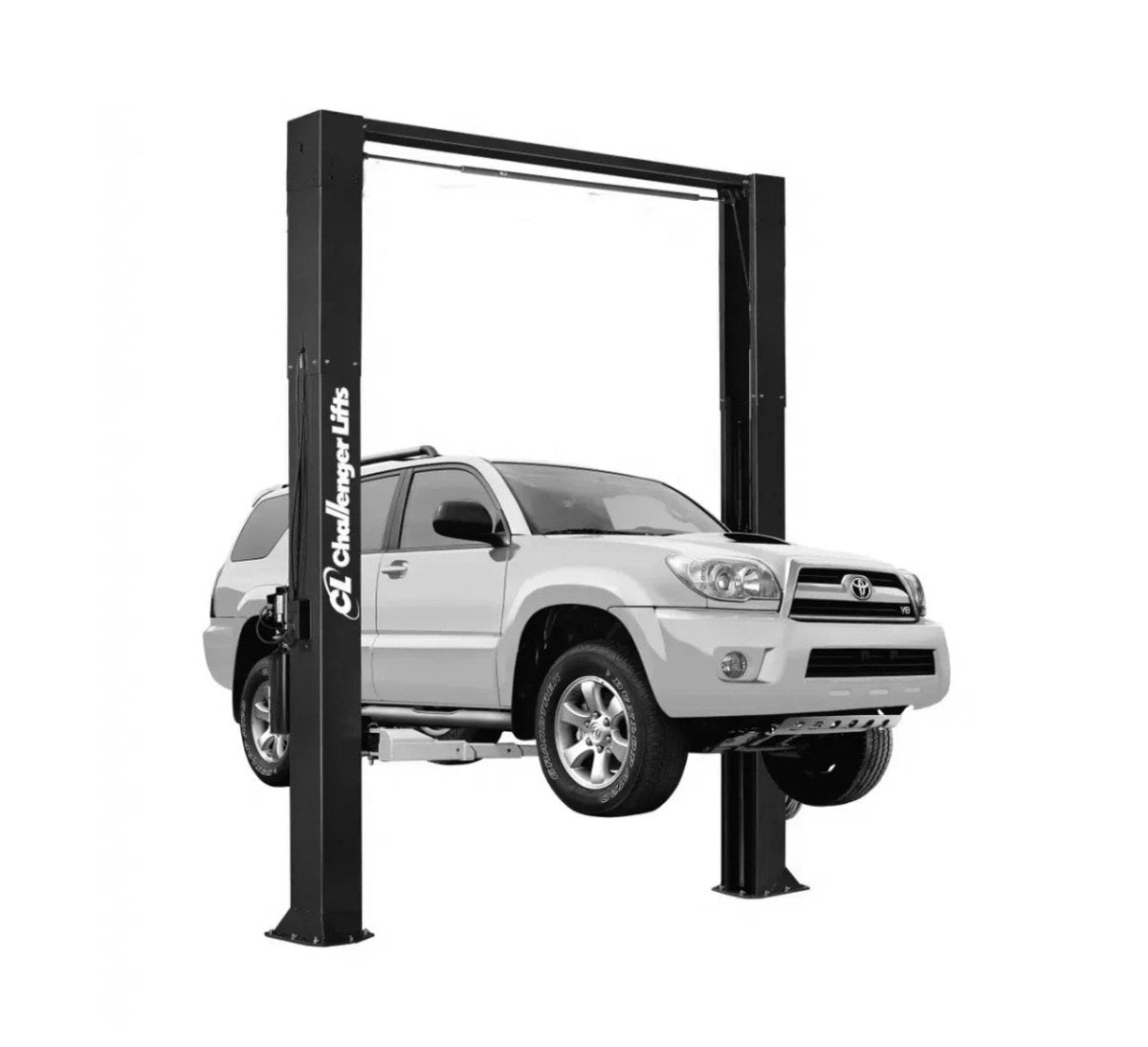

Challenger CL10V3-3-QC 10,000 lb Two-Post Automotive Lift
Challenger CL10V3-3-QC 10,000 lb Two-Post Lift with Quick Cycle Technology for Professional Service Bays
The Challenger CL10V3-3-QC delivers 10,000 lb lifting capacity in a clearfloor two-post configuration engineered for high-volume professional automotive service. Featuring Quick Cycle hydraulics that achieve full 74-1/8" rise height in approximately 24 seconds, Versymmetric arm technology for both symmetric and asymmetric lifting configurations, and included 3-foot column extensions for high-ceiling bays up to 14'-9", this ALI Gold Certified lift handles passenger cars through light-duty trucks. The 3 HP single-phase motor (208-230V, 60Hz) powers efficient operation without requiring three-phase infrastructure. Made in Louisville, Kentucky and backed by a 5-year structural warranty.
Challenger CL10V3-3-QC Features
Quick Cycle Hydraulic Performance
The Quick Cycle power unit features a 3 HP single-phase motor (208-230V, 60Hz) that achieves full rise height of 74-1/8 inches in approximately 24 seconds with controlled descent in 17 seconds. This represents a significant productivity improvement versus standard two-post lifts that typically operate in the 38-45 second range. For high-volume shops processing 20 vehicles per day, this time savings compounds into meaningful throughput gains across weekly and monthly service schedules.
Versymmetric Dual-Configuration Flexibility
Versymmetric arm technology allows this single lift to operate in both symmetric positioning (vehicle centered between columns) and asymmetric positioning (vehicle offset toward columns for door clearance). This eliminates equipment redundancy by providing both capabilities in a single footprint, addressing the mixed-fleet reality of modern service operations where shops service sedans, SUVs, pickups, and vans on the same equipment.
directSPOT 3-Stage Arm Technology
Both front and rear arms feature Challenger's directSPOT 3-stage telescoping design with extended reach ranges. Front arms adjust from 20 to 42 inches while rear arms cover 37-5/8 to 60 inches. Double telescoping screw pads with rubber inserts provide 3-7/8 to 6-1/8 inch height adjustment. The extended 3-stage reach enables efficient single-sweep vehicle spotting, improving accuracy on the first attempt and reducing repositioning time.
High-Ceiling Ready with Included 3-Foot Extensions
The CL10V3-3-QC includes 3-foot column extensions as standard equipment, accommodating service bays with ceiling heights of 14'-3" to 14'-9" depending on column width configuration. This provides full 74-1/8 inch rise height while maintaining proper overhead clearance for the shutoff bar assembly. The integrated column design maintains structural integrity without requiring aftermarket extension kits.
Heavy-Duty Synchronization System
The equalization system utilizes oversized 5-inch diameter pulleys and 5/16-inch cables to maintain balanced carriage travel between power and idler columns. The 48-inch elongated carriage design further distributes load forces across a wider bearing surface, minimizing slide block wear and extending service life. This specification exceeds common industry configurations, addressing long-term durability concerns in high-cycle commercial environments.
ALI Gold Certification and Domestic Manufacturing
This lift carries ALI Gold Certification from the Automotive Lift Institute, verifying compliance with ANSI/ALI ALCTV-2017 standards. Additional certifications include ANSI/UL 201 (motor-operated lift electrical safety) and ETL listing through Intertek NRTL testing. Manufacturing in Louisville, Kentucky ensures warranty support accessibility and domestic parts availability, eliminating compliance documentation concerns during facility inspections and insurance audits.
Challenger CL10V3-3-QC Applications
- Professional Automotive Repair: General maintenance, brake service, suspension and steering work, exhaust system service, and undercarriage inspection on passenger cars, light-duty trucks, SUVs, and crossovers up to 10,000 lb.
- Dealership Service Departments: High-volume service operations requiring fast cycle times and mixed-fleet capability for sedans, trucks, and SUVs under warranty and customer-pay work where bay turnover directly impacts revenue.
- Fleet Maintenance Facilities: Scheduled maintenance and repair on commercial fleets including cargo vans, minivans, and light-duty pickup trucks with the versatility to handle symmetric and asymmetric vehicle configurations.
- Quick Lube and Express Service: Oil changes, fluid services, tire rotations, and multi-point inspections where the Quick Cycle 24-second rise time maximizes daily vehicle counts and service throughput.
- Transmission and Drivetrain Service: Component removal and installation requiring stable platform positioning, full undercarriage access, and the extended arm reach to properly support vehicles during heavy component work.
- High-Ceiling Home and Enthusiast Shops: Private facilities with 14+ foot ceilings seeking professional-grade, ALI-certified equipment for sports cars, classic vehicles, and project builds with the same specifications used in commercial shops.
Challenger CL10V3-3-QC Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 10,000 lb |
| Capacity Per Arm | 2,500 lb |
| Hydraulic Pressure at Capacity | 2,750 PSI |
| Specification | Value |
|---|---|
| Column Height (with 3' Extensions) | 14'-2" or 14'-8" |
| Ceiling Height Required | 14'-3" or 14'-9" |
| Rise Height | 74-1/8" |
| Screw Pad Height Adjustment | 3-7/8" to 6-1/8" |
| Overall Width (Adjustable) | 11'-11" or 11'-6-1/2" |
| Inside of Columns | 110" or 114-1/2" |
| Drive-Thru Clearance | 100" or 104-1/2" |
| Front Arm Reach (3-Stage) | 20" - 42" |
| Rear Arm Reach (3-Stage) | 37-5/8" - 60" |
| Minimum Bay Length | 12' to nearest obstruction (each direction) |
| Side Clearance | 6' to obstruction or 7' to wall |
| Specification | Value |
|---|---|
| Rise Time (Quick Cycle) | Approximately 24 seconds |
| Descent Time | 17 seconds |
| Synchronizer Sheave Diameter | 5" |
| Synchronizer Cable | 5/16" |
| Carriage Length | 48" (elongated) |
| Specification | Value |
|---|---|
| Motor (Quick Cycle) | 3 HP |
| Voltage | 208-230V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Circuit Breaker | 30 Amp double pole or time delay fuse |
| Circuit | Dedicated circuit required |
| Specification | Value |
|---|---|
| ALI Certification | ALI Gold Certified |
| Safety Standard | ANSI/ALI ALCTV-2017 |
| Electrical Safety | ANSI/UL 201 |
| Testing Laboratory | ETL Listed (Intertek NRTL) |
| Manufacturing Location | Louisville, Kentucky, USA |
Challenger CL10V3-3-QC Installation Requirements
Electrical Requirements
Power: 208-230V, single-phase, 60Hz with a dedicated circuit and 30 Amp double pole breaker or time delay fuse. A licensed electrician must install and verify the electrical supply. Electrical code requires a service disconnect located near the point of operation.
Concrete Foundation
Anchoring: Minimum 4 inches depth, steel reinforced, 3,500 PSI concrete, cured for 28 days per local commercial practice. Floor should be level within 3/8 inch over the installation area. No anchors should be installed within 8 inches of any crack, edge, or expansion joint. Consult local building inspectors for any special requirements.
Space Requirements
Ceiling Height: 14'-3" to 14'-9" (with included 3-foot extensions). Bay Length: Minimum 12 feet to nearest obstruction in each direction from column base plates. Side Clearance: 6 feet to nearest obstruction or 7 feet to nearest wall. This lift has been evaluated for indoor use only with an operating ambient temperature range of 41-104°F. Outdoor installation is prohibited.
Professional Installation
Professional installation by qualified personnel is recommended. Installation must comply with ANSI/ALI ALIS standards and all local codes. Warranty registration must be completed online at challengerlifts.com within 30 days of installation. Improper installation may affect warranty coverage and lift performance.
What's Included with the Challenger CL10V3-3-QC
- Power column assembly with Quick Cycle hydraulic cylinder
- Idler column assembly with hydraulic cylinder
- 3-foot column extensions (2)
- Overhead beam assembly
- 3-stage front arm pack (2 arms)
- 3-stage rear arm pack (2 arms)
- Double telescoping screw pads with rubber inserts (4)
- Quick Cycle power unit (3 HP, single-phase)
- Synchronizer cable pack
- Overhead shutoff bar assembly with limit switch
- Dual pendant control system with junction box
- Mechanical lock release cable assemblies
- Complete hardware pack with anchor bolts (14)
- Installation, operation, and maintenance manual
- ALI Lifting It Right safety manual
Not Included: Hydraulic fluid (3 gallons of 10wt anti-foam anti-rust hydraulic oil or Dexron III ATF required), electrical wiring and installation, concrete work or repairs, installation labor, and any required permits.
Challenger CL10V3-3-QC Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Ships from Louisville, Kentucky; typical transit is 5-10 business days depending on destination. International: Contact sales for international shipping quotes and availability.
Delivery Requirements
Unloading: Forklift or loading dock required for unloading. Column assemblies weigh approximately 200 lb each and require mechanical assistance. Delivery Type: Curbside delivery standard; liftgate service available for additional charge. Inspection: Inspect all packages for damage before signing BOL. Note any visible damage on delivery receipt and photograph damaged packaging. Notify Challenger Lifts immediately of any hidden damage discovered after delivery.
Returns
Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. 20% restocking fee applies. Buyer responsible for return freight costs. Damaged or defective items should be reported within 48 hours of delivery.
Challenger CL10V3-3-QC Warranty
Challenger Lifts Limited Warranty
Challenger Lifts guarantees the CL10V3-3-QC to the original owner with repair or replacement coverage for defective parts.
- 5 Years: Structural parts including carriage, columns, column extensions, overhead beams, and arms
- 2 Years: Functional parts including power unit, cylinders, sheaves, hoses, hydraulic fittings, cables, adapters, latches, valves, and controls
- 1 Year: Labor costs for replacement of defective parts
Requirements: Warranty registration must be completed online at challengerlifts.com/register-your-lift or warranty period begins from invoice date. Product must be installed, used, and maintained according to Challenger's specifications. Use of unapproved parts or accessories voids warranty. This warranty extends only to the original purchaser and is not transferable.
Documents
Click to open in a new tab.
Questions About the Challenger CL10V3-3-QC?
Our equipment specialists can help with installation planning, specifications, and product selection for your shop.
Challenger CL10V3-3-QC FAQ
What is the maximum lifting capacity of the CL10V3-3-QC?
The Challenger CL10V3-3-QC has a maximum lifting capacity of 10,000 lb with 2,500 lb per arm. The capacity rating is based on loads equally distributed across all four arms. Do not exceed 2,500 lb on any single arm, and always use all four arms when lifting a vehicle.
What ceiling height do I need for this lift?
The CL10V3-3-QC with included 3-foot column extensions requires a minimum ceiling height of 14'-3" to 14'-9" depending on the column width configuration you select. The lift offers adjustable overall width settings of 11'-11" or 11'-6-1/2", each with corresponding ceiling height requirements. This lift is designed specifically for high-ceiling service bays.
What electrical service is required?
The Quick Cycle power unit requires 208-230V, single-phase, 60Hz power with a dedicated circuit and 30 Amp double pole breaker or time delay fuse. Single-phase power is standard in most commercial service environments and does not require three-phase infrastructure. A licensed electrician must install the electrical supply, and code requires a service disconnect near the point of operation.
How fast does the Quick Cycle lift raise and lower?
The Quick Cycle hydraulic system achieves full rise height of 74-1/8 inches in approximately 24 seconds, with controlled descent in approximately 17 seconds. This is significantly faster than standard two-post lifts that typically operate in the 38-45 second range. Actual times may vary depending on vehicle weight.
What is Versymmetric technology?
Versymmetric arm technology allows the lift to operate in both symmetric positioning (vehicle centered between columns) and asymmetric positioning (vehicle offset toward columns for door clearance). This provides flexibility to lift different vehicle types without requiring separate lifts for trucks versus passenger cars. Technicians position vehicles according to the service requirements and manufacturer-specified lifting points for each vehicle.
What concrete specifications are required for installation?
The lift requires a minimum 4-inch thick concrete floor with steel reinforcement, rated at 3,500 PSI minimum, and cured for 28 days per local commercial practice. The floor must be level within 3/8 inch over the installation area, and no anchors can be installed within 8 inches of any crack, edge, or expansion joint. Consult local building inspectors for any additional requirements in your area.
What warranty coverage does Challenger provide?
Challenger provides a 5-year structural warranty covering the carriage, columns, column extensions, overhead beams, and arms. Functional parts including the power unit, cylinders, sheaves, hoses, cables, and controls are covered for 2 years. Labor for replacement of defective parts is covered for 1 year. Warranty registration must be completed online at challengerlifts.com.
What is included with the lift purchase?
The CL10V3-3-QC includes both column assemblies, 3-foot column extensions, overhead beam, 3-stage front and rear arm packs, screw pads with rubber inserts, Quick Cycle power unit, synchronizer cables, overhead shutoff assembly, dual pendant controls, lock release cables, all hardware and anchor bolts, and complete documentation. Hydraulic fluid (3 gallons), electrical installation, and concrete work are not included.
What are the arm reach specifications?
The 3-stage directSPOT front arms adjust from 20 to 42 inches, while the 3-stage rear arms extend from 37-5/8 to 60 inches. The double telescoping screw pads provide additional height adjustment from 3-7/8 to 6-1/8 inches. This extended reach range allows efficient single-sweep vehicle spotting across most passenger cars, trucks, and SUVs.
What certifications does this lift have?
The CL10V3-3-QC carries ALI Gold Certification from the Automotive Lift Institute, verifying compliance with ANSI/ALI ALCTV-2017 safety standards. The lift also meets ANSI/UL 201 for motor-operated lift electrical safety and is ETL Listed through Intertek NRTL testing. These certifications satisfy requirements for insurance providers and OSHA compliance.
How is the lift shipped and what do I need for unloading?
The lift ships via freight carrier from Louisville, Kentucky with free shipping to commercial addresses in the 48 contiguous states. A forklift or loading dock is required for unloading as the column assemblies weigh approximately 200 lb each. Curbside delivery is standard; liftgate service is available for additional charge. Inspect all packages before signing the bill of lading and note any damage.
What maintenance does the lift require?
Daily maintenance includes keeping components clean, checking for loose or broken parts, inspecting for hydraulic leaks, and checking adapter condition. Weekly tasks include inspecting synchronizer cables and sheaves for wear and checking cable tension. Monthly maintenance requires torquing anchor bolts to 80 ft-lb, inspecting the concrete floor, testing the overhead shutoff switch, and lubricating carriage slide tracks and arm pivot points with heavy viscous grease.
