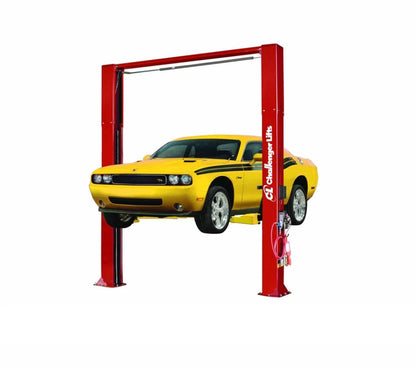

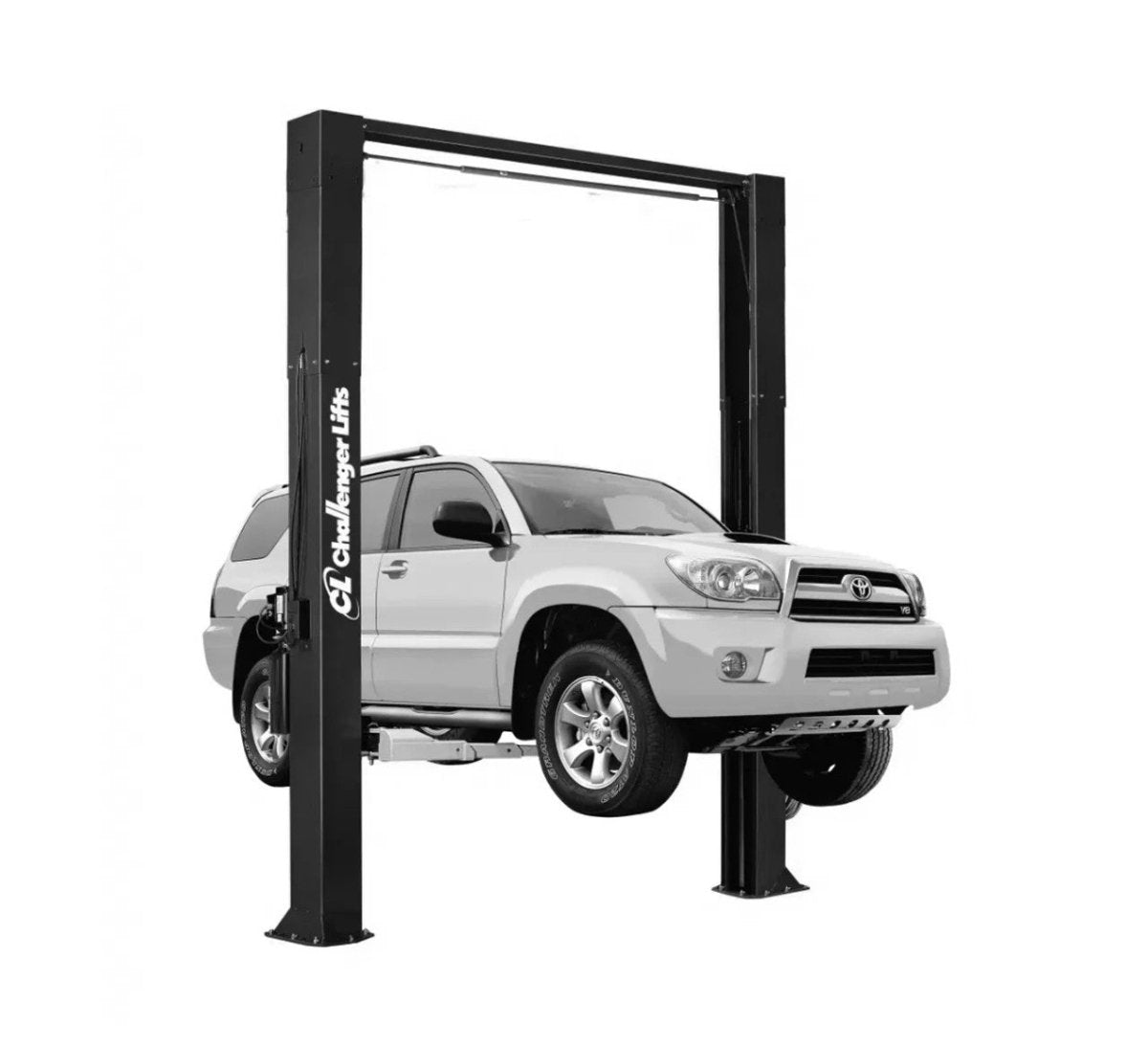

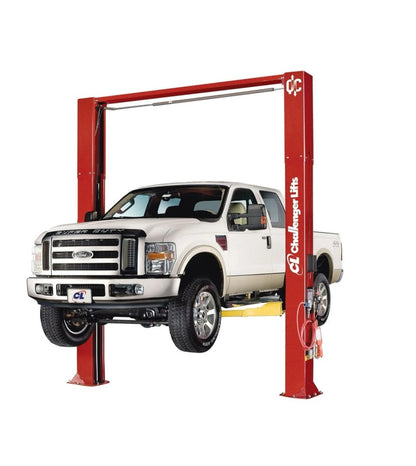

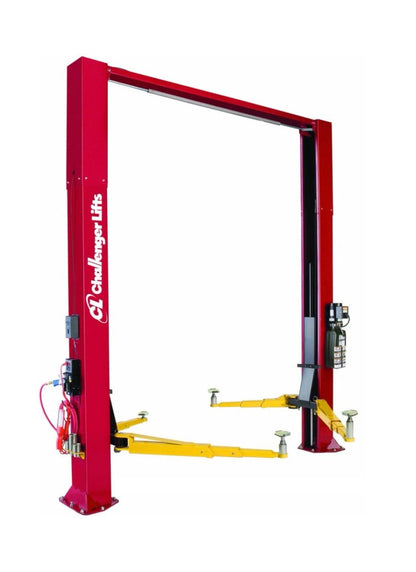

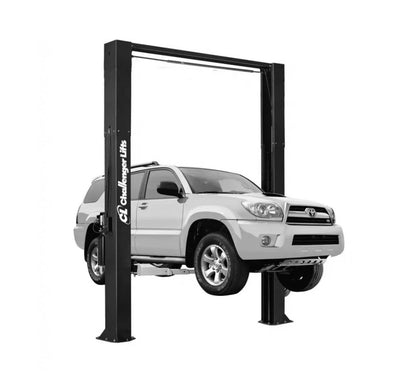

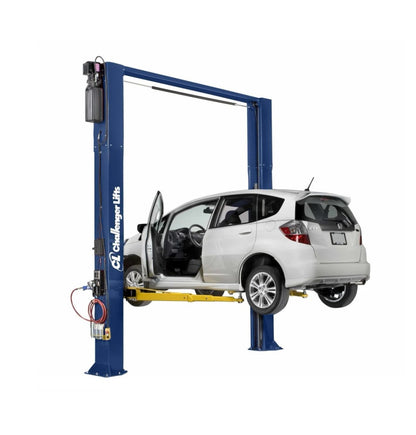

CHALLENGER LIFTS CL10V3-3-QC Two-Post Lift, 10,000 lbs
Challenger CL10V3-3-QC - 10,000 lb ALI Certified Two-Post Lift with Quick Cycle Technology
The Challenger CL10V3-3-QC delivers 10,000 lb lifting capacity in a clearfloor two-post design engineered for professional automotive service facilities. Featuring Versymmetric arm technology for both symmetric and asymmetric lifting configurations, Quick Cycle hydraulics achieving full rise in 24-27 seconds, and included 3-foot column extensions for high-ceiling bays, this lift handles passenger cars through light-duty trucks with precision spotting from directSPOT 3-stage arms.
Key Features & Benefits
Quick Cycle Hydraulic Performance
The Quick Cycle power unit features a 3 HP single-phase motor (208-230V, 60Hz) that achieves full rise height of 74-1/8 inches in 24-27 seconds with controlled descent in 17 seconds. This represents a significant productivity improvement versus standard two-post lifts that typically operate in the 38-45 second range.
For high-volume shops and dealership service departments, this time savings compounds across daily vehicle counts. A facility processing 20 vehicles per day could save 7-10 minutes daily in lift cycle time alone, translating to meaningful throughput gains over weekly and monthly service schedules.
This enables faster bay turnover without sacrificing lifting precision or safety. The dedicated single-phase electrical requirement simplifies installation in most commercial service environments without requiring three-phase power infrastructure.
Versymmetric Dual-Configuration Flexibility
Versymmetric arm technology allows this single lift to operate in both symmetric positioning (vehicle centered between columns) and asymmetric positioning (vehicle offset toward columns for door clearance). The 3-stage front arms provide 20-42 inch reach while 3-stage rear arms extend from 37-5/8 to 60 inches.
Traditional shop setups require separate symmetric lifts for trucks and vans alongside asymmetric lifts for passenger vehicles. Versymmetric configuration eliminates this equipment redundancy by providing both capabilities in a single footprint, addressing the mixed-fleet reality of modern service operations.
This enables shops to service sedans, SUVs, pickups, and vans on the same equipment without configuration changes. Technicians simply position vehicles according to the service requirements and lifting points of each specific vehicle.
directSPOT 3-Stage Arm Technology
Both front and rear arms feature Challenger's directSPOT 3-stage telescoping design, providing extended reach ranges that enable efficient single-sweep vehicle spotting. The front arms adjust from 20 to 42 inches while rear arms cover 37-5/8 to 60 inches. Double telescoping screw pads with rubber inserts provide 3-7/8 to 6-1/8 inch height adjustment.
Typical competitor designs use 2-stage arms with narrower reach ranges, requiring technicians to reposition vehicles multiple times to align lift points. The extended 3-stage reach on both front and rear arms addresses this inefficiency by covering the full span of manufacturer-specified lift points in a single sweep.
This improves spotting accuracy on the first attempt and reduces the time spent repositioning vehicles in the bay. The automatic arm restraint locks secure arms in position once contact is made with the vehicle frame.
High-Ceiling Ready with Included 3-Foot Extensions
The CL10V3-3-QC includes 3-foot column extensions as standard equipment, accommodating service bays with ceiling heights of 14'-3" to 14'-9" depending on column width configuration. This provides full 74-1/8 inch rise height while maintaining proper overhead clearance for the shutoff bar assembly.
Many shops upgrade to higher ceilings during renovation or new construction to improve ventilation and accommodate larger vehicles. Standard two-post lifts without extensions often limit usable rise height in these environments, leaving valuable overhead workspace underutilized.
This enables full under-vehicle access on raised trucks and SUVs in high-ceiling facilities. The integrated column design maintains structural integrity without requiring field fabrication or aftermarket extension kits.
Heavy-Duty Synchronization System
The equalization system utilizes oversized 5-inch diameter pulleys and 5/16-inch cables to maintain balanced carriage travel between power and idler columns. This specification exceeds common industry configurations that use smaller pulley diameters and cable gauges.
Undersized synchronization components are a leading cause of uneven carriage wear and cable fatigue in high-cycle commercial environments. The oversized specifications address long-term durability concerns by reducing cable stress and pulley bearing loads during daily operation.
This extends service life and reduces maintenance frequency on synchronization components. The 48-inch elongated carriage design further distributes load forces across a wider bearing surface, minimizing slide block wear.
ALI Gold Certification and Domestic Manufacturing
This lift carries ALI Gold Certification from the Automotive Lift Institute, verifying compliance with ANSI/ALI ALCTV-2017 standards. Additional certifications include ANSI/UL 201 (motor-operated lift electrical safety) and ETL listing through Intertek NRTL testing.
Insurance providers and OSHA inspectors increasingly require third-party safety verification for commercial lift equipment. ALI certification provides documented compliance that satisfies these requirements without additional testing or engineering reviews. Manufacturing in Louisville, Kentucky ensures warranty support accessibility and domestic parts availability.
This eliminates compliance documentation concerns during facility inspections and insurance audits. The combination of third-party certification and domestic manufacturing provides accountability that import alternatives often lack.
Applications & Use Cases
- Professional Automotive Repair: General maintenance, brake service, suspension and steering work, exhaust system service, and undercarriage inspection on passenger cars, light-duty trucks, SUVs, and crossovers
- Dealership Service Departments: High-volume service operations requiring fast cycle times and mixed-fleet capability for sedans, trucks, and SUVs under warranty and customer-pay work
- Fleet Maintenance Facilities: Scheduled maintenance and repair on commercial fleets including cargo vans, minivans, and light-duty pickup trucks up to 10,000 lb
- Quick Lube and Express Service: Oil changes, fluid services, tire rotations, and multi-point inspections where bay turnover speed directly impacts revenue
- Transmission and Drivetrain Service: Component removal and installation requiring stable platform positioning and full undercarriage access
- High-Ceiling Home and Enthusiast Shops: Private facilities with 14+ foot ceilings seeking professional-grade equipment for sports cars, classic vehicles, and project builds
Technical Specifications
| Specification | Value |
|---|---|
| Maximum Lifting Capacity | 10,000 lb (4,536 kg) |
| Capacity Per Arm | 2,500 lb (1,134 kg) |
| Rise Height | 74-1/8 inches (1,882-1,908 mm) |
| Rise Time (Quick Cycle) | 24-27 seconds |
| Descent Time | 17 seconds |
| Configuration | Versymmetric (symmetric + asymmetric) |
| Specification | Value |
|---|---|
| Overall Width (Adjustable) | 138-1/2 to 143 inches (11'-6-1/2" to 11'-11") |
| Drive-Thru Clearance | 100 to 104-1/2 inches (8'-4" to 8'-8-1/2") |
| Front Arm Reach | 20 to 42 inches (min to max) |
| Rear Arm Reach | 37-5/8 to 60 inches (min to max) |
| Screw Pad Height Range | 3-7/8 to 6-1/8 inches |
| Minimum Ceiling Height | 14'-3" to 14'-9" (configuration dependent) |
| Specification | Value |
|---|---|
| Motor (Quick Cycle) | 3 HP, 208-230V, 60Hz, Single-Phase |
| Cable Diameter | 5/16 inch |
| Pulley Diameter | 5 inches |
| Arm Configuration | 3-stage front + 3-stage rear directSPOT |
| Shipping Weight | 1,835-2,025 lb |
What's Included
- Power column assembly with carriage
- Idler column assembly with carriage
- 3-foot column extensions (pair)
- Overhead beam assembly
- Synchronizer cable pack (CL10-3 specific length)
- 3-stage front arm assemblies (2)
- 3-stage rear arm assemblies (2)
- Double telescoping screw pads with rubber inserts (4)
- Quick Cycle power unit (3 HP, single-phase)
- Overhead shutoff bar assembly with limit switch
- Hardware pack including anchor bolts (3/4" x 5-1/2")
- Rubber door guards (integrated on carriages)
- Lock release cable assembly
- Installation, Operation & Maintenance Manual
- ALI Lifting It Right safety manual
- Safety decals
Installation Requirements
Foundation Requirements
- Minimum Concrete Depth: 4 inches (102 mm)
- Concrete Strength: 3,500 PSI minimum
- Reinforcement: Steel rebar required
- Cure Time: 28 days minimum before installation
- Floor Level Tolerance: Within 3/8 inch over installation area
- Anchor Clearance: No anchors within 8 inches of cracks, edges, or expansion joints
- Anchor Bolts: 3/4" x 5-1/2" (included)
Electrical Requirements
- Power Unit: 3 HP, 208-230V, 60Hz, single-phase
- Circuit: Dedicated circuit required
- Breaker: 20-30A (verify against current spec sheet)
Space and Clearance
- Minimum Ceiling Height: 14'-3" to 14'-9" (varies by column width configuration)
- Recommended Bay Width: 12 feet minimum to nearest obstruction (each side)
- Recommended Bay Depth: 24 feet
- Drive-On Direction: Rear of columns
Environmental and Installation Notes
- Indoor Use Only: Not rated for outdoor installation
- Operating Temperature: 41 to 104 degrees F (5 to 40 degrees C)
- Professional Installation: Installation by qualified personnel following manufacturer IOM manual required for warranty validity
- Permits: Verify local code compliance and permit requirements before installation
Shipping & Delivery
Freight Information
Shipping Method: Ships via LTL freight from Louisville, KY.
Unloading Requirements: Forklift required for unloading. Liftgate service available but may not fully unload due to weight (1,835-2,025 lb shipping weight).
Freight Terminal Pickup: Available as alternative delivery option.
Lead Times: Vary based on inventory availability. Contact dealer for current lead times.
Receiving Instructions
Inspection: Inspect all packages before signing bill of lading. Note any visible damage on BOL before driver departs.
Concealed Damage: Report concealed damage within required timeframe per carrier terms. Document with photos and retain all packaging materials until inspection is complete.
Warranty Coverage
Challenger 5-2-1 Warranty Program
5 Years - Structural Parts: Columns, carriage, column extensions, overhead beams, and arms
2 Years - Functional Parts: Power units, cylinders, sheaves, hoses, cables, controls, adapters, latches, and valves - exceeds typical 1-year industry standard
1 Year - Labor: Coverage for warranty-related labor costs
Warranty Requirements
Registration: Product registration required at challengerlifts.com
Eligibility: Valid for original purchaser only (non-transferable)
Installation: Installation must be performed per Challenger Lifts specifications as outlined in IOM manual
Extended Warranty: Optional extended warranty available that extends functional parts coverage to 5 years
Ready to Upgrade Your Shop?
Get expert guidance on the right lift configuration for your facility. Our team can help with product selection, ceiling height verification, installation planning, and technical specifications.
Frequently Asked Questions
What is the lifting capacity of the Challenger CL10V3-3-QC?
The CL10V3-3-QC has a maximum lifting capacity of 10,000 lb (4,536 kg) with 2,500 lb capacity per arm. This clearfloor two-post lift is engineered for passenger cars, light-duty trucks up to 3/4-ton pickups, SUVs, crossovers, minivans, and cargo vans within this weight range. The Versymmetric arm configuration accommodates both symmetric and asymmetric vehicle positioning, making it suitable for mixed-fleet service operations in professional shops, dealerships, and fleet maintenance facilities.
How fast does the Quick Cycle lift reach full height?
The Quick Cycle hydraulic system achieves full rise height of 74-1/8 inches in 24-27 seconds, with controlled descent in 17 seconds. The 3 HP single-phase motor powers this performance, which is significantly faster than standard two-post lifts that typically operate in the 38-45 second range. For high-volume shops processing 20+ vehicles daily, this reduced cycle time compounds into meaningful productivity gains across weekly and monthly service schedules.
What ceiling height is required for the CL10V3-3-QC with 3-foot extensions?
The CL10V3-3-QC with included 3-foot column extensions requires a minimum ceiling height of 14 feet 3 inches to 14 feet 9 inches, depending on column width configuration selected during installation. The overall width adjusts from 138-1/2 to 143 inches, which affects the final overhead clearance requirement. Verify your specific bay dimensions and ceiling height before ordering to ensure proper fit with the overhead shutoff bar assembly.
What are the concrete requirements for installing this lift?
The lift requires a minimum 4-inch thick concrete floor with 3,500 PSI compressive strength and steel rebar reinforcement. The concrete must have a minimum 28-day cure time before installation. Floor must be level within 3/8 inch across the installation area. Anchor bolts (3/4 inch x 5-1/2 inch, included) cannot be placed within 8 inches of cracks, edges, or expansion joints. Professional installation following the Challenger IOM manual is required for warranty validity.
What does Versymmetric mean for this two-post lift?
Versymmetric technology allows the lift to operate in both symmetric positioning (vehicle centered between columns for trucks and vans) and asymmetric positioning (vehicle offset toward columns for improved door clearance on passenger cars). The 3-stage front arms provide 20-42 inch reach while 3-stage rear arms extend from 37-5/8 to 60 inches. This dual-configuration capability eliminates the need for separate lifts for different vehicle types, maximizing shop floor efficiency.
What electrical service does the CL10V3-3-QC require?
The Quick Cycle model requires 3 HP, 208-230V, 60Hz, single-phase power on a dedicated circuit with a 20-30A breaker. Single-phase power simplifies installation in most commercial service environments without requiring three-phase infrastructure upgrades. The power unit connects to the power column assembly and drives the hydraulic system that achieves the 24-27 second rise time. Consult a licensed electrician to verify your facility meets these requirements before installation.
What certifications does this Challenger lift have?
The CL10V3-3-QC is ALI Gold Certified by the Automotive Lift Institute, verifying compliance with ANSI/ALI ALCTV-2017 safety standards for vehicle lifts. Additional certifications include ANSI/UL 201 for motor-operated lift electrical safety and ETL listing through Intertek NRTL testing. These third-party certifications satisfy insurance provider requirements and OSHA compliance documentation needs for commercial automotive service facilities. The lift is manufactured in Louisville, Kentucky.
What warranty coverage comes with the Challenger CL10V3-3-QC?
Challenger provides a 5-2-1 warranty program with tiered coverage. Structural parts (columns, carriage, column extensions, overhead beams, and arms) are covered for 5 years. Functional parts (power units, cylinders, sheaves, hoses, cables, controls, adapters, latches, and valves) receive 2 years coverage, exceeding the typical 1-year industry standard. Labor is covered for 1 year. Product registration at challengerlifts.com is required, and extended warranty options are available to extend functional parts coverage to 5 years.
