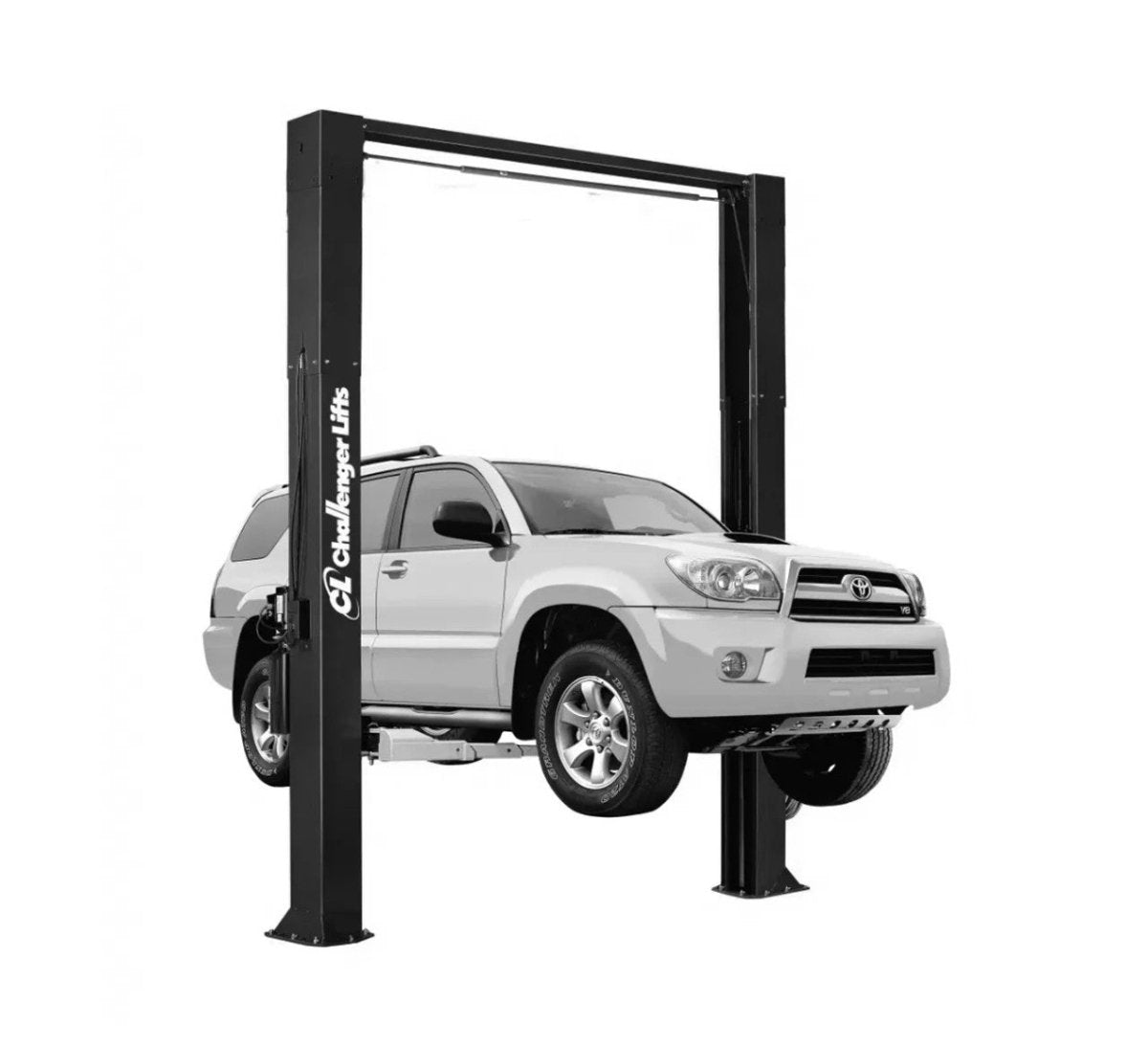

Challenger CL10V3-3-DPC 10,000 lb Versymmetric Two-Post Lift
Challenger CL10V3-3-DPC 10,000 lb Versymmetric Two-Post Lift with Dual Pendant Controls for Professional Service Bays
The Challenger CL10V3-3-DPC delivers 10,000 lb lifting capacity in a Versymmetric configuration that enables both symmetric and asymmetric vehicle positioning from a single service bay. This American-made lift features 3-stage front arms (20"-42") and 3-stage rear arms (37-5/8"-60") with directSPOT technology for precise lift point contact. Factory-installed 3-foot column extensions accommodate high-ceiling facilities with 14'-3" to 14'-9" minimum ceiling height requirements. The dual pendant control system allows technicians to operate the lift from either column, improving workflow efficiency for single-technician operations. ALI/ETL Certified and backed by a 5-year structural warranty, this lift is designed and manufactured in Louisville, Kentucky.
Challenger CL10V3-3-DPC Features
Versymmetric Technology for Dual Lifting Configurations
The Versymmetric system enables both symmetric and asymmetric lifting without changing arm sets or reconfiguring the lift. Technicians can position vehicles optimally based on service requirements, whether working on passenger cars that benefit from asymmetric door clearance or trucks and vans that require symmetric weight distribution. This dual-capability design expands vehicle coverage per service stall and eliminates the need for multiple specialized lifts.
directSPOT 3-Stage Front and Rear Arms
Both front and rear arms feature a 3-stage telescoping design that delivers exceptional reach range. Front arms extend from 20" to 42" while rear arms reach from 37-5/8" to 60". This configuration provides significantly more adjustment range than typical 2-stage rear arm designs, allowing technicians to position lift pads precisely at manufacturer-designated lift points without repositioning the vehicle.
Dual Pendant Controls Included Standard
The CL10V3-3-DPC includes two pendant control assemblies as standard equipment, with one mounted at each column. This dual-control configuration allows technicians to operate the lift from either side of the vehicle without walking around the bay. Many competing lifts charge an additional $200-$400 for a second pendant control, but Challenger includes both pendants at no extra cost.
3-Foot Column Extensions Pre-Configured
The "-3" designation indicates that 3-foot column extensions are included and factory-installed, providing a column height of 14'-2" to 14'-8" and supporting minimum ceiling heights of 14'-3" to 14'-9". This extended configuration accommodates taller vehicles including full-size SUVs, vans, and lifted trucks while providing adequate overhead clearance for technicians working beneath.
Heavy-Duty Equalization System
The synchronization system uses an oversized 5-inch diameter pulley paired with 5/16-inch heavy-duty cable, significantly exceeding the 3-4 inch pulleys and lighter cables typical of competitor designs. The 48-inch elongated carriage provides additional bearing surface and load distribution across the column rails, extending component service life and reducing maintenance frequency.
ALI/ETL Certified American Manufacturing
The CL10V3-3-DPC is ALI Certified (Automotive Lift Institute) and ETL Certified, meeting ANSI/ALI ALCTV standards through independent third-party testing. Static and dynamic load testing exceeds 150% of the rated 10,000 lb capacity. This lift is designed and manufactured in Louisville, Kentucky, supporting shorter lead times, reliable parts availability, and direct manufacturer support.
Challenger CL10V3-3-DPC Applications
- Full-Service Automotive Repair: General maintenance, brake service, suspension work, and drivetrain repairs on passenger cars, SUVs, and light trucks up to 10,000 lb gross weight.
- Dealership Service Departments: Multi-brand service operations requiring flexibility across sedans, crossovers, SUVs, and light-duty trucks with varying wheelbases and lift point configurations.
- Fleet Maintenance Facilities: Commercial and municipal fleet operations servicing vans, pickup trucks, and service vehicles with consistent high-volume throughput requirements.
- High-Ceiling Facilities: Service bays with 14-foot or greater ceiling heights that can accommodate the extended column configuration for maximum rise and overhead clearance.
- Unibody and Frame Vehicles: Passenger cars and unibody SUVs using standard lift points, plus frame-construction trucks and vans when equipped with optional frame engaging adapters (P/N 10314 or 10318).
Challenger CL10V3-3-DPC Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 10,000 lb |
| Capacity Per Arm | 2,500 lb |
| Hydraulic Pressure at Capacity | 2,750 psi |
| Specification | Value |
|---|---|
| Column Height | 14'-2" or 14'-8" |
| Minimum Ceiling Height Required | 14'-3" or 14'-9" |
| Rise Height (Pads at Highest Position) | 74-1/8" |
| Screw Pad Height Range | 3-7/8" to 6-1/8" |
| Overall Width (Adjustable) | 11'-11" or 11'-6-1/2" |
| Inside of Columns | 110" or 114-1/2" |
| Drive-Thru Clearance | 100" or 104-1/2" |
| Floor to Overhead Switch | 13'-8-1/2" or 14'-2-1/2" |
| Specification | Value |
|---|---|
| Front Arm Reach (3-Stage) | 20" to 42" |
| Rear Arm Reach (3-Stage) | 37-5/8" to 60" |
| Specification | Value |
|---|---|
| Motor | 2 HP, Single Phase, 60 Hz |
| Voltage | 208-240V |
| Circuit Breaker | 30 Amp double pole or time delay fuse |
| Rise Time (Approximate) | 38 seconds |
| Specification | Value |
|---|---|
| ALI Certified | Yes |
| ETL Certified | Yes |
| Standards | ANSI/ALI ALCTV |
| Country of Manufacture | USA (Louisville, Kentucky) |
Challenger CL10V3-3-DPC Installation Requirements
Electrical Requirements
Power: 208-240V, single phase, 60 Hz with a dedicated 30 Amp double pole circuit breaker or time delay fuse. A licensed electrician must install and verify the electrical supply. Electrical code requires a service disconnect located near the point of operation.
Concrete Foundation
Anchoring: Minimum 4-inch concrete depth with steel reinforcement, 3,500 psi minimum, cured for 28 days per local commercial practice. Floor must be level within 3/8" over the installation area. No anchors should be installed within 8 inches of any crack, edge, or expansion joint. Fourteen 3/4" x 5-1/2" anchor bolts are included.
Space Requirements
Ceiling Height: Minimum 14'-3" to 14'-9" required for the CL10V3-3 configuration. Bay Width: 12 feet minimum to nearest obstruction on each side. Clearance: 6 feet to nearest obstruction or 7 feet to nearest wall at the rear of the lift. This lift is evaluated for indoor use only with an operating ambient temperature range of 41-104°F (5-40°C).
Professional Installation
Professional installation by qualified personnel is strongly recommended. Installation must comply with all local building codes and regulations. A qualified person should be consulted to address seismic loads and other local or state requirements. Check with local building inspectors and permits office for any special instructions or approvals required.
What's Included with the Challenger CL10V3-3-DPC
- Power column assembly with hydraulic cylinder
- Idler column assembly with hydraulic cylinder
- 3-foot column extensions (factory-installed)
- Overhead beam assembly
- 3-stage front arm pack (2 arms)
- 3-stage rear arm pack (2 arms)
- Four rubber lift pad adapters
- Dual pendant control assemblies (one per column)
- Standard DPC power unit (2 HP, single phase)
- Junction box assembly
- Synchronizer cable pack
- Overhead shutoff bar assembly with limit switch
- Lock release cable assemblies
- Complete hardware kit with anchor bolts (14 included)
- Installation, operation, and maintenance manual
- Lifting It Right safety manual
Optional Accessories: Frame engaging adapters (P/N 10314 or 10318), truck adapters, and stackable height adapters available for expanded vehicle coverage.
Not Included: Hydraulic fluid (requires 3 gallons of 10 wt. anti-foam, anti-rust hydraulic oil or Dexron III ATF), electrical wiring and installation, concrete work or reinforcement, and installation labor.
Challenger CL10V3-3-DPC Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Ships within 5-10 business days from Louisville, Kentucky. International: Contact sales for international shipping quotes and availability.
Delivery Requirements
Unloading: Forklift or loading dock required for unloading. Column assemblies weigh approximately 200 lb each when handling during installation. Delivery Type: Curbside delivery standard with freight carrier. Inspection: Thoroughly inspect all packages for damage before signing the bill of lading. Note any shortage or damage on the delivery receipt. Contact Challenger Lifts immediately if hidden loss or damage is discovered after receipt.
Returns
Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. 20% restocking fee applies. Buyer responsible for return freight costs. Contact our team before initiating any return.
Challenger CL10V3-3-DPC Warranty
Challenger Lifts Warranty Coverage
Challenger Lifts provides comprehensive warranty protection for the CL10V3-3-DPC:
- 5 Years: Structural components including columns, carriages, and overhead beam
- 2 Years: Hydraulic cylinders and power unit components
- 1 Year: All other parts and components including electrical, cables, and hardware
Requirements: Warranty coverage requires proper installation according to manufacturer specifications, use within rated capacity limits, and adherence to recommended maintenance schedules. Warranty does not cover damage from misuse, overloading, improper installation, or lack of maintenance. Complete warranty terms available in the Challenger Lifts Warranty document.
Documents
Click to open in a new tab.
Questions About the Challenger CL10V3-3-DPC?
Our equipment specialists can help with installation planning, specifications, and product selection for your shop.
Challenger CL10V3-3-DPC FAQ
What is the lifting capacity of the CL10V3-3-DPC?
The Challenger CL10V3-3-DPC has a total lifting capacity of 10,000 lb with a maximum of 2,500 lb per arm. The load must be distributed across all four arms for safe operation. The lift is tested at 150% of rated capacity to ensure structural integrity under demanding service conditions.
What ceiling height is required for the CL10V3-3-DPC?
The CL10V3-3-DPC with 3-foot column extensions requires a minimum ceiling height of 14'-3" to 14'-9" depending on the width configuration. The column height is 14'-2" to 14'-8". If your facility has a lower ceiling, consider the standard CL10V3 (12' ceiling) or CL10V3-2 (13'-3" to 13'-9" ceiling) models.
What electrical requirements does this lift need?
The CL10V3-3-DPC requires 208-240V single-phase power at 60 Hz with a dedicated 30 Amp double pole circuit breaker or time delay fuse. A service disconnect must be located near the point of operation per electrical code. A licensed electrician should install and verify the electrical supply.
What are the concrete requirements for installation?
The lift requires a minimum 4-inch thick concrete floor with steel reinforcement, rated at 3,500 psi minimum, and cured for 28 days. The floor must be level within 3/8" over the installation area. No anchor bolts should be installed within 8 inches of any crack, edge, or expansion joint. Fourteen 3/4" x 5-1/2" anchor bolts are included with the lift.
What does the 5-year structural warranty cover?
The 5-year structural warranty covers the main structural components including the columns, carriages, and overhead beam. Hydraulic cylinders and power unit components are covered for 2 years. All other parts including electrical, cables, and hardware are covered for 1 year. Warranty requires proper installation and adherence to maintenance schedules.
What is included with the CL10V3-3-DPC?
The lift includes both column assemblies with factory-installed 3-foot extensions, overhead beam, 3-stage front and rear arm packs, four rubber lift pad adapters, dual pendant controls, power unit, junction box, synchronizer cables, overhead shutoff bar assembly, lock release assemblies, complete hardware kit with 14 anchor bolts, and all documentation. Hydraulic fluid, electrical installation, and concrete work are not included.
How is the lift shipped and what is needed to unload it?
The CL10V3-3-DPC ships via freight carrier from Louisville, Kentucky within 5-10 business days. Free freight shipping is available to commercial addresses in the 48 contiguous states. A forklift or loading dock is required for unloading. Curbside delivery is standard. Inspect all packages thoroughly before signing the bill of lading and note any damage on the delivery receipt.
What optional accessories are available?
Optional accessories include frame engaging adapters (P/N 10314 or 10318) for frame-construction trucks and vans, stackable height adapters for additional lift point reach, and various truck adapters for specialized applications. Contact our equipment specialists for recommendations based on your vehicle service mix.
What is the difference between symmetric and asymmetric lifting?
Symmetric lifting positions the vehicle with equal weight distribution on both sides, ideal for trucks and vans. Asymmetric lifting positions the vehicle slightly forward of center, allowing doors to open wider for easier interior access on passenger cars. The Versymmetric design allows technicians to use either configuration without mechanical adjustments, adapting to each vehicle's optimal service position.
What maintenance is required for the CL10V3-3-DPC?
Daily maintenance includes keeping components clean and checking for loose parts, fluid leaks, and adapter wear. Weekly checks should include synchronizer cables and sheaves. Monthly maintenance requires torquing anchor bolts to 80 ft-lbs, inspecting the concrete floor, testing the overhead shutoff switch, and lubricating carriage slide tracks and arm grease fittings with heavy viscous grease. Follow the complete maintenance schedule in the manual.
What is the arm reach range on the CL10V3-3-DPC?
The 3-stage front arms extend from 20" to 42" and the 3-stage rear arms reach from 37-5/8" to 60". This extended rear arm reach exceeds typical 2-stage designs and accommodates longer wheelbase vehicles without repositioning. The directSPOT system enables precise placement at manufacturer-designated lift points across a wide range of passenger cars, SUVs, and light trucks.
Can I install the CL10V3-3-DPC myself?
While the installation manual provides detailed instructions, professional installation by qualified personnel is strongly recommended. Installation involves heavy lifting (column assemblies weigh approximately 200 lb each), precise concrete anchoring, hydraulic system connections, and electrical wiring that must comply with local codes. Improper installation may void the warranty and create safety hazards. A qualified professional should also address any seismic or local building code requirements.
