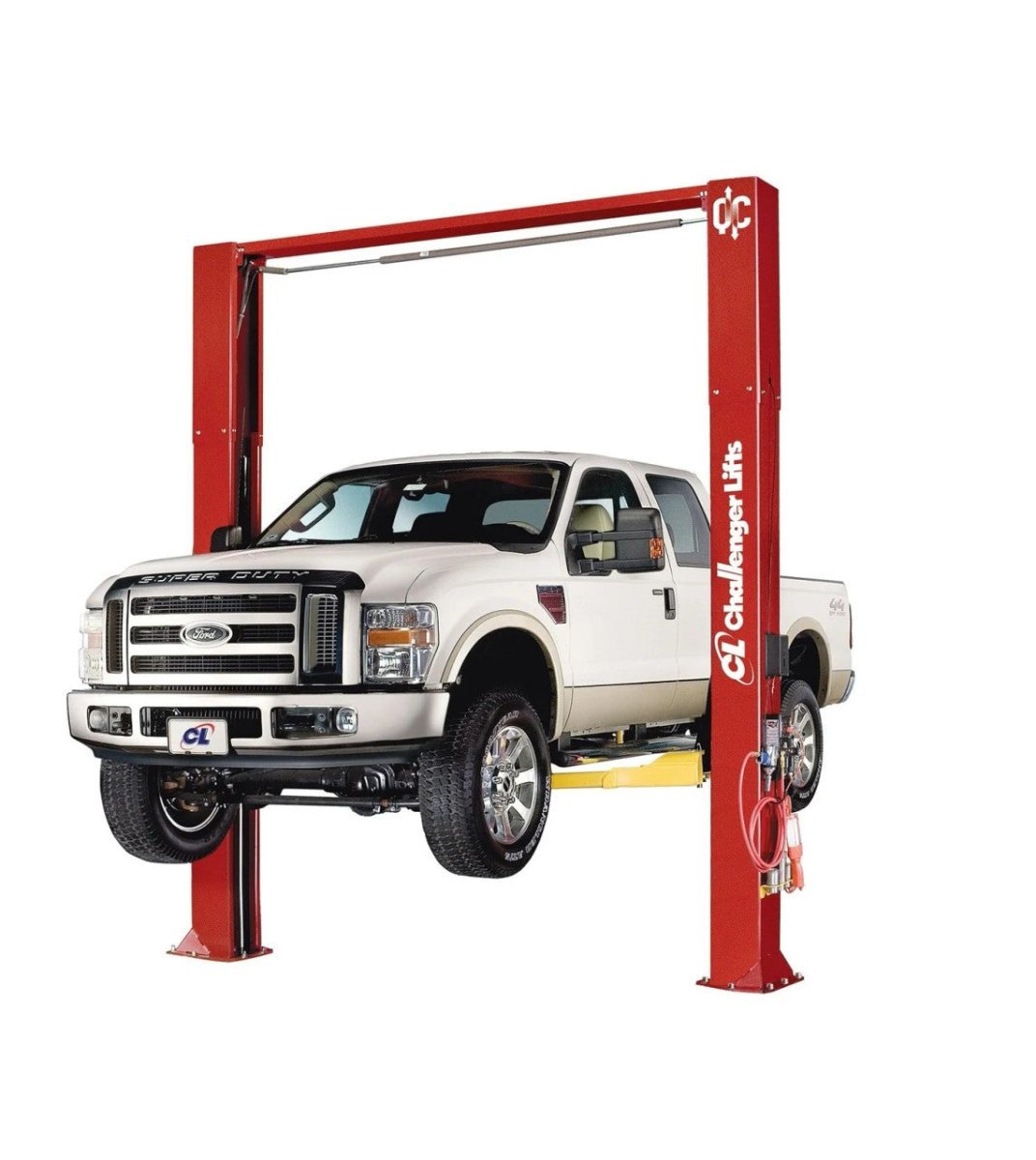

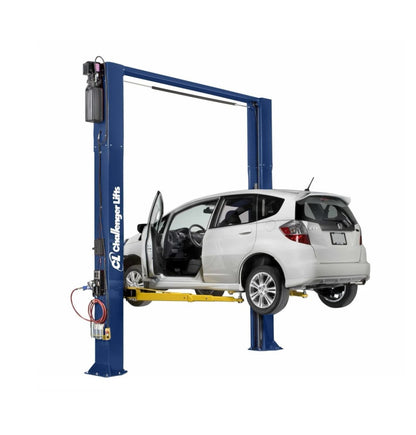

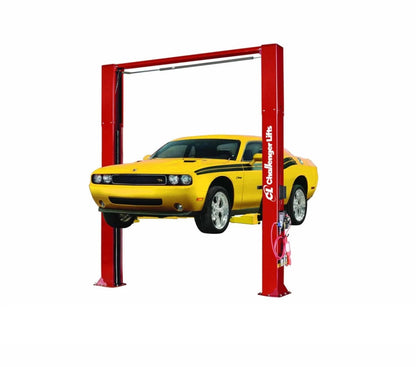

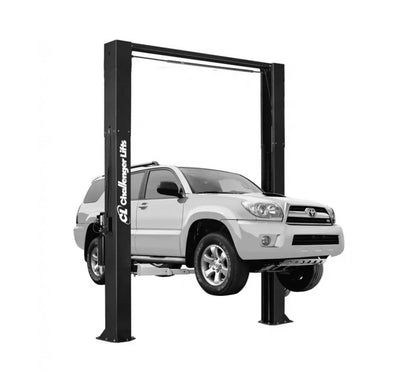

CHALLENGER LIFTS CL10V3-3-DPC-QC Two Post Lift, 10,000 Lbs Quick Cycle

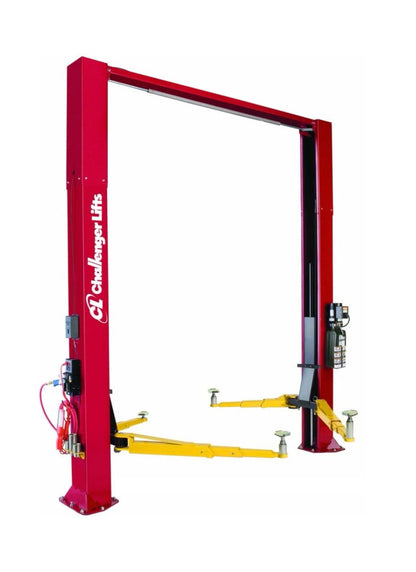

Challenger CL10V3-3-DPC-QC - 10,000 lb ALI Certified Versymmetric Two-Post Lift
The Challenger CL10V3-3-DPC-QC delivers 10,000 lb capacity with Versymmetric arm technology for both symmetric and asymmetric lifting in a single bay. Featuring the Quick Cycle hydraulic package for 27-second rise time and Dual Pendant Controls for operation from either column, this USA-manufactured two-post lift handles cars, SUVs, vans, and light-duty trucks with precision and speed.
Key Features & Benefits
Versymmetric 3-Stage Arm System
The Versymmetric configuration with 3-stage front and rear directSPOT arms delivers 20" to 42" front arm reach and 37.625" to 60" rear arm reach, enabling both symmetric (centered) and asymmetric (offset) vehicle positioning in a single bay. The 3-stage telescoping design provides precise reach adjustment for accurate OEM lift point contact across vehicle types.
Traditional two-post configurations lock shops into either symmetric or asymmetric layouts, forcing technicians to reposition vehicles or maintain separate lift stations. The Versymmetric system addresses this limitation by allowing arm configuration changes without additional equipment or bay modifications.
This eliminates the need for multiple specialized lifts and reduces vehicle repositioning time during spotting. Shops gain increased service bay versatility and can accommodate a wider range of vehicle types without additional capital investment.
Quick Cycle Hydraulic Performance
The Quick Cycle hydraulic package achieves 27-second rise time and 17-second descent, delivering 40% faster cycle times than standard CL10V3 variants. The system maintains full 10,000 lb lifting capacity while reducing wait time between vehicle positioning and service operations.
High-volume shops and express service bays face direct productivity constraints from lift cycle times. Every additional second spent waiting for the lift translates to reduced throughput. Quick Cycle addresses this bottleneck for facilities where vehicle turnover directly impacts daily revenue.
This enables measurable productivity gains in express lube operations, tire service centers, and busy dealership service departments. The faster cycle supports additional vehicles serviced per day without requiring added bays or staff.
Dual Pendant Control System
The DPC system positions operator controls on both lift columns, allowing technicians to raise, lower, and lock the lift from either side of the bay. Pendant controls feature clear labeling and ergonomic button placement for consistent operation regardless of which column the technician approaches.
Single-column controls force technicians to walk around vehicles during spotting, creating sightline issues when positioning arms on the far side. Dual controls eliminate this back-and-forth movement, particularly valuable when working alone or in tight bay configurations.
This improves workflow efficiency and reduces unnecessary movement around the vehicle during setup. Technicians maintain better sightlines during arm positioning and can complete the spotting process faster with fewer steps.
Extended Column Height for Tall Vehicles
The included 3-foot column extensions yield 14 ft 8 in total column height with 74.125" rise height, accommodating cargo vans, delivery vehicles like Sprinter and Transit models, and lifted trucks that standard-height lifts cannot service. The double telescoping screw pads provide 3.875" to 6.125" height adjustment for additional clearance flexibility.
The growing commercial van and last-mile delivery vehicle market creates demand for service capacity that standard 11-12 foot column lifts cannot meet. Shops without extended-height capability must turn away this increasingly common vehicle class.
This future-proofs the facility for expanding delivery fleets and commercial van service demand. The -3 configuration captures revenue from vehicle segments that competitors with standard-height equipment must decline.
ALI/ETL Certified Safety Package
Full ALI (Automotive Lift Institute) and ETL certification confirms compliance with ANSI/ALI ALCTV safety standards. The integrated safety package includes padded overhead shutoff, single-point mechanical lock release, OSHA-compliant keyed lockout mechanism, automatic arm restraints, and dual integrated rubber door guards.
Commercial shops face insurance requirements, OSHA compliance audits, and inspector approvals that demand certified equipment. Non-certified lifts create liability exposure and may fail to meet building code or insurance underwriting standards in professional service environments.
This enables straightforward compliance for commercial facilities without requiring aftermarket safety additions. The certification package satisfies insurance carriers, inspectors, and regulatory requirements from initial installation.
USA Manufacturing and Premium Construction
Manufactured in Louisville, Kentucky, the CL10V3 features a 48" elongated carriage design, 5" diameter pulleys, 5/16" cable system, fully gusseted base plates, and nano-ceramic powder coat finish. The cable equalization system maintains balanced column movement throughout the lifting cycle.
Imported lifts with thinner materials and smaller components experience accelerated wear in high-use commercial environments. Undersized cables, pulleys, and carriages create maintenance costs and downtime that offset initial purchase savings.
This provides commercial-grade durability for facilities running multiple lifts per day. The construction specifications support sustained high-use operation while reducing component replacement frequency over the lift's service life.
Applications & Use Cases
- Full-Service Automotive Repair: General maintenance, brake service, suspension work, and drivetrain repairs for cars, SUVs, and light-duty trucks within 10,000 lb capacity
- Dealership Service Departments: Mixed vehicle fleet service with symmetric and asymmetric positioning flexibility for manufacturer-specified lift point access
- Fleet Maintenance Facilities: Commercial van and delivery vehicle service including Sprinter, Transit, and similar high-roof configurations
- High-Volume Express Service: Quick lube, tire service, and inspection bays where Quick Cycle speed directly impacts daily throughput
- EV Service Applications: Electric vehicle maintenance with appropriate adapters for battery-equipped unibody designs
- Mixed Vehicle Operations: Shops servicing both unibody and frame-constructed vehicles, including low-profile sports cars and wide-body vehicles
Technical Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 10,000 lb (4,536 kg) |
| Max Load Per Arm | 2,500 lb (1,134 kg) |
| Rise Height | 74.125 inches (1,883 mm) |
| Rise Time (Quick Cycle) | 27 seconds |
| Descent Time (Quick Cycle) | 17 seconds |
| Specification | Value |
|---|---|
| Column Height (with -3 Extension) | 14 feet 8 inches (4,470 mm) |
| Ceiling Height Required | 14 feet 3 inches to 14 feet 9 inches (4,343-4,496 mm) |
| Overall Width | 138.5 - 143 inches adjustable (3,518-3,632 mm) |
| Inside Columns | 110 - 114.5 inches (2,794-2,908 mm) |
| Drive-Through Clearance | 100 - 104.5 inches (2,540-2,654 mm) |
| Specification | Value |
|---|---|
| Arm Configuration | 3-stage front / 3-stage rear Versymmetric |
| Front Arm Reach (Min-Max) | 20 - 42 inches (508-1,067 mm) |
| Rear Arm Reach (Min-Max) | 37.625 - 60 inches (956-1,524 mm) |
| Screw Pad Height Range | 3.875 - 6.125 inches (98-156 mm) |
| Specification | Value |
|---|---|
| Voltage | 208-230V, Single Phase, 60Hz |
| Breaker | 30A (20A with newer Bucher power unit) |
Installation Requirements
Concrete Foundation
- Minimum Thickness: 4 inches
- Type: Steel reinforced
- Strength: Minimum 3,500 psi
- Cure Time: Minimum 28 days
- Condition: Free from cracks, seams, spalling, or deterioration
- Floor Level Tolerance: Within 3/8 inch over installation area
- Anchor Placement: Minimum 8 inches from any crack, edge, or expansion joint
Bay Specifications
- Minimum Bay Depth: 12 feet (24 feet recommended)
- Recommended Bay Width: 14 feet
- Minimum Ceiling Height: 14 feet 3 inches to 14 feet 9 inches (with -3 extension)
Electrical Requirements
- Power Supply: 208-230V, Single Phase, 60Hz
- Circuit Breaker: 30-amp dedicated circuit (20-amp with new Bucher power unit as of April 2025)
Installation Notes
- Environment: Evaluated for indoor use only
- Professional Installation: Must be installed by authorized installer per manufacturer requirements
- Permits: Verify local code compliance and permit requirements before installation
Shipping & Delivery
Freight Coverage
Shipping Method: Freight shipping required. Free shipping offered by many authorized dealers.
Delivery Timeframe: 12-21 days from order placement (subject to inventory availability).
Delivery Options: Terminal pickup available. Direct delivery to installer available.
Delivery Requirements
Unloading Equipment: Forklift or hoist REQUIRED for unloading. Shipping weight 1,400-1,900 lb depending on configuration.
Delivery Type: Freight delivery only. Lift gate delivery NOT available.
Receiving: Inspect all packages before signing bill of lading. Note any visible damage on BOL before driver departs.
Additional Notes
Not Included in Shipment: Oil and installation typically excluded from shipment. Verify with dealer.
Warranty Coverage
5-2-1 Warranty Program
5 Years - Structural Parts: Carriage, columns, column extensions, overhead beams, arms, cross beams
2 Years - Functional Parts: Power units, cylinders, sheaves, sheave pins, hoses, hydraulic and pneumatic fittings, cables, adapters, latches, valves, controls
1 Year - Labor: Labor coverage for warranty repairs during the first year
Warranty Requirements
Registration: Product registration required at challengerlifts.com
Eligibility: Valid for original purchaser only (non-transferable)
Installation: Must be installed by authorized installer
Parts: Use of unapproved parts or accessories voids warranty
Extended Warranty
Available Option: Additional 3 years on functional parts (5 years total functional coverage). Must be purchased within 30 days of invoice.
Ready to Upgrade Your Shop?
Get expert guidance on the right lift for your facility. Our team can help with product selection, installation planning, and technical specifications. Call to confirm included accessories and current package contents.
Frequently Asked Questions
What is the lifting capacity of the Challenger CL10V3-3-DPC-QC?
The CL10V3-3-DPC-QC has a maximum lifting capacity of 10,000 lb (4,536 kg) with a maximum load per arm of 2,500 lb (1,134 kg). The lift carries full ALI certification to ANSI/ALI ALCTV safety standards, making it suitable for commercial service applications in dealerships, fleet facilities, and professional repair shops requiring certified equipment.
What ceiling height is required for the CL10V3-3 with column extensions?
The -3 configuration requires a minimum ceiling height of 14 feet 3 inches to 14 feet 9 inches depending on specific installation conditions. The column height with the included 3-foot extensions measures 14 feet 8 inches (4,470 mm). For planning purposes, use 14 feet 9 inches as the safe minimum to ensure adequate clearance for the overhead beam assembly and shutoff system.
What are the concrete requirements for installing the CL10V3?
The lift requires a minimum 4-inch thick steel-reinforced concrete floor with at least 3,500 psi compressive strength and 28-day cure time before installation. The floor must be level within 3/8 inch across the installation area and free from cracks, seams, spalling, or deterioration. Anchor points must be placed at least 8 inches from any edge, crack, or expansion joint to ensure proper load distribution.
What is included with the CL10V3-3-DPC-QC?
The lift includes two columns with 3-foot extensions, overhead beam assembly, Dual Pendant Control system, Quick Cycle hydraulic power unit, four 3-stage front arms, four 3-stage rear arms, double telescoping screw pads, integrated rubber door guards, installation hardware, and the installation/operation/maintenance manual. Some sources indicate Stack Adapter Kit, Document Caddy, and Pendant Holder may be included - confirm current package contents with your dealer at time of purchase.
How fast is the Quick Cycle hydraulic system?
The Quick Cycle package delivers 27-second rise time and 17-second descent time at full 10,000 lb capacity. This represents a 40% speed improvement over standard CL10V3 variants, which typically operate in the 38-48 second range for rise time. The faster cycle times are particularly valuable in high-volume express service bays, quick lube operations, and busy dealership service departments where throughput directly impacts revenue.
What electrical requirements does the CL10V3 need?
The lift requires 208-230V single-phase 60Hz power with a 30-amp dedicated circuit breaker. Units equipped with the newer Bucher power unit (available as of April 2025) operate on a 20-amp breaker instead. The electrical supply must be a dedicated circuit - verify current power unit specifications and breaker requirements with your dealer at time of purchase to ensure proper electrical planning for your facility.
What does the Challenger warranty cover?
The standard 5-2-1 warranty includes 5 years coverage on structural parts (columns, arms, beams, carriage, column extensions, cross beams), 2 years on functional parts (power unit, cylinders, cables, valves, controls, sheaves, hoses, fittings, adapters, latches), and 1 year labor coverage for warranty repairs. An extended warranty option adds 3 years of functional parts coverage (5 years total) and must be purchased within 30 days of invoice.
What is Versymmetric arm technology?
Versymmetric is Challenger's proprietary arm system that enables both symmetric (centered) and asymmetric (offset) vehicle positioning using the same lift. The 3-stage directSPOT arms provide 20-42 inch front reach and 37.625-60 inch rear reach, eliminating the need for separate symmetric and asymmetric lift stations. This gives shops the flexibility to service a wider range of vehicle types and access manufacturer-specified lift points without repositioning or using multiple lifts.
