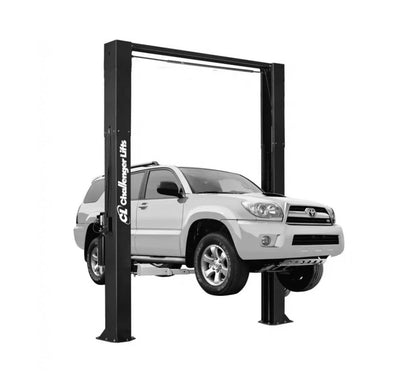

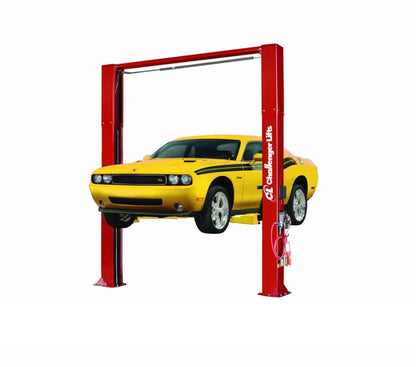

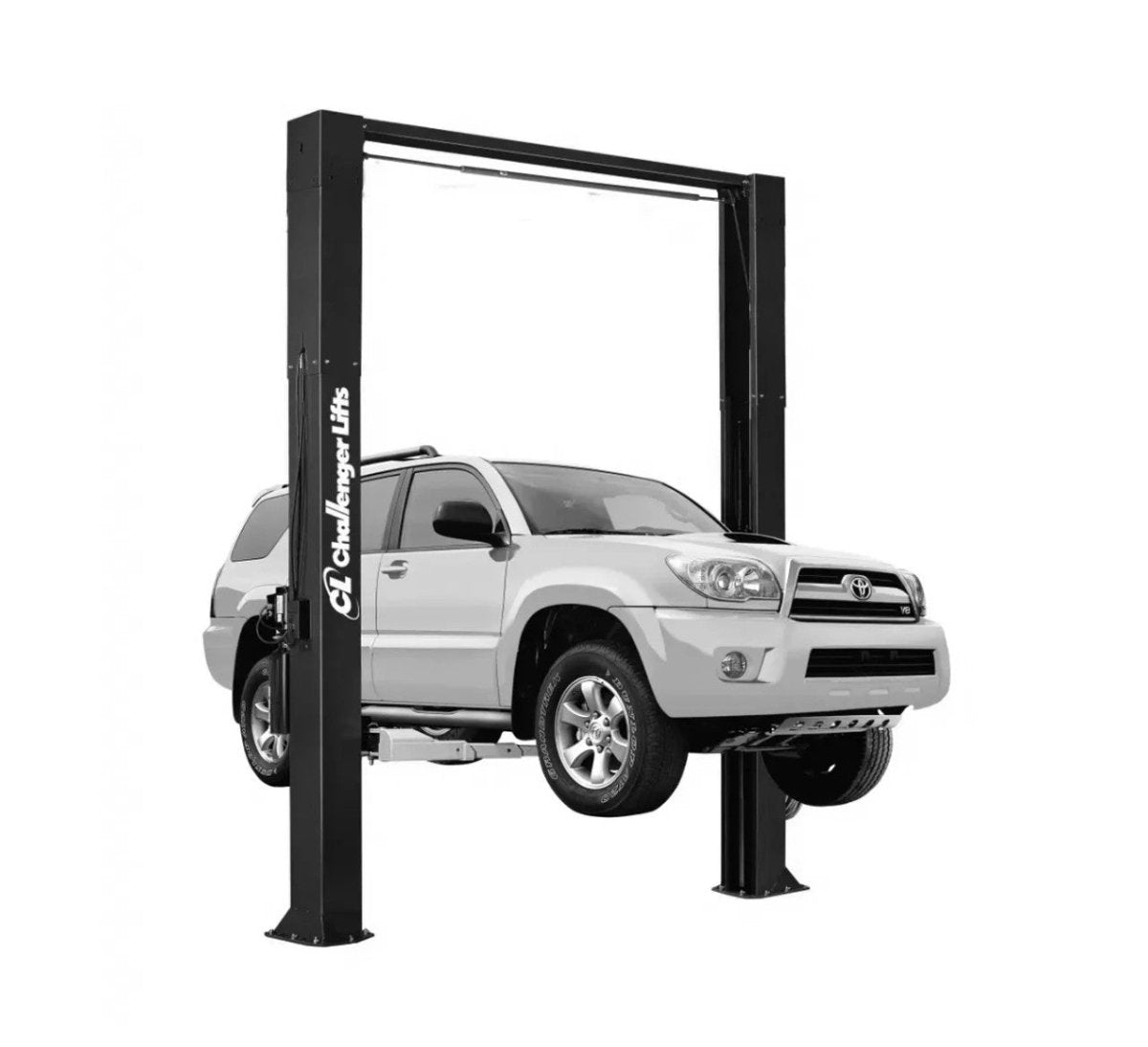

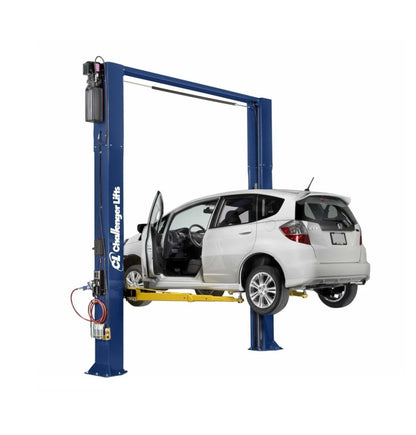

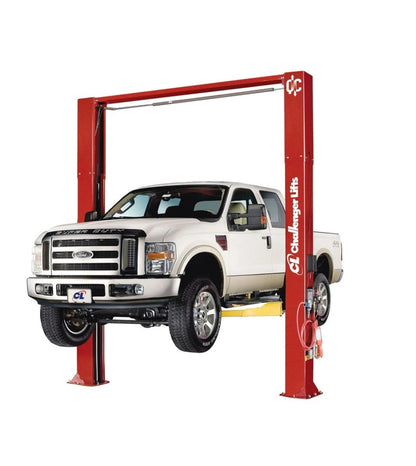

CHALLENGER LIFTS CL10V3-3-DPC Two Post Lift, 10,000 Lbs Capacity

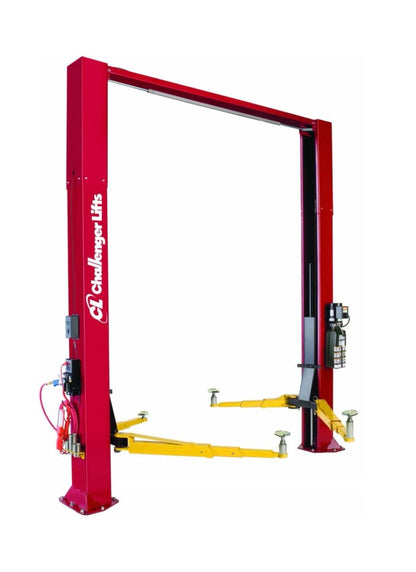

Challenger CL10V3-3-DPC - 10,000 lb Versymmetric Two-Post Lift with Dual Pendant Controls
The Challenger CL10V3-3-DPC delivers 10,000 lb lifting capacity in a Versymmetric configuration that enables both symmetric and asymmetric lifting from a single bay. Manufactured in Louisville, Kentucky, this ALI/ETL certified lift features directSPOT 3-stage front and rear arms, included 3-foot column extensions for high-ceiling facilities, and dual pendant controls for operation from either column.
Key Features & Benefits
Versymmetric Technology - Two Lifting Configurations in One Bay
The Versymmetric system enables both symmetric and asymmetric lifting without changing arm sets or reconfiguring the lift. This dual-capability design allows technicians to position vehicles optimally based on service requirements, whether working on passenger cars that benefit from asymmetric door clearance or trucks and vans that require symmetric weight distribution.
Traditional service bays require dedicated lifts for different vehicle configurations, forcing shops to either compromise on positioning or invest in multiple units. Versymmetric technology addresses this limitation by providing full flexibility within a single footprint, expanding vehicle coverage per service stall.
This eliminates the need for multiple specialized lifts and reduces capital equipment costs while increasing bay utilization. Technicians can switch between symmetric and asymmetric modes based on the vehicle and service task without any mechanical adjustments.
directSPOT 3-Stage Front and Rear Arms
Both front and rear arms feature a 3-stage telescoping design that delivers exceptional reach range. Front arms extend from 20 to 42 inches while rear arms reach from 37-5/8 to 60 inches. This configuration provides significantly more adjustment range than typical 2-stage rear arm designs found on competing lifts.
The directSPOT system allows technicians to position lift pads precisely at manufacturer-designated lift points without repositioning the vehicle. This eliminates the common practice of pulling vehicles forward or backward to align with arm reach limitations, reducing spotting time and minimizing the risk of incorrect pad placement.
This improves technician efficiency by enabling accurate first-attempt spotting across the full range of passenger cars, SUVs, light trucks, and vans. The extended rear arm reach is particularly valuable when servicing longer wheelbase vehicles.
Dual Pendant Controls Included Standard
The CL10V3-3-DPC includes two pendant control assemblies as standard equipment, with one mounted at each column. This dual-control configuration allows technicians to operate the lift from either side of the vehicle without walking around the bay or reaching across the service area.
Many competing lifts charge an additional $200-$400 for a second pendant control, treating it as an optional upgrade. Challenger includes both pendants at no extra cost, recognizing that single-technician operations benefit significantly from accessible controls at both work positions.
This enables faster cycle times and improved ergonomics for solo technicians who can raise, lower, and lock the lift from their current working position. The convenience factor compounds across hundreds of lift cycles per month, contributing to measurable productivity gains.
3-Foot Column Extensions Pre-Configured
The "-3" designation indicates that 3-foot column extensions are included and factory-installed, supporting minimum ceiling heights of 14'-3" to 14'-9". This extended configuration accommodates taller vehicles including full-size SUVs, vans, and lifted trucks while providing adequate overhead clearance for technicians working beneath.
Facilities with standard 12-foot ceilings would require the base CL10V3 model, but many modern service bays feature higher ceilings specifically to accommodate extended-height lifts. The CL10V3-3-DPC arrives ready for these installations without requiring a separate extension kit purchase or field assembly.
This reduces installation complexity and ensures proper column alignment since extensions are factory-fitted rather than field-installed. Shops planning new construction or renovations can specify the extended model with confidence that all components are matched and warranted together.
Heavy-Duty Equalization System
The synchronization system uses an oversized 5-inch diameter pulley paired with 5/16-inch heavy-duty cable, significantly exceeding the 3-4 inch pulleys and lighter cables typical of competitor designs. The 48-inch elongated carriage provides additional bearing surface and load distribution across the column rails.
Undersized equalization components are a common failure point in two-post lifts, with cable stretch and pulley wear contributing to uneven lifting and premature maintenance requirements. The heavy-duty specification addresses these concerns through mechanical overengineering rather than minimum-spec design.
This extends component service life and reduces maintenance frequency compared to lifts built to minimum specifications. The robust equalization system maintains consistent carriage travel and load balance throughout the lift's operational lifespan.
ALI/ETL Certified American Manufacturing
The CL10V3-3-DPC is ALI Certified (Automotive Lift Institute) and ETL Certified, meeting ANSI/ALI ALCTV standards through independent third-party testing. Static and dynamic load testing exceeds 150% of the rated 10,000 lb capacity, verifying structural integrity under demanding service conditions.
Certification provides documented compliance for insurance requirements, OSHA inspections, and facility audits. Many commercial insurance policies and franchise agreements specifically require ALI certification for vehicle lifts, making uncertified equipment a potential liability exposure.
This lift is designed and manufactured in Louisville, Kentucky, supporting domestic supply chain advantages including shorter lead times, reliable parts availability, and direct manufacturer support. American manufacturing also simplifies warranty service and technical assistance compared to imported alternatives.
Applications & Use Cases
- Full-Service Automotive Repair: General maintenance, brake service, suspension work, and drivetrain repairs on passenger cars, SUVs, and light trucks up to 10,000 lb gross weight.
- Dealership Service Departments: Multi-brand service operations requiring flexibility across sedans, crossovers, SUVs, and light-duty trucks with varying wheelbases and lift point configurations.
- Fleet Maintenance Facilities: Commercial and municipal fleet operations servicing vans, pickup trucks, and service vehicles with consistent high-volume throughput requirements.
- High-Ceiling Facilities: Service bays with 14-foot or greater ceiling heights that can accommodate the extended column configuration for maximum rise and overhead clearance.
- Unibody and Frame Vehicles: Passenger cars and unibody SUVs using standard lift points, plus frame-construction trucks and vans when equipped with optional frame engaging adapters (P/N 10314 or 10318).
Technical Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 10,000 lb (2,500 lb per arm) |
| Rise Height | 74-1/8 inches (screw pads at highest position) |
| Rise Time | 38 seconds |
| Arm Configuration | 3-stage front / 3-stage rear (directSPOT) |
| Front Arm Reach | 20 - 42 inches |
| Rear Arm Reach | 37-5/8 - 60 inches |
| Screw Pad Height Range | 3-7/8 - 6-1/8 inches |
| Specification | Value |
|---|---|
| Motor | 2 HP, Single Phase, 60Hz |
| Voltage | 208-230V |
| Circuit Requirements | 30-amp dedicated breaker |
| Synchronizer Cable | 5/16 inch heavy duty |
| Pulley Diameter | 5 inches |
| Carriage Length | 48 inches (elongated design) |
| Certification | Status |
|---|---|
| ALI Certified | Yes (Automotive Lift Institute) |
| ETL Certified | Yes |
| Standards Compliance | ANSI/ALI ALCTV |
What's Included
- (2) Column Assemblies - Power and idler columns with 3-foot extensions installed
- (2) Dual Pendant Control Assemblies - One at each column for two-sided operation
- (2) 3-Stage Front Arms - directSPOT design with 20-42 inch reach
- (2) 3-Stage Rear Arms - directSPOT design with 37-5/8 to 60 inch reach
- (1) Overhead Beam Assembly - With limit switch and padded shut-off bar
- (1) Synchronizer Cable Pack - CL10-3 length specification
- (1) Standard DPC Power Unit - 2HP, single-phase motor
- (1) Hardware Box - Anchor bolts and mounting hardware
- (1) Stack Adapter Kit - P/N 10315
- (1) Document Caddy - P/N 10320
- (1) Pendant Holder - P/N 10321
- (1) Installation, Operation & Maintenance Manual
Not Included - Order Separately
- Hydraulic Fluid: Requires 3 gallons of 10wt anti-foam anti-rust hydraulic oil or Dexron III ATF
- Frame Engaging Adapters: P/N 10314 or P/N 10318 - Required for frame-construction vehicles (trucks, body-on-frame SUVs)
Installation Requirements
Bay Dimensions
- Minimum Ceiling Height: 14'-3" to 14'-9" (with 3-foot column extensions)
- Recommended Bay Width: 12 feet minimum
- Recommended Bay Depth: 24 feet minimum
Concrete Specifications
- Minimum Depth: 4 inches
- Reinforcement: Steel reinforced required
- Compressive Strength: 3,500+ psi minimum
- Cure Time: 28 days per local commercial practice
- Surface Levelness: Within 3/8 inch over installation area
- Anchor Placement: No anchors within 8 inches of any crack, edge, or expansion joint
Electrical Requirements
- Voltage: 208-230V, Single Phase, 60Hz
- Circuit: Dedicated 30-amp double-pole breaker or time-delay fuse
- Disconnect: Service disconnect required near point of operation
Installation Notes
- Professional Installation: Installation should be performed by qualified personnel following the manufacturer installation manual
- Permits: Verify local code compliance and permit requirements before installation
- Not Recommended: Outdoor installation, facilities below 14-foot ceiling height, concrete below 3,500 psi or less than 4 inches thick
Shipping & Delivery
Freight Information
Shipping Method: Ships LTL (Less Than Truckload) freight from Louisville, Kentucky manufacturer facility.
Delivery Timeframe: 12-21 days depending on destination location and inventory availability.
Standard Colors: Textured Red, Textured Blue, or Textured Black.
Unloading Requirements
Equipment Required: Forklift or hoist required for unloading. This lift cannot be unloaded by hand.
Driver Assistance: Truck driver cannot assist with unloading per carrier regulations.
Lift Gate: Lift gate service not available for this product due to weight and dimensions.
Warranty Coverage
5/1/1 Warranty Program
5 Years - Structural Parts: Carriage, columns, column extensions, overhead beams, arms, and plungers.
1 Year - Functional Parts: Power units, cylinders, sheaves, hoses, cables, adapters, latches, valves, and controls.
1 Year - Labor: Warranty labor coverage for defects in materials and workmanship.
Warranty Requirements
Registration: Product registration required at challengerlifts.com.
Eligibility: Valid for original purchaser only (non-transferable).
Extended Coverage: Extended warranty available and must be purchased within 30 days of invoice date.
Installation: Installation must be performed following manufacturer installation manual to maintain warranty coverage.
Ready to Upgrade Your Shop?
Get expert guidance on the Challenger CL10V3-3-DPC for your facility. Our team can help with product selection, installation planning, bay configuration, and technical specifications.
Frequently Asked Questions
What is the lifting capacity of the Challenger CL10V3-3-DPC?
The CL10V3-3-DPC has a maximum lifting capacity of 10,000 lb with 2,500 lb capacity per arm. The lift is ALI certified through the Automotive Lift Institute and ETL certified, with independent third-party testing exceeding 150% of rated load for both static and dynamic conditions. This capacity handles passenger cars, SUVs, light-duty trucks, and vans within the weight rating, making it suitable for most general automotive service applications.
What is the minimum ceiling height required for the CL10V3-3-DPC?
The CL10V3-3-DPC with 3-foot column extensions requires a minimum ceiling height of 14 feet 3 inches to 14 feet 9 inches. This extended height accommodates the overhead beam assembly with limit switch and padded shut-off bar while providing adequate clearance for taller vehicles like full-size SUVs and vans. Facilities with standard 12-foot ceilings should consider the base CL10V3 model without extensions instead.
What are the concrete requirements for installing this lift?
The lift requires a minimum 4-inch thick steel-reinforced concrete floor with 3,500+ psi compressive strength. The surface must be level within 3/8 inch over the installation area, and no anchors can be placed within 8 inches of cracks, edges, or expansion joints. Concrete should be cured for 28 days before installation.
What does Versymmetric mean on this lift?
Versymmetric is Challenger's proprietary technology that enables both symmetric and asymmetric vehicle lifting from a single lift without changing arm sets. Asymmetric positioning provides better door clearance for passenger cars, while symmetric positioning distributes weight evenly for trucks and vans.
Are frame engaging adapters included with the CL10V3-3-DPC?
No, frame engaging adapters are not included and must be ordered separately. For frame-construction vehicles like trucks and body-on-frame SUVs, order adapter kit P/N 10314 or P/N 10318. The lift includes Stack Adapter Kit P/N 10315 for standard lift point applications.
What is the warranty coverage on the Challenger CL10V3-3-DPC?
The lift includes a 5/1/1 warranty structure - 5 years on structural parts (columns, carriages, arms, beams), 1 year on functional parts (power unit, cylinders, cables, controls), and 1 year labor coverage. Registration at challengerlifts.com is required, and extended warranty is available within 30 days of purchase.
What electrical service is required for the CL10V3-3-DPC?
The lift requires 208-230V single-phase 60Hz power with a dedicated 30-amp double-pole breaker or time-delay fuse. A service disconnect must be installed near the point of operation per electrical code requirements. The power unit operates the 2 HP motor that drives the hydraulic system. Ensure your facility has adequate electrical capacity and consult a licensed electrician to verify proper circuit installation before lift delivery.
What is the arm reach range on the CL10V3-3-DPC?
The directSPOT 3-stage front arms extend from 20 to 42 inches, while the 3-stage rear arms reach from 37-5/8 to 60 inches. Both front and rear arms feature 3-stage design, providing greater adjustment range than typical 2-stage rear arm configurations.
