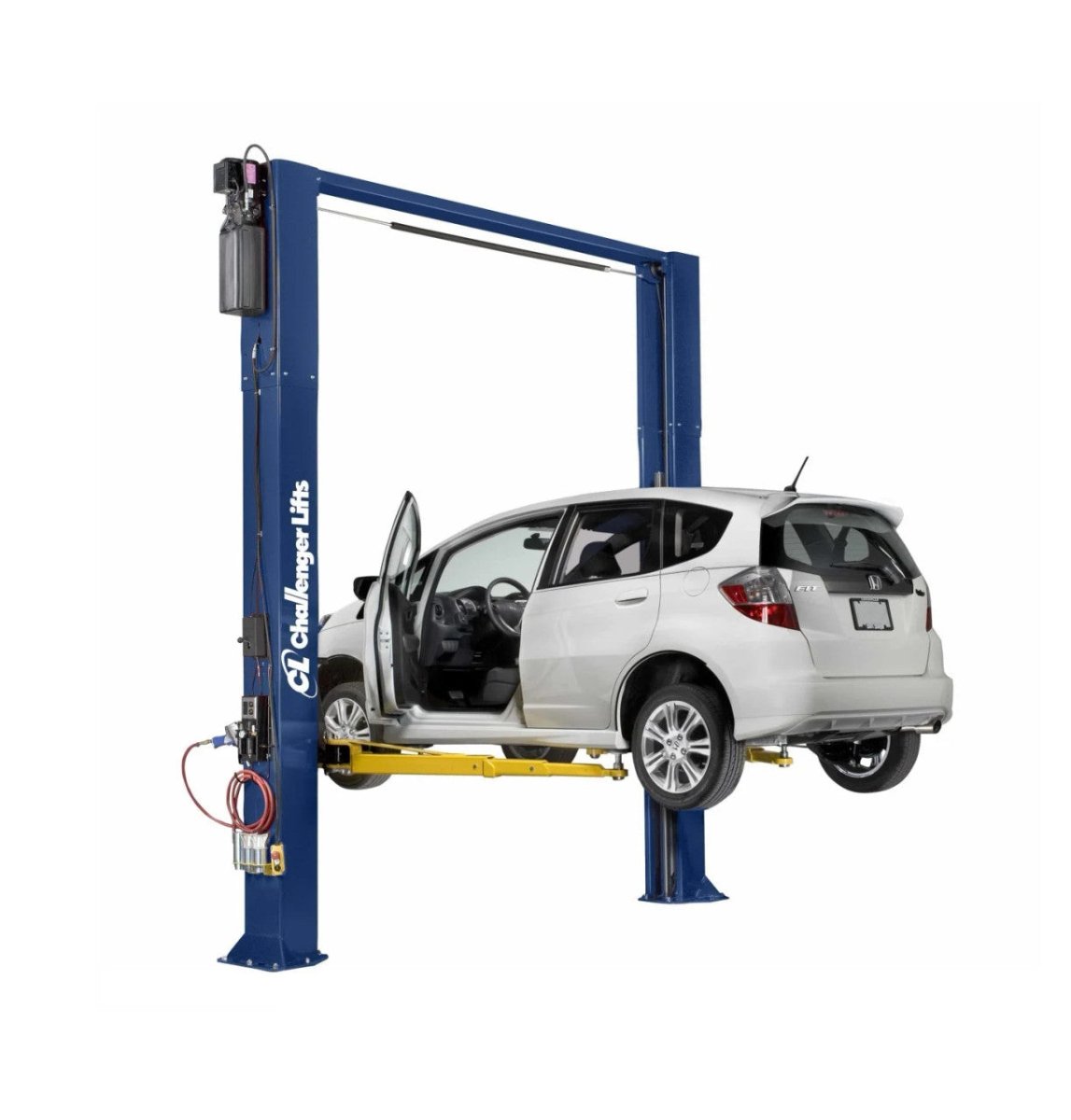

Challenger CL10V3-2 Two Post Automotive Lift 10000 lb Versymmetric
Challenger CL10V3-2 10,000 lb Versymmetric Two-Post Lift with Extended Height for Professional Automotive Service
The Challenger CL10V3-2 delivers 10,000 lb lifting capacity in an ALI/ETL certified clear-floor two-post configuration with factory-installed 2-foot column extensions for servicing taller vehicles. Featuring Challenger's proprietary Versymmetric technology for both symmetric and asymmetric lifting, directSPOT 3-stage arms with 20" to 42" front reach and 37-5/8" to 60" rear reach, and a 74-1/8" rise height, this American-made lift handles passenger cars, SUVs, light trucks, and cargo vans in a single service bay. Powered by a 2HP single-phase motor operating on 208-240V, the CL10V3-2 is backed by Challenger's 5-year structural warranty and manufactured in Louisville, Kentucky.
Challenger CL10V3-2 Features
Versymmetric Dual-Mode Technology
The Versymmetric system enables both symmetric lifting for trucks and vans and asymmetric lifting for cars and SUVs within the same service bay. This patented arm configuration eliminates the need for separate lifts, allowing technicians to position vehicles for optimal door clearance on passenger cars while maintaining centered loading for heavier trucks. Improve bay utilization and revenue per square foot by handling your full vehicle mix with a single lift.
directSPOT 3-Stage Arm Design
The directSPOT arm system features offset 3-stage front arms with 20" to 42" reach and 3-stage rear arms with 37-5/8" to 60" reach. This extended range allows technicians to reach manufacturer-recommended lift points on the first try without repositioning the vehicle, reducing spotting time compared to standard 2-stage configurations. Achieve proper lift point contact on full-size trucks, extended-cab pickups, and cargo vans without multiple drive-on attempts.
Extended Height Columns for Taller Vehicles
Factory-installed 2-foot column extensions provide 13'-2" to 13'-8" total column height and 74-1/8" rise height, accommodating cargo vans, lifted trucks, and taller service vehicles. The extended configuration requires minimum ceiling heights of 13'-3" to 13'-9" depending on width setting. This eliminates the need for aftermarket extension kits while maintaining structural integrity and safety certification as an engineered complete unit.
Heavy-Duty Equalization System
The equalization system uses oversized 5-inch diameter sheaves and 5/16-inch synchronizer cables to reduce stress on equalization components during lifting cycles. The 48-inch elongated carriage design distributes load forces across a longer bearing surface, extending service life and reducing long-term maintenance costs in high-cycle commercial environments.
Single-Point Mechanical Lock Release
The safety lock system features automatic arm restraints with gear engagement and a single-point mechanical lock release that simultaneously engages and disengages all locking positions. The padded overhead shut-off system and overhead limit switch provide additional protection against over-travel during the lifting cycle. This design ensures consistent lock engagement across all positions with a single action.
American Manufacturing and ALI Certification
Designed and manufactured in Louisville, Kentucky by Challenger Lifts, the CL10V3-2 carries both ALI Certification to ANSI/ALI ALCTV standards and ETL Listing to ANSI/UL 201. This dual certification ensures the lift meets current safety standards for automotive lifting equipment and provides the documentation required for OSHA compliance, insurance, and regulatory purposes.
Challenger CL10V3-2 Applications
- Full-Service Automotive Repair: Brake, suspension, exhaust, and drivetrain work on passenger cars, SUVs, and light trucks up to 10,000 lb combined weight with comfortable undercarriage access.
- Fleet Maintenance Facilities: Service bays handling mixed vehicle fleets including delivery vans, cargo vehicles, and service trucks requiring extended-height lift access for daily maintenance operations.
- Express Service Bays: Oil changes, fluid services, and quick-turn maintenance operations benefiting from the optional Quick Cycle upgrade for faster 24-second rise times.
- Light Truck and Pickup Service: Frame-construction vehicles positioned using optional frame engaging adapters (10314 or 10318) for proper lift point contact on body-on-frame trucks.
- High-Ceiling Facilities: Shops with 13'-3" to 13'-9" ceiling clearance requiring extended rise height for tall vehicles, cargo vans, lifted trucks, and high-roof commercial vehicles.
Challenger CL10V3-2 Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 10,000 lb |
| Capacity Per Arm | 2,500 lb |
| Hydraulic Pressure at Capacity | 2,750 PSI |
| Specification | Value |
|---|---|
| Column Height | 13'-2" or 13'-8" |
| Rise Height | 74-1/8" |
| Screw Pad Height Range | 3-7/8" to 6-1/8" |
| Overall Width (Adjustable) | 11'-6-1/2" or 11'-11" |
| Inside of Columns | 110" or 114-1/2" |
| Drive-Thru Clearance | 100" or 104-1/2" |
| Floor to Overhead Switch | 12'-8-1/2" or 13'-2-1/2" |
| Front Arm Reach (3-Stage) | 20" to 42" |
| Rear Arm Reach (3-Stage) | 37-5/8" to 60" |
| Specification | Value |
|---|---|
| Motor (Standard) | 2HP, Single Phase, 60Hz |
| Motor (Quick Cycle Option) | 3HP, Single Phase, 60Hz |
| Voltage | 208-240V |
| Circuit Requirements | 30 Amp dedicated circuit with double pole breaker or time delay fuse |
| Rise Time (Standard) | 38 seconds (approximate) |
| Rise Time (Quick Cycle) | 24 seconds (approximate) |
| Specification | Value |
|---|---|
| Minimum Ceiling Height | 13'-3" or 13'-9" |
| Minimum Concrete Depth | 4 inches with steel reinforcement |
| Concrete Strength | 3,500 PSI minimum |
| Side Clearance | 144" (12') minimum to nearest obstruction |
| Front/Rear Clearance | 6' to nearest obstruction or 7' to nearest wall |
| Specification | Value |
|---|---|
| ALI Certification | Certified to ANSI/ALI ALCTV standards |
| ETL Listing | Listed to ANSI/UL 201 |
| Country of Manufacture | USA (Louisville, Kentucky) |
Challenger CL10V3-2 Installation Requirements
Electrical Requirements
Power: 208-240V, single-phase, 60Hz with a 30 Amp dedicated circuit using a double pole breaker or time delay fuse. A licensed electrician must install and verify the electrical supply. Electrical code requires a service disconnect located near the point of operation.
Concrete Foundation
Anchoring: Minimum 4 inches depth with steel reinforcement, 3,500 PSI concrete, cured 28 days per local commercial practice. Floor must be level within 3/8" over the installation area. No anchors may be installed within 8 inches of any crack, edge, or expansion joint. Check with local building inspectors for any special instructions or approvals required.
Space Requirements
Ceiling Height: 13'-3" to 13'-9" minimum depending on width setting. Side Clearance: 144" (12') minimum to nearest obstruction. Drive-On Clearance: 6' to nearest obstruction or 7' to nearest wall. This lift has been evaluated for indoor use only with an operating ambient temperature range of 41-104°F. Outdoor installation is prohibited.
Professional Installation
Professional installation by a Challenger authorized installer is recommended. Installation includes column assembly, overhead beam mounting, hydraulic system setup, synchronizer cable adjustment, electrical connection, and final checkout procedure with demonstration using the ALI Lifting It Right safety manual. Warranty registration must be completed online at challengerlifts.com.
What's Included with the Challenger CL10V3-2
- Power column assembly with hydraulic cylinder
- Idler column assembly with hydraulic cylinder
- 2-foot column extensions (factory installed)
- Overhead beam assembly
- 3-stage front arm pack with directSPOT design
- 3-stage rear arm pack
- Synchronizer cable pack
- Overhead shut-off bar assembly with limit switch
- Dual pendant control system with junction box
- 2HP single-phase power unit
- Double telescoping screw foot pads (4)
- Hardware pack with anchor bolts
- Literature pack with installation manual, operation instructions, and ALI safety materials
Optional Accessories: Quick Cycle upgrade (3HP motor for 24-second rise time), frame engaging adapters (10314 or 10318), truck adapters, and stackable adapter sets.
Not Included: Hydraulic fluid (3 gallons of 10wt anti-foam anti-rust hydraulic oil or Dexron III ATF required), electrical wiring and service disconnect, concrete work if floor does not meet specifications, and installation labor.
Challenger CL10V3-2 Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Ships within 3-5 business days when in stock. International: Contact sales for international shipping quotes.
Delivery Requirements
Unloading: Forklift or loading dock required for unloading. Each column assembly weighs approximately 400-500 lb. Delivery Type: Curbside delivery to commercial addresses is standard. Inspection: Inspect all packages for visible damage before signing the bill of lading. Note any damage on the delivery receipt and notify Challenger Lifts immediately if hidden damage is discovered.
Returns
Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. 20% restocking fee applies. Buyer responsible for return freight costs.
Challenger CL10V3-2 Warranty
Challenger Lifts Limited Warranty
The Challenger CL10V3-2 is covered by Challenger's comprehensive limited warranty for the original purchaser:
- 5 Years: Structural parts including carriages, columns, column extensions, overhead beams, and arms
- 2 Years: Functional parts including power unit, cylinders, sheaves, hoses, hydraulic fittings, cables, adapters, latches, valves, and controls
- 1 Year: Labor for repair or replacement of defective parts
Requirements: Warranty is valid only when the product is installed, used, and maintained according to Challenger's specifications. Use of unapproved parts or accessories will void the warranty. Warranty registration must be completed online at challengerlifts.com/register-your-lift or the warranty period will begin from the invoice date. This warranty is not transferable.
Documents
Click to open in a new tab.
Questions About the Challenger CL10V3-2?
Our equipment specialists can help with installation planning, specifications, and product selection for your shop.
Challenger CL10V3-2 FAQ
What is the lifting capacity of the Challenger CL10V3-2?
The CL10V3-2 has a total lifting capacity of 10,000 lb with a maximum of 2,500 lb per arm. Capacity ratings are based on loads equally distributed on all four arms. Do not exceed 2,500 lb on any single arm, and always use all four arms when lifting a vehicle.
What ceiling height do I need for the CL10V3-2?
The CL10V3-2 with factory-installed 2-foot column extensions requires a minimum ceiling height of 13'-3" at the narrow width setting (11'-6-1/2") or 13'-9" at the standard width setting (11'-11"). The cylinder extends past the column height at full rise, so verify your ceiling clearance before ordering.
What are the electrical requirements?
The standard CL10V3-2 requires 208-240V, single-phase, 60Hz power with a 30 Amp dedicated circuit using a double pole breaker or time delay fuse. A licensed electrician must install and verify the electrical supply. Electrical code also requires a service disconnect located near the point of operation.
What type of concrete floor is required?
The lift requires a minimum 4-inch thick concrete floor with steel reinforcement, rated at 3,500 PSI minimum, and cured for 28 days per local commercial practice. The floor must be level within 3/8" over the installation area. No anchor bolts may be installed within 8 inches of any crack, edge, or expansion joint.
What does the Challenger warranty cover?
The CL10V3-2 includes a 5-year warranty on structural parts (columns, carriages, arms, overhead beam), 2-year warranty on functional parts (power unit, cylinders, cables, hydraulics), and 1-year labor coverage. Warranty requires proper installation, maintenance per Challenger specifications, and online registration at challengerlifts.com.
What is included with the lift?
The CL10V3-2 ships complete with power and idler columns, factory-installed 2-foot extensions, overhead beam, 3-stage arm packs, dual pendant controls, 2HP power unit, synchronizer cables, overhead shut-off assembly, double telescoping screw pads, anchor hardware, and complete literature pack. Hydraulic fluid (3 gallons) is not included.
How is the lift shipped and delivered?
The lift ships via freight truck with free delivery to commercial addresses in the 48 contiguous states. Curbside delivery is standard. A forklift or loading dock is required for unloading as each column weighs 400-500 lb. Inspect all packages before signing the bill of lading and note any damage.
What is Versymmetric technology?
Versymmetric is Challenger's patented dual-mode arm system that allows both symmetric lifting (arms positioned equally for trucks and vans) and asymmetric lifting (arms offset for door clearance on cars and SUVs) using the same lift. This eliminates the need for separate lifts to service different vehicle types.
How does the CL10V3-2 differ from the standard CL10V3?
The CL10V3-2 includes factory-installed 2-foot column extensions that increase column height to 13'-2" or 13'-8" (versus 11'-2" or 11'-8" on the standard model). Both lifts share the same 74-1/8" rise height, 10,000 lb capacity, and directSPOT 3-stage arms. The extended columns require higher ceiling clearance but provide better overhead access for taller vehicles.
What maintenance is required?
Daily maintenance includes keeping components clean, checking for loose or broken parts, inspecting for hydraulic leaks, and checking adapter wear. Weekly maintenance includes inspecting synchronizer cables and sheaves. Monthly maintenance includes torquing anchor bolts to 80 ft-lbs, lubricating carriage slide tracks and arm pivot points, and testing the overhead shutoff switch.
What is the Quick Cycle upgrade option?
The Quick Cycle option upgrades the power unit from a 2HP motor to a 3HP motor, reducing rise time from approximately 38 seconds to approximately 24 seconds. This option is ideal for high-volume service bays where faster cycle times improve throughput. The Quick Cycle option has the same electrical requirements.
Can I install the lift myself?
While the lift includes complete installation instructions, professional installation by a Challenger authorized installer is recommended. Proper installation requires specialized tools, hydraulic system setup, electrical work by a licensed electrician, precise column alignment, and a final checkout procedure. Professional installation ensures warranty coverage and safe operation.
