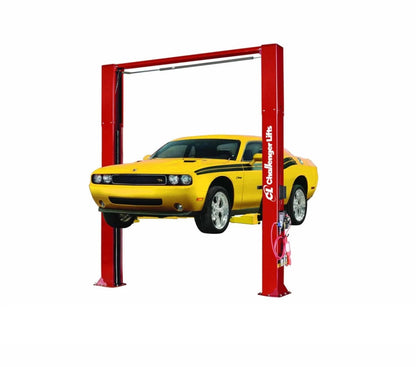

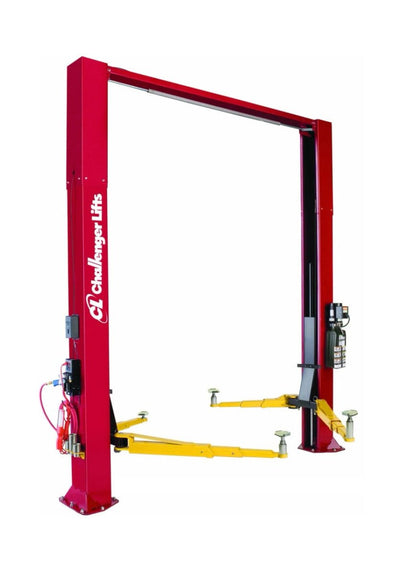

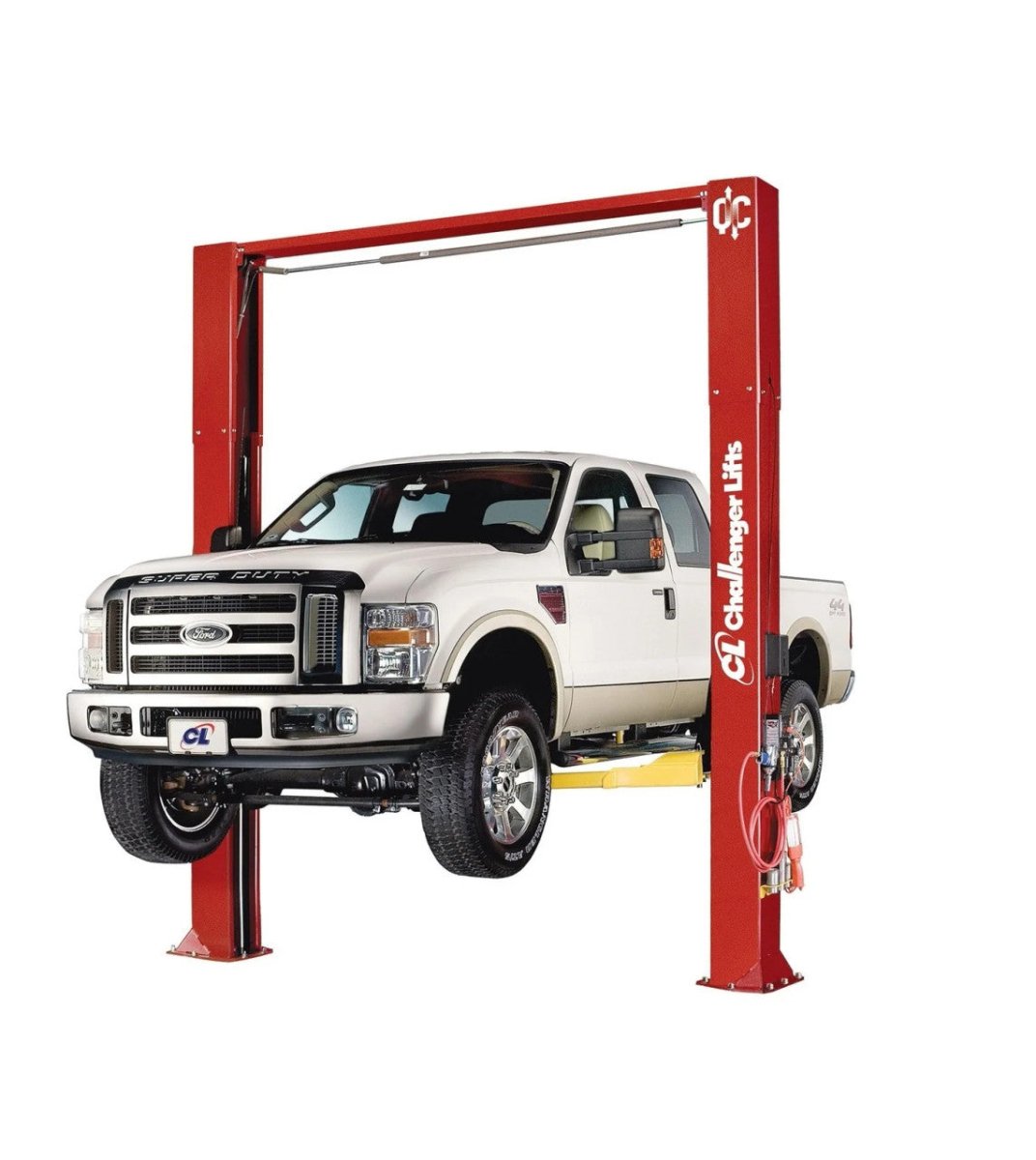

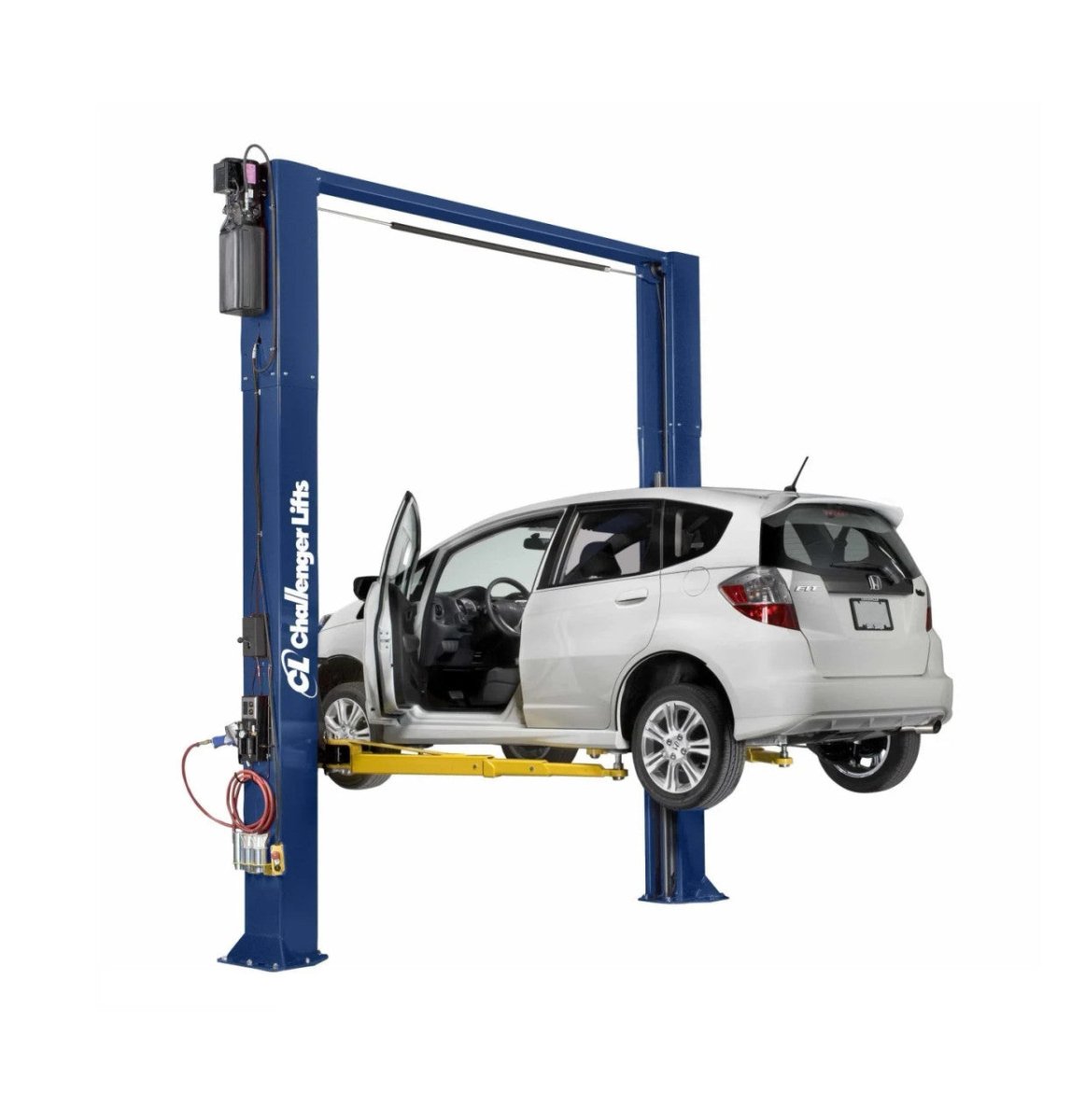

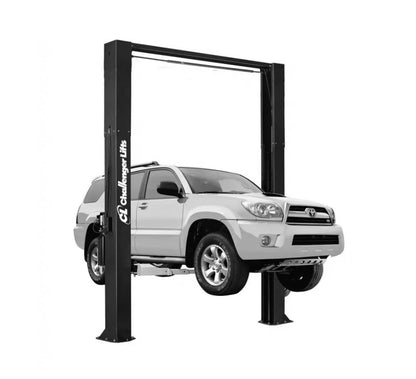

Challenger CL10V3 10,000 lb Versymmetric Two-Post Lift for Mixed-Vehicle Service Bays
The Challenger CL10V3 delivers 10,000 lb lifting capacity in a clear-floor two-post design with proprietary Versymmetric technology for both symmetric and asymmetric vehicle positioning. Featuring directSPOT 3-stage arms with 60-inch rear reach, adjustable column width settings from 110 to 116 inches, and a complete EV-ready adapter kit included standard, this lift handles sedans through half-ton pickups in the same service bay. ALI Certified and ETL Listed with 208-230V single-phase power requirements and backed by Challenger's 5-year structural warranty. Manufactured in Louisville, Kentucky.
Challenger CL10V3 Features
Versymmetric Dual-Mode Lifting Technology
The proprietary Versymmetric arm geometry enables both symmetric and asymmetric vehicle positioning within the same service bay. Center trucks and SUVs symmetrically for balanced lifting while positioning sedans asymmetrically with doors beyond the column for full interior and door-card access. This eliminates the need for multiple lift configurations by providing a single bay solution for sedans, unibody vehicles, vans, SUVs, and light trucks up to 10,000 lb.
directSPOT 3-Stage Arm System
The directSPOT arm design features 3-stage offset construction on both front and rear arms, allowing single-sweep spotting of manufacturer lift points without repositioning the vehicle. Front arms provide 20 to 42 inches of reach while rear arms extend from 37-5/8 to 60 inches, accommodating extended wheelbase trucks and full-size SUVs in a single positioning pass.
Adjustable Column Width and Height Settings
The CL10V3 offers adjustable overall width from 11 ft 6-1/2 in to 11 ft 11 in and inside column spacing from 110 to 116 inches. Two standard height settings (11 ft 2 in or 11 ft 8 in) accommodate varying ceiling heights, with optional 2-foot and 3-foot column extensions available for ceilings up to 14 ft 8 in. Drive-thru clearance adjusts from 100 to 112 inches based on configuration.
Complete EV-Ready Adapter Kit Included
Every CL10V3 ships with a complete adapter set: 4 double telescoping screw pads (3-7/8 to 6-1/8 inch height range), 4 EV-ready low-profile footpads, 4 universal footpads, 4 three-inch adapters, and 4 six-inch adapters. A pad storage rack keeps all adapters organized and accessible for immediate capability with both traditional vehicles and battery-heavy EVs.
Heavy-Duty Hydraulic and Cable System
The power system features a 2 HP Bucher hydraulic power unit driving an elongated 48-inch carriage with 5-inch diameter oversized sheaves and 5/16-inch heavy-duty cables. Standard rise time is 38 seconds to full 74-1/8 inch lift height. The optional Quick Cycle package with 3 HP motor reduces rise time to approximately 24 seconds.
ALI/ETL Dual Certification with Enhanced Safety
The CL10V3 carries full ALI Gold Label certification per ANSI/ALI ALCTV and ETL listing per ANSI/UL 201. Safety systems include a padded overhead shut-off bar, single-point mechanical lock release for simultaneous disengagement of all locks, automatic safety locks that engage during descent, arm restraint system, and dual integrated rubber door guards on each carriage.
Challenger CL10V3 Applications
- Full-Service Automotive Repair: Comprehensive undercar access for engine, transmission, exhaust, and suspension work on sedans through light trucks up to 10,000 lb with the extended 60-inch rear arm reach.
- Tire and Brake Service Centers: High-volume wheel and brake service with quick vehicle positioning using Versymmetric arm geometry to adapt to each vehicle type without bay changes.
- Dealership Service Departments: Mixed-fleet capability for new and used vehicle PDI, warranty service, and customer maintenance on manufacturer lift points with the included adapter variety.
- Fleet Maintenance Facilities: Commercial and municipal fleet service for vans, SUVs, and half-ton pickups with consistent daily duty cycles supported by oversized hydraulic components.
- Quick Lube and Express Service: Rapid oil change and inspection service with optional Quick Cycle upgrade for approximately 24-second rise times to maximize vehicle throughput.
- EV Service Operations: Battery tray access and suspension work on electric vehicles using included low-profile EV-ready footpads designed for specialized lift point requirements.
Challenger CL10V3 Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 10,000 lb |
| Maximum Load per Arm | 2,500 lb |
| Hydraulic Pressure at Capacity | 2,750 PSI |
| Specification | Value |
|---|---|
| Rise Height | 74-1/8 in |
| Low Lock Height | 12 in net rise |
| Column Height (Standard) | 11 ft 2 in or 11 ft 8 in |
| Column Height (2 ft Extensions) | 13 ft 2 in or 13 ft 8 in |
| Column Height (3 ft Extensions) | 14 ft 2 in or 14 ft 8 in |
| Overall Width (Adjustable) | 11 ft 6-1/2 in to 11 ft 11 in |
| Inside Columns (Adjustable) | 110 in to 116 in |
| Drive-Thru Clearance | 100 in to 112 in |
| Front Arm Reach | 20 in to 42 in |
| Rear Arm Reach | 37-5/8 in to 60 in |
| Screw Pad Height Range | 3-7/8 in to 6-1/8 in |
| Floor to Overhead Switch (Standard) | 10 ft 8-1/2 in or 11 ft 2-1/2 in |
| Specification | Value |
|---|---|
| Rise Time (Standard) | 38 seconds |
| Rise Time (Quick Cycle Option) | 24 seconds (approximate) |
| Sheave Diameter | 5 in |
| Cable Diameter | 5/16 in |
| Specification | Value |
|---|---|
| Motor (Standard) | 2 HP, Single Phase, 60 Hz |
| Motor (Quick Cycle) | 3 HP, Single Phase, 60 Hz |
| Voltage | 208-230V |
| Circuit Breaker | 30 Amp double pole or time delay fuse |
| Specification | Value |
|---|---|
| ALI Certified | Yes (per ANSI/ALI ALCTV) |
| ETL Listed | Yes (per ANSI/UL 201) |
Challenger CL10V3 Installation Requirements
Electrical Requirements
Power: 208-230V, single phase, 60 Hz with dedicated 30 Amp double pole circuit breaker or time delay fuse. A licensed electrician must install and verify the electrical supply. Electrical code requires a service disconnect located near the point of operation.
Concrete Foundation
Anchoring: Minimum 4 inches depth, steel reinforced, 3,500 PSI concrete, cured for 28 days per local commercial practice. Floor must be level within 3/8 inch over the installation area. No anchors may be installed within 8 inches of any crack, edge, or expansion joint. Uses 3/4 x 5-1/2 inch anchor bolts torqued to 150 ft-lb.
Space Requirements
Ceiling Height: 12 ft minimum (14 ft recommended) for standard column height. Bay Width: 24 ft recommended. Clearance: 12 ft minimum to nearest obstruction on sides, 6 ft to nearest obstruction or 7 ft to nearest wall at rear. This lift is evaluated for indoor use only with operating ambient temperature range of 41-104 degrees F.
Professional Installation
Professional installation by qualified personnel is recommended. Installation must comply with ANSI/ALI ALIS standards and all local building codes. Check with local building inspectors and permits office for any special instructions or approvals required. A qualified person should be consulted to address seismic loads and other local or state requirements.
What's Included with the Challenger CL10V3
- Power column assembly with dual pendant controls
- Idler column assembly
- Overhead beam with padded shut-off bar
- 3-stage front arm pack (2 arms)
- 3-stage rear arm pack (2 arms)
- 4 double telescoping screw pads (3-7/8 to 6-1/8 in height range)
- 4 EV-ready low-profile footpads
- 4 universal footpads
- 4 three-inch adapters
- 4 six-inch adapters
- Adapter storage rack
- Synchronizer cable pack
- Standard 2 HP power unit (208-230V, single phase)
- Junction box assembly
- Dual rubber door guards
- Complete hardware pack
- Installation, operation, and maintenance manual
- ALI Lifting It Right safety manual
Optional Accessories: Quick Cycle power unit upgrade (3 HP motor for 24-second rise time), 2-foot column extensions (CL10V3-2), 3-foot column extensions (CL10V3-3).
Not Included: Hydraulic fluid (requires 3 gallons of 10 wt anti-foam anti-rust hydraulic oil or Dexron III ATF), electrical wiring and installation, concrete work, installation labor, service disconnect.
Challenger CL10V3 Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Ships within 3-5 business days. International: Contact sales for quote.
Delivery Requirements
Unloading: Forklift or loading dock required for unloading. Column assemblies weigh approximately 200 lb each. Delivery Type: Curbside delivery standard. Inspection: Inspect all packages for damage before signing the bill of lading. Note any damage on delivery receipt and notify Challenger Lifts immediately.
Returns
Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. 20% restocking fee applies. Buyer responsible for return freight costs.
Challenger CL10V3 Warranty
Challenger Lifts Limited Warranty
Challenger Lifts guarantees the CL10V3 to the original owner with repair or replacement of defective parts at Challenger's option, including reasonable transportation and labor costs during the applicable warranty period.
- 5 Years: Structural parts (carriage, columns, column extensions, overhead beams, arms)
- 2 Years: Functional parts (power unit, cylinders, sheaves, sheave pins, hoses, hydraulic fittings, cables, adapters, latches, valves, controls)
- 1 Year: Labor costs for warranty repairs
Requirements: Warranty registration must be completed online at challengerlifts.com. Product must be installed, used, and maintained according to Challenger specifications. Use of unapproved parts or accessories voids warranty. Warranty is not transferable and does not cover normal maintenance, adjustments, or damage from improper handling, installation, abuse, or normal wear.
Documents
Click to open in a new tab.
Questions About the Challenger CL10V3?
Our equipment specialists can help with installation planning, specifications, and product selection for your shop.
Challenger CL10V3 FAQ
What is the maximum lifting capacity of the CL10V3?
The Challenger CL10V3 has a total lifting capacity of 10,000 lb with loads equally distributed across all four arms. Each individual arm is rated for a maximum of 2,500 lb. Never exceed the per-arm rating or attempt to lift a vehicle using only two arms.
What ceiling height do I need for the CL10V3?
The standard CL10V3 requires a minimum 12 ft ceiling height (14 ft recommended) for the standard 11 ft 2 in column configuration. If you choose the taller 11 ft 8 in column setting, slightly more clearance is needed. Optional 2-foot and 3-foot column extensions are available for facilities with higher ceilings, requiring ceiling heights of approximately 13 ft 9 in and 14 ft 9 in respectively.
What electrical requirements does the CL10V3 need?
The standard CL10V3 requires 208-230V, single phase, 60 Hz power with a dedicated 30 Amp double pole circuit breaker or time delay fuse. A licensed electrician must install and verify the electrical supply. The optional Quick Cycle upgrade uses a 3 HP motor but maintains the same voltage requirements.
What are the concrete requirements for installation?
The CL10V3 requires a minimum 4-inch thick concrete floor with steel reinforcement, rated at 3,500 PSI minimum, and cured for 28 days per local commercial practice. The floor must be level within 3/8 inch over the installation area. No anchor bolts may be installed within 8 inches of any crack, edge, or expansion joint. If your existing floor does not meet these requirements, a reinforced pad may be poured to accommodate the lift.
What warranty coverage comes with the CL10V3?
The Challenger CL10V3 includes a 5-year warranty on structural components (columns, carriage, overhead beam, arms), a 2-year warranty on functional parts (power unit, cylinders, hydraulics, cables, adapters), and 1-year labor coverage. Warranty must be registered online and applies to the original purchaser only.
What adapters are included with the CL10V3?
The CL10V3 includes a comprehensive adapter kit: 4 double telescoping screw pads with 3-7/8 to 6-1/8 inch height adjustment, 4 EV-ready low-profile footpads for battery electric vehicles, 4 universal footpads, 4 three-inch stackable adapters, 4 six-inch stackable adapters, and an adapter storage rack. This covers virtually all passenger vehicles and light trucks including modern EVs.
How is the CL10V3 shipped and delivered?
The CL10V3 ships via freight carrier with free shipping to commercial addresses in the 48 contiguous United States. Standard delivery is curbside, and you will need a forklift or loading dock to unload the lift components. Column assemblies weigh approximately 200 lb each. Inspect all packages before signing the bill of lading and note any damage on the delivery receipt.
What is the Quick Cycle option?
The optional Quick Cycle package upgrades the standard 2 HP power unit to a 3 HP motor, reducing rise time from 38 seconds to approximately 24 seconds. This is ideal for high-volume service operations like quick lube shops where faster cycle times improve throughput. The Quick Cycle option maintains the same electrical voltage requirements.
How does Versymmetric positioning work?
Versymmetric technology allows the CL10V3 to position vehicles either symmetrically (centered between columns, ideal for trucks and SUVs) or asymmetrically (shifted forward so doors clear the columns, ideal for sedans). This flexibility lets one lift serve your entire vehicle mix without compromising positioning for any vehicle type. The adjustable arm reach accommodates both configurations.
What maintenance does the CL10V3 require?
Daily maintenance includes keeping components clean, checking for loose or broken parts, inspecting for hydraulic leaks, and checking adapter condition. Weekly tasks include inspecting synchronizer cables and sheaves. Monthly maintenance includes torquing anchor bolts to 80 ft-lb, inspecting the concrete floor around base plates, testing the overhead shutoff switch, and lubricating carriage slide tracks and arm pivot points with heavy viscous grease.
Can the CL10V3 be installed outdoors?
No, the CL10V3 is evaluated and rated for indoor use only. The operating ambient temperature range is 41-104 degrees F (5-40 degrees C). Outdoor installation is prohibited and would void the warranty.
What is the maximum vehicle wheelbase the CL10V3 can accommodate?
With the directSPOT 3-stage arm system providing front arm reach from 20 to 42 inches and rear arm reach from 37-5/8 to 60 inches, the CL10V3 accommodates extended wheelbase vehicles including half-ton pickups and full-size SUVs. The adjustable inside column spacing from 110 to 116 inches and drive-thru clearance from 100 to 112 inches provides additional flexibility for wider vehicles.
