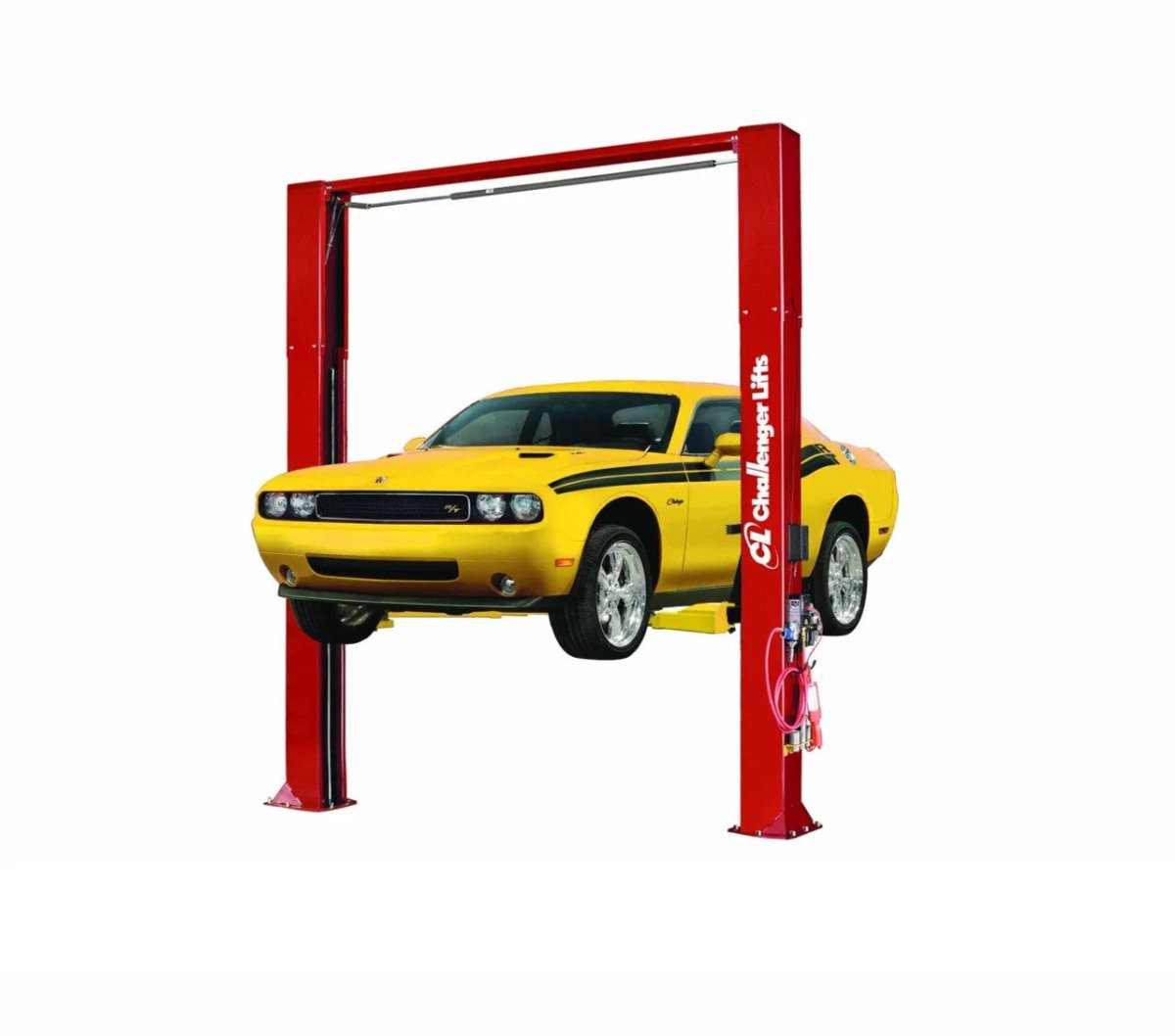

Challenger CL10V3-2-DPC 10,000 lb Versymmetric Two-Post Lift
Challenger CL10V3-2-DPC 10,000 lb Versymmetric Two-Post Lift with Dual Pendant Controls for Professional Automotive Service
The Challenger CL10V3-2-DPC delivers 10,000 lb lifting capacity in an ALI/ETL certified two-post design engineered for professional automotive service facilities. Featuring Versymmetric technology that enables both symmetric and asymmetric lifting configurations, this lift handles mixed vehicle fleets from passenger cars to light-duty trucks without reconfiguration. The 74.125" rise height provides enhanced working clearance, while dual pendant controls allow operation from either column for flexible positioning. Factory-installed 2-foot column extensions bring overall height to 158/164" for facilities with higher ceilings. Made in Louisville, Kentucky, and backed by Challenger's 5-year structural warranty.
Challenger CL10V3-2-DPC Features
Versymmetric Dual-Configuration Technology
The Versymmetric arm system enables both symmetric and asymmetric vehicle positioning within a single service bay. 3-stage front arms reach from 20" to 42" while 3-stage rear arms extend from 37.625" to 60", providing the flexibility to accommodate virtually any lift point configuration across different vehicle architectures. Traditional two-post lifts force shops to choose between symmetric positioning for trucks or asymmetric positioning for door clearance on passenger cars. Versymmetric addresses this limitation by allowing technicians to configure the lift for each vehicle's optimal positioning without compromising access or stability.
directSPOT Offset Front Arm Design
The directSPOT 3-stage offset front arms are engineered to reach vehicle lift points on the first approach without repositioning. The offset geometry places the arm pivot point outside the vehicle's footprint, allowing 20" to 42" reach to contact frame rails, pinch welds, and manufacturer-designated lift points directly. Double telescoping screw pads with 3.875" to 6.125" height adjustment further refine contact positioning once arms are in place, ensuring secure engagement across varying rocker panel heights and lift point depths.
74.125" Rise Height
The CL10V3-2-DPC provides 74.125" of rise height, delivering 5" of additional working clearance compared to many 10,000 lb capacity lifts in the category. This extra elevation reduces technician strain during undercarriage work and accommodates larger diagnostic equipment, transmission jacks, and exhaust system tooling beneath the vehicle. The 38-second rise time maintains productivity despite the additional travel distance, cycling vehicles to full height quickly between service operations.
Dual Pendant Controls
The DPC configuration includes portable control pendants that connect to either column, providing operational flexibility for single-technician workflows. This allows the operator to position themselves with an unobstructed view of the vehicle during the lifting sequence, regardless of which side the vehicle is approached from. The dual pendant system enables safer vehicle spotting by allowing technicians to maintain visual contact with all four lift points throughout the positioning process.
Single-Point Mechanical Lock Release
The safety lock system engages automatically during the lift cycle with a single-point release mechanism that disengages all locks simultaneously. The mechanical lock ladder provides multiple engagement positions throughout the full 74.125" travel range, securing the carriage at any working height without requiring manual lock manipulation during ascent. Automatic arm restraints and an overhead shut-off switch provide additional protection against uncontrolled movement or over-travel conditions.
Factory-Installed 2-Foot Column Extensions
The CL10V3-2-DPC ships with 2-foot column height extensions pre-installed at the factory, bringing the overall height to 158"/164" (adjustable width configuration). This accommodates installations in facilities with higher ceilings while maintaining full lift performance without field modification of structural components. Factory installation ensures proper alignment, weld quality, and load path continuity that meets the lift's full rated capacity.
Challenger CL10V3-2-DPC Applications
- Full-Service Automotive Repair: General mechanical service including brakes, suspension, exhaust, and drivetrain work on passenger cars and light trucks within the 10,000 lb capacity rating.
- Dealership Service Departments: Mixed-fleet service bays handling new vehicle PDI, warranty repairs, and used car reconditioning across multiple manufacturer lines and body styles.
- Quick Lube and Express Service: High-volume oil change and fluid service operations requiring fast cycle times and the flexibility to service cars, crossovers, and trucks in the same bay.
- Tire and Brake Service Centers: Wheel and brake system work requiring full undercarriage access with asymmetric positioning for door clearance during tire mounting and brake inspections.
- Fleet Maintenance Facilities: Municipal, commercial, and rental fleet operations servicing standardized vehicle pools including sedans, SUVs, and light-duty pickup trucks.
- Light-Duty Truck Service: Pickup trucks and full-size SUVs within the 10,000 lb capacity using symmetric positioning for centered weight distribution on frame-rail vehicles.
Challenger CL10V3-2-DPC Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 10,000 lbs |
| Capacity Per Arm | 2,500 lbs |
| Hydraulic Pressure at Capacity | 2,750 PSI |
| Specification | Value |
|---|---|
| Rise Height | 74.125" |
| Column Height | 158" / 164" (adjustable width) |
| Ceiling Height Required | 159" / 165" minimum |
| Floor to Overhead Switch | 152.5" / 158.5" |
| Overall Width | 143" / 138.5" (adjustable) |
| Inside of Columns | 110" / 114.5" |
| Drive-Thru Clearance | 100" / 104.5" |
| Front Arm Reach (3-Stage) | 20" - 42" |
| Rear Arm Reach (3-Stage) | 37.625" - 60" |
| Screw Pad Height Adjustment | 3.875" - 6.125" |
| Specification | Value |
|---|---|
| Rise Time | 38 seconds |
| Specification | Value |
|---|---|
| Motor | 2 HP |
| Voltage | 208-230V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Circuit Breaker | 30 Amp Double Pole |
| Specification | Value |
|---|---|
| Safety Certification | ALI/ETL Certified |
| Country of Origin | Made in USA (Louisville, Kentucky) |
Challenger CL10V3-2-DPC Installation Requirements
Electrical Requirements
Power: 208-230V, single phase, 60Hz with a dedicated 30 Amp double pole circuit breaker or time delay fuse. A licensed electrician must install and verify the electrical supply. Electrical code requires a service disconnect located near the point of operation.
Concrete Foundation
Anchoring: 4" minimum concrete depth with steel reinforcement, 3,500 PSI minimum, cured for 28 days per local commercial practice. Floor should be level within 3/8" over the installation area. No anchors may be installed within 8" of any crack, edge, or expansion joint. Fourteen 3/4" x 5.5" anchor bolts are included and must be torqued to 150 ft-lbs.
Space Requirements
Ceiling Height: 159" / 165" minimum (depending on width setting). Bay Width: 144" minimum to nearest obstruction on each side of columns. Bay Length: 6' to nearest obstruction or 7' to nearest wall from drive-on direction. This lift is evaluated for indoor use only with an operating ambient temperature range of 41-104°F.
Professional Installation
Professional installation by a qualified technician is recommended. Challenger requires proper installation according to their specifications for warranty coverage. Check with local building inspectors for any special instructions or permits required. A qualified person should be consulted to address seismic loads and other local or state requirements.
What's Included with the Challenger CL10V3-2-DPC
- Power column assembly
- Idler column assembly
- 2-foot column extensions (factory pre-installed)
- Overhead beam assembly
- 3-stage front arm pack (2 arms)
- 3-stage rear arm pack (2 arms)
- Four adjustable screw pads with rubber inserts
- Dual pendant control switches
- Junction box assembly
- 2 HP single phase power unit
- Synchronizer cable pack
- Overhead shut-off bar assembly
- Lock release cable assemblies
- Complete hardware package with anchor bolts
- Installation, operation, and maintenance manual
- ALI Lifting It Right safety manual
Not Included: Hydraulic fluid (requires 3 gallons of 10wt anti-foam anti-rust hydraulic oil or Dexron III ATF), electrical wiring and installation, concrete work or repairs, installation labor.
Challenger CL10V3-2-DPC Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Ships within 3-5 business days. International: Contact sales for international shipping quotes.
Delivery Requirements
Unloading: Forklift or loading dock required for unloading. Column assemblies weigh approximately 500 lbs each. Delivery Type: Curbside delivery is standard. Inspection: Inspect all packages for damage before signing the bill of lading. Note any damage on the delivery receipt and notify Challenger Lifts immediately if hidden damage is discovered after receipt.
Returns
Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. 20% restocking fee applies. Buyer responsible for return freight costs.
Challenger CL10V3-2-DPC Warranty
Challenger Lifts Limited Warranty
Challenger Lifts guarantees this lift to the original owner with the following coverage:
- 5 Years: Structural parts including carriage, columns, column extensions, overhead beams, and arms
- 2 Years: Functional parts including power unit, cylinders, sheaves, hoses, hydraulic fittings, cables, latches, valves, and controls
- 1 Year: Labor for replacement of defective parts
Requirements: Warranty requires proper installation, use, and maintenance according to Challenger's specifications. Use of unapproved parts or accessories voids warranty. Product must be registered with Challenger Lifts for warranty validation. This warranty extends only to the original purchaser and is not transferable.
Documents
Click to open in a new tab.
Questions About the Challenger CL10V3-2-DPC?
Our equipment specialists can help with installation planning, specifications, and product selection for your shop.
Challenger CL10V3-2-DPC FAQ
What is the maximum vehicle weight this lift can handle?
The Challenger CL10V3-2-DPC has a rated lifting capacity of 10,000 lbs with a maximum of 2,500 lbs per arm. The capacity rating is based on loads equally distributed across all four arms. Do not attempt to lift a vehicle using only two arms, as this will void the warranty and create an unsafe lifting condition.
What ceiling height do I need for this lift?
The CL10V3-2-DPC with factory-installed 2-foot column extensions requires a minimum ceiling height of 159" (13'3") or 165" (13'9") depending on the width setting. The column height is 158"/164", and additional clearance is needed for the overhead shut-off bar mechanism.
What electrical service is required?
This lift requires 208-230V single phase, 60Hz power with a dedicated 30 Amp double pole circuit breaker or time delay fuse. Electrical code requires a service disconnect located near the point of operation. All electrical work must be performed by a licensed electrician in compliance with local codes.
What are the concrete floor requirements?
The concrete floor must be a minimum of 4" thick with steel reinforcement, rated at 3,500 PSI minimum, and cured for at least 28 days. The floor should be level within 3/8" over the installation area. No anchor bolts may be installed within 8" of any crack, edge, or expansion joint. If these conditions cannot be met, a separate concrete pad may need to be poured.
What does the warranty cover?
Challenger provides a 5-year warranty on structural parts (columns, carriage, arms, overhead beam), a 2-year warranty on functional parts (power unit, cylinders, hoses, cables, controls), and 1-year labor coverage. The warranty requires proper installation, use, and maintenance according to Challenger specifications, and the lift must be registered with Challenger Lifts.
What's the difference between symmetric and asymmetric lifting?
Symmetric lifting positions the vehicle's center between the columns, which is ideal for trucks and vans where the center of gravity is near the vehicle's midpoint. Asymmetric lifting positions the vehicle slightly rearward so the doors clear the columns when opened, making it easier to access the interior of passenger cars. The Versymmetric arm system allows both configurations in the same lift bay.
What is included with the lift?
The lift includes both column assemblies with factory-installed 2-foot extensions, overhead beam, complete arm pack with four 3-stage arms, four adjustable screw pads, dual pendant controls, power unit, synchronizer cables, hardware and anchor bolts, and all documentation. Hydraulic fluid, electrical installation, concrete work, and installation labor are not included.
How long does it take to raise a vehicle?
The standard DPC power unit raises the lift to full height in approximately 38 seconds. Actual rise and lowering speeds may vary depending on the weight of the vehicle being lifted.
Can I install this lift myself?
While the lift includes complete installation instructions, professional installation by a qualified technician is recommended. Proper installation is required for warranty coverage and safe operation. Check with local building inspectors for any permits or special requirements, and consult a qualified person for seismic loads and other local or state requirements.
What maintenance is required?
Daily maintenance includes keeping lift components clean, checking for loose or broken parts, checking for hydraulic leaks, and inspecting adapters. Weekly checks include synchronizer cables and sheaves. Monthly maintenance includes torquing anchor bolts to 80 ft-lbs, checking the overhead shutoff switch, and lubricating carriage slide tracks and arm pivot points with heavy viscous grease.
What hydraulic fluid does this lift use?
The lift requires 3 gallons of clean 10wt anti-foam anti-rust hydraulic oil or Dexron III ATF. Do not use oils with detergents. Hydraulic fluid is not included with the lift shipment.
How does the dual pendant control system work?
The dual pendant control system includes two portable control pendants that can be used from either column. Each pendant has raise and lower buttons, and both pendants connect to a central junction box. This allows the operator to position themselves for the best view of the vehicle during lifting and lowering operations, improving safety during vehicle spotting.
