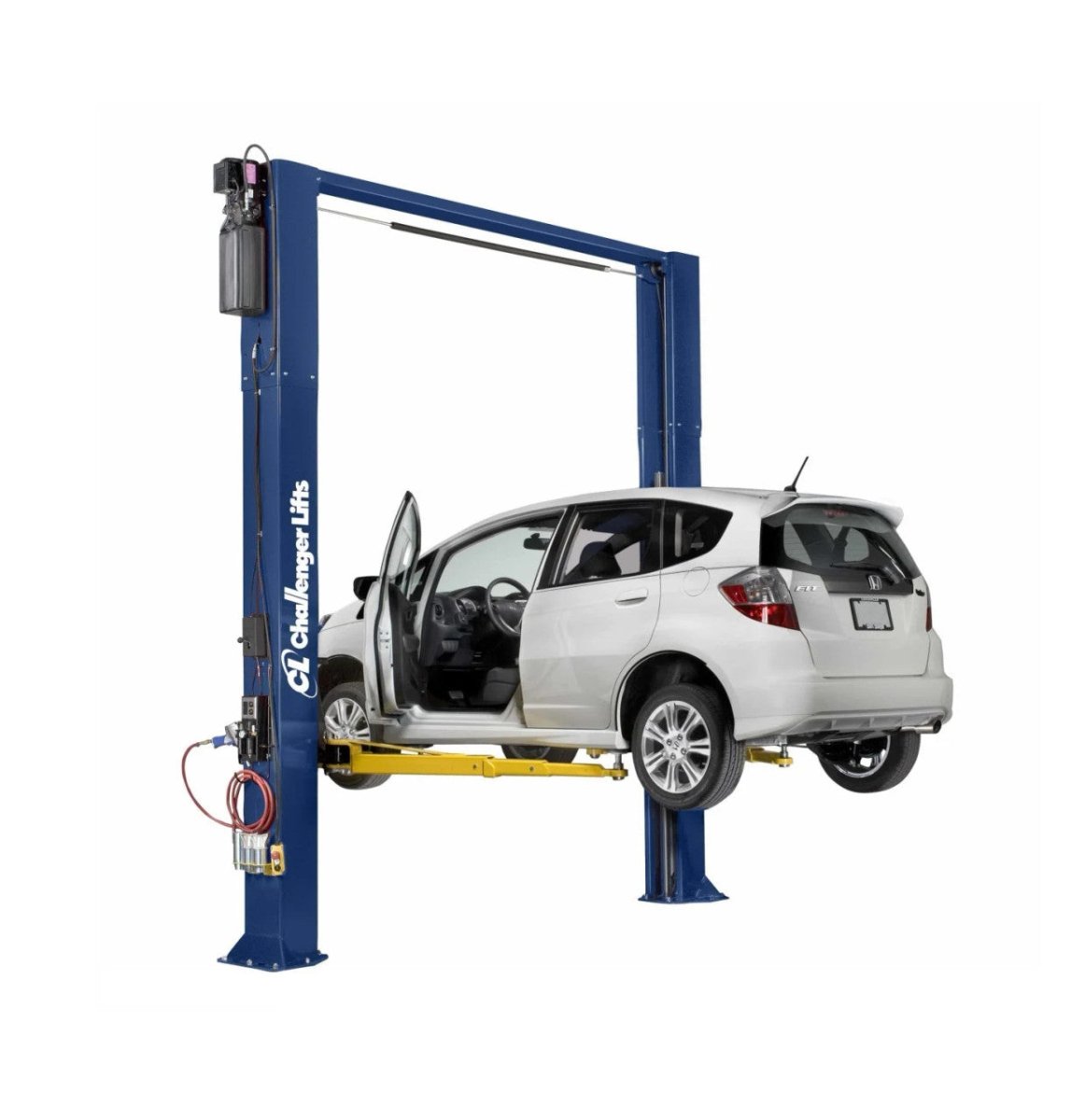

Challenger CL10V3-2-DPC-QC 10,000 lb Two-Post Automotive Lift
Challenger CL10V3-2-DPC-QC 10,000 lb Versymmetric Two-Post Lift for Professional Automotive Service
The Challenger CL10V3-2-DPC-QC combines 10,000 lb lifting capacity with patented Versymmetric technology that handles both symmetric and asymmetric vehicle positioning in a single bay. Featuring Quick Cycle hydraulics with 24-second rise times, Dual Pendant Controls for operation from either column, and a 2-foot column height extension delivering 74-1/8" of rise height, this lift serves dealership service departments, fleet maintenance facilities, and full-service repair shops working on everything from compact cars to full-size cargo vans. The CL10V3-2-DPC-QC is ALI Certified and ETL Listed, manufactured in Louisville, Kentucky, and backed by Challenger's 5-year structural warranty.
Challenger CL10V3-2-DPC-QC Features
Versymmetric Dual-Configuration Technology
The patented Versymmetric design allows both symmetric and asymmetric vehicle positioning in the same service bay. Center heavy trucks between columns for balanced weight distribution during drivetrain work, then rotate compact cars toward the rear column for maximum door clearance during interior access. This eliminates the need for dedicated symmetric and asymmetric lifts, maximizing shop floor utilization and return on equipment investment.
Quick Cycle Hydraulic Performance
The Quick Cycle hydraulic system delivers 24-second rise times powered by a 3 HP motor operating at 2,750 PSI. Compared to 38 seconds on standard models, the increased hydraulic flow rate reduces vehicle positioning time without compromising lifting capacity or safety margins. In high-volume environments like dealership express lanes and quick lube operations, faster cycle times translate directly to increased daily throughput per bay.
directSPOT 3-Stage Arm System
The directSPOT arm system combines 3-stage front arms with 20" to 42" reach and 3-stage rear arms with 37-5/8" to 60" reach. The extended range accommodates everything from compact cars to full-size cargo vans without repositioning the vehicle. Offset arm geometry enables accurate first-try vehicle spotting, reducing cycle time and ensuring consistent lift point engagement across the full range of wheelbase lengths.
Dual Pendant Controls
The Dual Pendant Control system provides two portable pendant controllers that connect to either column, allowing technicians to operate the lift from whichever side offers the best sightline during vehicle spotting. Each pendant includes OSHA-compliant keyed lockout functionality for safety during maintenance procedures. This reduces walking time and provides unobstructed visual confirmation of all four lift points during the raising process.
2-Foot Column Height Extension
The "-2" package adds a 2-foot column extension delivering 74-1/8" of rise height and accommodating ceiling heights from 13'-3" to 13'-9" depending on column width setting. This extended height enables full standing-height access under taller vehicles including Ford Transit, Mercedes Sprinter, and RAM ProMaster cargo vans, allowing technicians to work ergonomically without compromising position or access to undercarriage components.
Included Stack Adapter Kit
Every CL10V3-2-DPC-QC ships with a complete Stack Adapter Kit including four 3" extensions, two 6" extensions, and two organizer racks for storage. These adapters extend the screw pad height range beyond the standard 3-7/8" to 6-1/8" for vehicles with lower or offset lift points. The included organizer racks keep adapters accessible and accounted for, ensuring technicians always have the right extension height available for proper lift point engagement.
Challenger CL10V3-2-DPC-QC Applications
- Full-Service Automotive Repair: Complete undercar access for brake, suspension, exhaust, and drivetrain service on cars, crossovers, and light-duty trucks within 10,000 lb capacity. Versymmetric positioning adapts to your daily vehicle mix.
- Dealership Service Departments: High-throughput service lanes benefit from Quick Cycle speed and Versymmetric flexibility across mixed vehicle inventories from subcompacts to full-size SUVs without dedicated lift bays for each vehicle type.
- Fleet Maintenance Facilities: Cargo van and light truck fleets including Ford Transit, Mercedes Sprinter, and RAM ProMaster fit within the extended column height and arm reach specifications for routine maintenance and repair operations.
- Express Lane and Quick Lube Operations: 24-second rise times maximize daily vehicle throughput for oil changes, fluid services, tire rotations, and inspection services where cycle time directly impacts revenue capacity.
- Transmission and Drivetrain Service: Symmetric positioning centers heavy trucks between columns for balanced weight distribution during transmission drops, transfer case service, and driveline component removal.
- Body-on-Frame Truck Service: Compatible with optional Frame Engaging Adapters (Part #10314 or #10318) for pickup trucks requiring frame contact points rather than pinch weld engagement.
Challenger CL10V3-2-DPC-QC Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 10,000 lb |
| Capacity Per Arm | 2,500 lb |
| Hydraulic Pressure at Capacity | 2,750 PSI |
| Specification | Value |
|---|---|
| Column Height | 13'-2" or 13'-8" |
| Ceiling Height Required | 13'-3" or 13'-9" |
| Rise Height | 74-1/8" |
| Screw Pad Height Range | 3-7/8" to 6-1/8" |
| Overall Width (Adjustable) | 11'-11" or 11'-6-1/2" |
| Inside of Columns | 110" or 114-1/2" |
| Drive-Thru Clearance | 100" or 104-1/2" |
| Front Arm Reach (3-Stage) | 20" to 42" |
| Rear Arm Reach (3-Stage) | 37-5/8" to 60" |
| Specification | Value |
|---|---|
| Motor | 3 HP |
| Voltage | 208-240V, Single Phase, 60Hz |
| Circuit Requirement | Dedicated 30 Amp double pole breaker or time delay fuse |
| Rise Time | 24 seconds (approximate) |
| Specification | Value |
|---|---|
| Concrete Thickness | 4" minimum with steel reinforcement |
| Concrete Strength | 3,500 PSI minimum, cured 28 days |
| Floor Level Tolerance | Within 3/8" over installation area |
| Anchor Clearance | 8" minimum from any crack, edge, or expansion joint |
| Side Clearance | 12'-0" minimum to nearest obstruction |
| Front/Rear Clearance | 6' to nearest obstruction or 7' to nearest wall |
| Operating Temperature | 41-104°F (5-40°C) |
Challenger CL10V3-2-DPC-QC Installation Requirements
Electrical Requirements
Power: 208-240V, single phase, 60Hz with a dedicated 30 Amp double pole circuit breaker or time delay fuse. A licensed electrician must install and verify the electrical supply. Electrical code requires a service disconnect located near the point of operation.
Concrete Foundation
Anchoring: 4" minimum concrete depth with steel reinforcement, 3,500 PSI minimum, cured 28 days per local commercial practice. Floor should be level within 3/8" over the installation area. No anchors should be installed within 8" of any crack, edge, or expansion joint. If these conditions cannot be met, a separate pad may be poured to accommodate the lift.
Space Requirements
Ceiling Height: 13'-3" to 13'-9" depending on column width setting. Side Clearance: 12'-0" minimum to nearest obstruction on both sides. Front/Rear Clearance: 6' to nearest obstruction or 7' to nearest wall for drive-on direction. This lift is evaluated for indoor use only with an operating ambient temperature range of 41-104°F (5-40°C). Outdoor installation is prohibited.
Professional Installation
Professional installation by a qualified technician is recommended to ensure proper setup, calibration, and safe operation. Installation must comply with all local building codes and electrical requirements. Consult local building inspectors and permits office for any special instructions or approvals. A qualified person should address seismic loads and other local or state requirements where applicable.
What's Included with the Challenger CL10V3-2-DPC-QC
- Power column assembly with Quick Cycle hydraulic cylinder
- Idler column assembly with hydraulic cylinder
- 2-foot column extensions (2)
- Overhead beam assembly
- 3-stage front arm pack with directSPOT geometry
- 3-stage rear arm pack
- Quick Cycle power unit (3 HP, single phase)
- Dual pendant control assemblies with keyed lockout
- Junction box assembly with overhead limit switch
- Synchronizer cable pack
- Overhead shutoff bar assembly
- Stack Adapter Kit: Four 3" extensions, two 6" extensions, two organizer racks
- Complete hardware kit with anchor bolts
- Installation, operation, and maintenance manual
- ALI Lifting It Right safety manual
- Safety decals and warning labels
Optional Accessories: Frame Engaging Adapters (Part #10314 or #10318) for body-on-frame trucks, additional stack adapters, and truck adapters for specialty applications.
Not Included: Hydraulic fluid (3 gallons of 10wt anti-foam anti-rust hydraulic oil or Dexron III ATF required), electrical wiring and service disconnect, concrete work or foundation preparation, and installation labor.
Challenger CL10V3-2-DPC-QC Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Ships within 3-5 business days; delivery typically 5-10 business days depending on location. International: Contact sales for international shipping quotes and availability.
Delivery Requirements
Unloading: Forklift or loading dock required for unloading. Column assemblies and overhead beam are heavy and require mechanical assistance. Delivery Type: Curbside delivery to commercial addresses is standard. Inspection: Inspect all packages for damage before signing the bill of lading. Note any visible damage on the delivery receipt. Notify Challenger Lifts immediately if hidden loss or damage is discovered after receipt.
Returns
Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. 20% restocking fee applies. Buyer responsible for return freight costs. Contact customer service for return authorization before shipping.
Challenger CL10V3-2-DPC-QC Warranty
Challenger Lifts Limited Warranty
Challenger Lifts guarantees the CL10V3-2-DPC-QC to the original owner with coverage for parts and labor as follows:
- 5 Years: Structural parts including carriages, columns, column extensions, overhead beams, and arms
- 2 Years: Functional parts including power unit, cylinders, sheaves, hoses, hydraulic fittings, cables, adapters, latches, valves, and controls
- 1 Year: Labor for replacement of defective parts plus reasonable transportation costs
Requirements: Warranty valid only if product is installed, used, and maintained according to Challenger specifications. Warranty registration must be completed online at challengerlifts.com. Use of unapproved parts or accessories will void the warranty. This warranty extends only to the original purchaser and is not transferable. Does not cover normal maintenance, adjustments, damage from improper handling, installation, abuse, misuse, negligence, or normal wear and tear.
Documents
Click to open in a new tab.
Questions About the Challenger CL10V3-2-DPC-QC?
Our equipment specialists can help with installation planning, specifications, and product selection for your shop.
Challenger CL10V3-2-DPC-QC FAQ
What is the lifting capacity of the CL10V3-2-DPC-QC?
The CL10V3-2-DPC-QC has a total lifting capacity of 10,000 lb with a maximum of 2,500 lb per arm. The capacity rating is based on loads equally distributed across all four arms. Never exceed 2,500 lb on any single arm, and never attempt to lift a vehicle with only two arms.
What ceiling height do I need for this lift?
The CL10V3-2-DPC-QC requires a minimum ceiling height of 13'-3" to 13'-9" depending on the column width setting you choose. The adjustable overall width options are 11'-11" or 11'-6-1/2", which correspond to the different ceiling height requirements. Verify your ceiling height and choose the appropriate width setting during installation.
What are the electrical requirements?
The lift requires 208-240V single phase, 60Hz power with a dedicated 30 Amp double pole circuit breaker or time delay fuse. A licensed electrician must install the electrical supply, which must comply with all local electrical codes. A service disconnect is required near the point of operation.
What concrete specifications are required for installation?
The floor requires a minimum of 4 inches of concrete depth with steel reinforcement, minimum 3,500 PSI compressive strength, and must be cured for at least 28 days. The floor should be level within 3/8" over the installation area, and no anchors can be installed within 8 inches of any crack, edge, or expansion joint.
What does the warranty cover?
Challenger provides a 5-year warranty on structural parts (columns, carriages, arms, overhead beam), a 2-year warranty on functional parts (power unit, cylinders, hoses, cables, controls), and 1-year labor coverage for defective part replacement. Warranty requires registration at challengerlifts.com and applies only to the original purchaser when the lift is installed and maintained according to Challenger specifications.
What is included with the lift?
The CL10V3-2-DPC-QC includes both column assemblies with 2-foot extensions, overhead beam, 3-stage front and rear arm packs, Quick Cycle power unit, dual pendant controls, junction box with limit switch, synchronizer cables, complete hardware kit with anchor bolts, Stack Adapter Kit with four 3" and two 6" extensions plus organizer racks, and all documentation. Hydraulic fluid, electrical wiring, concrete work, and installation labor are not included.
How is the lift shipped and delivered?
Free freight shipping is included to commercial addresses in the 48 contiguous United States. The lift ships within 3-5 business days with delivery typically in 5-10 business days. Curbside delivery is standard, and you will need a forklift or loading dock to unload the shipment. Inspect all packages before signing the bill of lading and note any damage on the delivery receipt.
Can I use this lift for trucks that require frame contact points?
Yes. The CL10V3-2-DPC-QC is compatible with optional Frame Engaging Adapters (Part #10314 or #10318) for body-on-frame pickup trucks and SUVs that require frame rail contact points rather than pinch weld engagement. These adapters are sold separately and designed specifically for Challenger two-post lifts.
What is the difference between symmetric and asymmetric positioning?
Symmetric positioning centers the vehicle between the columns with equal weight distribution on each side, ideal for heavy trucks and drivetrain work. Asymmetric positioning rotates the vehicle so the front doors align between the columns, providing maximum door clearance for interior work on cars and crossovers. The Versymmetric design allows both configurations in the same bay without purchasing separate lifts.
What maintenance does this lift require?
Daily maintenance includes keeping components clean, checking for loose or broken parts, inspecting for hydraulic leaks, and checking adapter condition. Weekly tasks include inspecting synchronizer cables and sheaves. Monthly maintenance includes torquing anchor bolts to 80 ft-lb, inspecting the concrete floor, testing the overhead shutoff switch, and lubricating carriage slide tracks and arm grease fittings with heavy viscous grease.
What is Quick Cycle technology?
Quick Cycle is Challenger's high-performance hydraulic system that delivers 24-second rise times compared to 38 seconds on standard models. The system uses a 3 HP motor (versus 2 HP on standard lifts) and increased hydraulic flow rates to reduce vehicle positioning time without compromising lifting capacity or safety. This is particularly valuable in high-volume service environments where faster cycle times increase daily throughput.
What vehicles can this lift accommodate?
The CL10V3-2-DPC-QC accommodates vehicles up to 10,000 lb including cars, crossovers, SUVs, light-duty trucks, and cargo vans. The 3-stage arm system with front reach of 20" to 42" and rear reach of 37-5/8" to 60" handles wheelbase variations from compact cars to full-size vans. The 74-1/8" rise height and 2-foot column extension provide clearance for high-roof cargo vans like Ford Transit, Mercedes Sprinter, and RAM ProMaster.
