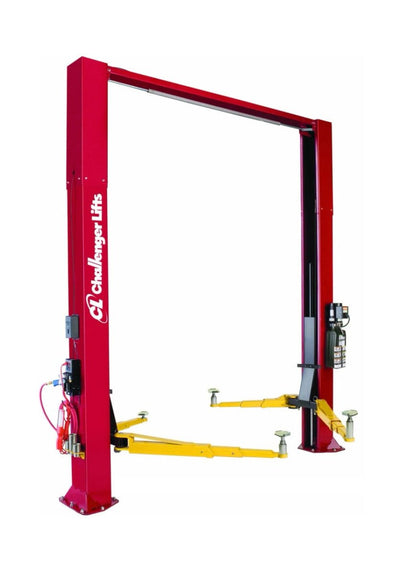

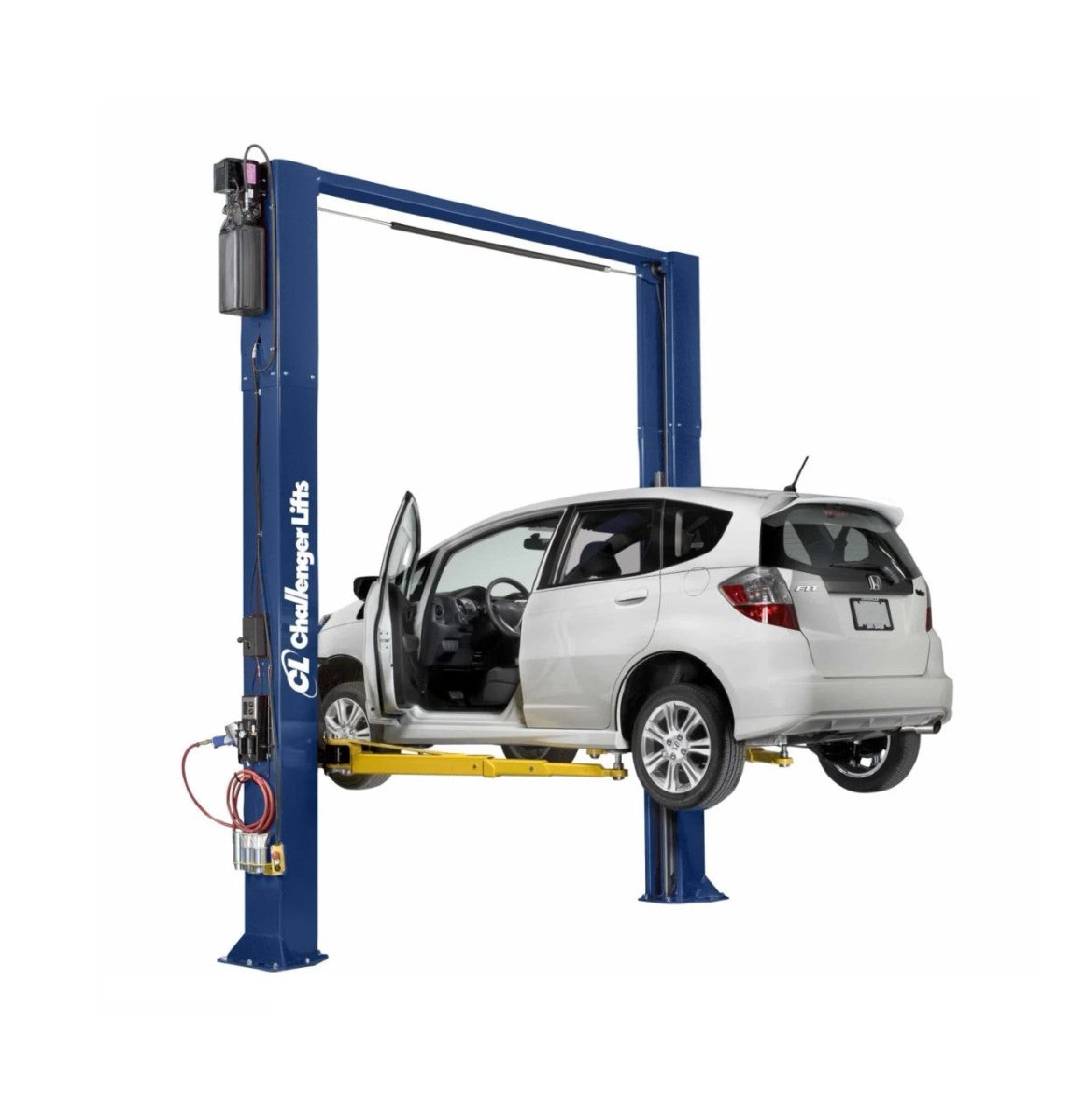

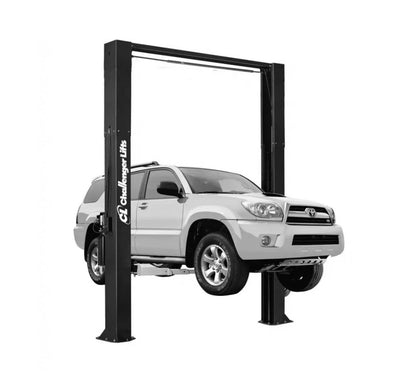

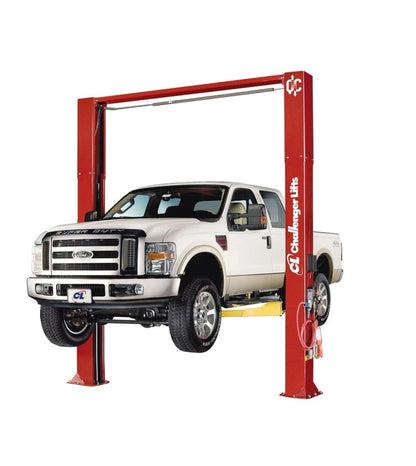

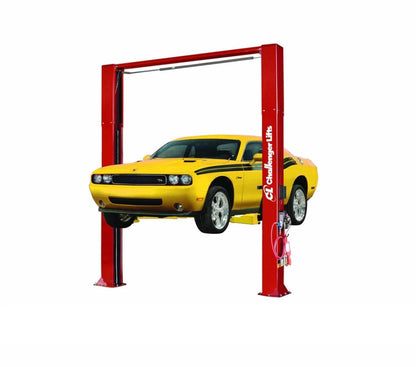

CHALLENGER LIFTS CL10V3-2-DPC-QC Two Post Lift, 10,000 Lbs Quick Cycle
Challenger CL10V3-2-DPC-QC - 10,000 lb Versymmetric Two-Post Lift with Quick Cycle Technology
The Challenger CL10V3-2-DPC-QC delivers 10,000 lb lifting capacity in a Versymmetric two-post design, engineered for professional automotive repair shops, dealerships, and fleet maintenance facilities. Featuring the 2-foot column height extension for taller ceilings and high-roof vehicles, Dual Pendant Controls for operation from either column, and Quick Cycle hydraulics with 27-second rise times, this ALI Certified lift handles cars, light-duty trucks, SUVs, and cargo vans with symmetric or asymmetric positioning in a single bay.
Key Features & Benefits
Versymmetric Dual-Configuration Technology
The patented Versymmetric design allows both symmetric and asymmetric vehicle positioning in the same bay without purchasing separate lift types. Symmetric positioning centers heavy vehicles like trucks between the columns for balanced weight distribution, while asymmetric positioning rotates cars toward the rear column for maximum door clearance during interior work.
Traditional shops often dedicate separate bays for symmetric truck lifts and asymmetric car lifts, consuming valuable floor space and capital. Versymmetric technology addresses this by providing a single lift that adapts to your vehicle mix, whether you're servicing a full-size pickup in the morning and a compact sedan in the afternoon.
This eliminates the need for multiple lift investments and allows technicians to work efficiently on any vehicle class within a single service bay, maximizing shop throughput and return on equipment investment.
Quick Cycle Hydraulic Performance
The Quick Cycle hydraulic system delivers 27-second rise times compared to 38 seconds on standard models, powered by a 3 HP motor operating at 2,750 PSI. The increased hydraulic flow rate reduces vehicle positioning time without compromising lifting capacity or safety margins.
In high-volume service environments like quick lube operations and dealership express lanes, every second of cycle time impacts daily throughput. Standard two-post lifts create bottlenecks when technicians wait for vehicles to reach working height, particularly during peak service hours.
This enables shops to process more vehicles per bay per day. The 11-second improvement per lift cycle compounds across dozens of daily operations, translating directly to increased revenue capacity without adding floor space or technician headcount.
directSPOT 3-Stage Arm Design
The directSPOT arm system combines 3-stage front arms with 20" to 42" reach and 3-stage rear arms with 37-5/8" to 60" reach, using offset geometry that enables accurate first-try vehicle spotting. The extended reach range accommodates everything from compact cars to full-size cargo vans without repositioning the vehicle.
Conventional two-stage arm designs often require technicians to drive vehicles back and forth multiple times to align lift points with arm reach limitations. This repositioning wastes time, creates frustration, and increases the risk of improper lift point contact.
This improves bay efficiency by eliminating repositioning attempts. Technicians can spot vehicles correctly on the first try across the full range of wheelbase lengths, reducing cycle time and ensuring consistent lift point engagement for safer operation.
Dual Pendant Controls
The Dual Pendant Control (DPC) system provides two portable pendant controllers that connect to either column, allowing technicians to operate the lift from whichever side offers the best sightline during vehicle spotting. Each pendant includes OSHA-compliant keyed lockout functionality for safety during maintenance.
Single-pendant lifts force technicians to walk around vehicles repeatedly during the spotting process, particularly when positioning asymmetrically where one column obscures the view of lift point contact. This reduces efficiency and increases the chance of improper arm placement.
This reduces walking time and provides unobstructed visual confirmation of all four lift points during the raising process. Technicians can monitor arm contact while operating the controls from the optimal viewing position, improving both speed and safety.
2-Foot Column Height Extension
The "-2" package adds a 2-foot column extension to the base CL10V3 design, delivering 74-1/8" of rise height and accommodating ceiling heights from 13'-3" to 13'-9" depending on column width setting. This extended height serves shops with taller ceilings and technicians working on high-roof cargo vans and full-size SUVs.
Standard-height two-post lifts often leave insufficient clearance for technicians to work comfortably under raised cargo vans, forcing them to crouch or limiting access to undercarriage components. Shops with higher ceilings cannot take advantage of their vertical space without extended columns.
This enables full standing-height access under taller vehicles and maximizes the utility of shops with above-standard ceiling heights. Technicians can work ergonomically on high-roof vans like the Ford Transit and Mercedes Sprinter without compromising working position.
Included Stack Adapter Kit
Every CL10V3-2-DPC-QC ships with a complete Stack Adapter Kit including four 3" extensions, two 6" extensions, and two organizer racks for storage. These adapters extend the screw pad height range beyond the standard 3-7/8" to 6-1/8" for vehicles with lower or offset lift points.
Many competing lifts require separate adapter purchases that add cost and delay to initial setup. Technicians without proper adapters may attempt to lift vehicles with incorrect contact points, creating safety risks and potential vehicle damage.
This eliminates additional accessory purchases for common truck and SUV applications. The included organizer racks keep adapters accessible and accounted for, ensuring technicians always have the right extension height available for proper lift point engagement.
Applications & Use Cases
- Full-Service Automotive Repair: Complete undercar access for brake, suspension, exhaust, and drivetrain service on cars, crossovers, and light-duty trucks within 10,000 lb capacity.
- Dealership Service Departments: High-throughput service lanes benefit from Quick Cycle speed and Versymmetric flexibility across mixed vehicle inventories from subcompacts to full-size SUVs.
- Fleet Maintenance Facilities: Cargo van and light truck fleets including Ford Transit, Mercedes Sprinter, and RAM ProMaster fit within the extended column height and arm reach specifications.
- Express Lane and Quick Lube Operations: 27-second rise times maximize daily vehicle throughput for oil changes, fluid services, and tire rotations.
- Transmission and Drivetrain Service: Symmetric positioning centers heavy trucks between columns for balanced weight distribution during component removal.
- Body-on-Frame Truck Service: Compatible with optional Frame Engaging Adapters (Part #10314 or #10318) for pickup trucks requiring frame contact points.
Technical Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 10,000 lb |
| Capacity Per Arm | 2,500 lb |
| Rise Height | 74-1/8" (1,883 mm) |
| Rise Time (Quick Cycle) | 27 seconds |
| Rise Time (Standard) | 38 seconds |
| Hydraulic Pressure at Capacity | 2,750 PSI |
| Motor | 3 HP (Quick Cycle DPC model) |
| Specification | Value |
|---|---|
| Overall Width | 138.5" or 143" (adjustable) |
| Drive-Thru Clearance | 100" or 104.5" (width-dependent) |
| Inside Columns | 110" or 114.5" (width-dependent) |
| Column Height | 13'-2" to 13'-8" (with 2' extension) |
| Carriage Length | 48" |
| Specification | Value |
|---|---|
| Front Arm Reach | 20" - 42" (3-stage) |
| Rear Arm Reach | 37-5/8" - 60" (3-stage) |
| Screw Pad Height Range | 3-7/8" - 6-1/8" |
| Specification | Value |
|---|---|
| Pulley Diameter | 5" |
| Cable Diameter | 5/16" |
What's Included
- Two column assemblies with 2-foot extensions
- Overhead beam assembly
- 3-stage front arm pack
- 3-stage rear arm pack
- Quick Cycle DPC power unit (3 HP motor)
- Dual pendant control assemblies (2)
- Junction box assembly
- Overhead shut-off bar assembly
- Synchronizer cable pack
- Hardware box with anchor bolts (14 x 3/4" x 5-1/2")
- Stack Adapter Kit: four 3" extensions, two 6" extensions, two organizer racks
- Document Caddy
- Pendant Holder
- Literature pack with installation manual
Note: Hydraulic fluid (3 gallons) is NOT included with shipment.
Installation Requirements
Foundation Requirements
- Concrete Thickness: Minimum 4" thick reinforced concrete
- Compressive Strength: 3,500 PSI minimum
- Reinforcement: Steel reinforcement required
- Cure Time: Minimum 28 days cured
- Floor Level: Within 3/8" over installation area
- Anchor Placement: No anchors within 8" of cracks, edges, or expansion joints
Electrical Requirements
- Voltage: 208-230V, single phase, 60Hz
- Circuit Protection: 30-amp double-pole breaker or time-delay fuse
- Disconnect: Service disconnect required near point of operation
- Circuit: Dedicated circuit required
Space Requirements
- Minimum Bay Size: 12' x 24' recommended
- Minimum Ceiling Height: 13'-3" to 13'-9" (depending on column width setting)
- Front/Rear Clearance: 144" (12') minimum to nearest obstruction
- Side Clearance: 6' to nearest obstruction or 7' to nearest wall
Environmental Requirements
- Location: Indoor use only
- Operating Temperature: 41F - 104F (5C - 40C)
Installation Notes
- Professional Installation: Installation by qualified personnel following manufacturer specifications required for warranty validity
- Permits: Verify local code compliance and permit requirements before installation
Shipping & Delivery
Freight Information
Shipment Type: Freight shipment via LTL carrier
Shipping Weight: 1,961 lb
Lead Times: Variable - built to order with extended lead times common
Delivery Requirements
Unloading Equipment: Forklift or hoist required for unloading. Cannot unload by hand.
Lift Gate Service: NOT available for this product
Delivery Address: Commercial address or freight terminal
Receiving: Inspect all packages before signing bill of lading. Note any visible damage on BOL before driver departs.
Warranty Coverage
Challenger Warranty Program
Lifetime - Structural Parts: Columns, carriage, and arms are covered for the lifetime of the original purchaser
2 Years - Functional Parts: Power unit, cylinders, cables, and controls
Extended Warranty Option: 5-year total coverage on functional parts available (must purchase within 30 days of lift purchase)
Warranty Requirements
Registration: Product must be registered at challengerlifts.com
Eligibility: Valid for original purchaser only (non-transferable)
Installation: Installation must be performed per CLI specifications
Parts: Use of unapproved parts or accessories voids warranty
Service: CLI-authorized service representatives only for covered repairs
Ready to Upgrade Your Shop?
Get expert guidance on the right lift configuration for your facility. Our team can help with product selection, installation planning, ceiling height verification, and technical specifications.
Frequently Asked Questions
What is the lifting capacity of the Challenger CL10V3-2-DPC-QC?
The CL10V3-2-DPC-QC has a maximum lifting capacity of 10,000 lb with 2,500 lb capacity per arm. The hydraulic system operates at 2,750 PSI at full capacity, powered by a 3 HP Quick Cycle motor. The lift is ALI Certified and ETL Listed, designed to the ANSI/ALI ALCTV standard for safe operation at rated capacity. This capacity handles cars, light-duty trucks, SUVs, and cargo vans within the weight specification.
What ceiling height is required for the CL10V3-2-DPC-QC with the 2-foot extension?
The CL10V3-2-DPC-QC requires a minimum ceiling height of 13 feet 3 inches to 13 feet 9 inches depending on the column width setting. At the narrower 138.5-inch overall width, the ceiling requirement is lower; at the wider 143-inch setting, more clearance is needed. The lift delivers 74-1/8 inches of rise height to accommodate high-roof cargo vans and full-size SUVs. Measure your ceiling height before ordering to confirm compatibility.
What are the concrete requirements for installing this two-post lift?
Installation requires minimum 4-inch thick reinforced concrete with 3,500 PSI compressive strength, steel reinforcement, and a minimum 28-day cure time. The floor must be level within 3/8 inch over the installation area, and anchors cannot be placed within 8 inches of cracks, edges, or expansion joints. The hardware kit includes 14 anchor bolts measuring 3/4 inch by 5-1/2 inches. A minimum bay size of 12 feet by 24 feet is recommended with 144 inches of front and rear clearance to nearest obstructions.
What is Versymmetric technology and how does it work?
Versymmetric is Challenger's patented technology that allows both symmetric and asymmetric vehicle positioning in the same bay. Symmetric positioning centers vehicles between the 110-inch or 114.5-inch inside column distance for balanced weight distribution on trucks and heavy SUVs. Asymmetric positioning rotates cars toward the rear column, providing maximum door swing clearance for interior access during service. This dual-mode capability eliminates the need to purchase separate symmetric and asymmetric lift types for mixed vehicle fleets.
How fast does the Quick Cycle hydraulic system raise vehicles?
The Quick Cycle hydraulic system delivers 27-second rise times compared to 38 seconds on standard CL10V3 models without the QC upgrade. The system uses a 3 HP motor operating at 2,750 PSI to achieve faster cycle times without reducing the 10,000 lb lifting capacity. This 11-second improvement per cycle compounds across multiple daily operations, increasing throughput in high-volume service environments like quick lube bays and dealership express lanes.
What accessories are included with the CL10V3-2-DPC-QC?
The lift ships with a complete Stack Adapter Kit including four 3-inch extensions, two 6-inch extensions, and two organizer racks for storage. The package also includes two dual pendant control assemblies, document caddy, pendant holder, overhead shut-off bar assembly, synchronizer cable pack, and hardware box with 14 anchor bolts (3/4 inch by 5-1/2 inches). The standard screw pad height range is 3-7/8 inches to 6-1/8 inches before adapters. Hydraulic fluid (3 gallons required) is NOT included and must be purchased separately.
What is the warranty coverage on the Challenger CL10V3-2-DPC-QC?
Challenger provides lifetime warranty on structural parts including columns, carriage, and arms for the original purchaser. Functional parts including the 3 HP power unit, hydraulic cylinders, 5/16-inch synchronizer cables, and pendant controls are covered for 2 years. An extended 5-year warranty option for functional parts is available if purchased within 30 days of the lift purchase. Warranty requires product registration at challengerlifts.com and installation per CLI specifications by qualified personnel. The warranty is non-transferable.
Can this lift be used for pickup trucks with body-on-frame construction?
Yes, but pickup trucks with body-on-frame construction require optional Frame Engaging Adapters sold separately. Part #10314 and Part #10318 provide proper frame rail contact points instead of standard unibody lift points. The 3-stage rear arms with 37-5/8 inch to 60-inch reach accommodate extended cab and crew cab truck wheelbases. The 10,000 lb capacity handles most light-duty pickup trucks including half-ton and three-quarter-ton models. Contact us to confirm the correct adapter kit for your specific truck application.
