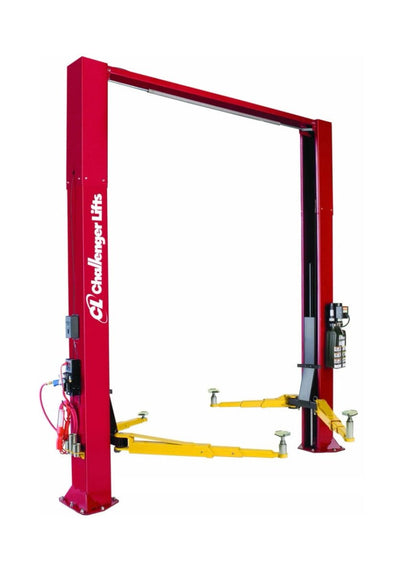

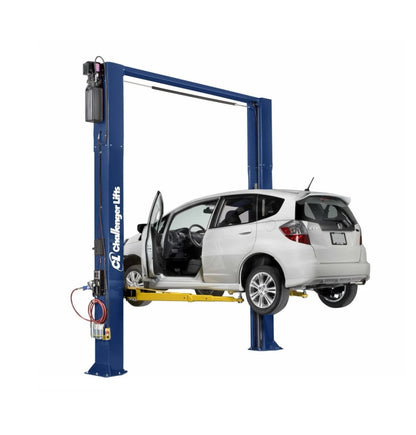

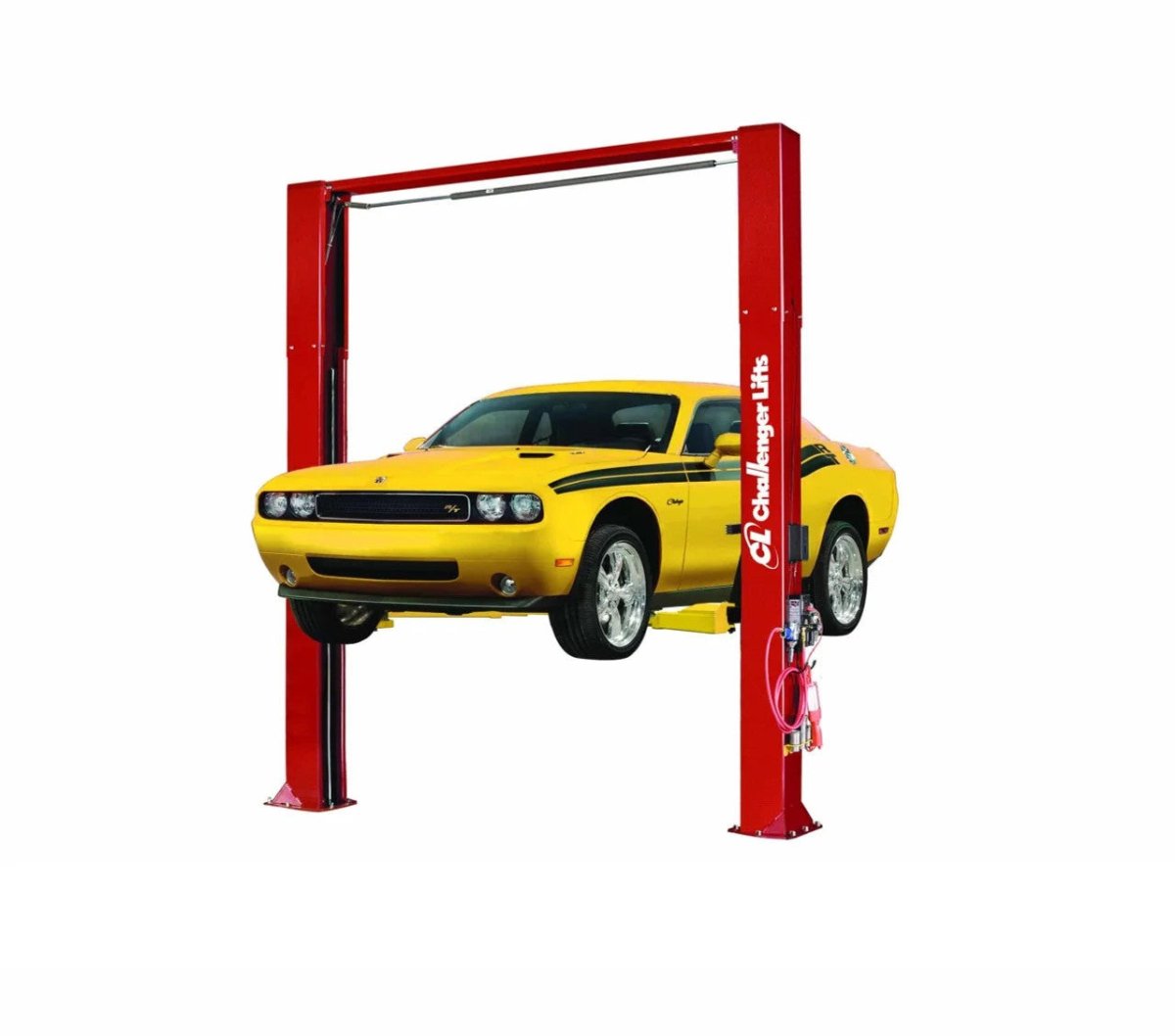

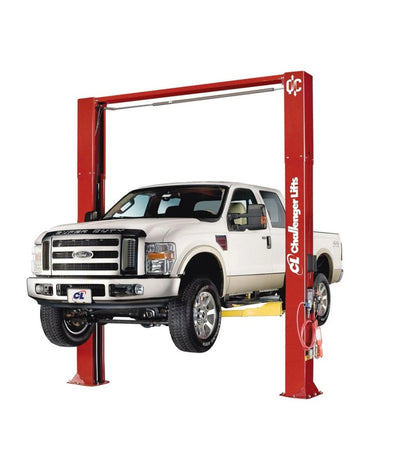

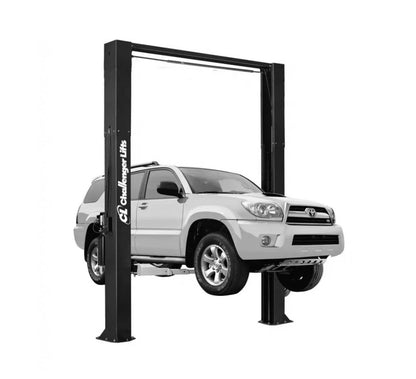

CHALLENGER LIFTS CL10V3-2-DPC Two Post Lift, 10,000 Lbs Dual Pendant
Challenger CL10V3-2-DPC - 10,000 lb Versymmetric Two-Post Lift with Dual Pendant Controls
The Challenger CL10V3-2-DPC delivers 10,000 lb lifting capacity in an ALI/ETL certified two-post design, engineered for professional automotive service facilities. Featuring Versymmetric technology for both symmetric and asymmetric lifting configurations, dual pendant controls for flexible operation, and factory-installed 2-foot column extensions, this lift handles mixed vehicle fleets from passenger cars to light-duty trucks without reconfiguration.
Key Features & Benefits
Versymmetric Dual-Configuration Technology
The Versymmetric arm system enables both symmetric and asymmetric vehicle positioning within a single service bay. The 3-stage front arms reach from 20 to 42 inches while 3-stage rear arms extend from 37.625 to 60 inches, providing the flexibility to accommodate virtually any lift point configuration across different vehicle architectures.
Traditional two-post lifts force shops to choose between symmetric positioning for trucks and vans or asymmetric positioning for door clearance on passenger cars. Versymmetric addresses this limitation by allowing technicians to configure the lift for each vehicle's optimal positioning without compromising access or stability.
This enables mixed-fleet service operations to run through a single bay efficiently. Shops servicing dealership trade-ins, fleet vehicles, and customer cars can handle unibody sedans positioned rearward for door access in the same bay that centers pickup trucks for symmetric weight distribution.
directSPOT Offset Front Arm Design
The directSPOT 3-stage offset front arms are engineered to reach vehicle lift points on the first approach without repositioning. The offset geometry places the arm pivot point outside the vehicle's footprint, allowing 20 to 42 inch reach to contact frame rails, pinch welds, and manufacturer-designated lift points directly.
Conventional straight-arm designs often require multiple vehicle repositioning attempts to align lift pads with specific contact points. This adds minutes to each service cycle and increases the risk of improper pad placement. The offset configuration eliminates these approach angle limitations common to standard arm geometries.
This reduces vehicle spotting time and technician effort on every lift cycle. The double telescoping screw pads with 3.875 to 6.125 inch height adjustment further refine contact positioning once arms are in place, ensuring secure engagement across varying rocker panel heights and lift point depths.
74.125 Inch Rise Height
The CL10V3-2-DPC provides 74.125 inches of rise height, delivering 5 inches of additional working clearance compared to many 10,000 lb capacity lifts in the category. This extra elevation reduces technician strain during undercarriage work and accommodates larger diagnostic equipment, transmission jacks, and exhaust system tooling beneath the vehicle.
Standard rise heights on comparable capacity lifts typically range from 68 to 70 inches, which can limit access for taller technicians or when servicing lifted trucks and SUVs that already sit higher on their suspension. The extended rise addresses these workspace constraints without requiring aftermarket modifications.
This improves ergonomics for extended service operations like differential rebuilds, fuel system work, and suspension overhauls. The 38-second rise time maintains productivity despite the additional travel distance, cycling vehicles to full height quickly between service operations.
Dual Pendant Controls
The DPC configuration includes portable control pendants that connect to either column, providing operational flexibility for single-technician workflows. This allows the operator to position themselves with an unobstructed view of the vehicle during the lifting sequence, regardless of which side the vehicle is approached from.
Fixed single-location controls force operators to position themselves at one predetermined point, often creating blind spots when guiding vehicles onto the lift or monitoring pad engagement. The dual pendant system addresses this visibility limitation that can lead to improper vehicle positioning or missed lift point contact.
This enables safer vehicle spotting by allowing technicians to maintain visual contact with all four lift points throughout the positioning process. The portable design also streamlines bay workflow when multiple technicians share equipment or when drive-through bay configurations require approach from either direction.
Single-Point Mechanical Lock Release System
The safety lock system engages automatically during the lift cycle with a single-point release mechanism that disengages all locks simultaneously. The mechanical lock ladder provides multiple engagement positions throughout the full 74.125 inch travel range, securing the carriage at any working height without requiring manual lock manipulation during ascent.
Multi-point lock release systems require technicians to manually disengage locks at each column before lowering, adding steps to the service cycle and creating potential for incomplete disengagement. The single-point design consolidates this operation into one deliberate action that confirms all locks are cleared before descent.
This improves operational safety by eliminating partial lock release conditions while maintaining productivity through simplified lowering procedures. The automatic arm restraints and overhead shut-off switch provide additional protection against uncontrolled movement or over-travel conditions.
Factory-Installed 2-Foot Column Extensions
The CL10V3-2-DPC ships with 2-foot column height extensions pre-installed at the factory, bringing the overall height to 158/164 inches (adjustable width configuration). This accommodates installations in facilities with higher ceilings while maintaining full lift performance without field modification of structural components.
Aftermarket column extensions require field installation that can affect structural integrity if not performed correctly, and may void warranty coverage. Factory installation ensures proper alignment, weld quality, and load path continuity that meets the lift's full rated capacity.
This eliminates the additional cost and installation time of purchasing and fitting column extensions separately. Facilities with 14-foot or higher ceilings can take full advantage of the available overhead clearance, and the extended columns support lifted trucks and tall SUVs without risk of overhead contact during the lift cycle.
Applications & Use Cases
- Full-Service Automotive Repair: General mechanical service including brakes, suspension, exhaust, and drivetrain work on passenger cars and light trucks within the 10,000 lb capacity rating.
- Dealership Service Departments: Mixed-fleet service bays handling new vehicle PDI, warranty repairs, and used car reconditioning across multiple manufacturer lines and body styles.
- Quick Lube and Express Service: High-volume oil change and fluid service operations requiring fast cycle times and the flexibility to service cars, crossovers, and trucks in the same bay.
- Tire and Brake Service Centers: Wheel and brake system work requiring full undercarriage access with asymmetric positioning for door clearance during tire mounting and brake inspections.
- Fleet Maintenance Facilities: Municipal, commercial, and rental fleet operations servicing standardized vehicle pools including sedans, SUVs, and light-duty pickup trucks.
- Light-Duty Truck Service: Pickup trucks and full-size SUVs within the 10,000 lb capacity using symmetric positioning for centered weight distribution on frame-rail vehicles.
Technical Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 10,000 lb (4,536 kg) |
| Capacity per Arm | 2,500 lb (1,134 kg) |
| Rise Height | 74.125 inches |
| Rise Time | 38 seconds |
| Lifting Configuration | Versymmetric (Symmetric & Asymmetric) |
| Specification | Value |
|---|---|
| Overall Height (with 2-foot extension) | 158 inches / 164 inches |
| Overall Width | 138.5 inches / 143 inches (adjustable) |
| Inside Column Distance | 110 inches / 114.5 inches |
| Drive-Thru Clearance | 100 inches / 104.5 inches |
| Front Arm Reach | 20 inches - 42 inches |
| Rear Arm Reach | 37.625 inches - 60 inches |
| Screw Pad Height Range | 3.875 inches - 6.125 inches |
| Specification | Value |
|---|---|
| Motor | 2 HP, Single Phase, 60 Hz |
| Voltage | 208-230V AC |
| Circuit Requirement | 30-amp dedicated double pole breaker |
Installation Requirements
Bay Dimensions
- Minimum Ceiling Height: 13 feet 9 inches (for 2-foot extension model)
- Recommended Bay Width: 12 feet minimum
- Recommended Bay Depth: 24 feet minimum
Concrete Foundation
- Minimum Thickness: 4 inches reinforced with steel
- Minimum Strength: 3,500 PSI
- Curing Time: 28 days minimum before installation
- Floor Condition: Level within 3/8 inch over installation area
- Anchor Clearance: No anchors within 8 inches of any crack, edge, or expansion joint
Electrical Requirements
- Voltage: 208-230V AC, Single Phase, 60 Hz
- Circuit: 30-amp dedicated double pole breaker
- Service Disconnect: Required near point of operation per NEC requirements
Environmental & Installation Notes
- Location: Indoor installation only
- Operating Temperature: 41 degrees F to 104 degrees F (5 degrees C to 40 degrees C)
- Professional Installation: Must be installed by qualified personnel following manufacturer installation manual
- Permits: Verify local code compliance and permit requirements before installation
Shipping & Delivery
Freight Coverage
Shipping: Ships via LTL freight. Many authorized dealers offer free freight shipping to commercial addresses within the contiguous United States.
Delivery Timeframe: 12-21 business days from order placement (subject to inventory availability and delivery location).
Delivery Requirements
Unloading Equipment: Forklift or loading dock required for unloading freight shipment.
Liftgate Service: May be available at additional cost for locations without forklift access.
Receiving: Inspect all packages before signing bill of lading. Note any visible damage on BOL before driver departs.
Warranty Coverage
Challenger 5-2-1 Warranty Program
5 Years - Structural Parts: Coverage for columns, carriages, base plates, and primary structural components against defects in materials and workmanship.
2 Years - Functional Parts: Coverage for hydraulic cylinders, power unit, cables, sheaves, and operating components.
1 Year - Labor: Coverage for labor costs associated with warranty repairs during the first year of ownership.
Warranty Requirements
Registration: Product registration required within 30 days of purchase to activate warranty coverage.
Installation: Must be installed by authorized installer following manufacturer installation manual.
Extended Warranty: Available to extend functional parts coverage to 5 years total.
Ready to Upgrade Your Shop?
Get expert guidance on the Challenger CL10V3-2-DPC for your facility. Our team can help with product selection, installation planning, concrete requirements, and technical specifications. Call to confirm included accessories and verify compatibility with your service bay dimensions.
Frequently Asked Questions
What is the lifting capacity of the Challenger CL10V3-2-DPC?
The CL10V3-2-DPC has a maximum lifting capacity of 10,000 lb (4,536 kg) with 2,500 lb capacity per arm. This ALI Certified capacity rating handles passenger cars, crossovers, SUVs, and light-duty pickup trucks. The weight is distributed across four lift points, with each 3-stage arm rated to support its share of the total load. This capacity covers most vehicles in dealership and independent shop service bays.
What is Versymmetric technology and how does it work?
Versymmetric allows both symmetric and asymmetric vehicle positioning in the same lift without reconfiguration. Symmetric mode centers vehicles between columns for trucks and vans requiring balanced weight distribution. Asymmetric mode positions vehicles rearward so the front doors open past the columns, providing better access for passenger car service. The 3-stage front arms reach 20 to 42 inches while rear arms reach 37.625 to 60 inches to accommodate both configurations.
What are the concrete requirements for installing this lift?
The lift requires a minimum 4-inch thick concrete floor reinforced with steel, rated at 3,500 PSI minimum compressive strength. The concrete must be cured at least 28 days before installation and level within 3/8 inch across the installation area. Anchors cannot be placed within 8 inches of any crack, edge, or expansion joint. These specifications ensure the foundation can handle the 10,000 lb capacity plus dynamic loading during lift cycles.
What ceiling height is required for the CL10V3-2-DPC with 2-foot extensions?
The minimum ceiling height is 13 feet 9 inches for the 2-foot extension model. The overall lift height with extensions is 158 to 164 inches depending on the width configuration selected during installation. This accommodates the full 74.125 inch rise height plus overhead clearance for the limit switch assembly. The recommended bay dimensions are 12 feet minimum width and 24 feet minimum depth for proper vehicle maneuvering.
What electrical service does this lift require?
The CL10V3-2-DPC operates on 208-230V AC single-phase power at 60 Hz, requiring a dedicated 30-amp double pole breaker. A service disconnect must be installed near the point of operation per NEC requirements. The 2 HP motor runs on standard single-phase power available in most commercial shop electrical systems, so no 3-phase power upgrade is needed. Have a licensed electrician verify your panel capacity before installation.
What safety certifications does the Challenger CL10V3 have?
The lift is ALI Certified by the Automotive Lift Institute and ETL Certified by Intertek. It is designed to meet the ANSI/ALI ALCTV-2017 standard for automotive lifts. Built-in safety features include a single-point mechanical lock release system, automatic arm restraints that secure arms during lifting, an overhead shut-off switch to prevent over-travel, and rubber door guards on the columns. These certifications are often required for shop insurance compliance.
What is included with the CL10V3-2-DPC lift?
Standard equipment includes the two-post lift with Versymmetric arms, factory-installed 2-foot column extensions, dual pendant controls for operation from either column, 3-stage front and rear arms, double telescoping screw pads with 3.875 to 6.125 inch height adjustment, synchronizer cables, 2 HP power unit rated for 208-230V single-phase, mounting hardware and anchors, overhead limit switch assembly, and installation documentation. Hydraulic fluid (3 gallons required) is not included.
What is the warranty coverage on this Challenger lift?
The Challenger 5-2-1 warranty provides 5 years coverage on structural parts including columns and carriages, 2 years on functional parts including hydraulic cylinders and the power unit, and 1 year of labor coverage for warranty repairs. Registration is required within 30 days of purchase to activate coverage. The lift must be installed by an authorized installer following the manufacturer manual. Extended warranty options are available to extend functional parts coverage to 5 years total.
