Challenger CL10-XP9-QC Two-Post Lift 9,000 lb Quick Cycle Express
- Authorized Online Dealer direct manufacturer relationship
- No Sales Tax outside PA where applicable
- Authorized Dealer Price Match verification required
- Fast Delivery some products may have lead times
- Manufacturer Warranty included with purchase
- Questions? +1 (855) 498-2147

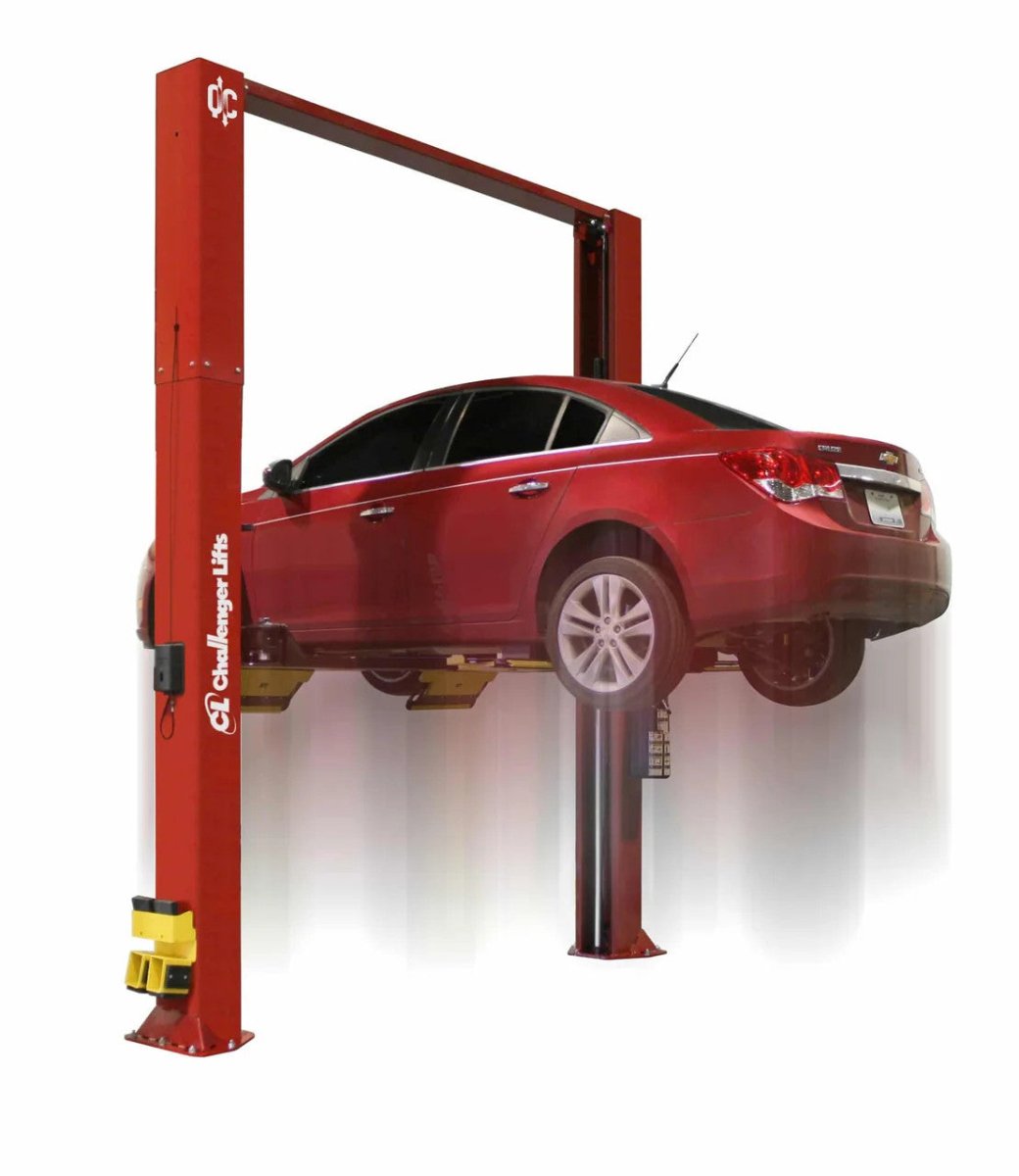

Challenger CL10-XP9-QC 9,000 lb Two-Post Lift for Express Service Operations
The Challenger CL10-XP9-QC is a 9,000 lb capacity two-post lift engineered specifically for high-volume express service bays. Featuring Quick Cycle hydraulics that deliver a 27-second rise time and low-profile drive-on express pads, this lift eliminates arm positioning steps to maximize vehicle throughput. The 3 HP Bucher power unit powers rapid cycling while flip-up ramp extensions accommodate wheelbases from 58" to 75". ALI and ETL certified to ANSI/ALI ALCTV-2011 standards, the CL10-XP9-QC is backed by Challenger's 5-year structural warranty for professional quick lube, tire service, and brake operations.
Challenger CL10-XP9-QC Features
Quick Cycle Hydraulic Speed System
The Quick Cycle hydraulic system delivers a 27-second rise time and 17-second descent, powered by a 3 HP motor with Bucher power unit. This represents a significant improvement over the standard 38-second rise time on non-QC variants, enabling measurably faster vehicle throughput for express service operations processing high daily volumes.
Drive-On Express Pad Design
Low-profile drive-on express pads with 24" platform width and 58" to 75" length options allow vehicles to drive directly onto the lift without manual arm positioning. This eliminates the time-consuming process of positioning swing arms under lift points, enabling first-try accurate spotting that reduces bay cycle times and operator frustration during high-volume shifts.
Flip-Up Ramp Extension System
Lockable flip-up ramps extend platform length from 58" to 75", accommodating longer wheelbases without separate accessories or adapter kits. The ramp mechanism locks securely in both extended and stowed positions, allowing operators to quickly adjust platform length between vehicles without tools or additional equipment.
ALI/ETL Dual Certification
The CL10-XP9-QC carries both ALI (Automotive Lift Institute) and ETL certification, verified compliant with ANSI/ALI ALCTV-2011 and ANSI/ALI ALOIM-2008 standards. These independent third-party certifications document that the lift meets established safety and performance requirements, providing documented compliance for insurance, inspection, and liability purposes.
Heavy-Duty 9,000 lb Capacity
The 9,000 lb rated capacity with 2,500 lb maximum per arm handles the full range of light-duty vehicles including passenger cars, trucks, SUVs, and vans. This capacity accommodates everything from compact cars to full-size pickup trucks commonly serviced in express lanes without approaching load limits.
5-Year Structural Warranty
The tiered warranty structure provides 5 years coverage on structural components including carriage, columns, column extensions, arms, runways, and plungers. Functional parts coverage extends 2 years for power units, cylinders, sheaves, hoses, cables, and controls, with 1 year labor coverage included. Extended warranty options are available within 30 days of purchase.
Challenger CL10-XP9-QC Applications
- Express Service Bays: Oil changes, fluid services, and multi-point inspections requiring fast vehicle positioning and high daily throughput where the Quick Cycle system and drive-on pads maximize vehicles serviced per shift.
- Quick Lube Operations: High-volume oil change facilities where cycle time directly impacts revenue capacity. The 27-second rise time and eliminated arm positioning steps translate to measurable throughput gains.
- Tire Service Centers: Tire rotation, balancing, and replacement operations for passenger vehicles, trucks, and SUVs up to 9,000 lb. Drive-on pads provide consistent wheel access positioning.
- Brake Service: Brake pad replacement, rotor inspection, and brake system service on light-duty vehicles. The platform design provides full undercarriage access for brake component inspection and replacement.
- Dealership Quick-Service Departments: Factory-scheduled maintenance and express service lanes in automotive dealerships handling manufacturer-recommended service intervals at volume.
- Fleet Maintenance Facilities: Scheduled service and inspection of fleet vehicles including cars, trucks, SUVs, and vans up to 9,000 lb where consistent throughput supports fleet uptime requirements.
Challenger CL10-XP9-QC Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 9,000 lb |
| Maximum Per Arm | 2,500 lb |
| Specification | Value |
|---|---|
| Rise Time | 27 seconds |
| Descent Time | 17 seconds |
| Specification | Value |
|---|---|
| Platform Width | 24" |
| Platform Length (Standard) | 58" |
| Platform Length (Extended) | 75" |
| Specification | Value |
|---|---|
| Motor | 3 HP |
| Power Unit | Bucher |
| Certification | Standard |
|---|---|
| ALI Certified | ANSI/ALI ALCTV-2011 |
| ETL Certified | ANSI/ALI ALOIM-2008 |
Challenger CL10-XP9-QC Installation Requirements
Electrical Requirements
Power: 208-230V single-phase electrical supply required for the 3 HP motor. A licensed electrician must install and verify the electrical supply meets manufacturer specifications before operation.
Concrete Foundation
Anchoring: Minimum 4" thick concrete with 3,000 PSI compressive strength required. Concrete must be fully cured, unreinforced in anchor locations, and free of cracks or voids. Consult installation manual for specific anchor bolt specifications and torque requirements.
Space Requirements
Platform Width: 24". Platform Length: 58" to 75" with flip-up extensions. Ensure adequate ceiling height for full lift rise plus vehicle height, and sufficient bay width for door opening clearance on both sides of lifted vehicles.
Professional Installation
Professional installation by a qualified lift technician is recommended to ensure proper setup, safety system verification, and warranty compliance. Improper installation may void warranty coverage and create safety hazards.
What's Included with the Challenger CL10-XP9-QC
- Complete two-post lift with columns and carriages
- Low-profile drive-on express pads (24" x 58")
- Flip-up ramp extensions (extends to 75")
- 3 HP Bucher hydraulic power unit
- Quick Cycle hydraulic system
- Safety lock system
- Anchor bolts and hardware
- Installation and operation manual
Optional Accessories: Extended warranty coverage, wheel alignment accessories, and drip trays available separately.
Not Included: Electrical work, concrete work, installation labor, and any site preparation required for proper installation.
Challenger CL10-XP9-QC Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Ships within 5-10 business days. International: Contact sales for international shipping quotes.
Delivery Requirements
Unloading: Forklift or loading dock required for unloading. Delivery Type: Curbside delivery standard - driver will not unload or move equipment inside. Inspection: Inspect all packages for damage before signing the bill of lading. Note any visible damage on the delivery receipt immediately.
Returns
Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. 20% restocking fee applies. Buyer responsible for return freight costs.
Challenger CL10-XP9-QC Warranty
Challenger Lifts 5-2-1 Warranty
Challenger provides a comprehensive tiered warranty structure for the CL10-XP9-QC:
- 5 Years: Structural components including carriage, columns, column extensions, arms, runways, and plungers
- 2 Years: Functional parts including power units, cylinders, sheaves, hoses, cables, and controls
- 1 Year: Labor coverage for warranty repairs
Requirements: Warranty requires proper installation per manufacturer specifications and regular maintenance per the operation manual. Extended warranty options are available within 30 days of purchase to extend functional parts coverage to 5 years total.
Documents
Click to open in a new tab.
Questions About the Challenger CL10-XP9-QC?
Our equipment specialists can help with installation planning, specifications, and product selection for your shop.
Challenger CL10-XP9-QC FAQ
What is the lifting capacity of the Challenger CL10-XP9-QC?
The Challenger CL10-XP9-QC has a total lifting capacity of 9,000 lb with a maximum of 2,500 lb per arm. This capacity handles passenger cars, trucks, SUVs, and vans commonly serviced in express lanes and quick lube operations.
How fast does the CL10-XP9-QC lift and lower?
The Quick Cycle hydraulic system delivers a 27-second rise time and 17-second descent. This is approximately 29% faster than the standard 38-second rise time on non-QC Challenger models, enabling higher vehicle throughput in express service operations.
What are the platform dimensions?
The drive-on express pads are 24" wide with a standard length of 58". The flip-up ramp extensions increase platform length to 75" for accommodating longer wheelbase vehicles without additional accessories.
What electrical power is required?
The CL10-XP9-QC requires 208-230V single-phase electrical supply for the 3 HP Bucher power unit. A licensed electrician must install and verify the electrical connection meets specifications before operation.
What concrete requirements must be met for installation?
The lift requires a minimum 4" thick concrete foundation with 3,000 PSI compressive strength. The concrete must be fully cured, unreinforced in anchor locations, and free of cracks or voids. Refer to the installation manual for specific anchor bolt requirements.
Is the Challenger CL10-XP9-QC ALI certified?
Yes, the CL10-XP9-QC carries both ALI (Automotive Lift Institute) and ETL certification. It is verified compliant with ANSI/ALI ALCTV-2011 and ANSI/ALI ALOIM-2008 standards through independent third-party testing.
What warranty coverage is included?
Challenger provides a 5-2-1 warranty structure: 5 years on structural components (carriage, columns, arms, runways, plungers), 2 years on functional parts (power unit, cylinders, hoses, cables, controls), and 1 year of labor coverage. Extended warranty options are available within 30 days of purchase.
What is included with the lift?
The CL10-XP9-QC includes the complete two-post lift with columns and carriages, low-profile drive-on express pads, flip-up ramp extensions, 3 HP Bucher hydraulic power unit, Quick Cycle hydraulic system, safety locks, anchor bolts, hardware, and the installation manual. Electrical work, concrete work, and installation labor are not included.
How is the lift shipped and delivered?
The CL10-XP9-QC ships via freight with free delivery to commercial addresses in the 48 contiguous United States. Delivery is curbside standard, requiring a forklift or loading dock for unloading. Lead time is typically 5-10 business days.
What makes this lift different from standard two-post lifts?
The CL10-XP9-QC is specifically designed for express service operations. The drive-on express pads eliminate manual arm positioning required by traditional swing-arm two-post lifts, and the Quick Cycle hydraulics provide faster rise and descent times for higher throughput in quick lube and tire service applications.
Can I extend the warranty coverage?
Yes, Challenger offers extended warranty options that can extend functional parts coverage from 2 years to 5 years total. Extended warranty must be purchased within 30 days of the original equipment purchase.
Is professional installation required?
While professional installation is not strictly required, it is strongly recommended. Proper installation by a qualified lift technician ensures correct setup, safety system verification, and maintains warranty coverage. Improper installation may void the warranty and create safety hazards.
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including styrene and vinyl chloride, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.p65warnings.ca.gov.
