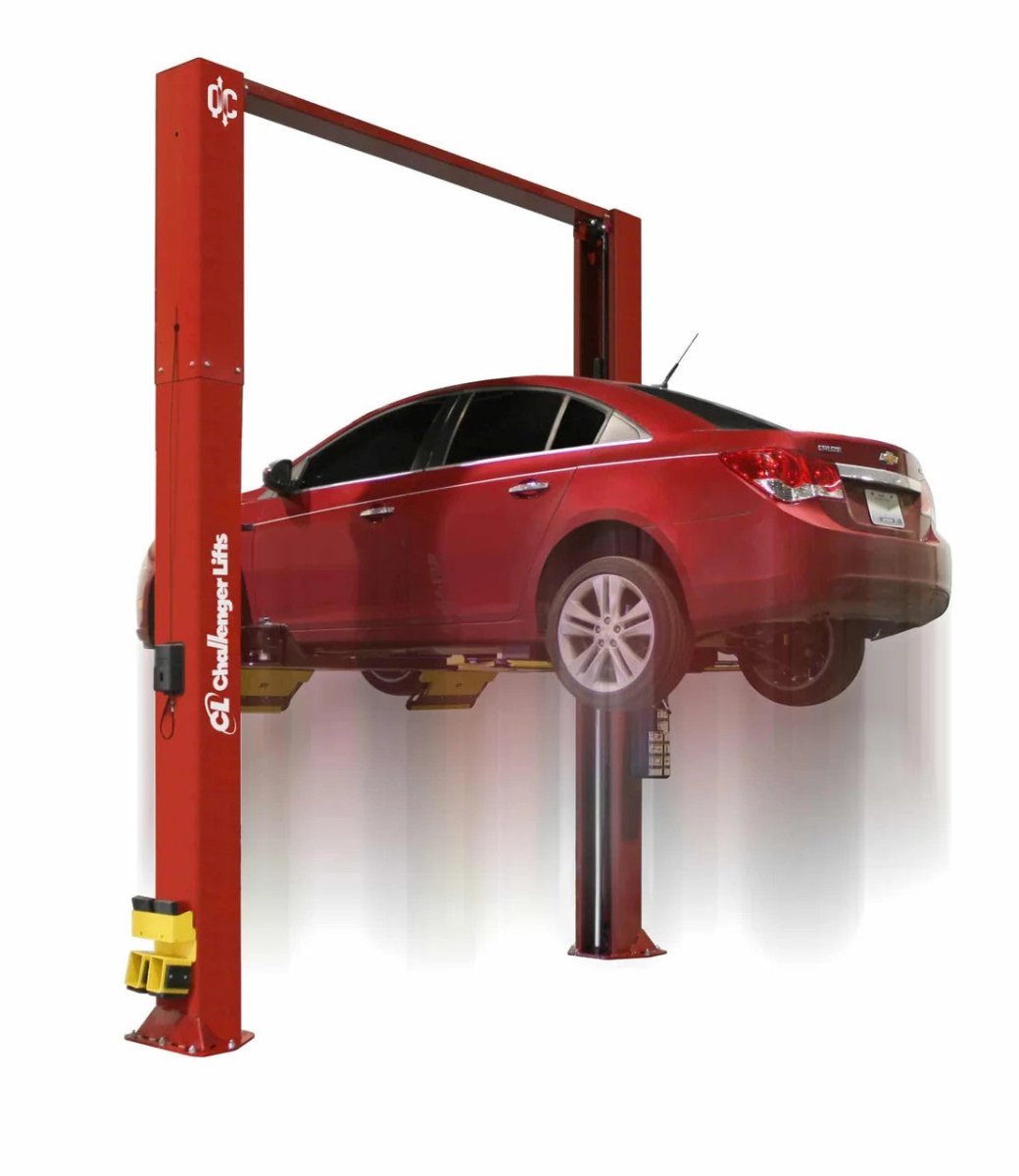

CHALLENGER LIFTS CL10-XP9-QC 9000 Lbs, Drive On Style Two Post Lifts W/ Quick Cycle
Challenger CL10-XP9-QC - 9,000 lb Quick Cycle Two-Post Lift for Express Service Bays
The Challenger CL10-XP9-QC delivers 9,000 lb lifting capacity with Quick Cycle hydraulics engineered for high-volume express service operations. Featuring low-profile drive-on express pads, a 27-second rise time, and flip-up ramp extensions, this ALI/ETL certified two-post lift handles cars, trucks, SUVs, and vans for quick lube, tire service, brake work, and inspection lanes.
Key Features & Benefits
Quick Cycle Hydraulic Speed System
The Quick Cycle hydraulic system delivers a 27-second rise time and 17-second descent, powered by a 3 HP motor with Bucher power unit. This represents a significant improvement over the standard 38-second rise time on non-QC variants, enabling measurably faster vehicle throughput throughout the workday.
Express service bays processing high vehicle volumes face constant pressure to reduce cycle times without compromising safety. The Quick Cycle system addresses this operational challenge by accelerating both lifting and lowering phases while maintaining full load capacity and safety lock engagement.
This enables additional vehicles serviced per shift in quick lube, tire rotation, and brake service operations. For facilities running multiple bays, the cumulative time savings translate directly to increased daily throughput and revenue capacity.
Drive-On Express Pad Design
Low-profile drive-on express pads with 24 inch platform width and 58 to 75 inch length options allow vehicles to drive directly onto the lift without manual arm positioning. The pads accommodate standard passenger vehicles, trucks, SUVs, and vans within the 9,000 lb rated capacity.
Traditional swing-arm two-post lifts require technicians to manually position each arm under the vehicle's lift points before every service. This process adds time, introduces positioning errors, and creates operator frustration during high-volume shifts. The drive-on pad configuration eliminates these steps entirely.
This enables first-try accurate spotting that reduces bay cycle times and operator frustration. Technicians simply guide the vehicle onto the pads and engage the lift, streamlining the workflow for repetitive express services.
Flip-Up Ramp Extension System
Lockable flip-up ramps extend platform length from 58 inches to 75 inches, accommodating longer wheelbases without separate accessories or adapter kits. The ramp mechanism locks securely in both extended and stowed positions for safe operation across different vehicle configurations.
Express service facilities routinely handle vehicles ranging from compact cars to full-size trucks and SUVs. Fixed-length platforms force operators to choose between optimal positioning for small vehicles or adequate coverage for larger ones, often requiring supplemental adapters that slow the workflow.
This eliminates the need for separate extension accessories while providing flexibility to handle the full range of light-duty vehicles. Operators can quickly adjust platform length between vehicles without tools or additional equipment.
ALI/ETL Dual Certification
The CL10-XP9-QC carries both ALI (Automotive Lift Institute) and ETL certification, verified compliant with ANSI/ALI ALCTV-2011 and ANSI/ALI ALOIM-2008 standards. These independent third-party certifications document that the lift meets established safety and performance requirements.
Budget import lifts frequently claim compliance with industry standards but lack independent verification. Without third-party testing, operators have no assurance that the lift actually performs to the specifications claimed or meets safety requirements under real-world loading conditions.
This provides documented safety compliance that distinguishes the Challenger CL10-XP9-QC from unverified alternatives. Facilities can demonstrate due diligence for insurance, inspection, and liability purposes with independently certified equipment.
5-Year Structural Warranty
The tiered warranty structure provides 5 years coverage on structural components including carriage, columns, column extensions, arms, runways, and plungers. Functional parts coverage extends 2 years for power units, cylinders, sheaves, hoses, cables, and controls, with 1 year labor coverage included.
Typical import-brand alternatives offer 1-year coverage that leaves operators exposed to repair costs shortly after installation. The 5-2-1 warranty structure provides substantially longer protection on the components most critical to lift longevity and safety.
This reduces long-term ownership risk and demonstrates manufacturer confidence in build quality. Extended warranty options are available within 30 days of purchase to extend functional parts coverage to 5 years total.
Applications & Use Cases
- Express Service Bays: Oil changes, fluid services, and multi-point inspections requiring fast vehicle positioning and high daily throughput
- Quick Lube Operations: High-volume oil change facilities where cycle time directly impacts revenue capacity
- Tire Service Centers: Tire rotation, balancing, and replacement operations for passenger vehicles, trucks, and SUVs
- Brake Service: Brake pad replacement, rotor inspection, and brake system service on light-duty vehicles
- Dealership Quick-Service Departments: Factory-scheduled maintenance and express service lanes in automotive dealerships
- Fleet Maintenance Facilities: Scheduled service and inspection of fleet vehicles including cars, trucks, SUVs, and vans up to 9,000 lb
Technical Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 9,000 lb (4,082 kg) |
| Max Load per Arm | 2,500 lb (1,134 kg) |
| Rise Height | 70 in (1,778 mm) |
| Rise Time (Quick Cycle) | 27 seconds |
| Lower Time (Quick Cycle) | 17 seconds |
| Low Lock Height | 12 in net rise |
| Specification | Value |
|---|---|
| Overall Height (Standard) | 140 in / 11 ft 8 in (3,556 mm) |
| Overall Height (Cylinder Extended) | 143 in / 11 ft 11 in (3,632 mm) |
| Adjustable Overall Width | 138.5 in (11 ft 6.5 in - 11 ft 11 in) |
| Drive-Thru Clearance | 90 in (2,286 mm) |
| Inside of Columns | 110 in (2,794 mm) |
| Platform Length Options | 58 in / 66.5 in / 75 in |
| Platform Width | 24 in (610 mm) |
| Carriage Length | 48 in (1,219 mm) |
| Specification | Value |
|---|---|
| Motor | 3 HP |
| Power Requirements | 208-230V, 60Hz, 1-Phase |
| Minimum Breaker | 20 Amp |
| Pulley Diameter | 5 in (127 mm) |
| Cable Diameter | 5/16 in (8 mm) |
| Shipping Weight | 1,400 lb (635 kg) |
What's Included
- Two-post lift base unit - CL10-XP9 configuration with drive-on express pads
- Quick Cycle hydraulic system - 3 HP motor with Bucher power unit
- Flip-up ramps - Extends platform length for longer wheelbases
- (4) 1.5 in rubber spotting blocks
- (4) 3 in rubber spotting blocks
- (2) Spotting block storage caddies - Column-mounted
- Padded overhead shutoff bar system
- Dual integrated rubber door guards
- Installation hardware
- Installation, Operation & Maintenance Manual
Installation Requirements
Ceiling Height Requirements
- Standard Model: 12 ft minimum ceiling height
- With 2 ft Column Extensions: 14 ft minimum ceiling height
- With 3 ft Column Extensions: 15 ft minimum ceiling height
Concrete Foundation
- Thickness: 4 in minimum, reinforced
- Strength: 3,500+ PSI rating
- Curing: Minimum 28 days cured
- Condition: Free from cracks and seams
- Level: Floor level within 3/8 in over installation area
- Anchor Placement: No anchors within 12 in of cracks or spalls
- Anchor Torque: 80 ft-lbs
Electrical Requirements
- Voltage: 208-230V, single-phase, 60Hz
- Circuit Breaker: 20 Amp minimum (current Bucher power unit)
- Optional: 3-phase power available
Recommended Bay Layout
- Service Bay Dimensions: 12 ft H x 14 ft W x 24 ft D
- Professional Installation: Installation by authorized Challenger installer required for warranty validity
Shipping & Delivery
Freight Information
Shipping Method: LTL freight delivery via 48-foot semi truck.
Delivery Timeframe: 12-21 days depending on location and inventory availability.
Delivery Requirements
Unloading Equipment: Forklift or hoist required for unloading (mandatory). Liftgate service is not available for auto lifts.
Receiver Charge: $135 charge applies if customer lacks unloading equipment upon delivery arrival.
Receiving: Inspect all packages before signing bill of lading. Note any visible damage on BOL before driver departs.
Warranty Coverage
5-2-1 Warranty Program
5 Years - Structural Parts: Carriage, columns, column extensions, arms, runways, and plungers
2 Years - Functional Parts: Power units, cylinders, sheaves, hoses, cables, and controls - exceeds typical 1-year industry standard
1 Year - Labor: Installation and service labor coverage
Warranty Requirements
Registration: Product registration required at challengerlifts.com/register-your-lift
Installation: Must be performed by authorized Challenger installer for warranty validity
Extended Warranty: Available within 30 days of invoice - extends functional parts coverage to 5 years total
Ready to Upgrade Your Shop?
Get expert guidance on the right lift for your facility. Our team can help with product selection, installation planning, and technical specifications.
Frequently Asked Questions
What is the lifting capacity of the Challenger CL10-XP9-QC?
The CL10-XP9-QC has a 9,000 lb (4,082 kg) total lifting capacity with a maximum of 2,500 lb (1,134 kg) per arm. This capacity handles the full range of light-duty vehicles including passenger cars, pickup trucks, SUVs, crossovers, and full-size vans. The 9K rating places this lift in the express service category, optimized for high-volume quick lube and tire service operations rather than heavy truck or commercial vehicle applications.
How fast does the Quick Cycle system raise and lower vehicles?
The Quick Cycle hydraulic system delivers a 27-second rise time and 17-second descent, powered by a 3 HP motor with Bucher power unit. This represents a 29% improvement over the standard 38-second rise time on non-QC Challenger models. For express service bays cycling 40+ vehicles per day, the cumulative time savings translates to additional vehicles serviced per shift and measurably higher throughput capacity.
What are the concrete requirements for the CL10-XP9-QC?
The lift requires 4 inch thick reinforced concrete with a minimum 3,500 PSI rating, cured at least 28 days. The floor must be level within 3/8 inch over the installation area, free from cracks and seams. Anchor bolts must be torqued to 80 ft-lbs.
What ceiling height is required for installation?
The standard model requires 12 ft minimum ceiling height, with the lift standing 140 in (11 ft 8 in) at rest and 143 in (11 ft 11 in) with cylinder fully extended. With 2 ft column extensions, 14 ft minimum is required. With 3 ft column extensions, 15 ft minimum ceiling height is needed. The recommended service bay layout is 12 ft H x 14 ft W x 24 ft D to allow adequate clearance for vehicle access and technician movement.
What electrical circuit is needed for the CL10-XP9-QC?
The lift requires 208-230V, single-phase, 60Hz power with a minimum 20 Amp dedicated circuit breaker. The current Bucher power unit reduced the breaker requirement from the previous 30 Amp specification, improving compatibility with existing shop electrical infrastructure and lowering installation costs. Three-phase power conversion is optionally available for facilities with 3-phase service. Consult a licensed electrician to verify circuit capacity and ensure compliance with local electrical codes.
What certifications does the CL10-XP9-QC carry?
The lift carries both ALI (Automotive Lift Institute) and ETL certification, verified compliant with ANSI/ALI ALCTV-2011 for construction and testing and ANSI/ALI ALOIM-2008 for operation, inspection, and maintenance. This dual third-party certification provides documented safety compliance that matters for insurance coverage, OSHA inspections, and liability protection. It distinguishes this lift from budget imports that claim standards compliance without independent verification testing.
What is included with the CL10-XP9-QC lift?
The lift includes the two-post base unit with drive-on express pads, Quick Cycle hydraulic system, flip-up ramps, four 1.5 inch and four 3 inch rubber spotting blocks, two column-mounted storage caddies, padded overhead shutoff bar, dual rubber door guards, installation hardware, and the installation manual.
What warranty coverage does the CL10-XP9-QC include?
The 5-2-1 warranty provides 5 years coverage on structural parts (carriage, columns, arms, runways, plungers), 2 years on functional parts (power unit, cylinders, hoses, cables, controls), and 1 year labor. Extended warranty available within 30 days of purchase. Installation by authorized Challenger installer and product registration required.
