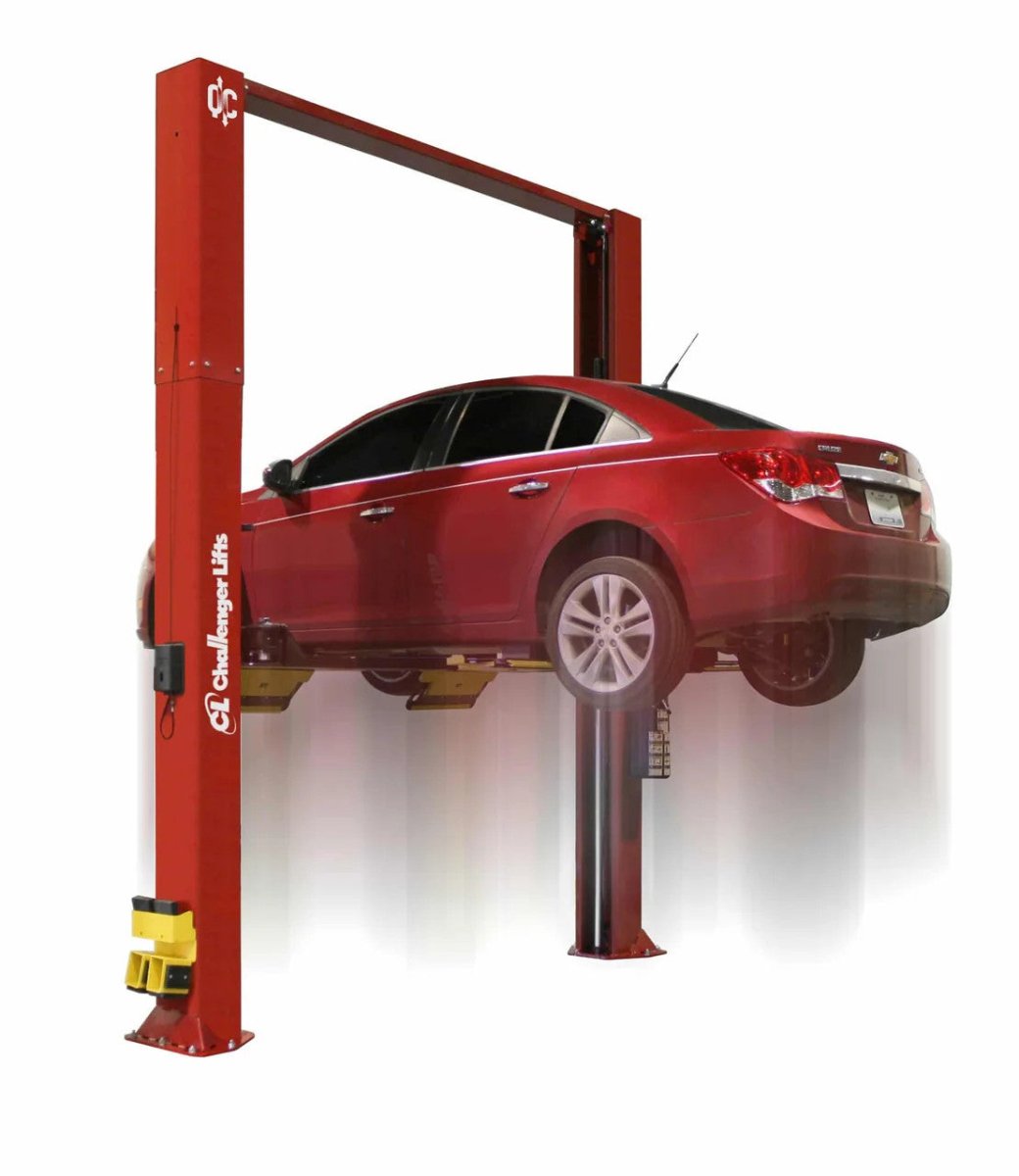

Challenger CL10-XP9 Drive-On Two-Post Lift 9000 lb
Challenger CL10-XP9 9,000 lb Drive-On Two-Post Lift for Express Service Bays
The Challenger CL10-XP9 is a 9,000 lb capacity surface-mounted two-post lift featuring drive-on express service pads that eliminate manual arm positioning for rapid vehicle spotting. Engineered for high-throughput environments like quick lube centers, tire shops, and express maintenance bays, this American-made lift delivers 70 inches of rise height with a low-profile 2.25-inch platform height that accommodates virtually any street-legal vehicle. The CL10-XP9 is ALI Certified and ETL Listed for commercial compliance and backed by Challenger's warranty and US-based support from their Louisville, Kentucky facility.
Challenger CL10-XP9 Features
Drive-On Express Pad Design
The CL10-XP9's drive-on express pads eliminate manual arm positioning entirely, allowing technicians to spot vehicles on the first try without adjusting swing arms or adapters. The 24-inch wide platforms with reinforced front and rear flip-up access ramps accommodate a wide range of wheelbases while converting arm positioning time to zero. In express service environments processing 40+ vehicles daily, this design translates to significant productivity gains.
Optional QuickCycle Speed Technology
The optional QuickCycle configuration delivers 27-second rise time and 17-second descent, cutting cycle times by 50% or more versus conventional lift systems. This enhanced power unit maintains smooth, controlled operation throughout the full 70-inch rise height, directly impacting the number of vehicles a single bay can process per hour without additional equipment investment.
Low-Profile Platform Architecture
The 2.25-inch platform height represents one of the lowest approach profiles available in drive-on two-post designs. This minimized height reduces the risk of undercarriage contact during vehicle approach, accommodating lowered vehicles, sport packages, and aftermarket suspension modifications that would scrape on taller 3-4 inch platform designs commonly found on standard drive-on lifts.
Configurable Platform Length System
The flip-up ramp design enables platform length adjustment from 58 inches to 75 inches without equipment changes or adapter swaps. Three length options (58 in, 66.5 in, and 75 in) accommodate wheelbases ranging from compact cars to full-size trucks within a single lift configuration. The 90-inch drive-thru clearance and 110-inch column spacing further expand the range of vehicles that can be serviced.
ALI/ETL Dual Certification
The CL10-XP9 carries both ALI Gold Label Certification (Automotive Lift Institute) and ETL Listing (Intertek), meeting ANSI/ALI ALCTV safety standards and UL 201 electrical safety requirements. These certifications verify third-party testing of structural integrity, safety mechanism function, and electrical system compliance, enabling commercial operators to satisfy insurance requirements and pass facility inspections.
American Manufacturing and Support
The CL10-XP9 is manufactured in Louisville, Kentucky by Challenger Lifts, a company founded in 1992. US-based parts inventory, an authorized installer network, and technical support available at (502) 625-0700 ensure consistent quality control and reduced supply chain delays. The authorized installer network ensures proper installation by trained technicians, which is required to activate full warranty coverage.
Challenger CL10-XP9 Applications
- Quick Lube and Oil Change Centers: High-volume express oil change operations requiring rapid vehicle cycling and minimal technician training for vehicle positioning. The drive-on design eliminates the 30-60 seconds typically spent positioning swing arms on each vehicle.
- Tire Rotation and Balancing Stations: Tire service facilities performing wheel-off services where drive-on access provides immediate wheel accessibility without arm interference or repositioning between services.
- Brake Inspection and Service: Brake service bays requiring full wheel and brake system access with vehicles securely positioned at working height for comprehensive inspections and repairs.
- State Inspection Check Lanes: Vehicle inspection stations processing high volumes where consistent, rapid vehicle positioning improves throughput and reduces customer wait times throughout the day.
- Express Maintenance Bays: Multi-point inspection and light maintenance operations in dealership service departments and independent shops where speed and efficiency directly impact revenue.
- Fleet Maintenance Operations: Commercial fleet service facilities maintaining passenger cars, light trucks, SUVs, crossovers, and vans within the 9,000 lb capacity rating.
Challenger CL10-XP9 Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 9,000 lb |
| Capacity Per Platform | 4,500 lb |
| Specification | Value |
|---|---|
| Rise Height | 70" |
| Platform Height (Lowered) | 2.25" |
| Platform Width | 24" |
| Platform Length (Adjustable) | 58" / 66.5" / 75" |
| Drive-Thru Clearance | 90" |
| Overall Column Spacing | 110" |
| Specification | Value |
|---|---|
| Rise Time (Standard) | 45-60 seconds |
| Rise Time (QuickCycle Option) | 27 seconds |
| Descent Time (QuickCycle Option) | 17 seconds |
| Specification | Value |
|---|---|
| ALI Certification | ALI Gold Label Certified |
| ETL Listing | ETL Listed (Intertek) |
| Standards Compliance | ANSI/ALI ALCTV, UL 201 |
Challenger CL10-XP9 Installation Requirements
Electrical Requirements
Power: Single-phase or three-phase power supply required (verify specific requirements with sales team based on configuration). A licensed electrician must install and verify the electrical supply before lift operation.
Concrete Foundation
Anchoring: Minimum 4" thick concrete with 3,000 PSI compressive strength required. Concrete must be properly cured and free of cracks or voids at anchor locations. Surface-mounted installation requires appropriate anchor hardware provided with lift.
Space Requirements
Column Spacing: 110" overall width. Drive-Thru Clearance: 90" between columns. Ensure adequate ceiling height for full 70" rise plus vehicle height, and allow sufficient approach distance for safe vehicle positioning onto platforms.
Professional Installation
Professional installation by a Challenger authorized installer is required to activate full warranty coverage and maintain certification compliance. Contact Challenger Lifts at (502) 625-0700 for authorized installer referrals in your area.
What's Included with the Challenger CL10-XP9
- Complete two-post lift assembly with dual columns
- Drive-on express service platforms (2)
- Reinforced flip-up access ramps (front and rear)
- Hydraulic power unit
- Hydraulic cylinders and hoses
- Safety lock system
- Anchor hardware for surface-mount installation
- Installation and operation manual
Optional Accessories: QuickCycle speed technology upgrade for 27-second rise time.
Not Included: Electrical wiring and installation, concrete work or floor preparation, professional installation labor, permits or inspections required by local codes.
Challenger CL10-XP9 Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Ships from Louisville, Kentucky; typical lead time is 5-10 business days depending on inventory. International: Contact sales for international shipping quote.
Delivery Requirements
Unloading: Forklift or loading dock required for unloading. Delivery Type: Curbside delivery standard; liftgate service available for additional fee if needed. Inspection: Inspect all packages for damage before signing BOL. Note any visible damage on delivery receipt and photograph if necessary.
Returns
Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. 20% restocking fee applies. Buyer responsible for return freight costs.
Challenger CL10-XP9 Warranty
Challenger Lifts Warranty Coverage
The Challenger CL10-XP9 is backed by Challenger's comprehensive warranty program designed for commercial use environments.
- Structural Components: Extended coverage on columns, runways, and major structural elements
- Hydraulic Components: Coverage on cylinders, power unit, and hydraulic system
- Mechanical Components: Coverage on locks, cables, and safety systems
Requirements: Warranty activation requires professional installation by a Challenger authorized installer. Regular maintenance per manufacturer guidelines required. See warranty document for complete terms, exclusions, and claim procedures.
Documents
Click to open in a new tab.
Questions About the Challenger CL10-XP9?
Our equipment specialists can help with installation planning, specifications, and product selection for your shop.
Challenger CL10-XP9 FAQ
What is the lifting capacity of the Challenger CL10-XP9?
The Challenger CL10-XP9 has a total lifting capacity of 9,000 lb (4,500 lb per platform). This capacity handles passenger cars, light trucks, SUVs, crossovers, and vans commonly serviced in quick lube, tire, and express maintenance environments.
How much space do I need to install the CL10-XP9?
The CL10-XP9 requires 110 inches of overall width for column spacing and provides 90 inches of drive-thru clearance between columns. You'll also need adequate ceiling height to accommodate the 70-inch rise height plus the maximum vehicle height you plan to service, along with sufficient approach distance for safe vehicle positioning.
What are the electrical requirements for this lift?
The CL10-XP9 requires either single-phase or three-phase power depending on your specific configuration. Contact our sales team to verify the exact electrical requirements for your order. All electrical work must be performed by a licensed electrician.
Does professional installation affect the warranty?
Yes, professional installation by a Challenger authorized installer is required to activate the full warranty coverage. This ensures the lift is installed correctly and maintains its ALI/ETL certification compliance. Contact Challenger at (502) 625-0700 for authorized installer referrals.
What warranty coverage comes with the CL10-XP9?
The CL10-XP9 is backed by Challenger's comprehensive warranty covering structural components, hydraulic systems, and mechanical components. Warranty activation requires professional installation and adherence to maintenance guidelines. See the warranty document for complete terms and coverage details.
What is included with the lift purchase?
The CL10-XP9 includes the complete two-post lift assembly, dual drive-on express platforms, reinforced flip-up ramps, hydraulic power unit, cylinders and hoses, safety lock system, anchor hardware, and installation manual. The optional QuickCycle speed upgrade is available separately.
How is the lift shipped and what do I need for delivery?
The CL10-XP9 ships via freight from Louisville, Kentucky with free shipping to commercial addresses in the 48 contiguous states. You'll need a forklift or loading dock to unload the lift. Standard delivery is curbside; inspect all packages for damage before signing the bill of lading.
What is the QuickCycle option and is it worth it?
The optional QuickCycle technology reduces rise time to 27 seconds and descent to 17 seconds, cutting cycle times by 50% or more compared to standard hydraulic systems. For high-volume operations processing 40+ vehicles daily, the cumulative time savings can significantly increase bay throughput and revenue potential.
How does the CL10-XP9 compare to traditional two-post lifts?
Unlike traditional two-post lifts that require positioning four swing arms under vehicle lift points for every service, the CL10-XP9's drive-on design eliminates arm positioning entirely. Technicians simply guide vehicles onto the platforms, saving 30-60 seconds per vehicle and eliminating training requirements for proper arm placement.
Can the CL10-XP9 accommodate lowered vehicles?
Yes, the CL10-XP9 features a 2.25-inch platform height, one of the lowest profiles available in drive-on two-post designs. This accommodates lowered vehicles, sport packages, and aftermarket suspension modifications that would scrape on taller 3-4 inch platforms found on standard drive-on lifts.
What certifications does the CL10-XP9 have?
The CL10-XP9 carries both ALI Gold Label Certification from the Automotive Lift Institute and ETL Listing from Intertek. These certifications verify compliance with ANSI/ALI ALCTV safety standards and UL 201 electrical requirements, satisfying insurance requirements and facility inspection standards.
How do I adjust the platform length for different vehicles?
The flip-up ramp design allows quick platform length adjustment between three settings: 58 inches, 66.5 inches, and 75 inches. This simple mechanism takes seconds to adjust and requires no tools or adapter swaps, enabling you to service compact cars through full-size trucks on the same lift.
