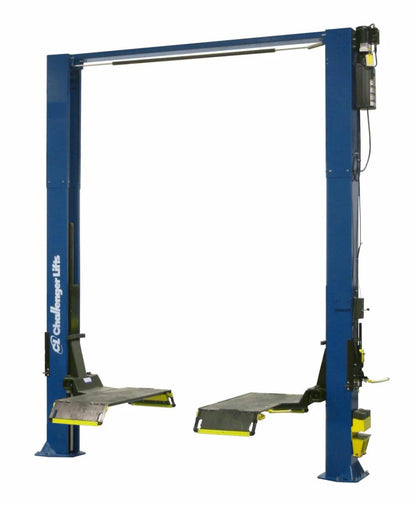

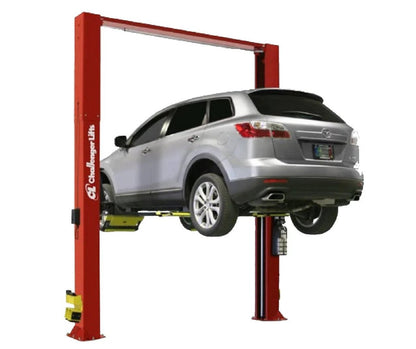

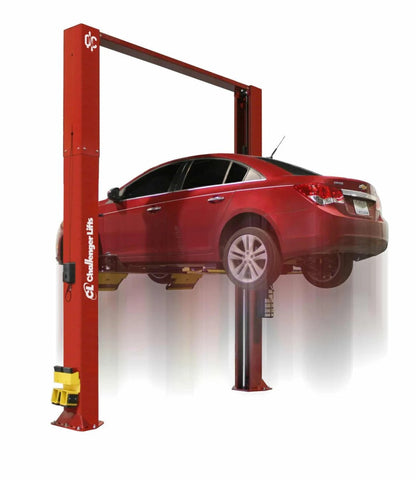

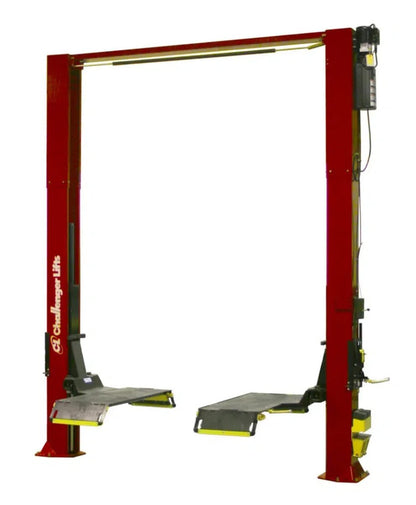

CHALLENGER LIFTS CL10-XP9-DPC-QC 9,000 lb Two-Post Lift
Challenger CL10-XP9-DPC-QC - 9,000 lb QuickCycle Two-Post Lift for Express Service Bays
The Challenger CL10-XP9-DPC-QC delivers 9,000 lb capacity in a drive-on pad configuration, engineered for high-throughput quick-lube facilities, tire shops, and express service operations. Featuring QuickCycle hydraulic technology with 27-second rise time, Dual Pendant Controls for operation from either column, and integrated flip-up ramps extending from 58 to 75 inches, this ALI/ETL certified lift handles passenger cars, SUVs, and light trucks with rapid vehicle spotting that reduces cycle time and maximizes bay productivity.
Key Features & Benefits
QuickCycle Speed Advantage
The QuickCycle hydraulic system delivers a 27-second rise time and 17-second descent, representing 40-50% improvement over standard two-post lifts that typically require 38-60 seconds per cycle. This performance is achieved through a dedicated 3 HP motor and optimized hydraulic flow paths engineered specifically for express bay environments.
In high-volume quick-lube and tire rotation operations, every second of cycle time directly impacts daily throughput and revenue. Traditional lifts create bottlenecks during peak hours when technicians wait for slow rise and descent cycles. QuickCycle technology addresses this industry-wide challenge by enabling shops to serve 12-15 additional vehicles per 8-hour shift compared to standard-speed lifts.
This enables faster oil changes, tire rotations, and brake inspections without sacrificing safety or operational precision. The accelerated cycle time translates to reduced customer wait times and increased service capacity during rush periods, directly improving bay profitability and customer satisfaction.
Drive-On Pad Rapid Spotting System
Integrated drive-on pads with reinforced flip-up ramps eliminate traditional swing-arm positioning steps, featuring a low-profile 2.25-inch platform height that accommodates low-clearance vehicles without bottoming concerns. The platform extends from 58 inches to 75 inches via three flip-up ramp positions, handling compact cars to extended-cab trucks without adapter stacking or configuration changes.
Traditional swing-arm lifts require technicians to manually position arms under each vehicle's lift points, a process taking 2-3 minutes per vehicle and requiring precise placement to avoid contact damage. Drive-on pad configuration addresses this workflow inefficiency by allowing drivers to position vehicles directly onto marked pad surfaces, reducing setup time to under 60 seconds while providing consistent, repeatable lift point engagement.
This improves express bay workflow by eliminating arm adjustment delays and enabling technicians to begin undercarriage work immediately after the vehicle is spotted. The non-skip surface pads maintain traction in wet conditions common to quick-lube environments, while integrated rubber door guards protect vehicle panels during the drive-on process.
Dual Pendant Control Workflow Efficiency
Control pendants mounted on both columns enable lift operation from either side without walking around the unit, featuring identical control interfaces with raise, lower, and safety release functions accessible from left or right positions. This dual-control configuration complements the drive-on pad design by allowing technicians to operate from their preferred approach angle based on vehicle orientation and bay layout.
Single-pendant lifts force technicians to walk to the control column regardless of where they're positioned during vehicle spotting or service operations, adding 15-30 seconds per vehicle cycle and creating inefficient movement patterns in busy express bays. Dual Pendant Controls address this workflow limitation by providing control access from both sides, enabling technicians to maintain unobstructed sightlines to lift points and operate the system without repositioning.
This reduces positioning time and improves operational safety by allowing technicians to maintain visual contact with the vehicle throughout the lifting process. The both-side accessibility is particularly valuable in multi-bay facilities where technicians service adjacent bays and need immediate control access without crossing between active work areas.
Heavy-Duty Equalization Engineering
The 48-inch elongated carriage distributes load across 20% larger bearing surface compared to standard 40-inch designs, while oversized 5-inch diameter pulleys reduce cable bending stress and extend service intervals. Heavy-duty 5/16-inch cable rated to 14,000+ lb breaking strength provides 155% safety factor above the 9,000 lb working capacity, engineered from aircraft-quality steel cable construction.
Standard two-post lifts using shorter carriages and smaller pulleys concentrate point loads on bearing surfaces, accelerating wear and requiring more frequent cable and bushing replacement. Traditional 4-inch pulleys create sharper cable bend angles that generate internal friction and heat, reducing cable service life. This lift addresses these durability challenges through component oversizing that reduces mechanical stress and extends maintenance intervals.
This enables longer service life between major component replacements and reduces total cost of ownership for high-throughput facilities. The heavy-duty equalization system maintains smooth, balanced lifting even with asymmetric loads, while the extended carriage length improves stability when lifting vehicles with uneven weight distribution common to trucks and vans.
Comprehensive ALI/ETL Dual Certification
This lift carries both ALI Gold Label certification and ETL third-party validation, confirming independent testing to ANSI/ALI ALCTV (Construction, Testing, and Validation) and ANSI/UL 201 (Garage Equipment) standards. The dual certification includes padded overhead shutoff that prevents vehicle damage and automatically cuts power, single-point mechanical lock release with double-clutch protection that disengages both columns simultaneously, and 19 safety lock positions every few inches for precise height control.
Commercial insurance providers and OSHA regulations increasingly require third-party lift certification for liability coverage and workplace compliance. Standard lifts without proper certification documentation expose facilities to coverage gaps, potential fines, and liability risks in the event of equipment failure or workplace incidents. ALI/ETL certification addresses these compliance requirements by providing independent verification that the lift meets all current safety standards and operational requirements.
This enables shops to maintain proper insurance coverage and regulatory compliance while protecting technicians and customers. The certification documentation supports facility inspections, insurance audits, and municipal permit requirements, while the validated safety systems provide operational safeguards that prevent common lift-related accidents including vehicle over-travel and uneven descent.
Complete Express Bay Package
This lift includes (8) rubber spotting blocks in two sizes - (4) 1.5-inch and (4) 3-inch heights - plus column-mounted storage caddies that organize blocks for immediate access during vehicle positioning. The package also features (4) two-position adapter blocks, integrated rubber door guards that prevent panel damage during drive-on positioning, and flip-up front and rear access ramps with reinforced construction, representing $200-300 in accessory value included in the base configuration.
Many competitive lifts ship as bare-bones units requiring separate accessory purchases that delay installation and add unexpected costs. Shops need spotting blocks immediately for proper vehicle support, storage solutions to prevent workplace clutter and trip hazards, and protective components to avoid vehicle damage during daily operations. This complete package addresses these setup requirements by including all essential accessories needed for immediate productive use.
This eliminates accessory sourcing delays and enables same-day operational readiness following installation. The included components are specifically matched to the lift's capacity and design, ensuring proper fit and performance without compatibility concerns that arise when mixing third-party accessories with OEM equipment.
Applications & Use Cases
- Express Service Bays & Quick-Lube Operations: High-volume oil changes, fluid services, and filter replacements requiring rapid vehicle turnover and minimal positioning time
- Tire Rotation & Balancing Services: Wheels-free lifting for tire removal, rotation sequences, and balancing operations on passenger cars, SUVs, and light trucks up to 9,000 lb
- Brake Service & Inspection: Undercarriage access for brake pad replacement, rotor service, caliper work, and comprehensive brake system inspections
- General Automotive Maintenance: Routine service operations including suspension inspection, exhaust system work, and undercarriage component access on vehicles within capacity range
- Vehicle Inspection Check Lanes: State inspection programs and safety certification facilities requiring efficient vehicle positioning and undercarriage visibility for compliance checks
Technical Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 9,000 lb |
| Rise Height (Maximum) | 70 inches |
| QuickCycle Rise Time | 27 seconds |
| QuickCycle Lower Time | 17 seconds |
| Low Lock Height | 12 inches net rise |
| Safety Lock Positions | Multiple positions every few inches |
| Specification | Value |
|---|---|
| Overall Height (Standard) | 140 inches (11'8") |
| Overall Height (Cylinder Extended) | 143 inches (11'11") |
| Overall Width | 138.5 inches (adjustable) |
| Inside of Columns | 110 inches to 114.5 inches |
| Drive-Through Clearance | 90 inches |
| Platform Height | 2.25 inches |
| Platform Width | 24 inches |
| Platform Length | 58 inches / 66.5 inches / 75 inches (flip-up ramp positions) |
| Carriage Design | 48-inch elongated carriage |
| Specification | Value |
|---|---|
| Motor | 3 HP (QuickCycle configuration) |
| Voltage | 208-230V, single-phase, 60 Hz |
| Electrical Circuit | 20-amp breaker (newer Bucher power units) |
| Pulley Diameter | 5 inches (oversized) |
| Cable | 5/16-inch heavy-duty diameter |
| Screw Pad Adjustment Range | 3 7/8 inches to 6 1/8 inches |
Installation Requirements
Concrete Foundation
- Minimum Thickness: 4 inches (6 inches recommended for 9,000 lb capacity)
- Concrete Strength: 3,500 PSI minimum
- Reinforcement: Steel reinforcement required per local building codes
- Curing Time: 28 days minimum before anchor installation
- Floor Condition: No large cracks, spalling, expansion joints, or deterioration near anchor points
- Levelness: Within 3/8 inch across installation area
Anchoring Specifications
- Anchor Bolt Size: 3/4-inch diameter
- Anchor Embedment: Minimum 4 inches depth
- Anchor Torque: 80 ft-lbs (requires monthly inspection and verification)
- Drill Hole Depth: Minimum 4.5 inches; through-slab when possible
- Edge Clearance: No anchors within 8 inches of cracks, edges, or joints
Clearance & Bay Dimensions
- Ceiling Height: 12 feet minimum (standard model)
- Recommended Bay Width: 14 feet
- Recommended Bay Depth: 24 feet
- Height Extensions Available: 2-foot extension (requires 13'3" to 13'9" ceiling) or 3-foot extension (requires 14'3" to 14'9" ceiling)
Electrical Requirements
- Circuit: Dedicated 20-amp circuit (newer Bucher power units; some older configurations may require 30-amp)
- Voltage: 220V-230V single-phase as specified
- Grounding: Per NEC and local electrical codes
Installation Notes
- Professional Installation: Qualified or authorized installer required for warranty validation
- Permits: Verify local building code compliance and permit requirements before installation
- Unloading: Forklift or hoist with adequate capacity mandatory - equipment cannot be unloaded by hand
Shipping & Delivery
Freight Coverage
Shipping Method: LTL (Less Than Truckload) freight to lower 48 states. Free freight noted by some dealers; verify coverage and any surcharges for Alaska, Hawaii, or rural delivery at time of purchase.
Shipping Weight (packaged): 2,000 lb. Verify exact weight with dealer for freight planning purposes.
Delivery Requirements
Unloading Equipment: Forklift or hoist MANDATORY for safe unloading. This equipment class cannot be unloaded by hand or with standard liftgate service.
Liftgate Service: NOT available for this equipment weight and size class. Customer must arrange forklift access at delivery location or coordinate terminal pickup.
Customer Responsibility: Unloading from truck or arranging terminal pickup. Inspect all packages before signing bill of lading and note any visible damage on BOL before driver departs.
Warranty Coverage
Tiered Warranty Program
5 Years - Structural Parts: Columns, carriage, overhead beam, arms, and ramps - exceeds typical 2-3 year industry standard for structural coverage
2 Years - Functional Parts: Power units, cylinders, cables, hoses, valves, and controls
1 Year - Labor: Labor coverage for warranty repairs during first year
Extended Warranty Option: Available for purchase within 30 days of invoice; extends functional parts coverage to 5 years total
Warranty Requirements
Registration: Product registration required within 30 days at challengerlifts.com/register-your-lift
Eligibility: Non-transferable; valid for original purchaser only
Installation: Professional installation mandatory following manufacturer installation manual; use of unauthorized parts voids coverage
Ready to Upgrade Your Express Service Bay?
Get expert guidance on the right lift configuration for your facility. Our team can help with product selection, installation planning, electrical requirements, and technical specifications. Call to confirm included accessories and verify compatibility with your specific application.
Frequently Asked Questions
What is the lifting capacity and rise height of the Challenger CL10-XP9-DPC-QC?
This lift has a 9,000 lb lifting capacity with a maximum rise height of 70 inches. The QuickCycle system delivers 27-second rise time and 17-second descent, significantly faster than standard lifts. It features low lock height at 12 inches net rise and multiple safety lock positions every few inches for precise height control.
What accessories and components are included with the CL10-XP9-DPC-QC?
The complete package includes (4) 1.5-inch rubber spotting blocks, (4) 3-inch rubber spotting blocks, (2) spotting block storage caddies, (4) two-position adapter blocks, reinforced flip-up front and rear access ramps, dual integrated rubber door guards, padded overhead shutoff system, dual pendant control units (one per column), single-point mechanical lock release, and anchor bolts with mounting hardware.
What are the concrete foundation requirements for installation?
Minimum 4-inch thick reinforced concrete (6 inches recommended for this capacity), 3,500 PSI minimum strength, 28 days minimum curing time, and levelness within 3/8 inch across the installation area. Anchors require 3/4-inch diameter bolts with 4-inch minimum embedment depth, torqued to 80 ft-lbs. No anchors should be placed within 8 inches of cracks, edges, or joints. The floor must be free of large cracks, spalling, or deterioration near anchor points.
What ceiling height and bay dimensions are required?
The standard model requires a minimum 12-foot ceiling height. Recommended bay dimensions are 14 feet wide by 24 feet deep. Optional height extensions are available: 2-foot extension requires 13'3" to 13'9" ceiling, while 3-foot extension requires 14'3" to 14'9" ceiling. The lift provides 90 inches of drive-through clearance and adjustable inside-column width from 110 inches to 114.5 inches.
What are the electrical requirements for the CL10-XP9-DPC-QC?
The QuickCycle configuration uses a 3 HP motor requiring 208-230V single-phase, 60 Hz power with a dedicated 20-amp circuit (newer Bucher power units; some older configurations may require 30-amp). Grounding must comply with NEC and local electrical codes. Optional three-phase configurations are not available for QuickCycle models.
What safety certifications does this lift carry?
This lift is ALI Gold Label certified and ETL certified (Intertek), confirming independent third-party validation to ANSI/ALI ALCTV (Construction, Testing, and Validation) and ANSI/UL 201 (Garage Equipment) standards. It's also OSHA compliant. Safety features include single-point mechanical lock release with double-clutch protection, padded overhead shutoff system, rubber door guards, and non-slip surface pads.
What is the warranty coverage for the Challenger CL10-XP9-DPC-QC?
The lift includes a tiered warranty program: 5 years on structural parts (columns, carriage, overhead beam, arms, ramps), 2 years on functional parts (power units, cylinders, cables, hoses, valves, controls), and 1 year on labor. Extended warranty options are available within 30 days of purchase. Registration is required within 30 days at challengerlifts.com/register-your-lift. The warranty is non-transferable and requires professional installation.
What types of vehicles and applications is this lift designed for?
This lift is engineered for express service bays, quick-lube operations, tire rotation and balancing, brake service and inspection, general automotive maintenance on passenger cars, SUVs, and light trucks up to 9,000 lb, and vehicle inspection check lanes. The drive-on pad configuration with flip-up ramps extending from 58 to 75 inches accommodates compact cars through extended-cab trucks without adapter changes.
