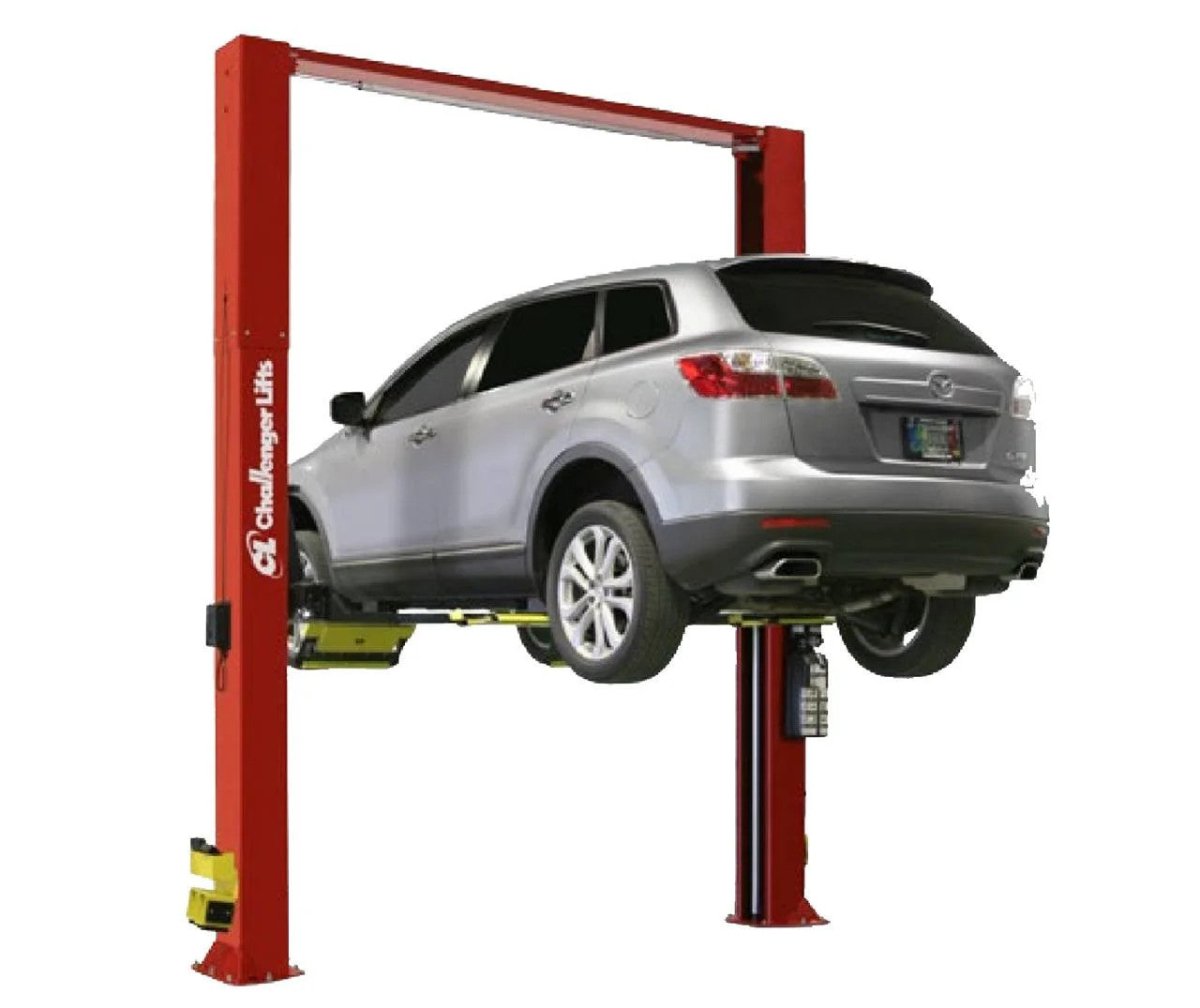

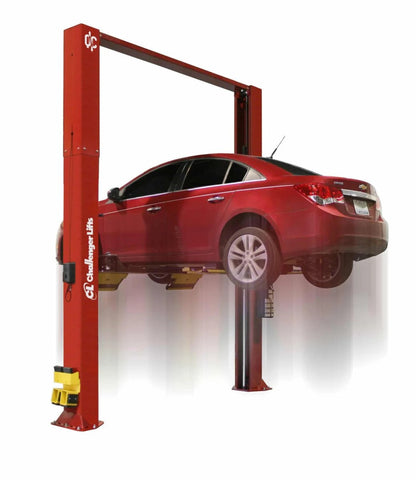

CHALLENGER LIFTS CL10-XP9-DPC 9,000 lb Two-Post Lift
Challenger CL10-XP9-DPC - 9,000 lb Two-Post Lift with Drive-On Pads & Dual Pendant Controls
The Challenger CL10-XP9-DPC is a 9,000 lb capacity Versymmetric two-post automotive lift engineered for express service bay applications. Featuring a drive-on pad system with flip-up ramps and dual pendant controls, this lift achieves industry-leading productivity through reduced spotting time and optional QuickCycle technology that delivers 27-second rise and 17-second lower cycles. ALI-certified and ETL-listed for professional automotive service environments.
Key Features & Benefits

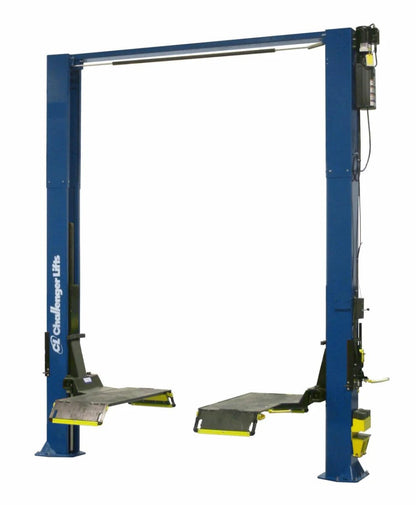

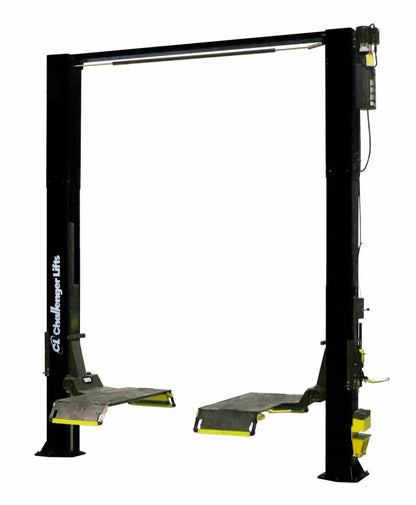

Drive-On Express Pad Configuration
The proprietary drive-on pad system features flip-up ramps with a low-profile 2.25-inch platform height that accommodates lowered vehicles and sports cars common in quick-service traffic. The adjustable platform extends from 58 to 75 inches via lockable flip-up ramps, handling wheelbase variation without adapter changes or tools.
Traditional arm-based two-post lifts require 30-45 seconds of vehicle repositioning when arms don't align perfectly on the first approach. This express pad design addresses that industry-wide challenge by providing drive-on positioning that works accurately on the first attempt, regardless of wheelbase length or vehicle configuration.
This eliminates repositioning delays entirely, which is critical for facilities performing 30+ service cycles per shift. The time savings compound across oil changes, tire rotations, and inspection workflows where accurate first-try spotting directly impacts throughput.
QuickCycle Technology
The optional QuickCycle configuration achieves 27-second rise and 17-second lower cycles compared to the standard 38-second rise timing found on conventional two-post lifts. This represents more than a 2X speed advantage during both raising and lowering operations.
At a typical quick-lube volume of 40 vehicles per day, QuickCycle saves 22 minutes daily versus standard 50-second cycle lifts. Traditional express bay operations lose significant time waiting for lifts to reach working height and return to ground level between service appointments.
This translates to 2-3 additional service slots per 8-hour shift without adding equipment or staff. The speed efficiency compounds across every oil change, tire rotation, and inspection workflow where time-per-vehicle is the primary productivity metric determining bay profitability.

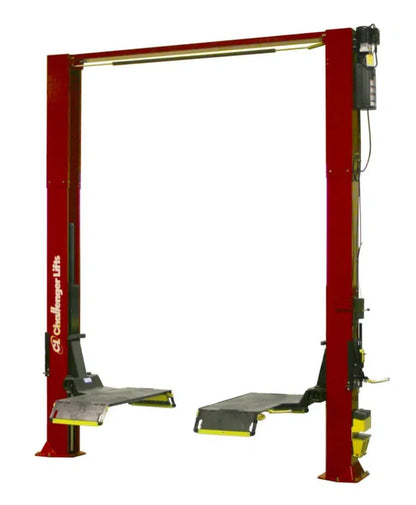

Dual Pendant Control Operational Flexibility
Unlike single-control competitors requiring technicians to walk between columns or reposition vehicles for operator access, this lift features dual pendant controls mounted on both columns. Combined with directSPOT technology, the system allows technicians to spot, lift, and lock from the most ergonomic position relative to vehicle approach angle.
In multi-bay express environments with varying traffic patterns, technicians often approach lifts from different angles depending on adjacent bay occupancy and workflow sequencing. Standard single-control systems force unnecessary walking or awkward positioning when the control column isn't accessible from the natural approach path.
This enables faster vehicle positioning by eliminating the need to walk around the lift before operation. The single-point mechanical lock release operates both columns simultaneously from one side, further reducing movement and time waste during each service cycle.
Heavy-Duty Cable & Pulley System
The lift features oversized 5-inch diameter pulleys that reduce cable stress and extend component service life compared to 3-4 inch standard pulleys. The heavy-duty 5/16-inch cable diameter pairs with a 48-inch elongated carriage design to distribute load stress across the synchronization system.
Many competitor lifts use identical components across 7,000 lb to 12,000 lb capacity ranges without capacity-specific optimization. This one-size-fits-all approach creates premature wear when lifts operate consistently at higher weight thresholds, particularly in commercial environments with heavy SUV and light truck traffic.
Challenger engineered this configuration specifically for 9,000 lb sustained use rather than occasional peak loading. This purpose-built approach extends the service interval for cables and pulleys, reducing maintenance frequency and long-term operating costs in high-volume express service applications.
ALI & ETL Dual Certification
The lift holds Gold ALI certification confirming ANSI/ALI ALCTV safety requirements compliance, along with ETL listing demonstrating ANSI UL 201 electrical safety standards. These aren't optional features but mandatory requirements in many commercial jurisdictions and insurance underwriting scenarios.
Insurance carriers and facility inspectors increasingly require documented third-party certification for automotive lifting equipment. Operations using non-certified equipment risk policy cancellation, liability exposure, and regulatory violations. Some municipalities won't issue business permits without verified ALI compliance for commercial automotive service facilities.
This provides the documentation needed for insurance compliance and regulatory approval. The structural warranty coverage of 5 years to lifetime (depending on components) exceeds typical 1-2 year coverage on budget import lifts, while the extended warranty option requiring authorized professional installation ensures proper setup and ongoing safety.
Ceiling Height Flexibility
The standard configuration with 140-inch overall height (143 inches with cylinders extended) fits 12-foot ceiling environments common in quick-lube facilities, converted gas stations, and older service centers. Optional 2-foot or 3-foot column extensions increase total height to 164 or 176 inches, allowing the same lift platform to adapt to taller facilities.
Many express service operators inherit existing buildings with ceiling constraints that eliminate high-rise lift options. Traditional two-post lifts requiring 14-16 foot ceilings force operators into four-post configurations or expensive facility modifications. The single-phase 208-230V power requirement enables installation without three-phase industrial service.
This eliminates the need to purchase different models for different locations or compromise on lift type due to facility limitations. Fleet operators and multi-location chains can standardize on one lift model across varied building types, simplifying training, parts inventory, and maintenance procedures while lowering electrical infrastructure costs.
Applications & Use Cases
- Express Service Bays: Optimized for quick-lube operations, oil change facilities, and high-throughput maintenance shops performing 30+ service cycles daily
- Tire Centers: Ideal for tire rotation, balancing, and replacement services requiring rapid vehicle access and consistent positioning accuracy
- Brake Service Facilities: Designed for brake inspection, pad replacement, and rotor service where fast lift cycles maximize bay productivity
- State Inspection Lanes: Purpose-built for safety and emissions inspection operations with quick vehicle throughput requirements
- General Automotive Maintenance: Handles fluid services, filter replacement, and light repair work on passenger vehicles
- Fleet Maintenance: Supports light-duty commercial vehicle maintenance for delivery fleets, service vehicles, and municipal operations
- Passenger Cars: Sedans, coupes, and hatchbacks up to 9,000 lb capacity
- SUVs and Crossovers: Full-size and mid-size sport utility vehicles within weight limits
- Light Trucks: 1/2 ton and 3/4 ton non-diesel pickups (diesel models often exceed 9,000 lb capacity)
- Vans: Commercial and passenger vans with wheelbases accommodated by 58-75 inch platform length range
Technical Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 9,000 lb (4,082 kg) |
| Configuration | Versymmetric two-post with drive-on pads |
| Rise Height | 70 inches (1,778 mm) |
| Standard Lift Speed | 38 seconds rise |
| QuickCycle Lift Speed | 27 seconds rise / 17 seconds lower (optional) |
| Specification | Value |
|---|---|
| Overall Height (Standard) | 140 inches / 11'8" (3,556 mm) |
| Overall Height (Cylinders Extended) | 143 inches (3,632 mm) |
| Overall Height (2 ft Extension) | 164 inches / 13'8" (4,166 mm) |
| Overall Height (3 ft Extension) | 176 inches / 14'8" (4,470 mm) |
| Overall Width | 138.5 inches (3,518 mm) |
| Inside of Columns | 110 inches (2,794 mm) |
| Drive-Thru Clearance | 90 inches (2,286 mm) |
| Floor to Overhead Shutoff | 134.5 inches / 11'2.5" (3,416 mm) |
| Specification | Value |
|---|---|
| Platform Height | 2.25 inches (57 mm) |
| Platform Width | 24 inches (610 mm) |
| Platform Length (Adjustable) | 58 / 66.5 / 75 inches (1,473 / 1,689 / 1,905 mm) |
| Width Between Platforms | 31.5 inches (800 mm) |
| Carriage Design | 48 inches (1,219 mm) elongated |
| Pulley Diameter | 5 inches (127 mm) |
| Cable Diameter | 5/16 inch (7.9 mm) |
| Motor | 2 HP |
| Specification | Value |
|---|---|
| Voltage | 208-230V |
| Phase | Single-phase |
| Frequency | 60 Hz |
Installation Requirements
Foundation Requirements
- Minimum Concrete Depth: 4 inches
- Concrete Strength: Consult installation manual and local building codes for specific PSI requirements
- Steel Reinforcement: Required per manufacturer specifications
- Curing Time: Minimum 28 days before installation
- Floor Levelness: Within 3/8 inch across installation area
- Anchor Bolt Placement: Minimum 8 inches from cracks, edges, or expansion joints
- Anchor Bolt Torque: 80 ft-lb (monthly maintenance requirement)
Clearance Requirements
- Ceiling Height: 12 feet minimum (standard model without extensions)
- Ceiling Height (with Extensions): 13'3" to 14'9" (2 ft or 3 ft column extensions)
- Bay Width Recommended: 14 feet
- Bay Depth Recommended: 24 feet
- Temporary Tip-Up Clearance: 12'4" during installation
Power Requirements
- Voltage: 208-230V single-phase, 60 Hz
- Circuit Amperage: Verify with manufacturer for specific power unit configuration (requirements vary by production date)
- Dedicated Circuit: Required
Installation Notes
- Heavy Machinery Required: Forklift, tractor, hoist, or bobcat mandatory for unloading and positioning
- Professional Installation: Recommended and required for extended warranty eligibility
- Permits: Verify local code compliance and permit requirements before installation
Shipping & Delivery
Freight Coverage
Shipping Method: LTL (Less Than Load) freight via 48-53 ft semi truck to business addresses in the contiguous United States.
Delivery Timeframe: 12-21 days from order placement depending on destination (subject to inventory availability).
Shipping Weight: 1,400 lb (packaged lift plus hydraulic power unit).
Delivery Requirements
Unloading Equipment Required: Customer is solely responsible for unloading. Forklift, tractor, hoist, or bobcat with adequate capacity is mandatory. Truck driver does NOT assist with unloading.
Lift Gate Service: NOT available for this product due to weight and size.
Receiver Charge: $135 applies if customer is unprepared to unload upon delivery arrival.
Delivery Coordination: Customer must schedule delivery appointment with freight carrier after shipment notification. Alternative options include warehouse pickup, freight terminal hold, or professional installer direct delivery (additional fees may apply).
Freight Inspection
Upon Delivery: Inspect all packages before signing bill of lading. Note any visible damage on BOL before driver departs.
Concealed Damage: Report within timeframes specified by freight carrier for claim eligibility. Customer is responsible for documenting and filing freight claims for shipping damage.
Warranty Coverage
Standard Warranty Structure
Functional/Operational Parts: Coverage ranges from 1-2 years depending on component classification (verify current terms with manufacturer).
Structural Components: Extended coverage from 5 years to lifetime depending on specific structural elements (verify current terms with manufacturer).
Labor Coverage: Typically 1 year for authorized service (when applicable).
Warranty Requirements
Registration: Product registration typically required within 30 days of purchase at challengerlifts.com to activate warranty coverage.
Installation: Installation by authorized Challenger installer required for extended warranty eligibility. Self-installation or unauthorized installation may limit coverage to base warranty terms.
Transferability: Warranty is non-transferable to subsequent owners. Coverage applies only to original purchaser.
Exclusions: Warranty voids with unauthorized modifications, unapproved parts/accessories, abuse, improper installation, or lack of required maintenance.
Extended Warranty Options
Availability: Extended warranty coverage options may be available for purchase within 30 days of invoice date. Contact manufacturer or authorized dealer for current extended warranty programs and pricing.
Ready to Upgrade Your Express Service Bay?
Get expert guidance on the right lift configuration for your facility. Our team can help with product selection, installation planning, technical specifications, and QuickCycle option availability. Call to confirm included accessories, verify installation requirements for your specific location, and discuss warranty coverage details.
Frequently Asked Questions
What are the technical specifications of the Challenger CL10-XP9-DPC?
The CL10-XP9-DPC has 9,000 lb capacity, 70-inch rise height, 140-inch overall height (standard), 138.5-inch overall width, 110-inch inside column spacing, and 90-inch drive-thru clearance. Platform height is 2.25 inches with adjustable length from 58 to 75 inches. Standard lift speed is 38 seconds rise, while optional QuickCycle delivers 27-second rise and 17-second lower cycles. Power requirements are 208-230V single-phase, 60 Hz with 2 HP motor.
What's included with the CL10-XP9-DPC lift?
Standard equipment includes (4) 1.5-inch rubber spotting blocks, (4) 3-inch rubber spotting blocks, (2) spotting block storage caddies that mount to columns, dual integrated rubber door guards, front and rear flip-up ramps integrated into drive-on pads, mounting hardware, anchor bolts, and installation/operation/maintenance manual. Optional configurations include QuickCycle technology and column extensions (2 ft or 3 ft).
What are the installation requirements for this lift?
Foundation requires minimum 4-inch concrete depth with steel reinforcement and 28-day curing time. Consult installation manual for specific PSI requirements. Ceiling height minimum is 12 feet for standard model (13'3" to 14'9" with optional column extensions). Recommended bay dimensions are 14 feet wide by 24 feet deep. Electrical requirements are 208-230V single-phase dedicated circuit (amperage varies by power unit - verify with manufacturer). Heavy machinery (forklift, tractor, hoist, or bobcat) is mandatory for unloading and positioning. Professional installation is recommended and required for extended warranty eligibility.
What vehicles can this lift accommodate?
The CL10-XP9-DPC handles passenger cars (sedans, coupes, hatchbacks), SUVs and crossovers, light trucks up to 9,000 lb (1/2 ton and 3/4 ton non-diesel recommended), and commercial/passenger vans. The adjustable platform length (58 to 75 inches) accommodates various wheelbases. The 2.25-inch low-profile platform height works with lowered vehicles and sports cars. Primary applications include express service bays, quick-lube operations, tire centers, brake service, state inspection lanes, and fleet maintenance for light-duty commercial vehicles.
What safety certifications does the CL10-XP9-DPC have?
The lift holds ALI Gold Certification confirming ANSI/ALI ALCTV compliance, ETL listing demonstrating ANSI UL 201 electrical safety standards, and meets OSHA requirements for automotive lift operations. Safety features include dual single-point mechanical lock release system, overhead padded shutoff bar with integrated kill switch, automatic arm restraints, integrated rubber door guards, cable equalization system with 5-inch pulley and 5/16-inch cable, and mechanical pawl safety lock engagement. Annual inspection is required per ANSI/ALI ALOIM standard.
What is the warranty coverage for this lift?
Warranty structure includes functional/operational parts coverage (1-2 years depending on component), structural component coverage (5 years to lifetime depending on specific elements), and labor coverage (typically 1 year when applicable). Product registration is required within 30 days at challengerlifts.com. Installation by authorized Challenger installer is required for extended warranty eligibility. Warranty is non-transferable to subsequent owners and voids with unauthorized modifications, unapproved parts, abuse, improper installation, or lack of required maintenance. Extended warranty options may be available for purchase within 30 days of invoice. Contact manufacturer or dealer to verify current warranty terms and extended coverage availability.
How is the lift shipped and delivered?
Ships via LTL freight on 48-53 ft semi truck with 1,400 lb shipping weight. Delivery timeframe is 12-21 days depending on location. Customer is solely responsible for unloading - forklift, tractor, hoist, or bobcat with adequate capacity is mandatory. Truck driver does NOT assist. Lift gate service is NOT available. Receiver charge of $135 applies if unprepared to unload. Customer must schedule delivery appointment with freight carrier after shipment notification. Inspect all packages before signing bill of lading and note any visible damage on BOL. Alternative delivery options include warehouse pickup, freight terminal hold, or professional installer direct delivery (additional fees may apply).
What is QuickCycle technology and is it worth the upgrade?
QuickCycle is an optional factory-installed configuration that delivers 27-second rise and 17-second lower cycles compared to standard 38-second rise timing. This represents more than 2X speed advantage during both raising and lowering operations. At typical quick-lube volume of 40 vehicles per day, QuickCycle saves 22 minutes daily, translating to 2-3 additional service slots per 8-hour shift. The productivity improvement is most valuable for express service bays, tire centers, and operations where time-per-vehicle directly determines bay profitability. Contact dealer for QuickCycle availability and pricing for your facility's specific throughput requirements.
